Page 1529 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual switched-on time. Lights switched on manually cannot be switched off by All-Activity-Module. Rear interior lamp (E15/3) is actuated directly by opening of rear door and not via All-Activit

Page 1530 of 4133

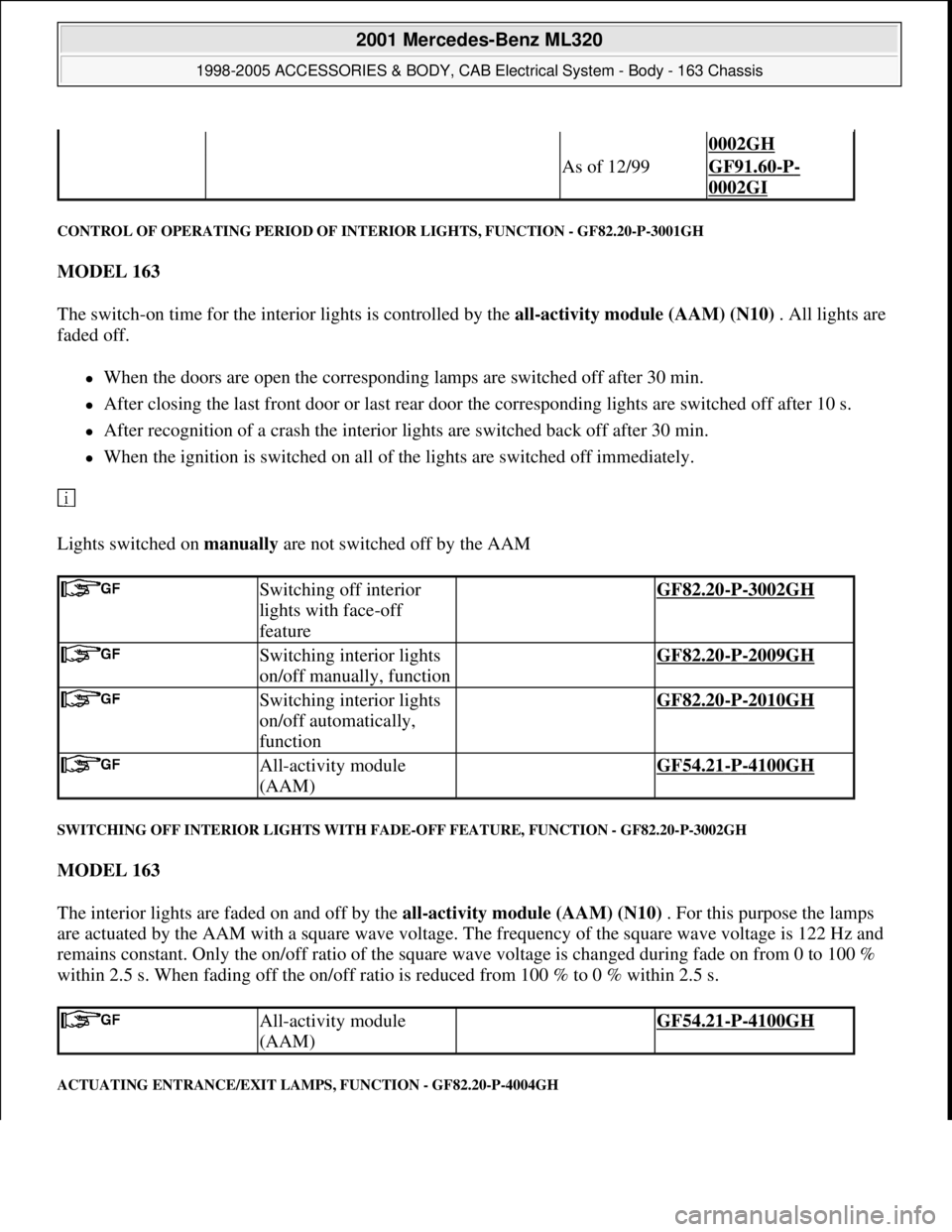

MERCEDES-BENZ ML320 1997 Complete Repair Manual CONTROL OF OPERATING PERIOD OF INTERIOR LIGHTS, FUNCTION - GF82.20-P-3001GH MODEL 163 The switch-on time for the interior lights is controlled by the all-activity module (AAM) (N10) . All lights ar

Page 1531 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODEL 163 as of 1.12.99 The entrance and exit lamps in the front and rear doors (E17/3, E17/4, E17/5 and E17/6) are actuated by the extended activity module (EAM) when the corresponding door is ope

Page 1532 of 4133

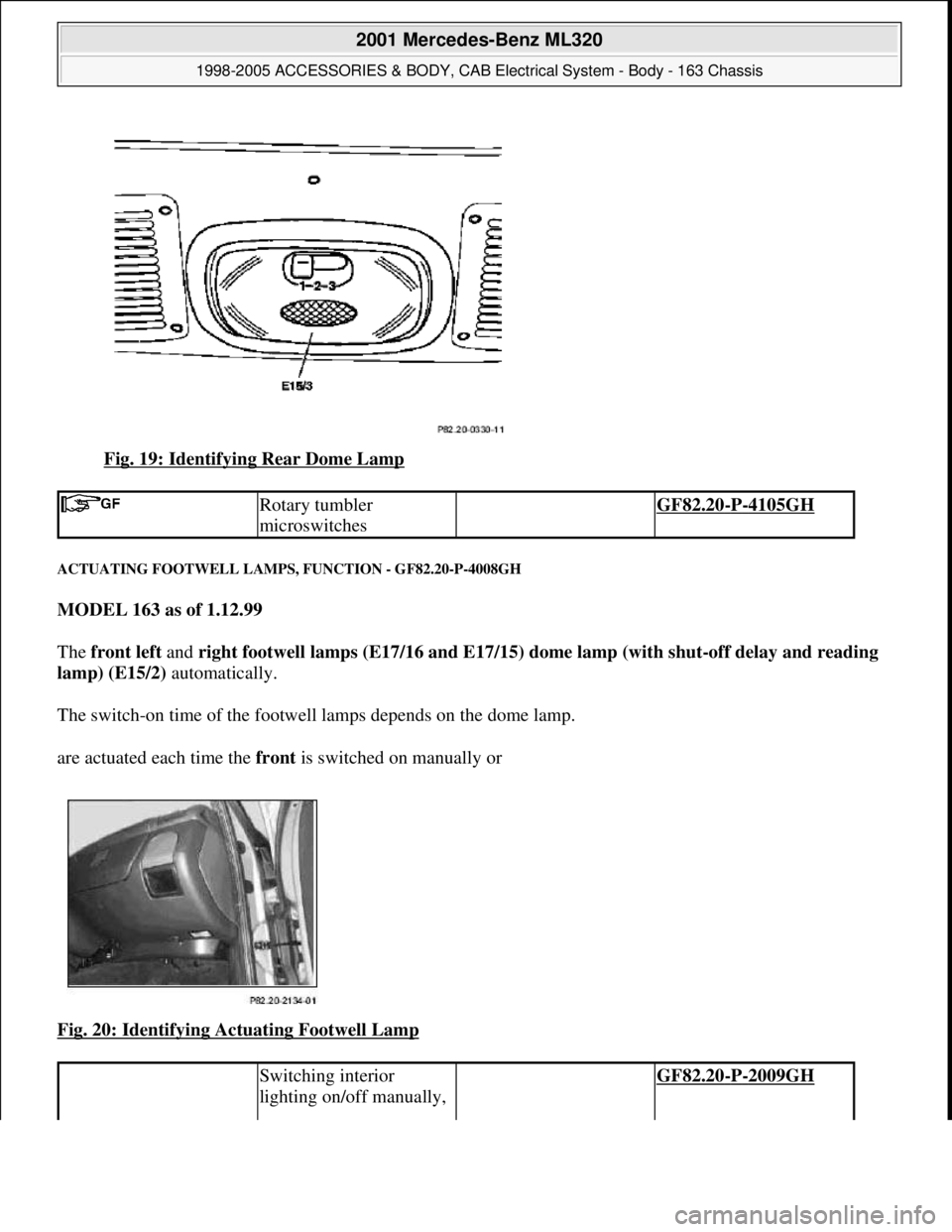

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 19: Identifying Rear Dome Lamp ACTUATING FOOTWELL LAMPS, FUNCTION - GF82.20-P-4008GH MODEL 163 as of 1.12.99 The front left and right footwell lamps (E17/16 and E17/15) dome lamp (with shut-o

Page 1533 of 4133

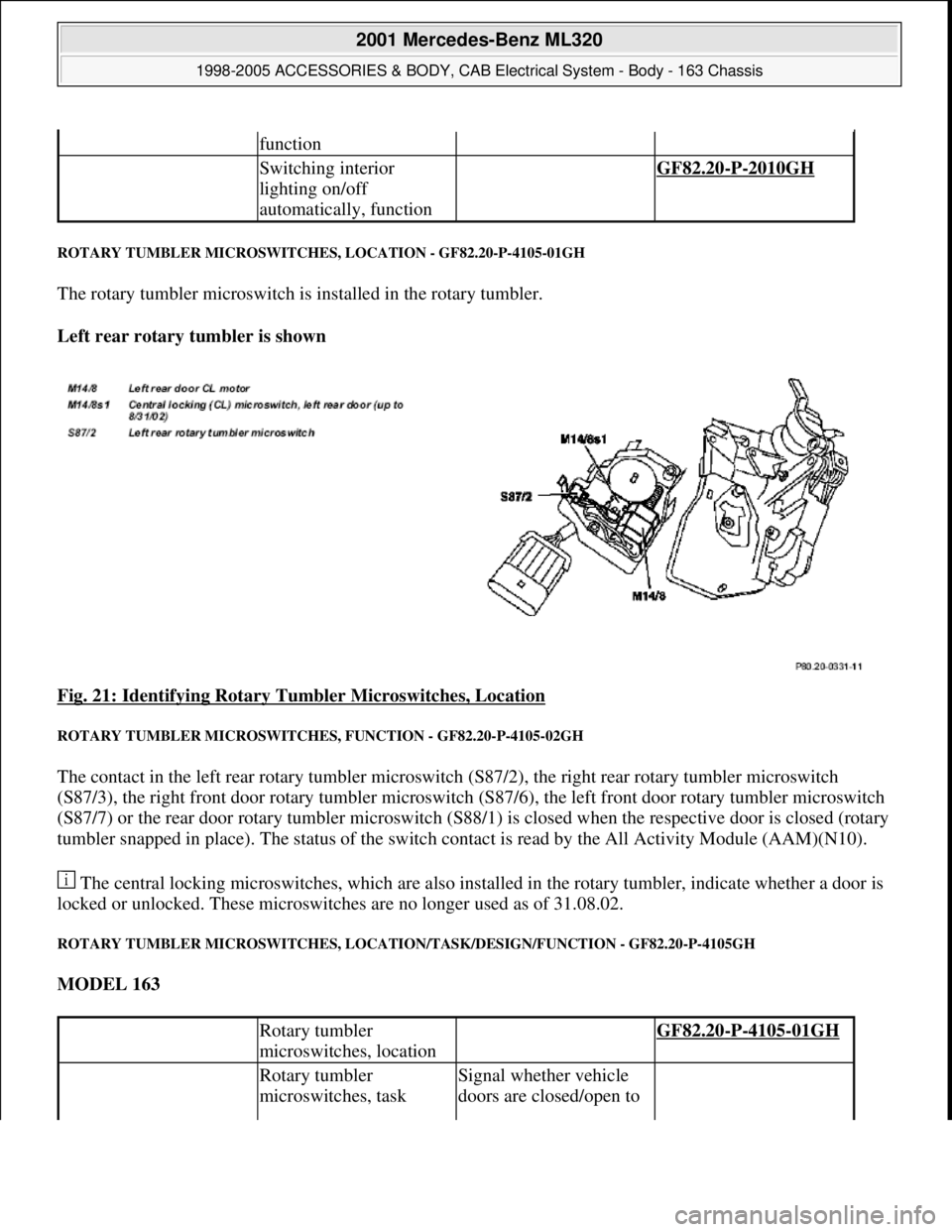

MERCEDES-BENZ ML320 1997 Complete Repair Manual ROTARY TUMBLER MICROSWITCHES, LOCATION - GF82.20-P-4105-01GH The rotary tumbler microswitch is installed in the rotary tumbler. Left rear rotary tumbler is shown Fig. 21: Identifying Rotary Tumble

Page 1534 of 4133

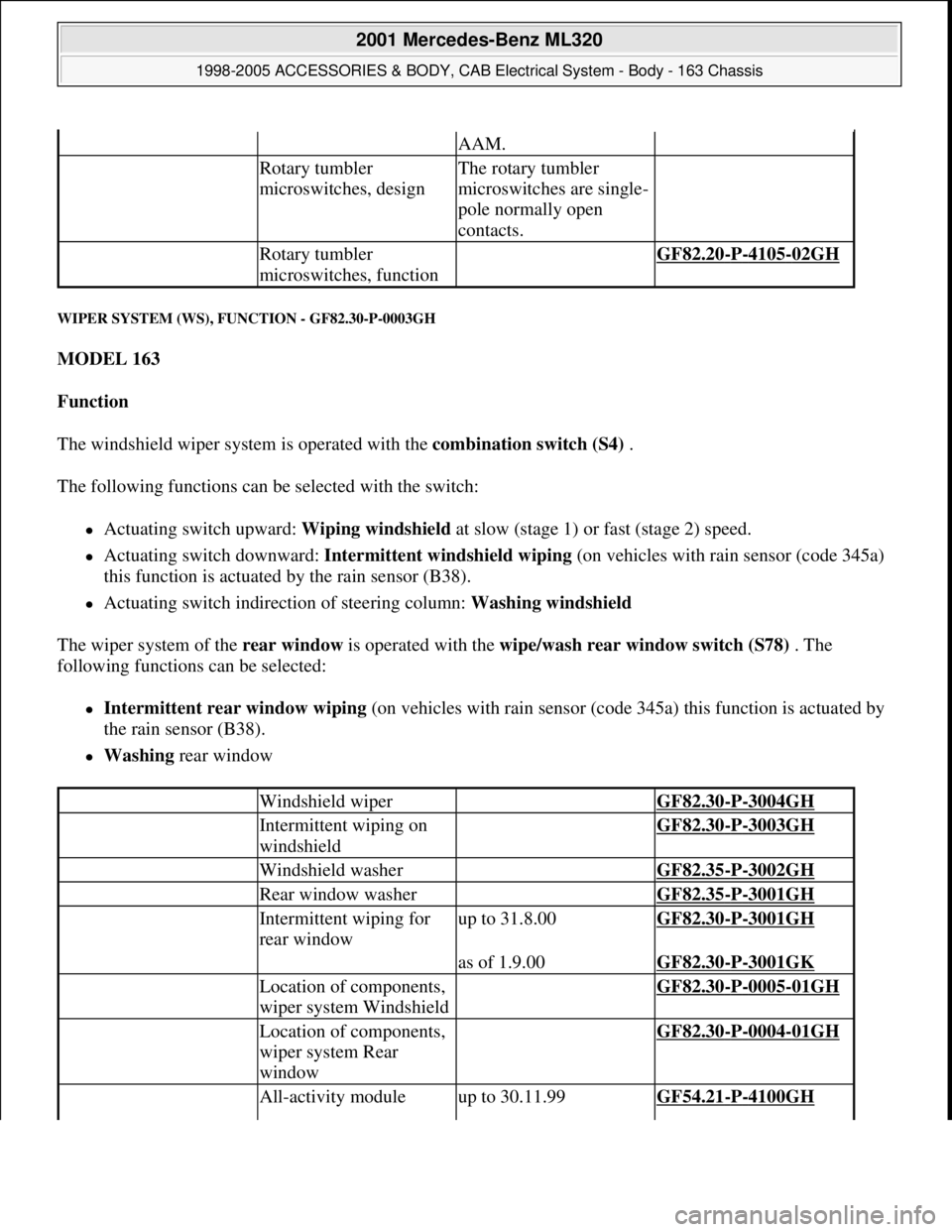

MERCEDES-BENZ ML320 1997 Complete Repair Manual WIPER SYSTEM (WS), FUNCTION - GF82.30-P-0003GH MODEL 163 Function The windshield wiper system is operated with the combination switch (S4) . The following functions can be selected with the swit

Page 1535 of 4133

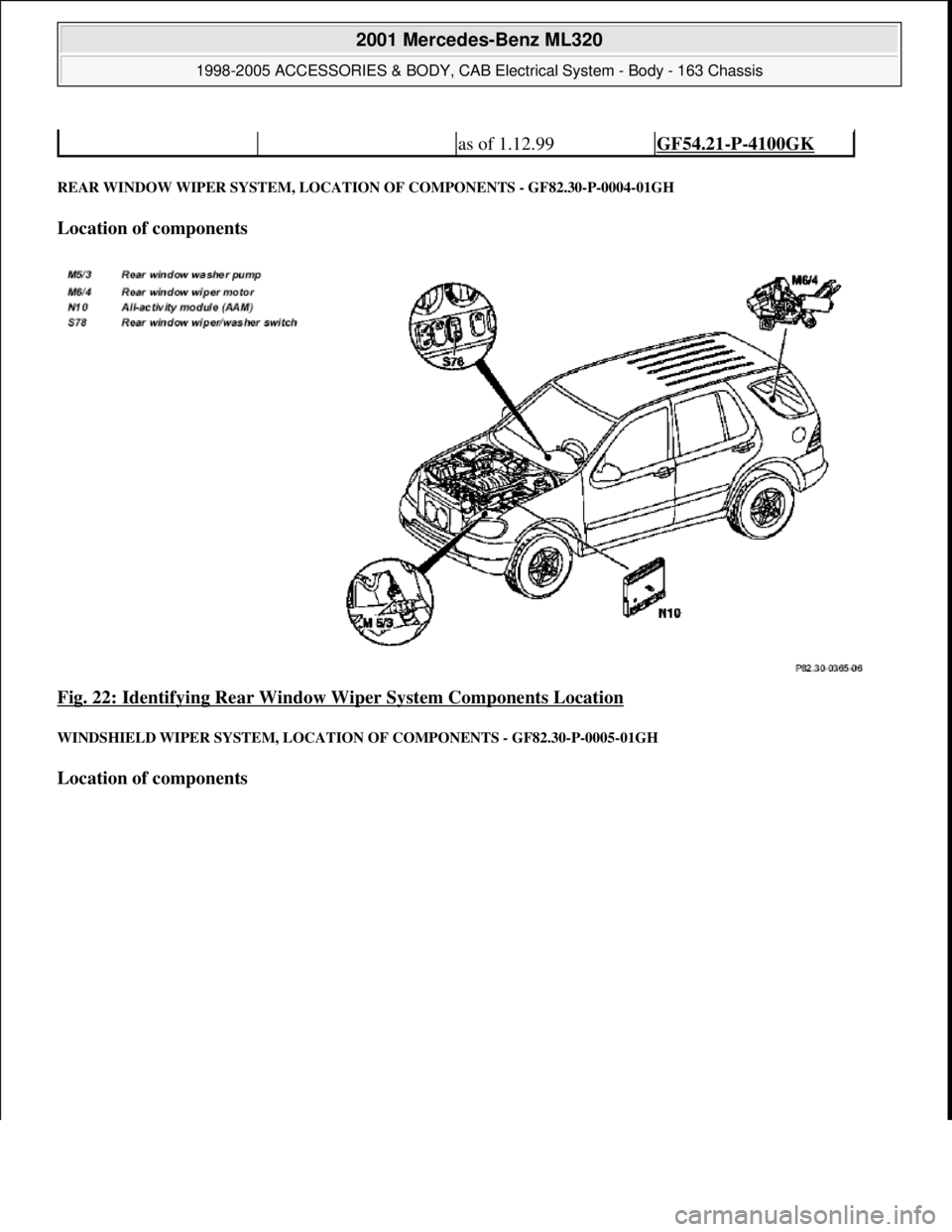

MERCEDES-BENZ ML320 1997 Complete Repair Manual REAR WINDOW WIPER SYSTEM, LOCATION OF COMPONENTS - GF82.30-P-0004-01GH Location of components Fig. 22: Identifying Rear Window Wiper System Components Location WINDSHIELD WIPER SYSTEM, LOCATION O

Page 1536 of 4133

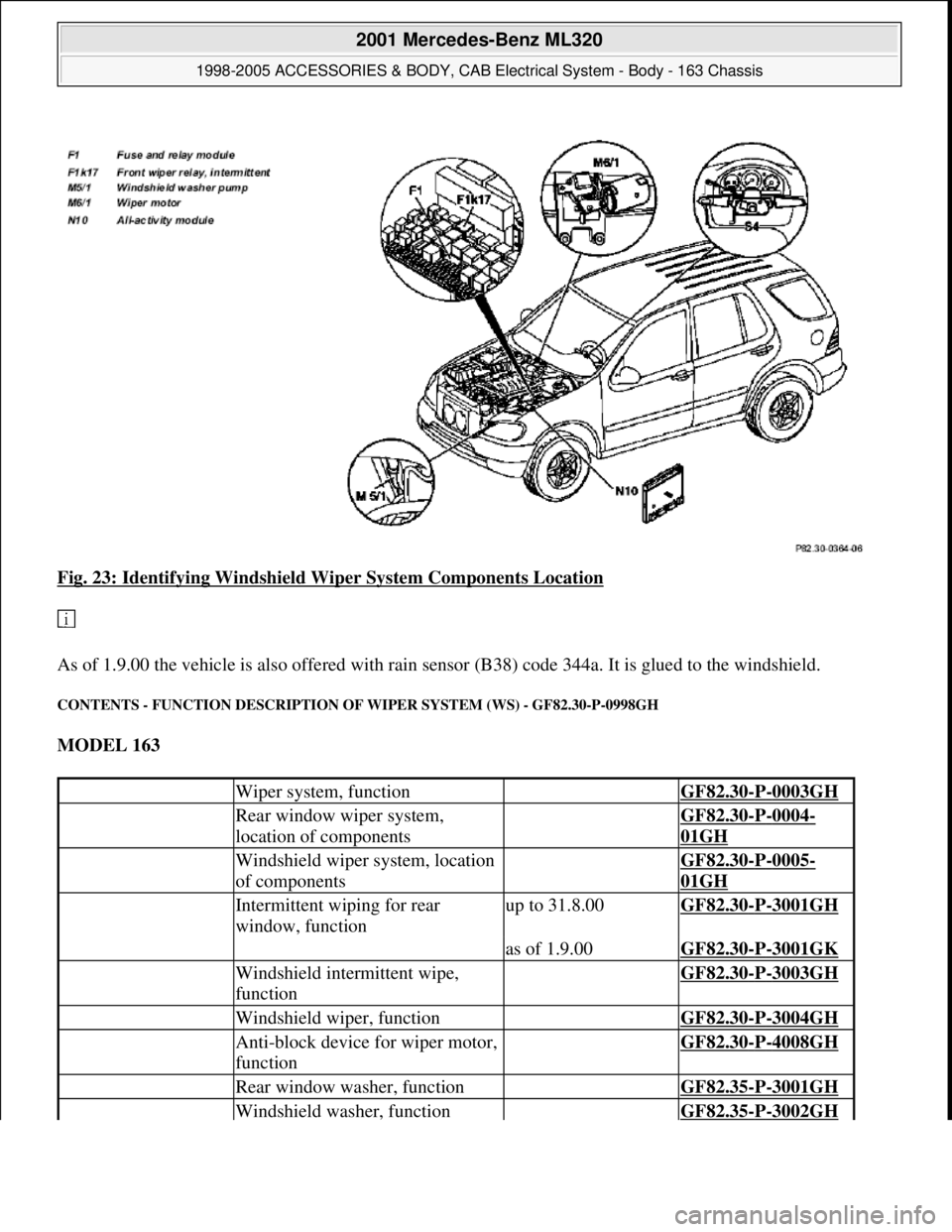

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 23: Identifying Windshield Wiper System Components Location As of 1.9.00 the vehicle is also offered with rain sensor (B38) code 344a. It is glued to the windshield. CONTENTS - FUNCTION DESC
