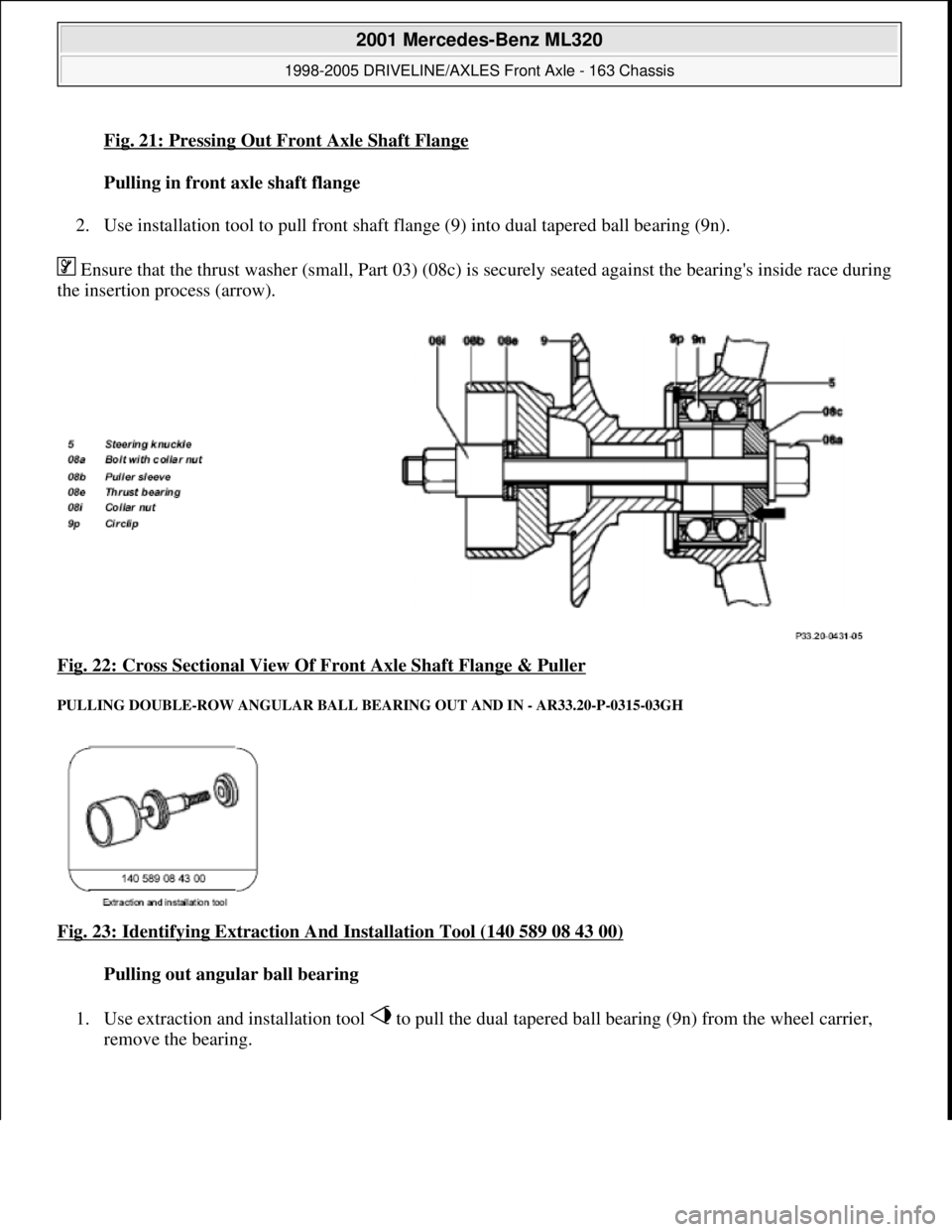

Page 2537 of 4133
Fig. 21: Pressing Out Front Axle Shaft Flange
Pulling in front axle shaft flange
2. Use installation tool to pull front shaft fla  nge (9) into dual tapered ball bearing (9n).
 Ensure that the thrust washer (small, Part 03) (08c) is   securely seated against the bearing's inside race during
the insertion pr  ocess (arrow).
Fig. 22: Cross Sectional View Of   Front Axle Shaft Flange & Puller

PULLING DOUBLE-ROW ANGULAR BALL BE ARING OUT AND IN - AR33.20-P-0315-03GH
Fig. 23: Identifying Extraction A nd Installation Tool (140 589 08 43 00)
Pulling out angular ball bearing
1. Use extraction and installation tool     to pull the dual tapered ball bearing (9n) from the wheel carrier,
remove the bearin
g.

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 18 © 2006 Mitchell Repair Information Company, LLC.

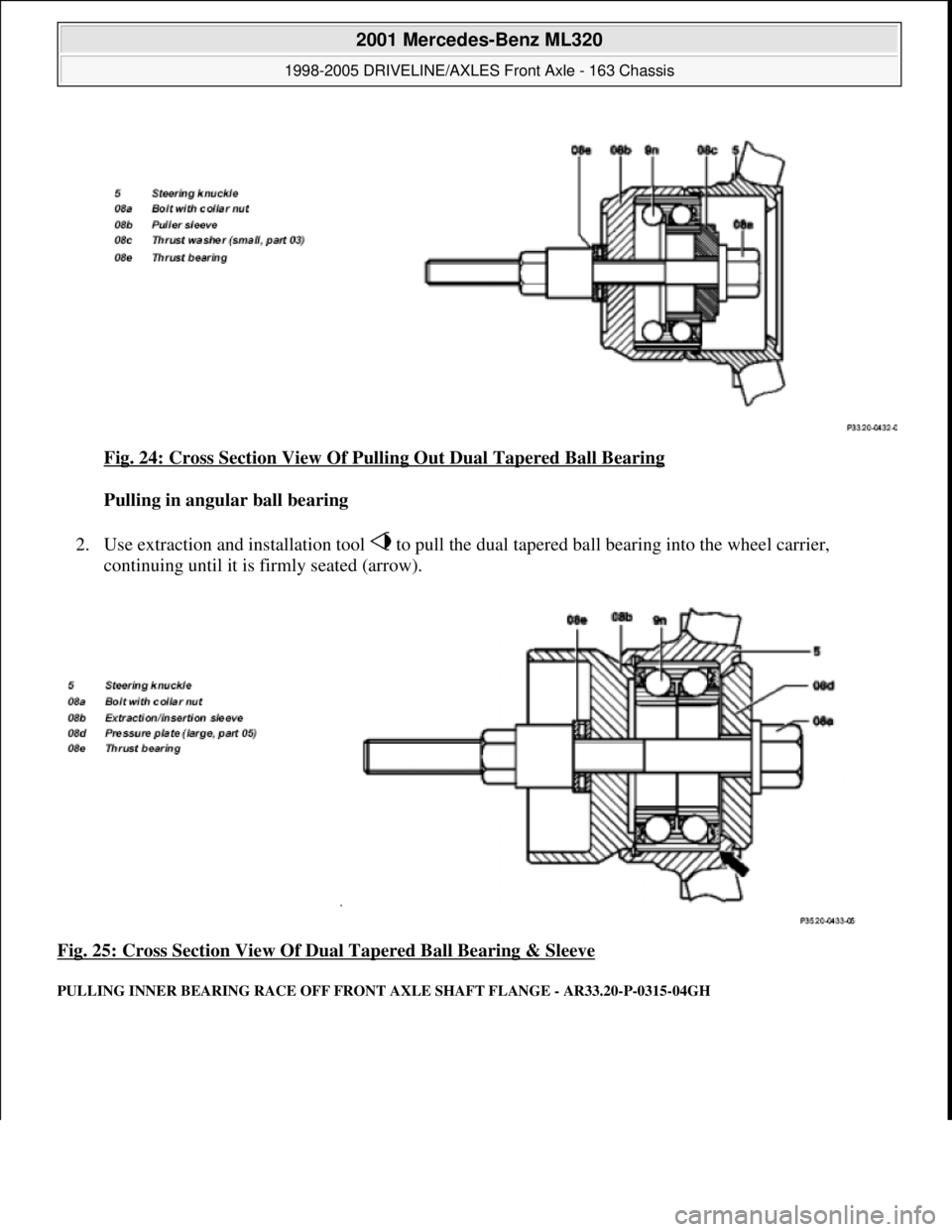

        Page 2538 of 4133
Fig. 24: Cross Section View Of Pulling Out Dual Tapered Ball Bearing
Pulling in angular ball bearing
2. Use extraction and installation tool   to pull the dual tapered ball bearing into the wheel carrier,
continuing until it is firmly seated (arrow).
Fig. 25: Cross Section View Of Dual Tapered Ball Bearing & Sleeve

PULLING INNER BEARING RACE OFF FRONT AXLE SHAFT FLANGE - AR33.20-P-0315-04GH

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 19 © 2006 Mitchell Repair Information Company, LLC.

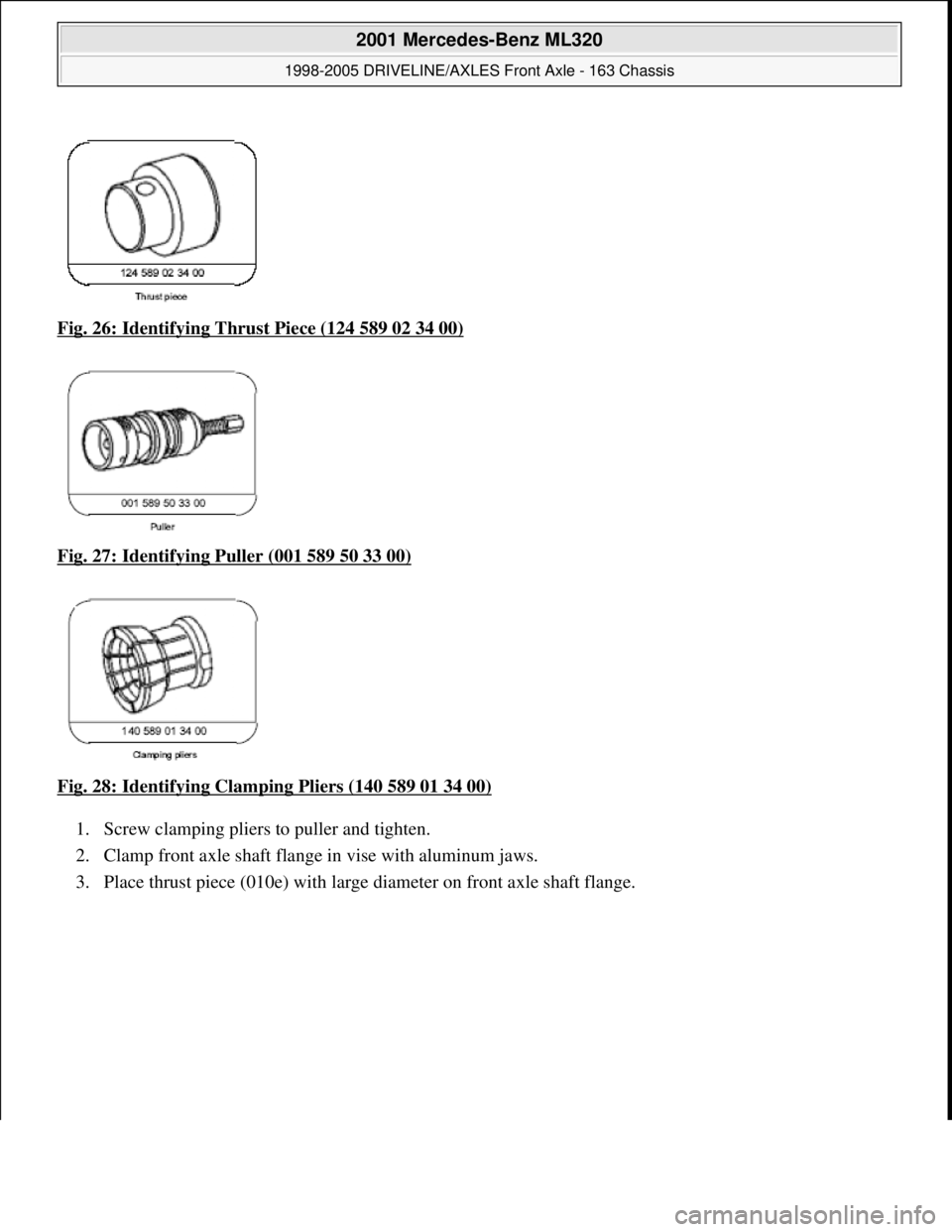

        Page 2539 of 4133
Fig. 26: Identifying Thrust Piece (124 589 02 34 00)
Fig. 27: Identifying Puller (001 589 50 33 00)

Fig. 28: Identifying Clamping Pliers (140 589 01 34 00)

1. Screw clamping pliers   to puller and tighten.
2. Clamp front axle shaft flange   in vise with aluminum jaws.
3. Place thrust piec  e (010e) with lar
ge diameter on front axle shaft flange.

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 20 © 2006 Mitchell Repair Information Company, LLC.

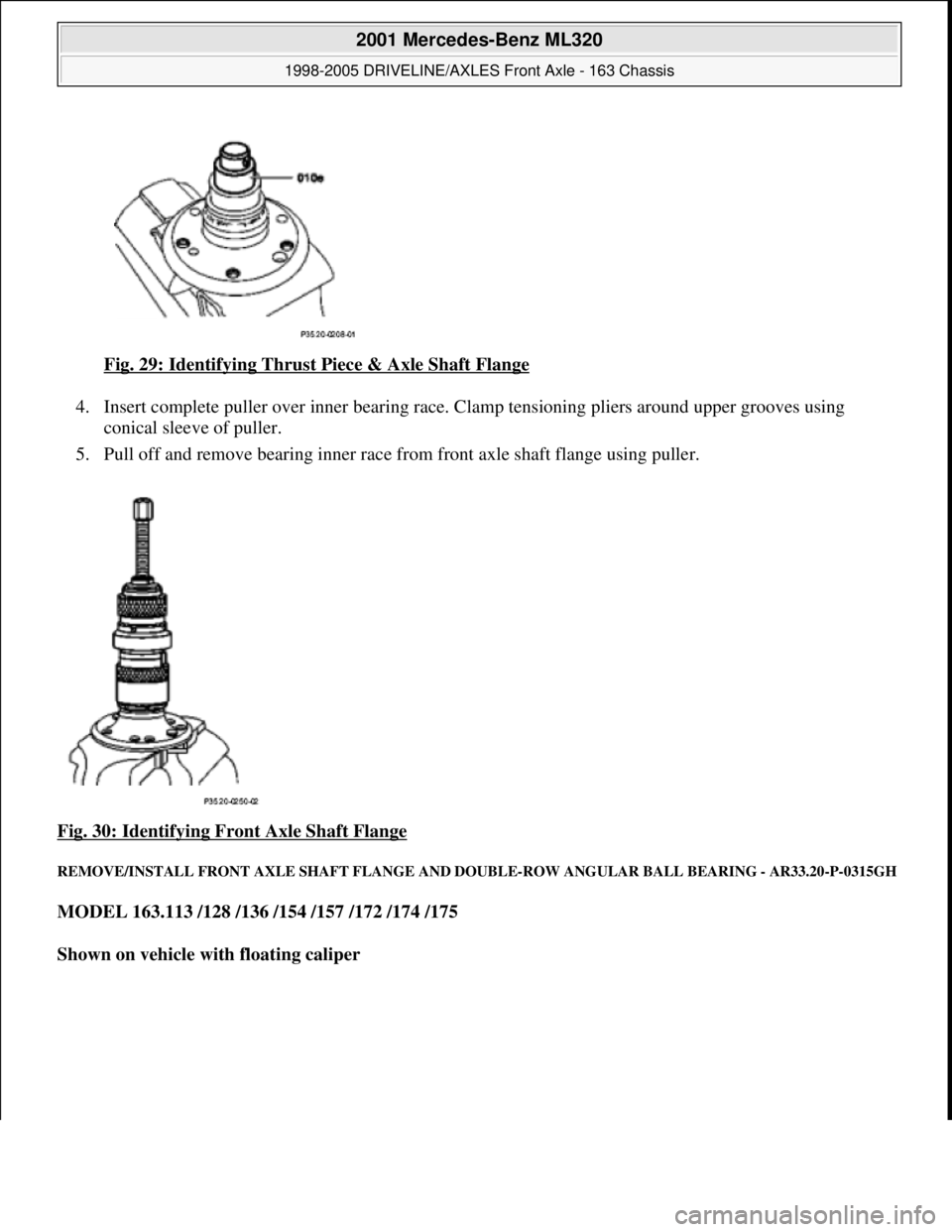

        Page 2540 of 4133
Fig. 29: Identifying Thrust  Piece & Axle Shaft Flange
4. Insert complete puller over i  nner bearing race. Clamp tensioning pliers around upper grooves using
conical sleeve of puller.
5. Pull off and remove beari  ng inner race from front axle  shaft flange using puller.
Fig. 30: Identifying Front Axle Shaft Flange

REMOVE/INSTALL FRONT AXLE SHAF  T FLANGE AND DOUBLE-ROW ANGULAR BALL BEARING - AR33.20-P-0315GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
Shown on vehicle with floating caliper

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 21 © 2006 Mitchell Repair Information Company, LLC.


        Page 2541 of 4133
Fig. 31: Identifying Front Axle Shaft Flange And Double-Row Angular Ball Bearing Components
Modification notes
7.8.00Pulling out front axle
shaft flange, changed
Step 2:
The front axle shaft flange is now pulled out using a
stationary press and not with the auxiliary hydraulic
press.
AR33.20-P-
0315-01GI

 Remove/Install
1Remove steering knuckle AR33.25-P-
0400GH
2Pull out front axle shaft flange (9)
 AR33.20-P-
0315-01GI
 Extractor toolFig. 19
 Extraction and insertion toolFig. 20
3Detach circlip (9p)
 Installation: Ensure that the circlip
seats securely in the wheel carrier.
 Pliers for locking ring*WH58.30-Z-
1009-02A
4Pull double-row angular ball bearing
(9n) out of steering knuckle AR33.20-P-
0315-03GH
 Extraction and insertion toolFig. 20
 AR33.20-P-
0315-04GH

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 22 © 2006 Mitchell Repair Information Company, LLC.

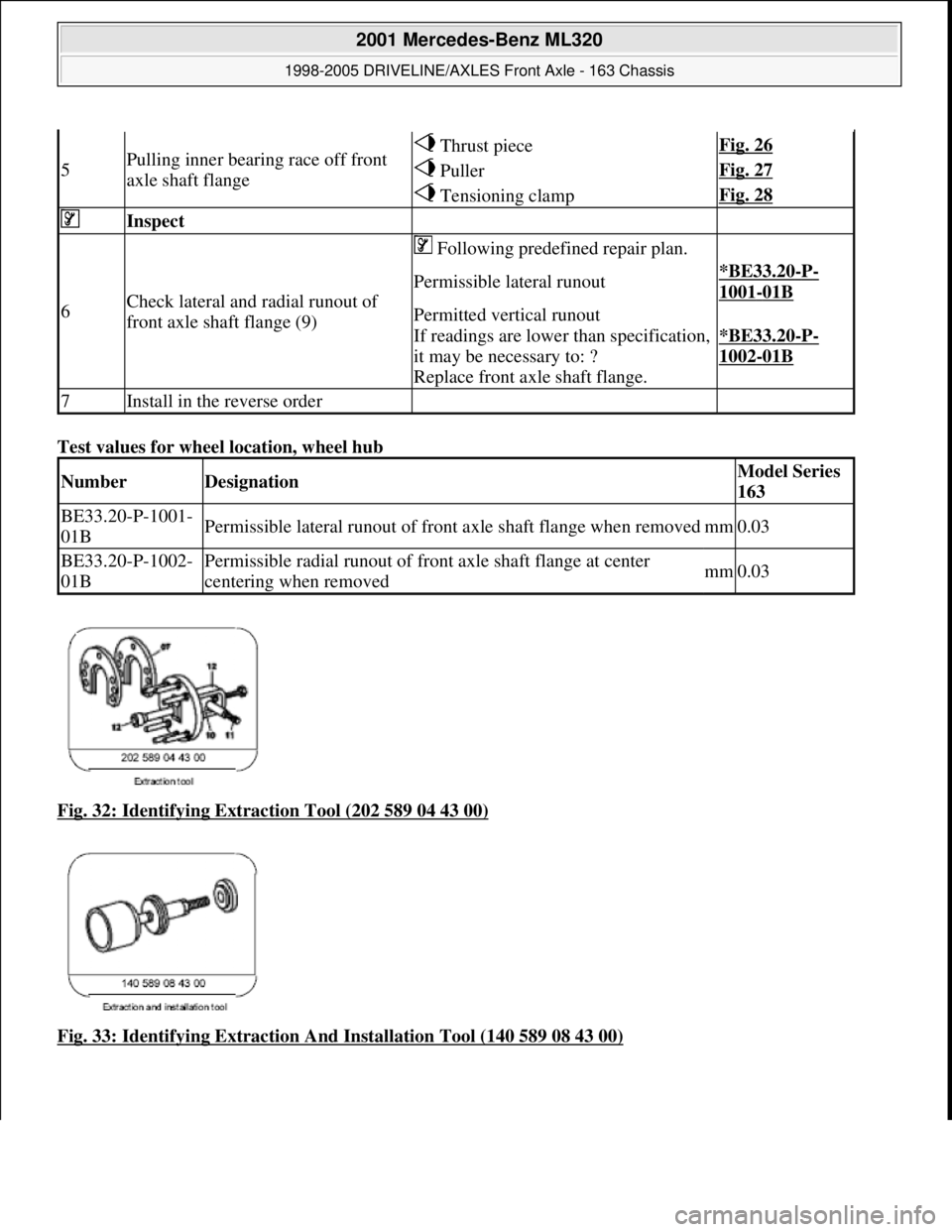

        Page 2542 of 4133

Test values for wheel location, wheel hub
Fig. 32: Identifying Extraction Tool (202 589 04 43 00)

Fig. 33: Identifying Extraction A  nd Installation Tool (140 589 08 43 00)
5Pulling inner bearing race off front
axle shaft flange Thrust pieceFig. 26
 PullerFig. 27
 Tensioning clampFig. 28
 Inspect
6Check lateral and radial runout of
front axle shaft flange (9)
 Following predefined repair plan.
Permissible lateral runout*BE33.20-P-
1001-01B
Permitted vertical runout
If readings are lower than specification,
it may be necessary to: ?
Replace front axle shaft flange.
*BE33.20-P-
1002-01B
7Install in the reverse order
NumberDesignationModel Series
163
BE33.20-P-1001-
01BPermissible lateral runout   of front axle shaft flange when removedmm0.03
BE33.20-P-1002-
01BPermissible radial r  unout of front axle shaft flange at center
centering when removedmm0.03

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 23 © 2006 Mitchell Repair Information Company, LLC.


        Page 2543 of 4133
Fig. 34: Identifying Thrust Piece (124 589 02 34 00)
Fig. 35: Identifying Puller (001 589 50 33 00)

Fig. 36: Identifying Clamping Pliers (140 589 01 34 00)

Commercially available tools
CHECKING FOLLOWER JOINT  OF STEERING KNUCKLE MOUN T (INSTALLED) - AR33.20-P-0426GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
NumberDesignation
WH58.30-Z-1009-02APliers for circlip, inner

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 24 © 2006 Mitchell Repair Information Company, LLC.


        Page 2544 of 4133
Fig. 37: Identifying Follower Joint Of Steering Knuckle Mount
PRESSING OUT AND ATTACHING SUPPORTING JOINT AT STEERING KNUCKLE - AR33.20-P-0440-01GH
 Wheel location, hub
Fig. 38: Identifying Prong Wrench (385 589 00 07 00)

Remove
1. Push supporting joint (7) out of steering knuckle using suitable tool.
 Inspect
1Raise front of vehicle
2Check rubber boot (8f) for cracks and damage
3
Check play in follower joint (8) by firmly
pulling and pushing on the front wheel while
feeling the ball joint at the same time.
If inspection indicates that upper
control (6) arm should be replaced,
proceed as follows: ?

Upper control arm, removal and
installationAR33.20-P-
0500GH
NumberDesignationModel Series 163
BA33.20-P-1003-01DLocking slotted nut, supporting joint to steering knuckleNM300

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 25 © 2006 Mitchell Repair Information Company, LLC.
