Page 777 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 310
Index
Te ch n ica l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Tires Driving instructions .............................

310
Index
Te ch n ica l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Tires Driving instructions ................................................. 177
Rims and tires ...........................................................288
Rotating wheels ......................................................... 241
Tire inflation pressure .............................................250
Tire replacement .......................................................240
Winter driving instructions .................................... 180
Tow-away alarm ................................................................ 36 Switching off ................................................................ 36
Towing the vehicle .........................................................255
Stranded vehicle .......................................................259
Transmission selector lever, manually unlocking 259
Trailer operation ............................................................ 198
Trailer towing ................................................................. 190
Transmission .................................................................. 165
Transmission control - LOW RANGE mode ...............209
Transmission fluid level ...............................................234
Transmission selector lever, manually unlocking ....259
Traveling abroad ............................................................ 182
Trip computer ................................................................... 83
Trip odometer ................................................................... 80
Trunk ................................................................................. 34
Opening ........................................................................ 28
Trunk lamp ...................................................................... 111 Turn signal failure ........................................................... 91
Turn signal lamp, side .................................................. 266
Turn signals ......................................................................90
UUnlocking the vehicle ...................................................... 27VVanity mirrors ................................................................ 113
Vehicle jack .................................................................... 237
Vehicle keys ......................................................................24
Ve h i c l e t o o l s
Screwdriver ............................................................... 237WWarranty coverage ........................................................ 284
Washing the vehicle ..................................................... 280
What you should know at the gas station .................. 212
Wheel bolt wrench ........................................................ 237
Wheels ............................................................................ 240 Changing wheels ...................................................... 245

Page 778 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 311
Index
Te ch n ica l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Light alloy wheels .......................................

Page 779 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual

Page 780 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Service and Literature
Your authorized Mercedes-Benz Light Truck Center has trained technicians and original Mercedes-Benz parts to service your vehicle properly. For expert advice and quality servic

Page 781 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Order No. 6515 6246 13 Part No. 163 584 28 83 USA Edition B 2001

Page 782 of 4133

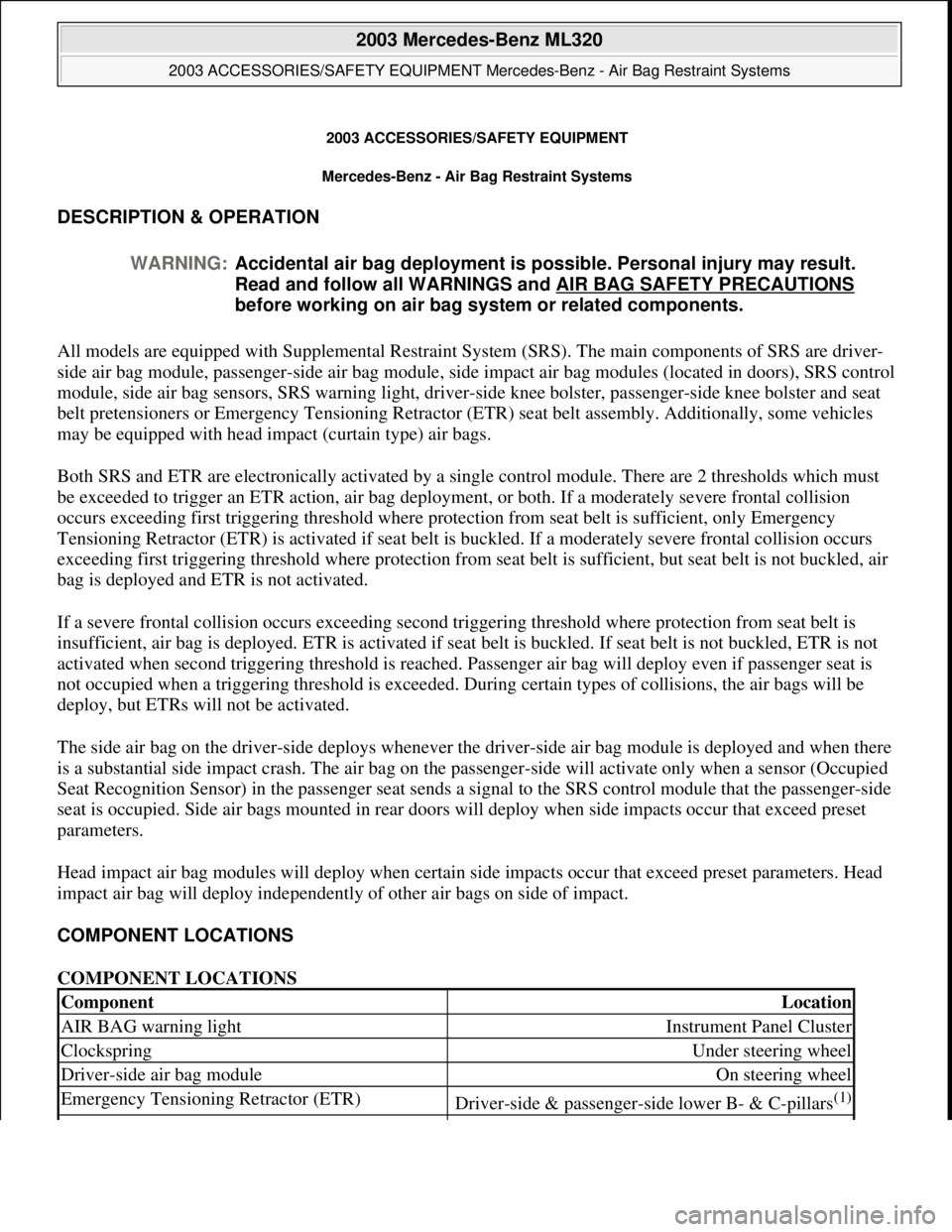

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2003 ACCESSORIES/SAFETY EQUIPMENT
Mercedes-Benz - Air Bag Restraint Systems
DESCRIPTION & OPERATION
All models are equipped with Supplemental Restraint System (SRS). The main components of SRS are d

2003 ACCESSORIES/SAFETY EQUIPMENT
Mercedes-Benz - Air Bag Restraint Systems
DESCRIPTION & OPERATION
All models are equipped with Supplemental Restraint System (SRS). The main components of SRS are driver-
side air bag module, passenger-side air bag module, side impact air bag modules (located in doors), SRS control
module, side air bag sensors, SRS warning light, driver-side knee bolster, passenger-side knee bolster and seat
belt pretensioners or Emergency Tensioning Retractor (ETR) seat belt assembly. Additionally, some vehicles
may be equipped with head impact (curtain type) air bags.
Both SRS and ETR are electronically activated by a single control module. There are 2 thresholds which must
be exceeded to trigger an ETR action, air bag deployment, or both. If a moderately severe frontal collision
occurs exceeding first triggering threshold where protection from seat belt is sufficient, only Emergency
Tensioning Retractor (ETR) is activated if seat belt is buckled. If a moderately severe frontal collision occurs
exceeding first triggering threshold where protection from seat belt is sufficient, but seat belt is not buckled, air
bag is deployed and ETR is not activated.
If a severe frontal collision occurs exceeding second triggering threshold where protection from seat belt is
insufficient, air bag is deployed. ETR is activated if seat belt is buckled. If seat belt is not buckled, ETR is not
activated when second triggering threshold is reached. Passenger air bag will deploy even if passenger seat is
not occupied when a triggering threshold is exceeded. During certain types of collisions, the air bags will be
deploy, but ETRs will not be activated.
The side air bag on the driver-side deploys whenever the driver-side air bag module is deployed and when there
is a substantial side impact crash. The air bag on the passenger-side will activate only when a sensor (Occupied
Seat Recognition Sensor) in the passenger seat sends a signal to the SRS control module that the passenger-side
seat is occupied. Side air bags mounted in rear doors will deploy when side impacts occur that exceed preset
parameters.
Head impact air bag modules will deploy when certain side impacts occur that exceed preset parameters. Head
impact air bag will deploy independently of other air bags on side of impact.
COMPONENT LOCATIONS
COMPONENT LOCATIONS WARNING:Accidental air bag deployment is possible. Personal injury may result.
Read and follow all WARNINGS and AIR BAG SAFETY PRECAUTIONS

before working on air bag system or related components.
ComponentLocation
AIR BAG warning lightInstrument Panel Cluster
ClockspringUnder steering wheel
Driver-side air bag moduleOn steering wheel
Emergency Tensioning Retractor (ETR)Driver-side & passenger-side lower B- & C-pillars(1)

2003 Mercedes-Benz ML320
2003 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems

2003 Mercedes-Benz ML320
2003 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:32:07 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
me
Saturday, October 02, 2010 3:32:10 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.

Page 783 of 4133

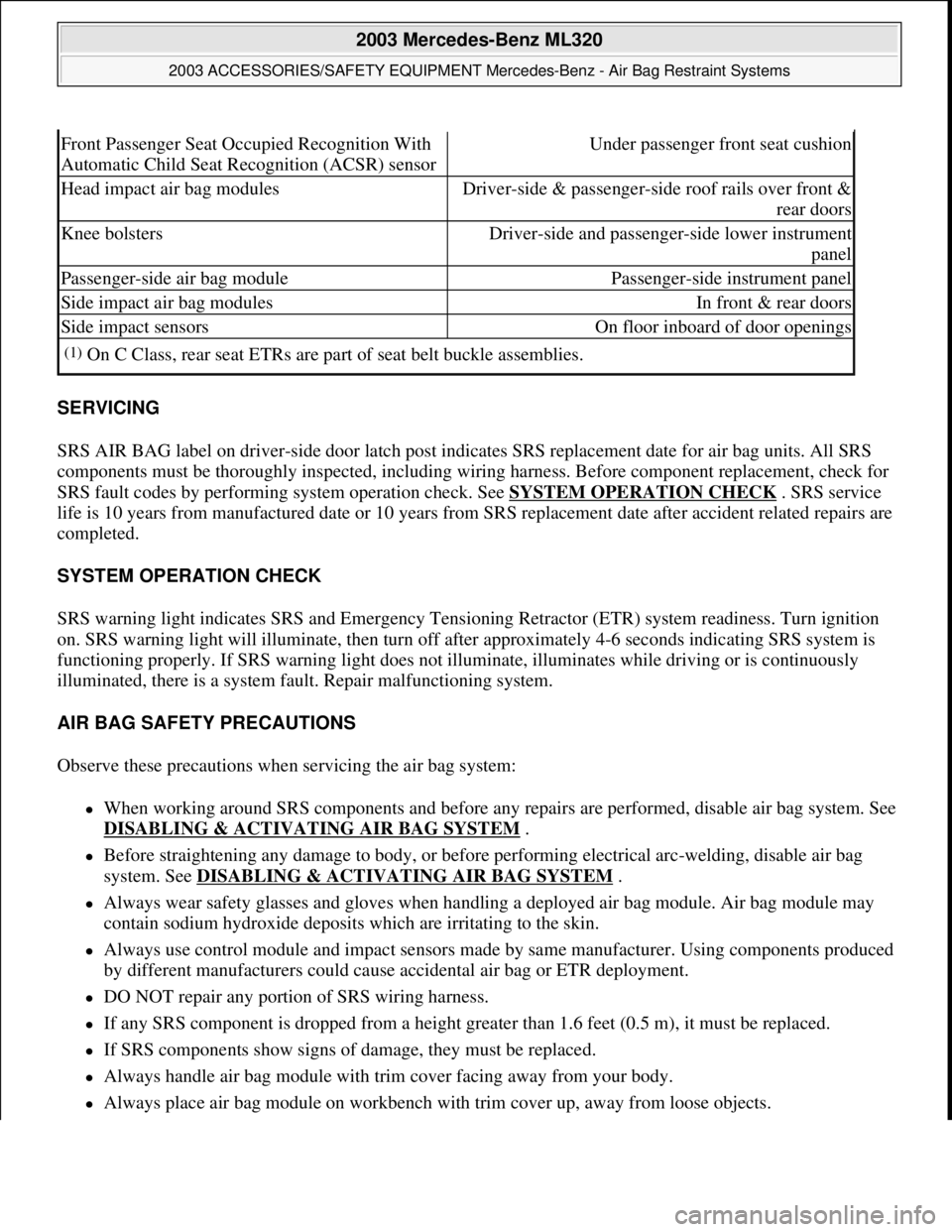

MERCEDES-BENZ ML320 1997 Complete Repair Manual SERVICING
SRS AIR BAG label on driver-side door latch post indicates SRS replacement date for air bag units. All SRS
components must be thoroughly inspected, including wiring harness. Before compone

SERVICING
SRS AIR BAG label on driver-side door latch post indicates SRS replacement date for air bag units. All SRS
components must be thoroughly inspected, including wiring harness. Before component replacement, check for
SRS fault codes by performing system operation check. See SYSTEM OPERATION CHECK
. SRS service
life is 10 years from manufactured date or 10 years from SRS replacement date after accident related repairs are
completed.
SYSTEM OPERATION CHECK
SRS warning light indicates SRS and Emergency Tensioning Retractor (ETR) system readiness. Turn ignition
on. SRS warning light will illuminate, then turn off after approximately 4-6 seconds indicating SRS system is
functioning properly. If SRS warning light does not illuminate, illuminates while driving or is continuously
illuminated, there is a system fault. Repair malfunctioning system.
AIR BAG SAFETY PRECAUTIONS
Observe these precautions when servicing the air bag system:
When working around SRS components and before any repairs are performed, disable air bag system. See
DISABLING & ACTIVATING AIR BAG SYSTEM
.
Before straightening any damage to body, or before performing electrical arc-welding, disable air bag
system. See DISABLING & ACTIVATING AIR BAG SYSTEM
.
Always wear safety glasses and gloves when handling a deployed air bag module. Air bag module may
contain sodium hydroxide deposits which are irritating to the skin.
Always use control module and impact sensors made by same manufacturer. Using components produced
by different manufacturers could cause accidental air bag or ETR deployment.
DO NOT repair any portion of SRS wiring harness.
If any SRS component is dropped from a height greater than 1.6 feet (0.5 m), it must be replaced.
If SRS components show signs of damage, they must be replaced.
Always handle air bag module with trim cover facing away from your body.
Always place air bag module on workbench with trim cover up, away from loose objects.
Front Passenger Seat Occupied Recognition With
Automatic Child Seat Recognition (ACSR) sensorUnder passenger front seat cushion
Head impact air bag modulesDriver-side & passenger-side roof rails over front &
rear doors
Knee bolstersDriver-side and passenger-side lower instrument
panel
Passenger-side air bag modulePassenger-side instrument panel
Side impact air bag modulesIn front & rear doors
Side impact sensorsOn floor inboard of door openings
(1)On C Class, rear seat ETRs are part of seat belt buckle assemblies.

2003 Mercedes-Benz ML320
2003 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems
me
Saturday, October 02, 2010 3:32:07 PMPage 2 © 2006 Mitchell Repair Information Company, LLC.

Page 784 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual DO NOT expose any SRS component to temperatures in excess of 212°F (100°C).
DO NOT expose any SRS component to grease, oil or cleaning agents.
DISABLING & ACTIVATING AIR BAG SYSTEM
DISABL
