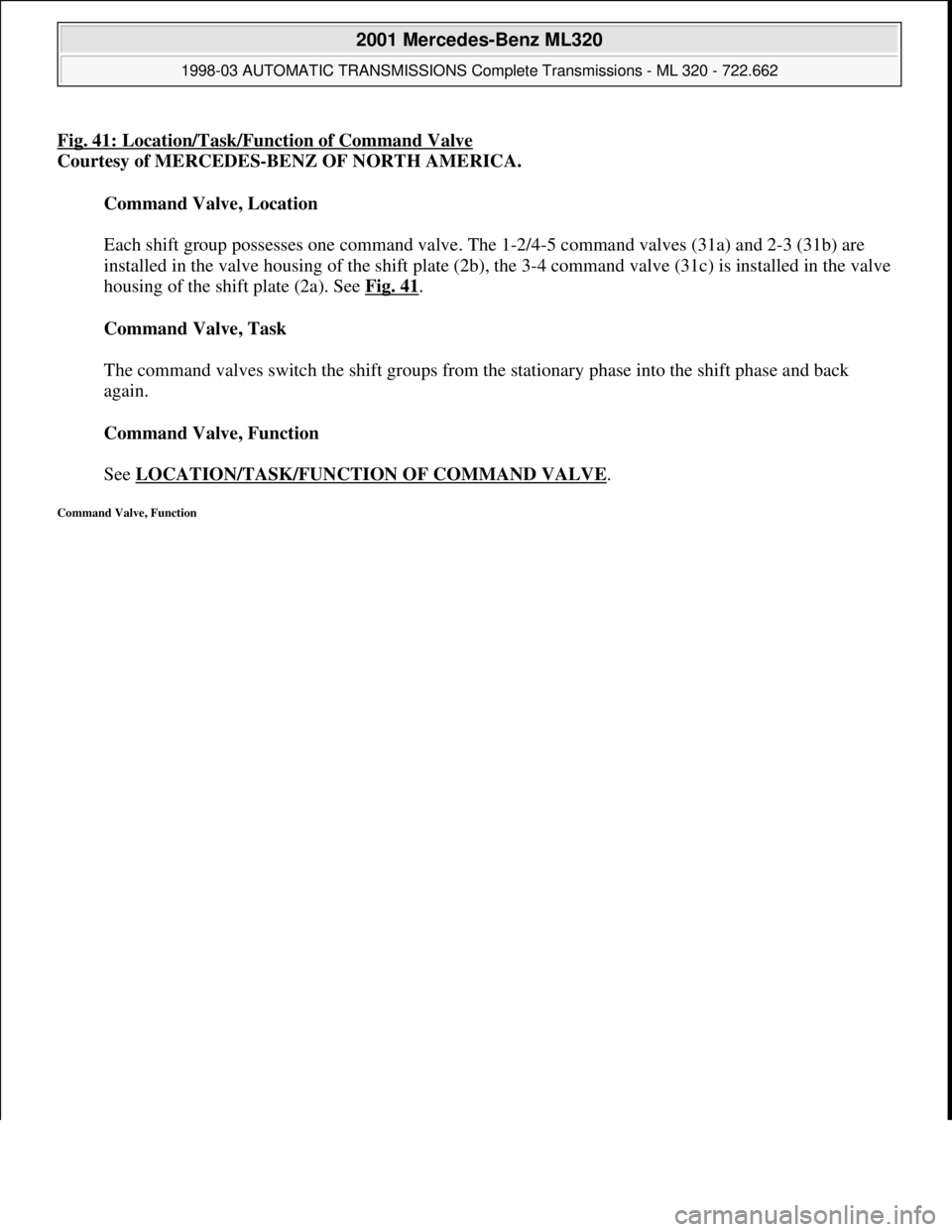

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 41: Location/Task/Function of Command Valve Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Command Valve, Location Each shift group possesses one command valve. The 1-2/4-5 command valves (31a)

Page 1250 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:26 PMPage 81 © 2006 Mitchell Repair Information Company,

Page 1251 of 4133

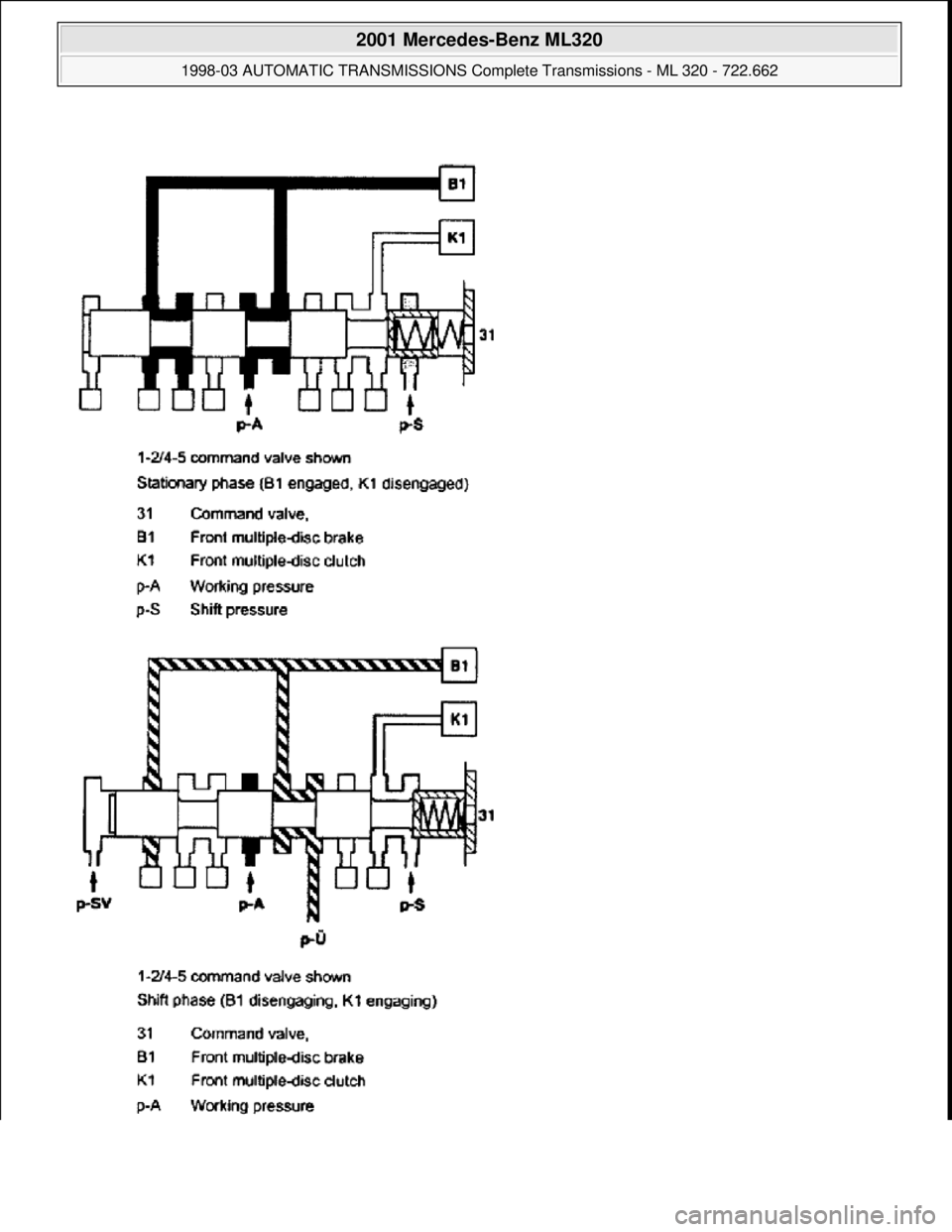

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 42: Command Valve, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation When the end face is unpressurized (stationary phase), th e working pressure is directed to the actua

Page 1252 of 4133

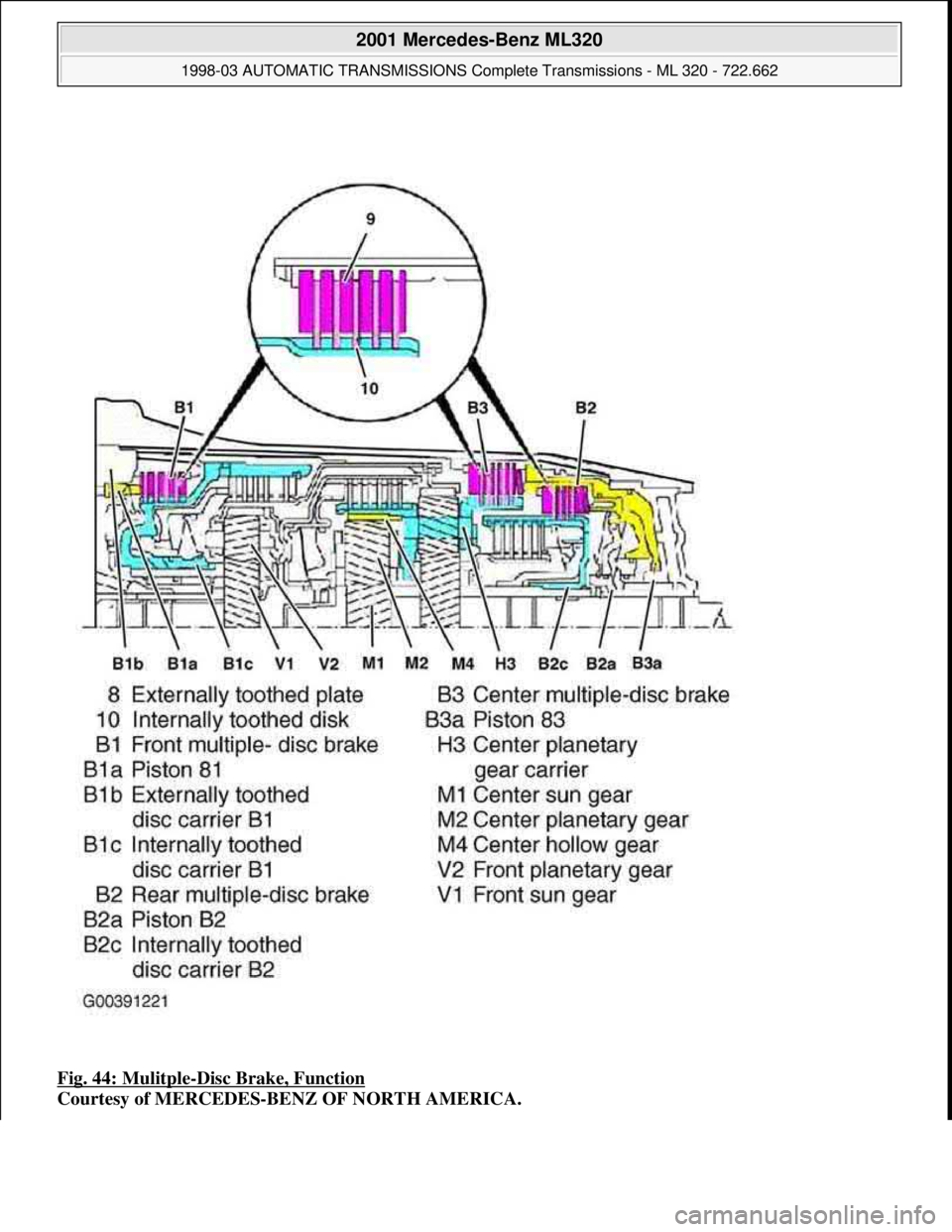

MERCEDES-BENZ ML320 1997 Complete Repair Manual Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Multiple-Disc Brake, Location Three multiple-disc brakes arranged as the front, center and rear multiple-disc brake (B1, B3, B2) are located in the plan

Page 1253 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 44: Mulitple-Disc Brake, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturda

Page 1254 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Operation If the piston (B1a) on multiple-disc brake B1 is subjected to oil pressure, it presses the internal and external discs of the disc set together. See Fig. 44 . The front sun gear (v1) on t

Page 1255 of 4133

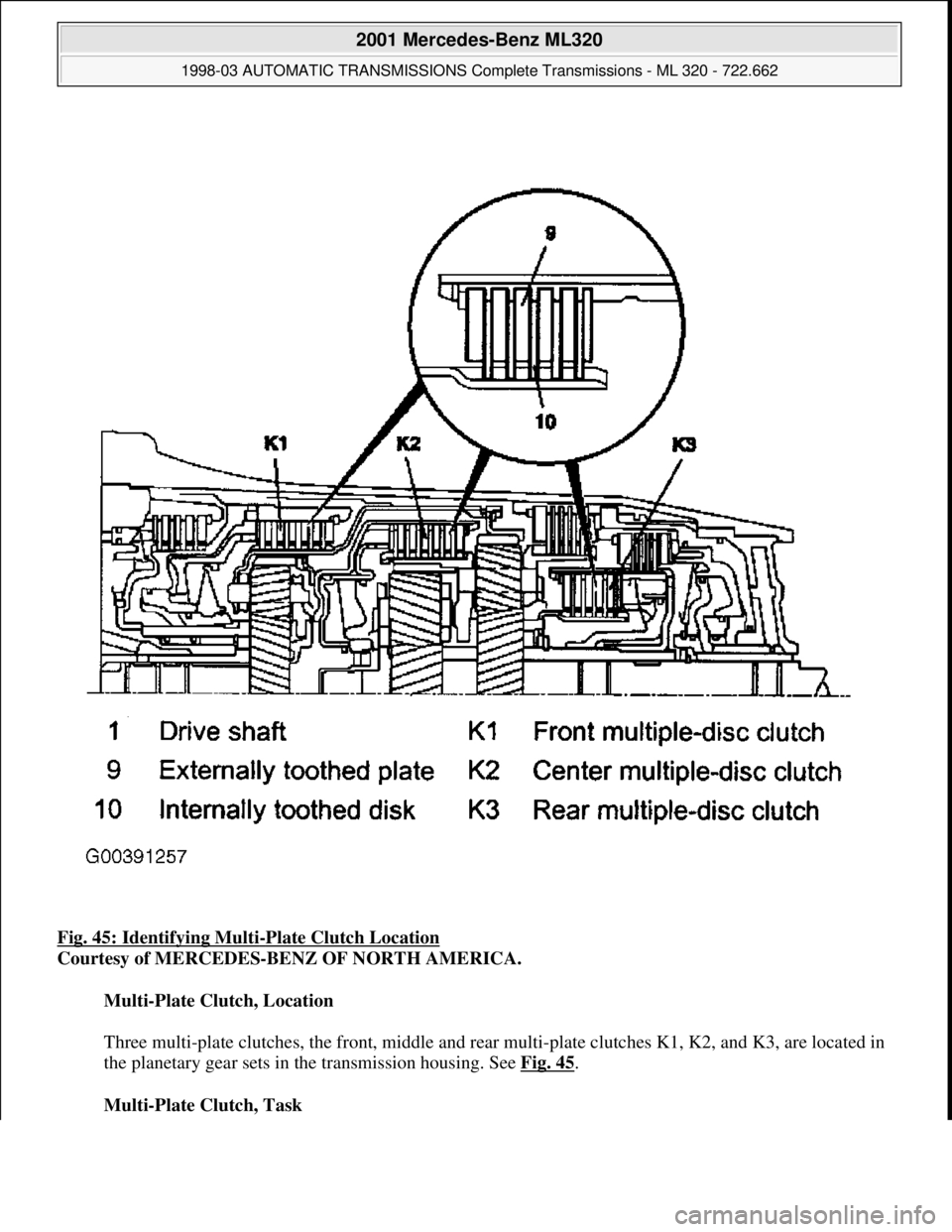

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 45: Identifying Multi-Plate Clutch Location Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Multi-Plate Clutch, Location Three multi-plate clutches, the front , middle and rear multi-plat

Page 1256 of 4133

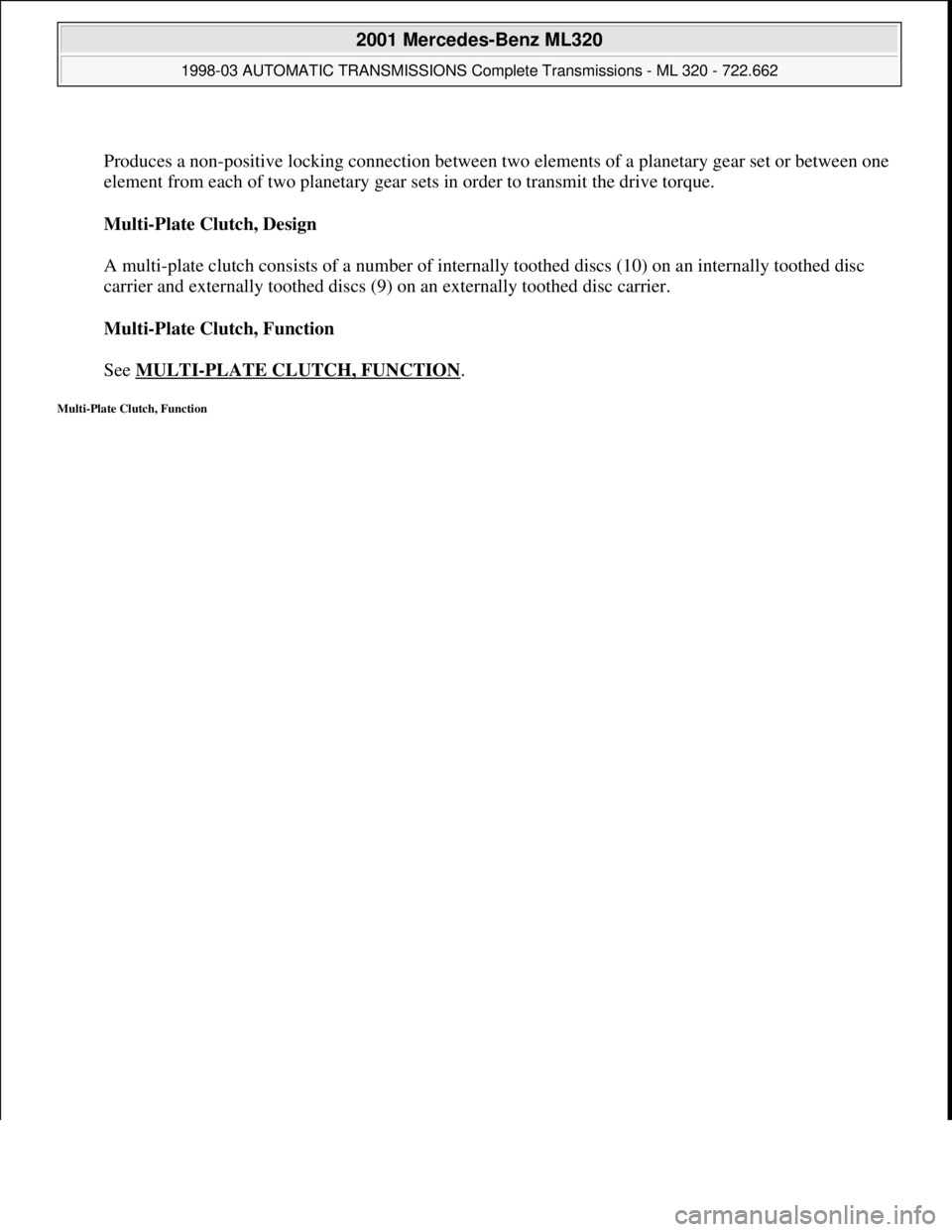

MERCEDES-BENZ ML320 1997 Complete Repair Manual Produces a non-positive locking connection between two elements of a planetary gear set or between one element from each of two planetary gear sets in order to transmit the drive torque. Multi-Pla
