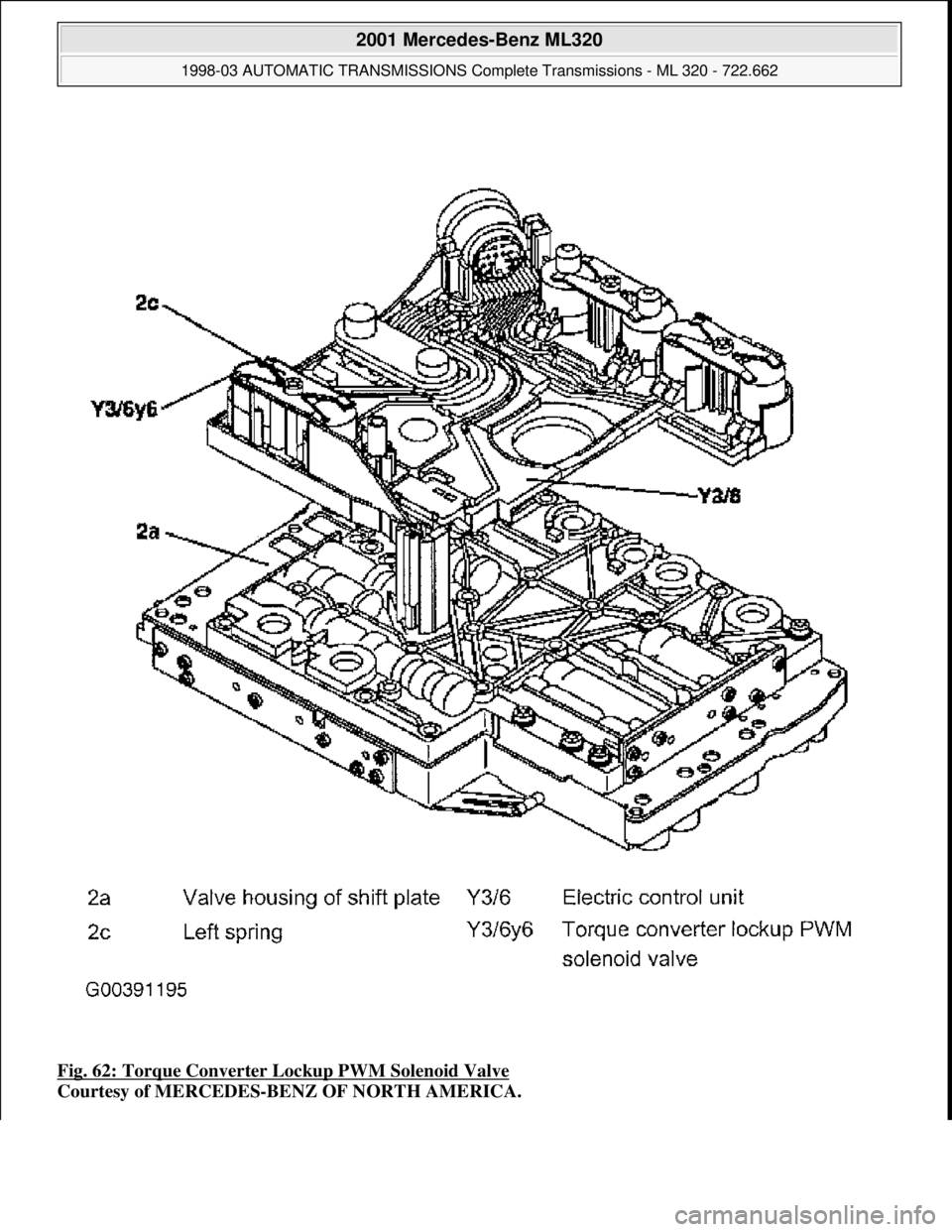

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 62: Torque Converter Lockup PWM Solenoid Valve Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.66

Page 1282 of 4133

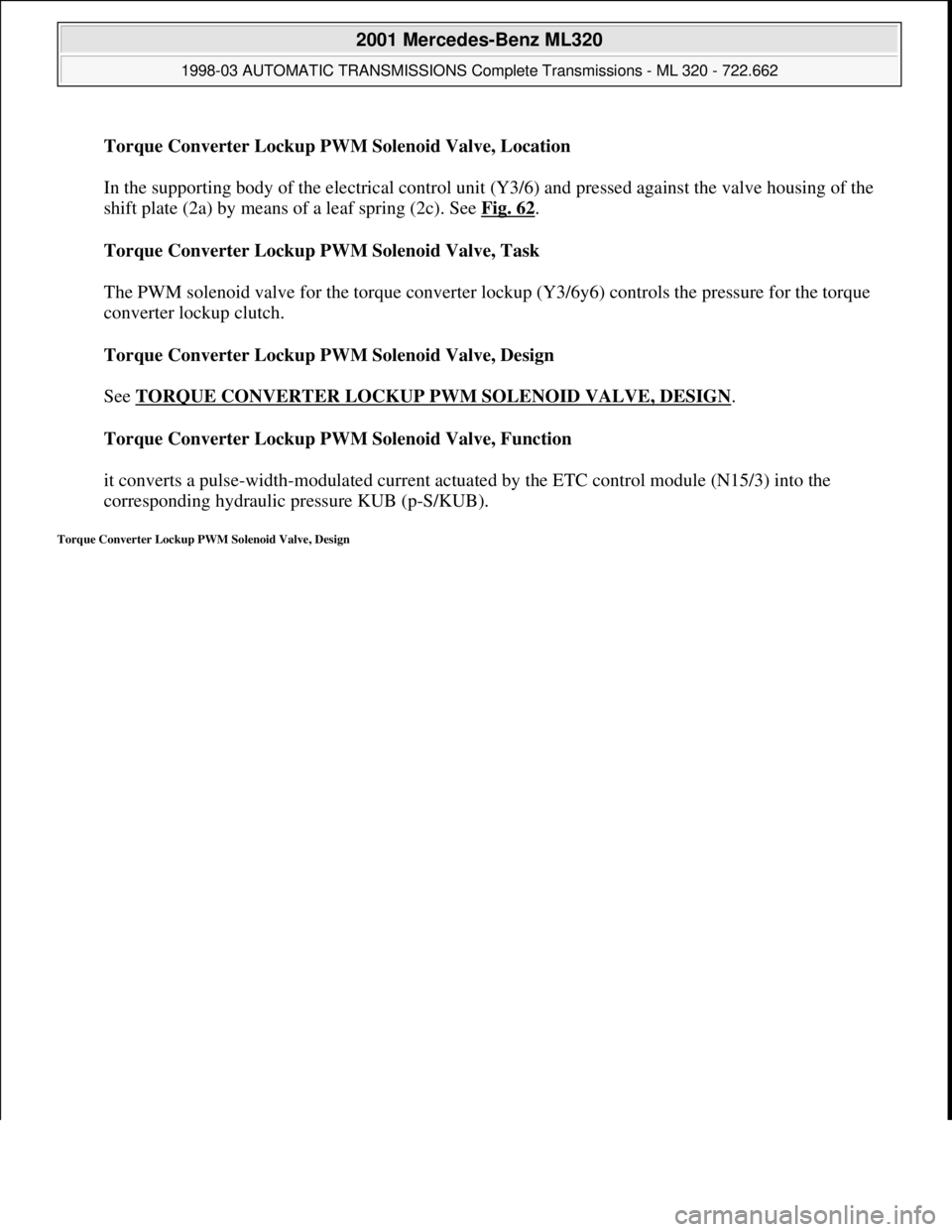

MERCEDES-BENZ ML320 1997 Complete Repair Manual Torque Converter Lockup PWM Solenoid Valve, Location In the supporting body of the electrical control unit (Y3/6) and pressed against the valve housing of the shift plate (2a) by means of a leaf s

Page 1283 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 114 © 2006 Mitchell Repair Information Company,

Page 1284 of 4133

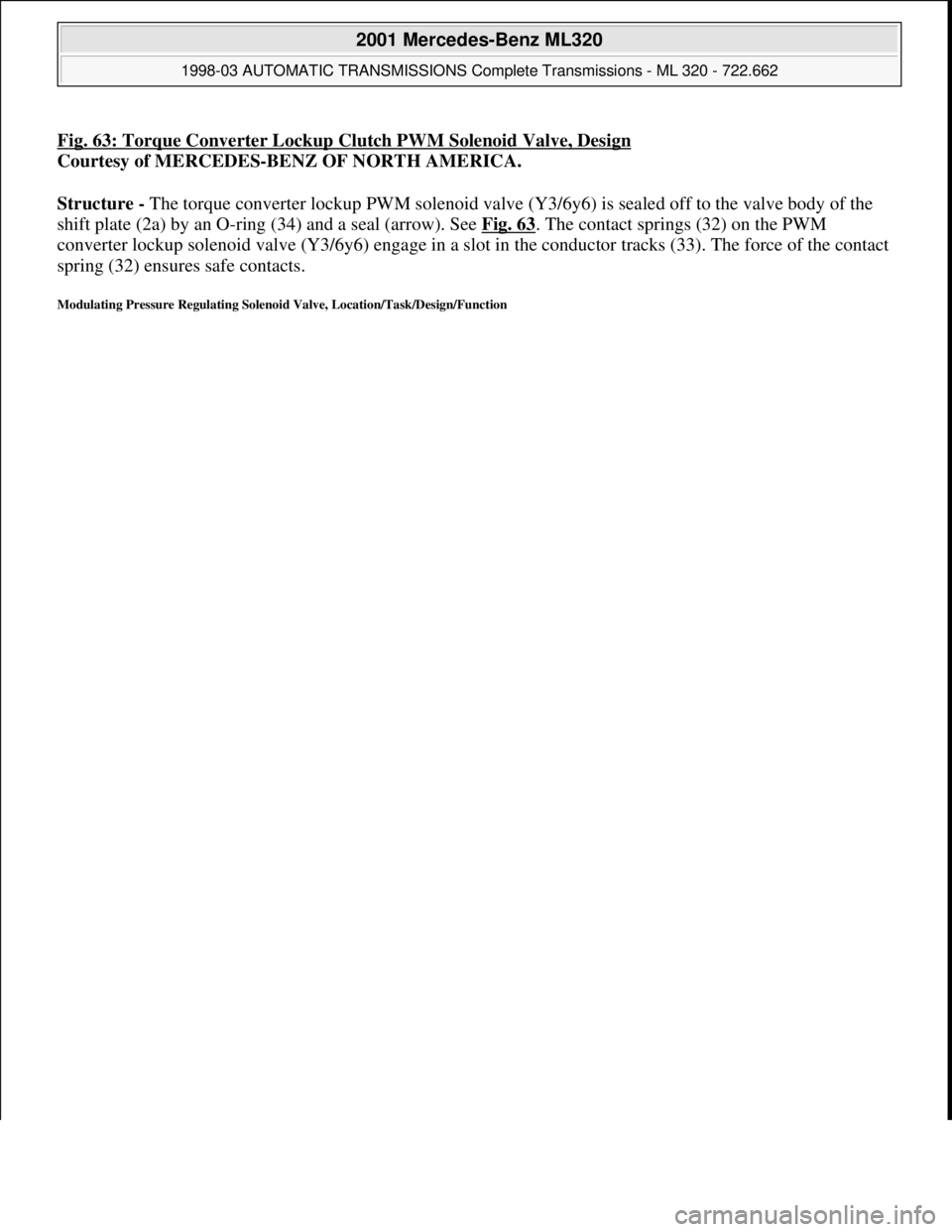

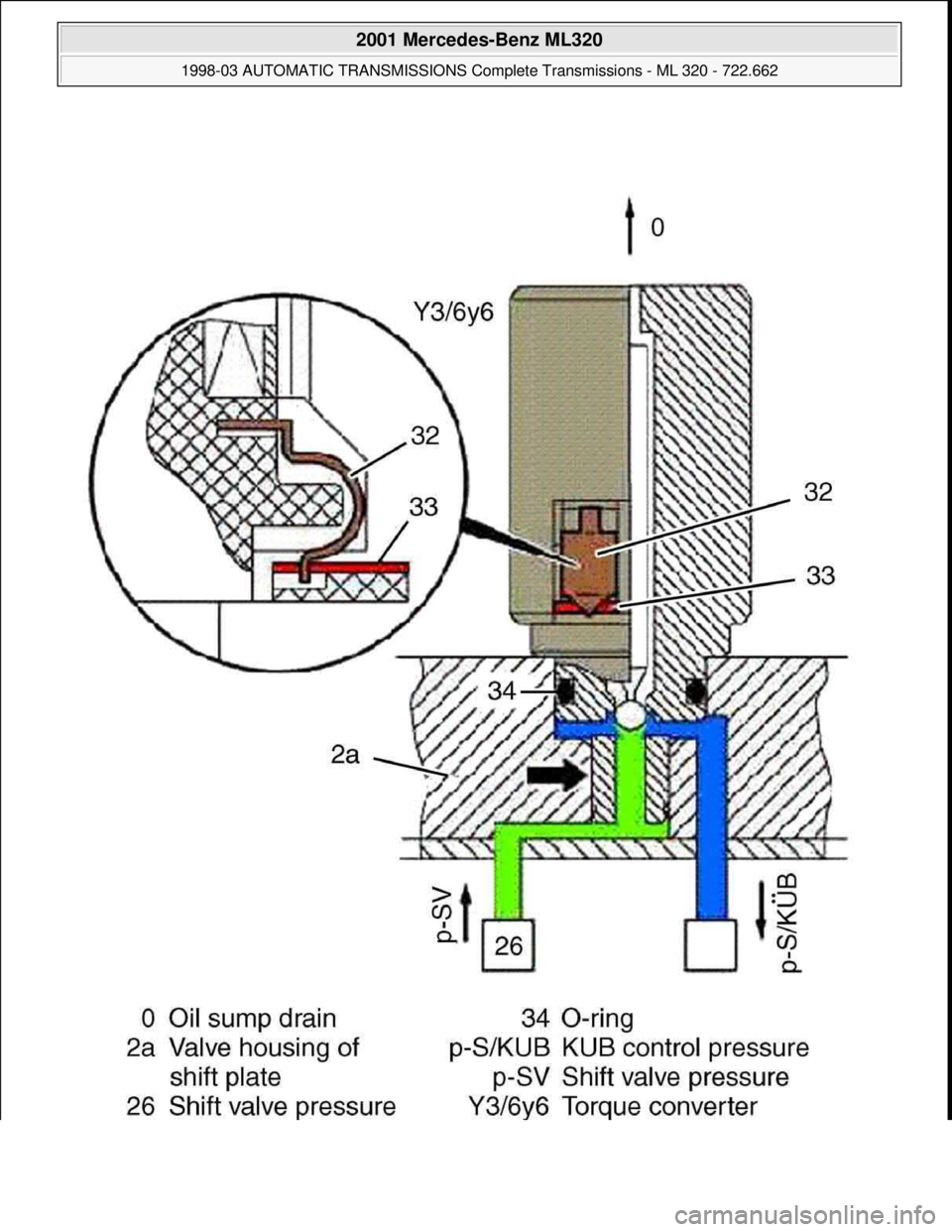

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 63: Torque Converter Lockup Clutch PWM Solenoid Valve, Design Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Structure - The torque converter lockup PWM solenoid valve (Y3/6y6) is sealed off to the

Page 1285 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 116 © 2006 Mitchell Repair Information Company,

Page 1286 of 4133

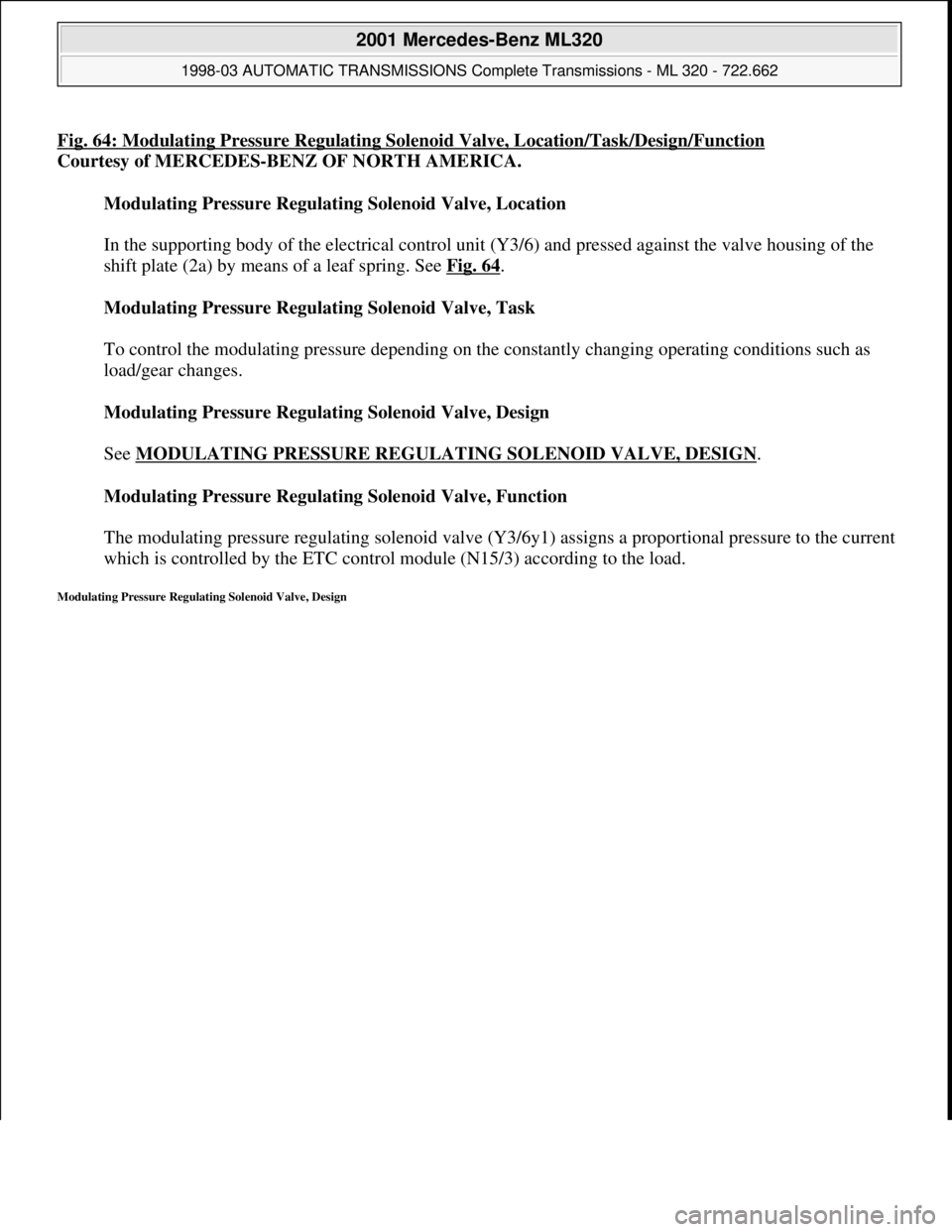

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 64: Modulating Pressure Regulating Solenoid Valve, Location/Task/Design/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Modulating Pressure Regulating Solenoid Valve, Location In the sup

Page 1287 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 118 © 2006 Mitchell Repair Information Company,

Page 1288 of 4133

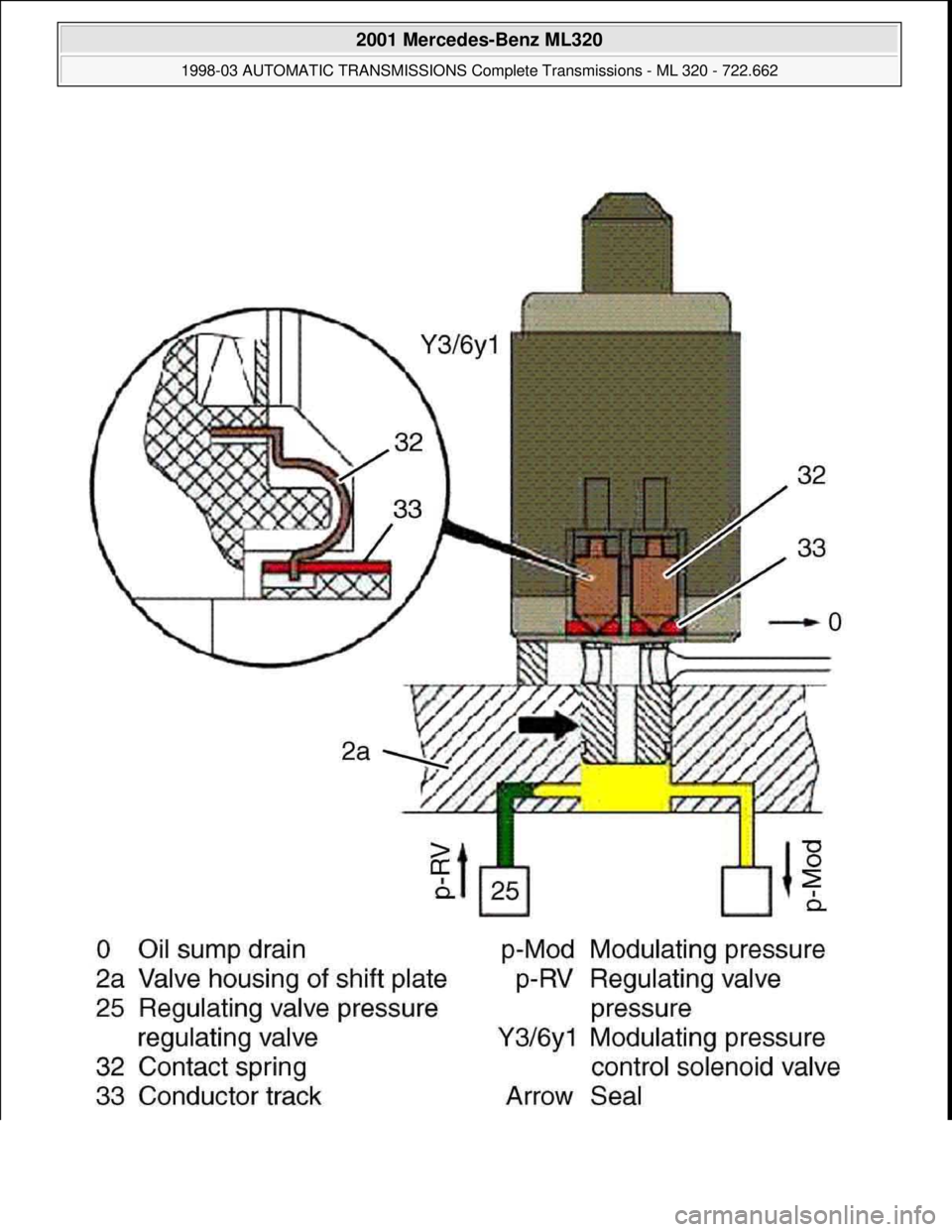

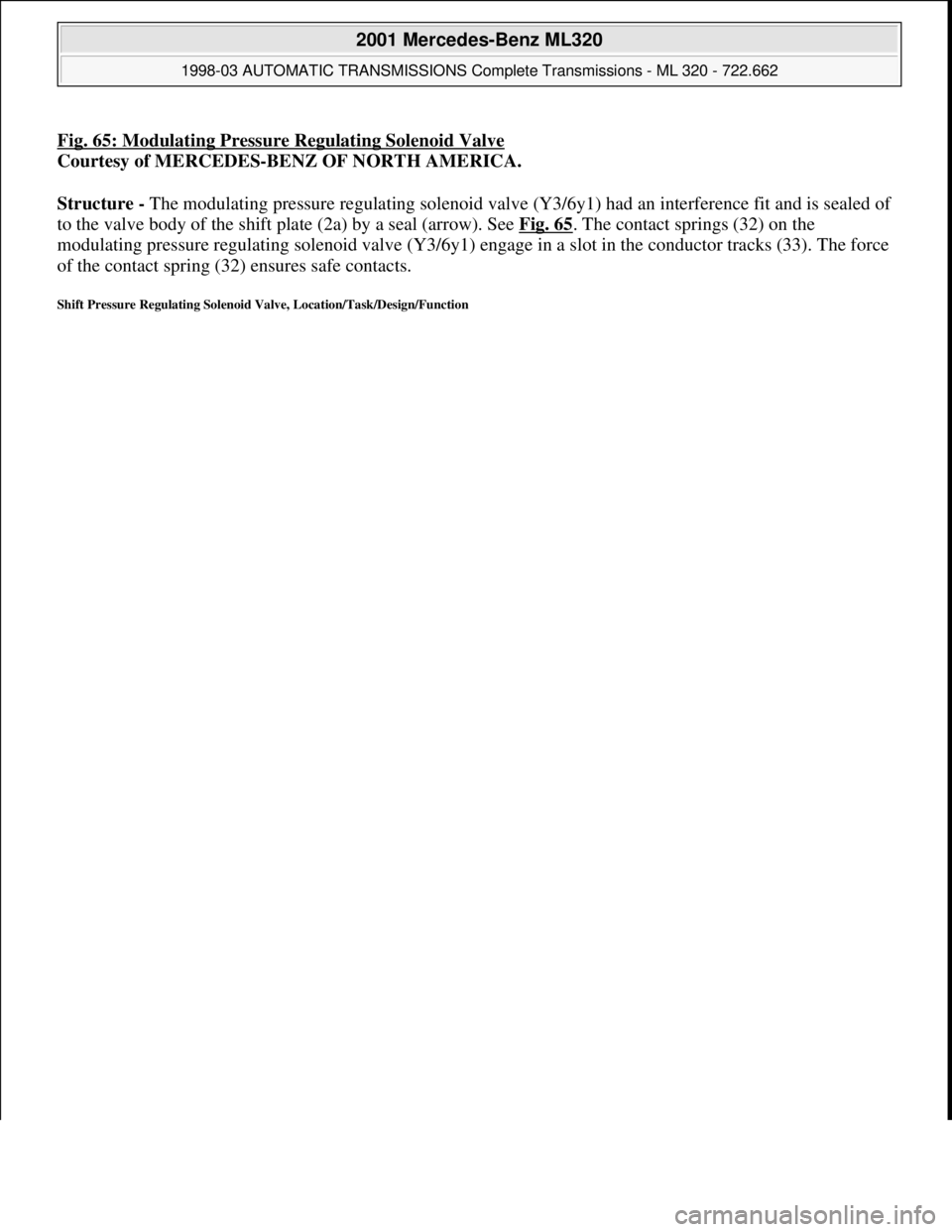

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 65: Modulating Pressure Regulating Solenoid Valve Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Structure - The modulating pressure regulating solenoid valve (Y3/6y1) had an interference fit and i
