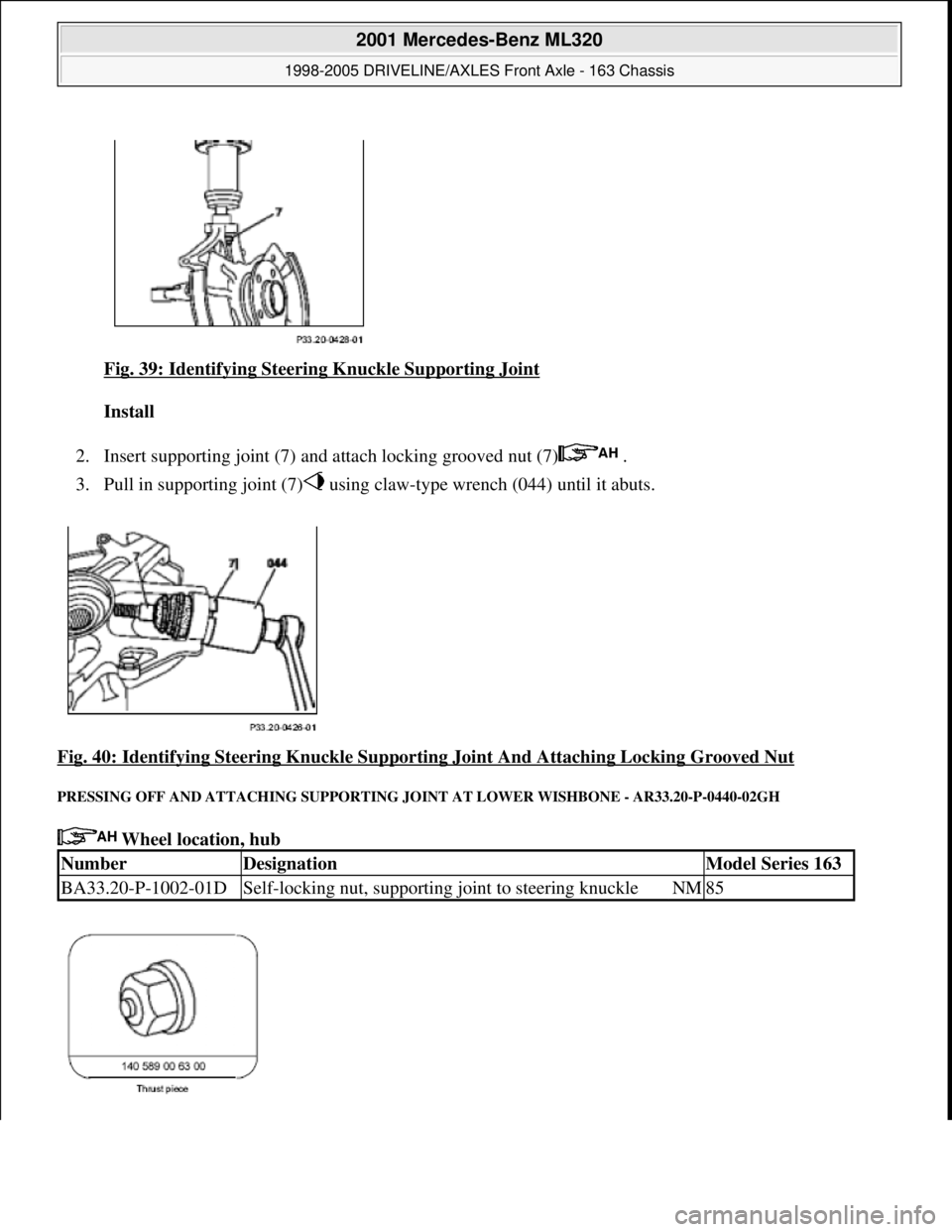

Fig. 39: Identifying Steering Knuckle Supporting Joint
Install
2. Insert supporting joint (7) and attach locking grooved nut (7) .
3. Pull in supporting joint (7) using claw-type wrench (044) until it abuts.
Fig. 40: Identifying Steering Knuckle Supporting Joint And Attaching Locking Grooved Nut
PRESSING OFF AND ATTACHING SUPPORTING JOINT AT LOWER WISHBONE - AR33.20-P-0440-02GH
Wheel location, hub
NumberDesignationModel Series 163
BA33.20-P-1002-01DSelf-locking nut, supporting joint to steering knuckleNM85
2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 26 © 2006 Mitchell Repair Information Company, LLC.
Page 2546 of 4133

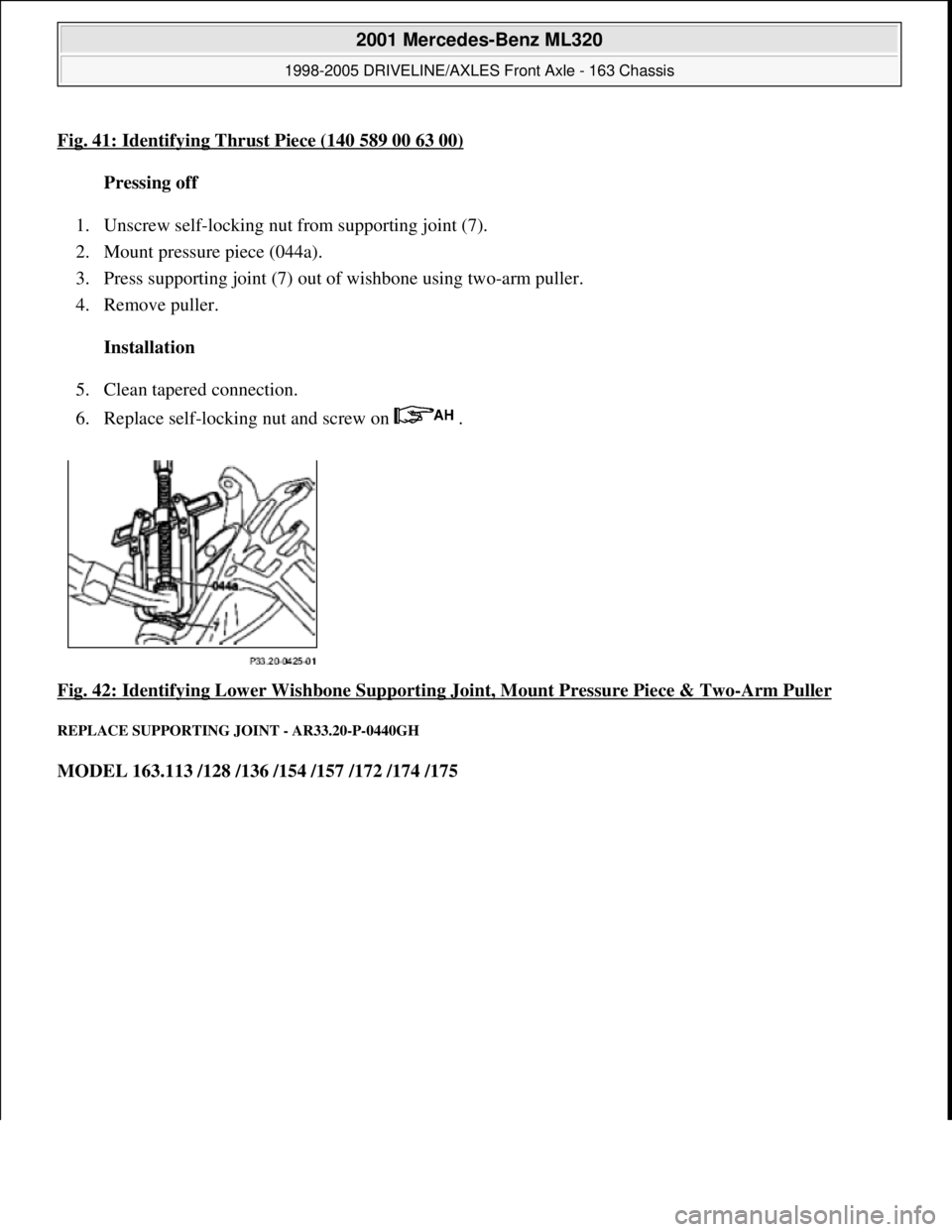

Fig. 41: Identifying Thrust Piece (140 589 00 63 00)
Pressing off
1. Unscrew self-locking nut from supporting joint (7).
2. Mount pressure piece (044a).
3. Press supporting joint (7) out of wishbone using two-arm puller.
4. Remove puller.
Installation
5. Clean tapered connection.
6. Replace self-locking nut and screw on .
Fig. 42: Identifying Lower Wishbone Supporting Joint, Mount Pressure Piece & Two
-Arm Puller
REPLACE SUPPORTING JOINT - AR33.20-P-0440GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 27 © 2006 Mitchell Repair Information Company, LLC.
Page 2547 of 4133

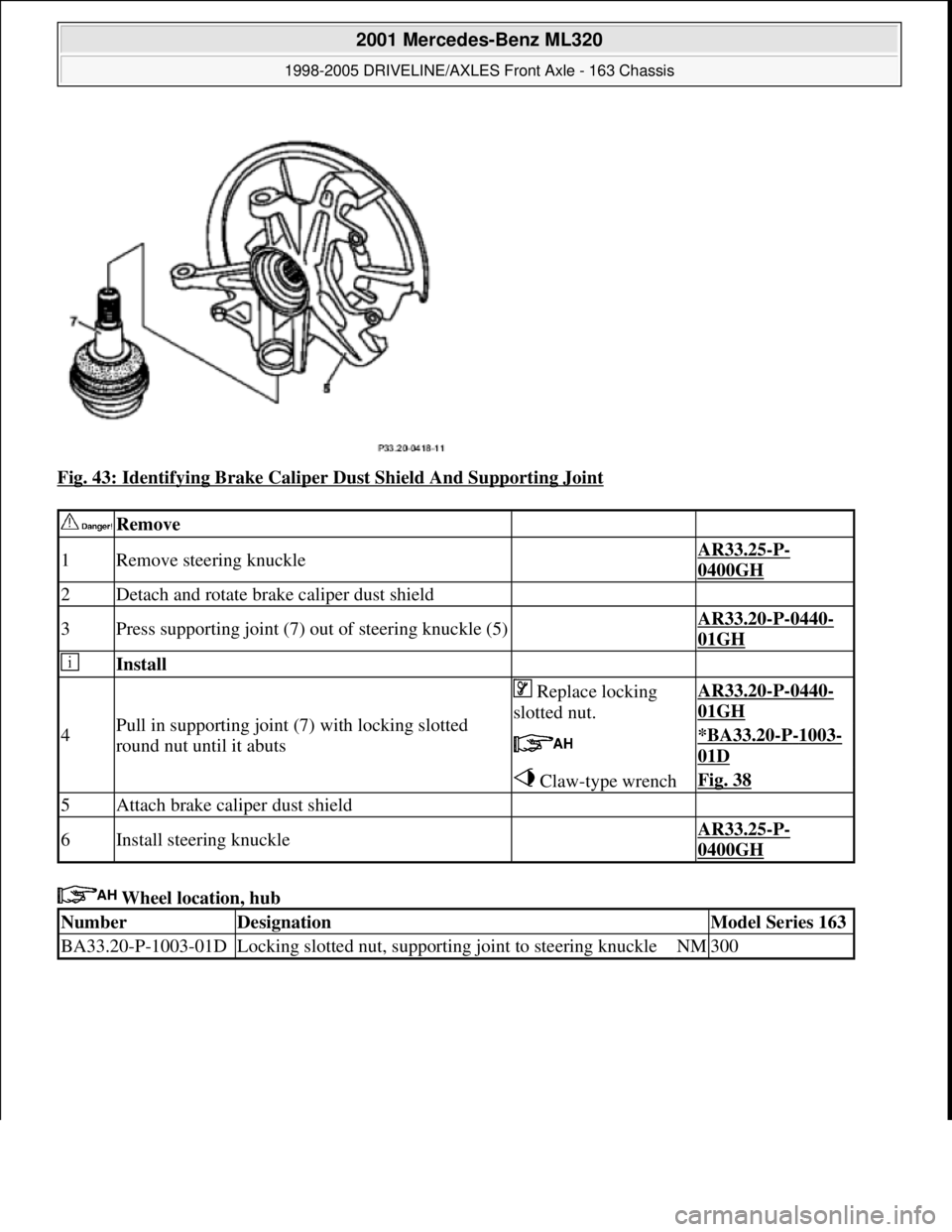

Fig. 43: Identifying Brake Caliper Dust Shield And Supporting Joint
Wheel location, hub
Remove
1Remove steering knuckle AR33.25-P-
0400GH
2Detach and rotate brake caliper dust shield
3Press supporting joint (7) out of steering knuckle (5) AR33.20-P-0440-
01GH
Install
4Pull in supporting joint (7) with locking slotted
round nut until it abuts
Replace locking
slotted nut.AR33.20-P-0440-
01GH
*BA33.20-P-1003-
01D
Claw-type wrenchFig. 38
5Attach brake caliper dust shield
6Install steering knuckle AR33.25-P-
0400GH
NumberDesignationModel Series 163
BA33.20-P-1003-01DLocking slotted nut, supporting joint to steering knuckleNM300
2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 28 © 2006 Mitchell Repair Information Company, LLC.
Page 2548 of 4133

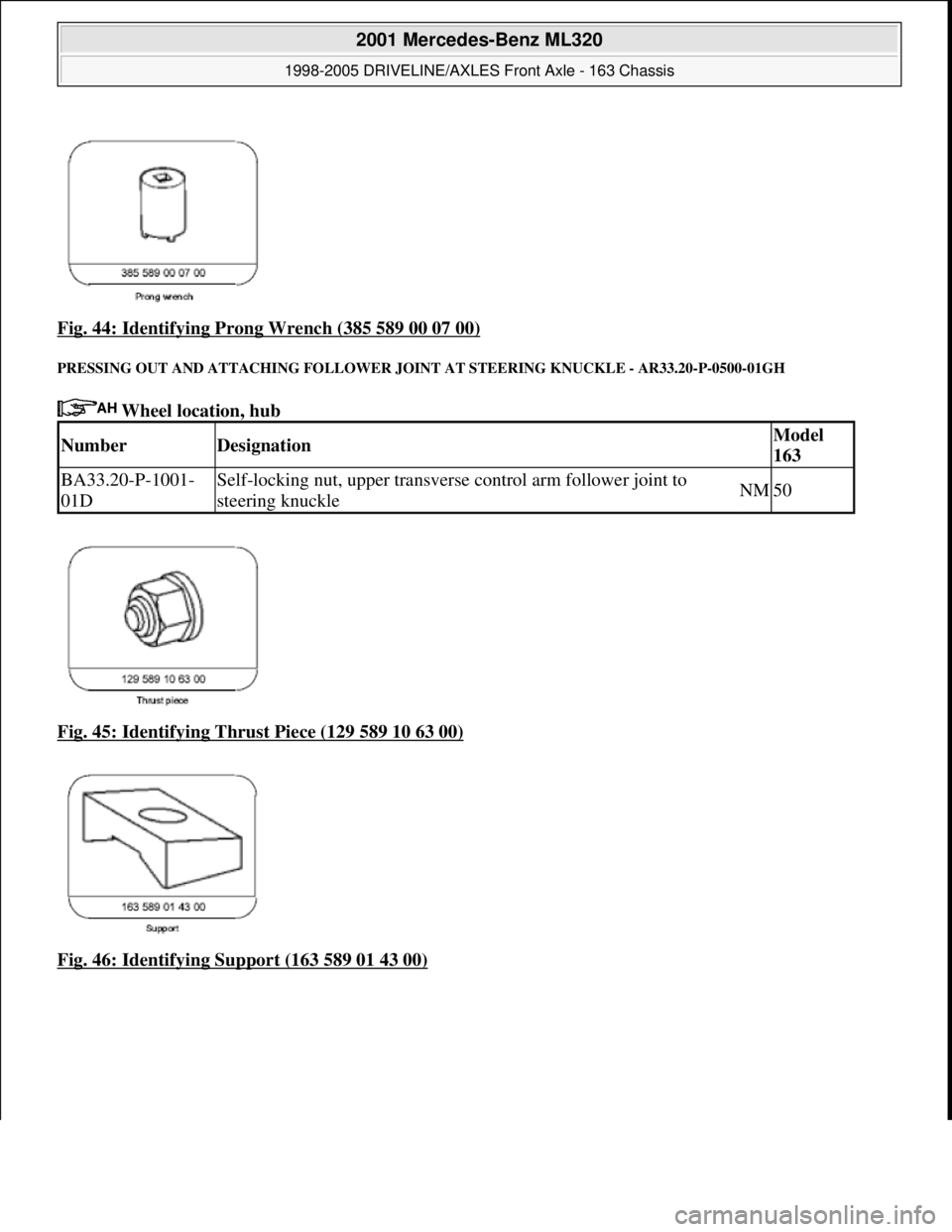

Fig. 44: Identifying Prong Wrench (385 589 00 07 00)
PRESSING OUT AND ATTACHING FOLLOWER JOINT AT STEERING KNUCKLE - AR33.20-P-0500-01GH
Wheel location, hub
Fig. 45: Identifying Thrust Piece (129 589 10 63 00)
Fig. 46: Identifying Support (163 589 01 43 00)
NumberDesignationModel
163
BA33.20-P-1001-
01DSelf-locking nut, upper transverse control arm follower joint to
steering knuckleNM50
2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 29 © 2006 Mitchell Repair Information Company, LLC.
Page 2549 of 4133

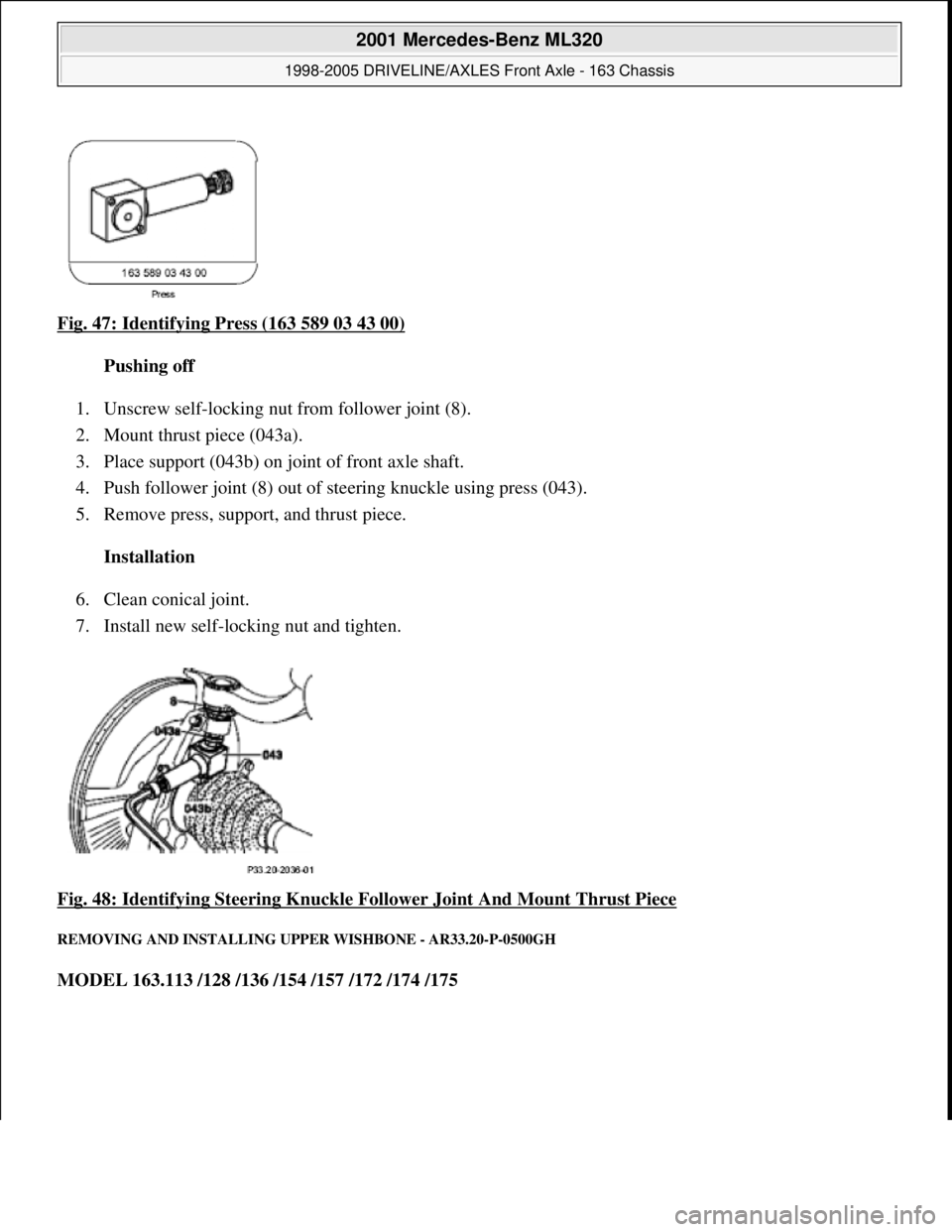

Fig. 47: Identifying Press (163 589 03 43 00)
Pushing off
1. Unscrew self-locking nut from follower joint (8).
2. Mount thrust piece (043a).
3. Place support (043b) on joint of front axle shaft.
4. Push follower joint (8) out of steering knuckle using press (043).
5. Remove press, support, and thrust piece.
Installation
6. Clean conical joint.
7. Install new self-loc king nut and tighten.
Fig. 48: Identifying Steering Knuckle Fo llower Joint And Mount Thrust Piece
REMOVING AND INSTALLING UPPER WISHBONE - AR33.20-P-0500GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 30 © 2006 Mitchell Repair Information Company, LLC.
Page 2550 of 4133

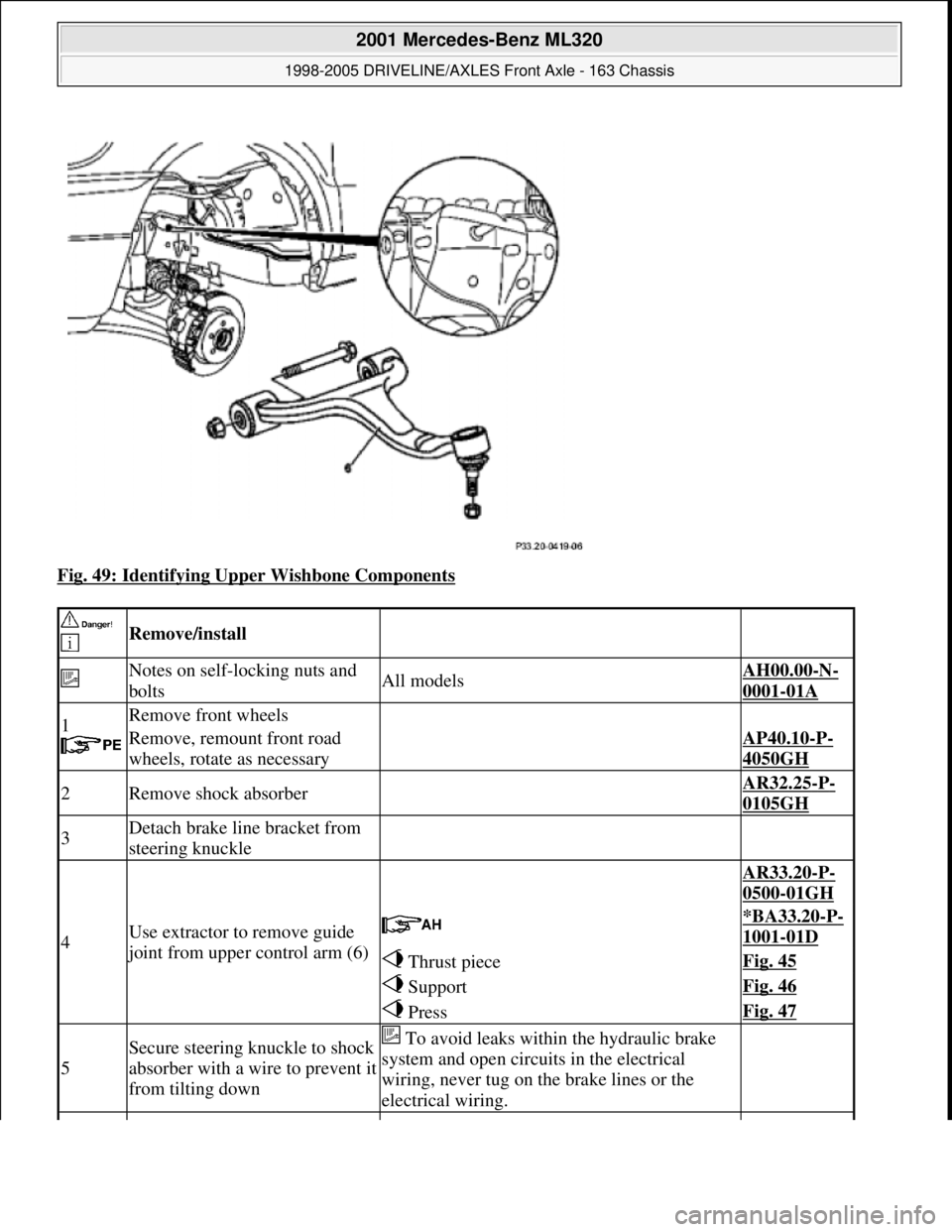

Fig. 49: Identifying Upper Wishbone Components
Remove/install
Notes on self-locking nuts and
boltsAll modelsAH00.00-N-
0001-01A
1
Remove front wheels
Remove, remount front road
wheels, rotate as necessaryAP40.10-P-
4050GH
2Remove shock absorber AR32.25-P-
0105GH
3Detach brake line bracket from
steering knuckle
4Use extractor to remove guide
joint from upper control arm (6)
AR33.20-P-
0500-01GH
*BA33.20-P-
1001-01D
Thrust pieceFig. 45
SupportFig. 46
PressFig. 47
5
Secure steering knuckle to shock
absorber with a wire to prevent it
from tilting down To avoid leaks within the hydraulic brake
system and open circuits in the electrical
wiring, never tug on the brake lines or the
electrical wiring.
2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 31 © 2006 Mitchell Repair Information Company, LLC.
Page 2551 of 4133
Wheel location, hub

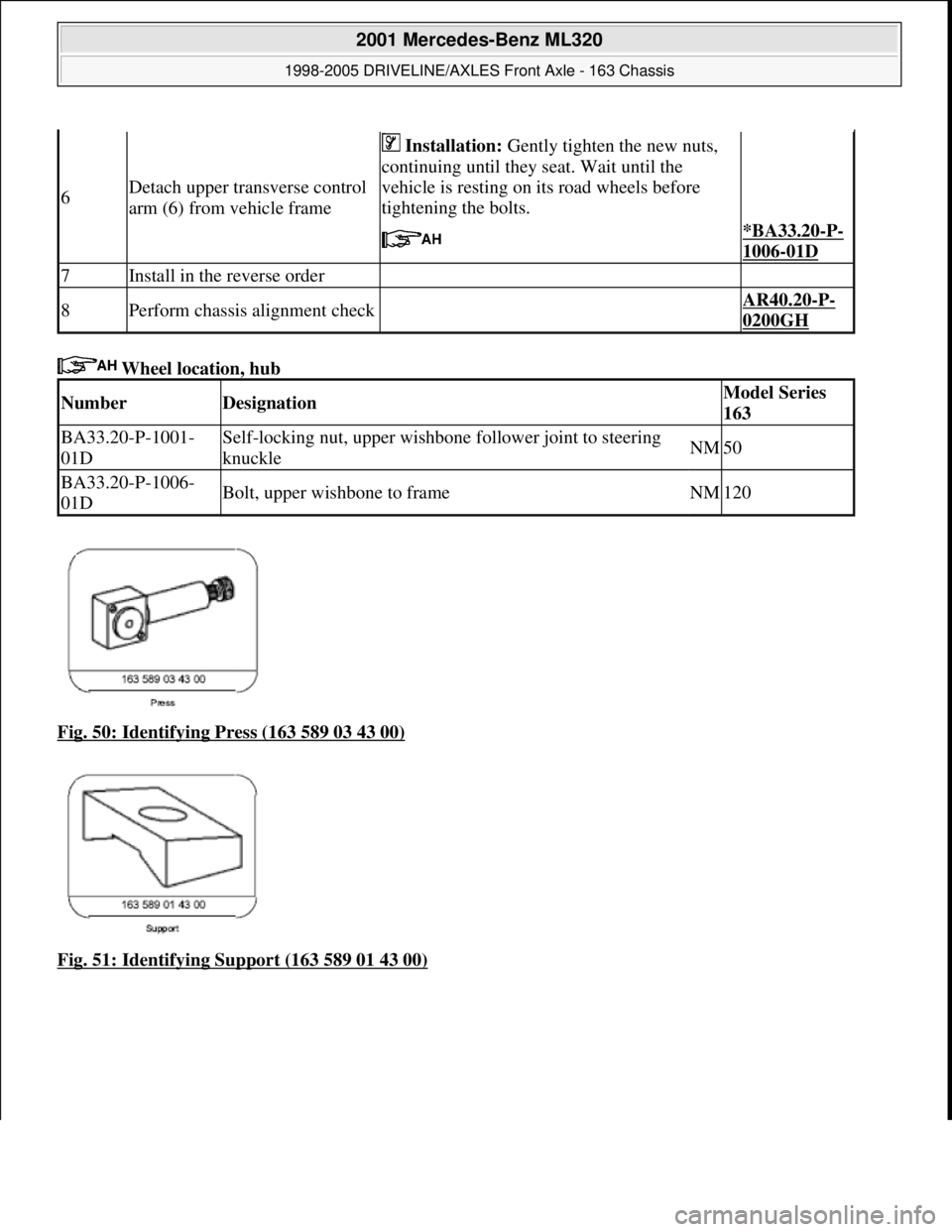

Fig. 50: Identifying Press (163 589 03 43 00)
Fig. 51: Identifying Support (163 589 01 43 00)
6Detach upper transverse control
arm (6) from vehicle frame
Installation: Gently tighten the new nuts,
continuing until they seat. Wait until the
vehicle is resting on it s road wheels before
tightening the bolts.
*BA33.20-P-
1006-01D
7Install in the reverse order
8Perform chassis alignment check AR40.20-P-
0200GH
NumberDesignationModel Series
163
BA33.20-P-1001-
01DSelf-locking nut, upper wishbone follower joint to steering
knuckleNM50
BA33.20-P-1006-
01DBolt, upper wishbone to frameNM120
2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 32 © 2006 Mitchell Repair Information Company, LLC.
Page 2552 of 4133

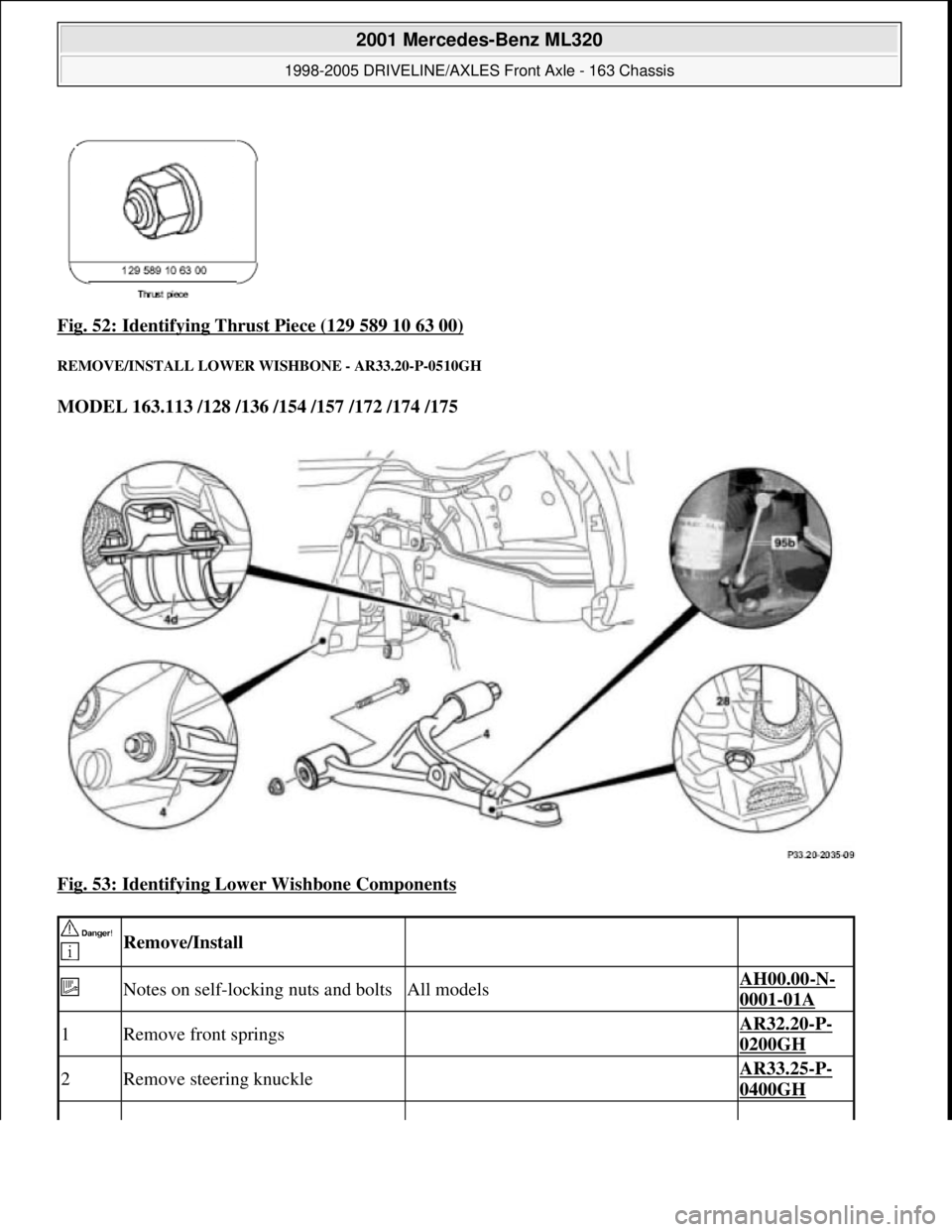

Fig. 52: Identifying Thrust Piece (129 589 10 63 00)
REMOVE/INSTALL LOWER WI SHBONE - AR33.20-P-0510GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
Fig. 53: Identifying Lower Wishbone Components
Remove/Install
Notes on self-locking nuts and boltsAll modelsAH00.00-N-
0001-01A
1Remove front springs AR32.20-P-
0200GH
2Remove steering knuckle AR33.25-P-
0400GH
2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 33 © 2006 Mitchell Repair Information Company, LLC.
