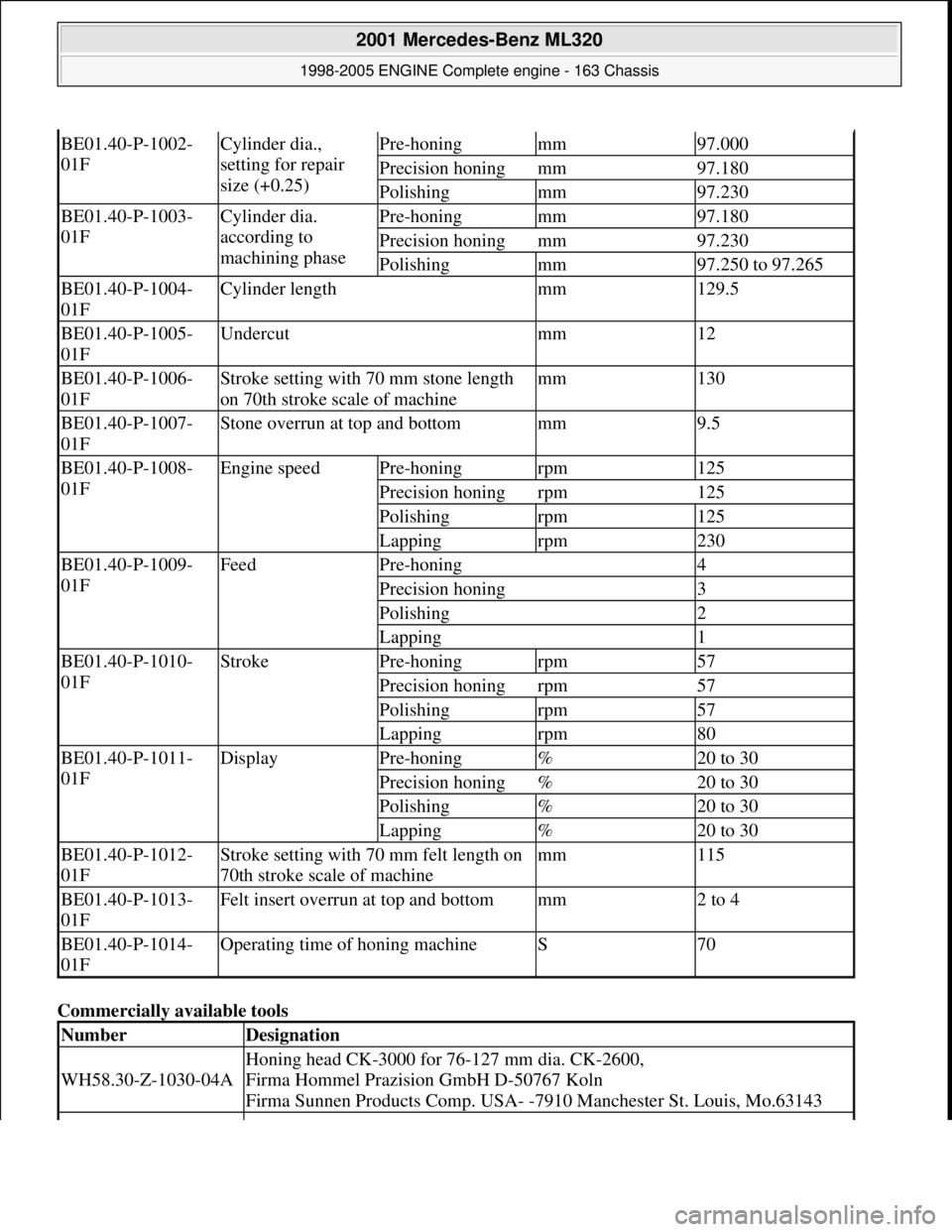

MERCEDES-BENZ ML320 1997 Complete Repair Manual Commercially available tools BE01.40-P-1002- 01FCylinder dia., setting for repair size (+0.25)Pre-honingmm97.000 Precision honingmm97.180 Polishingmm97.230 BE01.40-P-1003- 01FCylinder dia. acco

Page 2482 of 4133

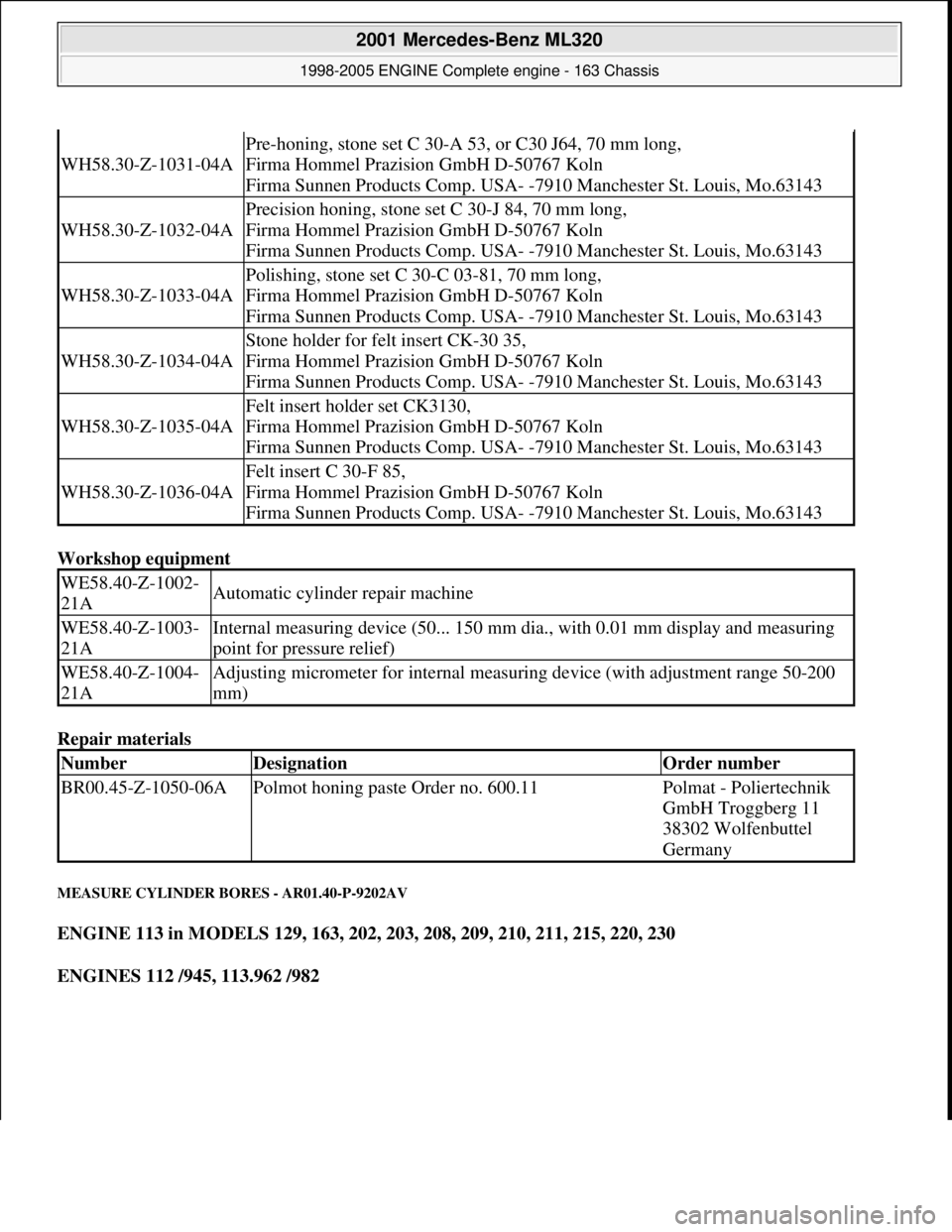

MERCEDES-BENZ ML320 1997 Complete Repair Manual Workshop equipment Repair materials MEASURE CYLINDER BORES - AR01.40-P-9202AV ENGINE 113 in MODELS 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230 ENGINES 112 /945, 113.962 /982

Page 2483 of 4133

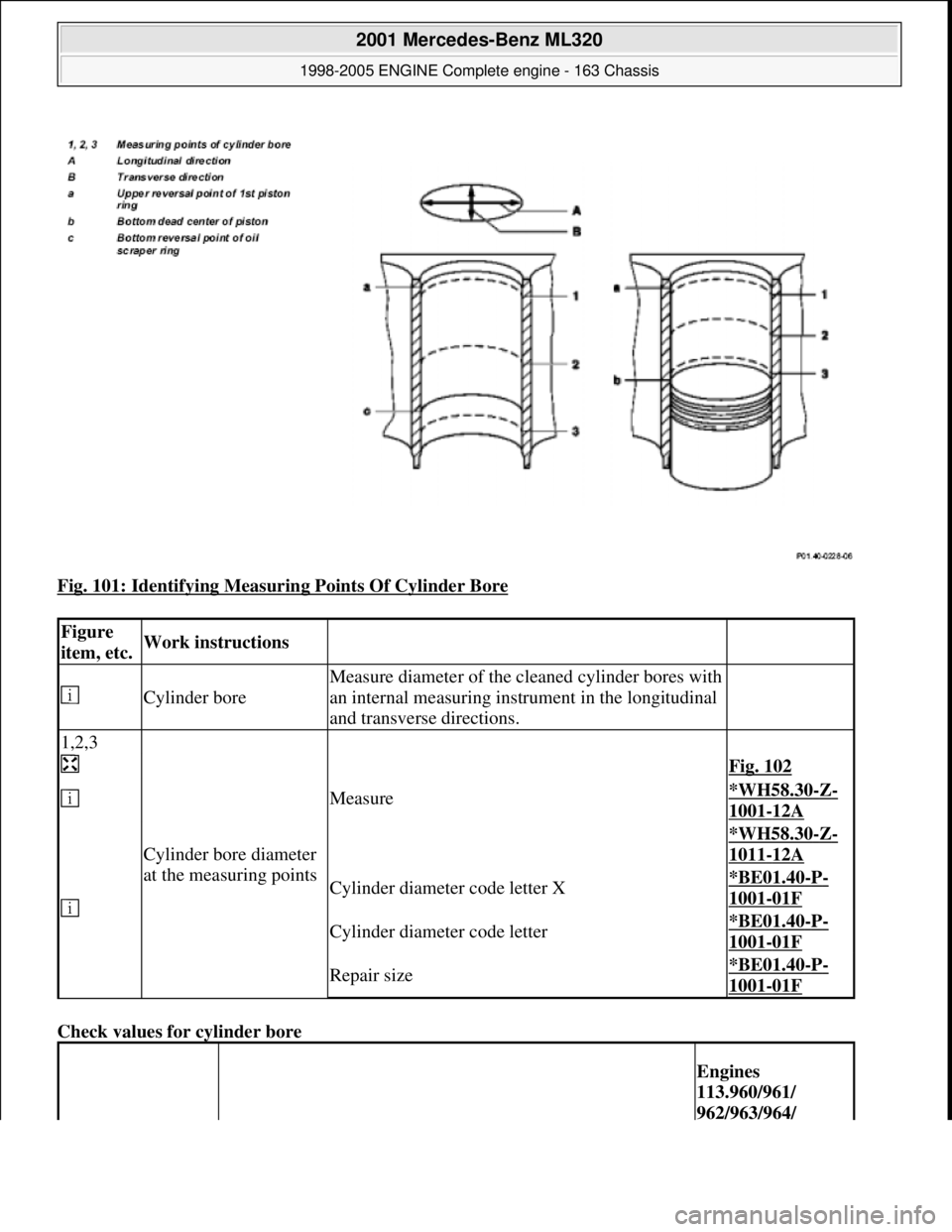

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 101: Identifying Measurin g Points Of Cylinder Bore Check values for cylinder bore Figure item, etc.Work instructions Cylinder bore Measure diameter of the cleaned cylinder bores with

Page 2484 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Check values for cylinder bore Fig. 102: Identifying Dial Indicator (001 589 53 21 00) Commercially available tools OIL PAN BOLT DIAGRAM - AR01.45-P-7500-06F Upper part of oil pan shown on e

Page 2485 of 4133

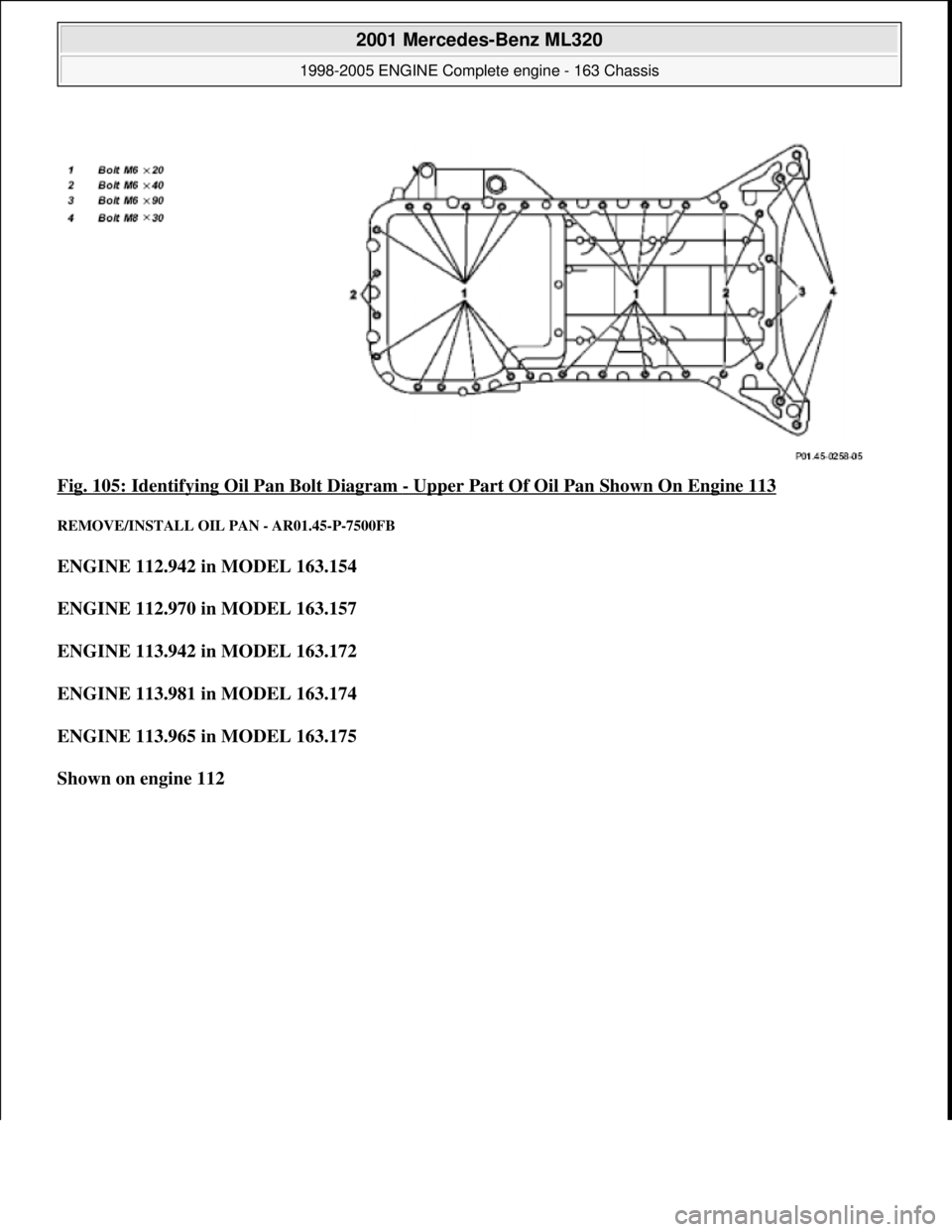

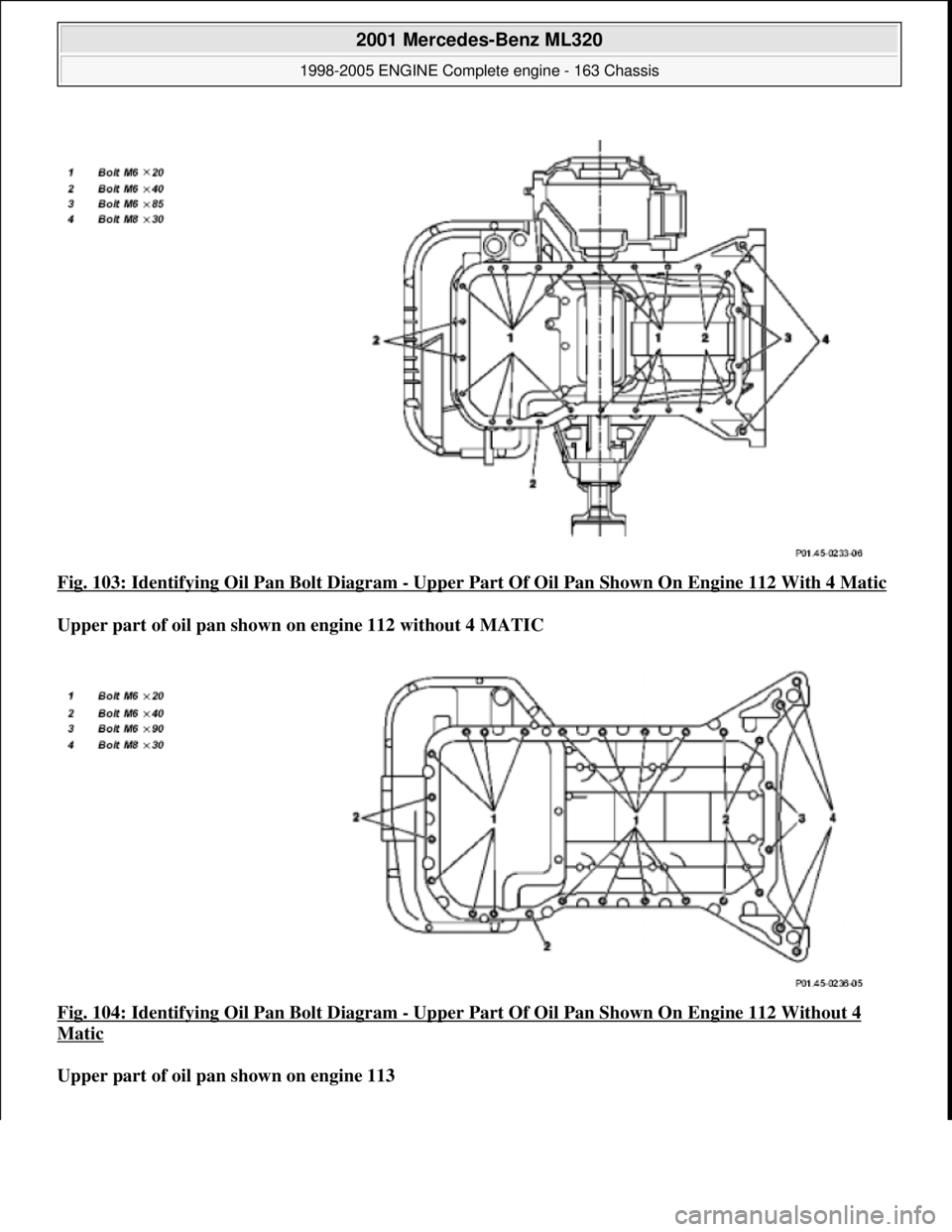

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 103: Identifying Oi l Pan Bolt Diagram - Upper Part Of Oil Pan Shown On Engine 112 With 4 Matic Upper part of oil pan shown on engine 112 without 4 MATIC Fig. 104: Identifying Oi l Pan B

Page 2486 of 4133

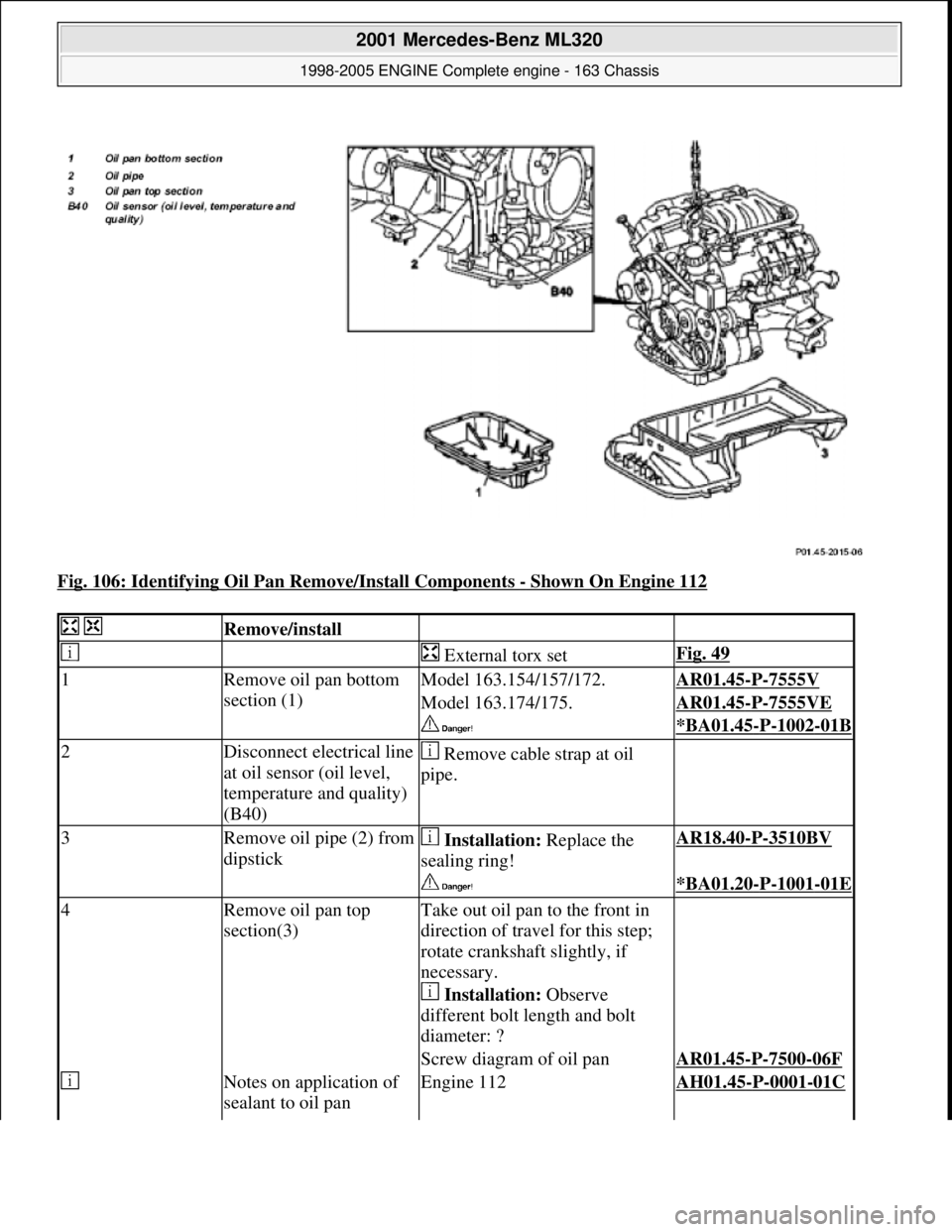

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 105: Identifying Oi l Pan Bolt Diagram - Upper Part Of Oil Pan Shown On Engine 113 REMOVE/INSTALL OIL PAN - AR01.45-P-7500FB ENGINE 112.942 in MODEL 163.154 ENGINE 112.970 in MODEL 163.157

Page 2487 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 106: Identifying Oil Pan Remove/Install Components - Shown On Engine 112 Remove/install External torx setFig. 49 1Remove oil pan bottom section (1)Model 163.154/157/172.AR01.45-P-7555V

Page 2488 of 4133

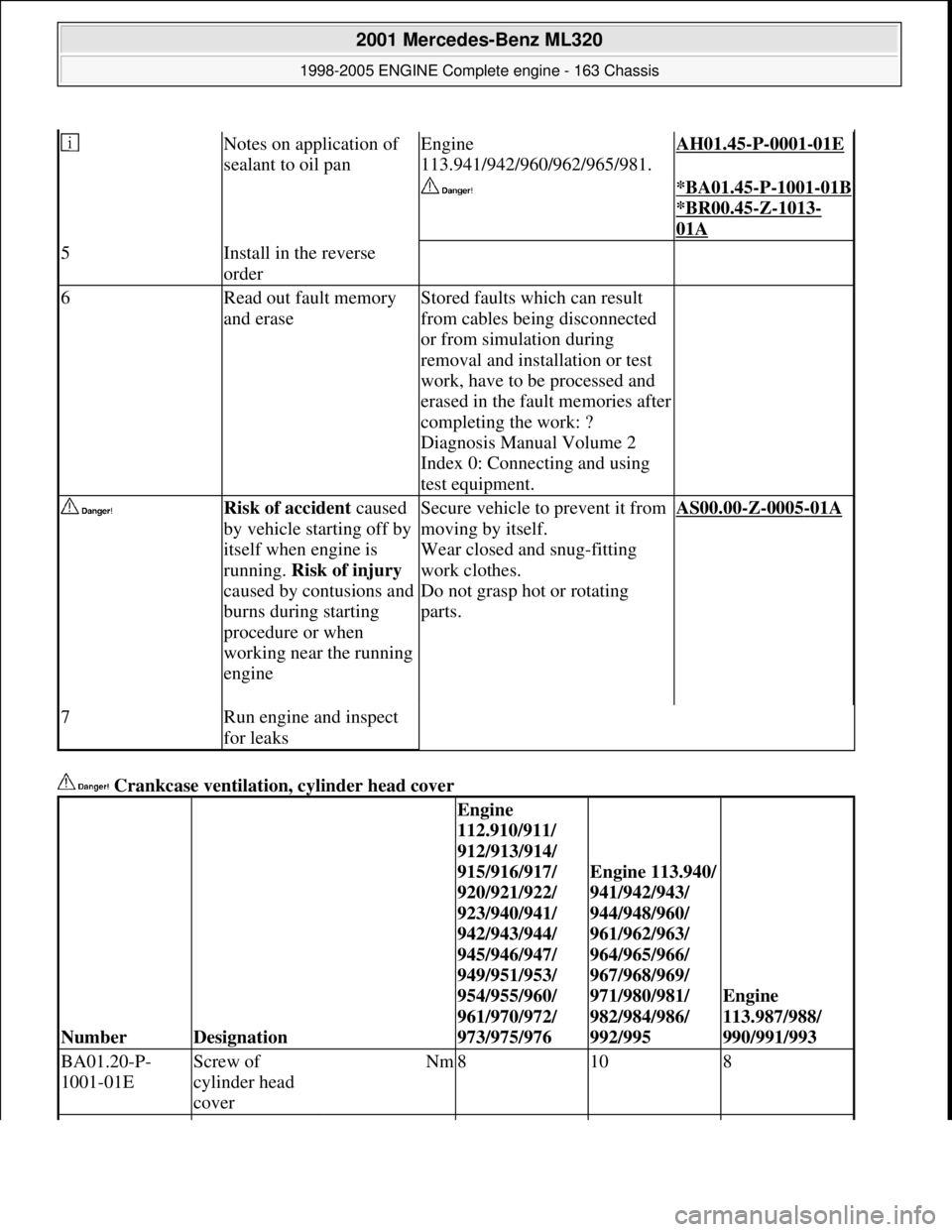

MERCEDES-BENZ ML320 1997 Complete Repair Manual Crankcase ventilation, cylinder head cover Notes on application of sealant to oil panEngine 113.941/942/960/962/965/981.AH01.45-P-0001-01E *BA01.45-P-1001-01B *BR00.45-Z-1013- 01A 5Install in
