Page 1905 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual RETROFITTING TRAFFICSTAR NAVIGATION SYSTEM - AZ82.61-P-0001I MODEL 163 up to 30.6.99 except CODE (819) 6-disk CD changer in trunk System illustration testwith multifunction button below (*) I

Page 1906 of 4133

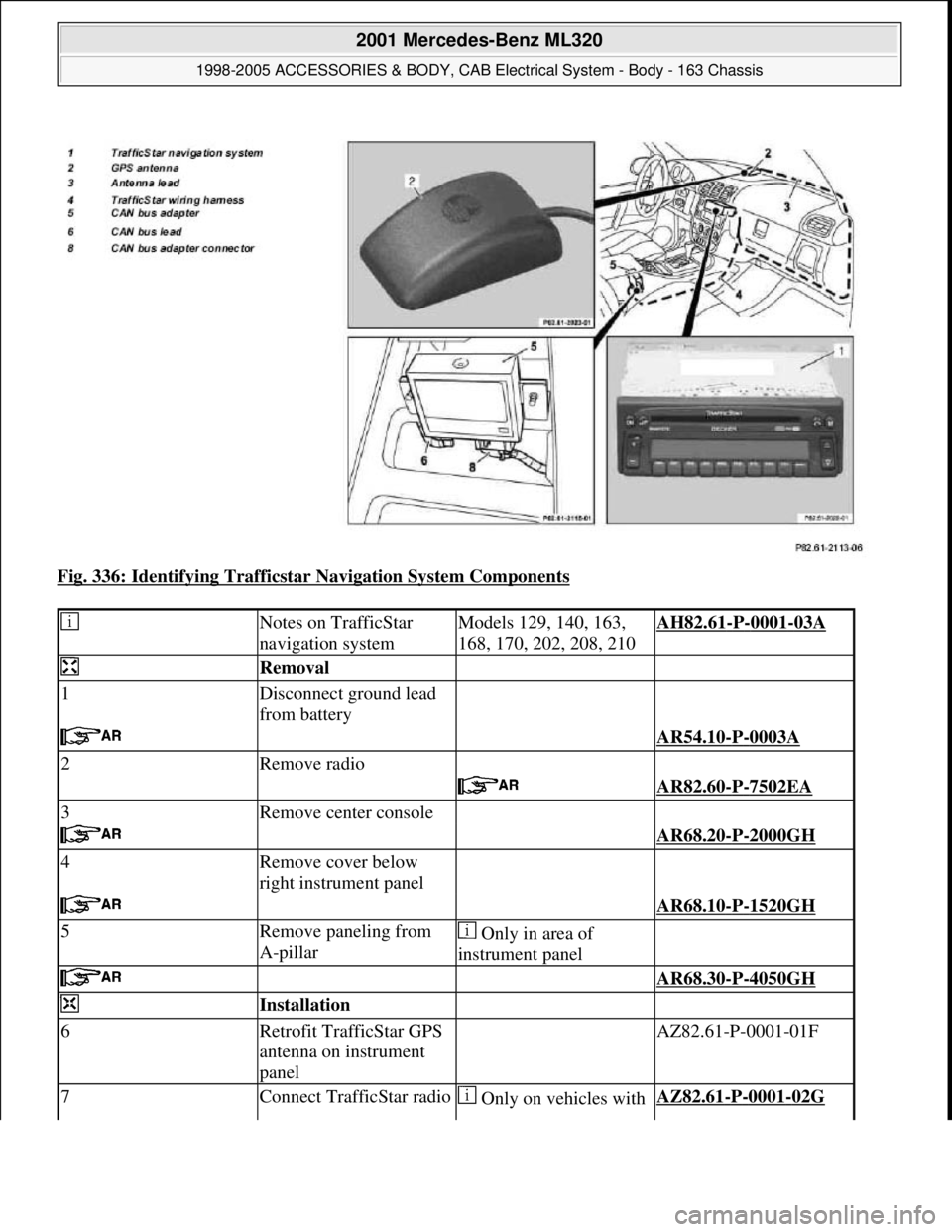

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 336: Identifying Trafficstar Navigation System Components Notes on TrafficStar navigation systemModels 129, 140, 163, 168, 170, 202, 208, 210AH82.61-P-0001-03A Removal 1Disconnect ground

Page 1907 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes RETROFITTING TRAFFIC PRO WIRING HARNESS - AZ82.61-P-0002-01H Model 163 with transmission 722 up to 30.6.2000 1. Prepare adapter wiring harness (4) as shown in figure. 2. Cut

Page 1908 of 4133

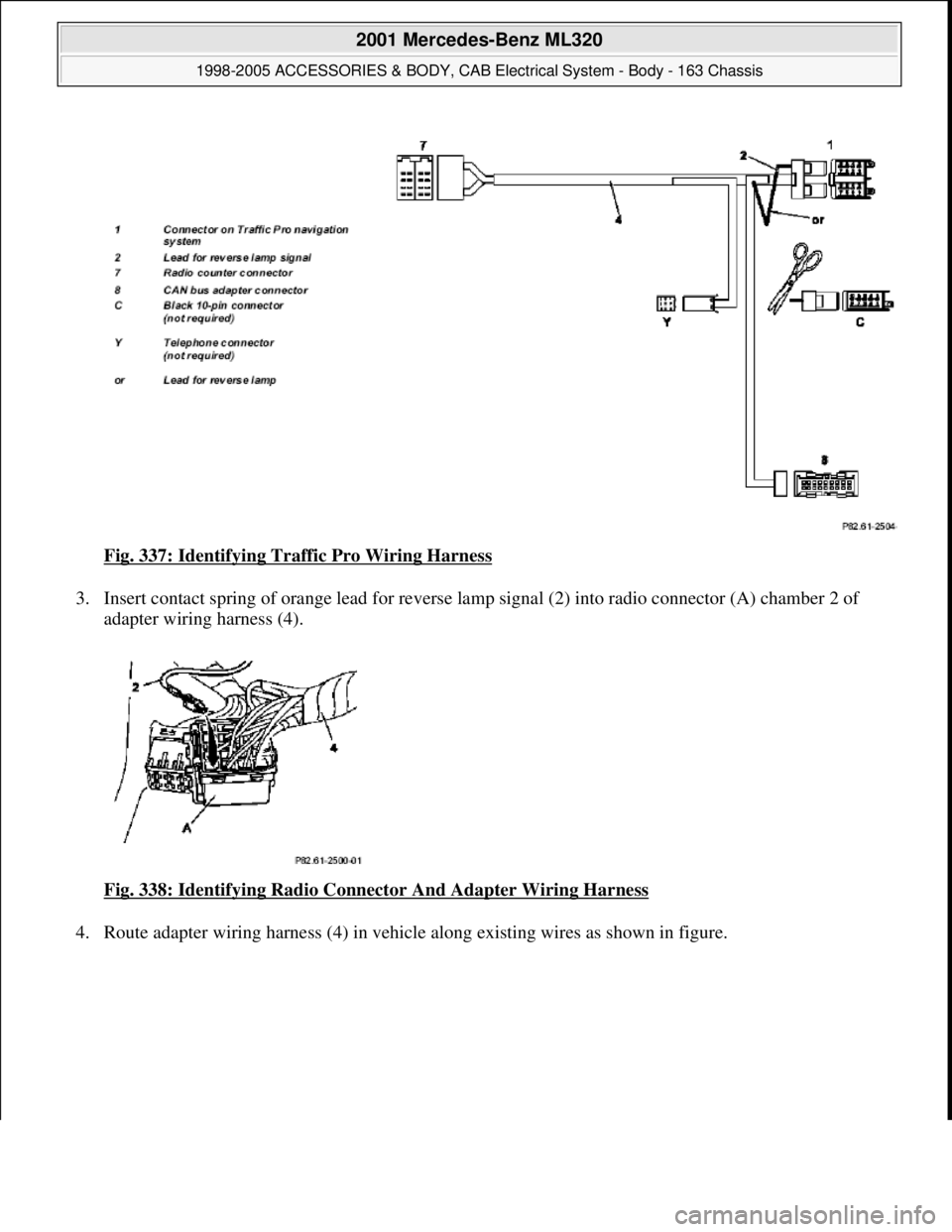

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 337: Identifying Traffic Pro Wiring Harness 3. Insert contact spring of orange lead for reverse lamp signal (2) into radio connector (A) chamber 2 of adapter wiring harness (4). Fig. 338: Iden

Page 1909 of 4133

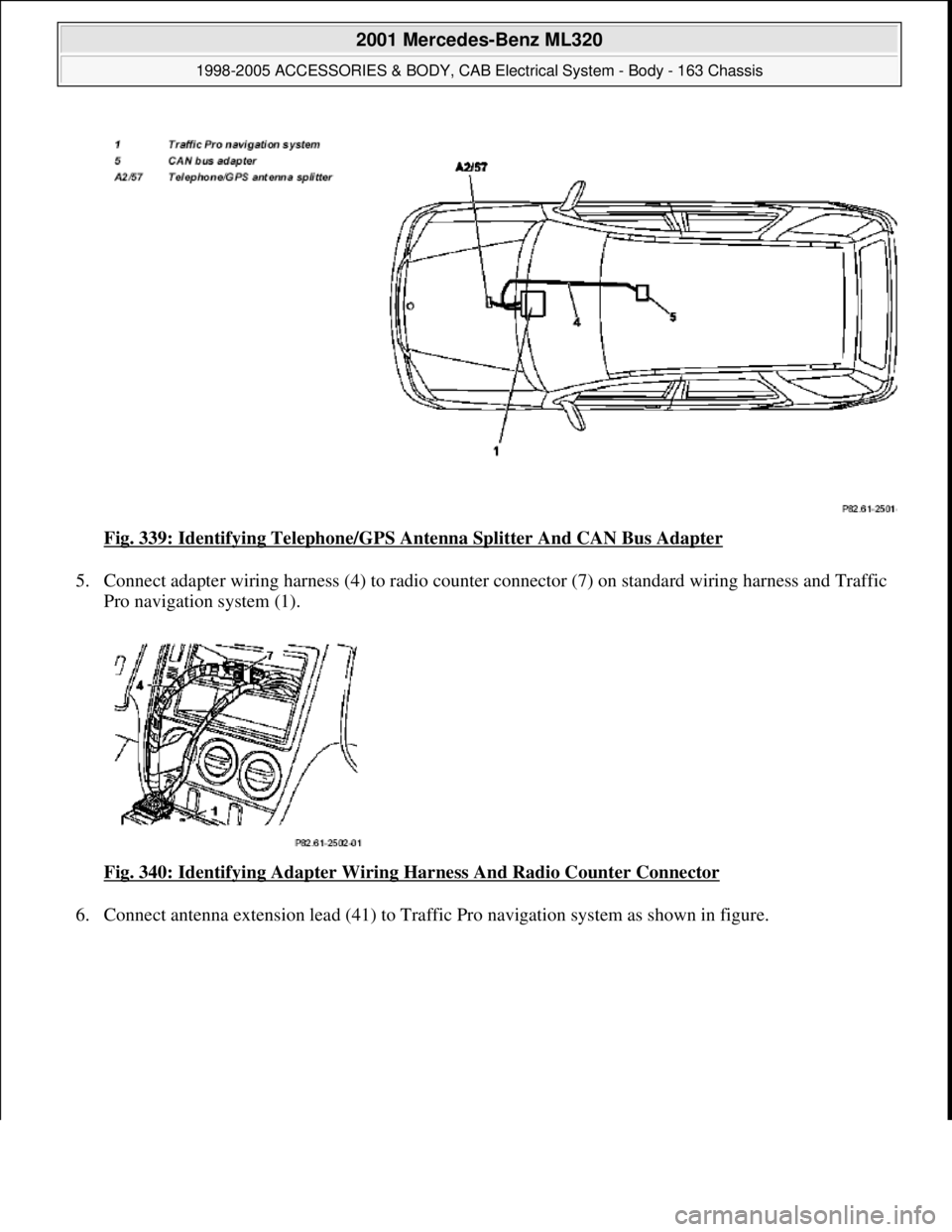

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 339: Identifying Telephone/GPS Antenna Splitter And CAN Bus Adapter 5. Connect adapter wiring harness (4) to radio counter connector (7) on standard wiring harness and Traffic Pro navigation sy

Page 1910 of 4133

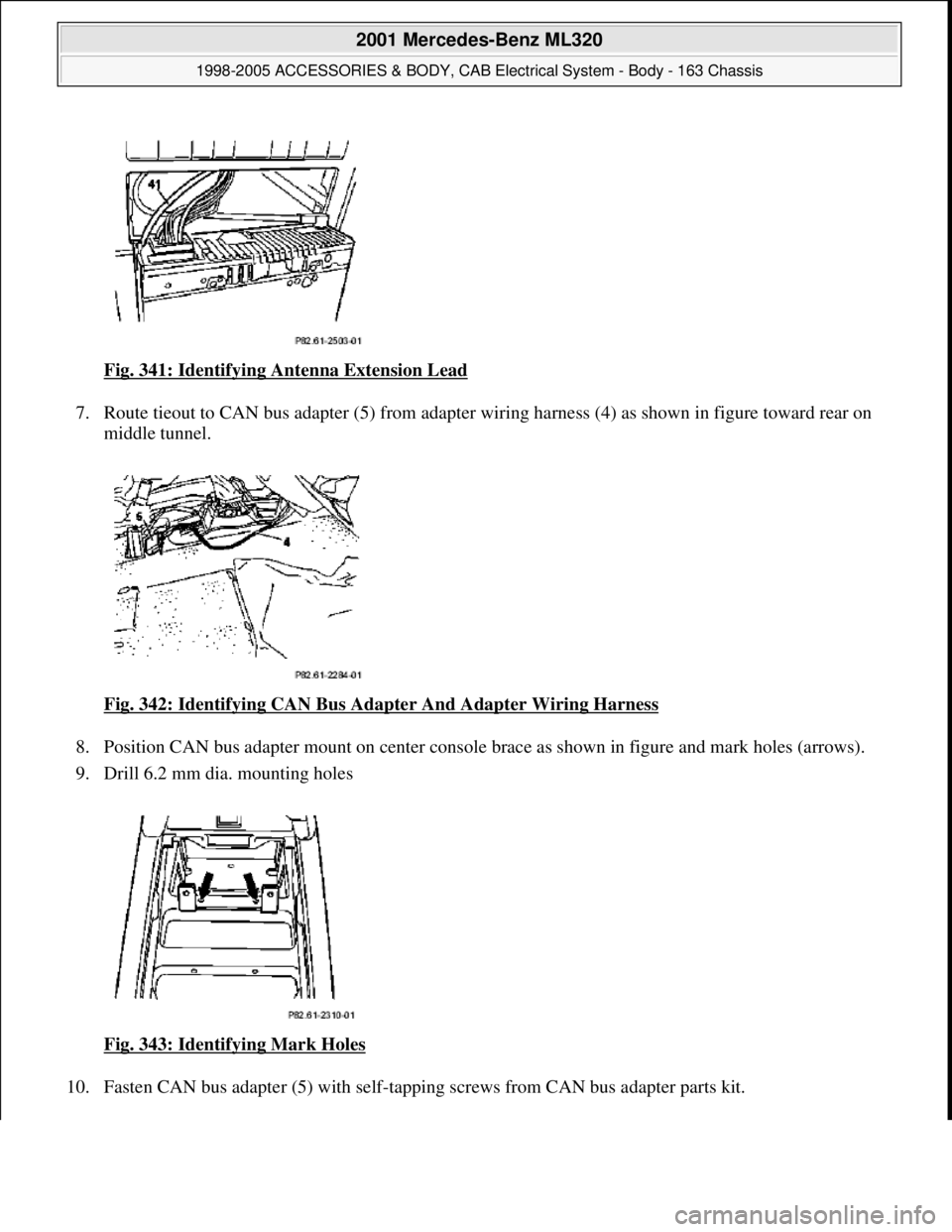

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 341: Identifying An tenna Extension Lead 7. Route tieout to CAN bus adapter (5) from adapter wiring harness (4) as shown in figure toward rear on middle tunnel. Fig. 342: Identifying CAN

Page 1911 of 4133

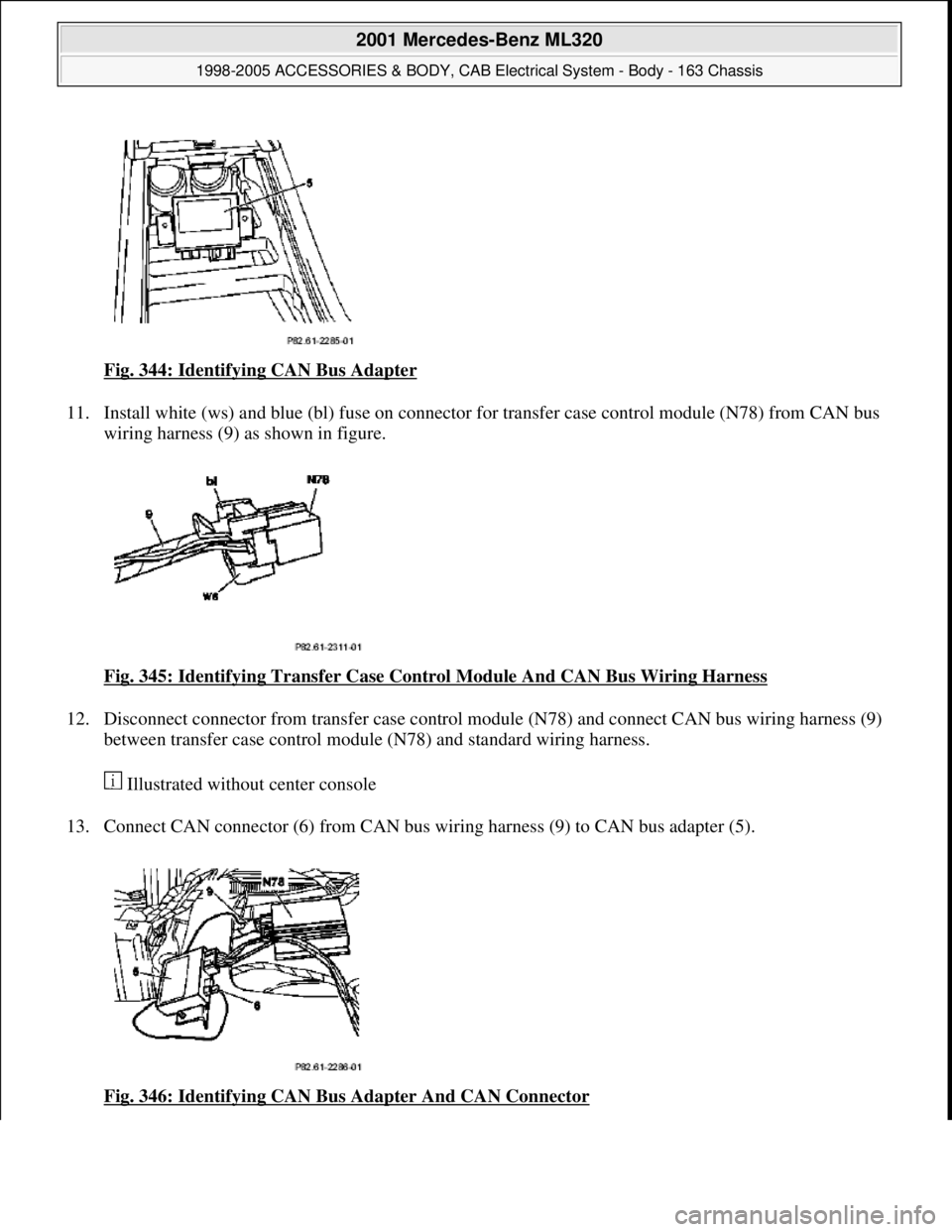

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 344: Identifying CAN Bus Adapter 11. Install white (ws) and blue (bl) fuse on connector for transfer case control module (N78) from CAN bus wiring harness (9) as shown in figure. Fig. 345

Page 1912 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual RETROFITTING TRAFFIC PRO NAVIGATION SYSTEM - AZ82.61-P-0002H MODEL 163 up to 30.6.00 except CODE (810) Sound system except CODE (819) 6-disk CD changer except CODE (316) MB GSM cellular telephon
