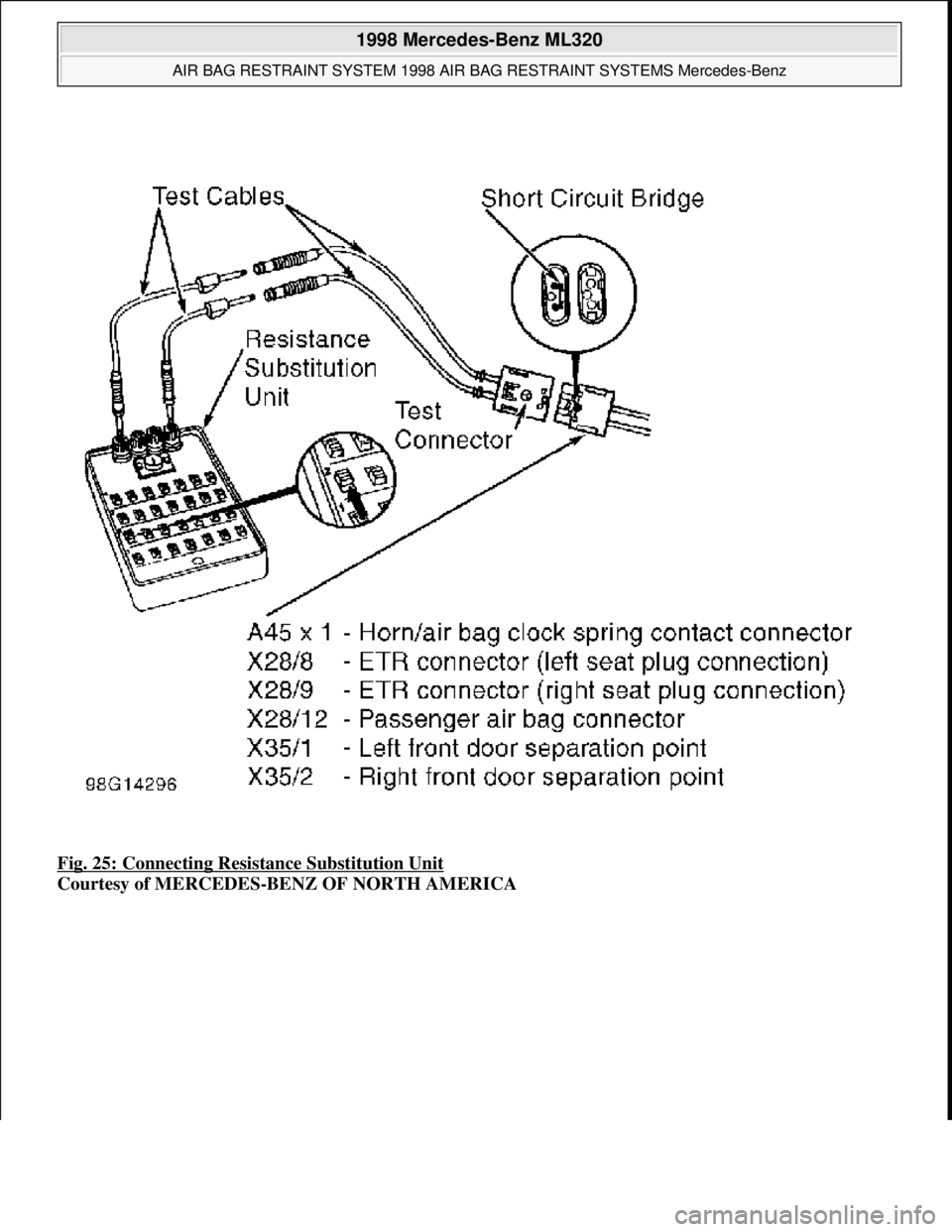

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 25: Connecting Resistance Substitution Unit Courtesy of MERCEDES-BENZ OF NORTH AMERICA 1998 Mercedes-Benz ML320 AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz me Sa

Page 34 of 4133

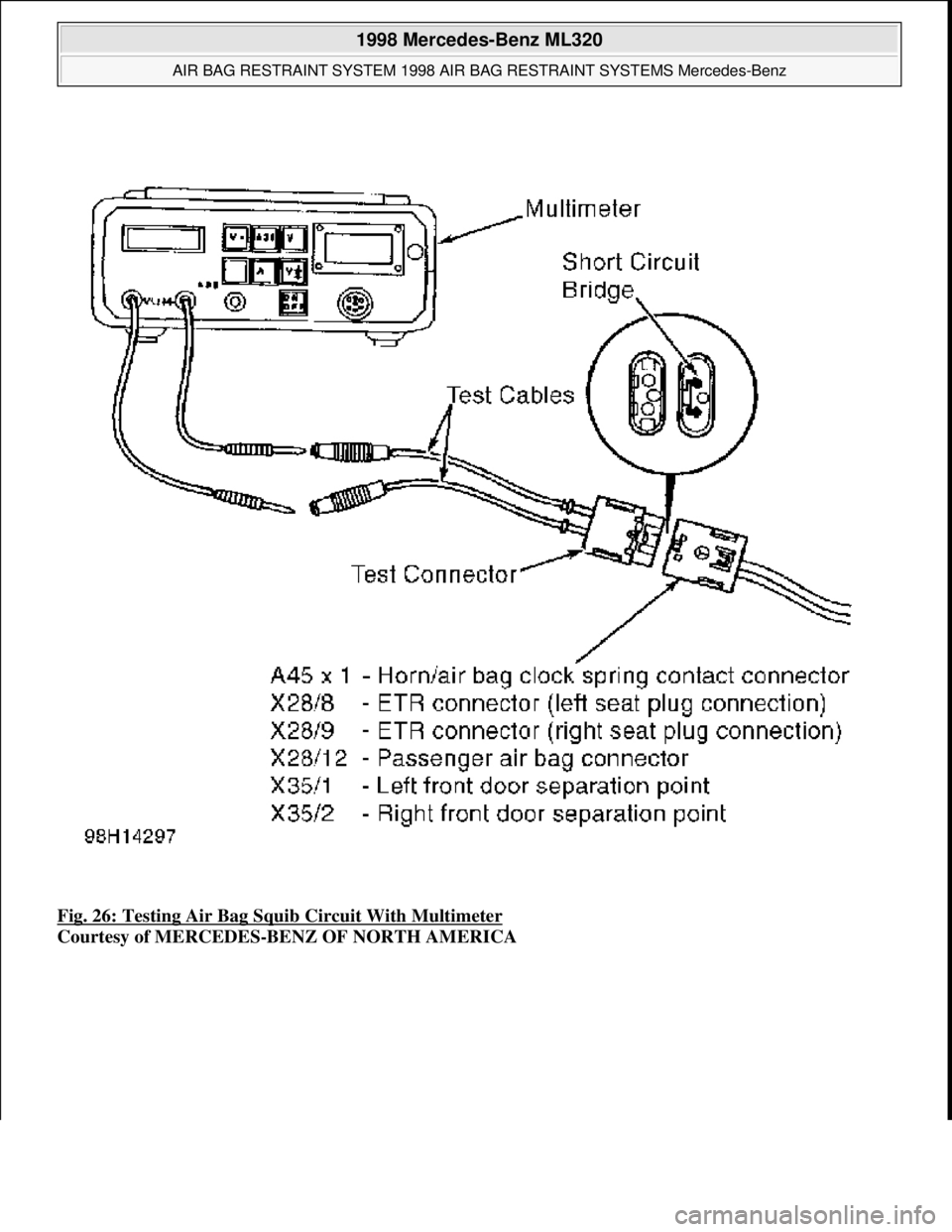

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 26: Testing Air Bag Squi b Circuit With Multimeter Courtesy of MERCEDES-BENZ OF NORTH AMERICA 1998 Mercedes-Benz ML320 AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz

Page 35 of 4133

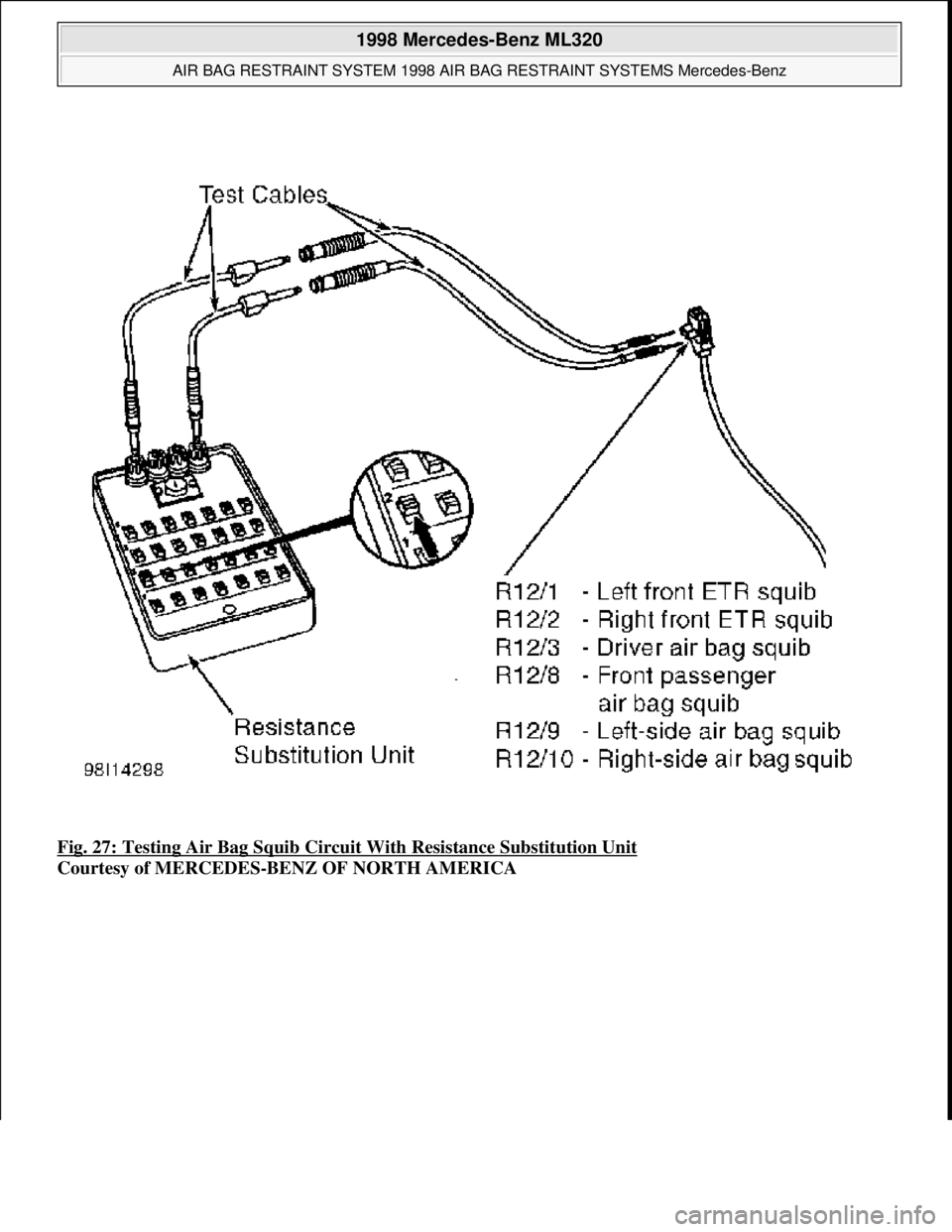

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 27: Testing Air Bag Squib Circuit With Resistance Substitution Unit Courtesy of MERCEDES-BENZ OF NORTH AMERICA 1998 Mercedes-Benz ML320 AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYS

Page 36 of 4133

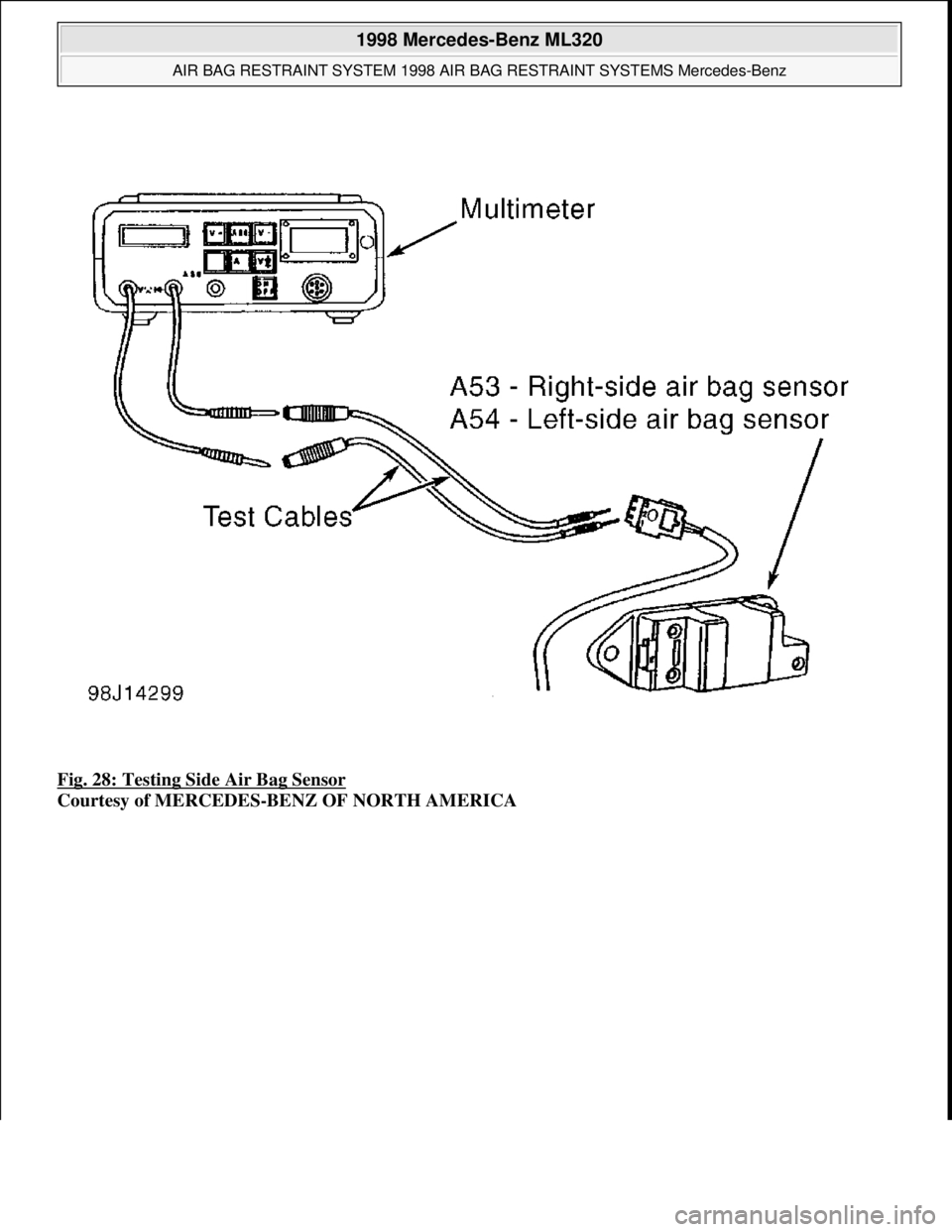

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 28: Testing Side Air Bag Sensor Courtesy of MERCEDES-BENZ OF NORTH AMERICA 1998 Mercedes-Benz ML320 AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz me Saturday, Octo

Page 37 of 4133

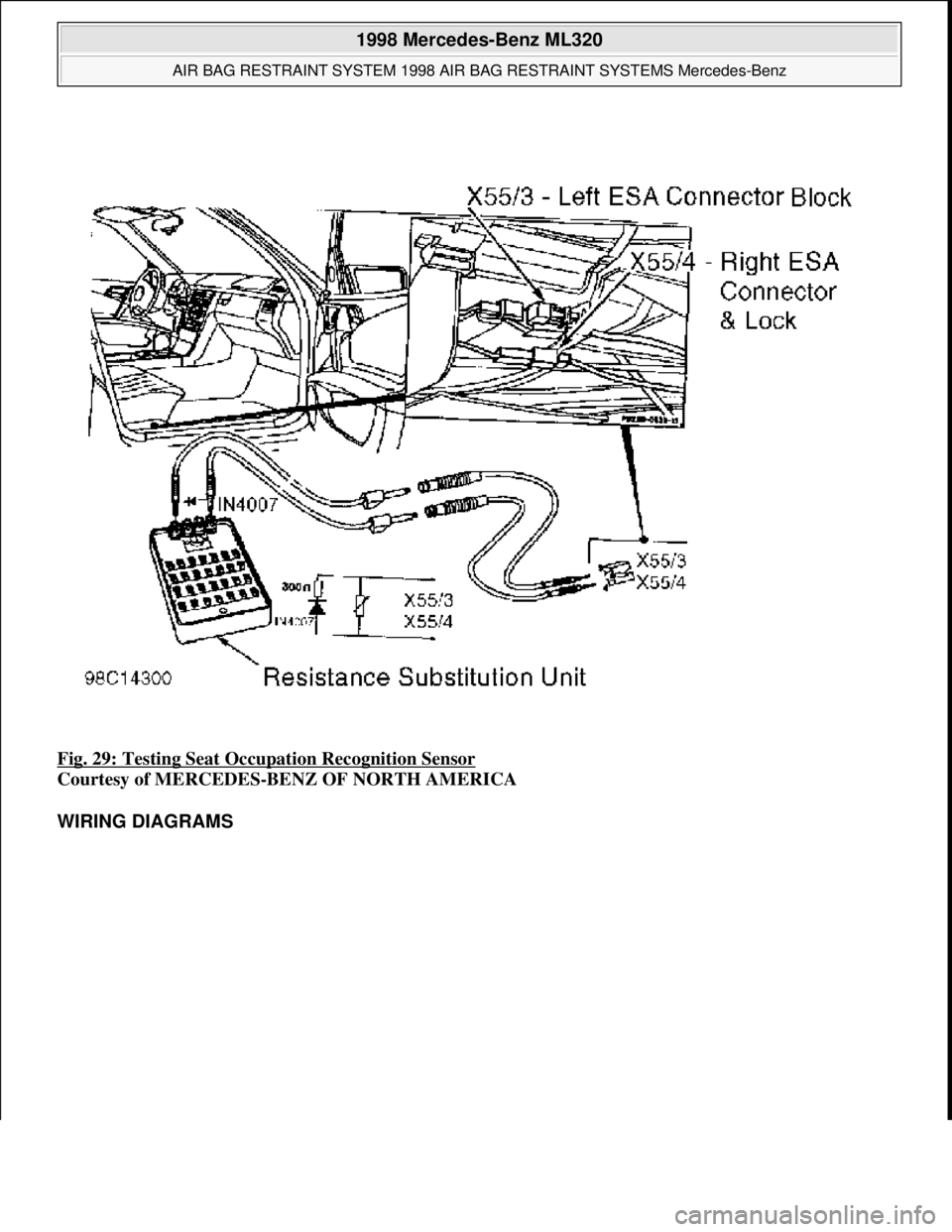

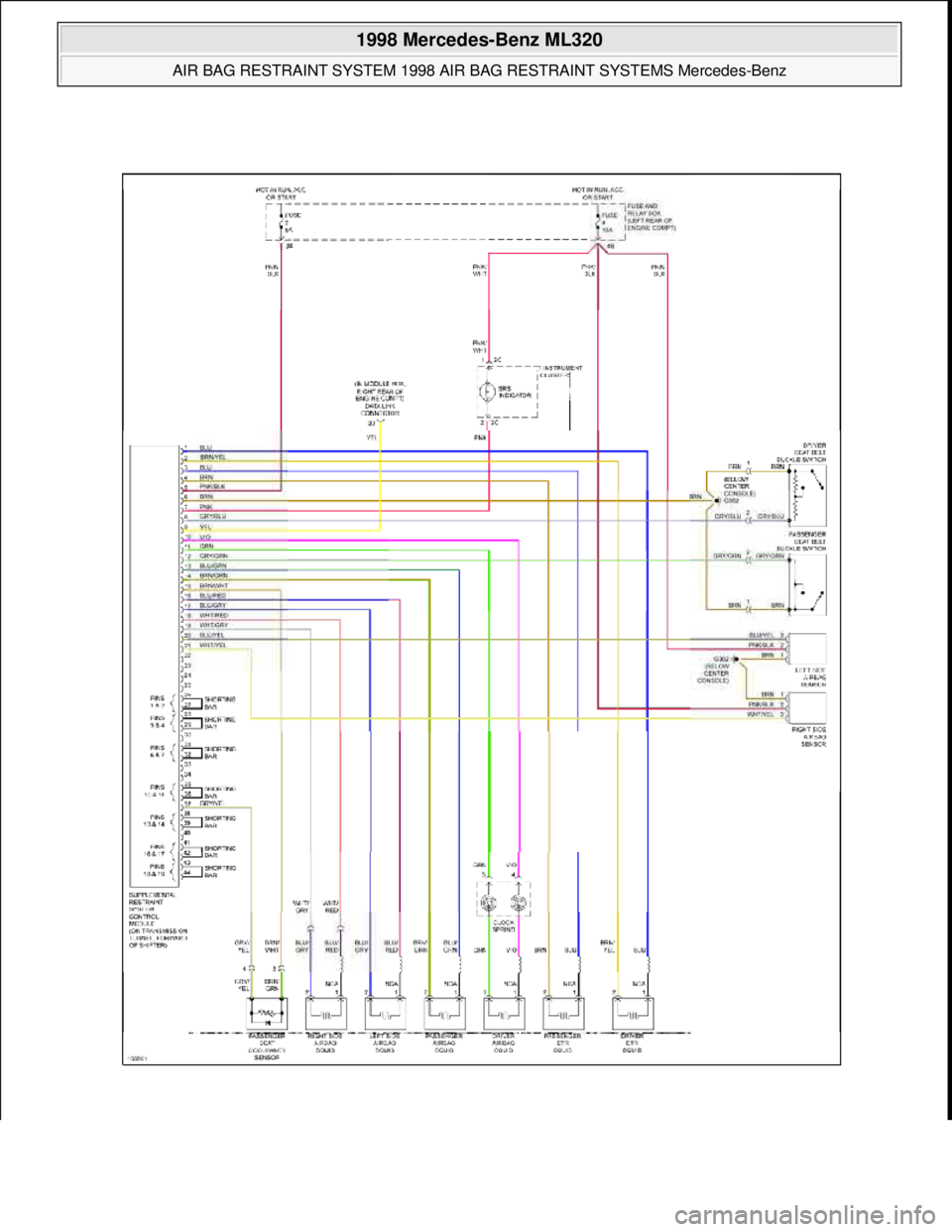

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 29: Testing Seat Occupation Recognition Sensor Courtesy of MERCEDES-BENZ OF NORTH AMERICA WIRING DIAGRAMS 1998 Mercedes-Benz ML320 AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Me

Page 38 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 1998 Mercedes-Benz ML320 AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz me Saturday, October 02, 2010 3:33:14 PMPage 38 © 2006 Mitchell Repair Information Company, LLC.

Page 39 of 4133

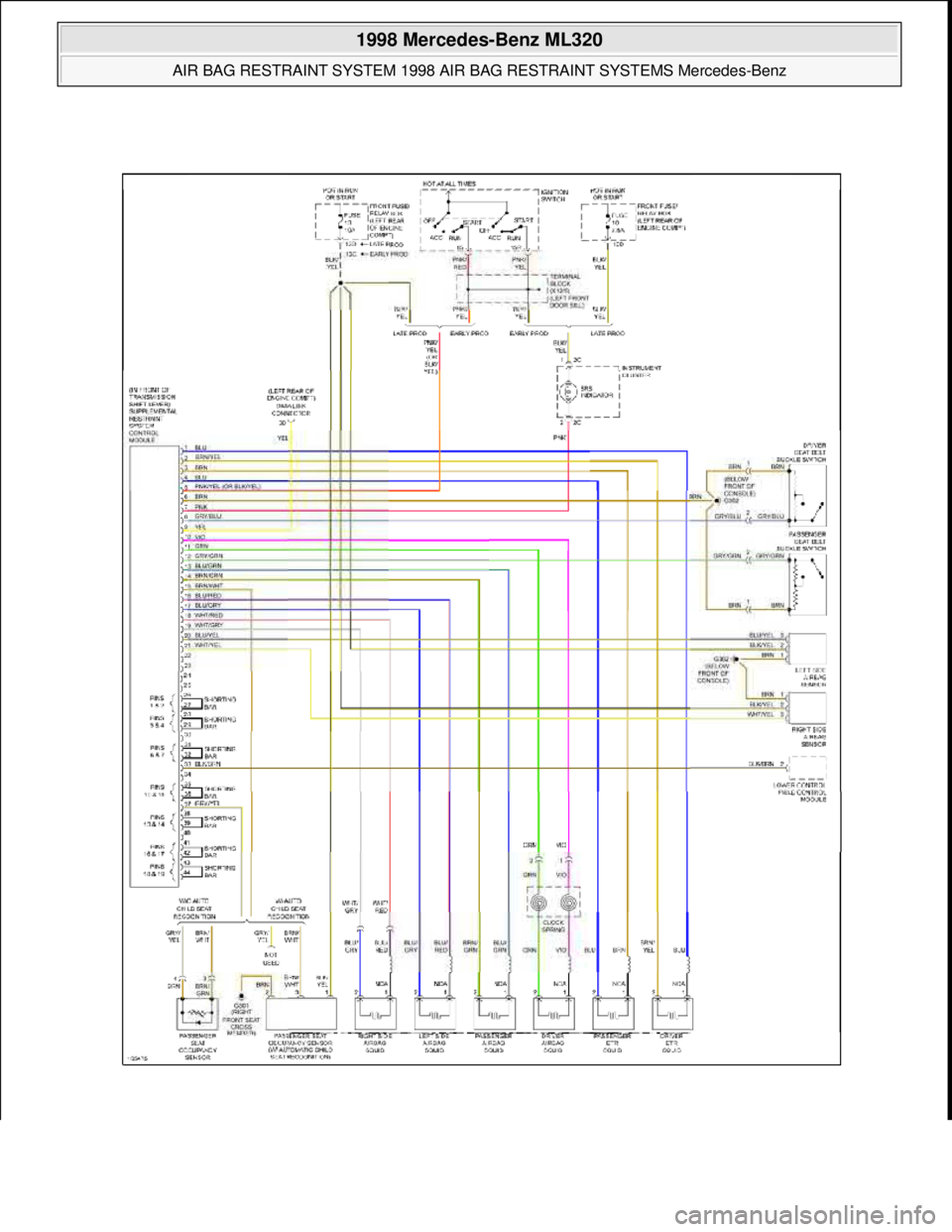

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 30: Air Bag System Wiring Diagram (C230, C280 & CLK320) 1998 Mercedes-Benz ML320 AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz me Saturday, October 02, 2010 3:33:14

Page 40 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 1998 Mercedes-Benz ML320 AIR BAG RESTRAINT SYSTEM 1998 AIR BAG RESTRAINT SYSTEMS Mercedes-Benz me Saturday, October 02, 2010 3:33:14 PMPage 40 © 2006 Mitchell Repair Information Company, LLC.
