Page 2385 of 4133

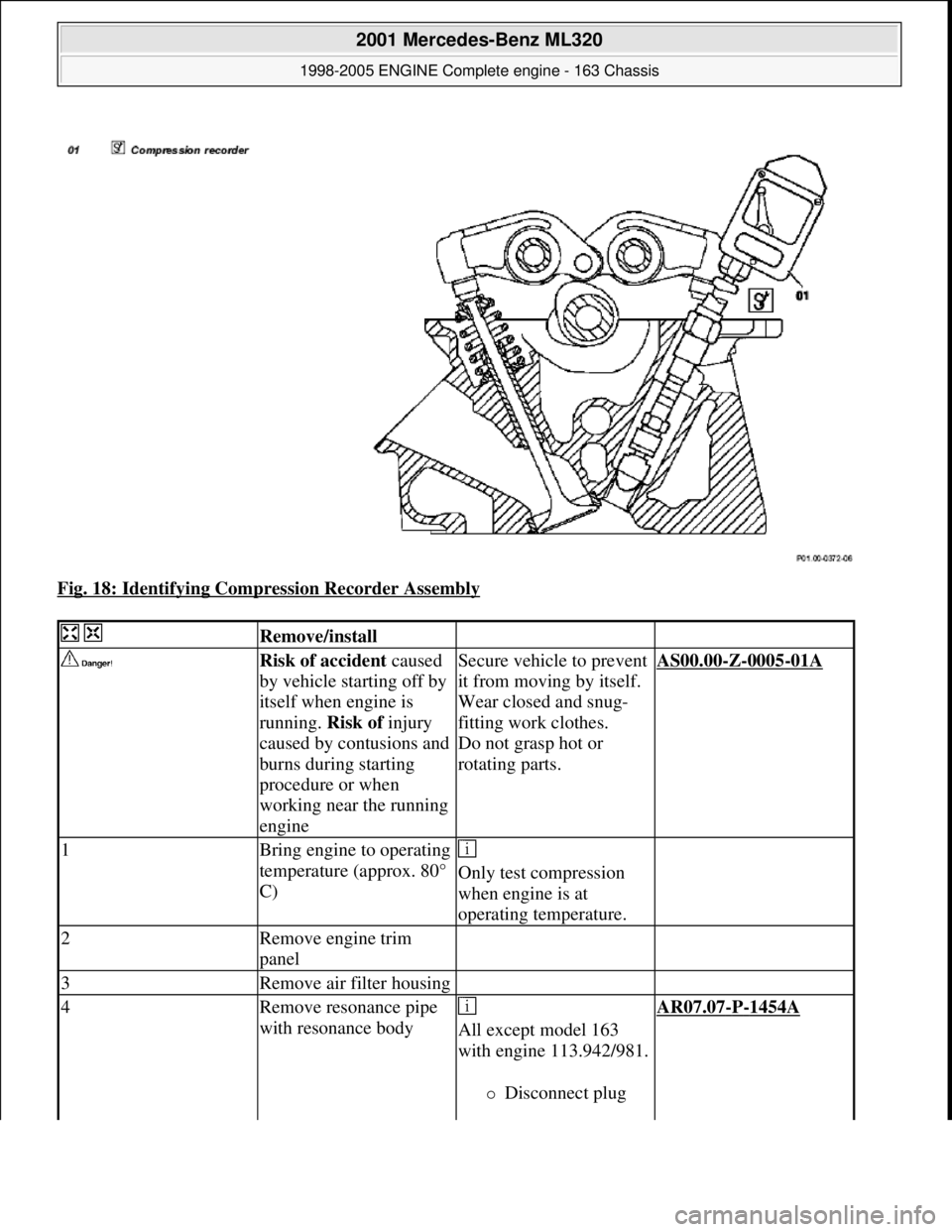

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 18: Identifying Compression Recorder Assembly Remove/install Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions

Page 2386 of 4133

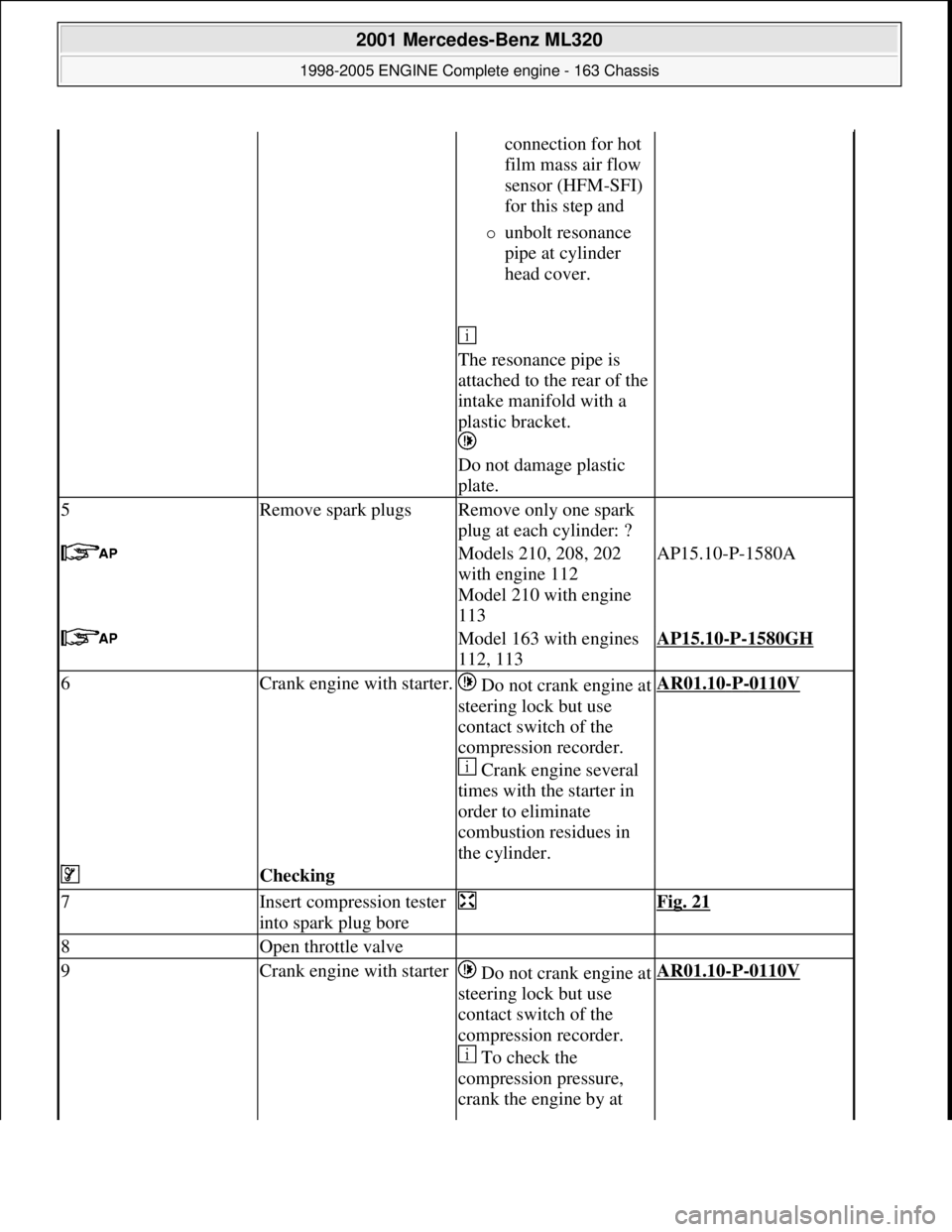

MERCEDES-BENZ ML320 1997 Complete Repair Manual connection for hot film mass air flow sensor (HFM-SFI) for this step and unbolt resonance pipe at cylinder head cover. The resonance pipe is attached to the rear of the int

Page 2387 of 4133

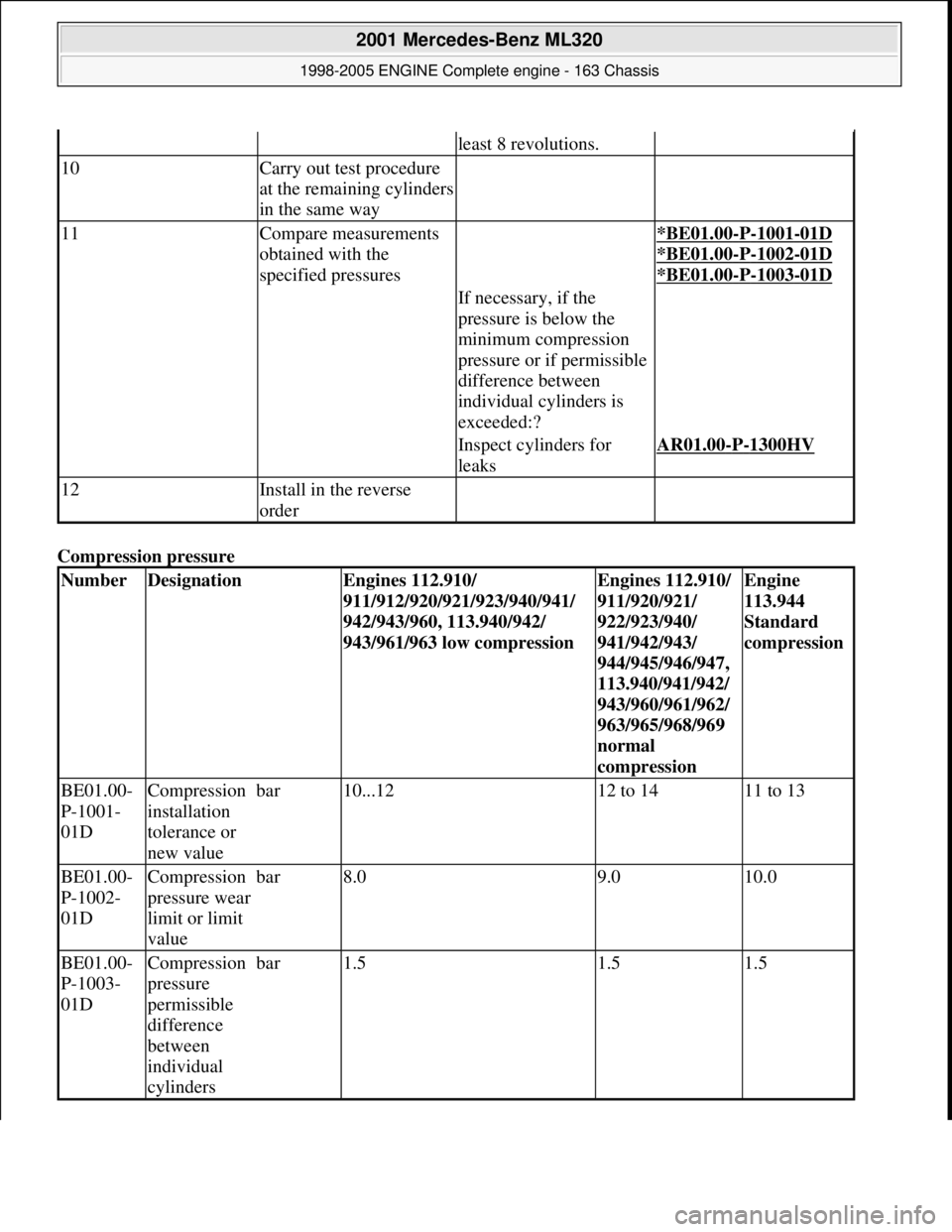

MERCEDES-BENZ ML320 1997 Complete Repair Manual Compression pressure least 8 revolutions. 10Carry out test procedure at the remaining cylinders in the same way 11Compare measurements obtained with the specified pressures *BE01.00-P-1001

Page 2388 of 4133

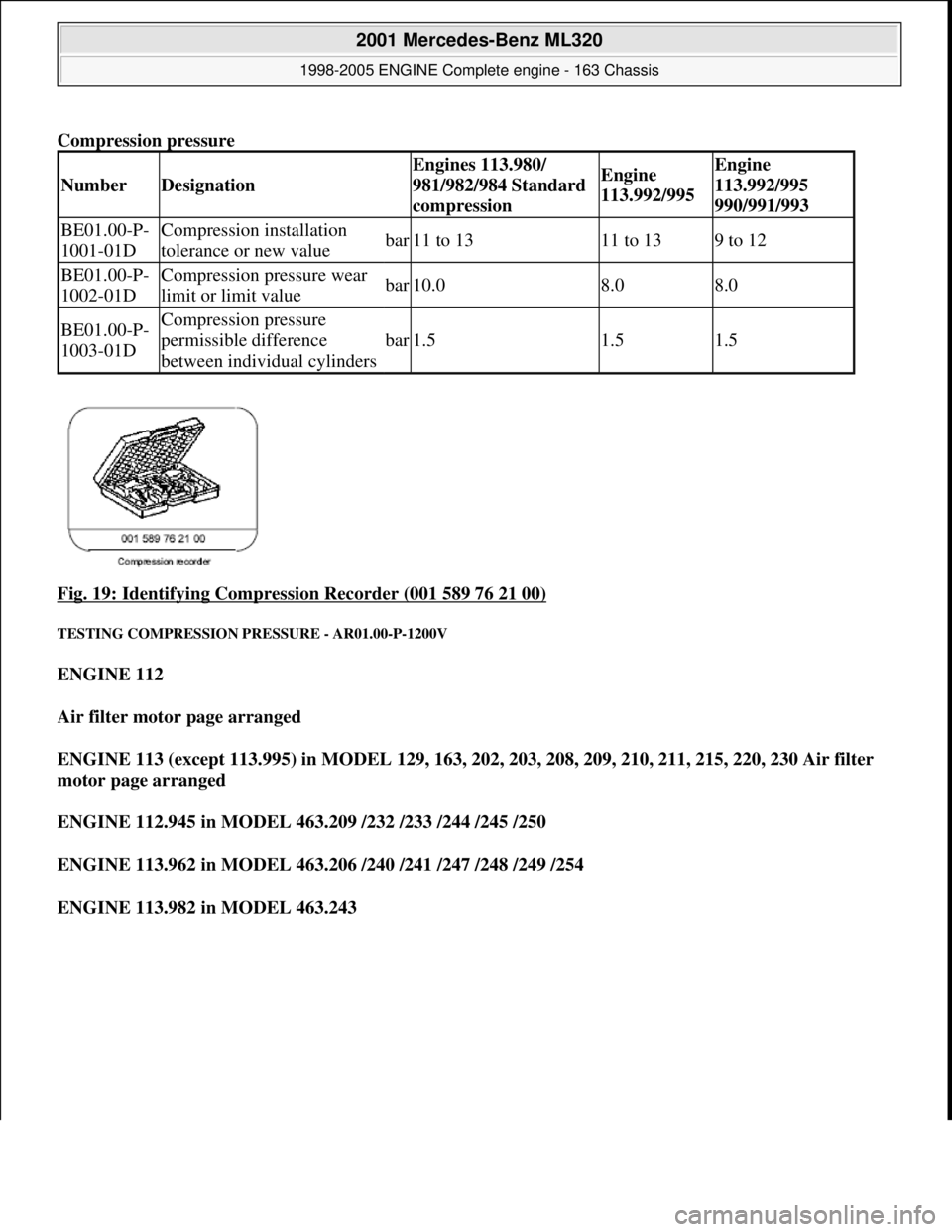

MERCEDES-BENZ ML320 1997 Complete Repair Manual Compression pressure Fig. 19: Identifying Compression Recorder (001 589 76 21 00) TESTING COMPRESSION PR ESSURE - AR01.00-P-1200V ENGINE 112 Air filter motor page arranged ENGINE 113 (e

Page 2389 of 4133

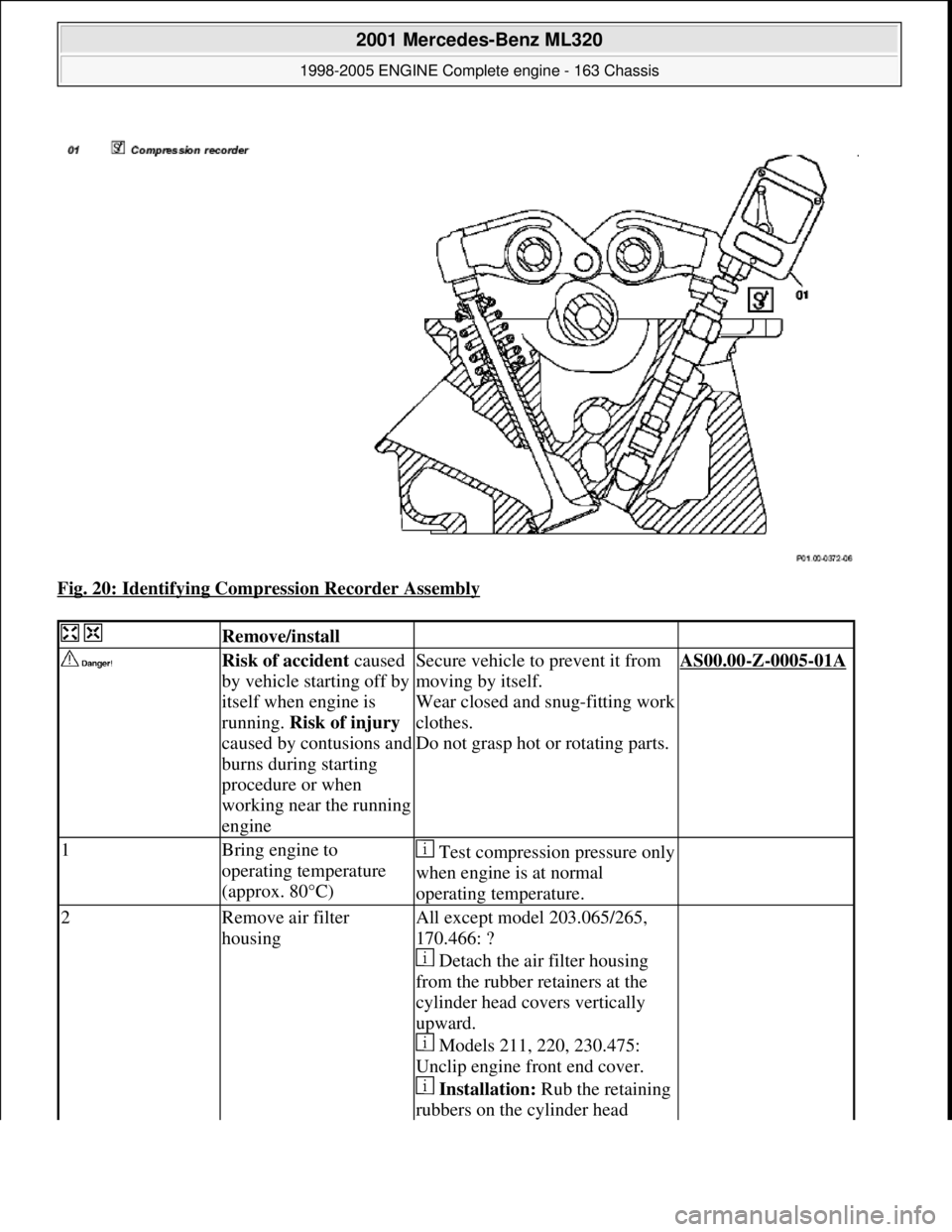

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 20: Identifying Compression Recorder Assembly Remove/install Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions

Page 2390 of 4133

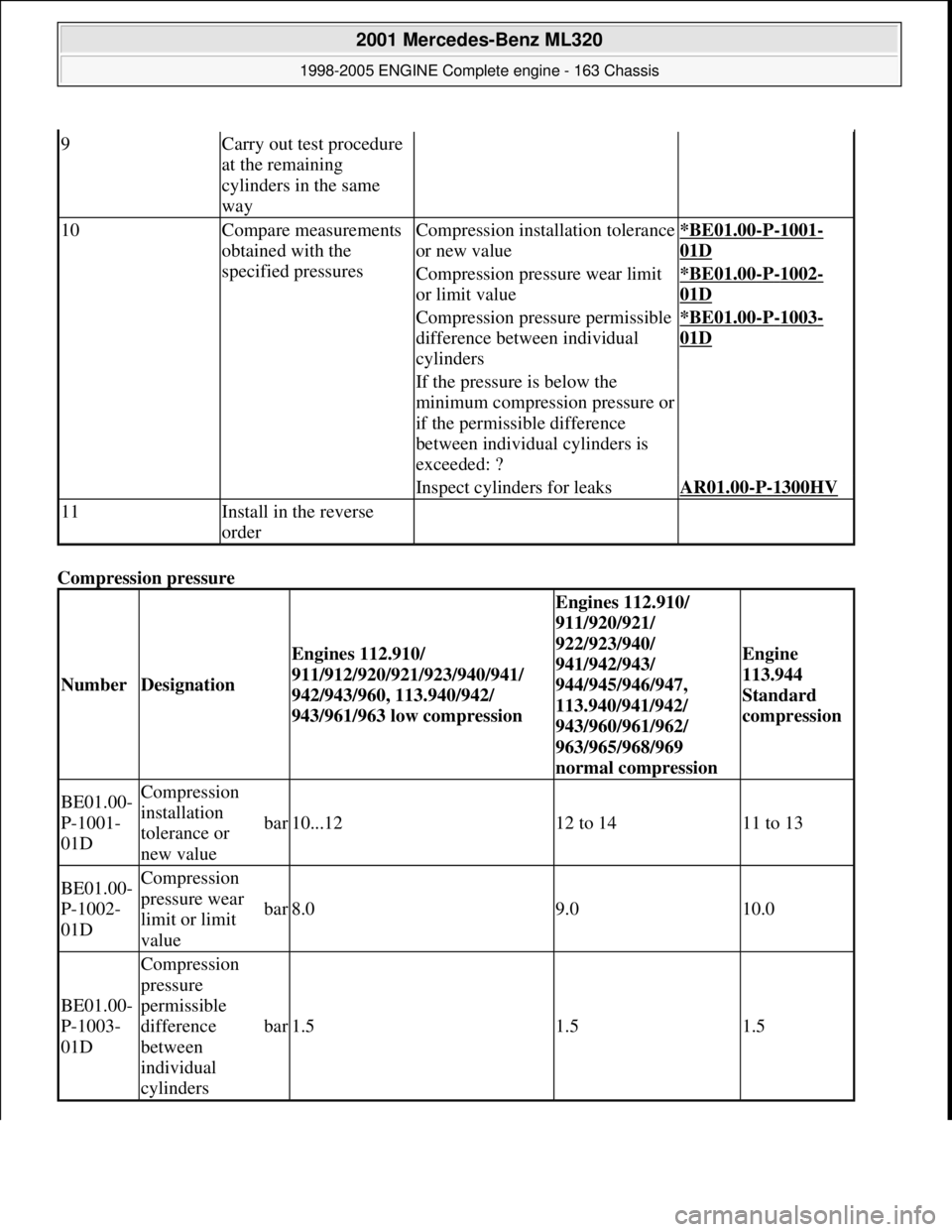

MERCEDES-BENZ ML320 1997 Complete Repair Manual covers and sealing ring of the hot film air mass sensor in the air filter housing with lubricant. Models 230.474, 203.065/265, 170.466AR09.10-P-1150SVK Lubricant *BR00.45 -Z-1002- 06A 3Remove

Page 2391 of 4133

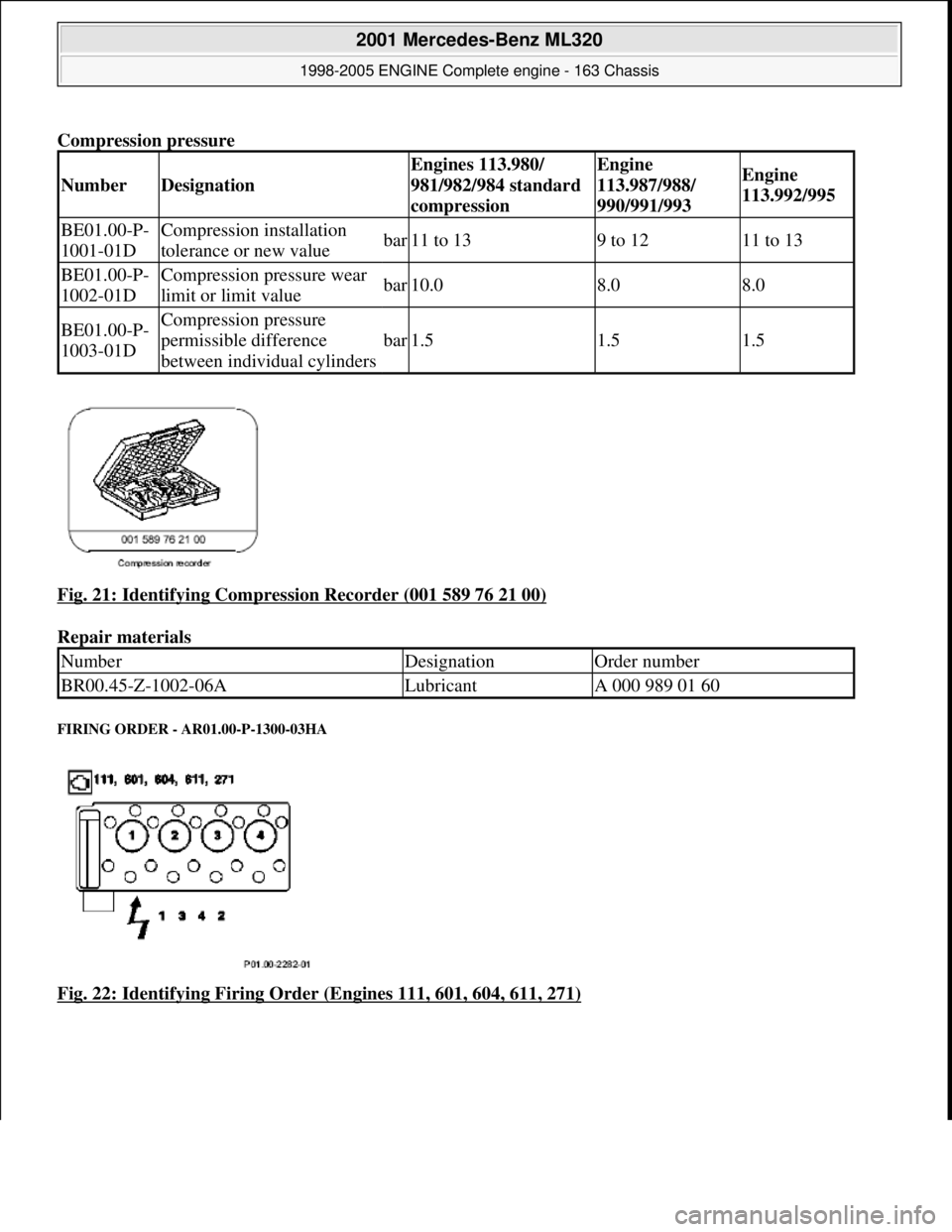

MERCEDES-BENZ ML320 1997 Complete Repair Manual Compression pressure 9Carry out test procedure at the remaining cylinders in the same way 10Compare measurements obtained with the specified pressuresCompression installation tolerance

Page 2392 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Compression pressure Fig. 21: Identifying Compression Recorder (001 589 76 21 00) Repair materials FIRING ORDER - AR01.00-P-1300-03HA Fig. 22: Identifying Firing Order (Engines 111, 601, 604
