Page 3241 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
2001 Mercedes-Benz ML320
2000-01 MANUAL A/C-HEATER SYSTEMS ML 320, ML 430 & ML 55
me
Saturday, October 02, 2010 3:25:10 PMPage 30 © 2006 Mitchell Repair Information Company, LLC.

Page 3242 of 4133

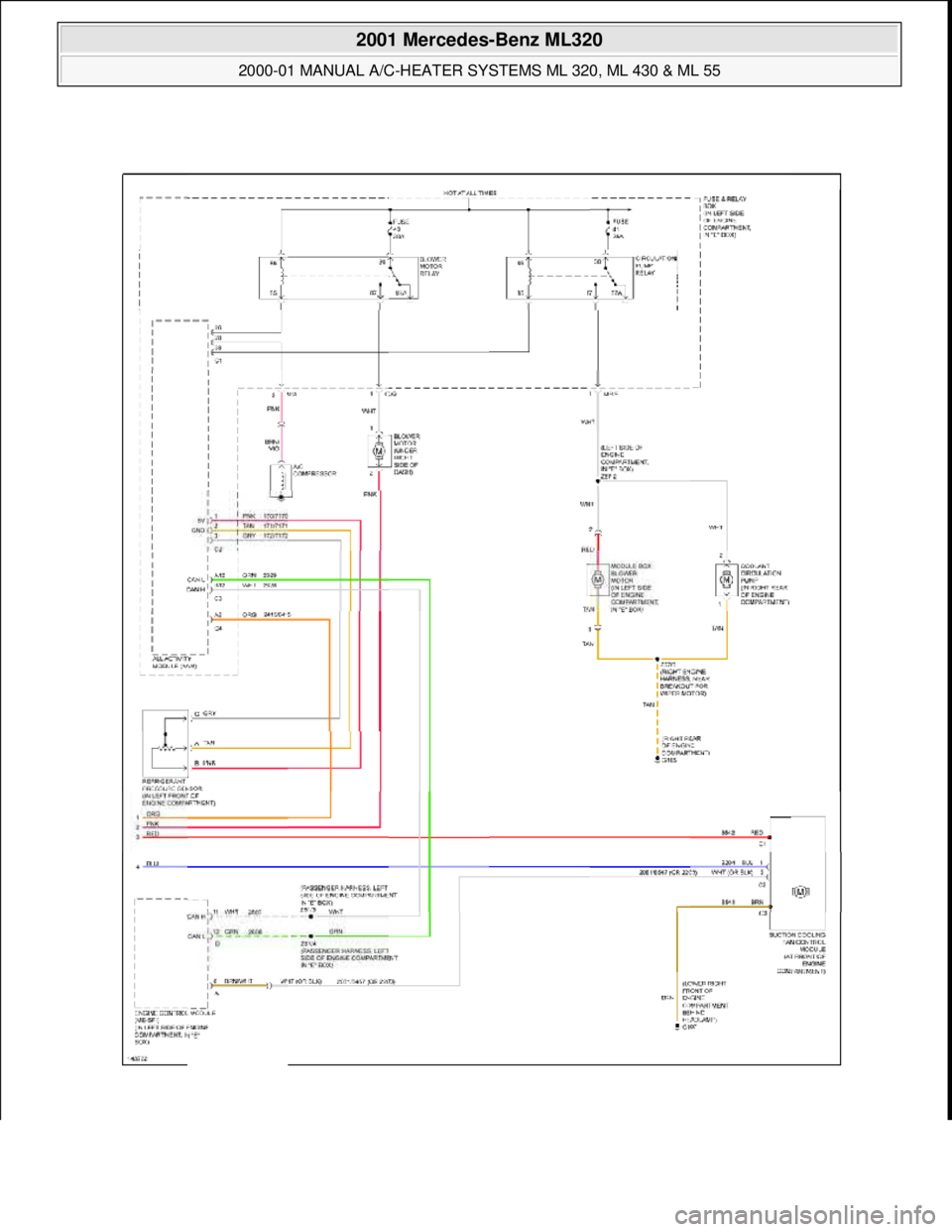

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 12: Automatic A/C-Heater Systems Wiring Diagram (2000-01 ML 320 & ML 430 With Cooling Fan
Control Module - 1 Of 2)

2001 Mercedes-Benz ML320
2000-01 MANUAL A/C-HEATER SYSTEMS ML 320, ML 430 &

Page 3243 of 4133

Page 3244 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 13: Automatic A/C-Heater Systems Wiring Diagram (2000-01 ML 320 & ML 430 With Cooling Fan
Control Module - 2 Of 2)

2001 Mercedes-Benz ML320
2000-01 MANUAL A/C-HEATER SYSTEMS ML 320, ML 430 &

Page 3245 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 1998-2005 HVAC
Climate Control - 163 Chassis
GENERAL INFORMATION
GENERAL NOTES: PASSENGER CARS: CLIMATE CONTROL - AH83.00-Z-9999AZ
MODEL all
Notes on retrofitting an air conditioning
systemMODE

1998-2005 HVAC
Climate Control - 163 Chassis
GENERAL INFORMATION
GENERAL NOTES: PASSENGER CARS: CLIMATE CONTROL - AH83.00-Z-9999AZ
MODEL all
Notes on retrofitting an air conditioning
systemMODEL allAH83.30-P-
0001-02A
Repair work for defective refrigerant
circuitMODEL allAH83.30-P-
1782-01A
Instructions for installing actuator motorsMODEL 199,230.4AH83.10-P-
0001-01R
Notes on EU type approval requirementsMODEL 170,209,211,220...AH83.70-P-
0001-09Q
Notes on repairing stationary heaterMODEL 202 up to 31.5.97 retrofitted
stationary heaterAH83.70-P-
0001-03D
Information on repairs to stationary heaterMODEL 202 as of 1.6.97, 208 Retrofitted
Thermo Top C stationary heaterAH83.70-P-
0001-03E
Notes on repairing TelestartMODEL 163, 168, 170, 202, 208, 210 ...AH83.70-P-
0003-02AA
Notes on installation of stationary heaterMODEL 215 Retrofitted stationary feelingAH83.70-P-
0008-02N
Notes on handling refrigerant R134aMODEL all Air conditioning system with
cold means R134aAH83.30-N-
0003-01A
Notes on stationary ventilation with
TelestartMODEL 210.### 1# with Telestart T70 for
un-networked heaterAH83.70-P-
0009-01B
Information on installing actuator motorsMODEL 211AH83.10-P-
0001-01T
Information on installing actuator motorsMODEL 219.3AH83.10-P-
0001-01TX
Notes on handling refrigerant R134aMODEL 240AH83.30-P-
0003-01H
Notes on handling refrigerant R134aMODEL 199AH83.30-P-
0003-01SLR
Notes on repairing the stationary heaterMODEL 163.###1# up to 31.8.01
Retrofitted Thermo Top C stationary heaterAH83.70-P-
0001-03A
Notes on repairing stationary heaterMODEL 168 Retrofitted Thermo Top C
stationary heaterAH83.70-P-
0001-03B
Information on repairs to stationary heaterMODEL 170.435/445/447 up to 31.1.00
Retrofitted Thermo Top C stationary heaterAH83.70-P-
0001-03C
AH83.70-P-

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:14 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
me
Saturday, October 02, 2010 3:24:17 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.

Page 3246 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Information on repairs to stationary heaterMODEL 170.444/449/4650001-03CA
Information on repairs to stationary heaterMODEL 210...AH83.70-P-
0001-03F
Notes on repairing the stationary heaterMODEL 16

Information on repairs to stationary heaterMODEL 170.444/449/4650001-03CA
Information on repairs to stationary heaterMODEL 210...AH83.70-P-
0001-03F
Notes on repairing the stationary heaterMODEL 163.###1# as of 1.9.01
Retrofitted Thermo Top C stationary heaterAH83.70-P-
0001-03I
Distinguishing features stationary heater/
stationary preheater/heater boosterMODEL 202.### 1# Webasto Thermo Top
C heaterAH83.70-P-
0003-01A
Distinguishing characteristics stationary
heater/ stationary preheater/heater boosterMODEL 210.###1# up to 31.5.00 Heater
Webasto Thermo Top CAH83.70-P-
0003-01B
Distinguishing features stationary
heater/stationary preheater/heater boosterMODEL 168.###1# Heater Webasto
Thermo Top CAH83.70-P-
0003-01C
Notes on repairing telestartMODEL 168,170, 202 as of 1.6.97,
208,210 More retrofitted telestart T60AH83.70-P-
0003-02A
Notes on repairing telestartMODEL 202 up to 31.5.97 Telestart T60 in
retrofitted stationary heaterAH83.70-P-
0003-02B
Notes on repairing telestartMODEL 163 Telestart T60 in retrofitted
stationary heaterAH83.70-P-
0003-02C
Notes on repairing TelestartMODEL 215, 220AH83.70-P-
0003-02M
Notes on differentiating characteristics of
TelestartMODEL 163, 168, 170, 202, 210 ...AH83.70-P-
0003-03A
Notes on installation of timerMODEL 163, 168, 170, 202, 208 ...AH83.70-P-
0008-01A
Notes on installing stationary heater
MODEL 163, 168, 170, 202, 203, 208,
209, 210, 211, 220, 414 Retrofitted
stationary heaterAH83.70-P-
0008-02A
Notes on installing stationary heaterMODEL 450.3 /4 (except, 450.418)AH83.70-P-
0008-02SM
Notes for timer and/or Telestart
MODELS 163.###1A as of 145270,
163.### 1X as of 708319 Retrofitted
stationary heaterAH83.70-P-
0008-03A
Notes for stationary ventilation with
TelestartMODEL 163.###, 168.###, 170.###,
202.###, 208.###1# Telestart T70AH83.70-P-
0009-01A
Notes on Telestart with GSM antennaMODEL 168, 170, 202, 208.3, 210
Telestart T70AH83.70-P-
0009-02A
Conduct if air conditioning system is
damaged or leakingMODEL all ...AH83.30-N-
0004-01A

Protect air conditioning circuit and
components from moisture when carrying
out repair work
MODEL allAH83.30-N-
0005-01A
Procedure if air conditioning system is
damaged or leakingMODEL 240AH83.30-P-
0004-01H
Conduct if air conditioning system is
damaged or leakingMODEL 199AH83.30-P-
0004-01SLR

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:14 PMPage 2 © 2006 Mitchell Repair Information Company, LLC.

Page 3247 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual NOTES ON HANDLING REFRIGERANT R134A - AH83.30-N-0003-01A
Air conditioning with refrigerant R134a
The refrigerant R134a is colorless and odorless.
At normal temperatures it is neither toxic nor fla

NOTES ON HANDLING REFRIGERANT R134A - AH83.30-N-0003-01A
Air conditioning with refrigerant R134a
The refrigerant R134a is colorless and odorless.
At normal temperatures it is neither toxic nor flammable, and will not explode in the air, no matter what its
mixing ratio.
The R134a refrigerant may only be used in air conditioning systems for which R134a has been specifically
approved.
The refrigerant R134a must not be mixed with other refrigerants (e.g. R12).
The refrigerant R134a does not contain any chlorofluorocarbons (CFC). In contrast to other refrigerants (e.g.
R12) it is not hazardous to the environment at normal temperatures. The refrigerant R134a does not damage the
earth's ozone layer.
Despite these benefits, refrigerant R134a may only be extracted by experts with suitable extraction, recycling
and filling equipment that includes integral disposal and reprocessing capabilities.
CONDUCT IF AIR CONDITIONING SYSTEM IS DAMAGED OR LEAKING - AH83.30-N-0004-01A
All models
The air conditioning system should never be operated if it is damaged or when there is evidence of refrigerant
loss.
In the event that refrigerant is lost, lubrication can fail. This will lead to damage of the refrigerant compressor.
Evacuate damaged and/or leaking air conditioning refrigerant circuits as quickly as possible using extraction,
processing and recharging equipment with integral disposal and reprocessing capabilities.
PROTECT AIR CONDITIONING CIRCUIT AND COMPONENTS FROM MOISTURE WHEN CARRYING OUT REPAIR
WORK - AH83.30-N-0005-01A

Protect air conditioning circuit and
components from moisture when carrying
out repair work
MODEL 240AH83.30-P-
0005-01H

Protect air conditioning circuit and
components from moisture when carrying
out repair work
MODEL 164, 199, 203, 209, 251 ...AH83.30-P-
0005-01P

Protect air conditioning circuit and
components from moisture when carrying
out repair work
MODEL 199AH83.30-P-
0005-01SLR
Notes on removing and installing the air
conditioner housingMODEL 209, 463 ...AH83.30-P-
0006-01GM

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:14 PMPage 3 © 2006 Mitchell Repair Information Company, LLC.

Page 3248 of 4133

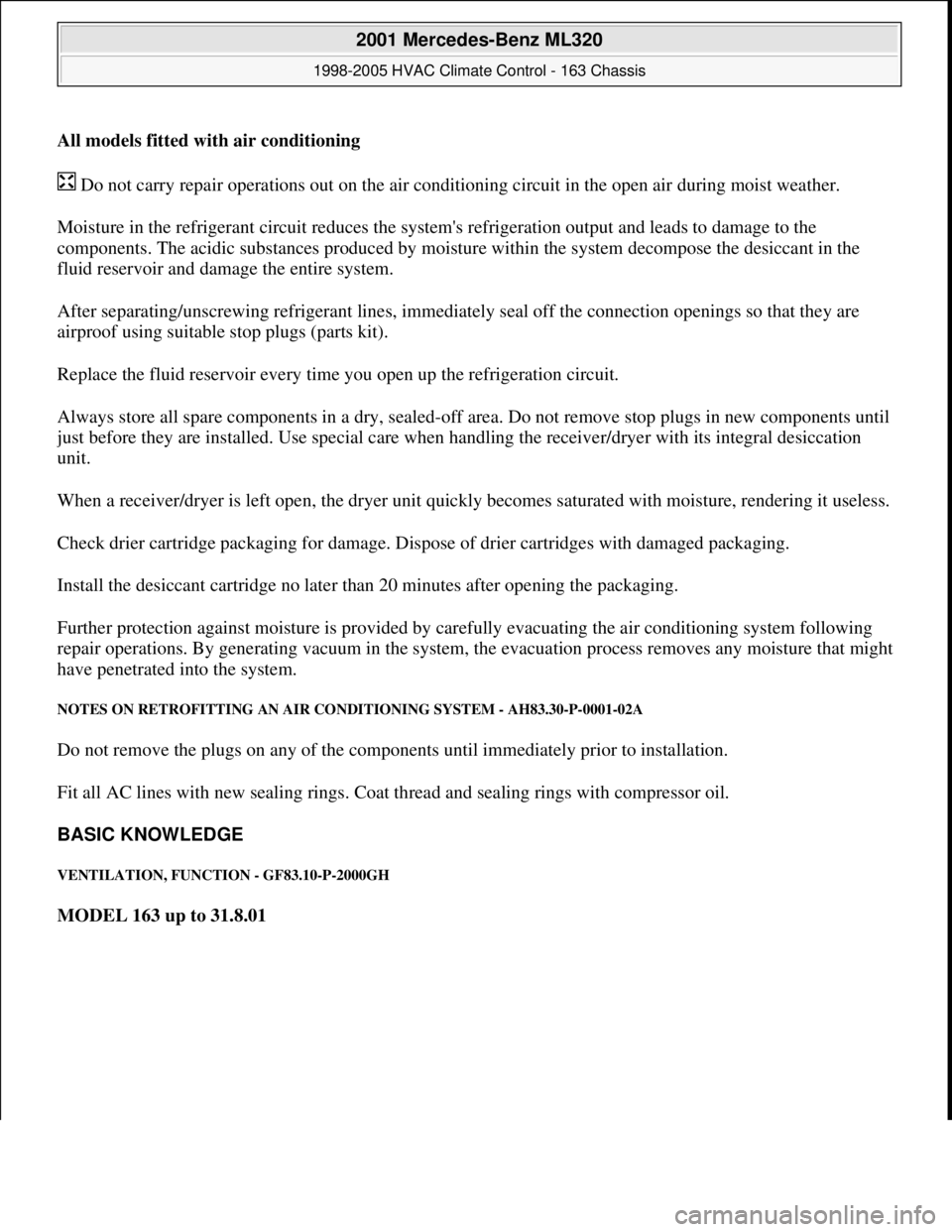

MERCEDES-BENZ ML320 1997 Complete Repair Manual All models fitted with air conditioning
Do not carry repair operations out on the air conditioning circuit in the open air during moist weather.
Moisture in the refrigerant circuit reduces the sys
