Page 2641 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 16: Fuse Assignments Fuse & Relay Box F2
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
RELAY ASSIGNMENTS
Fuse & Relay Box F1 Relay Assignments (Up-To-08/31/01)
For relay locations, see Fig. 3 .

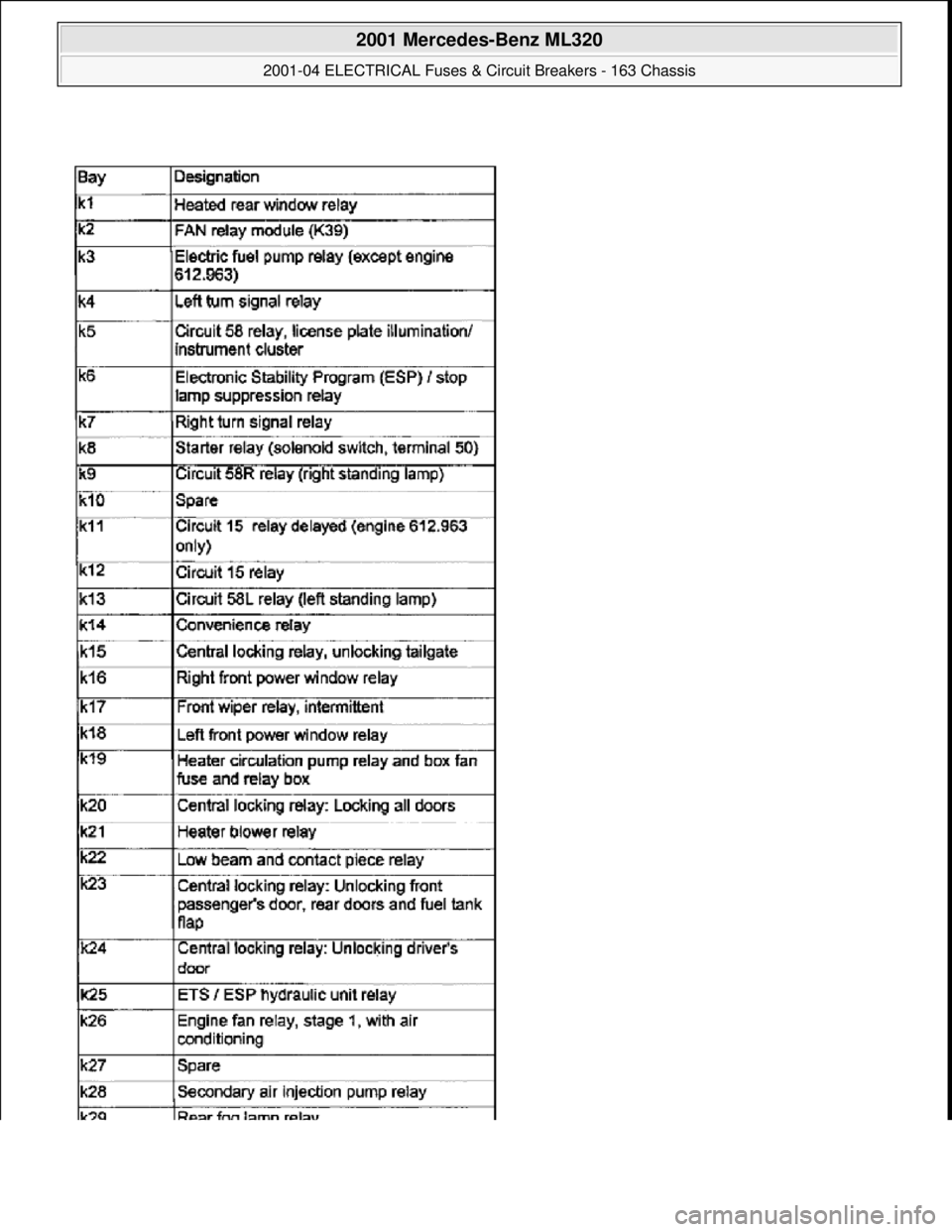

Page 2642 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
2001 Mercedes-Benz ML320
2001-04 ELECTRICAL Fuses & Circuit Breakers - 163 Chassis
me
Saturday, October 02, 2010 3:22:06 PMPage 28 © 2006 Mitchell Repair Information Company, LLC.

Page 2643 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 17: Relay Assignments Fuse & Relay Box F1
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fuse & Relay Box F1 Relay Assignments (As-Of-09/01/01)
For relay locations, see Fig. 3 . For relay assignme

Page 2644 of 4133

Page 2645 of 4133

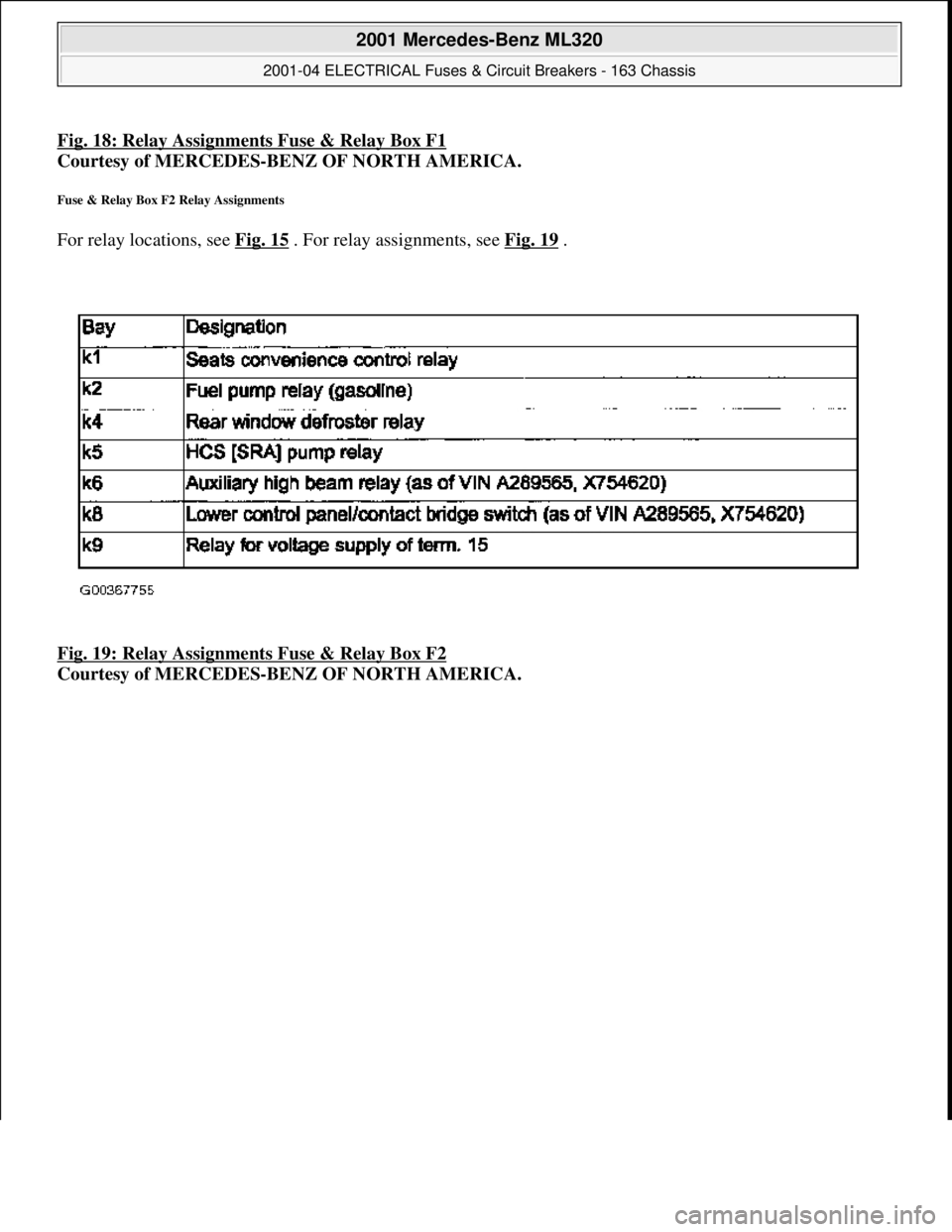

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 18: Relay Assignments Fuse & Relay Box F1
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fuse & Relay Box F2 Relay Assignments
For relay locations, see Fig. 15 . For relay assignments, see Fig. 19

Page 2646 of 4133

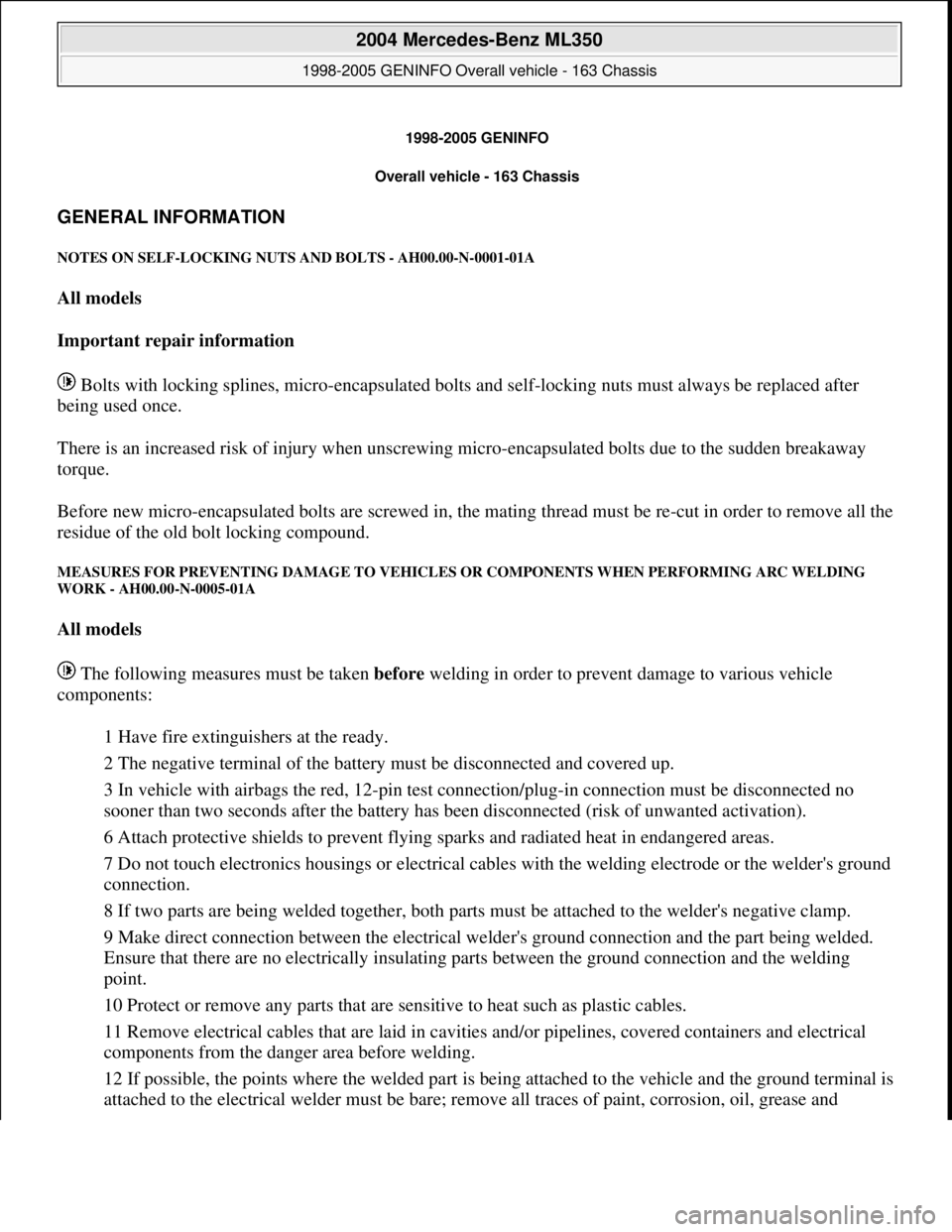

MERCEDES-BENZ ML320 1997 Complete Repair Manual 1998-2005 GENINFO
Overall vehicle - 163 Chassis
GENERAL INFORMATION
NOTES ON SELF-LOCKING NUTS AND BOLTS - AH00.00-N-0001-01A
All models
Important repair information
Bolts with locking splines

1998-2005 GENINFO
Overall vehicle - 163 Chassis
GENERAL INFORMATION
NOTES ON SELF-LOCKING NUTS AND BOLTS - AH00.00-N-0001-01A
All models
Important repair information
Bolts with locking splines, micro-encapsulated bolts and self-locking nuts must always be replaced after
being used once.
There is an increased risk of injury when unscrewing micro-encapsulated bolts due to the sudden breakaway
torque.
Before new micro-encapsulated bolts are screwed in, the mating thread must be re-cut in order to remove all the
residue of the old bolt locking compound.
MEASURES FOR PREVENTING DAMAGE TO VEHICLES OR COMPONENTS WHEN PERFORMING ARC WELDING
WORK - AH00.00-N-0005-01A
All models
The following measures must be taken before welding in order to prevent damage to various vehicle
components:
1 Have fire extinguishers at the ready.
2 The negative terminal of the battery must be disconnected and covered up.
3 In vehicle with airbags the red, 12-pin test connection/plug-in connection must be disconnected no
sooner than two seconds after the battery has been disconnected (risk of unwanted activation).
6 Attach protective shields to prevent flying sparks and radiated heat in endangered areas.
7 Do not touch electronics housings or electrical cables with the welding electrode or the welder's ground
connection.
8 If two parts are being welded together, both parts must be attached to the welder's negative clamp.
9 Make direct connection between the electrical welder's ground connection and the part being welded.
Ensure that there are no electrically insulating parts between the ground connection and the welding
point.
10 Protect or remove any parts that are sensitive to heat such as plastic cables.
11 Remove electrical cables that are laid in cavities and/or pipelines, covered containers and electrical
components from the danger area before welding.
12 If possible, the points where the welded part is being attached to the vehicle and the ground terminal is
attached to the electrical welder must be bare; remove all traces of paint, corrosion, oil, grease and

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:43 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
me
Saturday, October 02, 2010 3:48:01 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.

Page 2647 of 4133

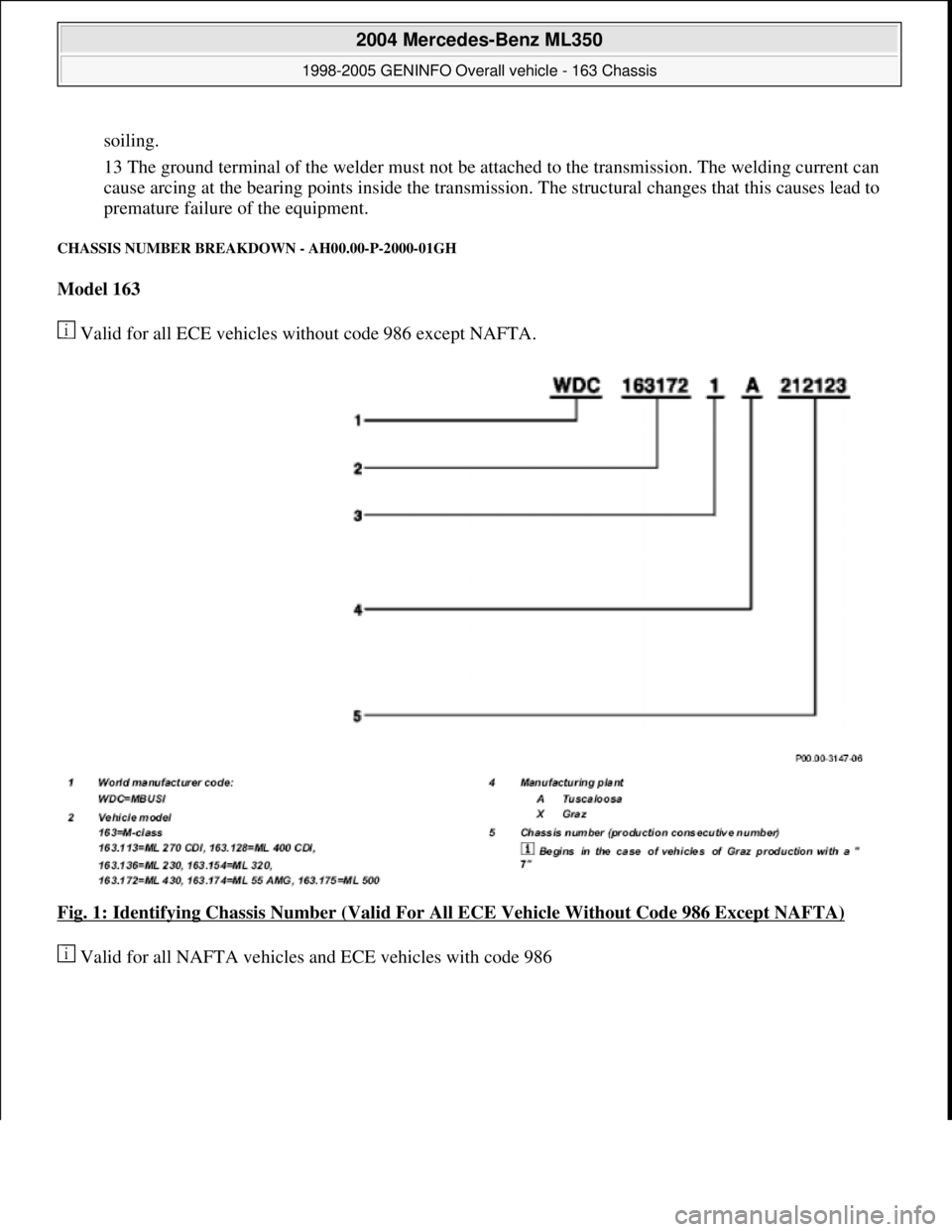

MERCEDES-BENZ ML320 1997 Complete Repair Manual soiling.
13 The ground terminal of the welder must not be attached to the transmission. The welding current can
cause arcing at the bearing points inside the transmission. The structural changes th

Page 2648 of 4133

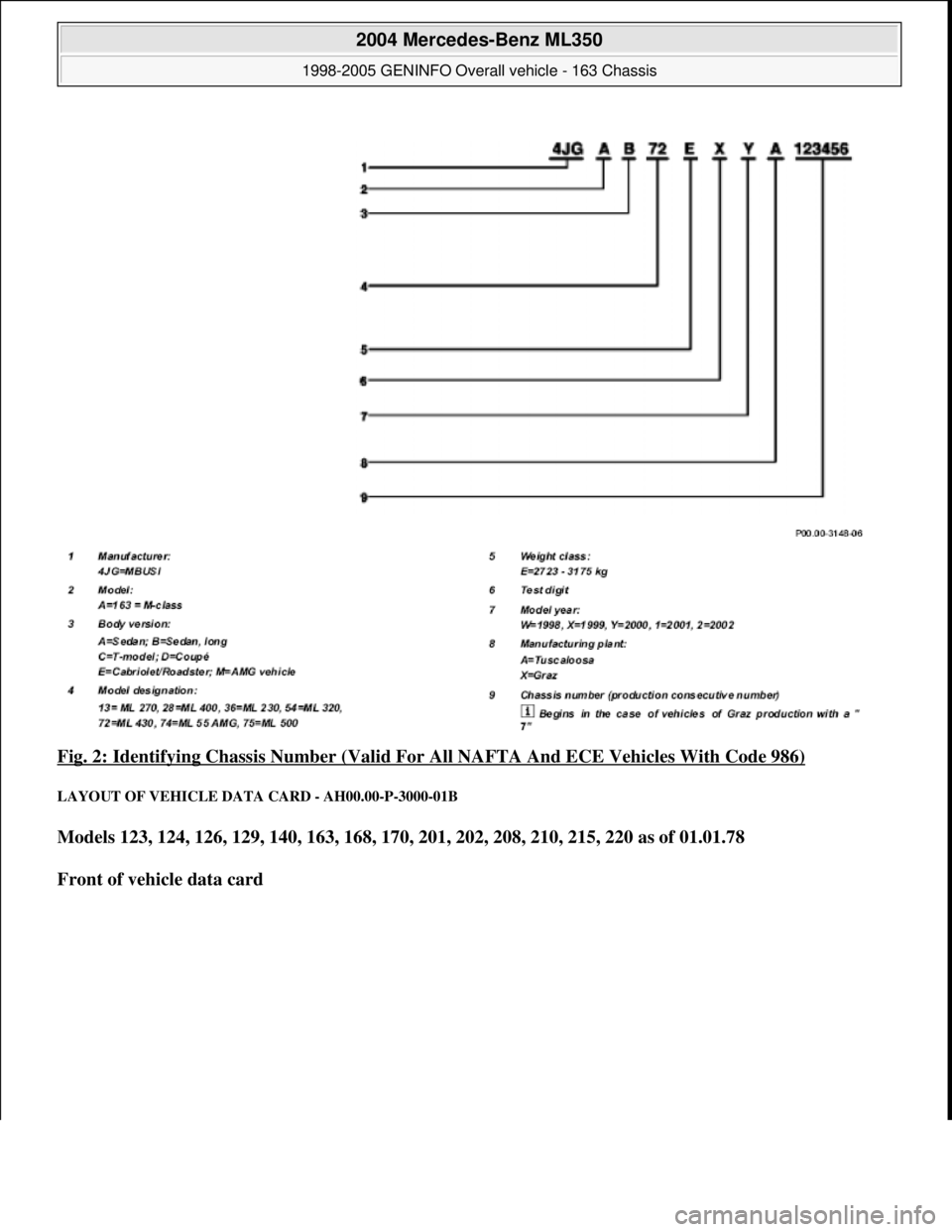

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 2: Identifying Chassis Number (Valid For All NAFTA And ECE Vehicles With Code 986)
LAYOUT OF VEHICLE DATA CARD - AH00.00-P-3000-01B
Models 123, 124, 126, 129, 140, 163, 168, 170, 201, 202, 208,
