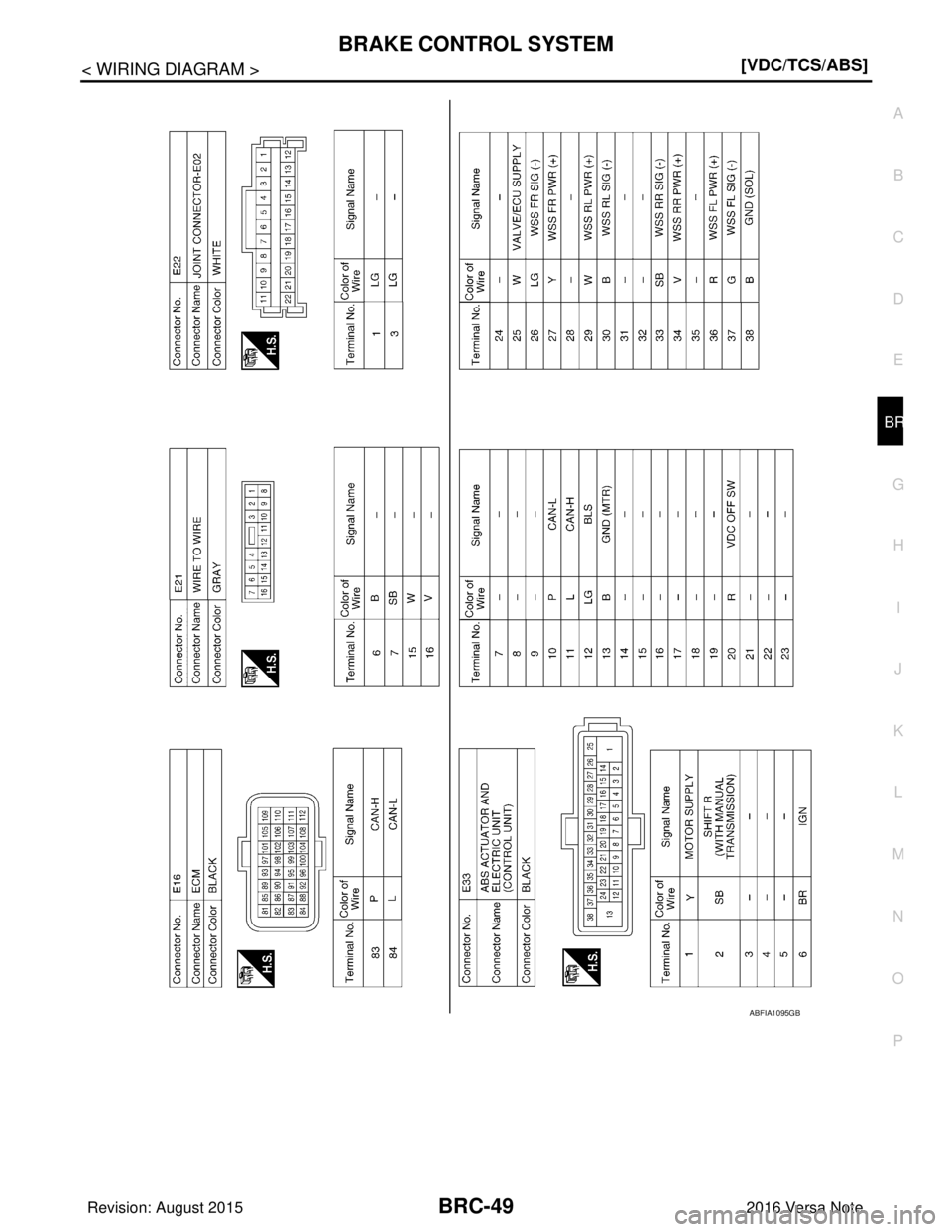

NISSAN NOTE 2016 Service Repair Manual BRAKE CONTROL SYSTEMBRC-49
< WIRING DIAGRAM > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ABFIA1095GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 498 of 3641

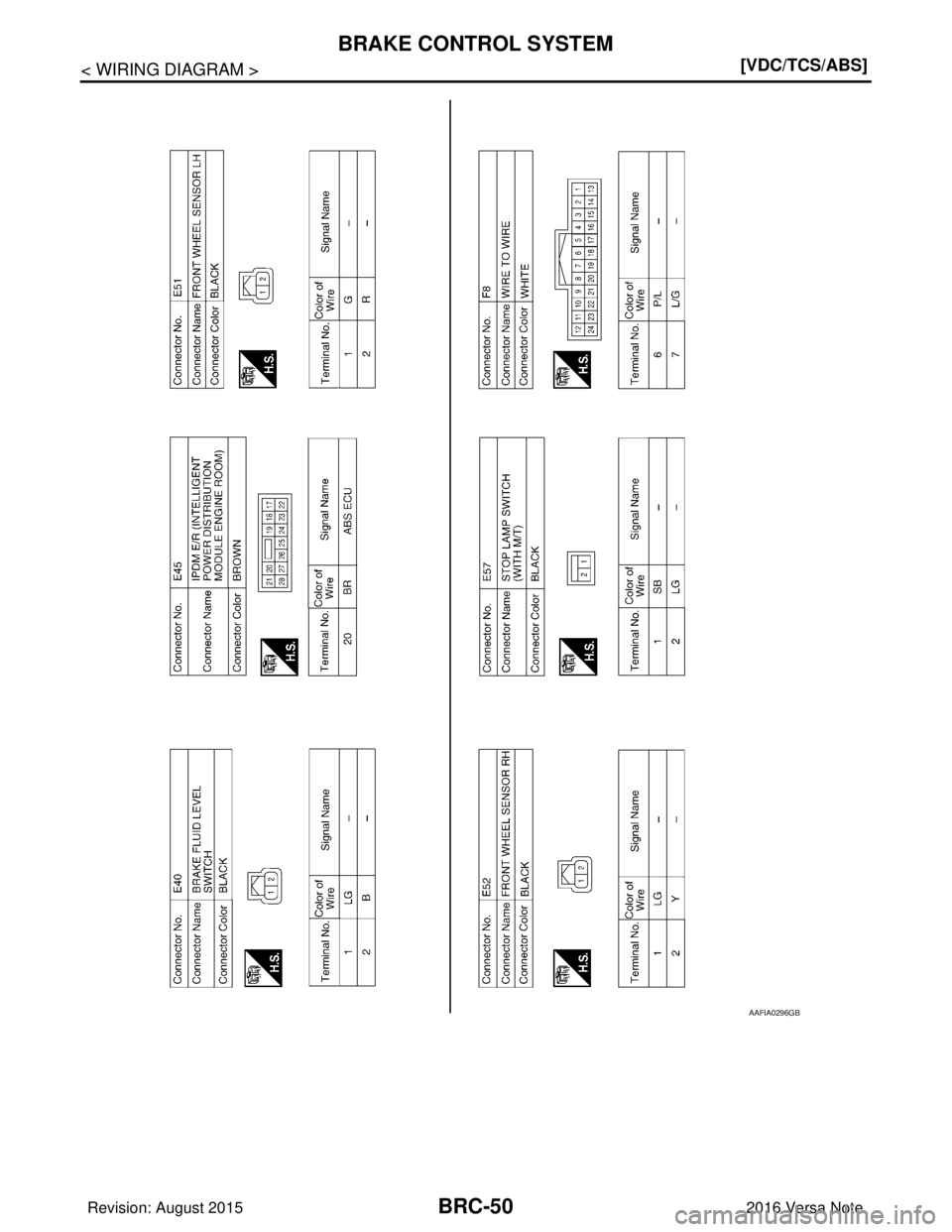

NISSAN NOTE 2016 Service Repair Manual BRC-50
< WIRING DIAGRAM >[VDC/TCS/ABS]
BRAKE CONTROL SYSTEM
AAFIA0296GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 499 of 3641

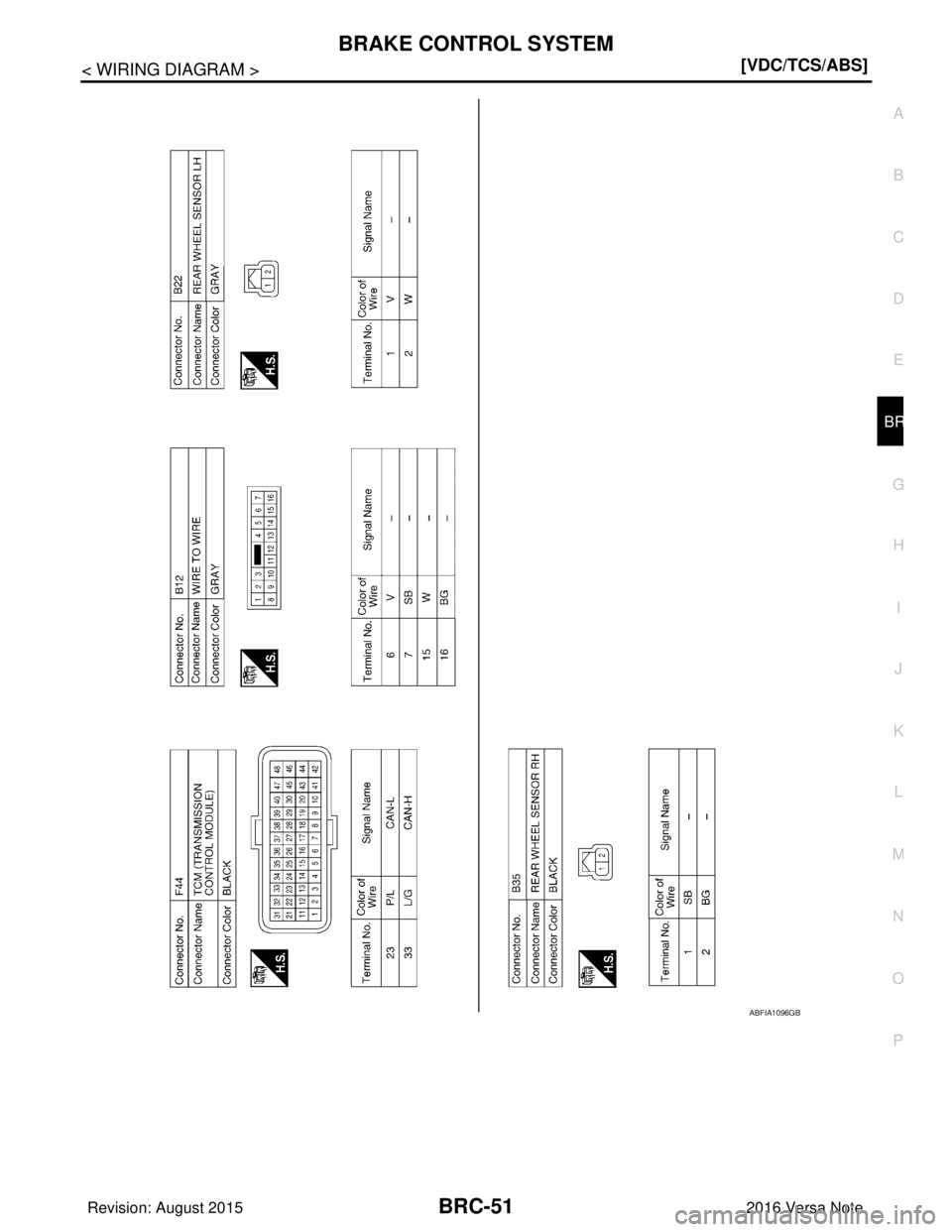

NISSAN NOTE 2016 Service Repair Manual BRAKE CONTROL SYSTEMBRC-51
< WIRING DIAGRAM > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ABFIA1096GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 500 of 3641

NISSAN NOTE 2016 Service Repair Manual BRC-52
< BASIC INSPECTION >[VDC/TCS/ABS]
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012430848
DETAILED FLOW
1.INTERVIEW THE CUSTOMER
Clarify

BRC-52
< BASIC INSPECTION >[VDC/TCS/ABS]
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012430848
DETAILED FLOW
1.INTERVIEW THE CUSTOMER
Clarify customer concerns before inspection. First of all, perform an interview utilizing BRC-53, "
Diagnostic
Work Sheet" and reproduce the symptom as well as fully understand it. Ask customer about his/her concerns
carefully. Check symptoms by driving vehicle with customer, if necessary.
CAUTION:
Customers are not professional. Never guess easily like “maybe the customer means that...,” or “ maybe the customer mentions this symptom”.
>> GO TO 2.
2.CHECK SYMPTOM
Reproduce the symptom that is indicated by the customer, based on the information from the customer
obtained in the interview. Also check that the sy mptom is not caused by fail-safe mode. Refer to BRC-39,
"Fail-safe".
CAUTION:
When the symptom is caused by normal operation, fully inspect each portion and obtain the under-
standing of customer that the sympt om is not caused by a malfunction.
>> GO TO 3.
3.PERFORM THE SELF-DIAGNOSIS
With CONSULT
1. Turn the ignition switch OFF → ON.
CAUTION:
Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
2. Perform “Self Diagnostic Result” of “ABS”.
Is DTC detected?
YES >> Record or print Self Diagnostic Results and Freeze Frame Data (FFD). GO TO 4.
NO >> GO TO 6.
4.RECHECK THE SYMPTOM
With CONSULT
1. Erase “Self Diagnostic Result” of “ABS”.
2. Turn the ignition switch OFF → ON → OFF.
CAUTION:
Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
3. Perform DTC confirmation procedures for the malfunctioning system. NOTE:
If some DTCs are detected at the some time, determine the order for performing the diagnosis based on
BRC-42, "
DTC Inspection Priority Chart".
Is DTC detected?
YES >> GO TO 5.
NO >> Check harness and connectors based on the information obtained in the interview. Refer to GI-42,
"Intermittent Incident".
5.REPAIR OR REPLACE MALFUNCTIONING COMPONENT
1. Repair or replace malfunctioning components.
2. Reconnect component or connector after repairing or replacing.
3. When DTC is detected, erase “Self Diagnostic Result” of “ABS”. CAUTION:
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 501 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORK FLOWBRC-53
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
• Turn the ignition switch OFF → ON → OFF after erasing Self Diagnostic Result.
• B

DIAGNOSIS AND REPAIR WORK FLOWBRC-53
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
• Turn the ignition switch OFF → ON → OFF after erasing Self Diagnostic Result.
• Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
>> GO TO 7.
6.IDENTIFY MALFUNCTIONING SY STEM BY SYMPTOM DIAGNOSIS
Identify malfunctioning system based on sym ptom diagnosis and perform inspection.
Can the malfunctioning system be identified?
YES >> GO TO 7.
NO >> Check harness and connectors based on the information obtained in the interview. Refer to GI-42,
"Intermittent Incident".
7.FINAL CHECK
With CONSULT
1. Select “DATA MONITOR” of “ABS”
2. Check the reference values. Refer to BRC-36, "
Reference Value".
3. Recheck the symptom and check that the sympt om is not reproduced on the same conditions.
Is the symptom reproduced?
YES >> GO TO 3.
NO >> Inspection End.
Diagnostic Work SheetINFOID:0000000012430849
DESCRIPTION
• In general, customers have their own criteria for a pr oblem. Therefore, it is important to understand the
symptom and status well enough by asking the customer about his/her concerns carefully. To systemize all
the information for the diagnosis, prepare the in terview sheet referring to the interview points.
• In some cases, multiple conditions that appear simultaneously may cause a DTC to be detected.
INTERVIEW SHEET SAMPLE
Interview sheet
Customer
name MR/MSRegistration
number
Initial year
registration
Vehicle type VIN
Storage date Engine/trac-
tion MotorMileage
km (Mile)
Symptom †
Does not operate ( ) function
† Warning lamp turns ON.
† or † or † †
† Other ( )
† Noise (Location: ) † Vibration (Location: )
† Other ( )
First occurrence † Recently † Other ( )
Frequency of occurrence † Always † Under a certain conditions of † Sometimes ( time(s)/day)
Climate con-
ditions †
Irrelevant
Weather † Fine † Cloud † Rain †Snow † Others ( )
Temperature † Hot †Warm † Cool † Cold † Temperature [Approx. °C ( °F)]
Relative humidity † High † Moderate † Low
Road conditions † Ordinary road † Highway † Mountainous road (uphill or downhill) †Rough road
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 502 of 3641

NISSAN NOTE 2016 Service Repair Manual BRC-54
< BASIC INSPECTION >[VDC/TCS/ABS]
DIAGNOSIS AND REPAIR WORK FLOW
Operating condition, etc.�†
Irrelevant
�† When engine/traction motor starts �† During idling
�† D u r i n g

Page 503 of 3641

NISSAN NOTE 2016 Service Repair Manual INSPECTION AND ADJUSTMENTBRC-55
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN R

INSPECTION AND ADJUSTMENTBRC-55
< BASIC INSPECTION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPL ACING CONTROL UNIT : Description
INFOID:0000000012545169
After replacing the ABS actuator and electric uni t (control unit), perform the following procedures:
• Neutral position adjustment for the steering angle sensor
• Calibration of the decel G sensor (if equipped)
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000012545170
1.PERFORM THE NEUTRAL POSITION ADJUST MENT FOR THE STEERING ANGLE SENSOR
Perform the neutral position adjustm ent for the steering angle sensor.
>> Refer to BRC-55, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Spe-
cial Repair Requirement", GO TO 2
2.PERFORM CALIBRATION OF THE DECEL G SENSOR (IF EQUIPPED)
Perform calibration of the decel G sensor.
>> Refer to BRC-56, "
CALIBRATION OF DECEL G SENSOR : Special Repair Requirement".
ADJUSTMENT OF STEERING AN GLE SENSOR NEUTRAL POSITION
ADJUSTMENT OF STEERING ANGLE SEN SOR NEUTRAL POSITION : Description
INFOID:0000000012545171
Refer to the table below to determine if adjustment of steering angle sensor neutral position is required.
×: Required –: Not required
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Re-
pair Requirement
INFOID:0000000012545172
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
CAUTION:
To adjust neutral position of steering angle sensor, make sure to use CONSULT
(Adjustment cannot be done without CONSULT)
1.ALIGN THE VEHICLE STATUS
Stop vehicle with front wheels in straight-ahead position.
Situation Adjustment of steering angle sensor neutral position
Removing/Insta lling ABS actuator and electr ic unit (control unit) —
Replacing ABS actuator and elec tric unit (control unit) ×
Removing/Installing steering angle sensor ×
Replacing steering angle sensor ×
Removing/Installing steering components ×
Replacing steering components ×
Removing/Installing suspension components ×
Replacing suspension components ×
Change tires to new ones —
Tire rotation —
Adjusting wheel alignment ×
Revision: August 20152016 Versa Note

cardiagn.com

Page 504 of 3641

NISSAN NOTE 2016 Service Repair Manual BRC-56
< BASIC INSPECTION >[VDC/TCS/ABS]
INSPECTION AND ADJUSTMENT
>> GO TO 2
2.PERFORM THE NEUTRAL POSITION ADJUST
MENT FOR THE STEERING ANGLE SENSOR
1. On the CONSULT screen, touch “WORK SUPPORT�

BRC-56
< BASIC INSPECTION >[VDC/TCS/ABS]
INSPECTION AND ADJUSTMENT
>> GO TO 2
2.PERFORM THE NEUTRAL POSITION ADJUST
MENT FOR THE STEERING ANGLE SENSOR
1. On the CONSULT screen, touch “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” in order.
2. Touch “START”. CAUTION:
Do not touch steering wheel whil e adjusting steering angle sensor.
3. After approximately 10 seconds, touch “END”. NOTE:
After approximately 60 seconds, it ends automatically.
4. Turn ignition switch OFF, then turn it ON again. CAUTION:
Be sure to perform above operation.
>> GO TO 3
3.CHECK DATA MONITOR
1. Run vehicle with front wheels in straight-ahead position, then stop.
2. Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0 ±2.5 °.
Is the steering angle within the specified range?
YES >> GO TO 4
NO >> Perform the neutral position adjustment fo r the steering angle sensor again, GO TO 1
4.ERASE THE SELF-DIAGNOSIS MEMORY
Erase the self-diagnosis memory of the ABS ac tuator and electric unit (control unit) and ECM.
• ABS actuator and electric unit (control unit): Refer to BRC-31, "
CONSULT Function (ABS)".
• ECM: Refer to EC-60, "
CONSULT Function".
Are the memories erased?
YES >> Inspection End
NO >> Check the items indicated by the self-diagnosis.
CALIBRATION OF DECEL G SENSOR
CALIBRATION OF DECEL G SENSOR : DescriptionINFOID:0000000012545173
Refer to the table below to determine if calibration of the decel G sensor is required.
×: Required –: Not required
CALIBRATION OF DECEL G SENSOR : Special Repair RequirementINFOID:0000000012545174
CALIBRATION OF DECEL G SENSOR (IF EQUIPPED)
CAUTION:
To calibrate the decel G sensor, make sure to use CONSULT
(Calibration cannot be done without CONSULT)
Situation Calibration of decel G sensor
Removing/Installing ABS actuator and electric unit (control unit) —
Replacing ABS actuator and electric unit (control unit) ×
Removing/Installing steering components —
Replacing steering components —
Removing/Installing suspension components —
Replacing suspension components —
Change tires to new ones —
Tire rotation —
Adjusting wheel alignment —
Removing/Installing yaw rate/side/decel G sensor ×
Replacing yaw rate/side/decel G sensor ×
Revision: August 20152016 Versa Note
