Page 2433 of 3641

NISSAN NOTE 2016 Service Repair Manual MWI
COMBINATION METERMWI-75
< ECU DIAGNOSIS INFORMATION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
*: Displays “Off” if the brake warning lamp is illumi nated when the valve check starts, the parkin

MWI
COMBINATION METERMWI-75
< ECU DIAGNOSIS INFORMATION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
*: Displays “Off” if the brake warning lamp is illumi nated when the valve check starts, the parking brake switch
is turned ON or the brake fluid level switch is turned ON.
CRUISE IND Cruise indicator
lampWhen cruise indicator lamp is ON.
ON
When cruise indicator lamp is OFF. Off
O/D OFF IND O/D OFF indi-
cator When O/D OFF indicator lamp is OFF.
Off
When O/D OFF indicator lamp is ON. On
FUEL W/L Low fuel warn-
ingWhen low fuel warning is ON
On
When low fuel warning is Off Off
AIR PRES W/L Tire pressure
warning lamp
operationWhen tire pressure warning lamp is ON
ON
When tire pressure warning lamp is OFF Off
EPS W/L EPS warning
lamp EPS warning lamp ON
On
EPS warning lamp OFF Off
KEY G/Y W/L Key warning
lamp When key warning lamp is ON
On
When key warning lamp is OFF Off
CHG SIG Charge warn-
ing lampEngine running
Off
PASS BUCKLE SW Seat belt buck-
le switch RHWhen seat belt buckle RH is unfastened
On
When seat belt buckle RH is fastened Off
FUEL CAP W/L Loose fuel cap
warningLoose fuel filler cap warning is ON
On
Loose fuel filler cap warning is OFF Off
PKB SW Parking brake
switchWhen parking brake is active
On
When parking brake is inactive Off
BUCKLE SW Seat belt buck-
le switch LHWhen seat belt buckle is unfastened LH.
On
When seat belt buckle is fastened LH. Off
BRAKE OIL SW Brake fluid level
switchWhen brake fluid level switch ON
On
When brake fluid level switch OFF Off
OUTSIDE TEMP
[ ° F] or [ °C] Outside tem-
perature
Ignition ON Displays the ambient air temperature
which is input from the ambient sensor.
DISTANCE Distance to
empty
While driving
[mph or km/h]
FUEL LOW SIG Low fuel warn-
ingWhen low fuel warning is On
On
When low fuel warning is Off Off
BUZZER Buzzer opera-
tionWhen Buzzer is ON
On
When Buzzer is OFF Off
TPMS PRESS L Low tire pres-
sure warningWhen check tire pressure warning mes-
sage is On
On
When check tire pressure warning mes-
sage is OFF Off
Monitor Item Display content
Data monitor
Condition Reference value in normal operation
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 2434 of 3641

NISSAN NOTE 2016 Service Repair Manual MWI-76
< ECU DIAGNOSIS INFORMATION >[TYPE B]
COMBINATION METER
TERMINAL LAYOUT
PHYSICAL VALUES
JSNIA5390ZZ
Te r m i n a l
No. Wire
color Item Condition
Reference value (V)
(Approx.)
Ignition
switch

Page 2435 of 3641

NISSAN NOTE 2016 Service Repair Manual MWI
COMBINATION METERMWI-77
< ECU DIAGNOSIS INFORMATION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
*1:For Canada
Fail-safeINFOID:0000000012432614
The combination meter activates the fail-safe contro l i

MWI
COMBINATION METERMWI-77
< ECU DIAGNOSIS INFORMATION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
*1:For Canada
Fail-safeINFOID:0000000012432614
The combination meter activates the fail-safe contro l if CAN communication with each unit is malfunctioning.
DTC IndexINFOID:0000000012432615
Function Specifications
Speedometer Reset to zero by suspending communication.
Tachometer
Illumination control When suspending communication, changes to nighttime mode.
Shift position indicator When suspending communication, not indicate.
Information display Trip com-
puterCurrent fuel consump-
tion
• When reception time of an abnormal signal is 2 seconds or
less, the last received datum is used for calculation to indi-
cate the result.
• When reception time of an abnormal signal is more than two seconds, the last result calculated during normal condition is
indicated.
Average fuel consump-
tion
Distance to empty
Odo/trip meter An indicated value is maintained at communications blackout.
Buzzer The buzzer turns OFF by suspending communication.
Warning lamp/indicator lamp ABS warning lamp
The lamp turns ON by suspending communication.
Slip indicator lamp
Malfunction indicator lamp (MIL)
VDC OFF indicator lamp
EPS warning lamp
Brake warning lamp
High beam indicator lamp
The lamp turns OFF by suspending communication.
Turn signal indicator lamp
Door warning lamp
Light indicator lamp
Engine oil pressure warning lamp
High water temperature warning
lamp
Key warning lamp
O/D OFF indicator lamp
Shift P warning lamp
Engine start operation indicator lamp
Display contents of CONSULT
Diagnostic item is detected when... Refer to
CAN COMM CIRCUIT
[U1000] When combination meter is not transmitting or receiving CAN communication signal for
2 seconds or more.
MWI-93
CONTROL UNIT (CAN)
[U1010]When detecting error during the initial diagnosis of the CAN controller of combination
meter.
MWI-94
VEHICLE SPEED
[B2205]The abnormal vehicle speed signal is input from the ABS actuator and electric unit (con-
trol unit) for 2 seconds or more.
MWI-95
ENGINE SPEED
[B2267]If ECM continuously transmits abnormal engine speed signals for 2 seconds or more.
MWI-96
WATER TEMP
[B2268]If ECM continuously transmits abnormal engine coolant temperature signals for 60 sec-
onds or more.
MWI-97
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 2436 of 3641

NISSAN NOTE 2016 Service Repair Manual MWI-78
< ECU DIAGNOSIS INFORMATION >[TYPE B]
BCM (BODY CONTROL MODULE)
BCM (BODY CONTROL MODULE)
List of ECU ReferenceINFOID:0000000012432616
ECU
Reference
BCM (with Intelligent Key system) BCS-30, "

Page 2437 of 3641

NISSAN NOTE 2016 Service Repair Manual MWI
METER SYSTEMMWI-79
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P

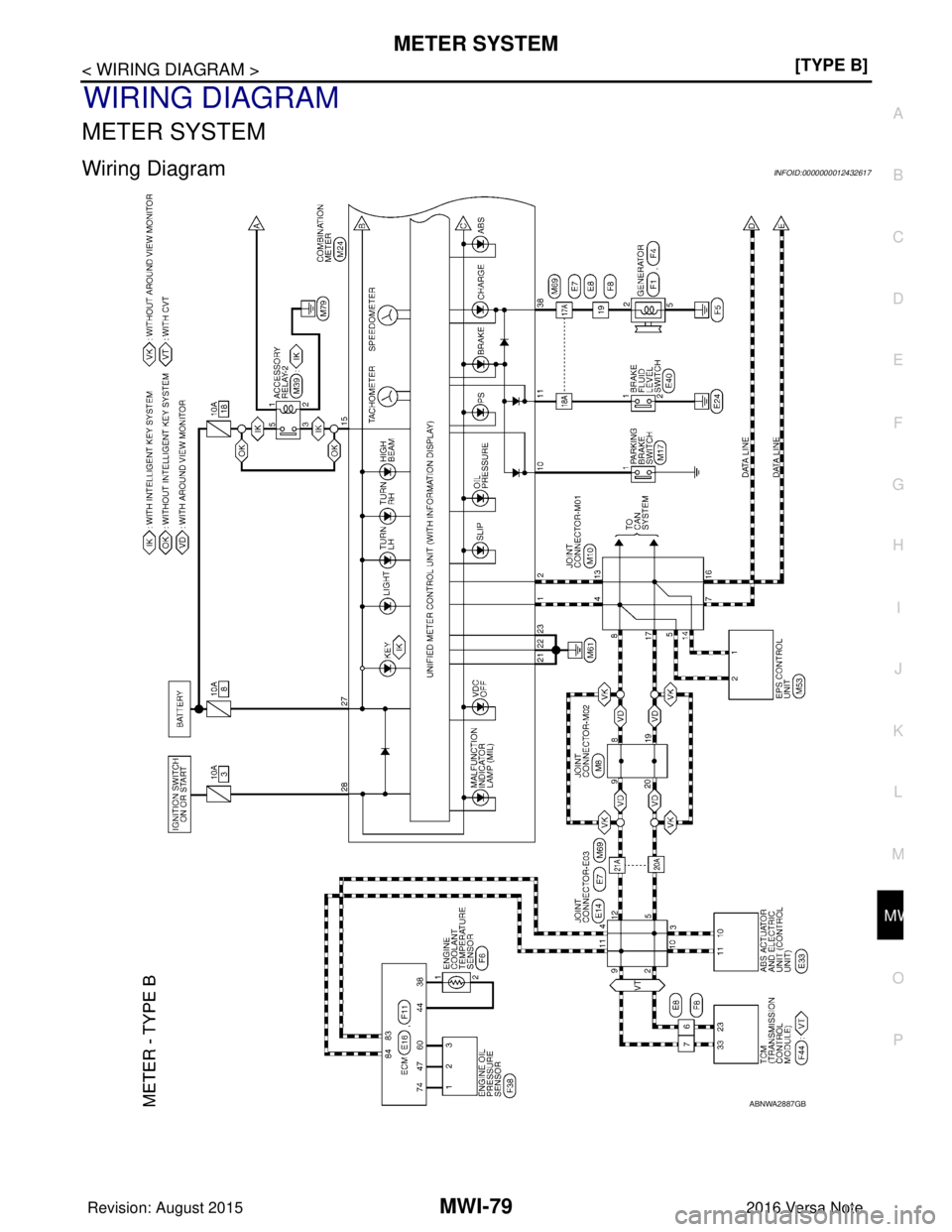

WIRING DIAGRAM
METER SYSTEM
Wiring DiagramINFOID:0000000012432617
ABNWA2887GB
Revision: August 2015 2016 Versa Note

ca

Page 2438 of 3641

NISSAN NOTE 2016 Service Repair Manual MWI-80
< WIRING DIAGRAM >[TYPE B]
METER SYSTEM

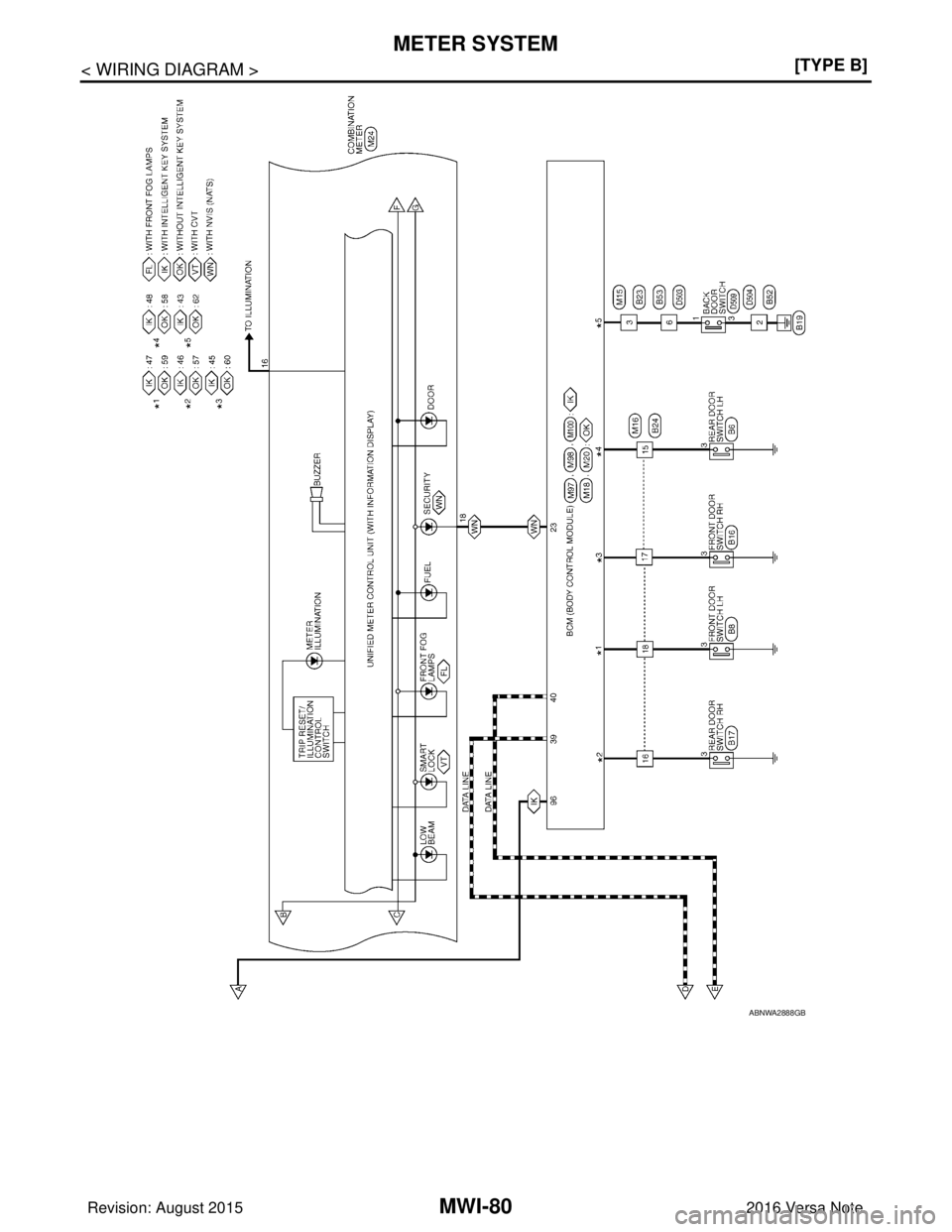

ABNWA2888GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 2439 of 3641

NISSAN NOTE 2016 Service Repair Manual MWI
METER SYSTEMMWI-81
< WIRING DIAGRAM > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P

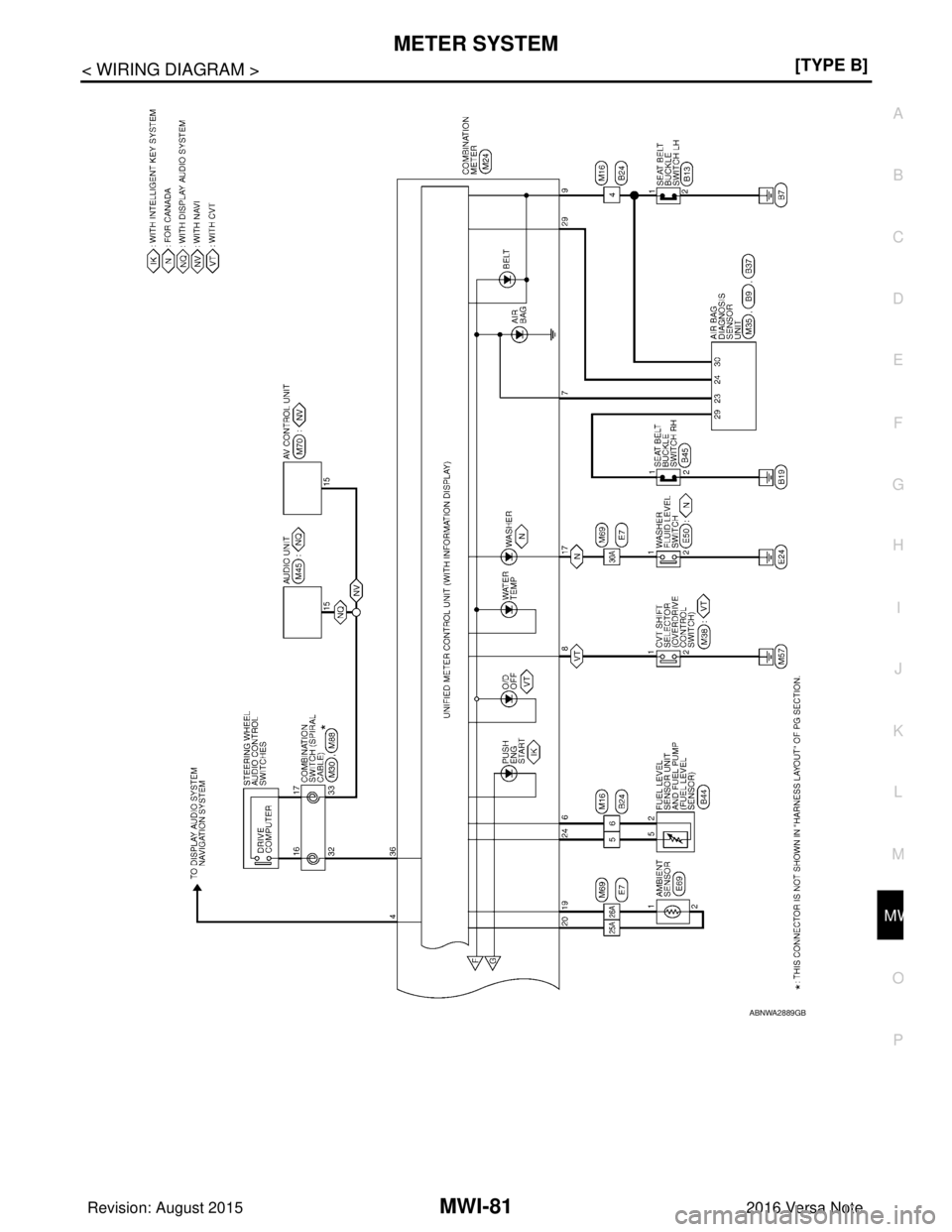

ABNWA2889GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 2440 of 3641

NISSAN NOTE 2016 Service Repair Manual MWI-82
< WIRING DIAGRAM >[TYPE B]
METER SYSTEM

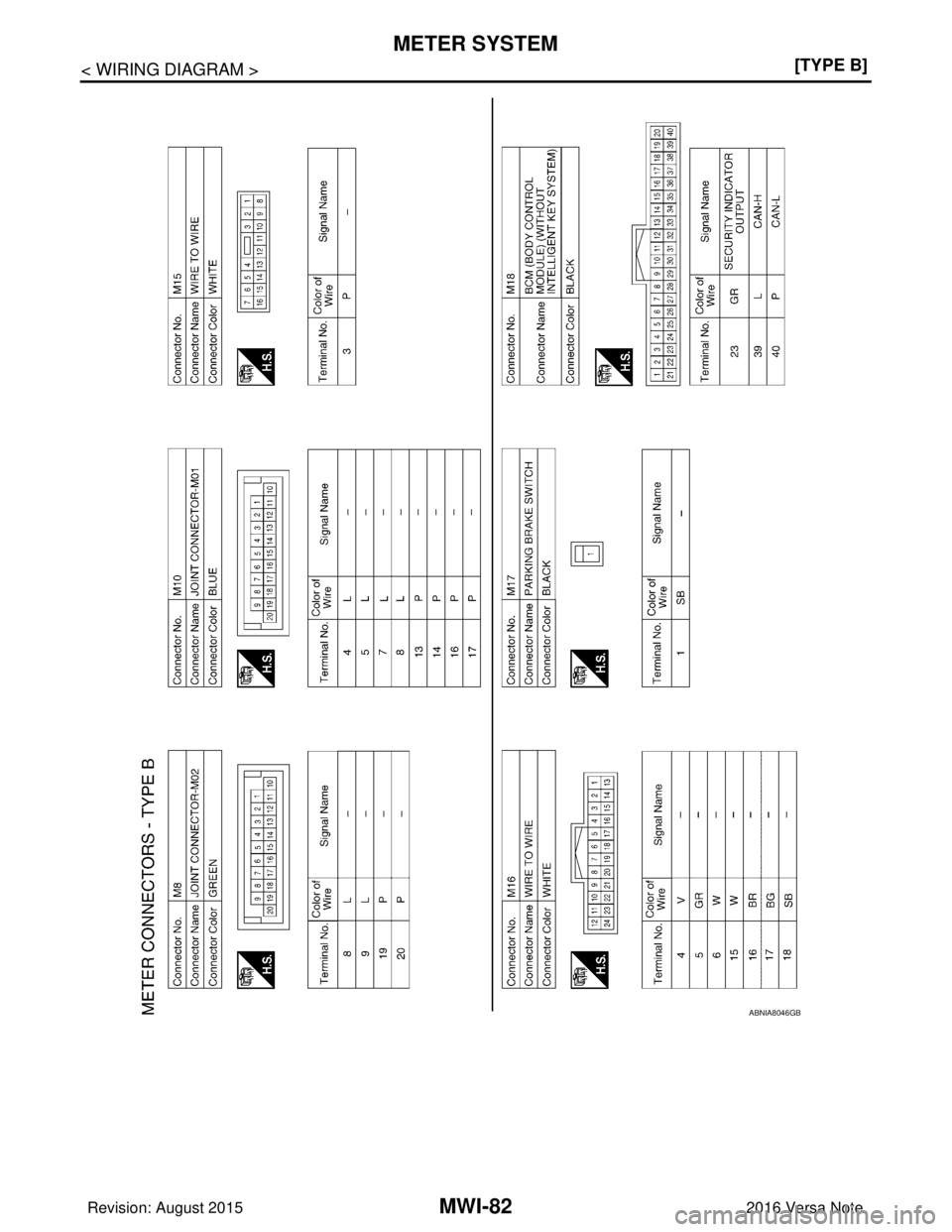

ABNIA8046GB
Revision: August 2015
2016 Versa Note

cardiagn.com
