NISSAN NOTE 2016 Service Repair Manual EC-146
< BASIC INSPECTION >[HR16DE]
HOW TO ERASE PERMANENT DTC
PERMANENT DTC SERVICE PROCEDURE
Work Procedure (Group A)INFOID:0000000012431368

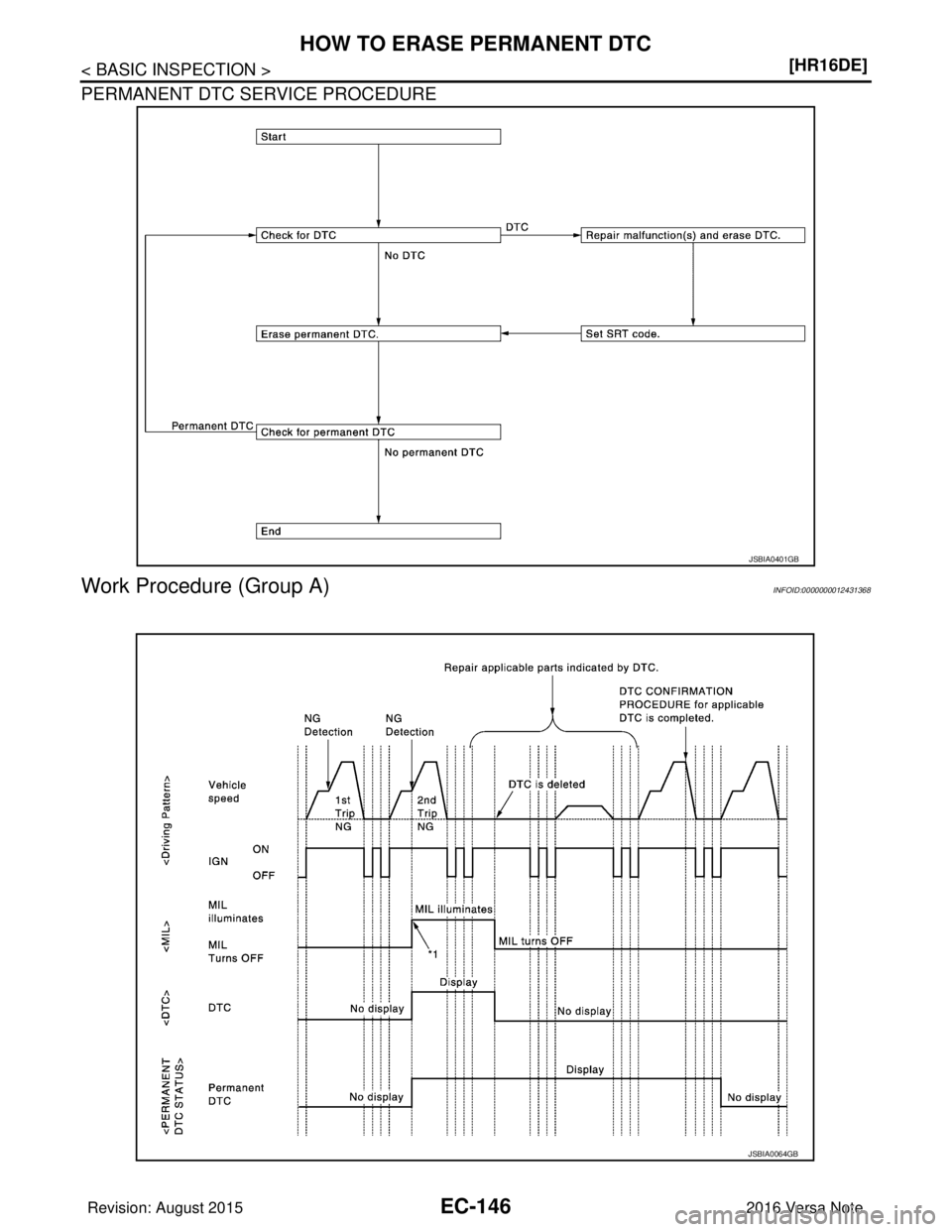

JSBIA0401GB
JSBIA0064GB
Revision: August 2015
2016 Versa

Page 1274 of 3641

NISSAN NOTE 2016 Service Repair Manual HOW TO ERASE PERMANENT DTCEC-147
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-57, "

Page 1275 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-148
< BASIC INSPECTION >[HR16DE]
HOW TO ERASE PERMANENT DTC

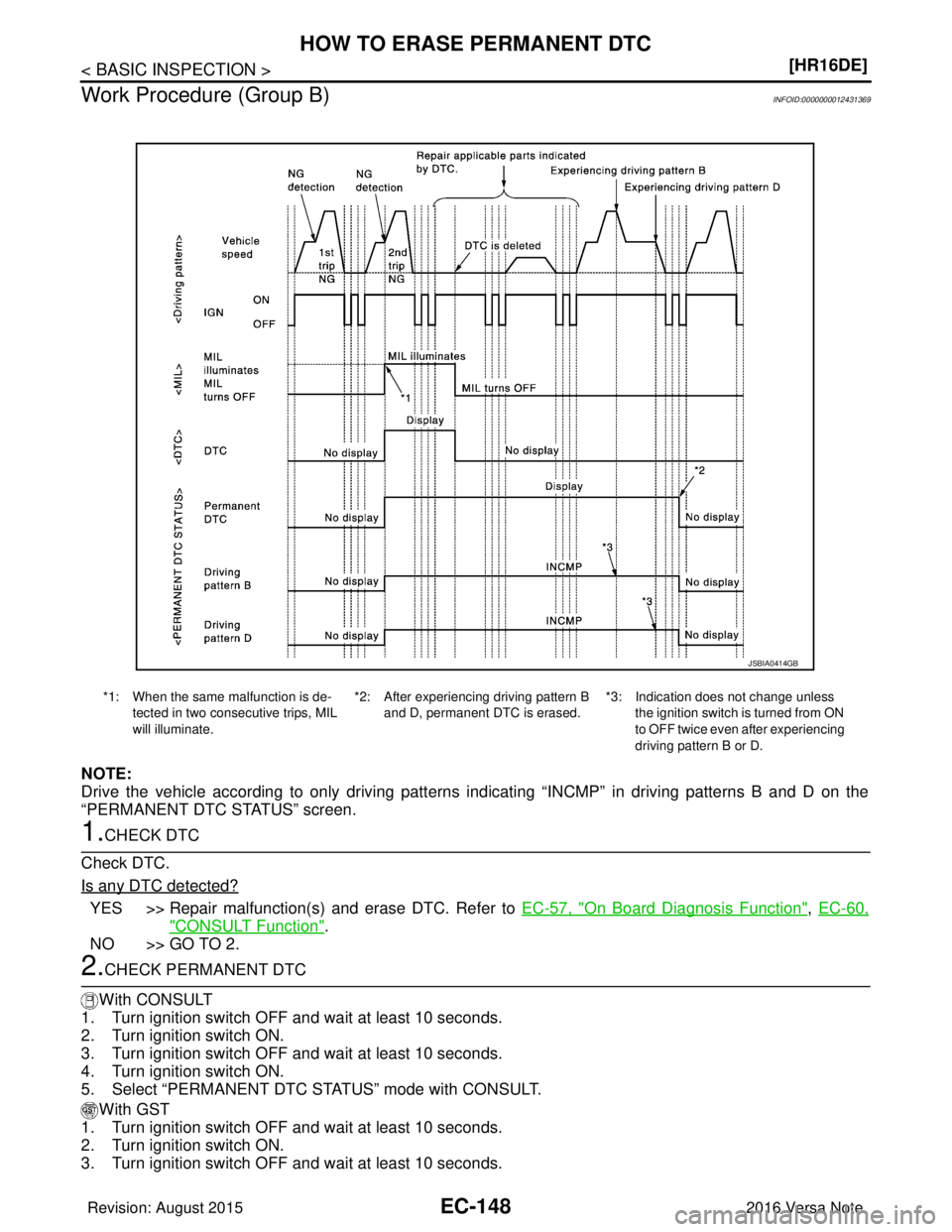

Work Procedure (Group B)
INFOID:0000000012431369
NOTE:
Drive the vehicle according to only driving patterns indicating “INCMP” in dri

Page 1276 of 3641

NISSAN NOTE 2016 Service Repair Manual HOW TO ERASE PERMANENT DTCEC-149
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 3

HOW TO ERASE PERMANENT DTCEC-149
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 3.
NO >> END
3.DRIVE DRIVING PATTERN B
CAUTION:
• Always drive at a safe speed.
• Never erase self-diagnosis results.
• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving
pattern B and D is reset.
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Use “PERMANENT DTC WORK SUPPORT” mode with CONS ULT to drive the vehicle according to driv-
ing pattern B. Refer to EC-60, "
CONSULT Function", EC-54, "DIAGNOSIS DESCRIPTION : Driving Pat-
tern".
With GST
1. Start engine and warm it up to normal operating temperature.
2. Drive the vehicle according to driving pattern B. Refer to EC-54, "
DIAGNOSIS DESCRIPTION : Driving
Pattern".
>> GO TO 4.
4.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 5.
NO >> END
5.DRIVE DRIVING PATTERN D
CAUTION:
• Always drive at a safe speed.
• Never erase self-diagnosis results.
• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving
pattern B and D is reset.
Drive the vehicle according to driving pattern D. Refer to EC-54, "
DIAGNOSIS DESCRIPTION : Driving Pat-
tern".
>> GO TO 6.
6.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1277 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-150
< BASIC INSPECTION >[HR16DE]
HOW TO ERASE PERMANENT DTC
5. Select “PERMANENT DTC
STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignit

Page 1278 of 3641

NISSAN NOTE 2016 Service Repair Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-151
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC/CIRCUIT DIAGNOSIS
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DescriptionINFOID:0000000

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-151
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC/CIRCUIT DIAGNOSIS
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DescriptionINFOID:0000000012431370
The specification (SP) value indicates the tolerance of
the value that is displayed in “SPEC” of “DATA MONI-
TOR” mode of CONSULT during normal operation of the Engine Control System. When the value in “SPEC” of
“DATA MONITOR” mode is within the SP value, the Engine Control System is confirmed OK. When the value
in “SPEC” of “DATA MONITOR” mode is NOT within the SP value, the Engine Control System may have one
or more malfunctions.
The SP value is used to detect malfunctions that may af fect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
• B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board correc- tion)
• A/F ALPHA-B1 (The mean value of air-fuel ratio feedback correction factor per cycle)
• MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Component Function CheckINFOID:0000000012431371
1.START
Make sure that all of the following conditions are satisfied.
• Vehicle driven distance: More than 5,000 km (3,107 miles)
• Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm
2, 14.25 - 15.12 psi)
• Atmospheric temperature: 20 - 30 °C (68 - 86° F)
• Engine coolant temperature: 75 - 95 °C (167 - 203° F)
• Transmission: Warmed-up
- CVT models: After the engine is warmed up to normal operating temperature, drive vehicle until “FLUID TEMP SE” (CVT fluid temperature sensor signal) indicates more than 60 °C (140° F).
- M/T models: After the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
• Electrical load: Not applied
- Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
• Engine speed: Idle
>> GO TO 2.
2.PERFORM “SPEC” OF “DATA MONITOR” MODE
With CONSULT
NOTE:
Perform “SPEC” in “DATA MONITOR” mode in maximum scale display.
1. Perform EC-133, "
Work Procedure".
2. Select “B/FUEL SCHDL”, “A/F ALPHA-B1” and “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode
with CONSULT.
3. Make sure that monitor items are within the SP value.
Is the inspection result normal?
YES >> END
NO >> Go to EC-152, "
Diagnosis Procedure".
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1279 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-152
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Diagnosis Procedure
INFOID:0000000012431372

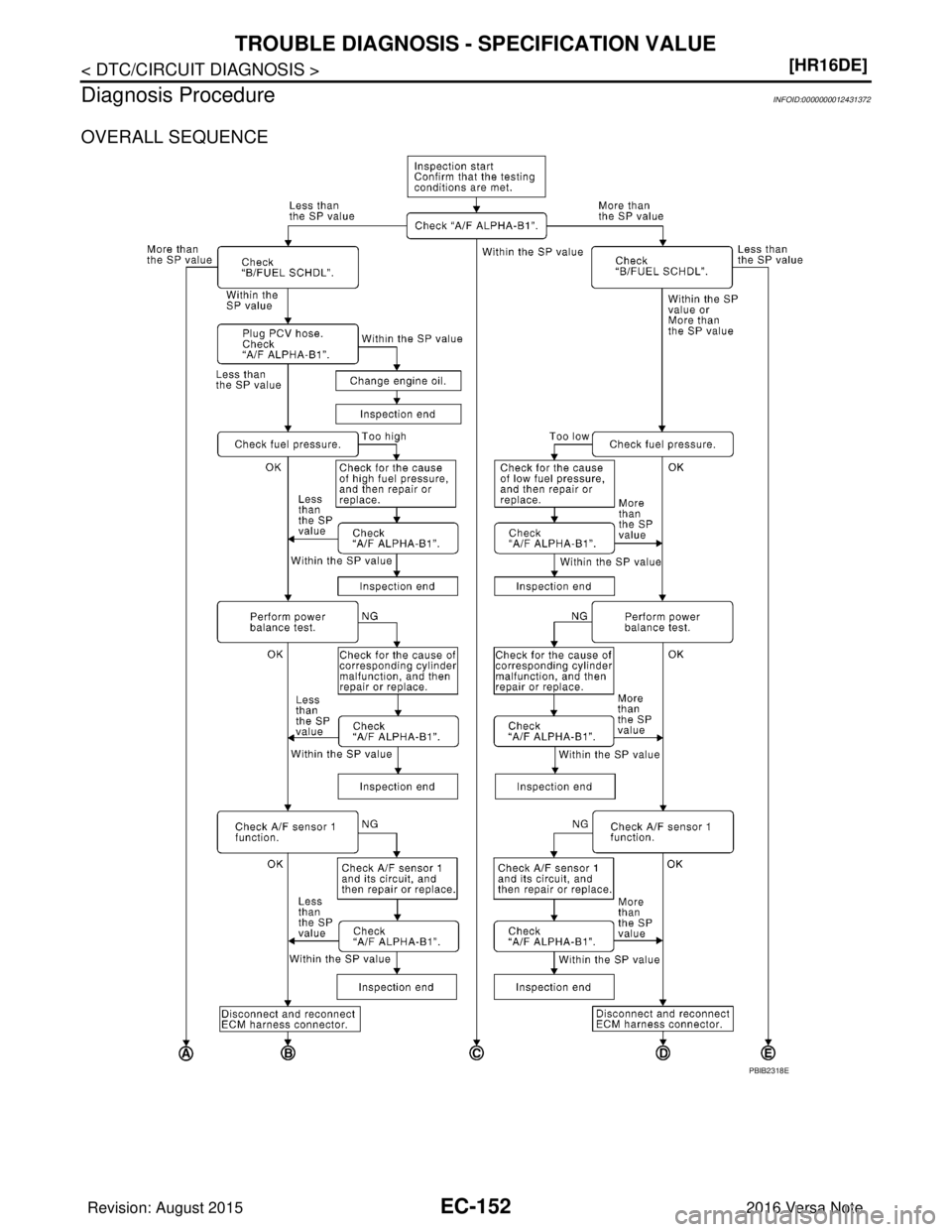

OVERALL SEQUENCE
PBIB2318E
Revision: August 2015 2016 Versa Note

cardiagn.

Page 1280 of 3641

NISSAN NOTE 2016 Service Repair Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-153
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DETAILED PROCEDURE
1.CHECK “A/F ALPHA-B1”
With CONSULT
1. Start engine.
2. Confirm
