NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)INL-19 < SYSTEM DESCRIPTION > C DE F G H I J K M A B INL N O P * : Initial setting BATTERY SAVER BATTERY SAVER : CONSULT Function (BCM - BATTERY

Page 2114 of 3641

NISSAN NOTE 2016 Service Repair Manual INL-20 < ECU DIAGNOSIS INFORMATION > BCM ECU DIAGNOSIS INFORMATION BCM List of ECU ReferenceINFOID:0000000012432733 ECUReference BCM (with Intelligent Key system) BCS-30, " Reference Value" BCS-48, "F

Page 2115 of 3641

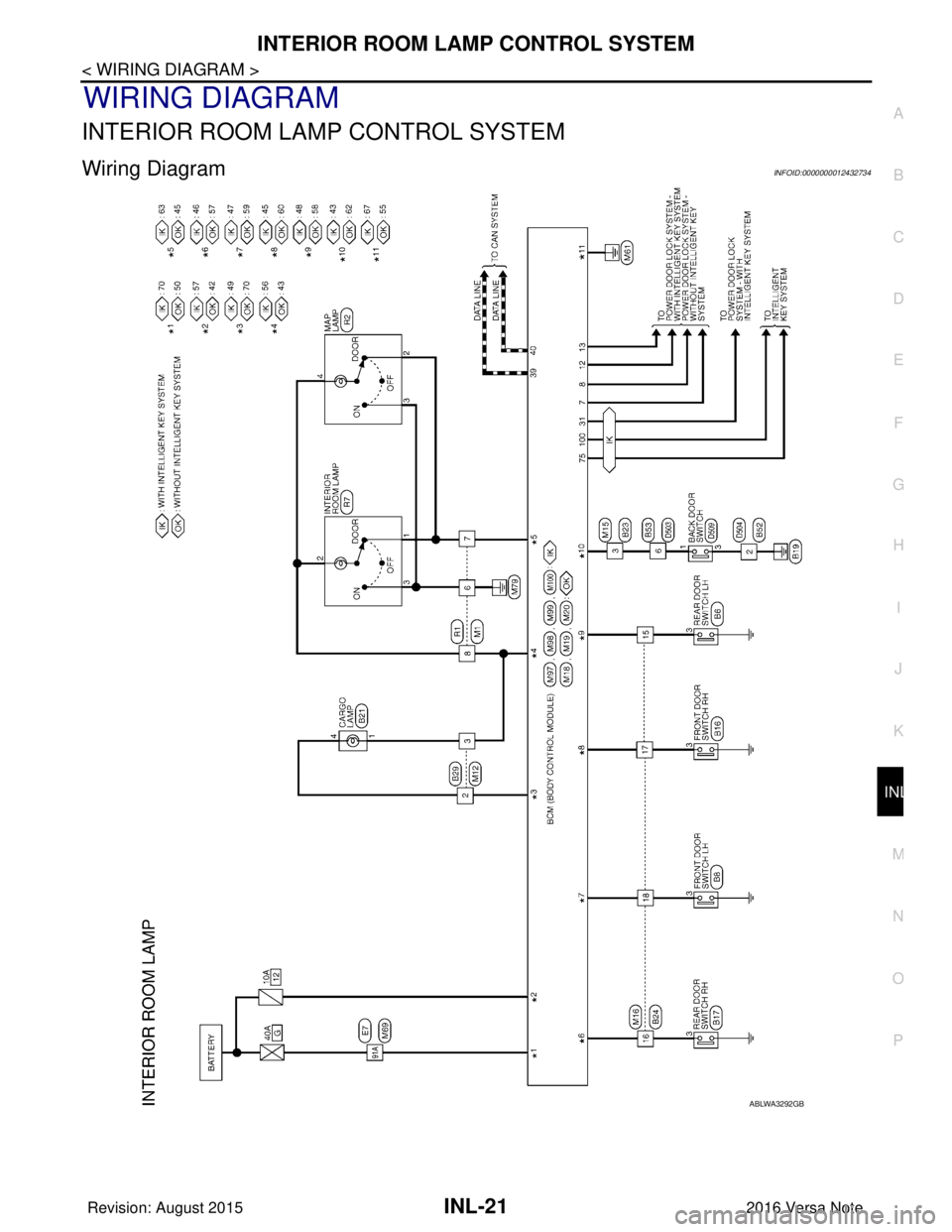

NISSAN NOTE 2016 Service Repair Manual INTERIOR ROOM LAMP CONTROL SYSTEMINL-21 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P WIRING DIAGRAM INTERIOR ROOM LAMP CONTROL SYSTEM Wiring DiagramINFOID:0000000012432734 ABLWA3292GB Revision:

Page 2116 of 3641

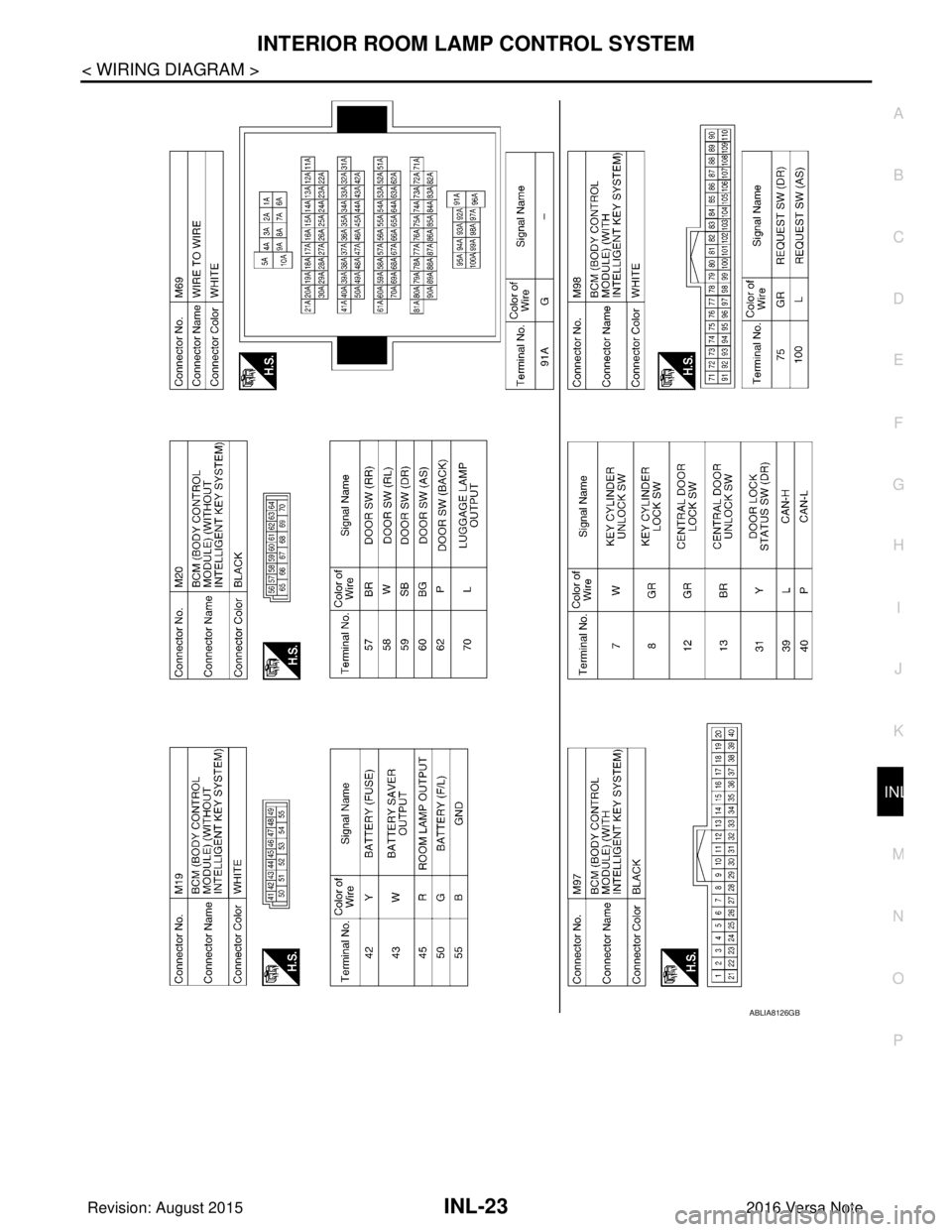

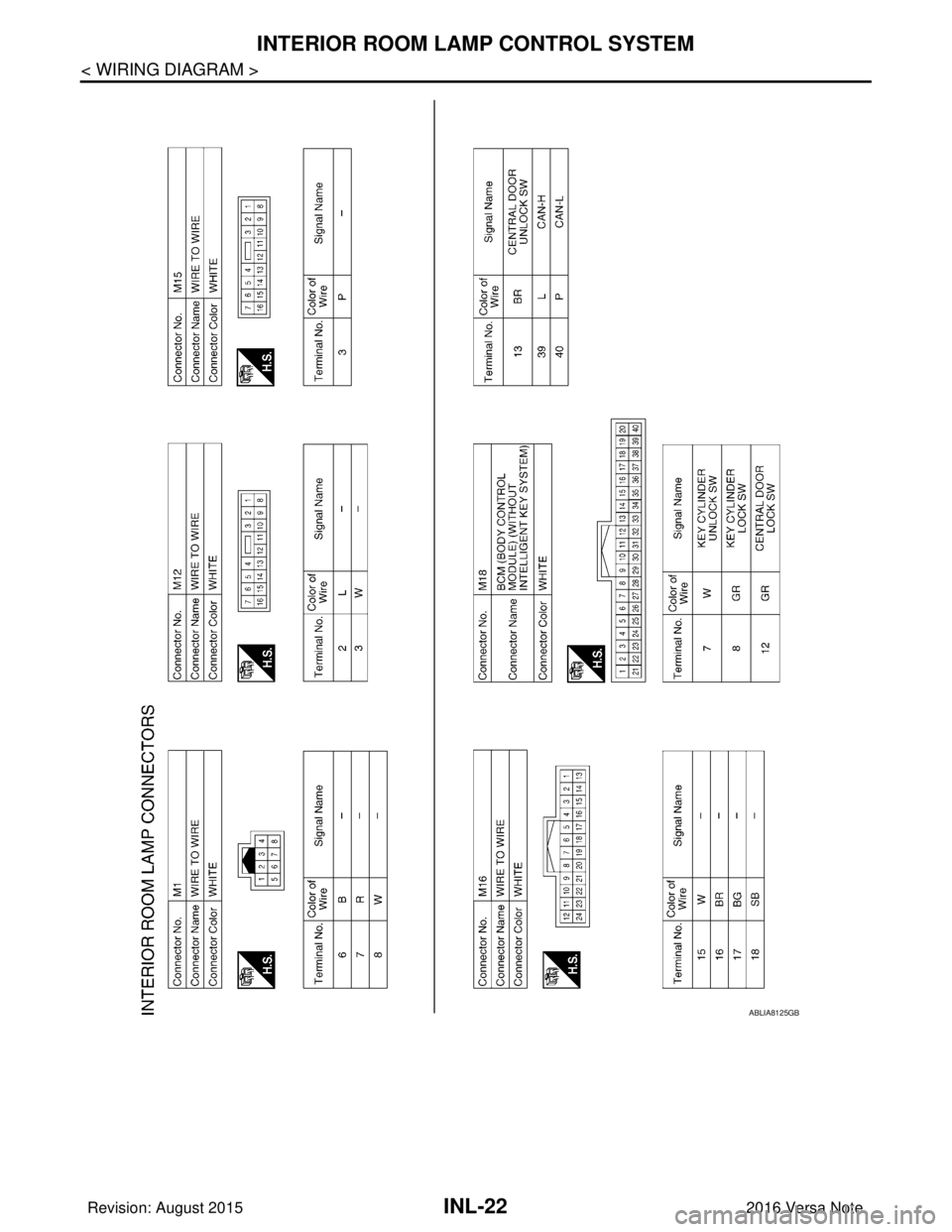

NISSAN NOTE 2016 Service Repair Manual INL-22 < WIRING DIAGRAM > INTERIOR ROOM LAMP CONTROL SYSTEM ABLIA8125GB Revision: August 20152016 Versa Note cardiagn.com

Page 2117 of 3641

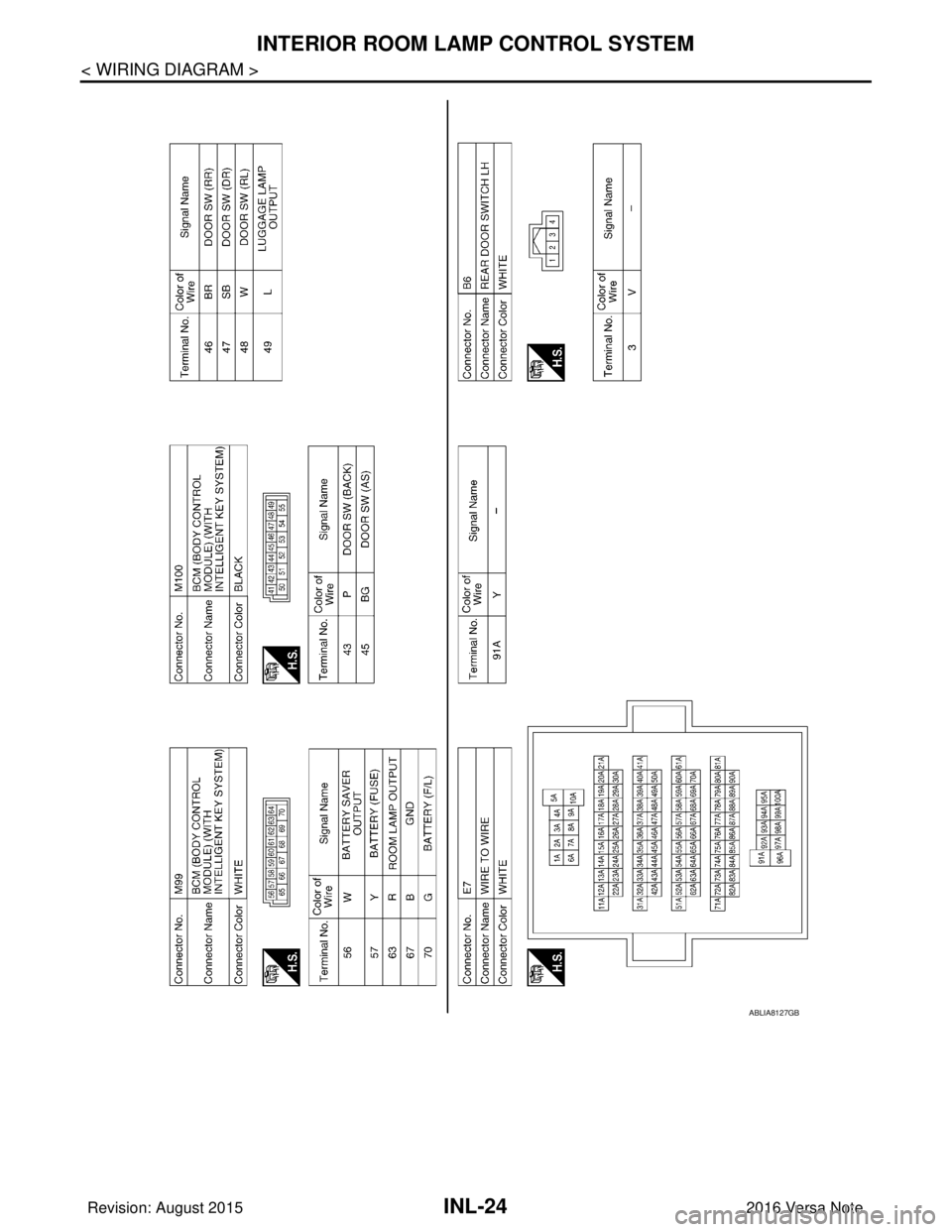

NISSAN NOTE 2016 Service Repair Manual INTERIOR ROOM LAMP CONTROL SYSTEMINL-23 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P ABLIA8126GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2118 of 3641

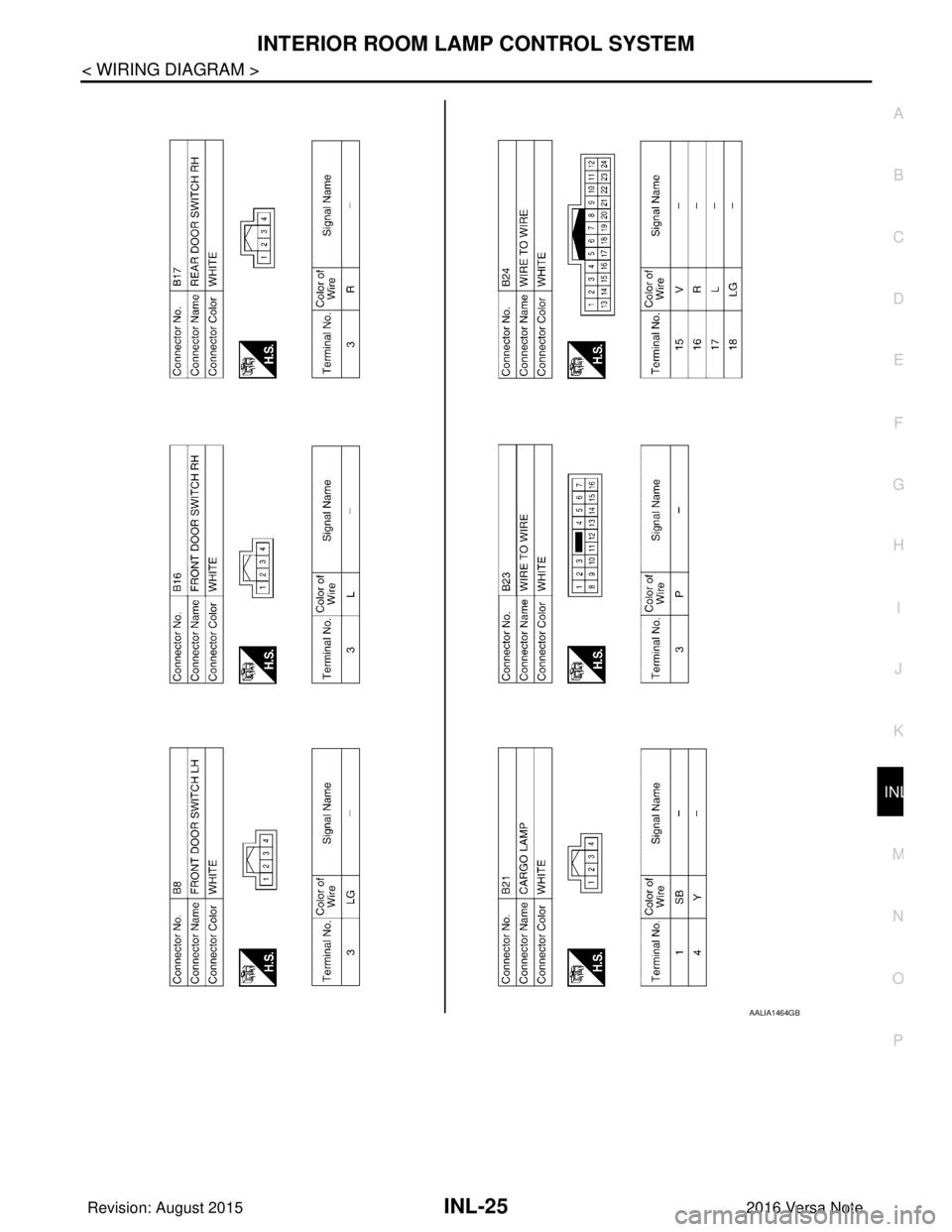

NISSAN NOTE 2016 Service Repair Manual INL-24 < WIRING DIAGRAM > INTERIOR ROOM LAMP CONTROL SYSTEM ABLIA8127GB Revision: August 20152016 Versa Note cardiagn.com

Page 2119 of 3641

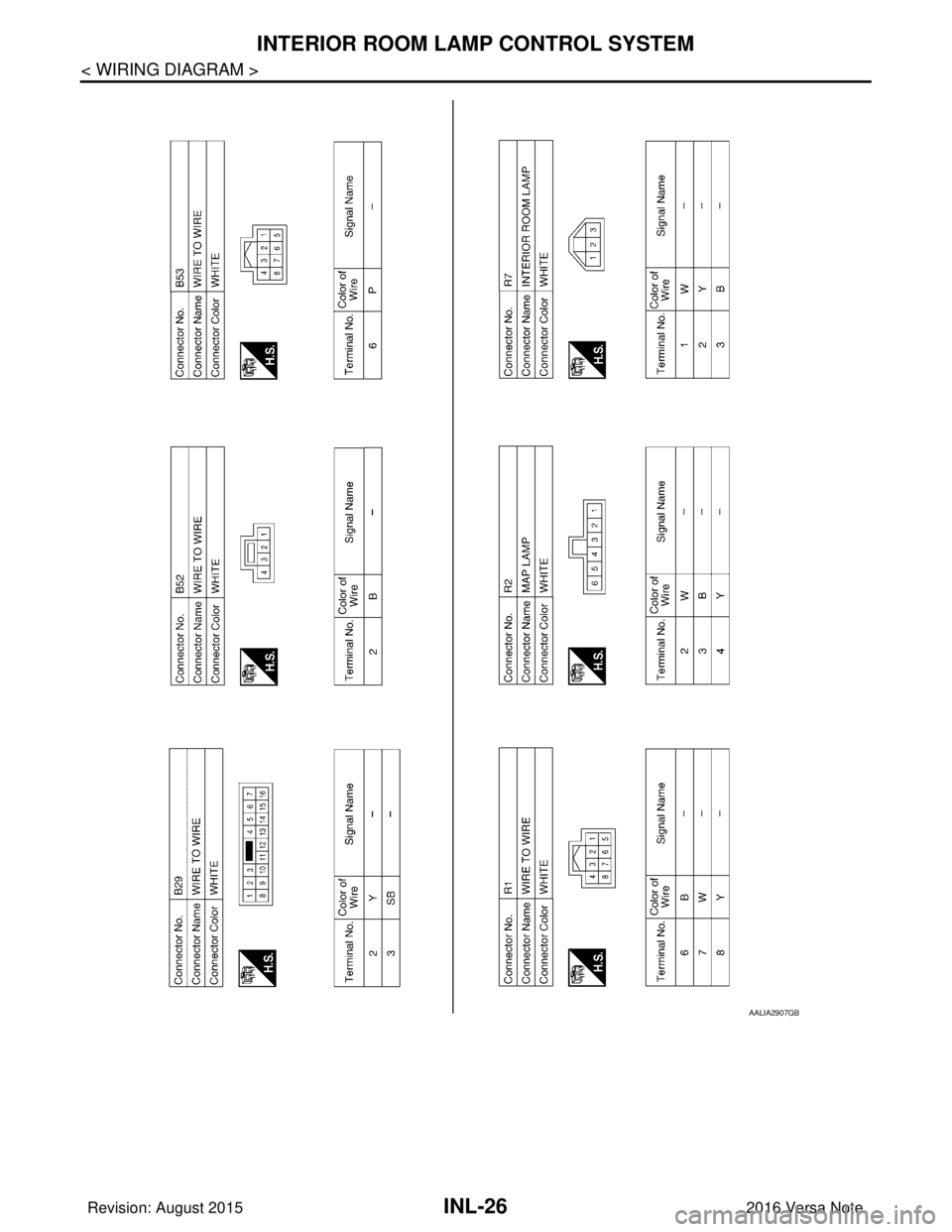

NISSAN NOTE 2016 Service Repair Manual INTERIOR ROOM LAMP CONTROL SYSTEMINL-25 < WIRING DIAGRAM > C DE F G H I J K M A B INL N O P AALIA1464GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 2120 of 3641

NISSAN NOTE 2016 Service Repair Manual INL-26 < WIRING DIAGRAM > INTERIOR ROOM LAMP CONTROL SYSTEM AALIA2907GB Revision: August 20152016 Versa Note cardiagn.com
