NISSAN NOTE 2016 Service Repair Manual EC-170
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0011 IVT CONTROL
YES >> INSPECTION END
NO >> Replace intake valve timing control solenoid valve. Refer to
EM-60, "
Exploded View".
Revision: August 2015 2016

Page 1298 of 3641

NISSAN NOTE 2016 Service Repair Manual P0014 EVT CONTROLEC-171
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0014 EVT CONTROL
DTC LogicINFOID:0000000012431387
DTC DETECTION LOGIC
NOTE:
If DTC P0014 is displayed with D

P0014 EVT CONTROLEC-171
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0014 EVT CONTROL
DTC LogicINFOID:0000000012431387
DTC DETECTION LOGIC
NOTE:
If DTC P0014 is displayed with DTC P0078, first pe
rform trouble diagnosis for DTC P0078. Refer to EC-
182, "DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10 V and 16 V at
idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
With CONSULT
1. Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.
2. Start engine and warm it up to the normal operating temperature.
3. Maintain the following conditions for at least 6 c onsecutive seconds. Hold the accelerator pedal as steady
as possible.
4. Let engine idle for 10 seconds.
5. Check 1st trip DTC. With GST
Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?
YES >> Proceed to EC-172, "Diagnosis Procedure"
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE-II
With CONSULT
1. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
2. Maintain the following conditions for at least 20 consecutive seconds.
DTC No. CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P0014 EXH/V TIM CONT-B1
(Exhaust valve timing control
performance) There is a gap between angle of
target and phase-control angle
degree. • Crankshaft position sensor
• Exhaust valve timing control position sensor
• Exhaust valve timing control solenoid valve
• Accumulation of debris to the signal pick-up portion of
the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for exhaust valve timing control
ENG SPEED 1,200 - 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 60° C (140°F)
Selector lever P or N position (CVT)
Neutral position (M/T)
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 1299 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-172
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P0014 EVT CONTROL
CAUTION:
Always drive at a safe speed.
3. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT” above.
Is 1st trip DTC detecte

Page 1300 of 3641

NISSAN NOTE 2016 Service Repair Manual P0014 EVT CONTROLEC-173
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

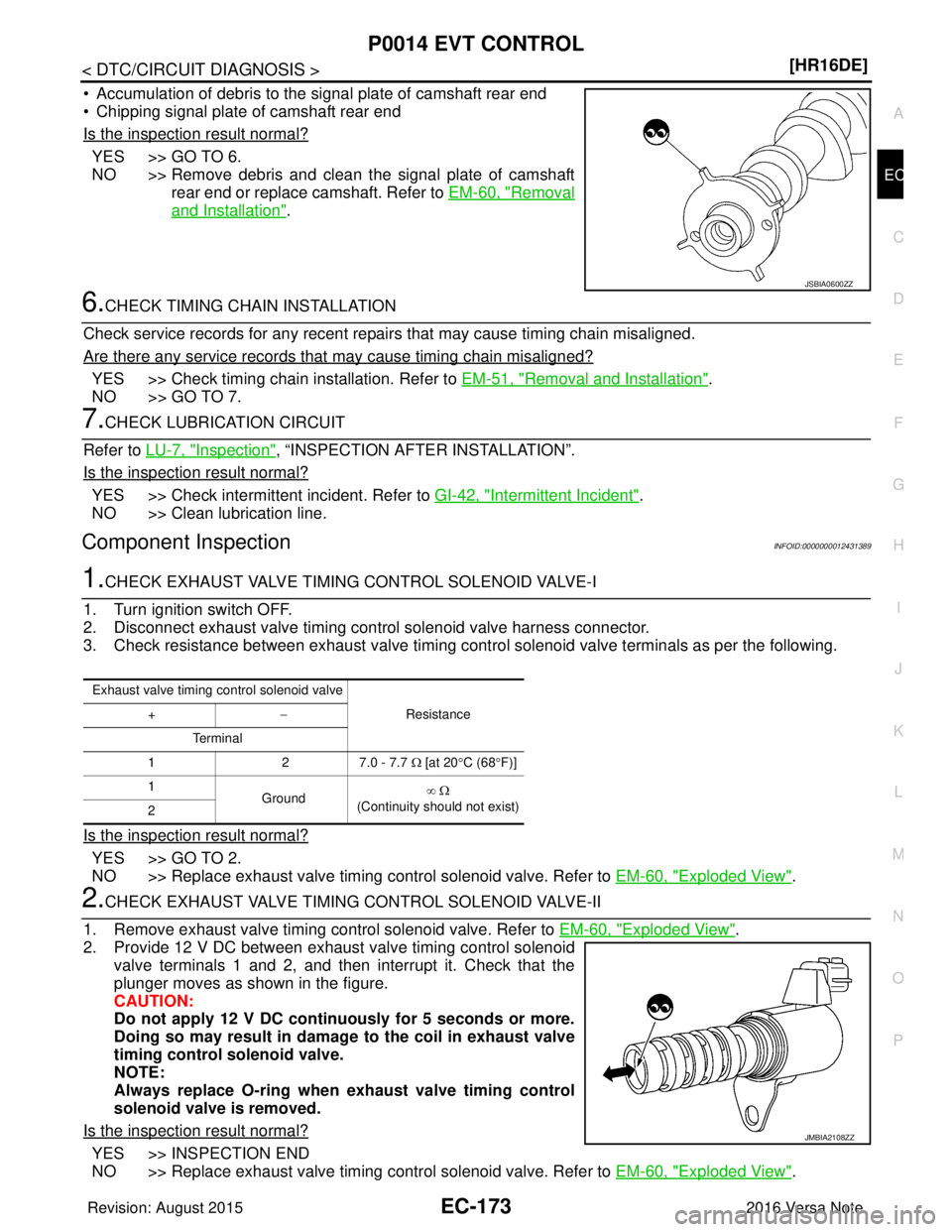

• Accumulation of debris to the signal plate of camshaft rear end
