Page 1577 of 3641
EC-450
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
FUEL PUMP
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to
PCS-30, "Removal and Installation".
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
Component InspectionINFOID:0000000012431653
1.CHECK FUEL PUMP
1. Turn ignition switch OFF.
2. Disconnect “fuel level sensor uni t and fuel pump” harness connector.
3. Check resistance between “fuel level sensor unit and fuel pump” terminals as follows.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace “fuel level sensor unit and fuel pump”. Refer to FL-6, "
Exploded View".
TerminalsResistance [at 25°C (77 °F)]
1 and 3 0.2 - 5.0 Ω
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1578 of 3641
![NISSAN NOTE 2016 Service Repair Manual IGNITION SIGNALEC-451
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
IGNITION SIGNAL
Component Function CheckINFOID:0000000012431654
1.INSPECTION START
Turn ignition switch OFF, an NISSAN NOTE 2016 Service Repair Manual IGNITION SIGNALEC-451
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
IGNITION SIGNAL
Component Function CheckINFOID:0000000012431654
1.INSPECTION START
Turn ignition switch OFF, an](/manual-img/5/57363/w960_57363-1577.png)
IGNITION SIGNALEC-451
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
IGNITION SIGNAL
Component Function CheckINFOID:0000000012431654
1.INSPECTION START
Turn ignition switch OFF, and restart engine.
Does the engine start?
YES-1 >> With CONSULT: GO TO 2.
YES-2 >> Without CONSULT: GO TO 3.
NO >> Go to EC-451, "
Diagnosis Procedure".
2.IGNITION SIGNAL FUNCTION
With CONSULT
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT.
2. Make sure that each circuit produces a momentary engine speed drop.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-451, "
Diagnosis Procedure".
3.IGNITION SIGNAL FUNCTION
Without CONSULT
1. Let engine idle.
2. Check the voltage signal between ECM harness connector and ground with an oscilloscope.
NOTE:
The pulse cycle changes depending on rpm at idle.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-451, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431655
1.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
2. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Go to EC-159, "
Diagnosis Procedure".
ECM
Voltage signal
+ −
Connector Terminal Connector Terminal
F7 17
E16 108
18
21
22
JMBIA0219GB
ECM
Vo l ta g e
Connector Te r m i n a l
+ −
E16 105108 Battery voltage
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1579 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-452
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
2.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Turn ignition switch O NISSAN NOTE 2016 Service Repair Manual EC-452
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
2.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Turn ignition switch O](/manual-img/5/57363/w960_57363-1578.png)
EC-452
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
2.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Turn ignition switch ON.
4. Check the voltage between condenser harness connector and ground.
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 3.
3.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector F42.
3. Check the continuity between IPDM E/R harness connector and condenser harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 11.
NO >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
• Harness for open or short between IPDM E/R and condenser
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check the continuity between condenser harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK CONDENSER
Refer to EC-455, "
Component Inspection (Condenser)"
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace condenser.
7.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV
1. Reconnect all harness connectors disconnected.
2. Disconnect ignition coil harness connector.
Condenser Ground Voltage
Connector Terminal
F26 1Ground Battery voltage
IPDM E/R Condenser
Continuity
Connector Terminal Connector Terminal
F423 4F 26 1E xis te d
Condenser
Ground Continuity
Connector Terminal
F26 2Ground Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1580 of 3641
![NISSAN NOTE 2016 Service Repair Manual IGNITION SIGNALEC-453
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Turn ignition switch ON.
4. Check the voltage between ignition coil harness connector and ground.
Is the ins NISSAN NOTE 2016 Service Repair Manual IGNITION SIGNALEC-453
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Turn ignition switch ON.
4. Check the voltage between ignition coil harness connector and ground.
Is the ins](/manual-img/5/57363/w960_57363-1579.png)
IGNITION SIGNALEC-453
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Turn ignition switch ON.
4. Check the voltage between ignition coil harness connector and ground.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check the continuity between ignition coil harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair open circuit or short to power in harness or connectors.
9.CHECK IGNITION COIL OUTPUT SI GNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check the continuity between ECM harness connector and ignition coil harness connector.
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK IGNITION COIL WITH POWER TRANSISTOR
Refer to EC-454, "
Component Inspection (Ignition Coil with Power Transistor)".
Is the inspection result normal?
YES >> GO TO 11.
NO >> Replace malfunctioning ignition coil with power transistor. Refer to EM-47, "
Removal and Installa-
tion".
11 .CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
Ignition coil
Ground Voltage
Cylinder Connector Terminal
1F343
Ground Battery voltage
2F353
3F363
4F373
Ignition coil
Ground Continuity
Cylinder Connector Terminal
1F342
GroundExisted
2F352
3F362
4F372
Ignition coil
ECM
Continuity
Cylinder Connector Terminal Connector Terminal
1F341
F1017
Existed
2F351
18
3F361 22
4F371 21
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1581 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-454
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
>> INSPECTION END
Component Inspection (Ignition Coil with Power Transistor)INFOID:0000000012431656
1.CHECK IGNITION COIL WITH POWER TRANSISTOR NISSAN NOTE 2016 Service Repair Manual EC-454
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
>> INSPECTION END
Component Inspection (Ignition Coil with Power Transistor)INFOID:0000000012431656
1.CHECK IGNITION COIL WITH POWER TRANSISTOR](/manual-img/5/57363/w960_57363-1580.png)
EC-454
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
>> INSPECTION END
Component Inspection (Ignition Coil with Power Transistor)INFOID:0000000012431656
1.CHECK IGNITION COIL WITH POWER TRANSISTOR-I
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.
3. Check resistance between ignition coil terminals as follows.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning ignition coil with power transistor. Refer to EM-47, "
Removal and Installa-
tion".
2.CHECK IGNITION COIL WITH POWER TRANSISTOR-II
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Remove fuel pump fuse in IPDM E/R to release fuel pressure. NOTE:
Do not use CONSULT to release fuel pressure, or fuel pressure applies again during the following proce-
dure.
4. Start engine.
5. After engine stalls, crank it two or three times to release all fuel pressure.
6. Turn ignition switch OFF.
7. Remove all ignition coil harness connectors to avoi d the electrical discharge from the ignition coils.
8. Remove ignition coil and spark plug of the cylinder to be checked.
9. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
10. Connect spark plug and harness connector to ignition coil.
11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
12. Crank engine for about three seconds, and check whether spark
is generated between the spark plug and the grounded metal
portion.
CAUTION:
• Do not approach to the spar k plug and the ignition coil
within 50 cm (19.7 in). Be careful not to get an electrical
shock while checking, because the electrical discharge
voltage becomes 20 kV or more.
• It might cause to damage the igni tion coil if the gap of more than 17 mm (0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the sp ark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning ignition coil with power transistor. Refer to EM-47, "
Removal and Installa-
tion".
TerminalsResistance
1 and 2 Except 0 or ∞ Ω [at 25 °C (77 °F)]
1 and 3 Except 0 Ω [at 25 °C (77 °F)]
2 and 3
Spark should be generated.
JMBIA0066GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1582 of 3641
IGNITION SIGNALEC-455
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Component Inspection (Condenser)INFOID:0000000012431657
1.CHECK CONDENSER
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Check resistance between condenser terminals as follows.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace condenser.
Terminals Resistance [at 25 °C (77 °F)]
1 and 2 Above 1 MΩ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1583 of 3641
EC-456
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
MALFUNCTION INDICATOR LAMP
MALFUNCTION INDICATOR LAMP
Component Function CheckINFOID:0000000012431658
1.CHECK MIL FUNCTION
1. Turn ignition switch ON.
2. Make sure that MIL lights up.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-456, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431659
1.CHECK DTC
Check that DTC UXXXX is not displayed.
Is DTC detected?
YES >> Perform trouble diagnosis for DTC UXXXX.
NO >> GO TO 2.
2.CHECK COMBINATION METER
Check DTC with combination meter. Refer to MWI-24, "
DTC Index".
Is DTC detected?
YES >> Perform troubleshooting relevant to DTC indicated.
NO >> GO TO 3.
3.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
Is the inspection result normal?
YES >> Replace combination meter. Refer to MWI-54, "Removal and Installation".
NO >> Repair or replace harness or connectors.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1584 of 3641
![NISSAN NOTE 2016 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-457
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Component Function CheckINFOID:00000000124316 NISSAN NOTE 2016 Service Repair Manual ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-457
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Component Function CheckINFOID:00000000124316](/manual-img/5/57363/w960_57363-1583.png)
ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-457
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
Component Function CheckINFOID:0000000012431660
1.CHECK ORVR FUNCTION
Check whether the following symptoms are present.
• Fuel odor from EVAP canister is strong.
• Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.
Is any symptom present?
YES >> Go to EC-457, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012431661
1.INSPECTION START
Check whether the following symptoms are present.
A: Fuel odor from EVAP canister is strong.
B: Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.
Which symptom is present?
A >> GO TO 2.
B >> GO TO 8.
2.CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent c ontrol valve and EVAP control system pressure sensor
attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be l ess than 1.6 kg (3.5 lb).
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK IF EVAP CANISTER IS SATURATED WITH WATER
Check if water will drain from EVAP canister.
Does water drain from the EVAP canister?
YES >> GO TO 4.
NO >> GO TO 7.
4.REPLACE EVAP CANISTER
Replace EVAP canister with a new one.
>> GO TO 5.
5.CHECK DRAIN FILTER
Refer to EC-461, "
Component Inspection (Drain filter)".
Is the inspection result normal?
OK >> GO TO 6.
NO >> Replace drain filter.
6.DETECT MALFUNCTIONING PART

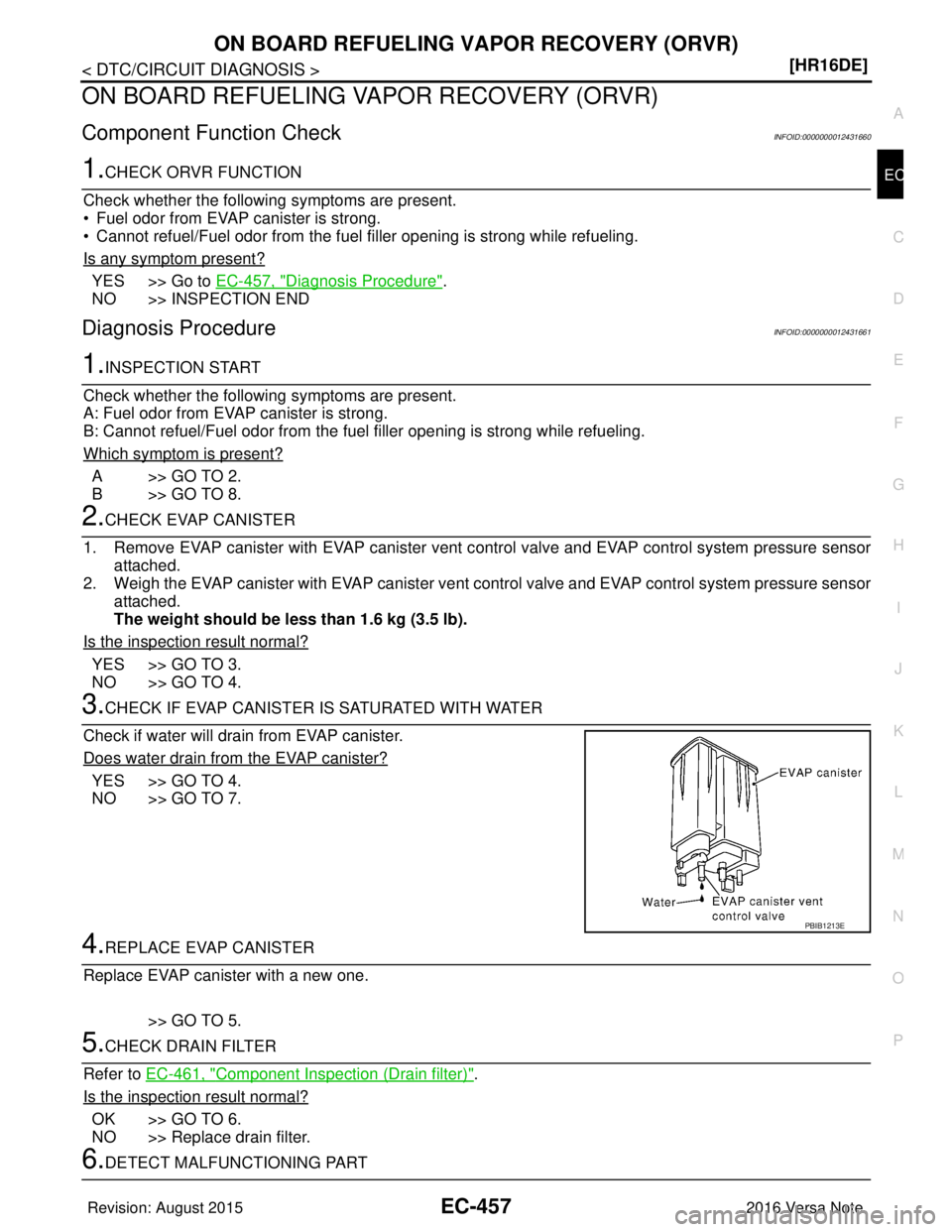

PBIB1213E
Revision: August 2015 2016 Versa Note
cardiagn.com
