2016 NISSAN NOTE Service Repair Manual

TPMS reset navigation update headlights ground clearance remote control dashboard

Load previous 8 pages

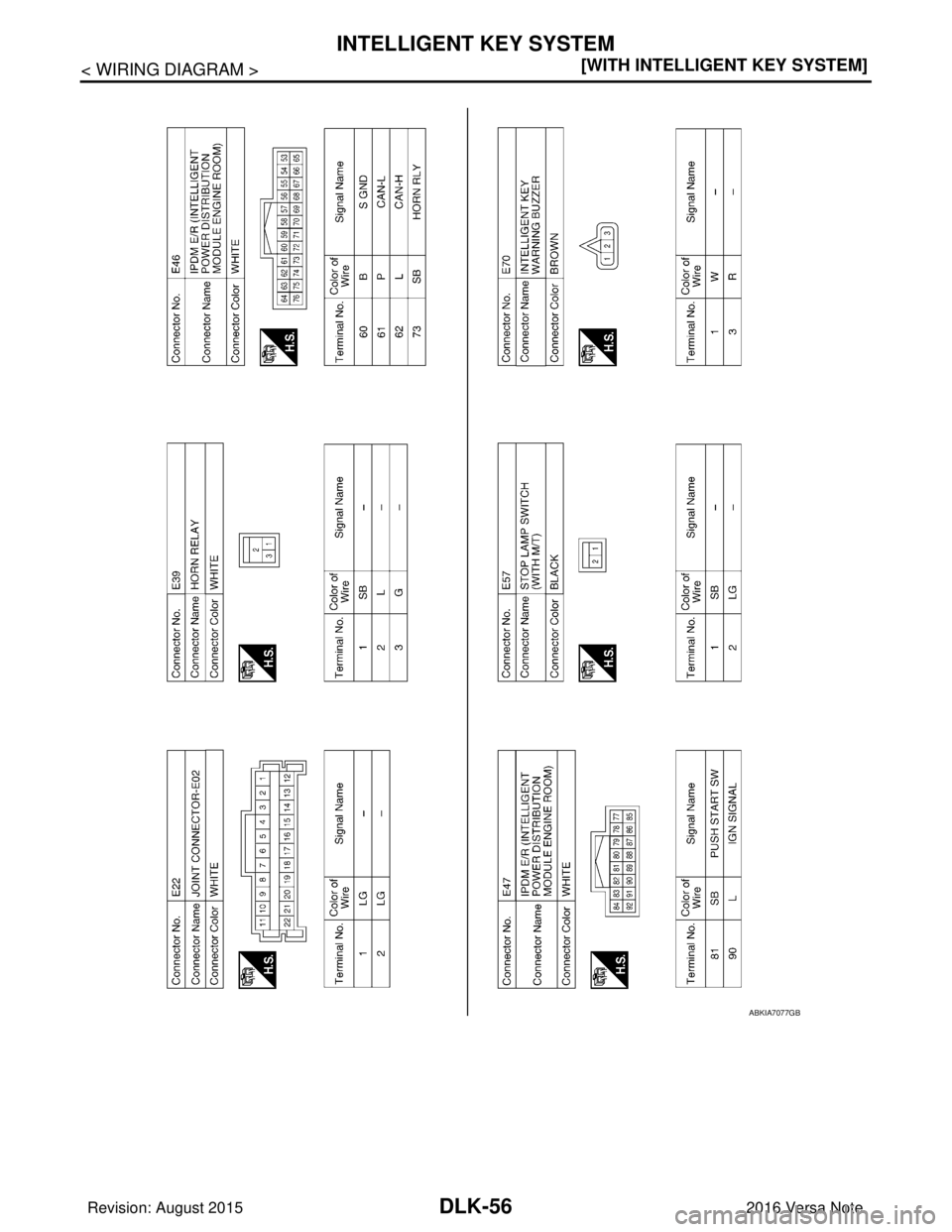

Page 745 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-56
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
ABKIA7077GB
Revision: August 2015
2016 Versa Note

cardiagn.com

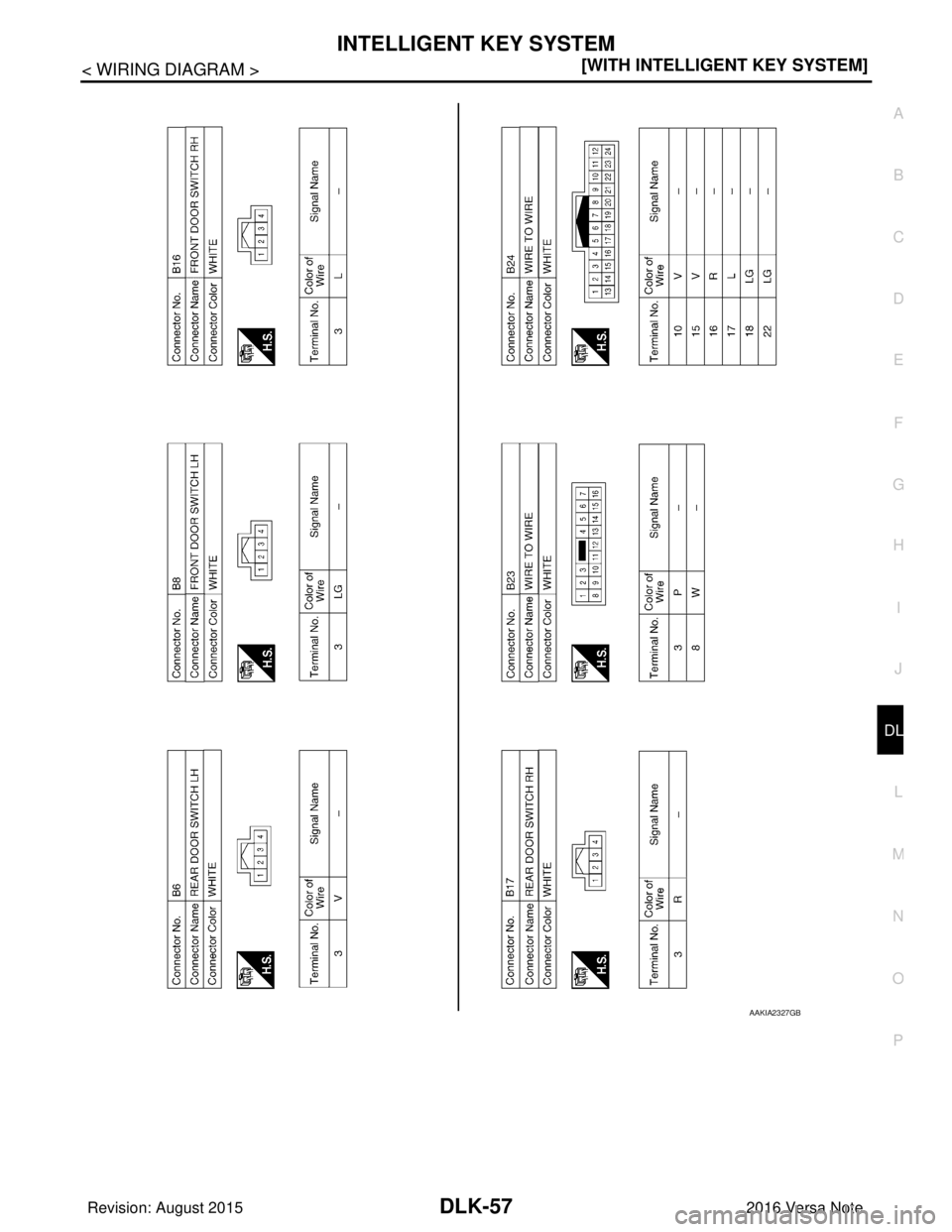

Page 746 of 3641

NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEMDLK-57
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
AAKIA2327GB
Revision: August 2015 2016 Versa Note

cardiagn.com

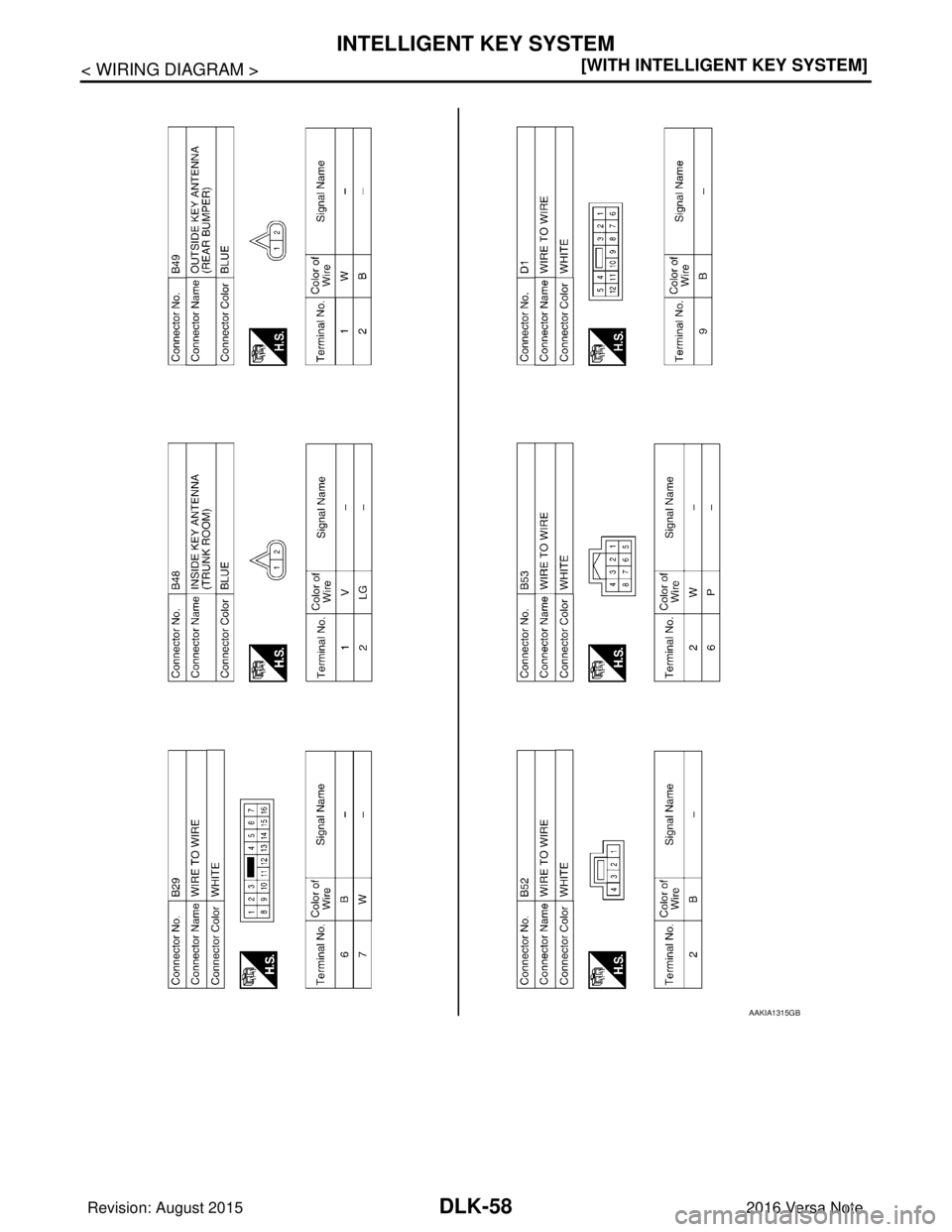

Page 747 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-58
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
AAKIA1315GB
Revision: August 2015
2016 Versa Note

cardiagn.com

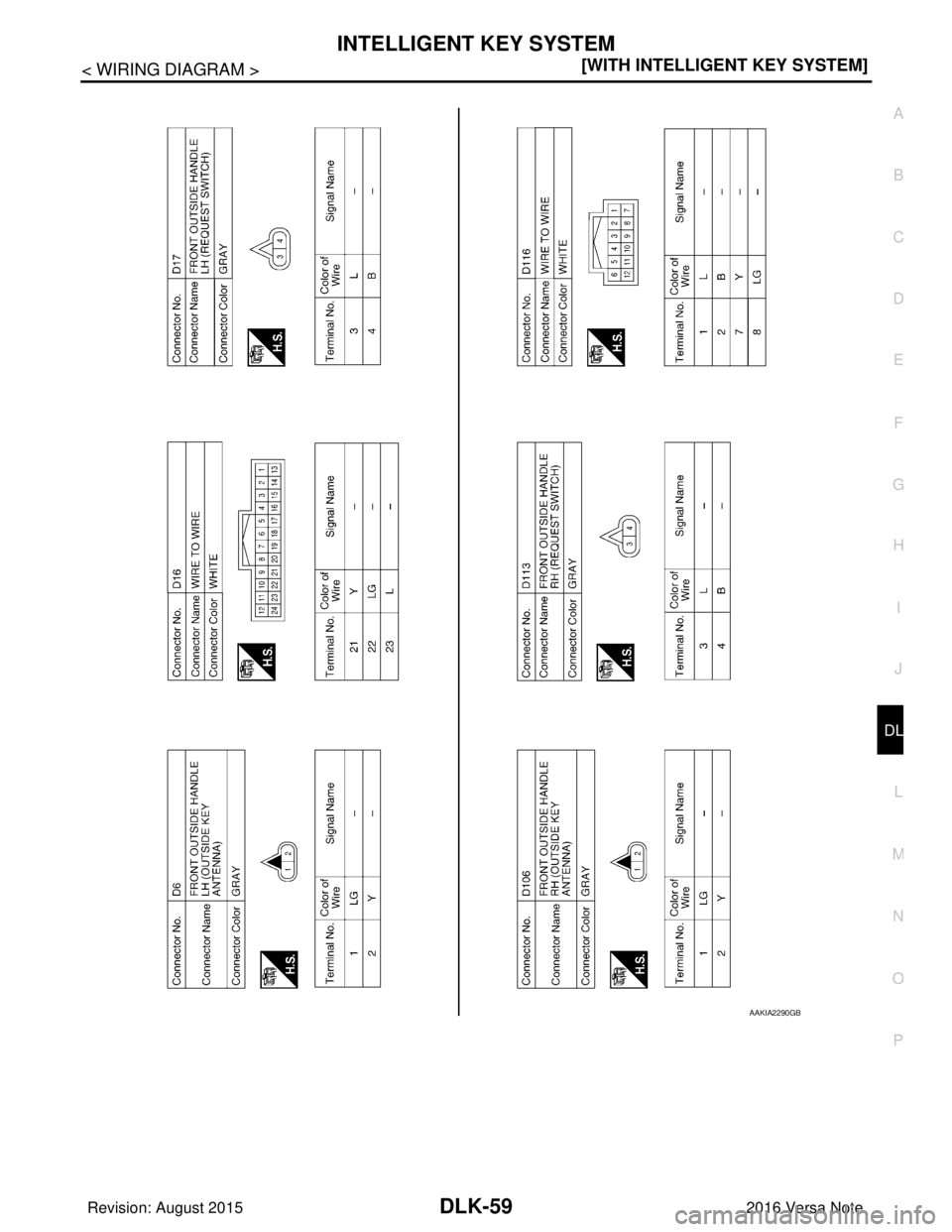

Page 748 of 3641

NISSAN NOTE 2016 Service Repair Manual INTELLIGENT KEY SYSTEMDLK-59
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
AAKIA2290GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 749 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-60
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY SYSTEM
AAKIA2328GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 750 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORK FLOWDLK-61
< BASIC INSPECTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

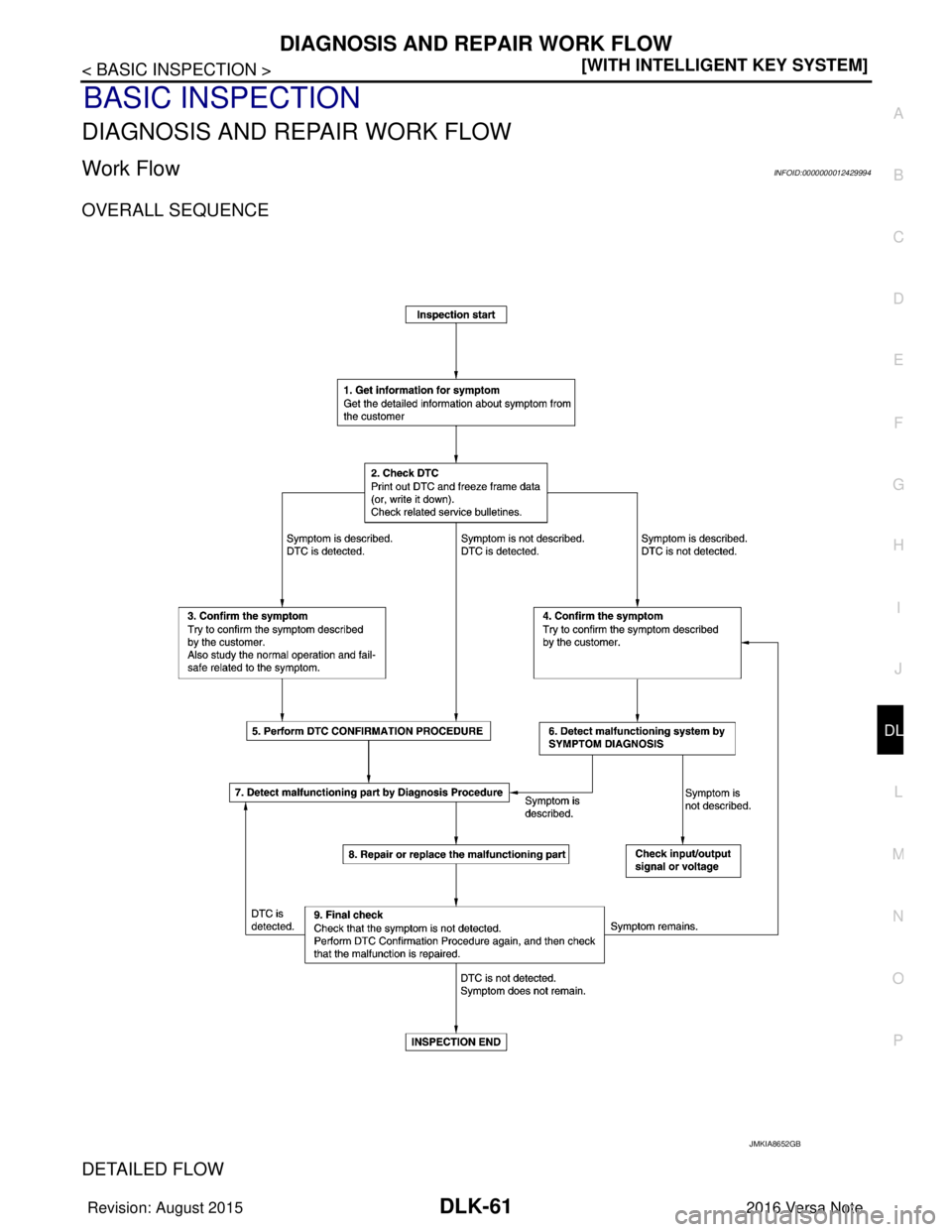

BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:00000000124299

Page 751 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-62
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS AND REPAIR WORK FLOW
1.GET INFORMATION FOR SYMPTOM
1. Get detailed information from the customer about the symptom (the condition and

DLK-62
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS AND REPAIR WORK FLOW
1.GET INFORMATION FOR SYMPTOM
1. Get detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurs).
2. Check operation condition of the function that is malfunctioning.
>> GO TO 2.
2.CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is detected.
- Record DTC and freeze frame data (P rint them out using CONSULT.)
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Are any symptoms described and any DTC detected?
Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.
3.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe related to the symptom.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC CONFIRMATION PROCEDURE for the det ected DTC, and then check that DTC is detected
again. At this time, always connect CONSULT to the v ehicle, and check self diagnostic results in real time.
If two or more DTCs are detected, refer to BCS-49, "
DTCInspectionPriorityChart" and determine trouble
diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIR MATION PROCEDURE is not included on Service
Manual. This simplified check procedure is an effect ive alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.
Is DTC detected?
YES >> GO TO 7.
NO >> Check according to GI-42, "
Intermittent Incident".
6.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS
Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.
Is the symptom described?
YES >> GO TO 7.
NO >> Monitor input data from related sensors or check voltage of related module terminals using CON- SULT.
7.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 752 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORK FLOWDLK-63
< BASIC INSPECTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Inspect according to Diagnosis Procedure of the system.
Is malfunctioning part
