Page 3049 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-32
< WIRING DIAGRAM >
SRS AIR BAG SYSTEM
ABHIA1205GB
Revision: August 20152016 Versa Note

cardiagn.com

Page 3050 of 3641

NISSAN NOTE 2016 Service Repair Manual SRS AIR BAG SYSTEMSRC-33
< WIRING DIAGRAM >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
ABHIA1206GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 3051 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-34
< WIRING DIAGRAM >
SRS AIR BAG SYSTEM
ABHIA1207GB
Revision: August 20152016 Versa Note

cardiagn.com

Page 3052 of 3641

NISSAN NOTE 2016 Service Repair Manual SRS AIR BAG SYSTEMSRC-35
< WIRING DIAGRAM >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
ABHIA1208GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 3053 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-36
< BASIC INSPECTION >

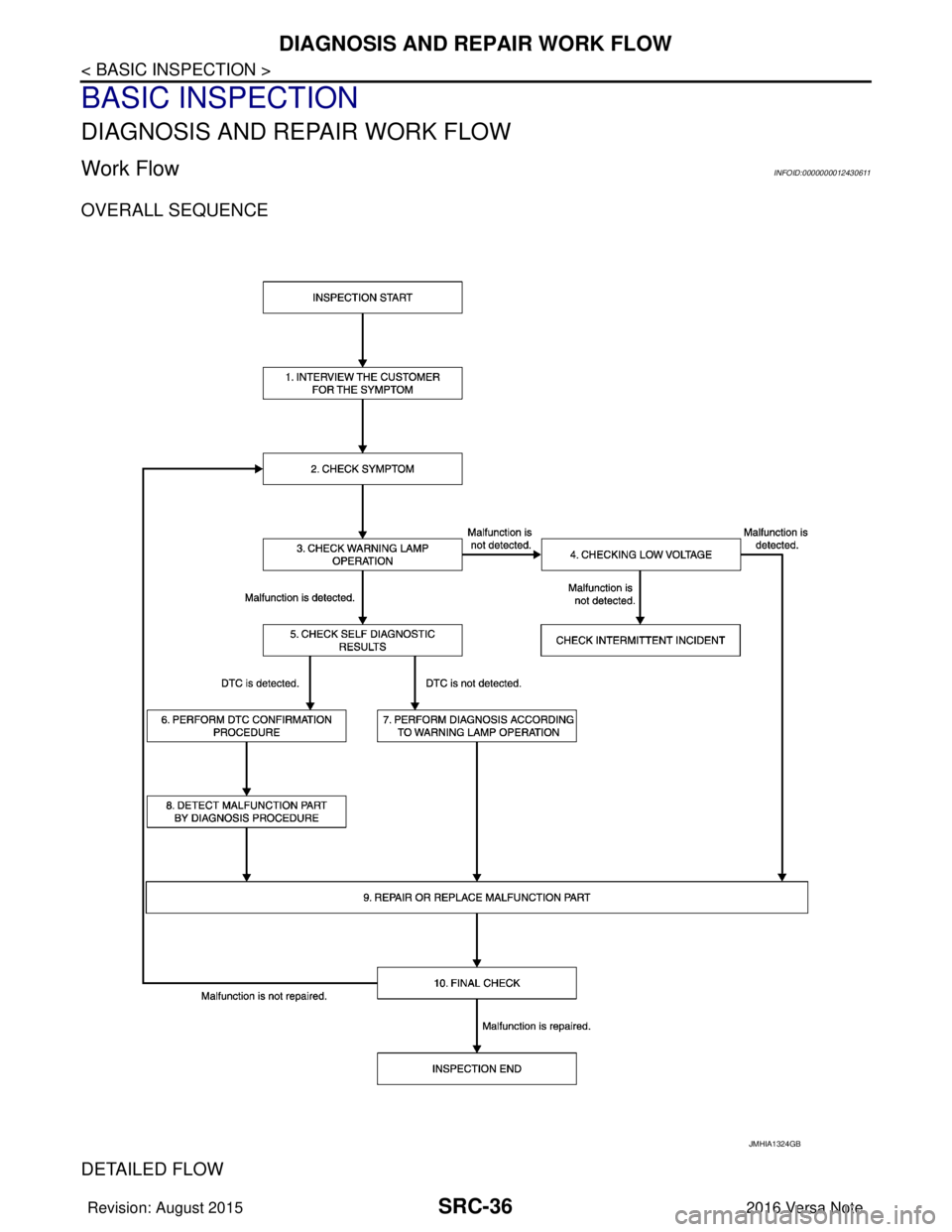

DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012430611
OVERALL SEQUENCE
DETAILED FLOW
JMHIA1324GB
Revision: August

Page 3054 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORK FLOWSRC-37
< BASIC INSPECTION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
1.INTERVIEW THE CUSTOMER FOR THE SYMPTOM
Interview the customer for the symptom (the condi tion and the envir

Page 3055 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-38
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORK FLOW
>> GO TO 10.
10.ON BOARD DIAGNOSIS FUNCTION
Check self diagnostic result and air bag warning lamp operation in the user mode.
Is the malfunct

Page 3056 of 3641

NISSAN NOTE 2016 Service Repair Manual INSPECTION AND ADJUSTMENTSRC-39
< BASIC INSPECTION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPL ACING CONTR

INSPECTION AND ADJUSTMENTSRC-39
< BASIC INSPECTION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPL ACING CONTROL UNIT : Description
INFOID:0000000012430612
Always perform zero point reset using CONSULT when removing and installing the passenger seat or servic-
ing the occupant classification system. If zero point reset is not performed the OCS may not operate normally,
which may increase the risk of serious injury in a collision.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000012430613
WORK PROCEDURE WHEN REPLACING CONTROL UNIT
1.PERFORM ZERO POINT RESET
Perform zero point reset. Refer to SRC-39, "
ZERO POINT RESET : Special Repair Requirement".
Is zero point reset performed normally?
YES >> INSPECTION END
NO >> Check condition as per the following, and perform zero point reset again. • Passenger seat is occupied by an object.
• Excessive vibration is applied while performing zero point reset.
• Occupant detection system is malfunctioning.NOTE:
If “Incomplete” is displayed on “zero point reset cu rrent status”, zero point reset is not completed
normally. Check the condition as per the following and perform zero point reset again.
• Passenger seat is occupied by an object.
• Excessive vibration is applied while performing zero point reset.
• Occupant detection system is malfunctioning.
ZERO POINT RESET
ZERO POINT RESET : DescriptionINFOID:0000000012430614
Zero point reset is an initializing procedure for occupant detection sensor that must be performed when replac-
ing or removing and installing passenger seat.
If zero point reset is not performed, the initializati on is incomplete and Occupant Detection System does not
operate normally.
NOTE:
• When zero point reset is performed once after removal and installation of passenger seat, CONSULT dis- plays “complete”.
• When reinstalling passenger seat after removal, the initial value for occupant detection sensor changes, and
Occupant Detection System does not operate normally.
• Always perform zero point reset after performing the work as per the following.
- Reinstallation of passenger seat
- Installation of passenger seat that is zero point reset complete
- Installation of passenger seat that is zero point reset in complete
ZERO POINT RESET : Special Repair RequirementINFOID:0000000012430615
1.PERFORM ZERO POINT RESET
1. Perform zero point reset. NOTE:
When performing zero point reset, be careful of the items described as per the following.
• Perform zero point reset after installing passenger seat to the vehicle
• Do not put any objects on passenger seat
• Do not apply excessive vibration to the vehicle
• Do not touch the vehicle
• Do not tilt the vehicle
Revision: August 2015 2016 Versa Note

cardiagn.com
