Page 2393 of 3641
MWI
METER SYSTEMMWI-35

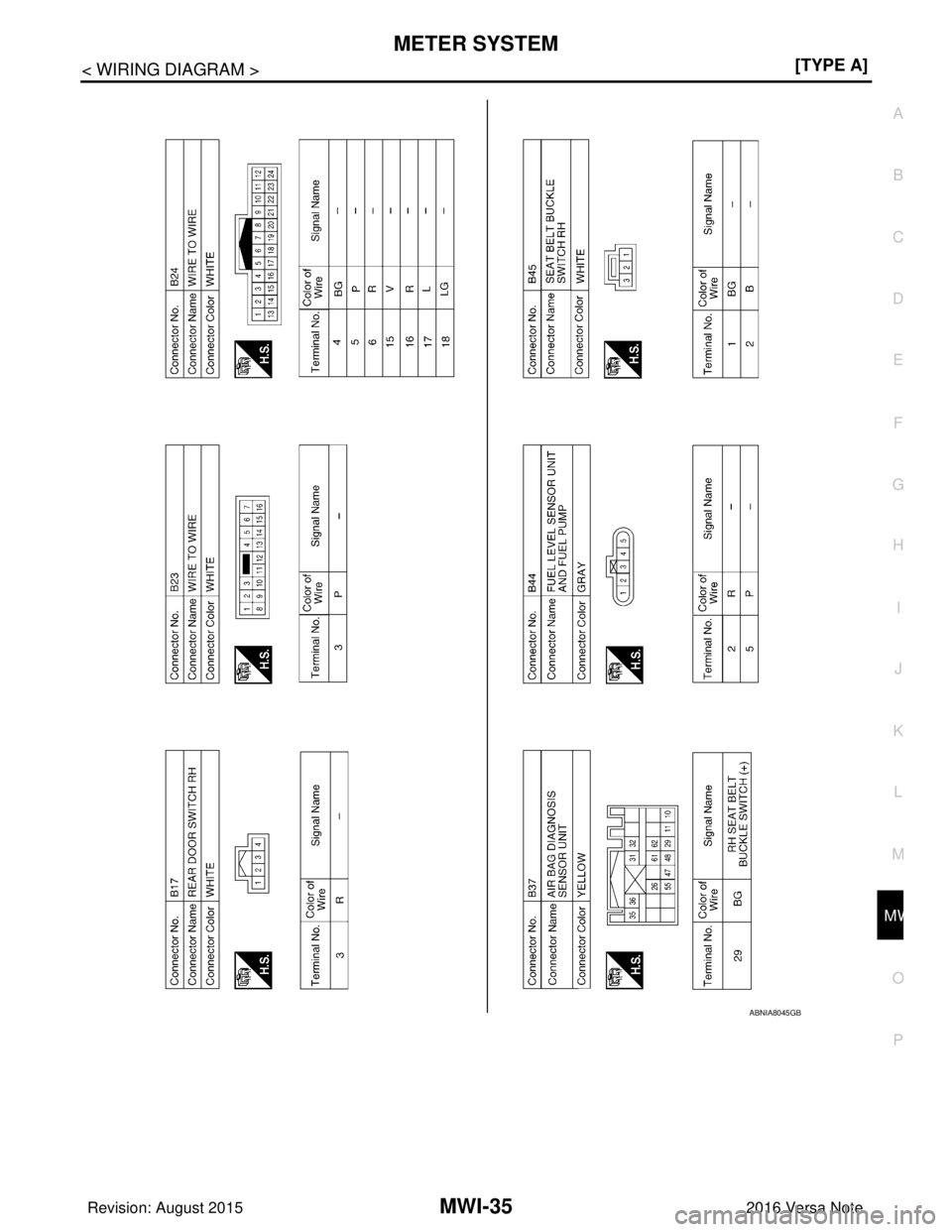

< WIRING DIAGRAM > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P
ABNIA8045GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2394 of 3641
MWI-36

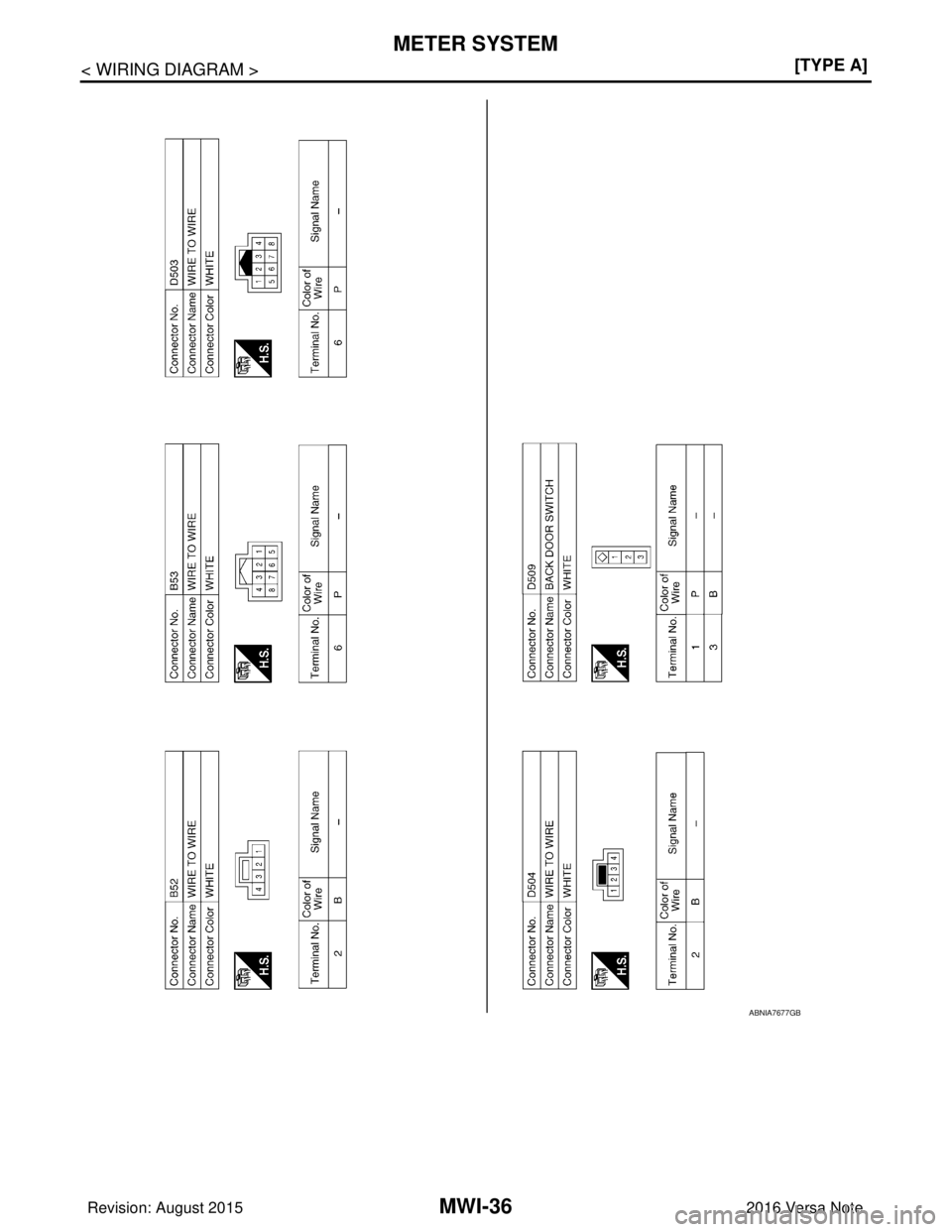

< WIRING DIAGRAM >[TYPE A]
METER SYSTEM
ABNIA7677GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2395 of 3641
![NISSAN NOTE 2016 Service Repair Manual MWI
DIAGNOSIS AND REPAIR WORK FLOWMWI-37
< BASIC INSPECTION > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012432559
OVERALL SEQUENCE
D NISSAN NOTE 2016 Service Repair Manual MWI
DIAGNOSIS AND REPAIR WORK FLOWMWI-37
< BASIC INSPECTION > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012432559
OVERALL SEQUENCE
D](/manual-img/5/57363/w960_57363-2394.png)
MWI
DIAGNOSIS AND REPAIR WORK FLOWMWI-37
< BASIC INSPECTION > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012432559
OVERALL SEQUENCE
DETAILED FLOW
1.CONFIRM SYMPTOM
Confirm symptom or customer complaint.
>> GO TO 2.
2.SELF-DIAGNOSIS OF COMBINATION METER
Perform self-diagnosis of combination meter. Refer to MWI-17, "
On Board Diagnosis Function".
Is the inspection result normal?
YES >> GO TO 3.
NO >> If self-diagnosis will not start, check power supply and ground circuit of combination meter. Refer to MWI-43, "
COMBINATION METER : Diagnosis Procedure". If power supply and ground circuits
are OK, replace combination meter. Refer to MWI-54, "
Removal and Installation".
3.CHECK COMBINATION METER WITH CONSULT
Select METER/M&A on CONSULT and perform self-d iagnosis of combination meter. Refer to MWI-18, "
CON-
SULT Function (METER/M&A)".
Is the inspection result normal?
YES >> Check symptom. GO TO 4.
NO >> Refer to MWI-24, "
DTC Index".
4.CHECK SYSTEM OPERATION
Check the combination meter to verify that the repair has been completed successfully.
Is the inspection result normal?
YES >> Inspection End.
NO >> GO TO 1.
AWNIA2458GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2396 of 3641
MWI-38
< DTC/CIRCUIT DIAGNOSIS >[TYPE A]
U1000 CAN COMM CIRCUIT
DTC/CIRCUIT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DTC LogicINFOID:0000000012432560
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000012432561
1.CHECK CAN COMMUNICATION
Select SELF-DIAG RESULTS mode for METER/M&A with CONSULT.
>> GO TO LAN system. Refer to LAN-16, "
Trouble Diagnosis Flow Chart".
DTC Display Item Malfunction detected condition Possible malfunction
U1000 CAN COMM CIRC
[U1000] When combination meter is not transmitting or receiving CAN
communication signals for 2 seconds or more.
CAN communication system
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2397 of 3641
MWI
U1010 CONTROL UNIT (CAN)MWI-39
< DTC/CIRCUIT DIAGNOSIS > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P
U1010 CONTROL UNIT (CAN)
DescriptionINFOID:0000000012432562
Initial diagnosis of combination meter.
DTC LogicINFOID:0000000012432563
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000012432564
1.REPLACE COMBINATION METER
When DTC U1010 is detected, replace combination meter. Refer to MWI-54, "
Removal and Installation".
>> Inspection End.
DTC Display Item Malfunction detected condition Possible malfunction
U1010 CONTROL UNIT (CAN)
[U1010] When detecting error during the initial diagnosis of
the CAN controller of combination meter.
Combination meter
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2398 of 3641
![NISSAN NOTE 2016 Service Repair Manual MWI-40
< DTC/CIRCUIT DIAGNOSIS >[TYPE A]
B2205 VEHICLE SPEED
B2205 VEHICLE SPEED
DescriptionINFOID:0000000012432565
The ABS actuator and electric unit (control unit) provi
des a vehicle speed signal t NISSAN NOTE 2016 Service Repair Manual MWI-40
< DTC/CIRCUIT DIAGNOSIS >[TYPE A]
B2205 VEHICLE SPEED
B2205 VEHICLE SPEED
DescriptionINFOID:0000000012432565
The ABS actuator and electric unit (control unit) provi
des a vehicle speed signal t](/manual-img/5/57363/w960_57363-2397.png)
MWI-40
< DTC/CIRCUIT DIAGNOSIS >[TYPE A]
B2205 VEHICLE SPEED
B2205 VEHICLE SPEED
DescriptionINFOID:0000000012432565
The ABS actuator and electric unit (control unit) provi
des a vehicle speed signal to the combination meter via
CAN communication lines.
DTC LogicINFOID:0000000012432566
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000012432567
1.CHECK COMBINATION METER INPUT SIGNAL
1. Start engine and select METER/M&A on CONSULT.
2. Using SPEED METER on DATA MONITOR, compar e the value of DATA MONITOR with speedometer
pointer of combination meter. Speedometer and DATA MONITOR indications should be close.
Is the inspection result normal?
YES >> Perform ABS actuator and electric uni t (control unit) self-diagnosis. Refer to BRC-31, "CONSULT
Function (ABS)".
NO >> Replace combination meter. Refer to MWI-54, "
Removal and Installation".
DTC Display ItemMalfunction detected condition Possible malfunction
B2205 VEHICLE SPEED CIRC
[B2205] Malfunction is detected when an erroneous
speed signal is received for 2 seconds or more. • Combination meter
• ABS actuator and electric unit (control unit)
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2399 of 3641
MWI
B2267 ENGINE SPEEDMWI-41
< DTC/CIRCUIT DIAGNOSIS > [TYPE A]
C
D
E
F
G H
I
J
K L
M B A
O P
B2267 ENGINE SPEED
DescriptionINFOID:0000000012432568
The engine speed signal is transmitted from ECM to the combination meter via CAN communication.
DTC LogicINFOID:0000000012432569
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000012432570
1.PERFORM SELF-DIAGNOSIS OF ECM
Perform Self Diagnostic Result of ECM, and repair or replace malfunctioning parts.
>> Refer to EC-60, "
CONSULT Function".
DTC Display Item Malfunction detected condition Possible malfunction
B2267 TACHO METER
[B2267] ECM continuously transmits abnormal engine
speed signals for 2 seconds or more • Crankshaft position sensor (POS)
•ECM
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2400 of 3641
MWI-42
< DTC/CIRCUIT DIAGNOSIS >[TYPE A]
B2268 WATER TEMP
B2268 WATER TEMP
DescriptionINFOID:0000000012432571
The engine coolant temperature signal is transmitted fr
om ECM to the combination meter via CAN communi-
cation.
DTC LogicINFOID:0000000012432572
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000012432573
1.PERFORM SELF-DIAGNOSIS OF ECM
Perform Self Diagnostic Result of ECM, and repair or replace malfunctioning parts.
>> Refer to EC-60, "
CONSULT Function".
DTC Display Item Malfunction detected condition Possible malfunction
B2268 WATER TEMP METER
[B2268] ECM continuously transmits abnormal engine coolant
temperature signals for 60 seconds or more • Engine coolant temperature sensor
•ECM
Revision: August 2015
2016 Versa Note
