2016 NISSAN NOTE instrument panel

AV-134
< SYSTEM DESCRIPTION >[NAVIGATION]
COMPONENT PARTS
GPS Antenna
INFOID:0000000012433011
• GPS antenna is installed in the instrument panel, behind the com- bination meter.
• Power is supplied from the AV control unit.
SD CardINFOID:0000000012433012
• Map data is memorized in the SD card.
• Map data is sent to the AV control unit from the SD slot.
JSNIA3303ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
NORMAL OPERATING CONDITIONAV-233
< SYMPTOM DIAGNOSIS > [NAVIGATION]
C
D
E
F
G H
I
J
K L
M B A
O PRELATED TO NAVIGATION
Basic Operation
Vehicle Mark
The other party’s voice cannot be heard by hands-free phone. When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person’s voice during a
call.
Poor sound quality. Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.
Symptom
Cause and Counter measure
SymptomCause Remedy
No image is shown. Display brightness adjustment is set fully to DARK
side. Adjust the display brightness.
No guide sound is heard.
Audio guide volume is too low or
too high. Volume control is set to OFF, MIN or MAX. Adjust the audio guide volume.
Audio guidance is not available while the vehicle is
driving on a dark pink route.
System is not malfunctioning.
Screen is too dark.
Motion of the image is too slow. Temperature inside the vehicle is low.
Wait until the temperature inside the vehicle
reaches the proper temperature.
Small black or bright spots appear
on the screen. Symptom peculiar to a liquid crystal display (dis-
play unit). System is not malfunction.
Symptom
Cause Remedy
Map screen and BIRDVIEW™
Name of the place vary with the
screen. Some thinning of the character data is done to pre-
vent the display becoming to complex. In some
cases and in some locations, the display contents
may differ.
The same place name, street name, etc. may not
be displayed every time on account of the data
processing. System is not malfunctioning.
Vehicle mark is not positioned cor-
rectly. Vehicle is transferred by ferry or by towing after its
ignition switch is turned to OFF. Drive the vehicle for a while in the GPS sat-
ellite signal receiving condition.
Screen will not switch to nighttime
mode after the lighting switch is
turned ON. The daytime screen is selected by the “SWITCH
SCREENS” when the last time the screen dim-
ming setting is done.
Switching between daytime/nighttime screen may
be inhibited by the automatic illumination adjust-
ment function. Perform screen dimming and select the
nighttime screen by “SWITCH SCREENS”.
Map screen will not scroll in accor-
dance with the vehicle travel. Current location is not displayed.
Press “MAP” button to display the current lo-
cation.
Vehicle mark will not be shown. Current location is not displayed. Press “MAP” button to display the current lo-
cation.
Accuracy indicator (GPS satellite
mark) on the map screen stays
gray. GPS satellite signal is intercepted because the ve-
hicle is in or behind a building.
Move the vehicle out to an open space.
GPS satellite signal cannot be received because
an obstacle is placed on top of the instrument pan-
el. Do not place anything on top of the meter dis-
play (instrument panel).
GPS satellites are not visible from current location. Wait until GPS satellites are visible by mov- ing the vehicle.
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS-6
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
COMPONENT PARTS

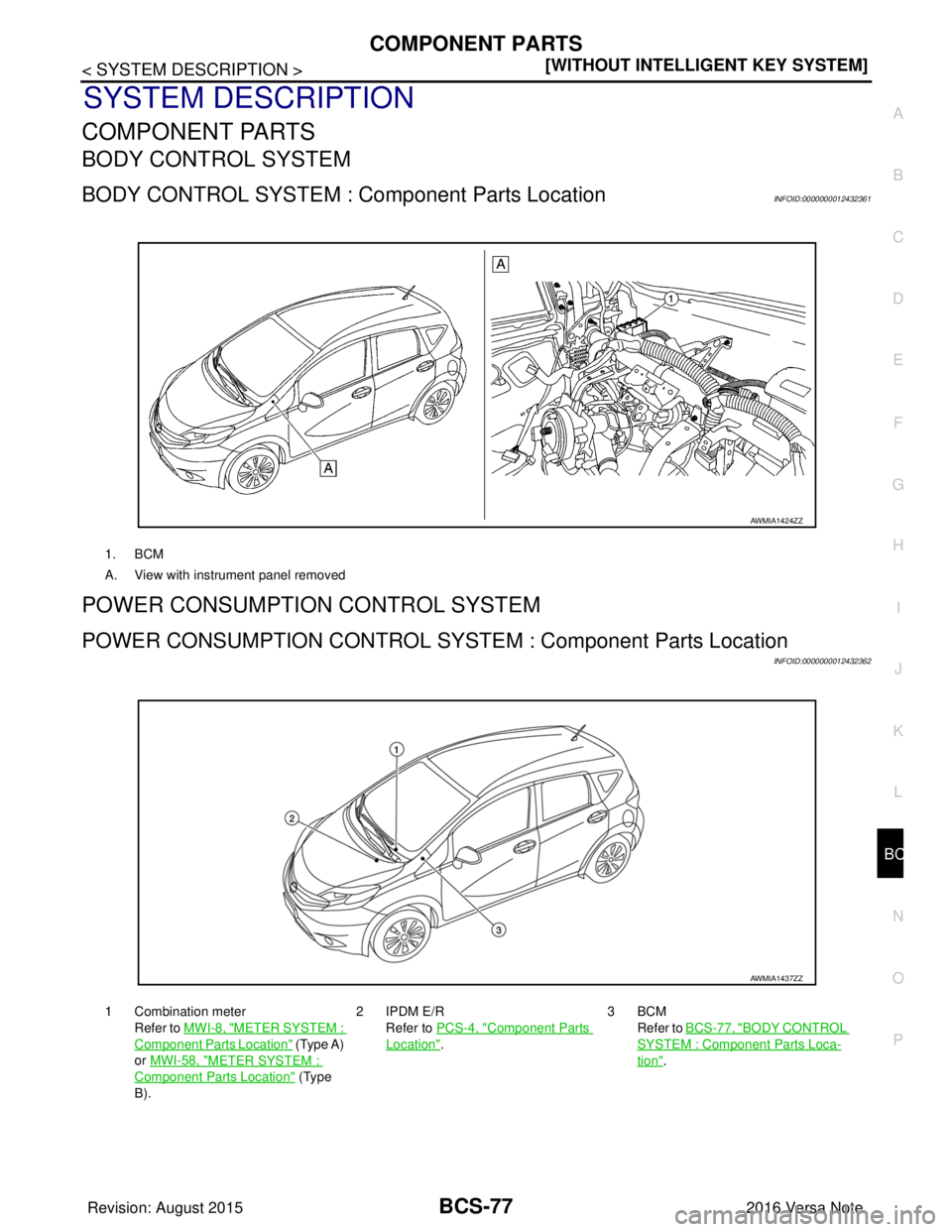

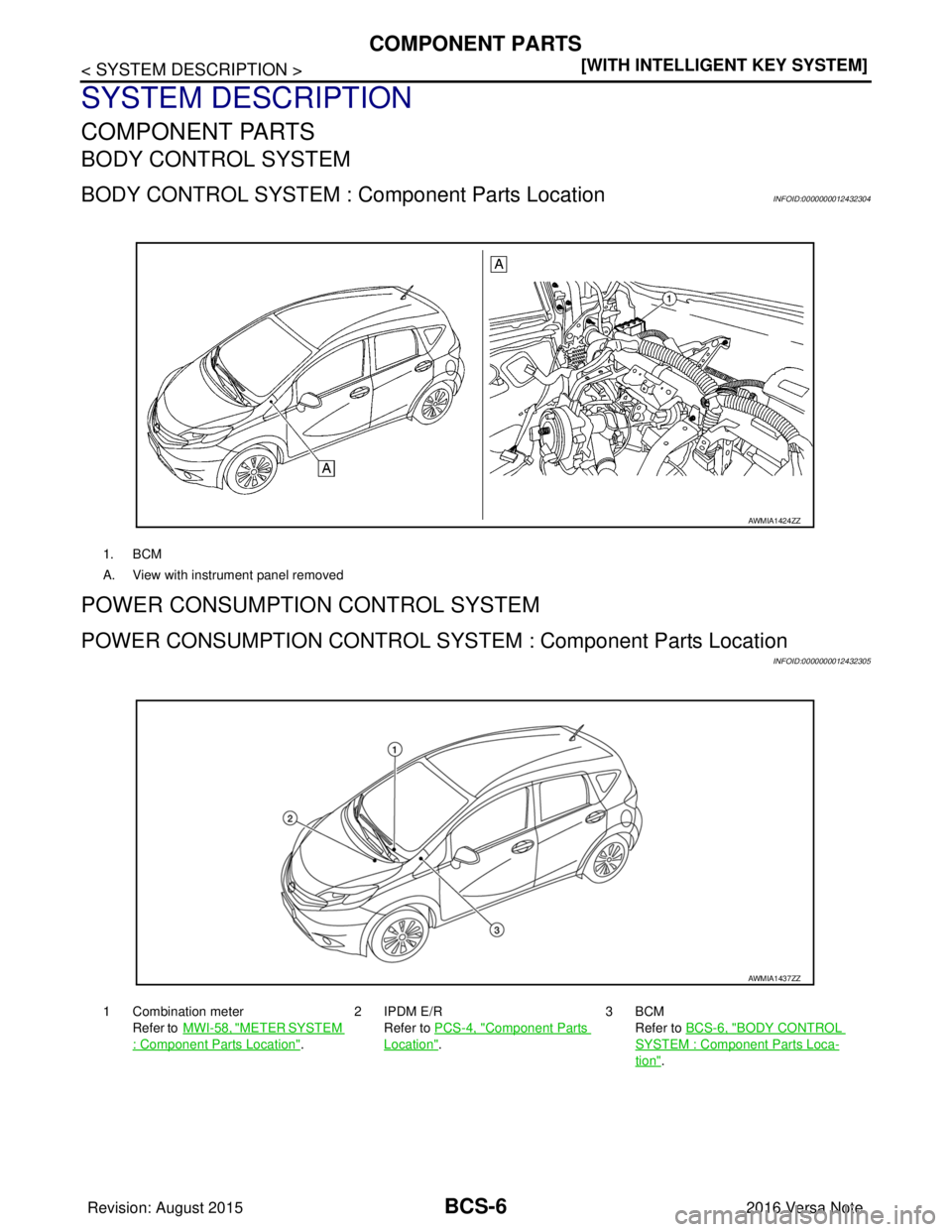

SYSTEM DESCRIPTION
COMPONENT PARTS
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM :
Component Parts LocationINFOID:0000000012432304
POWER CONSUMPTION CONTROL SYSTEM
POWER CONSUMPTION CONTROL SYST EM : Component Parts Location
INFOID:0000000012432305
1. BCM
A. View with instrument panel removed
AWMIA1424ZZ
1 Combination meter
Refer to MWI-58, "
METER SYSTEM
: Component Parts Location". 2 IPDM E/R
Refer to PCS-4, "
Component Parts
Location". 3BCM
Refer to BCS-6, "
BODY CONTROL
SYSTEM : Component Parts Loca-
tion".
AWMIA1437ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS-74
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)

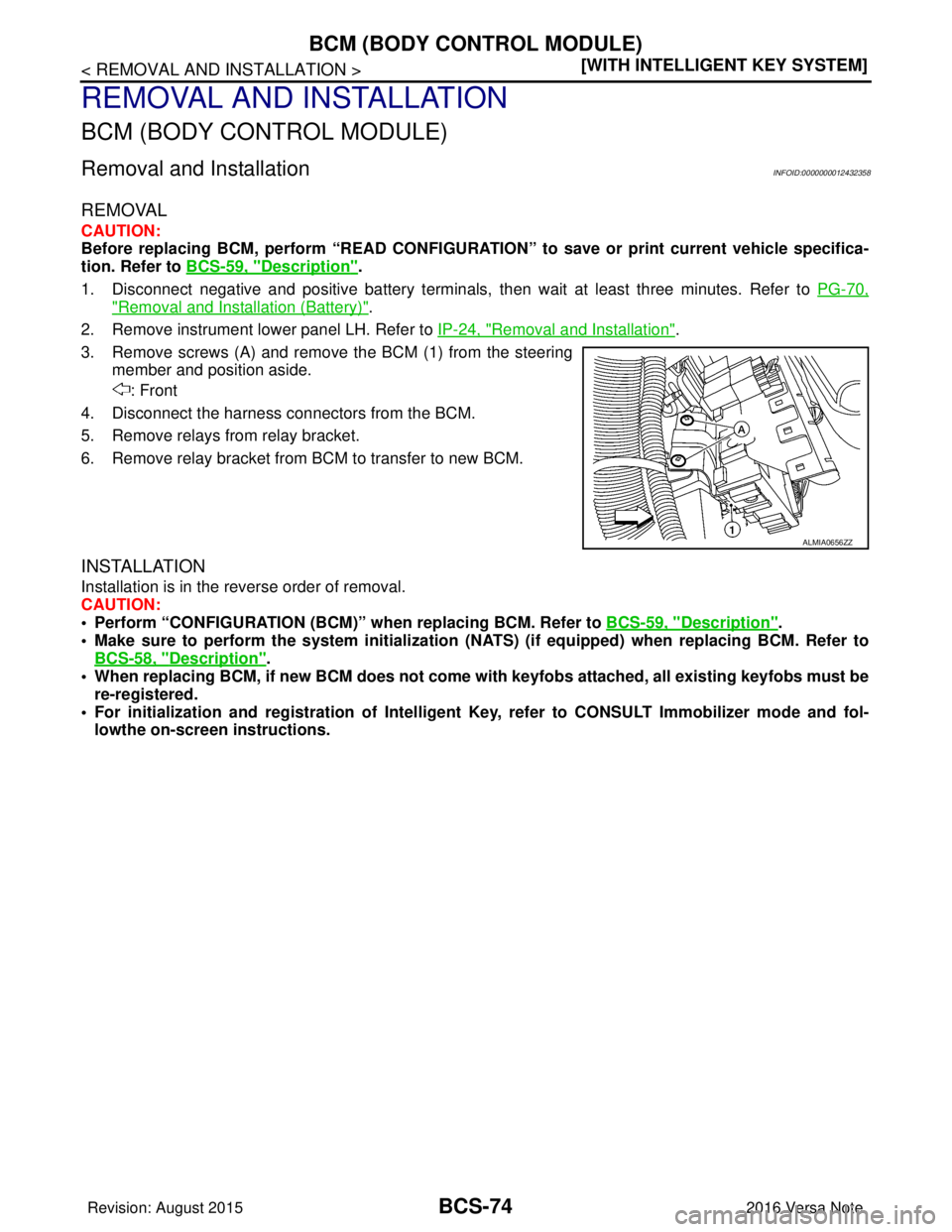

REMOVAL AND INSTALLATION
BCM (BODY CONTROL MODULE)
Removal and InstallationINFOID:0000000012432358
REMOVAL
CAUTION:
Before replacing BCM, perform “READ CONFIGURATI
ON” to save or print current vehicle specifica-
tion. Refer to BCS-59, "
Description".
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove instrument lower panel LH. Refer to IP-24, "
Removal and Installation".
3. Remove screws (A) and remove the BCM (1) from the steering member and position aside.
: Front
4. Disconnect the harness connectors from the BCM.
5. Remove relays from relay bracket.
6. Remove relay bracket from BCM to transfer to new BCM.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Perform “CONFIGURATION (BCM)” when replacing BCM. Refer to BCS-59, "
Description".
• Make sure to perform the system initialization (NATS) (if equipped) when replacing BCM. Refer to
BCS-58, "
Description".
• When replacing BCM, if new BCM does not come wi th keyfobs attached, all existing keyfobs must be
re-registered.
• For initialization and registration of Intelligent Key, refer to CONSULT Immobilizer mode and fol- lowthe on-screen instructions.
ALMIA0656ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
COMPONENT PARTSBCS-77
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SYSTEM DESCRIPTION
COMPONENT PARTS
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM :
Component Parts LocationINFOID:0000000012432361
POWER CONSUMPTION CONTROL SYSTEM
POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location
INFOID:0000000012432362
1. BCM
A. View with instrument panel removed
AWMIA1424ZZ
1 Combination meter
Refer to MWI-8, "
METER SYSTEM :
Component Parts Location" (Type A)
or MWI-58, "
METER SYSTEM :
Component Parts Location" (Type
B). 2IPDM E/R
Refer to PCS-4, "
Component Parts
Location". 3BCM
Refer to BCS-77, "
BODY CONTROL
SYSTEM : Compon ent Parts Loca-
tion".
AWMIA1437ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
BCM (BODY CONTROL MODULE)BCS-137
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
REMOVAL AND INSTALLATION
BCM (BODY CONTROL MODULE)
Removal and InstallationINFOID:0000000012432411
REMOVAL
CAUTION:
Before replacing BCM, perform “READ CONFIGURAT
ION” to save or print current vehicle specifica-
tion. Refer to BCS-123, "
Description".
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove instrument lower panel LH. Refer to IP-24, "
Removal and Installation".
3. Remove screws (A) and remove the BCM (1) from the steering member and position aside.
: Front
4. Disconnect the harness connectors from the BCM.
5. Remove relays from relay bracket.
6. Remove relay bracket from BCM to transfer to new BCM.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Perform “CONFIGURATION (BCM)” when replacing BCM. Refer to BCS-123, "
Description".
• Make sure to perform the system initialization (N ATS) (if equipped) when replacing BCM. Refer to
BCS-121, "
Description".
• When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be
re-registered.
• For initialization and registration of Intelligent Key, refer to CONSULT Immobilizer mode and fol- lowthe on-screen instructions.
ALMIA0656ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-8
< SYSTEM DESCRIPTION >[VDC/TCS/ABS]
COMPONENT PARTS
Component Description
INFOID:0000000012430827
ABS Actuator and Electric Unit (Control Unit)INFOID:0000000012430828
Electric unit (control unit) is integrated with actuator and comprehensively controls VDC function, TCS func-
tion, ABS function and EBD function.
ELECTRIC UNIT (CONTROL UNIT)
• Brake fluid pressure is controlled according to signals from each sensor.
• If malfunction is detected, the system enters fail-safe mode.
ACTUATOR
The following components are integrated with ABS actuator:
Pump
Returns the brake fluid reserved in reservoir to master cylinder by reducing pressure.
Motor
Activates the pump according to signals from ABS actuator and electric unit (control unit).
Motor Relay
Operates the motor ON/OFF according to signals fr om ABS actuator and electric unit (control unit).
Actuator Relay (Main Relay)
Operates each valve ON/OFF according to signals fr om ABS actuator and electric unit (control unit).
ABS IN Valve
A. View with steering wheel and spiral
cable removed B. Left side of instrument panel C. Left side of engine compartment
D. Left side of engine compartment E. Right side of engine compartment F. Left front wheel assembly
G. Near brake pedal area H. Left side of instrument panel I. Center of front seats (view with cen-
ter console removed)
J. Left rear wheel assembly
ALFIA0482ZZ
Component Reference/Function
1 Steering angle sensor BRC-9, "
Steering Angle Sensor"
2 VDC OFF switchBRC-10, "VDC OFF Switch"
3 IPDM E/RPCS-4, "Component Parts Location"
4 Brake fluid level switchBRC-10, "Brake Fluid Level Switch"
5 ABS actuator and electric unit (control unit)BRC-8, "ABS Actuator and Electric Unit (Control Unit)"
6 Front wheel sensorBRC-9, "Wheel Sensor and Sensor Rotor"
7 Stop lamp switchBRC-9, "Sto p La mp Sw itc h"
8 Combination meter (type A)MWI-9, "METER SYSTEM : Combination Meter"
9 Combination meter (type B)MWI-9, "METER SYSTEM : Combination Meter"
10 Parking brake switch BRC-10, "Parking Brake Switch"
11. Rear wheel sensor BRC-9, "Wheel Sensor and Sensor Rotor"
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-146
< REMOVAL AND INSTALLATION >[VDC/TCS/ABS]
VDC OFF SWITCH
VDC OFF SWITCH
Removal and InstallationINFOID:0000000012430933
REMOVAL
1. Remove the instrument lower panel LH. Refer to
IP-24, "Removal and Installation".
2. Release pawls (A) using suitable tool and remove the VDC OFF switch.
INSTALLATION
Installation is in the reverse order of removal.
ALFIA0211ZZ
