2016 NISSAN NOTE Service Repair Manual

hood release keyless battery capacity key fob trip computer coolant temperature

Load previous 8 pages

Page 969 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-280
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
FRONT DOOR
3. Tighten door striker bolts to specification. Refer to
DLK-277, "Exploded View".
DOOR HINGE
DOOR HINGE : Removal and

Page 970 of 3641

NISSAN NOTE 2016 Service Repair Manual REAR DOORDLK-281
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

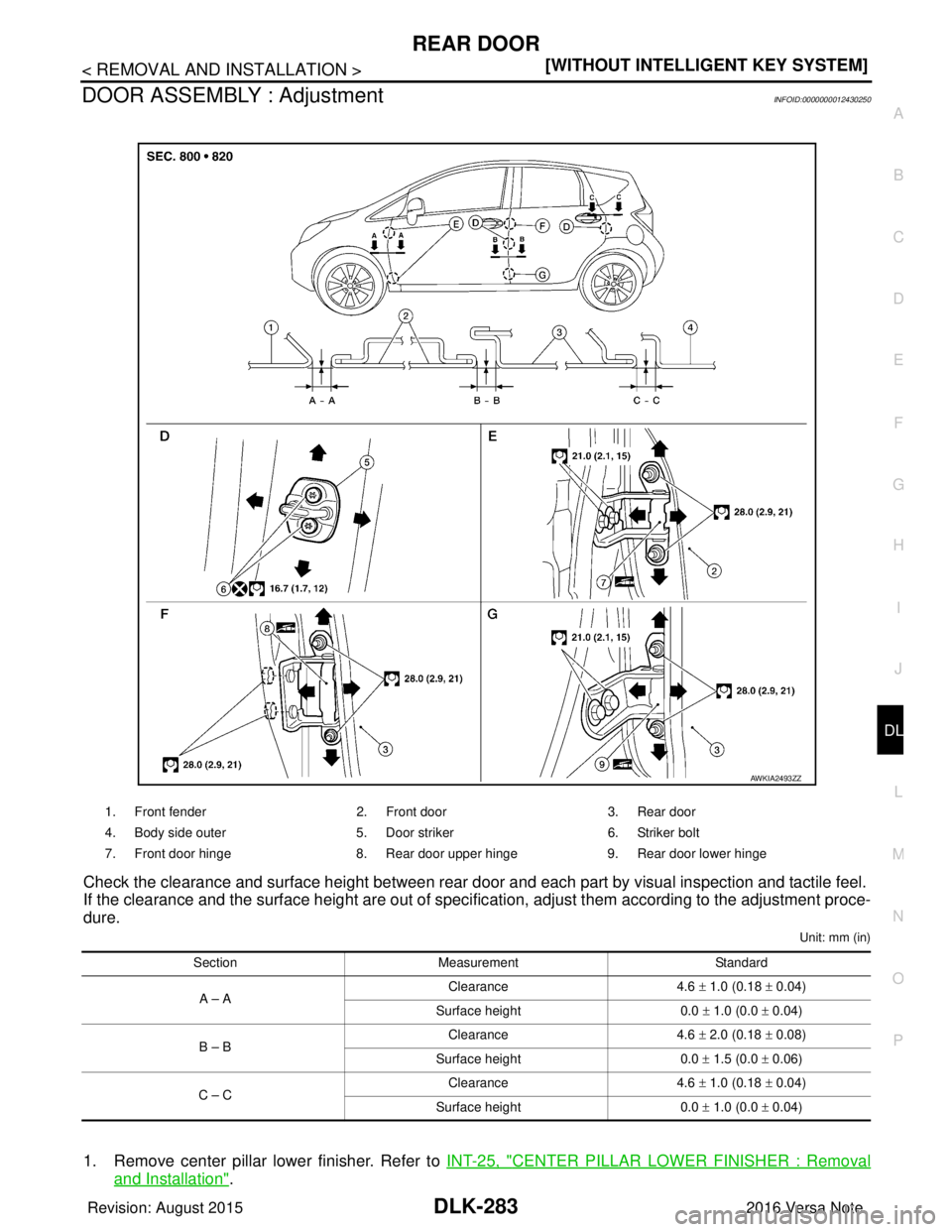

REAR DOOR
Exploded ViewINFOID:0000000012430248
DOOR ASSEMBLY
DOOR ASSEMBLY : Removal an

Page 971 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-282
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
REAR DOOR
2. Disconnect the harness connec
tor (A) from rear door.
3. Remove door check link bolt (body side).
4. Remove door hinge

Page 972 of 3641

NISSAN NOTE 2016 Service Repair Manual REAR DOORDLK-283
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
DOOR ASSEMBLY : AdjustmentINFOID:0000000012430250
Check the clearance and surface heigh

Page 973 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-284
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
REAR DOOR
2. Loosen door hinge nuts (door side).
3. Adjust the surface height of rear door
according to the specifications provide

DLK-284
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
REAR DOOR
2. Loosen door hinge nuts (door side).
3. Adjust the surface height of rear door
according to the specifications provided.
4. Temporarily tighten door hinge nuts (door side).
5. Loosen door hinge nuts and bolts (body side).
6. Raise rear door at rear end to adjust clearance of rear door according to the specifications provided.
7. After adjustment tighten bolts and nuts to the specified torque. CAUTION:
• Apply touch-up paint (body color) to the head of hinge bolts and nuts.
• Check door hinge rotating point fo r poor lubrication. If necessary, apply a suitable multi-purpose
grease.
8. Install center pillar lower finisher. Refer to INT-25, "
CENTER PILLAR LOWER FINISHER : Removal and
Installation".
DOOR STRIKER
DOOR STRIKER : Removal and InstallationINFOID:0000000012430251
REMOVAL
Remove bolts and rear door striker.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse door striker bolts.
• Tighten door striker bolts to specification. Refer to DLK-281, "
Exploded View".
• After installation, check front door open/close oper ation. If necessary, adjust the door striker. Refer
to DLK-284, "
DOOR STRIKER : Adjustment".
DOOR STRIKER : AdjustmentINFOID:0000000012430252
DOOR STRIKER ADJUSTMENT
1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with rear door lock
insertion direction.
3. Tighten door striker bolts to specification. Refer to DLK-281, "
Exploded View".
DOOR HINGE
DOOR HINGE : Removal and InstallationINFOID:0000000012430253
REMOVAL
CAUTION:
• Use two people when removing or installing front door due to its heavy weight
• When removing and installing front door assembly, support the door using a suitable tool.
• Use shops cloths to protect surrounding components from damage during removal and installation of front door assembly.
1. Remove rear door assembly. Refer to DLK-281, "
DOOR ASSEMBLY : Removal and Installation".
2. Remove center pillar lower finisher. Refer to INT-25, "
CENTER PILLAR LOWER FINISHER : Removal
and Installation".
PIIB2804J
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 974 of 3641

NISSAN NOTE 2016 Service Repair Manual REAR DOORDLK-285
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
3. Remove rear door hinge bolts and nuts (body side) and rear door hinge.
INSTALLATION

Page 975 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-286
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]

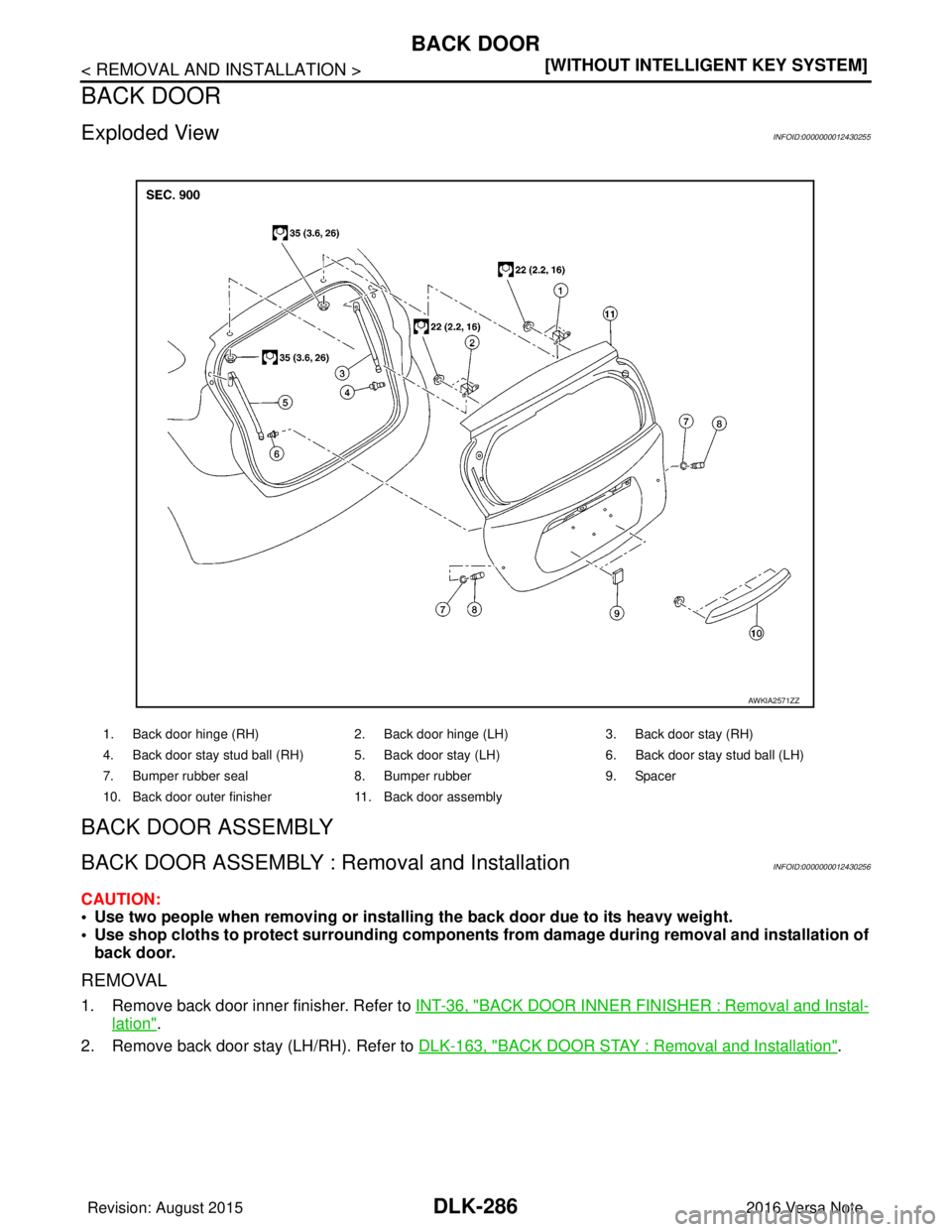

BACK DOOR
BACK DOOR
Exploded ViewINFOID:0000000012430255
BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY :
Removal and InstallationINFOID:00

Page 976 of 3641

NISSAN NOTE 2016 Service Repair Manual BACK DOORDLK-287
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
3. Remove back door harness grommet (1), then pull harness from the back door.
4. Disco
