NISSAN NOTE 2016 Service Repair Manual ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)BRC-41
< ECU DIAGNOSIS INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
C1120 When a malfunction is detec ted in front LH ABS IN valve.
The fo

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)BRC-41
< ECU DIAGNOSIS INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
C1120 When a malfunction is detec ted in front LH ABS IN valve.
The following functions are sus-
pended:
•VDC
•TCS
• ABS
• EBD
C1121 When a malfunction is detected in front LH ABS OUT valve.
C1122 When a malfunction is detected in front RH ABS IN valve.
C1123 When a malfunction is det
ected in front RH ABS OUT valve.
C1124 When a malfunction is detected in rear LH ABS IN valve.
C1125 When a malfunction is detected in rear LH ABS OUT valve.
C1126 When a malfunction is det ected in rear RH ABS IN valve.
C1127 When a malfunction is detected in rear RH ABS OUT valve.
C1130 When a malfunction is detected in ECM system. The following functions are sus-
pended:
•VDC
•TCS
C1140 When a malfunction is detected in actuator relay. The following functions are sus-
pended:
•VDC
•TCS
• ABS
• EBD
C1142 When a malfunction is detected in VDC pressure sensor.
The following functions are sus-
pended:
•VDC
•TCS
C1143 When a malfunction is detected in steering angle sensor.
C1144 When neutral position adjustment of steering angle sensor is not complete.
C1145
When a malfunction is detected in yaw rate signal, or signal line of yaw rate/side/
decel G sensor is open or shorted.
C1146 When a malfunction is detected in side G signal, or signal line of yaw rate/side/decel
G sensor is open or shorted.
C1153 When ABS actuator and electric
unit (control unit) is malfunctioning. (Pressure in-
crease is too much or too little.) The following functions are sus-
pended:
•VDC
•TCS
• ABS
C1154 Transmission
range switch signal or communica tion line between the ABS actuator
and electric unit (control unit) and TCM is open or shorted. The following functions are sus-
pended:
•VDC
•TCS
• ABS
C1155 When brake fluid level low signal is detected. The following functions are sus-
pended:
•VDC
•TCS
C1164 When a malfunction is detected in cut valve 1. The following functions are sus-
pended:
•VDC
•TCS
• ABS
• EBD
C1165 When a malfunction is detected in cut valve 2.
C1166 When a malfunction is detected in suction valve 1.
C1167 When a malfunction is detected in suction valve 2.
C1170 When the informatio
n in ABS actuator and electric unit (control unit) is not the same.The following functions are sus-
pended:
•VDC
•TCS
• ABS
DTC
Malfunction detected condition Fail-safe condition
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 490 of 3641

NISSAN NOTE 2016 Service Repair Manual BRC-42
< ECU DIAGNOSIS INFORMATION >[VDC/TCS/ABS]
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
DTC Inspection Priority Chart
INFOID:0000000012430845
When multiple DTCs are displayed simultaneously, c

Page 491 of 3641

NISSAN NOTE 2016 Service Repair Manual ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)BRC-43
< ECU DIAGNOSIS INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
DTC IndexINFOID:0000000012430846
DTC Items (CONSULT screen terms) Refe

Page 492 of 3641

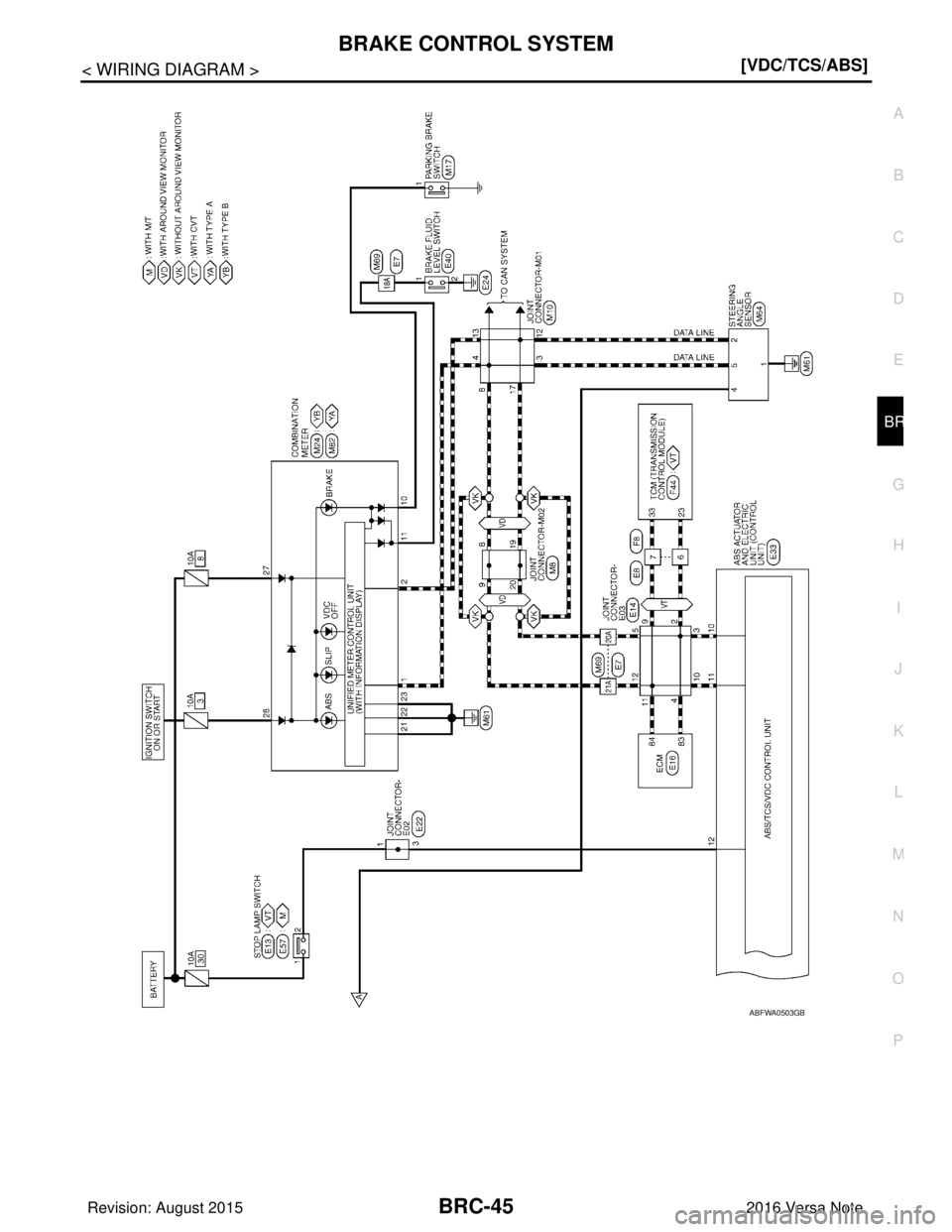

NISSAN NOTE 2016 Service Repair Manual BRC-44
< WIRING DIAGRAM >[VDC/TCS/ABS]
BRAKE CONTROL SYSTEM
WIRING DIAGRAM
BRAKE CONTROL SYSTEM
Wiring DiagramINFOID:0000000012430847
AAFWA0145GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 493 of 3641

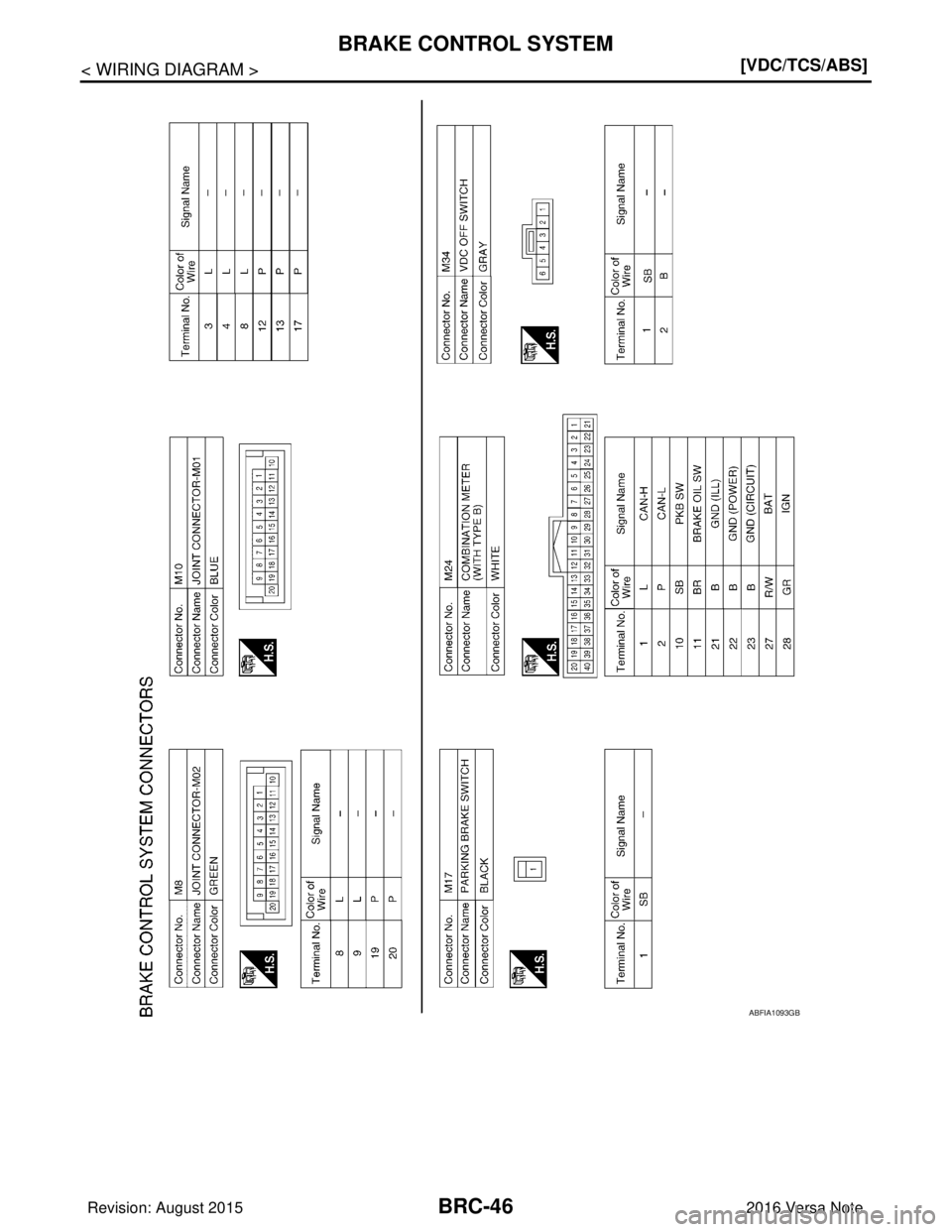

NISSAN NOTE 2016 Service Repair Manual BRAKE CONTROL SYSTEMBRC-45
< WIRING DIAGRAM > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ABFWA0503GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 494 of 3641

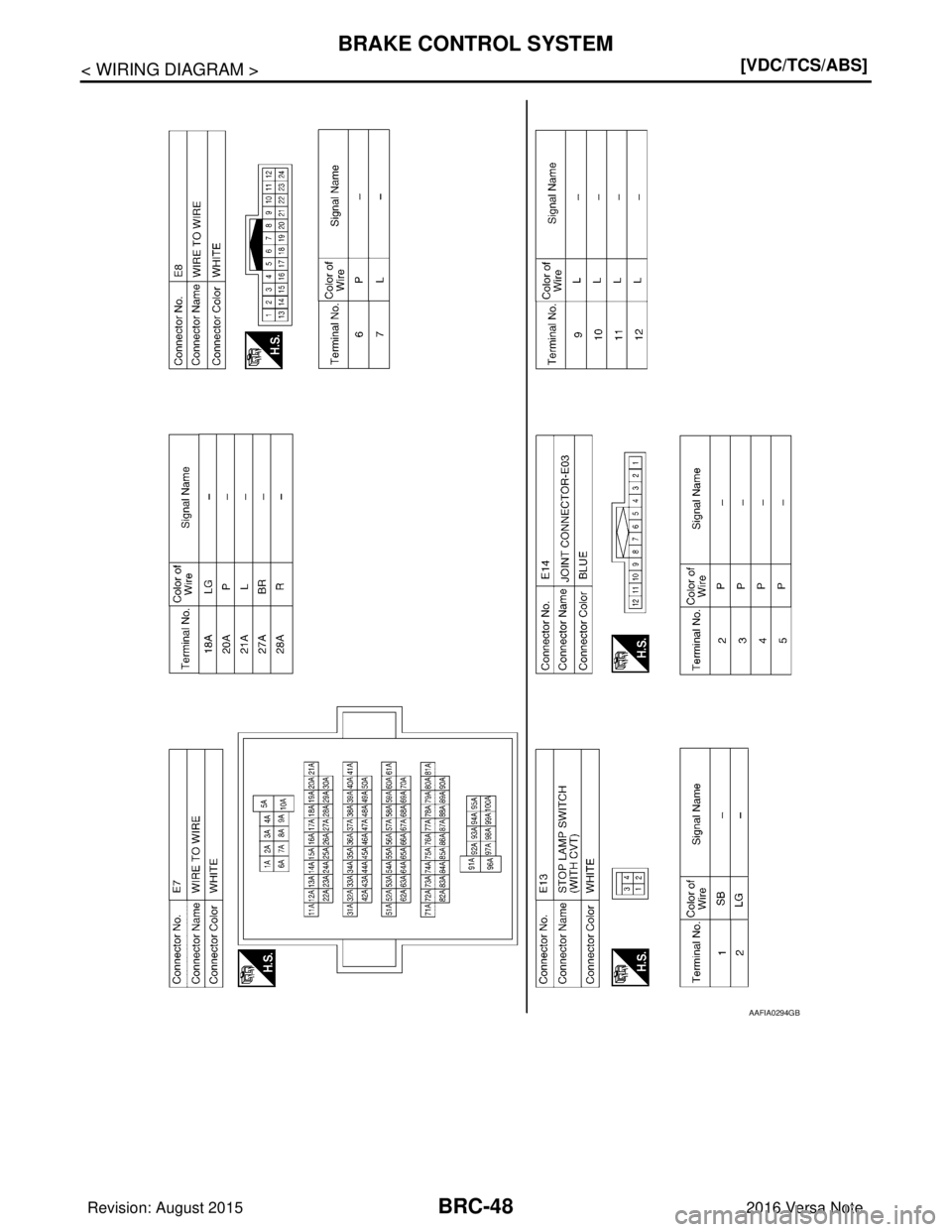

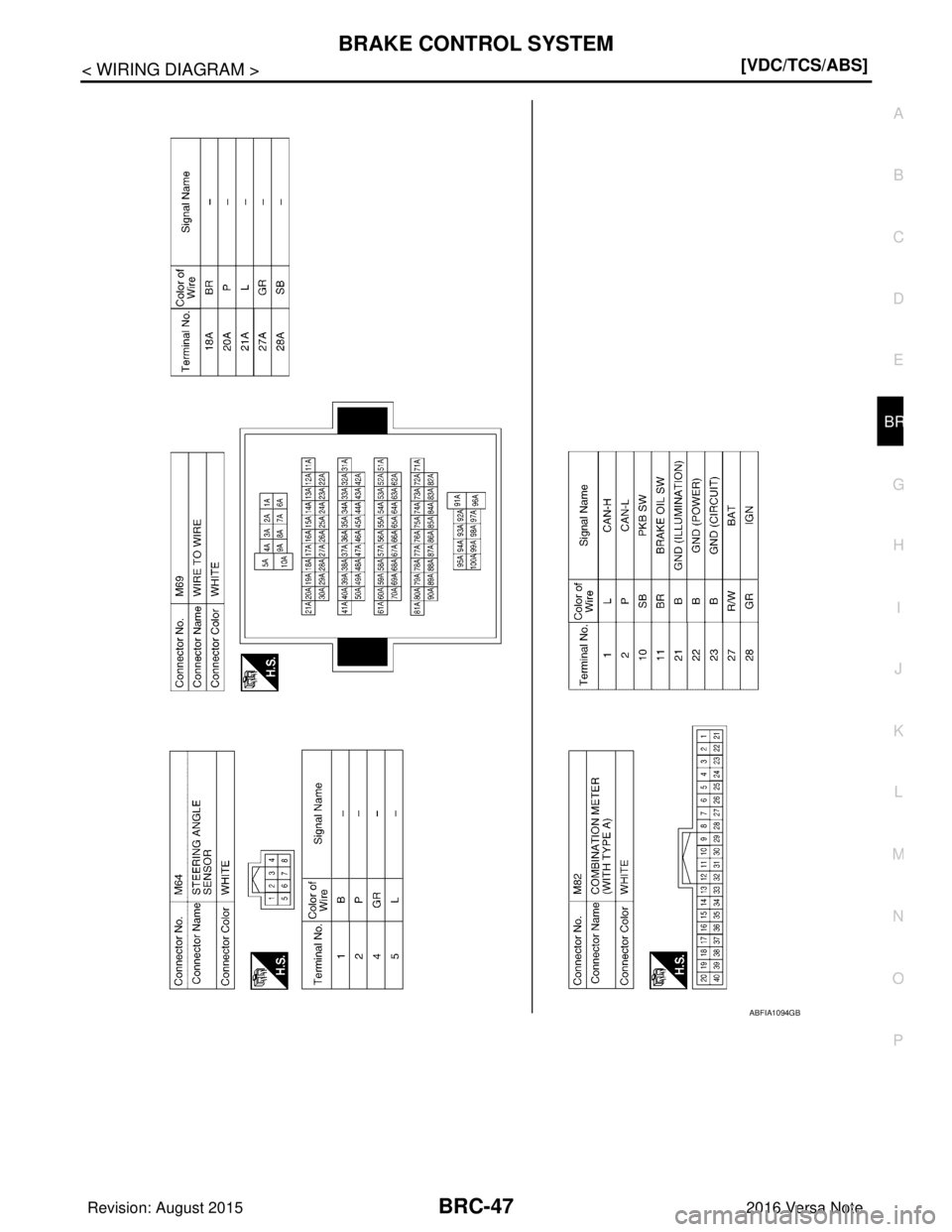

NISSAN NOTE 2016 Service Repair Manual BRC-46
