NISSAN NOTE 2016 Service Repair Manual DLK-200
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).
Hazard reminder can be changed using “HAZA

DLK-200
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).
Hazard reminder can be changed using “HAZARD LAMP SET” in “Work support”.
Horn reminder can be changed using “HORN CHIRP SET” in “Work support”.
Refer to
BCS-92, "
MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)".
Without CONSULT
Refer to Owner’s Manual for instructions.
AUTO DOOR LOCK OPERATION
When all doors are locked, ignition switch is OFF and key switch is OFF (mechanical key is removed from the
ignition cylinder), doors are unlocked with keyfob butt on. When BCM does not receive the following signals
within 1 minute, all doors are locked:
• Door switch is ON (door is opened).
• Door is locked.
• Ignition switch is ON.
• Key switch is ON (mechanical key is inserted in the ignition cylinder).
Auto door lock mode can be changed by “AUTO LOCK SET” in “Work support”. Refer to BCS-92, "
MULTI
REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)".
PANIC ALARM OPERATION
When key switch is OFF (mechanical key is removed from the ignition cylinder), BCM turns ON and OFF horn
and headlamp intermittently with input of PANIC ALARM signal from keyfob.
BCM outputs to headlamps and IPDM E/R for panic alar m signal (horn signal) via CAN communication lines.
The alarm automatically turns OFF after 25 seconds or when BCM receives any signal from keyfob.
Panic alarm operation mode can be changed using “PANIC ALARM SET” in “Work support”.
Refer to BCS-92, "
MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)".
INTERIOR LAMP TIMER OPERATION
When the following conditions occur, remote keyless entry system turns on interior lamp for 15 seconds with
input of UNLOCK signal from keyfob: For detailed description, refer to INL-7, "
INTERIOR ROOM LAMP CON-
TROL SYSTEM : System Description".
• Interior room lamp switch is in the DOOR position.
• Door switch OFF (when all the doors are closed).
Horn reminder setting ON OFF
Keyfob operation LockUnlock LockUnlock
Horns sound Once———
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 890 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS SYSTEM (BCM)DLK-201
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON

Page 891 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-202
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
DOOR LOCK
DOOR LOCK : CONSULT Func
tion (BCM - DOOR LOCK)INFOID:0000000012542560
DATA MONITOR
ACTIVE TEST
WORK SUP

DLK-202
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
DOOR LOCK
DOOR LOCK : CONSULT Func
tion (BCM - DOOR LOCK)INFOID:0000000012542560
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
* : Initial setting
MULTI REMOTE ENT
Monitor Item [Unit] Description
IGN ON SW [On/Off] Indicates condition of ignition switch ON position.
KEY ON SW [On/Off] Indicates condition of key switch.
CDL LOCK SW [On/Off] Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off] Indicates condition of unlock signal from door lock and unlock switch.
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
DOOR SW-RR [On/Off] Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off] Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off] Indicates condition of back door switch.
ACC ON SW [On/Off] Indicates condition of ignition switch ACC position.
KEYLESS LOCK [On/Off] Indicates condition of lock signal from keyfob.
KEYLESS UNLOCK [On/Off] Indicates condition of unlock signal from keyfob.
KEY CYL LK-SW [On/Off] Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off] Indicates condition of unlock signal from door key cylinder switch.
VEHICLE SPEED [km/h/mph] Indicates vehicl e speed signal received from combination meter on CAN communication line.
Test Item Description
DOOR LOCK This test is able to check door lock operation [OTR ULK/DR UNLK/ALL UNLK/ALL LCK].
Support ItemSetting Description
DOOR LOCK-UNLOCK SET ON*
Automatic door locks function ON.
OFF Automoatic door locks function OFF.
AUTOMATIC DOOR LOCK SELECT P RANGE Doors lock automatically when shifted out of Park (P).
VH SPD* Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).
AUTOMATIC DOOR UNLOCK
SELECT MODE6* Drivers door unlocks automatically when key is removed.
MODE5 Drivers door unlocks automatically when shifted into Park (P).
MODE4 Drivers door unlocks automatically when ignition is switched from ON to OFF.
MODE3 Doors unlock automatically when key is removed.
MODE2 Doors unlock automatically when shifted into Park (P).
MODE1 Doors unlock automatically when ignition is switched from ON to OFF.
AUTOMATIC LOCK/UNLOCK
SELECT Lock/Unlock* Automatic door locks function operates in lock and unlock.
Lock Only Automatic door locks function operates in lock only.
Unlock Only Automatic door locks function operates in unlock only.
Off
Automatic door locks function OFF.
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 892 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS SYSTEM (BCM)DLK-203
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
MULTI REMOTE ENT : CONSULT Func tion (BCM - MULTI REMOTE ENT)
INFOID:00000000125

Page 893 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-204
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
*: Initial settingAUTO LOCK SET
MODE7 5 min
Auto locking function can be changed in this mode.
MODE6 4 min
MODE5 3

Page 894 of 3641

NISSAN NOTE 2016 Service Repair Manual BCM, IPDM E/RDLK-205
< ECU DIAGNOSIS INFORMATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
ECU DIAGNOSIS INFORMATION
BCM, IPDM E/R
List of ECU ReferenceINFOID:00000000124301

Page 895 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-206
< WIRING DIAGRAM >[WITHOUT INTELLIGENT KEY SYSTEM]
POWER DOOR LOCK SYSTEM

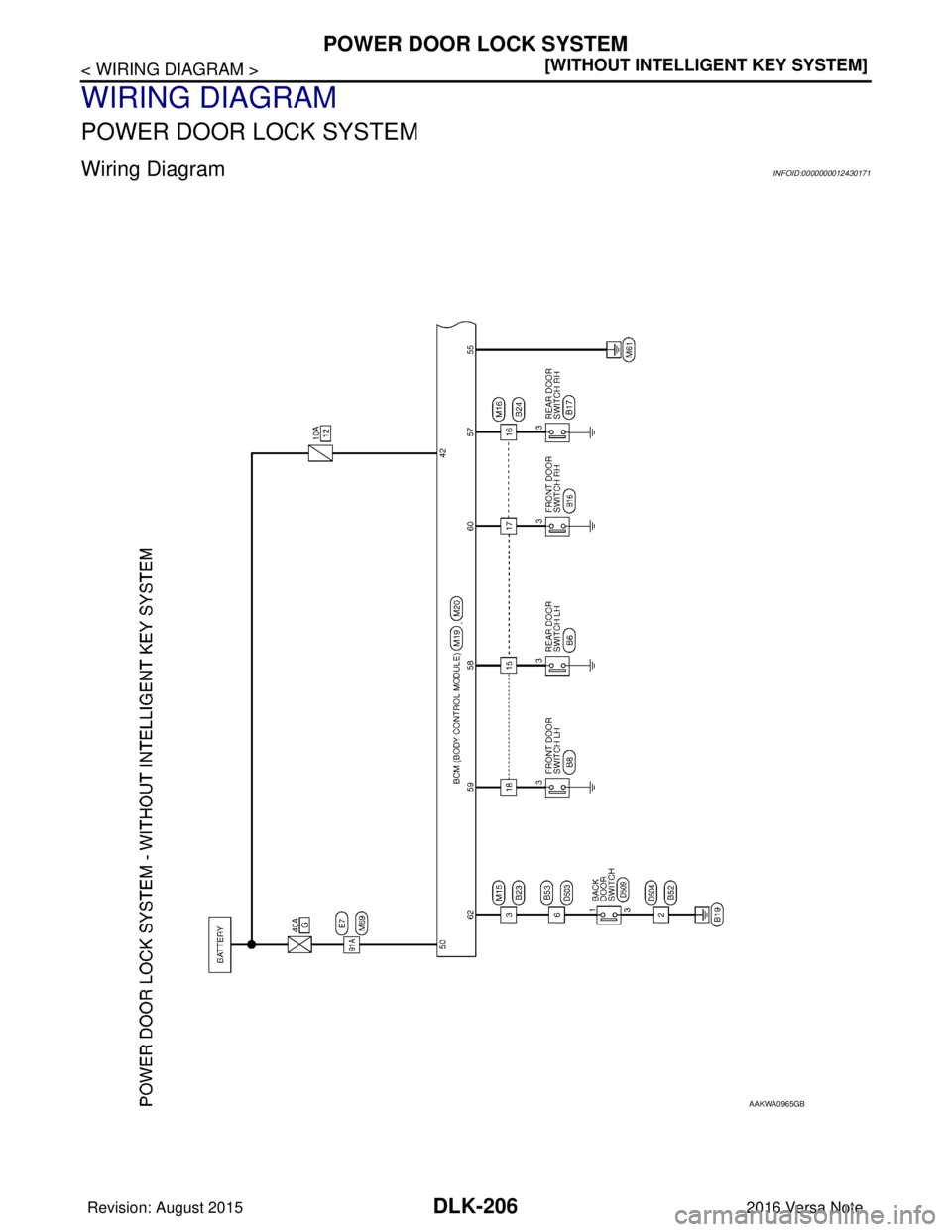

WIRING DIAGRAM
POWER DOOR LOCK SYSTEM
Wiring DiagramINFOID:0000000012430171
AAKWA0965GB
Revision: August 2015
2016 Ver

Page 896 of 3641

NISSAN NOTE 2016 Service Repair Manual POWER DOOR LOCK SYSTEMDLK-207
< WIRING DIAGRAM > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

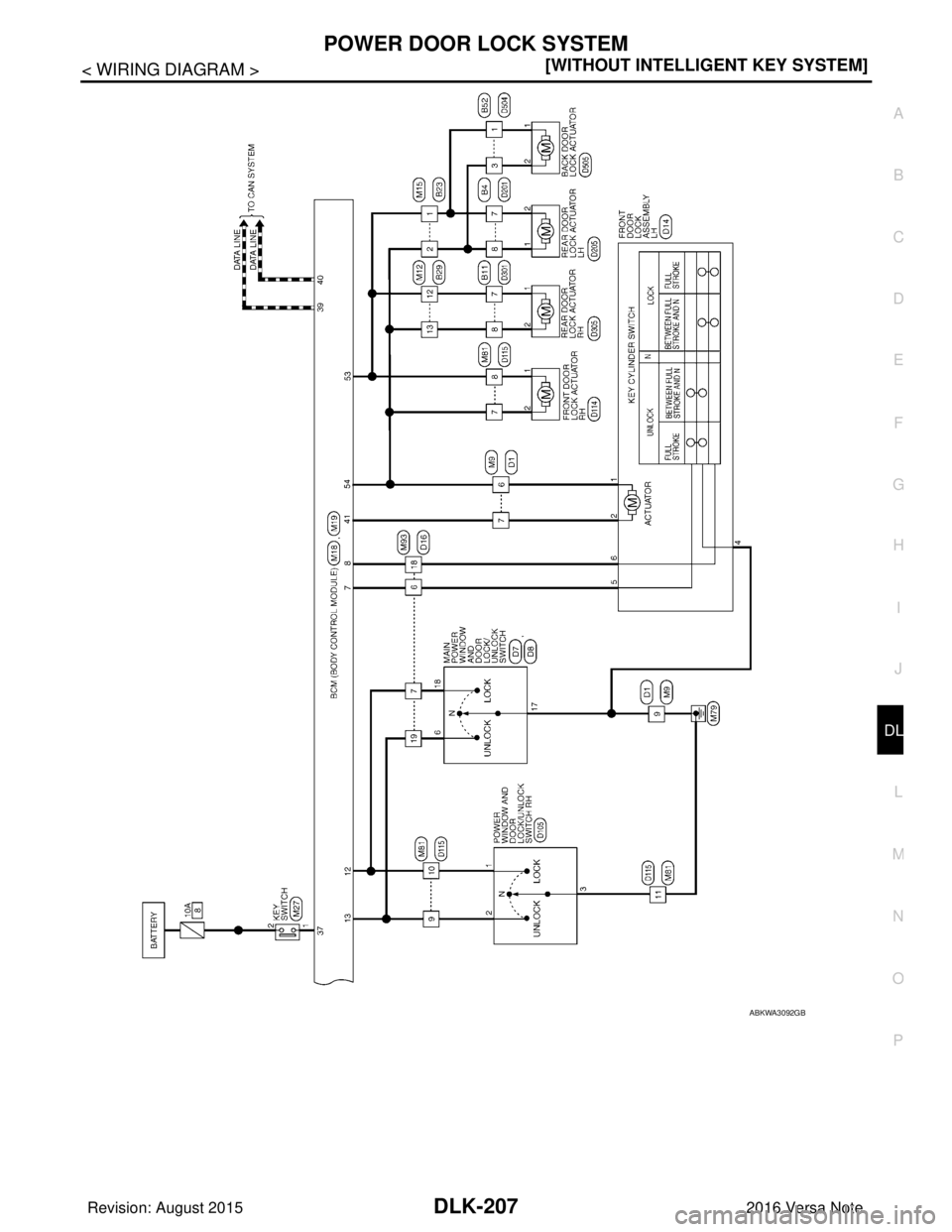

ABKWA3092GB
Revision: August 2015 2016 Versa Note
