NISSAN NOTE 2016 Service Repair Manual EC-362
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P1078 EVT CONTROL POSITION SENSOR
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or

EC-362
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P1078 EVT CONTROL POSITION SENSOR
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK EXHAUST VALVE TIMING
CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connectors.
3. Check the continuity between exhaust valve timing control position sensor harness connector and ECM
harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK EXHAUST VALVE TIMING CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Check the continuity between exhaust valve timing control position sensor harness connector and ECM harness connector.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK EXHAUST VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-363, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Replace exhaust valve timing control position sensor. Refer to EM-48, "
Exploded View".
6.CHECK CAMSHAFT (EXT)
Check the following.
• Accumulation of debris to the signal plate of camshaft rear end
• Chipping signal plate of camshaft rear end
Is the inspection result normal?
YES >> GO TO 7.
NO >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft. Refer to EM-60, "
Removal
and Installation".
7.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
Exhaust valve timing control
position sensor ECM
Continuity
Connector Terminal Connector Terminal
F56 2F11 63 Existed
Exhaust valve timing control
position sensor ECM
Continuity
Connector Terminal Connector Terminal
F56 3F11 48 Existed
JSBIA0600ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1490 of 3641

NISSAN NOTE 2016 Service Repair Manual P1078 EVT CONTROL POSITION SENSOREC-363
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>> INSPECTION END
Component InspectionINFOID:0000000012431562
1.EXHAUST VALVE TIMING (EVT)
C

Page 1491 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-364
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P1148 CLOSED LOOP CONTROL
P1148 CLOSED LOOP CONTROL
DTC LogicINFOID:0000000012431563
DTC DETECTION LOGIC
NOTE:
DTC P1148 is displayed with DTC for A/F sensor 1

Page 1492 of 3641

NISSAN NOTE 2016 Service Repair Manual P1212 TCS COMMUNICATION LINEEC-365
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P1212 TCS COMMUNICATION LINE
DescriptionINFOID:0000000012431567
This CAN communication line is use

P1212 TCS COMMUNICATION LINEEC-365
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P1212 TCS COMMUNICATION LINE
DescriptionINFOID:0000000012431567
This CAN communication line is used to control the
smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.
Be sure to erase the malf unction information such as DTC not onl y for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
DTC LogicINFOID:0000000012431568
DTC DETECTION LOGIC
NOTE:
• If DTC P1212 is displayed with DTC U1001, first pe rform the trouble diagnosis for DTC U1001. Refer
to EC-164, "
DTC Logic".
• If DTC P1212 is displayed with DT C P0607, first perform the trouble diagnosis for DTC P0607. Refer
to EC-353, "
DTC Logic".
Freeze frame data is not stored in the ECM for this self-diagnosis.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for at least 10 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Proceed to EC-365, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000012431569
Perform the trouble diagnosis for TCS. Refer to BRC-52, "Work Flow".
NOTE:
If DTC P1212 is displayed with DTC UXXXX and/or P0607, perform the following trouble diagnosis.
• Trouble diagnosis for DTC UXXXX Refer to EC-87, "
DTCIndex".
• Trouble diagnosis for DTC P0607 Refer to EC-353, "
DTC Logic".
DTC No.CONSULT screen terms
(Trouble diagnosis content) DTC detecting condition
Possible cause
P1212 TCS/CIRC
(TCS communication line) ECM can not receive the information from
“ABS actuator and electric unit (control
unit)” continuously. • Harness or connectors
(CAN communication line is open or shorted.)
• ABS actuator and electric unit (control unit)
• Dead (Weak) battery
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1493 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-366
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P1217 ENGINE OVER TEMPERATURE
P1217 ENGINE OVER TEMPERATURE
DTC LogicINFOID:0000000012431570
DTC DETECTION LOGIC
NOTE:
•
If DTC P1217 is displayed with DTC

EC-366
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P1217 ENGINE OVER TEMPERATURE
P1217 ENGINE OVER TEMPERATURE
DTC LogicINFOID:0000000012431570
DTC DETECTION LOGIC
NOTE:
•
If DTC P1217 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
• If DTC P1217 is displayed with DTC P0607, first perform the trouble diagno sis for DTC P0607. Refer
to EC-353, "
DTC Logic".
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnorma lly high temperature condition, a malfunction is
indicated.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-9, "
Refilling". Also,
replace the engine oil. Refer to LU-8, "
Refilling".
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio. Refer to MA-12, "
Anti-Freeze Coolant Mixture Ratio".
2. After refilling coolant, run engine to en sure that no water-flow noise is emitted.
DTC CONFIRMATION PROCEDURE
1.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-366, "
Component Function Check".
NOTE:
Use component function check to check the overall function of the cooling fan. During this check, a DTC might
not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-367, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000012431571
1.PERFORM COMPONENT FUNCTION CHECK-I
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
DTC No. Trouble diagnosis content DTC detecting conditionPossible cause
P1217 Engine over temperature
(Overheat) • Cooling fan does not operate properly
(Overheat).
• Cooling fan system does not operate properly (Overheat).
• Engine coolant was not added to the
system using the proper filling method.
• Engine coolant is not within the specified range. • Harness or connectors
(The cooling fan circuit is open or shorted.)
• IPDM E/R (Cooling fan low relay, high relay)
• Cooling fan relay
• Cooling fan motor
•Radiator hose
•Radiator
•Radiator cap
• Reservoir tank
• Water pump
•Thermostat
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1494 of 3641

NISSAN NOTE 2016 Service Repair Manual P1217 ENGINE OVER TEMPERATUREEC-367
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check the coolant level in the reservoir tank and radiator.
Allow engine to cool befo
re checking

P1217 ENGINE OVER TEMPERATUREEC-367
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check the coolant level in the reservoir tank and radiator.
Allow engine to cool befo
re checking coolant level.
Is the coolant level in the reservoir tank and/or radiator below the
proper range?
YES >> Go to EC-367, "Diagnosis Procedure".
NO >> GO TO 2
2.PERFORM COMPONENT FUNCTION CHECK-II
Confirm whether customer filled the coolant or not.
Did customer fill the coolant?
YES >> Go to EC-367, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM COMPONENT FUNCTION CHECK-III
With CONSULT
1. Turn ignition switch ON.
2. Perform “COOLING FAN” in “ACTIVE TEST” m ode with CONSULT and touch “LOW” on the CONSULT
screen.
3. Make sure that cooling fan operates at low speed.
Without CONSULT
1. Start engine and let it idle.
2. Turn air conditioner switch and blower fan switch ON.
3. Make sure that cooling fan operates at low speed.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Go to EC-367, "
Diagnosis Procedure".
4.PERFORM COMPONENT FUNCTION CHECK-IV
With CONSULT
1. Touch “HI” on the CONSULT screen.
2. Make sure that cooling fan operates at higher speed than low speed.
Without CONSULT
1. Turn ignition switch OFF.
2. Turn air conditioner switch and blower fan switch OFF.
3. Disconnect engine coolant temperature sensor harness connector.
4. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
5. Restart engine and make sure that cooling fan operates at higher speed than low speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-367, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431572
1.CHECK COOLING FAN OPERATION
With CONSULT
1. Turn ignition switch ON.
2. Perform “COOLING FAN” in “A CTIVE TEST” mode with CONSULT.
3. Make sure that cooling fan motor operate at each speed (LOW/HI).
Without CONSULT
1. Perform IPDM E/R auto active test and check cooling fan motor operation. Refer to PCS-9, "
Diagnosis
Description".
2. Make sure that cooling fan motor operate at each speed (Low/High).
SEF621W
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1495 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-368
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
P1217 ENGINE OVER TEMPERATURE
Is the inspection result normal?
YES >> GO TO 2.
NO >> Go to EC-441, "
Diagnosis Procedure".
2.CHECK COOLING SYSTEM FOR LEAK-I
Ch

Page 1496 of 3641

NISSAN NOTE 2016 Service Repair Manual P1225 TP SENSOREC-369
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

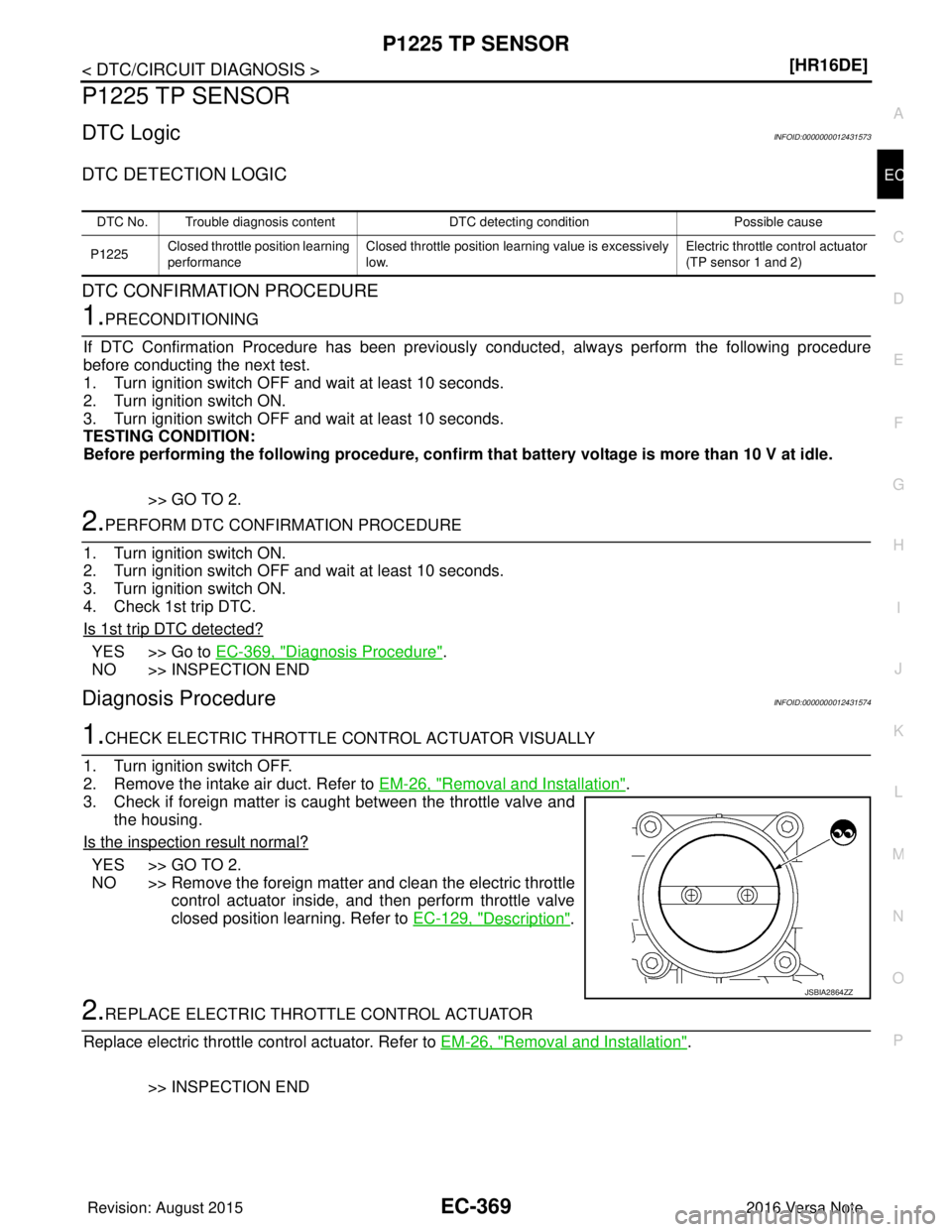

P1225 TP SENSOR
DTC LogicINFOID:0000000012431573
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONI
