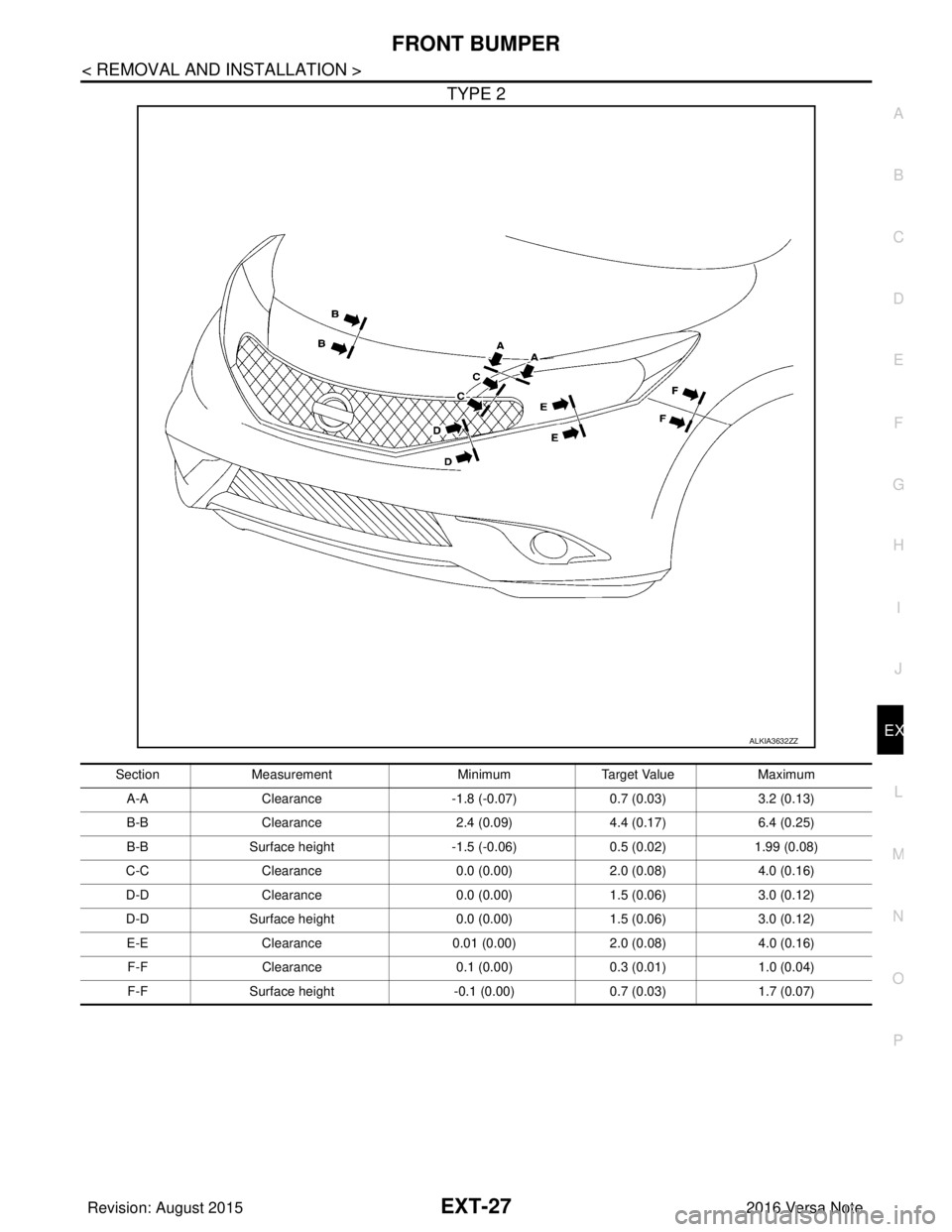

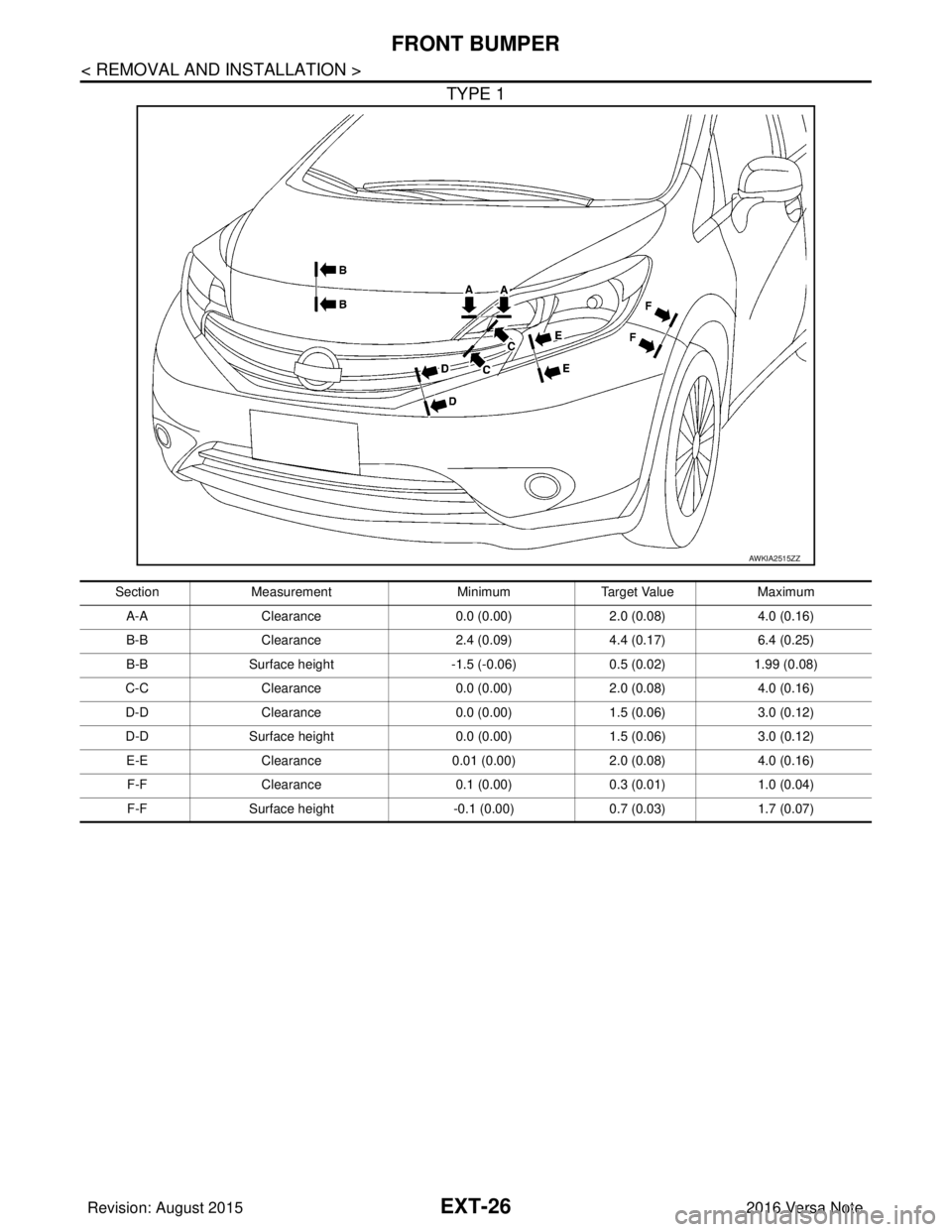

NISSAN NOTE 2016 Service Repair Manual EXT-26 < REMOVAL AND INSTALLATION > FRONT BUMPER TYPE 1 AWKIA2515ZZ SectionMeasurement MinimumTarget Value Maximum A-A Clearance 0.0 (0.00)2.0 (0.08)4.0 (0.16) B-B Clearance 2.4 (0.09)4.4 (0.17)6.4 (0

Page 1794 of 3641

NISSAN NOTE 2016 Service Repair Manual FRONT BUMPEREXT-27 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P TYPE 2 ALKIA3632ZZ Section Measurement MinimumTarget Value Maximum A-A Clearance -1.8 (-0.07)0.7 (0.03)3.2 (0.13) B-B C

Page 1795 of 3641

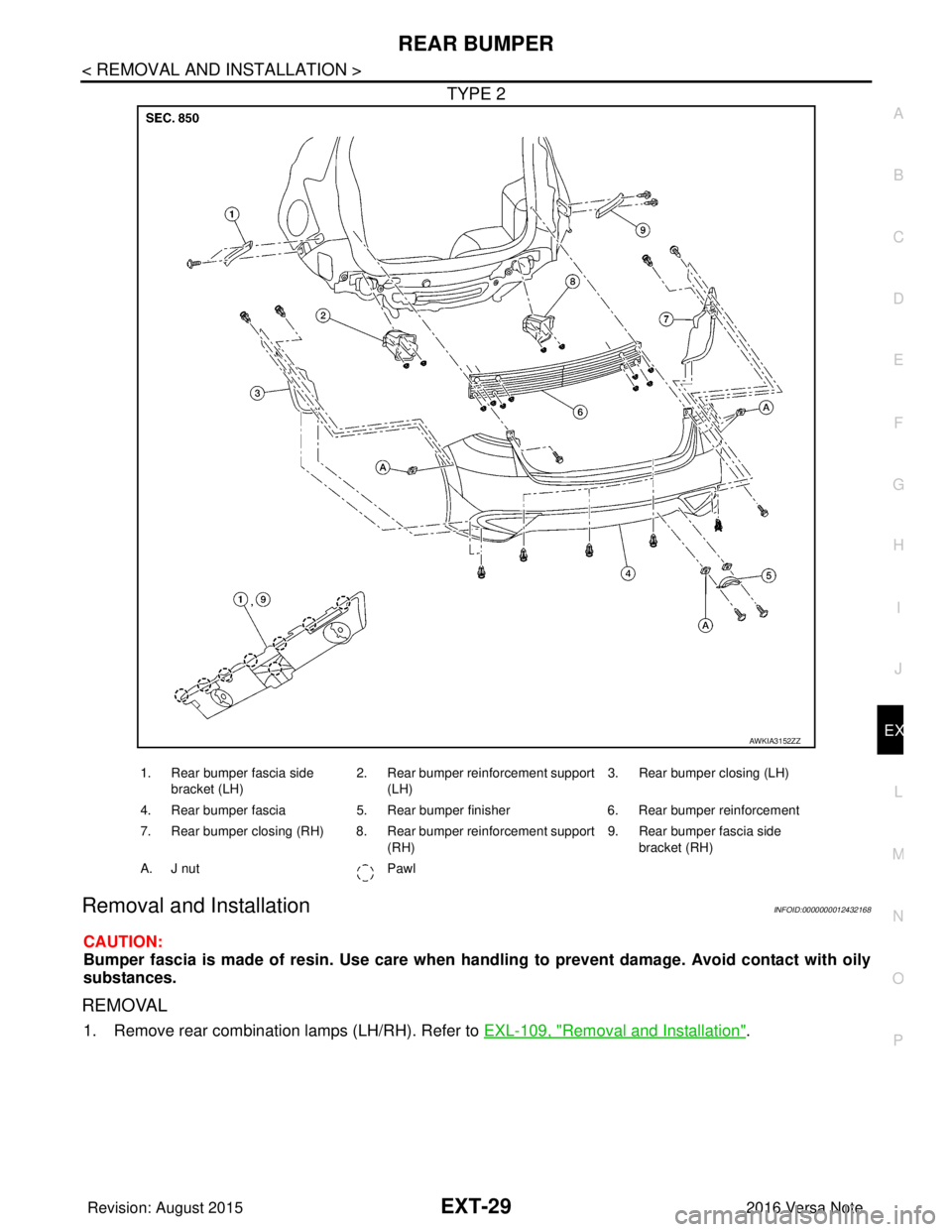

NISSAN NOTE 2016 Service Repair Manual EXT-28 < REMOVAL AND INSTALLATION > REAR BUMPER REAR BUMPER Exploded ViewINFOID:0000000012432167 TYPE 1 AWKIA2520ZZ 1. Rear bumper fascia side bracket (LH) 2. Rear bumper reinforcement support (LH) 3

Page 1796 of 3641

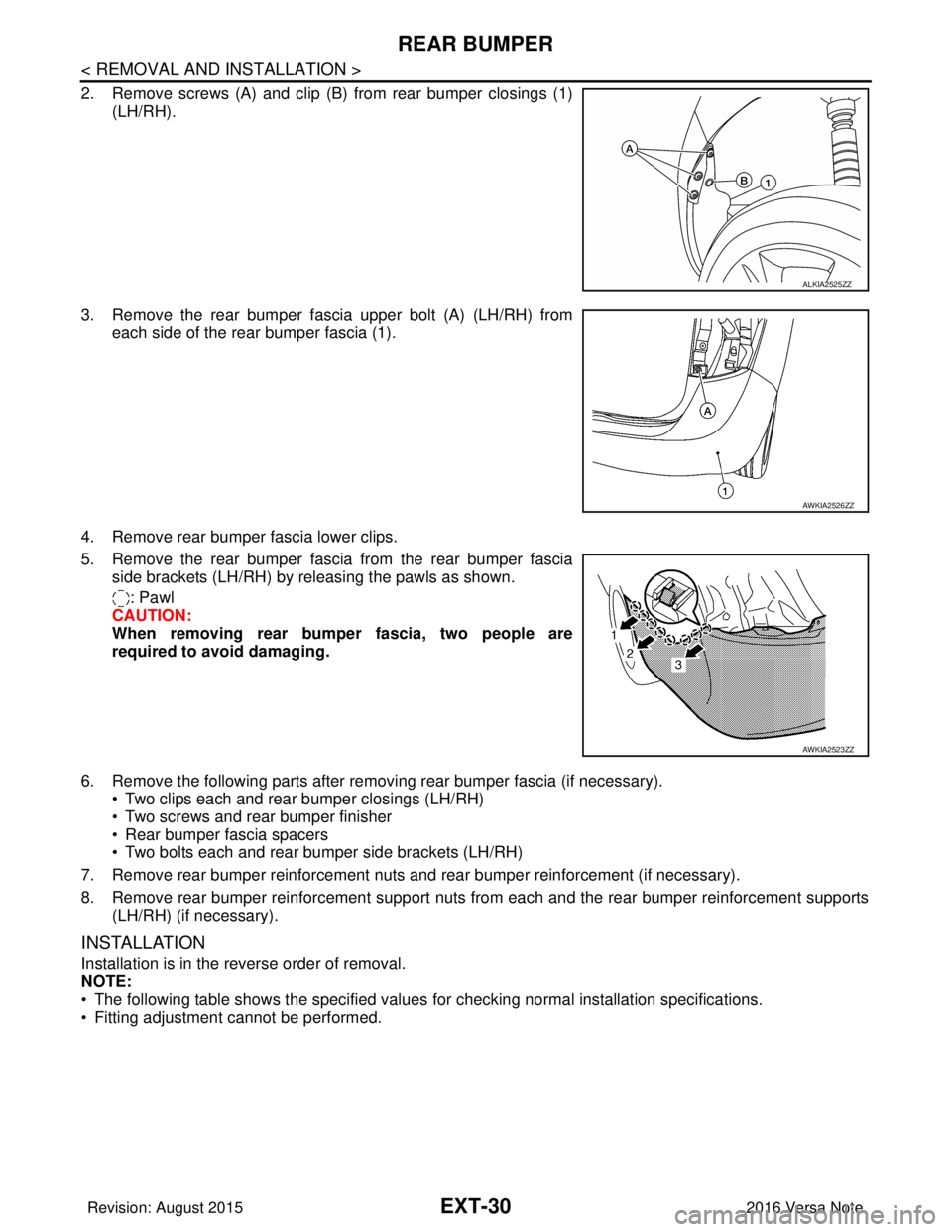

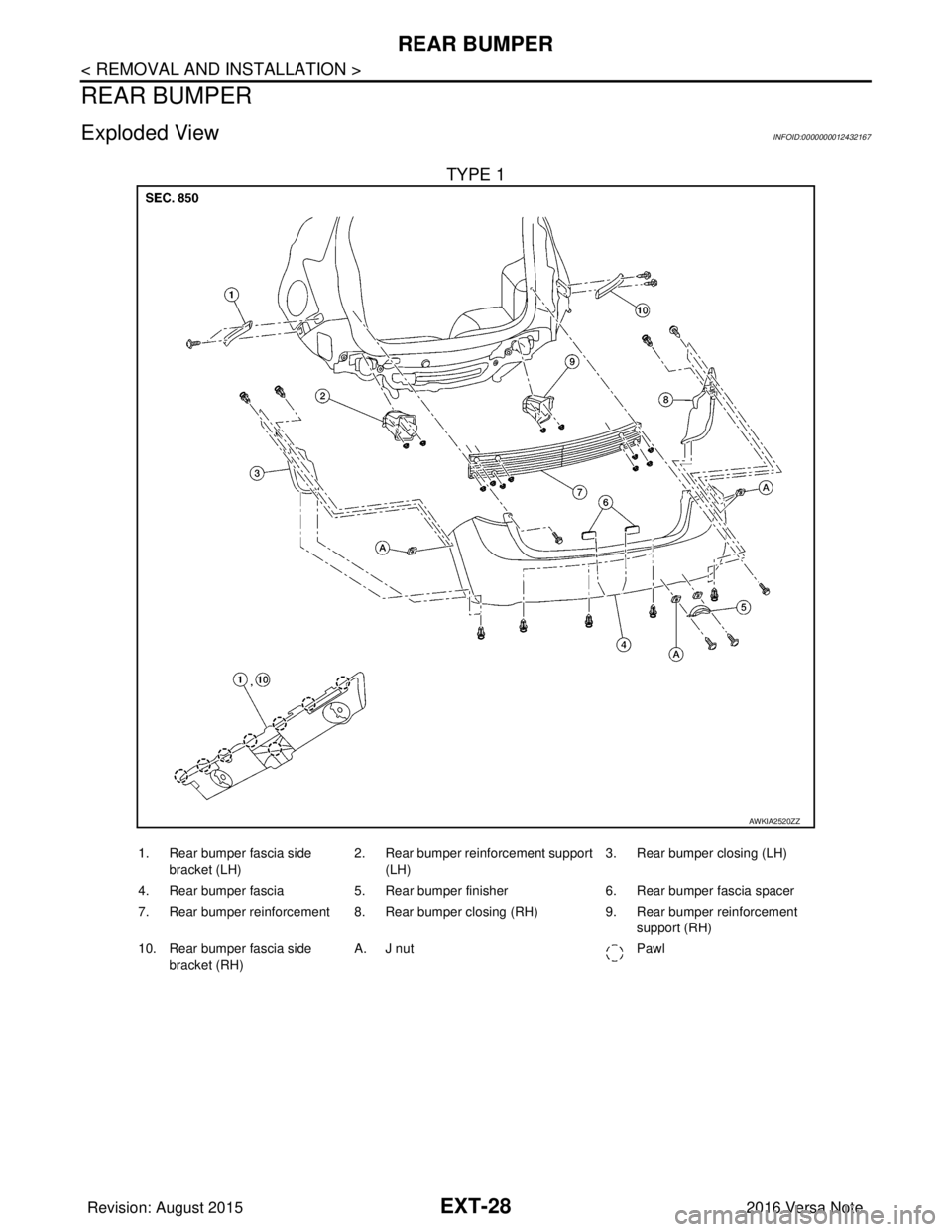

NISSAN NOTE 2016 Service Repair Manual REAR BUMPEREXT-29 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P TYPE 2 Removal and InstallationINFOID:0000000012432168 CAUTION: Bumper fascia is made of resin. Use care when handling t

Page 1797 of 3641

NISSAN NOTE 2016 Service Repair Manual EXT-30 < REMOVAL AND INSTALLATION > REAR BUMPER 2. Remove screws (A) and clip (B) from rear bumper closings (1)(LH/RH). 3. Remove the rear bumper fascia upper bolt (A) (LH/RH) from each side of the re

Page 1798 of 3641

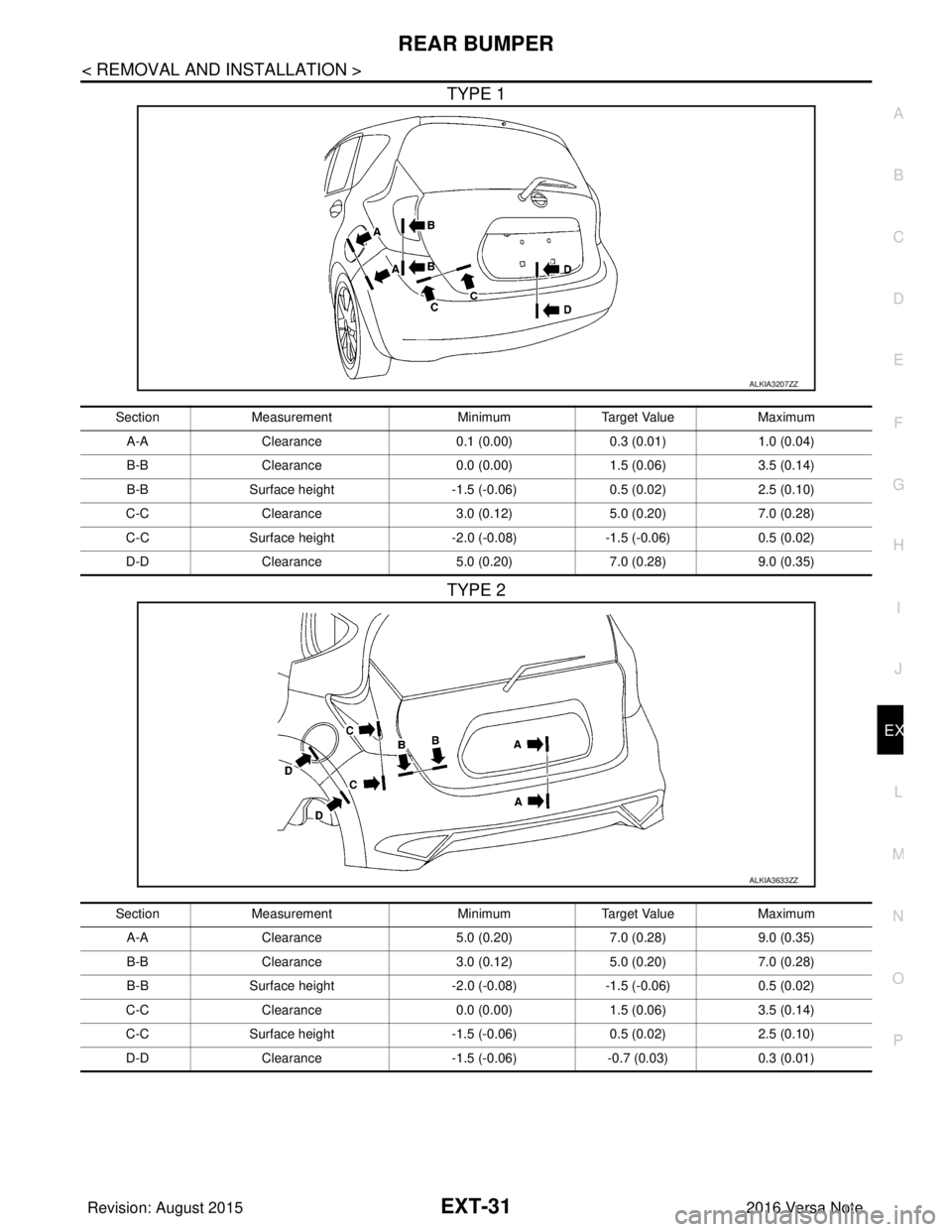

NISSAN NOTE 2016 Service Repair Manual REAR BUMPEREXT-31 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P TYPE 1 TYPE 2 ALKIA3207ZZ Section Measurement MinimumTarget Value Maximum A-A Clearance 0.1 (0.00)0.3 (0.01)1.0 (0.04) B

Page 1799 of 3641

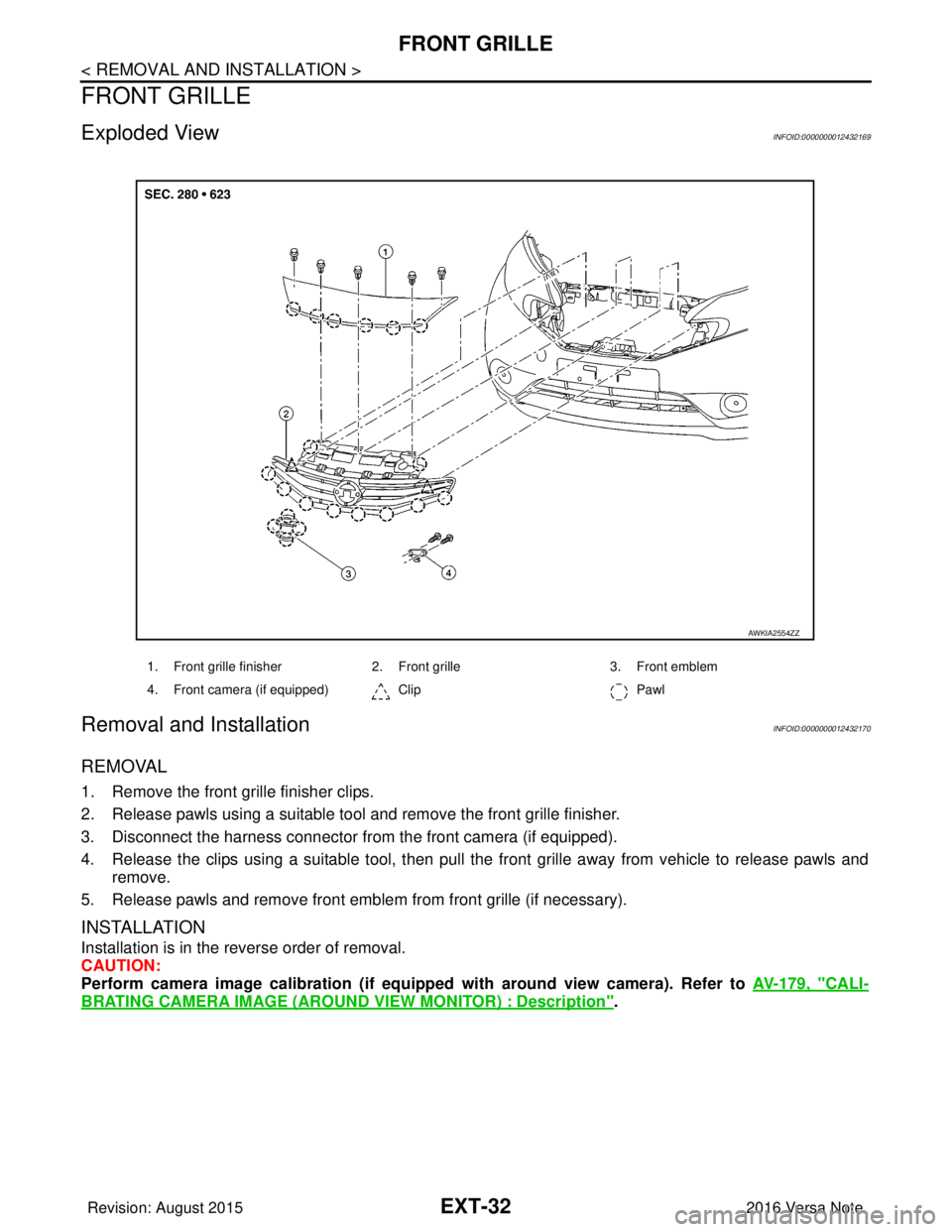

NISSAN NOTE 2016 Service Repair Manual EXT-32 < REMOVAL AND INSTALLATION > FRONT GRILLE FRONT GRILLE Exploded ViewINFOID:0000000012432169 Removal and InstallationINFOID:0000000012432170 REMOVAL 1. Remove the front grille finisher clips. 2.

Page 1800 of 3641

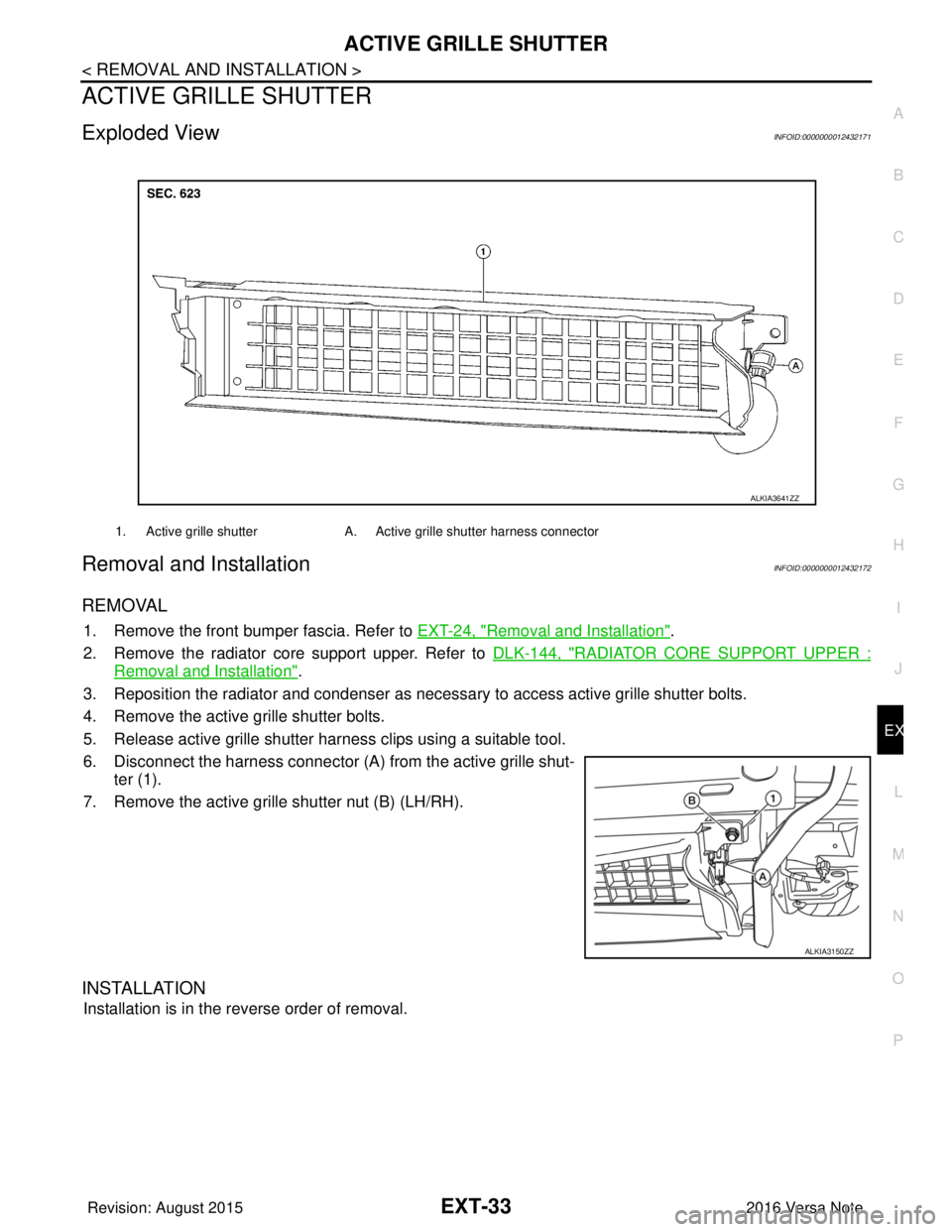

NISSAN NOTE 2016 Service Repair Manual ACTIVE GRILLE SHUTTEREXT-33 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B EXT N O P ACTIVE GRILLE SHUTTER Exploded ViewINFOID:0000000012432171 Removal and InstallationINFOID:0000000012432172 REM
