REMOVAL AND INSTALLATION
COMBINATION METER
Removal and InstallationINFOID:0000000012432663
REMOVAL
1. Disconnect negative battery terminal. Refer to PG-72, "Removal and Installation".
2. Remove cluster lid A. Refer to IP-21, "
Removal and Installation".
3. Remove combination meter screws (A).
4. Pull the combination meter straight out to release clips. NOTE:
Back side of the combination meter shown for clip position ( )
clarity.
5. Disconnect the harness connector from the combination meter.
INSTALLATION
Installation is in the reverse order of removal.
AWNIA3588ZZ
JSNIA3895ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2474 of 3641
MWI-116
< REMOVAL AND INSTALLATION >[TYPE B]
AMBIENT SENSOR
AMBIENT SENSOR
Removal and InstallationINFOID:0000000012432664
REMOVAL
1. Remove the core support cover clips, then remove the core support cover.
2. Disconnect the harness connector from the ambient sensor.
3. Release the ambient sensor clip
, then remove the ambient sensor.
INSTALLATION
Installation is in the reverse order of removal.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2475 of 3641

MIR-1
DRIVER CONTROLS
C
DE
F
G H
I
J
K
M
SECTION MIR
A
B
MIR
N
O P
CONTENTS
MIRRORS
PRECAUTION ....... ........................................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution for Work ..................................................2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tools .......................................... ......3
Commercial Service Tools .......................................3
WIRING DIAGRAM .......................................4
DOOR MIRROR SYSTEM .............................. .....4
OUTSIDE MIRROR ................................................ ......4
OUTSIDE MIRROR : Wiring Diagram .......................4
DTC/CIRCUIT DIAGNOSIS ..........................7
DOOR MIRROR SYSTEM .............................. .....7
Component Inspection ........................................ ......7
SYMPTOM DIAGNOSIS ...............................8
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ...............................................................
8
Work Flow ............................................................ .....8
Generic Squeak and Rattle Troubleshooting ............9
Diagnostic Worksheet ..............................................12
REMOVAL AND INSTALLATION ...............14
INSIDE MIRROR ...............................................14
Exploded View ..................................................... ....14
Removal and Installation .........................................14
DOOR MIRROR ................................................15
Exploded View .........................................................15
Removal and Installation .........................................15
DOOR MIRROR GLASS ...................................17
Removal and Installation .........................................17
DOOR MIRROR REAR FINISHER ...................18
Removal and Installation .........................................18
DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................
19
Removal and Installation .........................................19
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2476 of 3641

MIR-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012432080
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000012432081
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2477 of 3641
PREPARATIONMIR-3
< PREPARATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000012432082
The actual shape of the tools may di ffer from those illustrated here.
Commercial Service ToolsINFOID:0000000012432083
Tool number
(TechMate No.)
Tool name Description
—
(J-39570)
Chassis Ear Locating the noise
—
(J-50397)
NISSAN Squeak and Rattle
Kit Repairing the cause of noise
—
(J-46534)
Trim Tool Set Removing trim components
SIIA0993E
ALJIA1232ZZ
AWJIA0483ZZ
(TechMate No.)
Tool name
Description
(J-39565)
Engine Ear Locating the noise
SIIA0995E
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2478 of 3641
MIR-4
< WIRING DIAGRAM >
DOOR MIRROR SYSTEM
WIRING DIAGRAM
DOOR MIRROR SYSTEM
OUTSIDE MIRROR

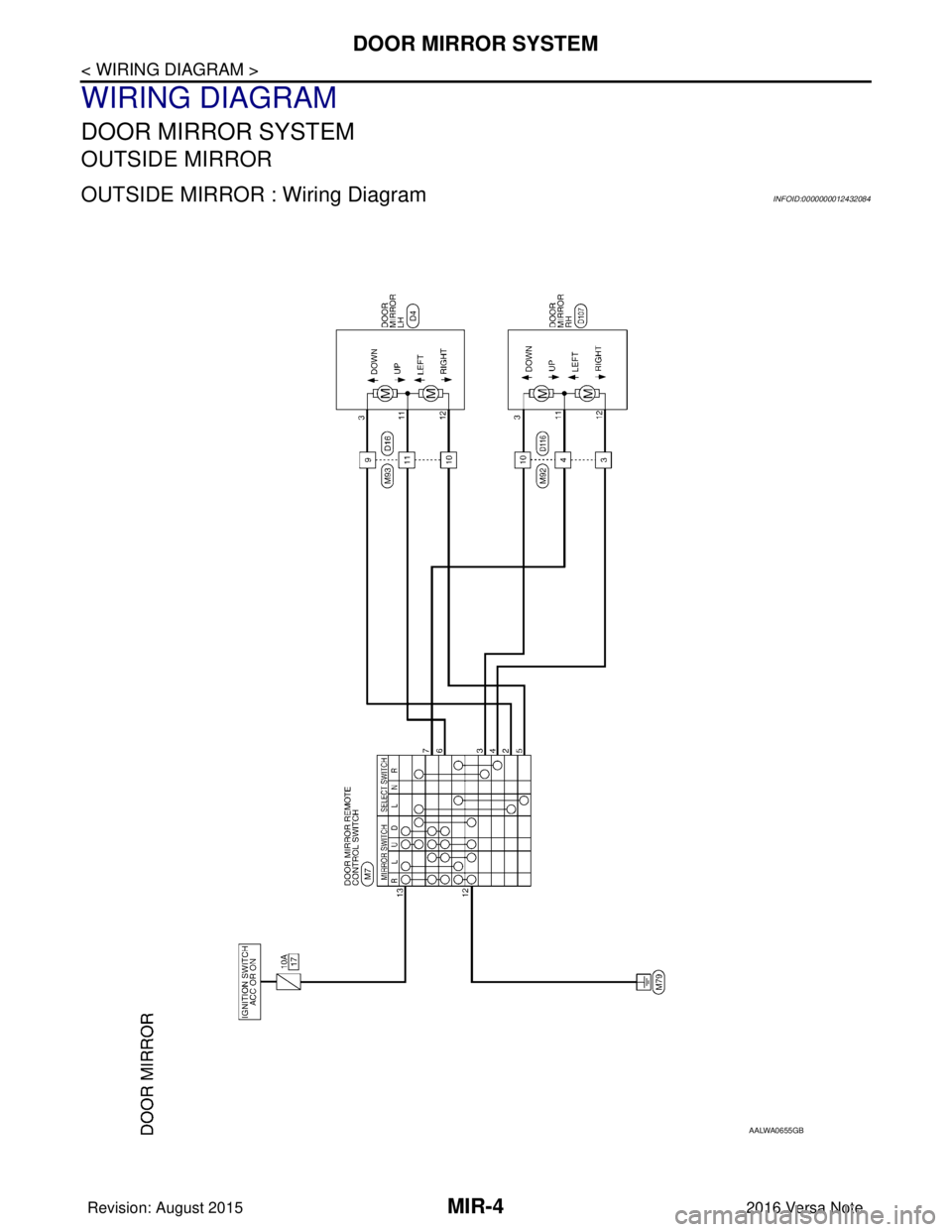

OUTSIDE MIRROR : Wiring DiagramINFOID:0000000012432084
AALWA0655GB
Revision: August 20152016 Versa Note
cardiagn.com
Page 2479 of 3641

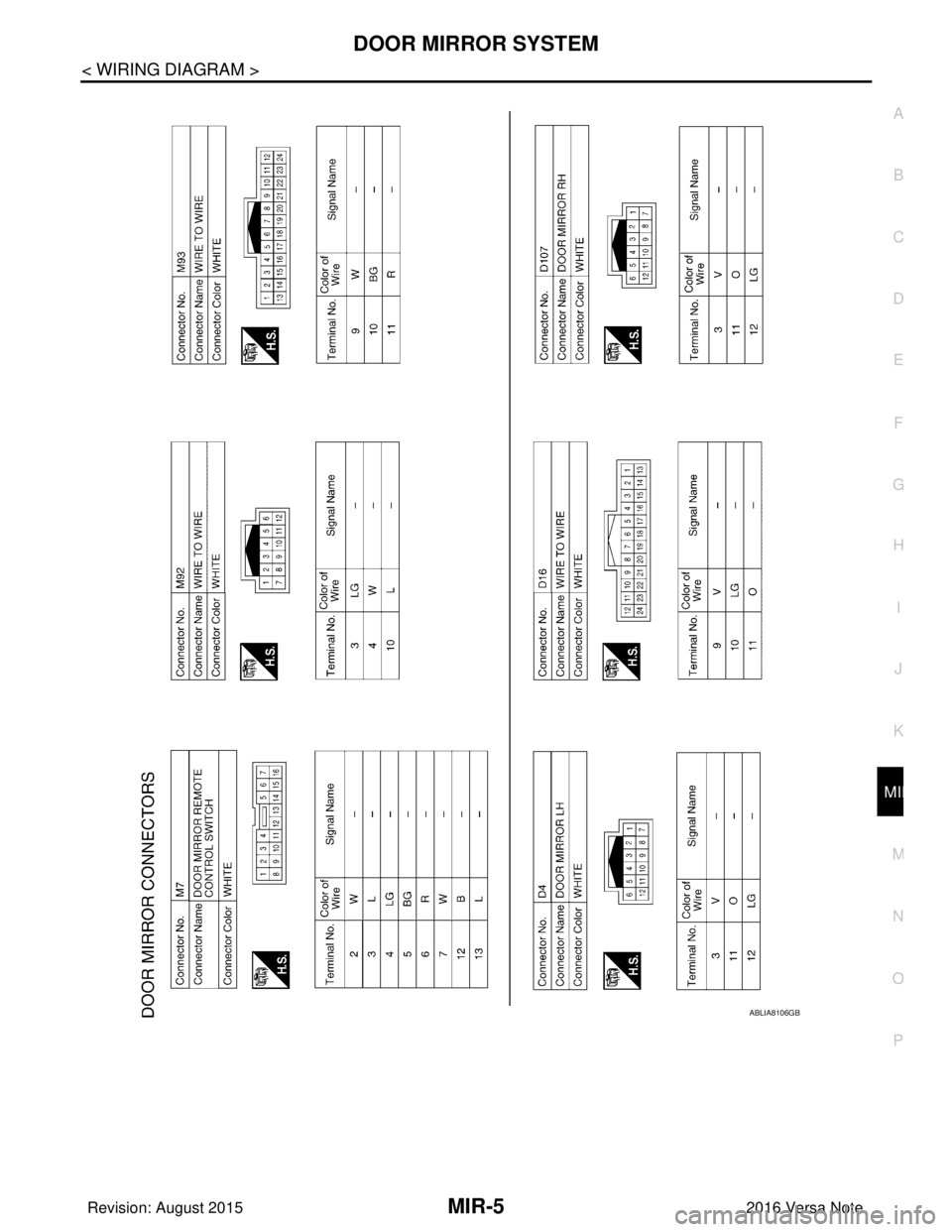

DOOR MIRROR SYSTEMMIR-5
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
ABLIA8106GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2480 of 3641

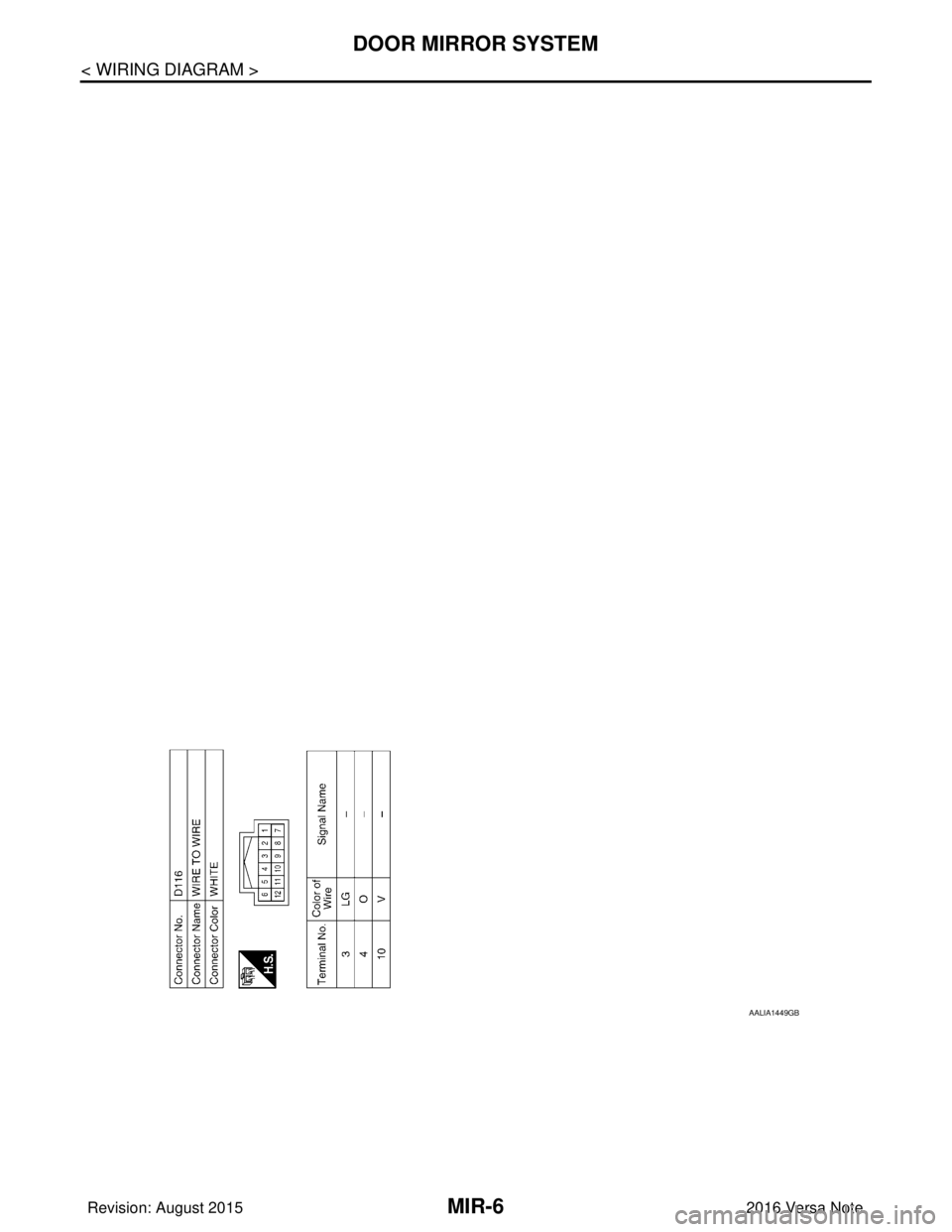

MIR-6
