ROCKER COVER
ROCKER COVER
Exploded ViewINFOID:0000000012431716
Removal and InstallationINFOID:0000000012431717
REMOVAL
1. Remove ignition coil. Refer to
EM-47, "Removal and Installation".
2. Remove fuel tube protector. Refer to EM-40, "
Exploded View".
3. Remove PCV hose from rocker cover.
4. Remove PCV valve (if necessary).
5. Remove rocker cover.
1. Exhaust camshaft position sensor 2. Clip 3. Rocker cover
4. Clamp 5. Hose6. PCV valve
7. O-ring 8. Rocker cover gasket9. Oil filler cap
10. O-ring 11. Intake camshaft position sensor 12. O-ring
A. To intake manifold
AWBIA1604ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1050 of 3641
![NISSAN NOTE 2016 Service Repair Manual ROCKER COVEREM-49
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Loosen bolts in reverse order as shown.
6. Remove rocker cover gasket from rocker cover.
7. Remove all trace NISSAN NOTE 2016 Service Repair Manual ROCKER COVEREM-49
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Loosen bolts in reverse order as shown.
6. Remove rocker cover gasket from rocker cover.
7. Remove all trace](/manual-img/5/57363/w960_57363-1049.png)
ROCKER COVEREM-49
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Loosen bolts in reverse order as shown.
6. Remove rocker cover gasket from rocker cover.
7. Remove all traces of liquid gasket from cylinder head and front cover using suitable tool. CAUTION:
Do not scratch or damage the mating su rface when cleaning off old liquid gasket.
INSTALLATION
CAUTION:
Do not reuse O-ring.
1. Install the rocker cover:
a. Press gasket onto the bosses for the rocker cover bolt holes as
shown to prevent the gasket from dropping off.
b. Apply liquid gasket to the cylinder head (1) and front cover (2) as shown.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-22, "
Recommended Chemical Products and Sealants".
CAUTION:
• The components must be inst alled within 5 minutes of the
liquid gasket application.
• Then allow 30 minutes for th e liquid gasket to set before
putting oil in the engine.
c. Install rocker cover to cylinder head. CAUTION:
Check that the gasket has no t slipped out of position.
• Tighten bolts in numerical order in at least three separate stages as shown.
: Engine front
JPBIA4135ZZ
: Engine front
JPBIA4136ZZ
(a) : 2.5 - 3.5 mm diameter
JPBIA4137ZZ
: Engine front
JPBIA4135ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1051 of 3641
EM-50
< REMOVAL AND INSTALLATION >[HR16DE]
ROCKER COVER
2. Installation of the remaining components is in the reverse order of removal.
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 1052 of 3641
TIMING CHAINEM-51
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
TIMING CHAIN
Exploded ViewINFOID:0000000012431718
Removal and InstallationINFOID:0000000012431719
CAUTION:
The rotation direction indicated in the t
ext is as viewed from the engine front.
NOTE:
• When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from
spilling.
• When removing the camshafts, the oil pump drive chain does not need to be removed.
REMOVAL
1. Timing chain slack guide 2. Timing chain tensioner3. Camshaft sprocket (EXH)
4. Camshaft sprocket (INT )5. Plug 6. Front oil seal
7. Crankshaft pulley 8. Crankshaft pulley bolt9. Front cover
10. Crankshaft sprocket 11. Crankshaft sprocket key 12. Oil pump sprocket
13. Oil pump drive chain 14. Oil pump drive chain tensioner 15. Timing chain
16. Timing chain tension guide A. Refer to INSTALLATION
AWBIA1475ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1053 of 3641
![NISSAN NOTE 2016 Service Repair Manual EM-52
< REMOVAL AND INSTALLATION >[HR16DE]
TIMING CHAIN
1. Remove front wheel and tire (RH). Refer to
WT-48, "Removal and Installation".
2. Remove front fender protector (RH). Refer to EXT-38, "
Rem NISSAN NOTE 2016 Service Repair Manual EM-52
< REMOVAL AND INSTALLATION >[HR16DE]
TIMING CHAIN
1. Remove front wheel and tire (RH). Refer to
WT-48, "Removal and Installation".
2. Remove front fender protector (RH). Refer to EXT-38, "
Rem](/manual-img/5/57363/w960_57363-1052.png)
EM-52
< REMOVAL AND INSTALLATION >[HR16DE]
TIMING CHAIN
1. Remove front wheel and tire (RH). Refer to
WT-48, "Removal and Installation".
2. Remove front fender protector (RH). Refer to EXT-38, "
Removal and Installation".
3. Drain engine oil. Refer to LU-8, "
Draining".
CAUTION:
• Perform this step when engine is cold.
• Do not spill engine oil on drive belt.
4. Drain coolant. Refer to CO-8, "
Draining Engine Coolant".
5. Remove the drive belt. Refer to EM-16, "
Removal and Installation".
6. Remove the rocker cover. Refer to EM-48, "
Removal and Installation".
7. Remove the water pump pulley. Refer to CO-18, "
Removal and Installation".
8. Support the bottom surface of engine (1) using a transmission jack (2), and then remove engine mounting insulator (RH). Refer
to EM-86, "
Exploded View".
CAUTION:
• Position a suitable jack under the engine and transaxle assembly as shown.
• Do not damage the front exhaust tube or transaxle oil pan with the jack.
9. Set No. 1 cylinder at TDC of its compression stroke:
a. Rotate crankshaft pulley (2) clockwise and align TDC mark (without paint mark) (A) to timing indicator (1) on front cover.
b. Check the matching marks on each camshaft sprocket are posi- tioned as shown.
• If not, rotate crankshaft pulley one more turn to align matchingmarks to the positions.
10. Remove crankshaft pulley:
ALBIA0894GB
(B) : White paint mark (Not use for service)
PBIC3673E
(1) : Timing chain
(2) : Camshaft sprocket (EXH)
(3) : Camshaft sprocket (INT)
(A) : Matching mark (Peripheral groove)
(B) : Pink link
(C) : Matching mark (Peripheral groove)
JPBIA4138ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1054 of 3641
TIMING CHAINEM-53
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

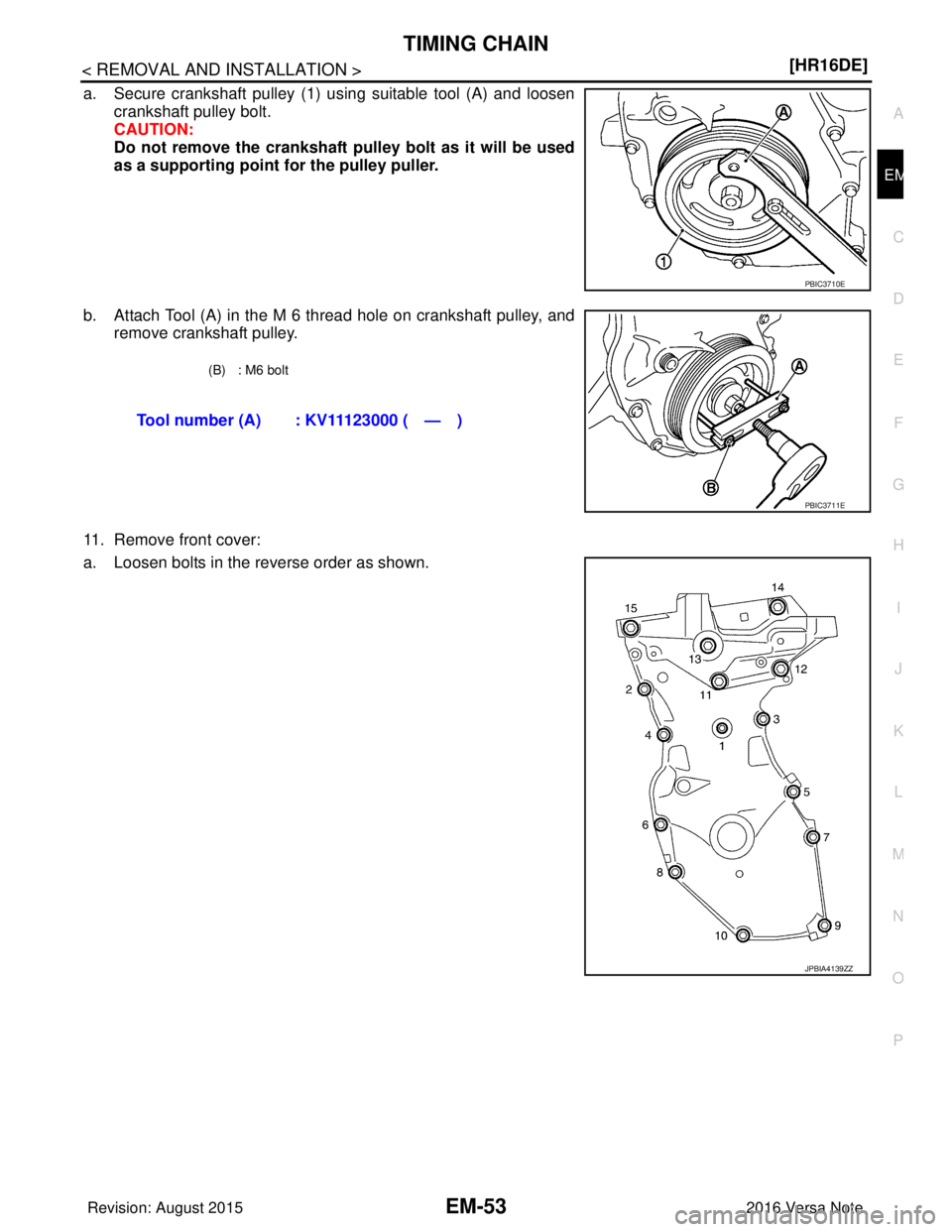

a. Secure crankshaft pulley (1) using suitable tool (A) and loosen
