Page 2673 of 3641
PWC-12
< SYSTEM DESCRIPTION >
DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)
RETAINED PWR
RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)INFOID:0000000012542487
DATA MONITOR
WORK SUPPORT
Monitor Item [Unit] Description
IGN ON SW [On/Off] Indicates condition of ignition ON switch.
DOOR SW-DR [On/Off] Indicates condition of front door switch LH.
DOOR SW-AS [On/Off] Indicates condition of front door switch RH.
Monitor Item [Unit] Setting Description
RETAINED PWR SET MODE 3 2 Min.
Sets the retained accessory power operating time.
MODE 2 OFF
MODE 1* 45 Sec.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2674 of 3641
BCM
PWC-13
< ECU DIAGNOSIS INFORMATION >
C
D E
F
G H
I
J
L
M A
B
PWC
N
O P
ECU DIAGNOSIS INFORMATION
BCM
List of ECU ReferenceINFOID:0000000012431803
ECU Reference
BCM (with Intelligent Key system) BCS-30, "
Reference Value"
BCS-48, "Fail-safe"
BCS-49, "DTCInspectionPriorityChart"
BCS-50, "DTCIndex"
BCM (without Intelligent Key system)BCS-101, "
Reference Value"
BCS-115, "Fail-safe"
BCS-115, "DTCInspectionPriorityChart"
BCS-115, "DTCIndex"
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2675 of 3641

PWC-14
< ECU DIAGNOSIS INFORMATION >
POWER WINDOW MAIN SWITCH
POWER WINDOW MAIN SWITCH
Reference ValueINFOID:0000000012431804
TERMINAL LAYOUT
PHYSICAL VALUES
LIIA2455E
Te r m i n a l N o .(Wire color) Description
ConditionVo l ta g e
(Approx.)
+ - Signal name Input/
Output
1
(BR) Ground Rear power window motor LH UP signal Output When the rear LH switch on the
main power window and door
lock/unlock switch is operated in
the UP position.Battery voltage
3
(G) Ground Rear power window motor LH DOWN signal Output When the rear LH switch on the
main power window and door
lock/unlock switch is operated in
the DOWN position.Battery voltage
5
(Y) Ground Rear power window motor RH DOWN signal Output When the rear RH switch on the
main power window and door
lock/unlock switch is operated in
the DOWN position.Battery voltage
7
(V) Ground Rear power window motor RH UP signal Output When the rear RH switch on the
main power window and door
lock/unlock switch is operated in
the UP position.Battery voltage
8
(R) Ground Front power window motor LH UP signal Output When the front LH switch on the
main power window and door
lock/unlock switch is operated in
the UP position.Battery voltage
10
(L) Ground Ignition switch power supply
InputIgnition switch ON
Battery voltage
Other than above 0
11
(LG) Ground Front power window motor LH DOWN signal Output When the front LH switch on the
main power window and door
lock/unlock switch is operated in
the DOWN position.Battery voltage
12
(SB) Ground Front power window motor RH DOWN signal Output When the front RH switch on the
main power window and door
lock/unlock switch is operated in
the DOWN position.Battery voltage
16
(W) Ground Front power window motor RH UP signal Output When the front RH switch on the
main power window and door
lock/unlock switch is operated in
the UP position.Battery voltage
17
(B) Ground Ground
—— 0
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2676 of 3641

POWER WINDOW MAIN SWITCHPWC-15
< ECU DIAGNOSIS INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
Fail SafeINFOID:0000000012431805
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is detected in the CPU signal that detects up/down speed and
direction of door glass. Switches to fail-safe cont rol when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.
It changes to condition before initialization and the fo llowing functions do not operate when switched to fail-
safe control.
• Auto operation
• Retained power function
Perform initial operation to recover when switched to fail- safe mode. However, it switches back to fail-safe
control when malfunction is found in main power wi ndow and door lock/unlock switch or front power window
motor LH.
Error Error condition
Pulse sensor malfunction When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors mal-
function When both pulse signals have not been detected for more than the specified value during glass
open/close operation.
Pulse direction malfunc-
tion When the pulse signal that is detected during glass open/close operation detects the opposite con-
dition of power window motor operating direction.
Glass recognition position
malfunction 1 When it detects the error between glass fully closed position in power window switch memory and
actual fully closed position during glass open/close operation is more than the specified value.
Glass recognition position
malfunction 2 When it detects pulse count more than the value of glass full stroke during glass open/close opera-
tion.
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2677 of 3641
PWC-16
< WIRING DIAGRAM >
POWER WINDOW SYSTEM

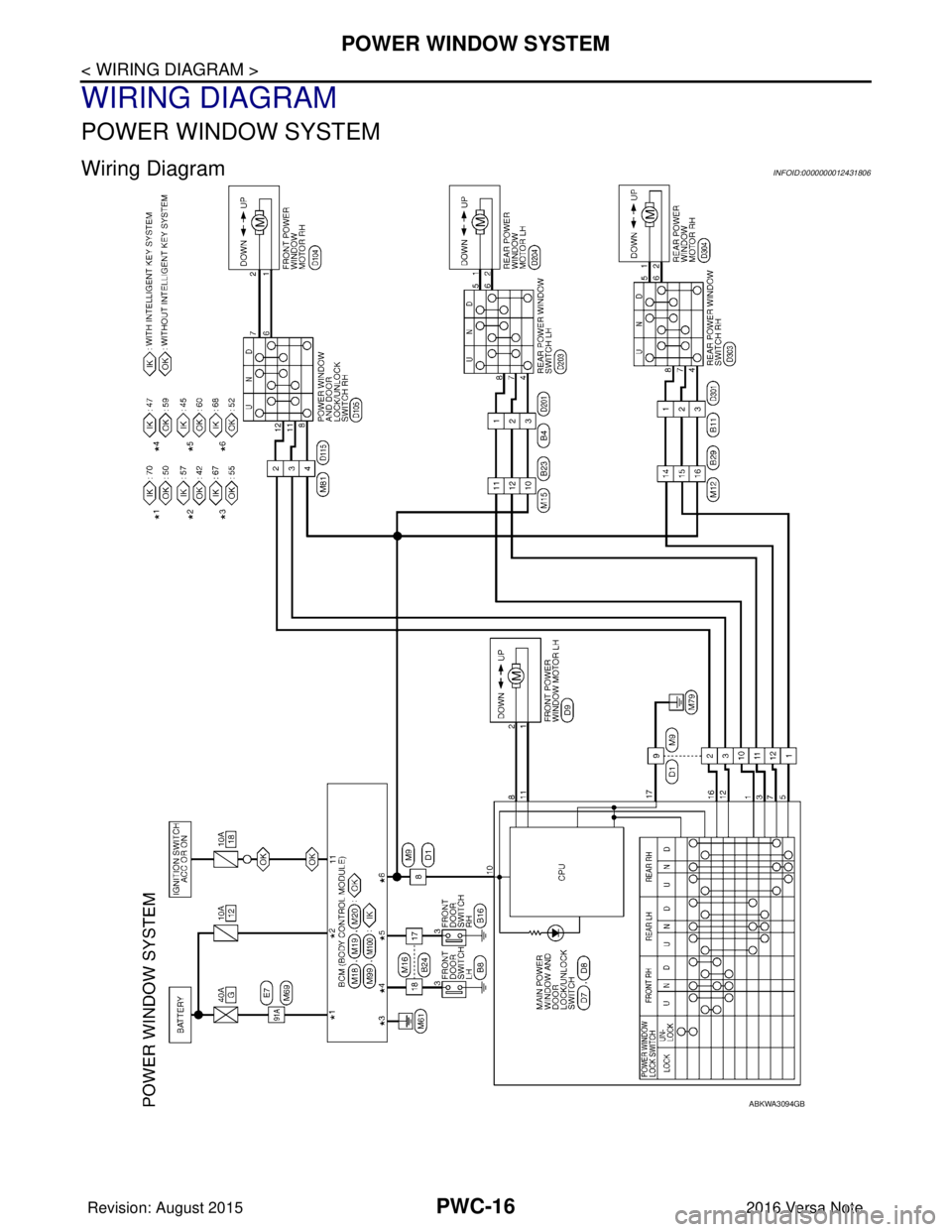

WIRING DIAGRAM
POWER WINDOW SYSTEM
Wiring DiagramINFOID:0000000012431806
ABKWA3094GB
Revision: August 20152016 Versa Note
cardiagn.com
Page 2678 of 3641

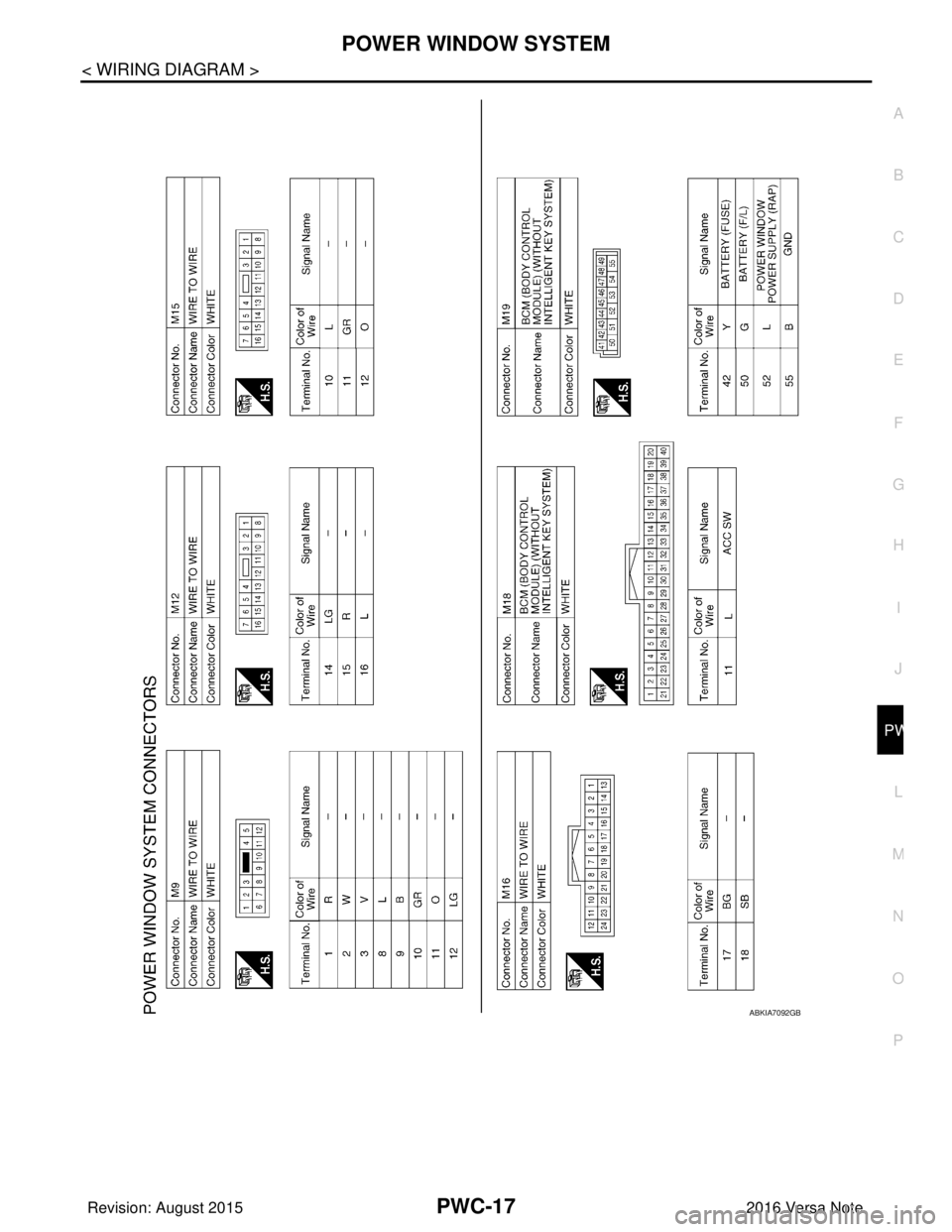

POWER WINDOW SYSTEMPWC-17
< WIRING DIAGRAM >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
ABKIA7092GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2679 of 3641

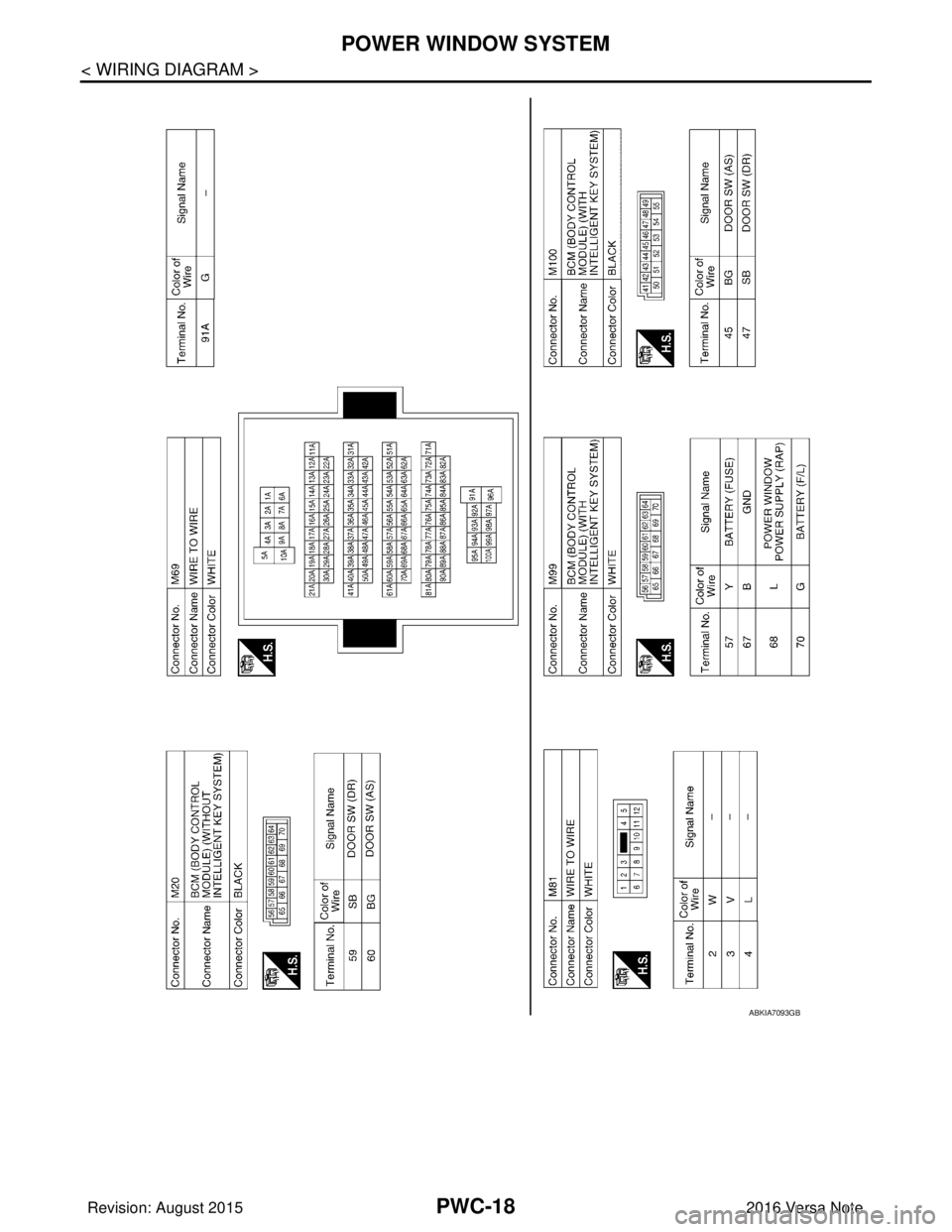

PWC-18
< WIRING DIAGRAM >
POWER WINDOW SYSTEM
ABKIA7093GB
Revision: August 20152016 Versa Note
cardiagn.com
Page 2680 of 3641

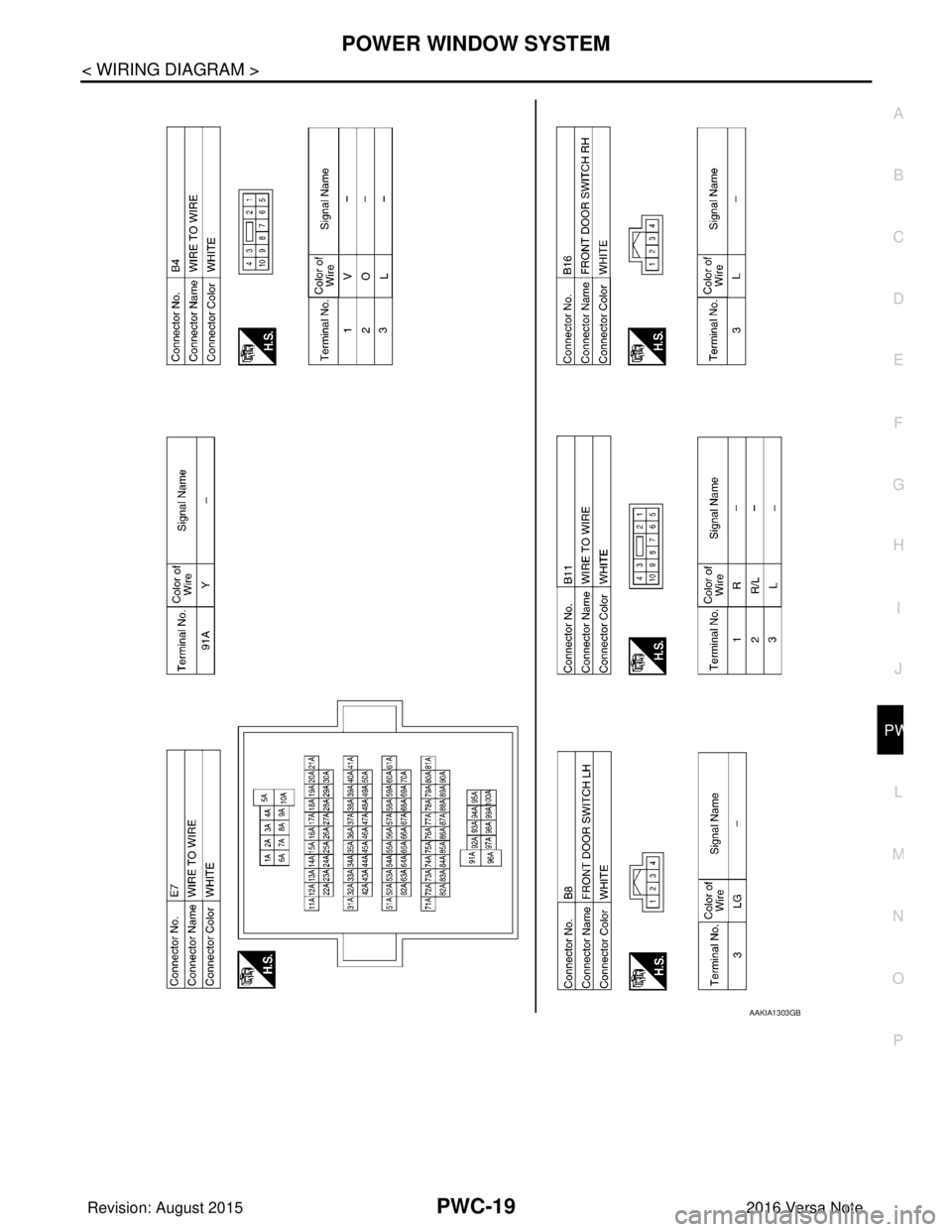

POWER WINDOW SYSTEMPWC-19
< WIRING DIAGRAM >
C
DE
F
G H
I
J
L
M A
B
PWC
N
O P
AAKIA1303GB
Revision: August 2015 2016 Versa Note
