PCS-10
< SYSTEM DESCRIPTION >[IPDM E/R]
DIAGNOSIS SYSTEM (IPDM E/R)
Concept of Auto Active Test
• IPDM E/R starts the auto active test with the door
switch signals transmitted by BCM via CAN communica-
tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto
active test starts successfully.
• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.
Diagnosis Chart in Auto Active Test
CONSULT Function (IPDM E/R)INFOID:0000000012433272
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with IPDM E/R.
AWMIA1737GB
Symptom Inspection contentsPossible cause
Any of the following components do not operate:
•Parking lamp
• Side marker lamp
• License plate lamp
•Tail lamp
• Front fog lamp
• Headlamp (HI, LO)
• Front wiper (HI, LO) Perform auto active test.
Does the applicable system op-
erate?YES BCM signal input circuit
NO • Lamp or motor
• Lamp or motor ground circuit
• Harness or connector between
IPDM E/R and applicable system
• IPDM E/R
A/C compressor does not operate Perform auto active test.
Does the magnet clutch oper-
ate?YES
• BCM signal input circuit
• CAN communication signal be-
tween BCM and ECM
• CAN communication signal be-
tween ECM and IPDM E/R
NO • Magnet clutch
• Harness or connector between
IPDM E/R and magnet clutch
• IPDM E/R
Cooling fan does not operate Perform auto active test.
Does the cooling fan operate?YES
• ECM signal input circuit
• CAN communication signal be-
tween ECM and IPDM E/R
NO • Cooling fan motor
• Harness or connector between
IPDM E/R and cooling fan motor
• IPDM E/R
Direct Diagnostic Mode Description
ECU Identification The IPDM E/R part number is displayed.
Self Diagnostic Result The IPDM E/R self diagnostic results are displayed.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2514 of 3641
![NISSAN NOTE 2016 Service Repair Manual PCS
DIAGNOSIS SYSTEM (IPDM E/R)PCS-11
< SYSTEM DESCRIPTION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
Refer to
PCS-20, NISSAN NOTE 2016 Service Repair Manual PCS
DIAGNOSIS SYSTEM (IPDM E/R)PCS-11
< SYSTEM DESCRIPTION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
Refer to
PCS-20,](/manual-img/5/57363/w960_57363-2513.png)
PCS
DIAGNOSIS SYSTEM (IPDM E/R)PCS-11
< SYSTEM DESCRIPTION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
Refer to
PCS-20, "DTCIndex".
DATA MONITOR
ACTIVE TEST
Data Monitor The IPDM E/R input/output data is displayed in real time.
Active Test The IPDM E/R activates outputs to test components.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.
Direct Diagnostic Mode
Description
Monitor Item [Unit]Main
Signals Description
MOTOR FAN REQ [1/2/3/4] ×Indicates cooling fan speed signal received from ECM on CAN communication
line
AC COMP REQ [On/Off] ×Indicates A/C compressor request signal received from ECM on CAN commu-
nication line
TAIL&CLR REQ [On/Off] ×Indicates position light request signal
received from BCM on CAN communica-
tion line
HL LO REQ [On/Off] ×Indicates low beam request signal received from BCM on CAN communication
line
HL HI REQ [On/Off] ×Indicates high beam request signal received from BCM on CAN communication
line
FR FOG REQ [On/Off] ×Indicates front fog light request signal received from BCM on CAN communica-
tion line
FR WIP REQ [Stop/1LOW/Low/Hi] ×Indicates front wiper request signal received from BCM on CAN communication
line
WIP AUTO STOP [STOP P/ACT P] ×Indicates condition of front wiper auto stop signal
WIP PROT [Off/BLOCK] ×Indicates condition of front wiper fail-safe operation
IGN RLY1 -REQ [On/Off] Indicates ignition switch ON signal received from BCM on CAN communication
line
IGN RLY [On/Off] ×Indicates condition of ignition relay
PUSH SW [On/Off] Indicates condition of push-button ignition switch
INTER/NP SW [On/Off] Indicates condition of CVT shift position
ST RLY CONT [On/Off] Indicates starter relay status signal received from BCM on CAN communication
line
IHBT RLY -REQ [On/Off] Indicates starter control relay signal received from BCM on CAN communication
line
ST/INHI RLY [Off/ ST /INHI] Indicates condition of starter relay and starter control relay
DETENT SW [On/Off] Indicates condition of CVT shift selector (park position switch)
DTRL REQ [Off] Indicates daytime running light request signal received from BCM on CAN com-
munication line
THFT HRN REQ [On/Off] Indicates theft warning horn request signal received from BCM on CAN commu-
nication line
HORN CHIRP [On/Off] Indicates horn reminder signal received from BCM on CAN communication line
Test item Description
HORN This test is able to check horn operation [On].
FRONT WIPER This test is able to check wiper motor operation [Hi/Lo/Off].
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2515 of 3641
PCS-12
< SYSTEM DESCRIPTION >[IPDM E/R]
DIAGNOSIS SYSTEM (IPDM E/R)
CAN DIAG SUPPORT MNTR
Refer to
LAN-13, "CAN Diagnostic Support Monitor".
MOTOR FAN This test is able to check cooling fan operation [4/3/2/1].
EXTERNAL LAMPS This test is able to check external lamp operation [Fog/Hi/Lo/TAIL/Off].
Te s t i t e m
D e s c r i p t i o n
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2516 of 3641
![NISSAN NOTE 2016 Service Repair Manual PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-13
< ECU DIAGNOSIS INFORMATION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
ECU DIAGNOSIS INFORMATION
IPDM E/R (INTELLIGENT POWER
DI NISSAN NOTE 2016 Service Repair Manual PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-13
< ECU DIAGNOSIS INFORMATION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
ECU DIAGNOSIS INFORMATION
IPDM E/R (INTELLIGENT POWER
DI](/manual-img/5/57363/w960_57363-2515.png)
PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-13
< ECU DIAGNOSIS INFORMATION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
ECU DIAGNOSIS INFORMATION
IPDM E/R (INTELLIGENT POWER
DISTRIBUTION MODULE ENGINE
ROOM)
Reference ValueINFOID:0000000012433273
VALUES ON THE DIAGNOSIS TOOL
Monitor Item ConditionValue/Status
MOTOR FAN REQ Engine idle speed Changes depending on engine cool-
ant temperature, air conditioner op-
eration status, vehicle speed, etc.
1/2/3/4
AC COMP REQ Engine running A/C switch OFF
Off
A/C switch ON
(Compressor is operating) On
TAIL&CLR REQ Lighting switch OFF
Off
Lighting switch 1ST or 2ND On
HL LO REQ Lighting switch OFF
Off
Lighting switch 2ND On
HL HI REQ Lighting switch 2ND Lighting switch other than HI and
PA S S
Off
Lighting switch HI or PASS On
FR FOG REQ Lighting switch 2ND Front fog lamp switch OFF
Off
Front fog lamp switch ON On
FR WIP REQ Ignition switch ON Front wiper switch OFF
Stop
Front wiper switch INT 1LOW
Front wiper switch LO Low
Front wiper switch HI Hi
WIP AUTO STOP Ignition switch ON Front wiper stop position
STOP P
Any position other than front wiper
stop position ACT P
WIP PROT Ignition switch ON Front wiper operates normally.
Off
Front wiper stops at fail-safe opera-
tion. BLOCK
IGN RLY1 -REQ Ignition switch OFF or ACC
Off
Ignition switch ON On
IGN RLY Ignition switch OFF or ACC
Off
Ignition switch ON On
PUSH SW Release the push-button ignition switch
Off
Press the push-button ignition switch On
INTER/NP SW Ignition switch ON Selector lever in any position other
than P or N (CVT models)
Off
Release clutch pedal (M/T models)
Selector lever in P or N position
(CVT models) On
Depress clutch pedal (M/T models)
ST RLY CONT Ignition switch ON
Off
At engine cranking On
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2517 of 3641
PCS-14
< ECU DIAGNOSIS INFORMATION >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DI
STRIBUTION MODULE ENGINE ROOM)
IHBT RLY -REQIgnition switch ON
Off
At engine cranking On
ST/INHI RLY Ignition switch ON
Off
At engine cranking INHI ON → ST ON
The status of starter relay or starter control relay cannot be recognized by
the battery voltage malfunction, etc. when the starter relay is ON and the
starter control relay is OFF. UNKWN
DETENT SW Ignition switch ON • Press the selector button with se-
lector lever in P position.
• Selector lever in any position oth-
er than P. Off
Release the selector button with selector lever in P position. On
DTRL REQ Daytime running lamps OFF
Off
Daytime running lamps ON On
THFT HRN REQ Not operation
Off
• Panic alarm is activated
• Theft warning alarm is activated On
HORN CHIRP Not operated
Off
Door locking with key fob (horn chirp mode) On
Monitor Item
ConditionValue/Status
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2518 of 3641
PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-15
< ECU DIAGNOSIS INFORMATION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N

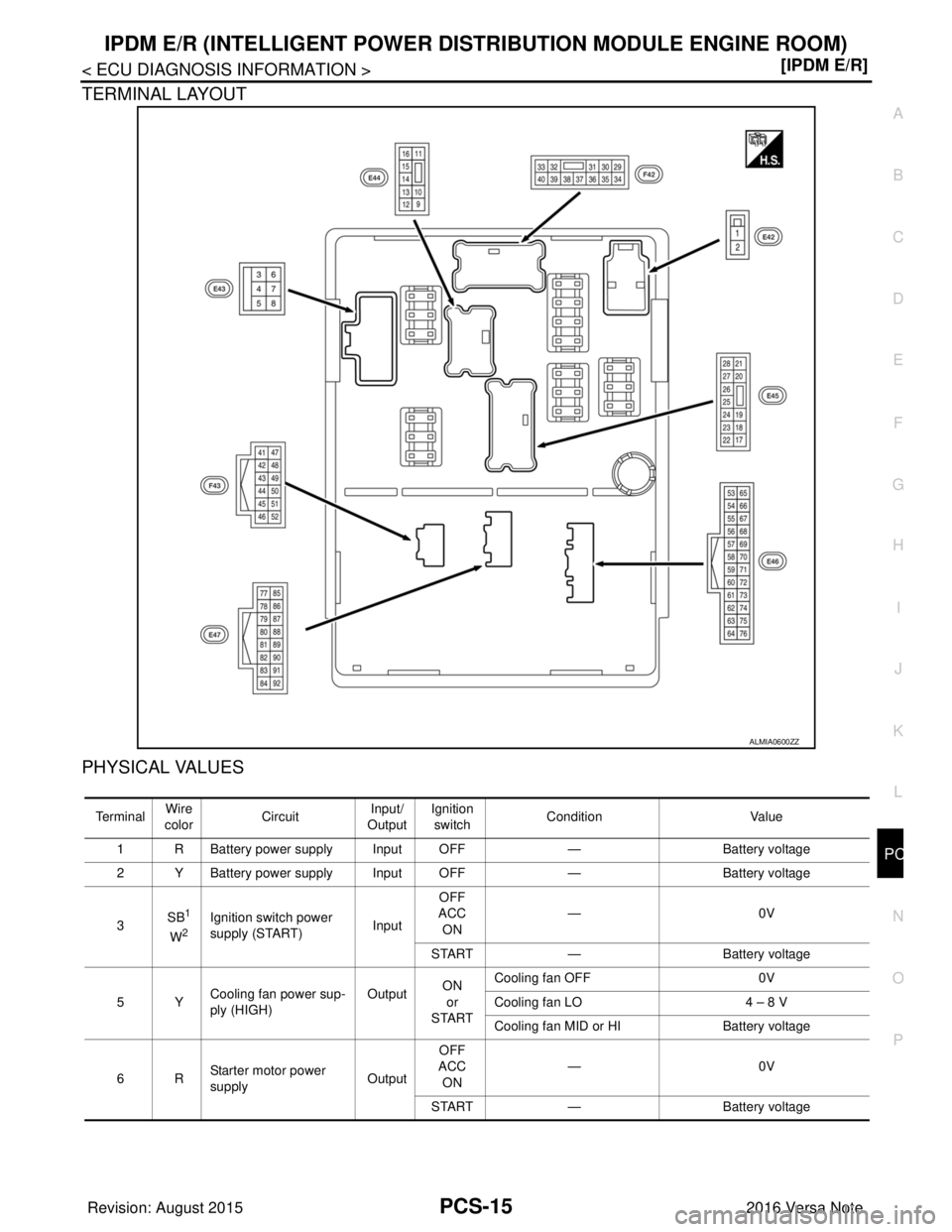

TERMINAL LAYOUT
PHYSICAL VALUES
ALMIA0600ZZ
Te r m i n a l
Wire
color Circuit
Input/
Output Ignition
switch Condition
Value
1 R Battery power supply Input OFF —Battery voltage
2 Y Battery power supply Input OFF —Battery voltage
3 SB
1
W2Ignition switch power
supply (START) InputOFF
ACC
ON —0
V
START — Battery voltage
5Y Cooling fan power sup-
ply (HIGH) Output
ON
or
START Cooling fan OFF
0V
Cooling fan LO 4 – 8 V
Cooling fan MID or HI Battery voltage
6R Starter motor power
supply
OutputOFF
ACC ON —0
V
START — Battery voltage
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2519 of 3641
![NISSAN NOTE 2016 Service Repair Manual PCS-16
< ECU DIAGNOSIS INFORMATION >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DI
STRIBUTION MODULE ENGINE ROOM)
7PCooling fan power sup-
ply (LOW) OutputON
or
START Cooling fan OFF
0V
Cooling fan LO Batt NISSAN NOTE 2016 Service Repair Manual PCS-16
< ECU DIAGNOSIS INFORMATION >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DI
STRIBUTION MODULE ENGINE ROOM)
7PCooling fan power sup-
ply (LOW) OutputON
or
START Cooling fan OFF
0V
Cooling fan LO Batt](/manual-img/5/57363/w960_57363-2518.png)
PCS-16
< ECU DIAGNOSIS INFORMATION >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DI
STRIBUTION MODULE ENGINE ROOM)
7PCooling fan power sup-
ply (LOW) OutputON
or
START Cooling fan OFF
0V
Cooling fan LO Battery voltage
Cooling fan MID 4 – 8 V
Cooling fan HI Battery voltage
8 G Battery power supply Input OFF —Battery voltage
9BR Fuel pump power sup-
ply
OutputON
RUN Approximately 1 second af-
ter turning the ignition
switch ON
Battery voltage
ON Approximately 1 second af-
ter turning the ignition
switch ON 0V
10
2L Ignition switch power
supply (ON or START)
InputOFF
0V
ON or
START Battery voltage
11 G ECM relay power supply Output OFF
More than a few seconds
after turning ignition switch
OFF 0V
ON
OFF For a few seconds after
turning ignition switch OFF
Battery voltage
13
3R1
LG2Starter relay coil power
supply Input ONClutch pedal depressed
0V
Clutch pedal released Battery voltage
14 L Headlamp LOW (LH)
power supply OutputLighting switch OFF
0V
Lighting switch 2ND Battery voltage
15
1, 3LG Starter relay coil power
supply Input 0V
Battery voltage
16 P Headlamp LOW (RH)
power supply OutputLighting switch OFF
0V
Lighting switch 2ND Battery voltage
17 LG Front wiper motor LOW
power supply Output ONFront wiper switch OFF
0V
Front wiper switch LO Battery voltage
18 GR Front wiper motor HIGH
power supply
Output ONFront wiper switch OFF
0V
Front wiper switch HI Battery voltage
19 B Ground — —— —
20 BR ABS actuator and elec-
tric unit (control unit)
power supply OutputOFF
— 0V
ON or
START —B
att e ry v olt a ge
21
3G Clutch interlock switch
power supply
OutputOFF
or
ACC 0V
ON Battery voltage
21
4R Transmission range
switch power supply OutputOFF
or
ACC 0V
ON Battery voltage
22 P Illumination power sup-
ply
OutputLighting switch OFF
0V
Lighting switch 1ST Battery voltage
Te r m i n a l
Wire
color Circuit Input/
Output Ignition
switch Condition
Value
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2520 of 3641
![NISSAN NOTE 2016 Service Repair Manual PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-17
< ECU DIAGNOSIS INFORMATION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
23 R
Combination lamp pow-
er supply OutputLighting switc NISSAN NOTE 2016 Service Repair Manual PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-17
< ECU DIAGNOSIS INFORMATION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
23 R
Combination lamp pow-
er supply OutputLighting switc](/manual-img/5/57363/w960_57363-2519.png)
PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-17
< ECU DIAGNOSIS INFORMATION > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
23 R
Combination lamp pow-
er supply OutputLighting switch OFF
0V
Lighting switch 1ST Battery voltage
24
5W Daytime running light
relay 1 power supply OutputLighting switch OFF
0V
Lighting switch 1ST Battery voltage
25 G Headlamp HIGH (LH)
power supply OutputLighting switch other than
HI and PASS
0V
Lighting switch HI
Lighting switch PASS Battery voltage
27 Y Headlamp HIGH (RH)
power supply OutputLighting switch other than
HI and PASS
0V
Lighting switch HI
Lighting switch PASS Battery voltage
28 V A/C compressor power
supply
Output RUNA/C switch OFF
0V
A/C switch ON
(A/C compressor is operat-
ing) Battery voltage
29 L/W Throttle control motor
relay power supply OutputOFF
More than a few seconds
after turning ignition switch
OFF 0V
ON
OFF For a few seconds after
turning ignition switch OFF
Battery voltage
32 G/W Throttle control motor
relay control
OutputON
→
OFF 0V
↓
Battery voltage ↓
0 V
ON 0V
34 Y Ignition coil power sup-
ply
OutputOFF
or
ACC 0V
ON Battery voltage
35 BR NATS antenna amp
power supply
Output OFF
Battery voltage
36 SB Fuel injector power sup-
ply OutputOFF
or
ACC 0V
ON Battery voltage
39 L Timing control solenoid
valve power
supply
OutputOFF
More than a few seconds
after turning ignition switch
OFF 0V
ON
OFF For a few seconds after
turning ignition switch OFF
Battery voltage
40
4BR Starter relay coil power
supply Input ONSelect lever in any position
other than P or N
0V
Select lever P or N Battery voltage
43 GR Fuel pump relay control Output ON
RUN Approximately 1 second af-
ter turning the ignition
switch ON
0V
ON Approximately 1 second or
more after turning the igni-
tion switch Battery voltage
Te r m i n a l
Wire
color Circuit Input/
Output Ignition
switch Condition
Value
Revision: August 2015 2016 Versa Note
cardiagn.com
