NISSAN NOTE 2016 Service Repair Manual DLK-160
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR

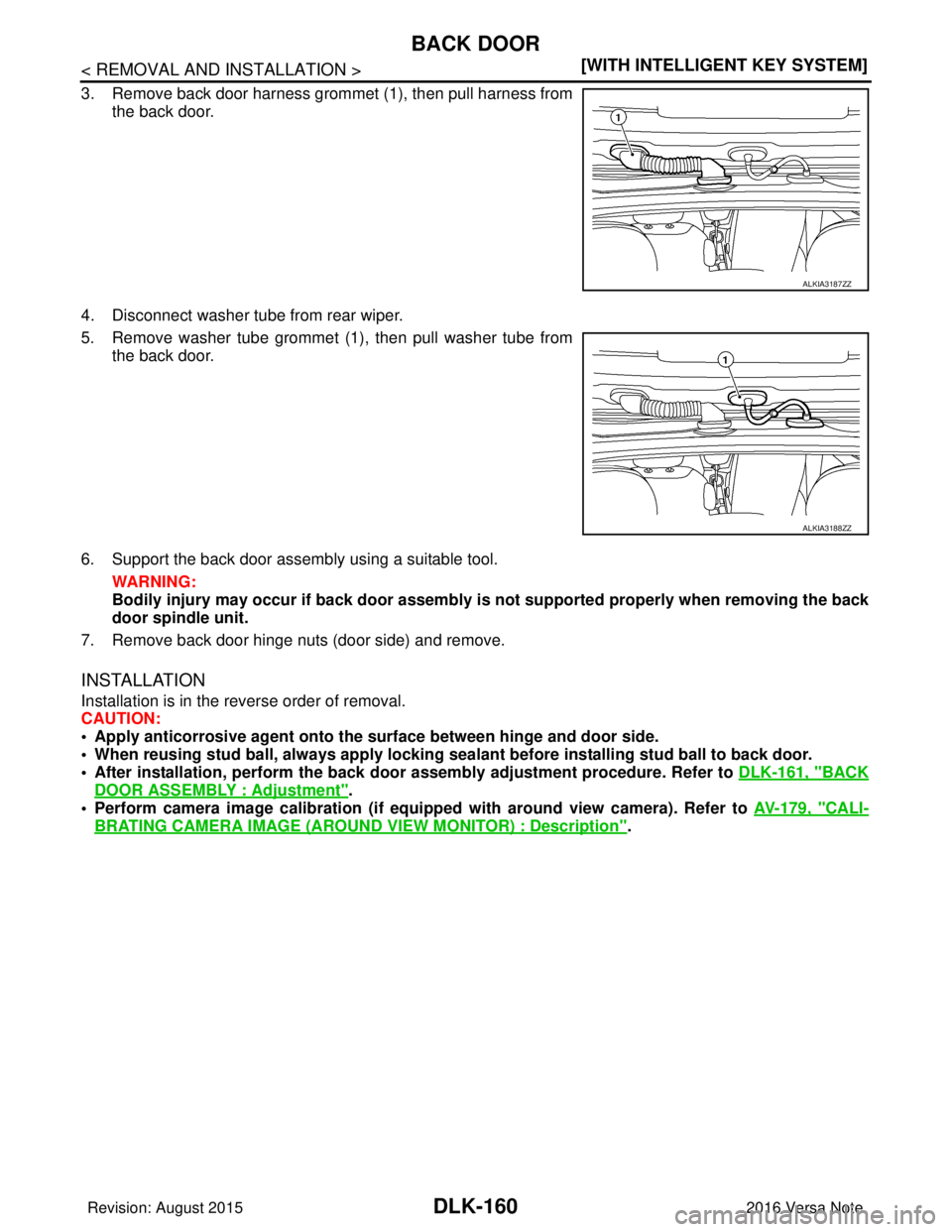

3. Remove back door harness grommet (1), then pull harness from
the back door.
4. Disconnect washer tube from rear wiper.
5.

Page 850 of 3641

NISSAN NOTE 2016 Service Repair Manual BACK DOORDLK-161
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

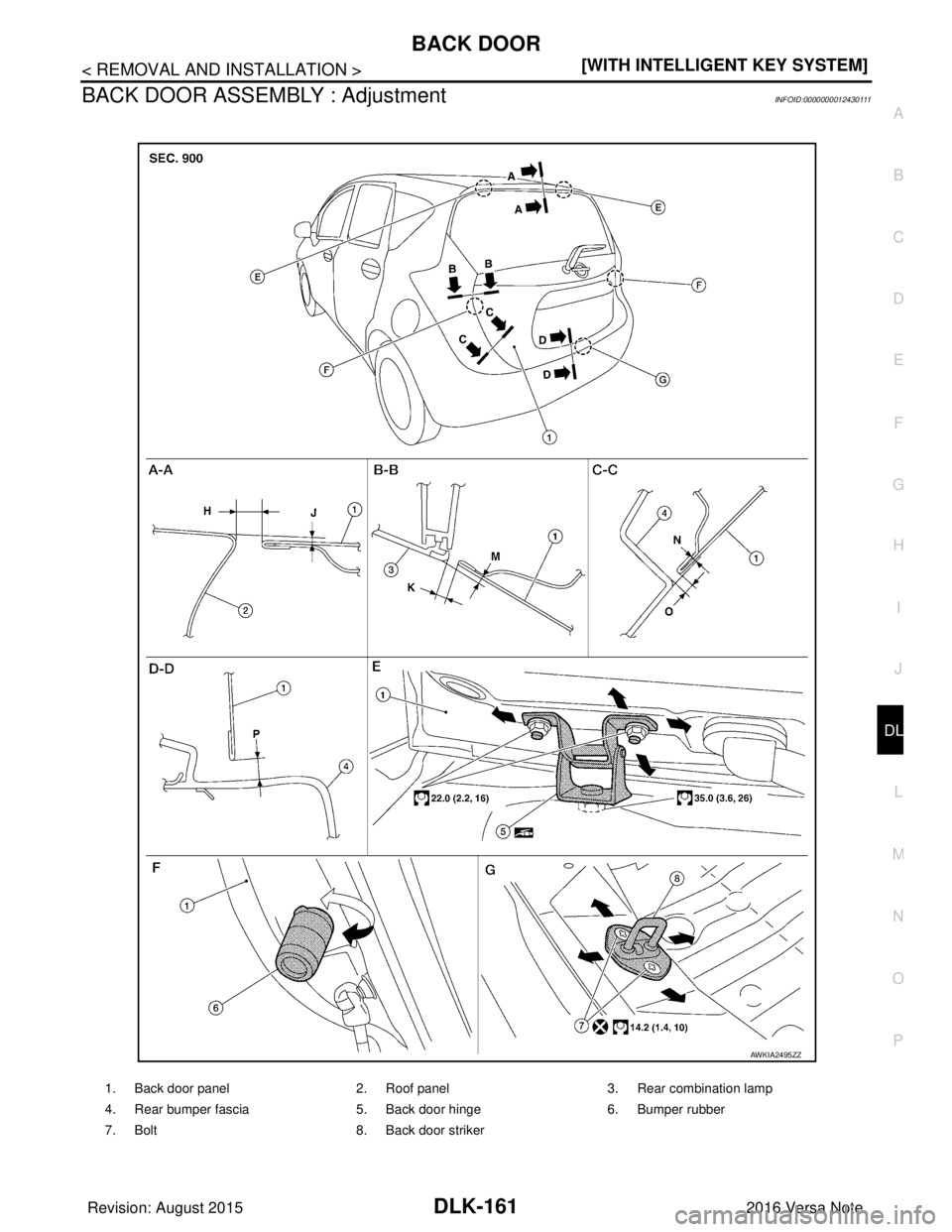

BACK DOOR ASSEMBLY : AdjustmentINFOID:0000000012430111
1. Back door panel 2. Roof panel3.

Page 851 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-162
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR
Check the clearance and the surface height between back
door and each part by visual inspection and tactile
feel. If the cl

DLK-162
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR
Check the clearance and the surface height between back
door and each part by visual inspection and tactile
feel. If the clearance and the surface height are out of specification, adjust them according to the adjustment
procedure.
Unit: mm (in)
1. Loosen back door hinge nuts (door side).
2. Lift up back door approximately 100 – 150 mm (3.94 – 5. 91 in) height then close it lightly and check that it
is engaged firmly with back door closed.
3. Check the clearance and surface height and adjust back door as necessary.
4. Tighten back door hinge nuts to specified torque.
CAUTION:
• After installation, check back door open/close, lock/ unlock operation.
• Check back door hinge rotating point for poor lubrication. If necessary, appl y a suitable multi-pur-
pose grease.
• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.
BACK DOOR STRIKER
BACK DOOR STRIKER : Removal and InstallationINFOID:0000000012430112
REMOVAL
1. Remove back door kicking plate using a suitable tool.
2. Remove bolts and back door striker.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse back door striker bolts.
• After installation, check back door open/close, lock/ unlock operation.
• After installation, perform the back door assembly adjustment procedure. Refer to DLK-161, "
BACK
DOOR ASSEMBLY : Adjustment".

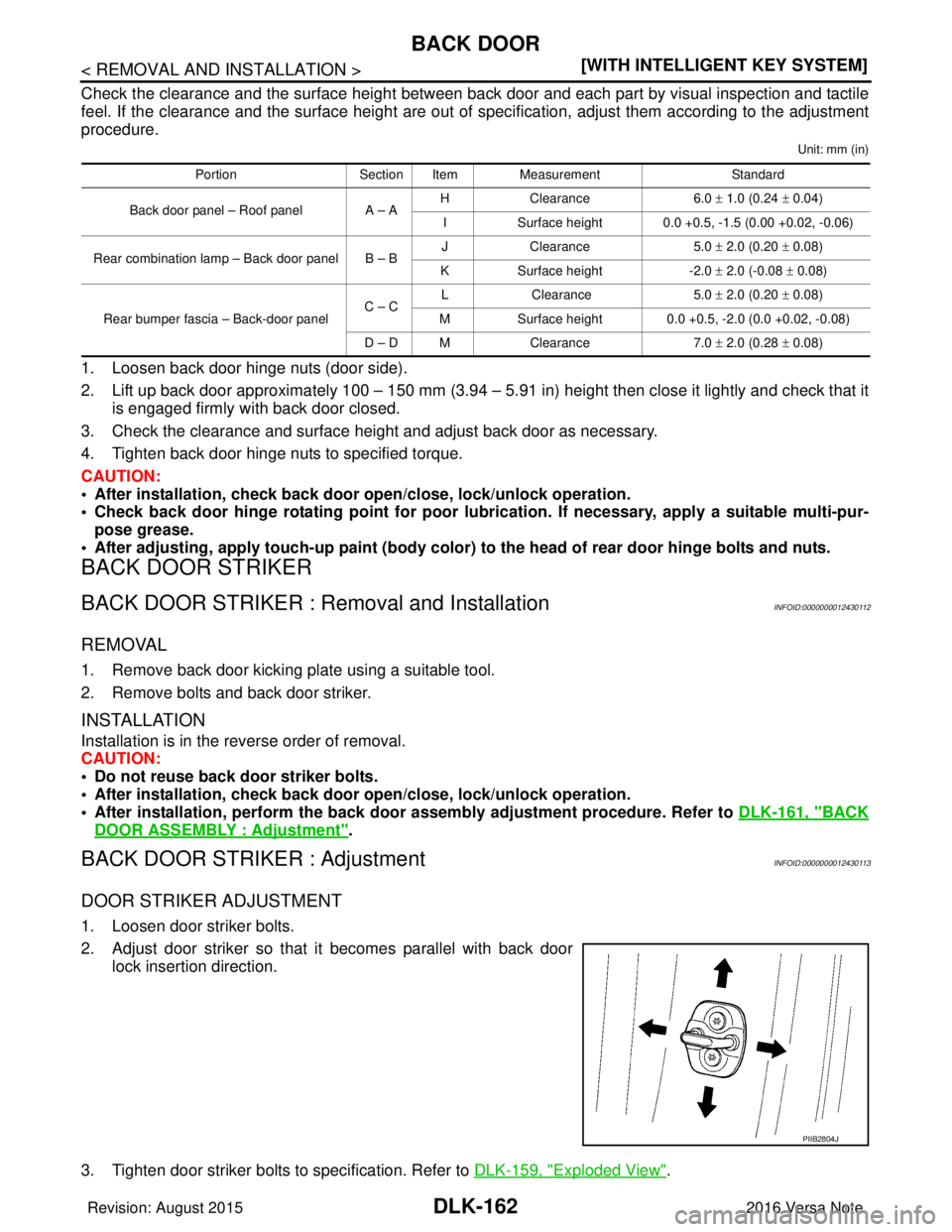

BACK DOOR STRIKER : AdjustmentINFOID:0000000012430113
DOOR STRIKER ADJUSTMENT
1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with back door
lock insertion direction.
3. Tighten door striker bolts to specification. Refer to DLK-159, "
Exploded View".
PortionSection Item Measurement Standard
Back door panel – Roof panel A – A H
Clearance 6.0 ± 1.0 (0.24 ± 0.04)
I Surface height 0.0 +0.5, -1.5 (0.00 +0.02, -0.06)
Rear combination lamp – Back door panel B – B J
Clearance 5.0 ± 2.0 (0.20 ± 0.08)
K Surface height -2.0 ± 2.0 (-0.08 ± 0.08)
Rear bumper fascia – Back-door panel C – CL C
le a ra n ce 5 .0 ± 2.0 (0.20 ± 0.08)
M Surface height 0.0 +0.5, -2.0 (0.0 +0.02, -0.08)
D – D M Clearance7.0 ± 2.0 (0.28 ± 0.08)
PIIB2804J
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 852 of 3641

NISSAN NOTE 2016 Service Repair Manual BACK DOORDLK-163
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

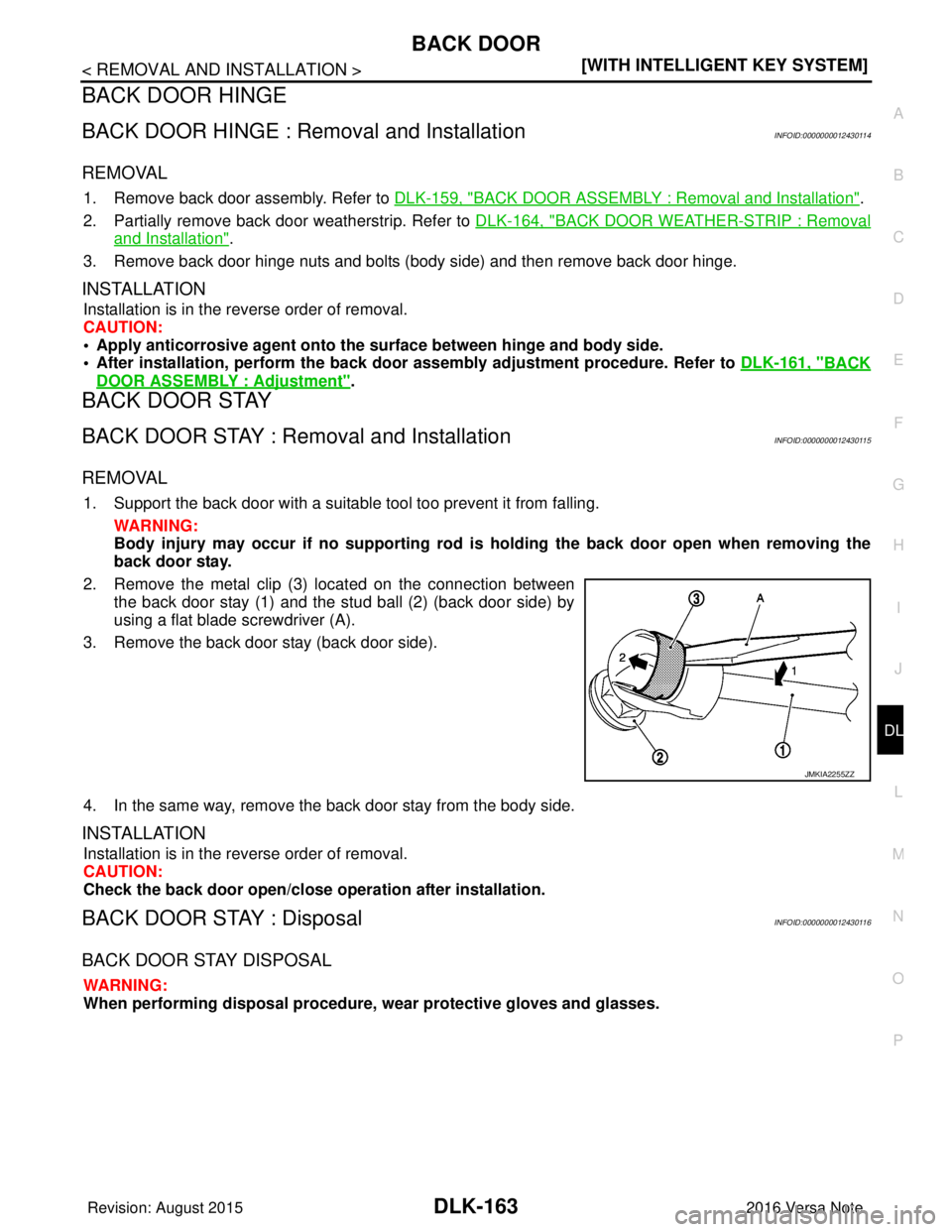

BACK DOOR HINGE
BACK DOOR HINGE : Removal and InstallationINFOID:0000000012430114
REMOVAL

Page 853 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-164
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR

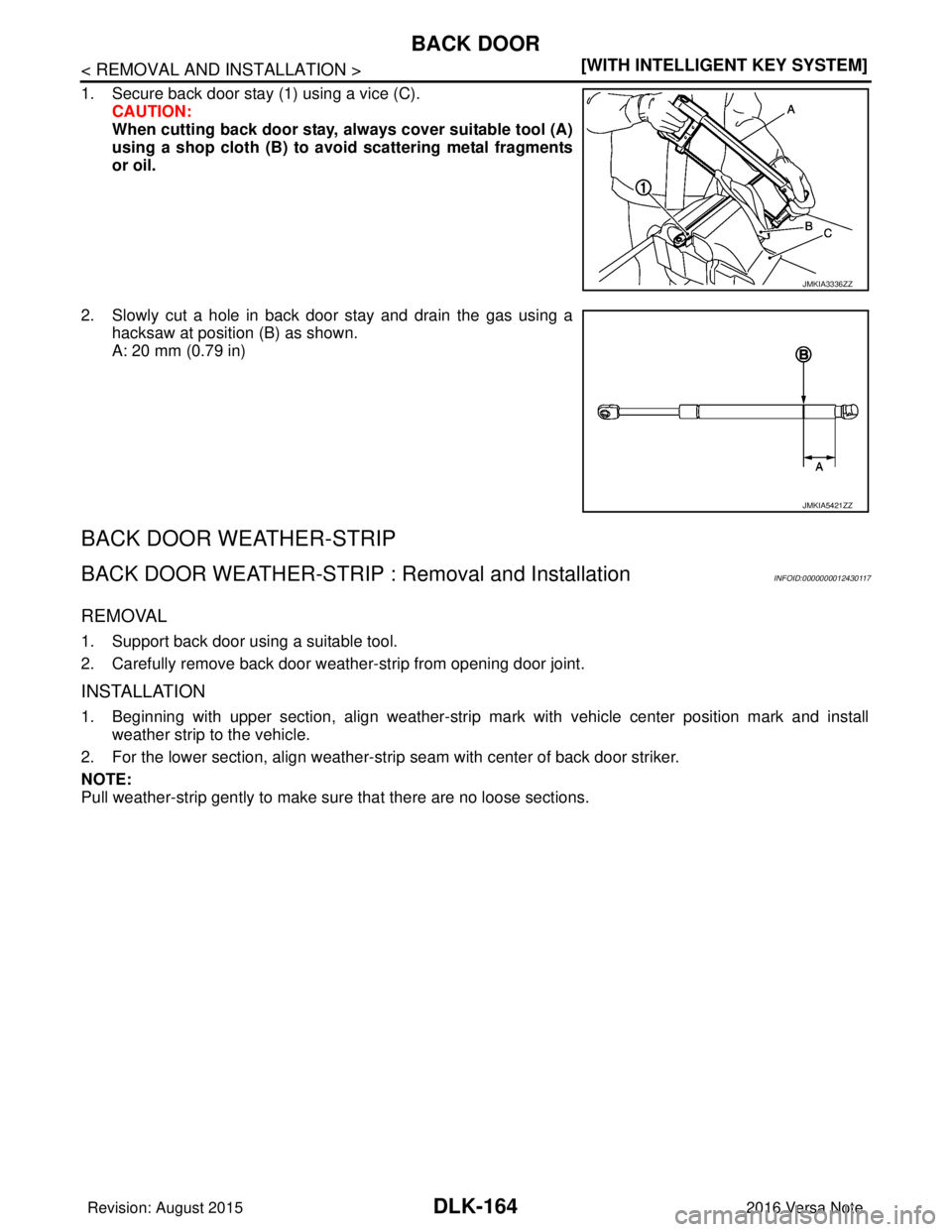

1. Secure back door stay (1) using a vice (C).
CAUTION:
When cutting back door stay, al ways cover suitable tool (A)
using a

Page 854 of 3641

NISSAN NOTE 2016 Service Repair Manual HOOD LOCKDLK-165
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
HOOD LOCK
Exploded ViewINFOID:0000000012430118
HOOD LOCK
HOOD LOCK : Remova l and Installa

Page 855 of 3641

NISSAN NOTE 2016 Service Repair Manual DLK-166
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
HOOD LOCK
• After installation, perform hood assembl
y adjustment procedure. Refer to DLK-141, "HOOD ASSEM-
BLY : Adjustment".
• A

DLK-166
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
HOOD LOCK
• After installation, perform hood assembl
y adjustment procedure. Refer to DLK-141, "HOOD ASSEM-
BLY : Adjustment".
• After adjustment, perform hood lock control inspection. Refer to DLK-166, "
HOOD LOCK : Inspec-
tion".
HOOD LOCK : InspectionINFOID:0000000012430120
HOOD LOCK INSPECTION
NOTE:
If hood lock cable is bent or deformed, replace it. Refer to DLK-165, "
HOOD LOCK : Removal and Installa-
tion".
1. Check that secondary latch is properly engage with secondary striker with hoods own weight.
2. While operating hood lock release lever, carefully check that the front end of hood assembly is raised by approximately 20.0 mm (0.79 in). Also check that hood lock release lever returns to original position.
3. Check that hood lock release lever operates at 49 N (5.0 kg-m, 11.0 ft-lb) or below.
4. Install so that static closing force of hood is 315-490 N (32.1-50.0 kg-m, 70.8-110.2 ft-lb).
5. Check hood lock assembly lubrication condition. If necessary, apply a suitable multi-purpose grease.
HOOD LOCK RELEASE CABLE
HOOD LOCK RELEASE CABLE : Removal and InstallationINFOID:0000000012430121
REMOVAL
1. Disconnect hood lock release cable from hood lock. Refer to DLK-165, "Exploded View".
2. Remove radiator cap adapter bracket bolt (A) and radiator reser- voir tank bolt (B).
3. Remove fender protector (LH). Refer to EXT-38, "
Removal and Installation".
4. Release hood lock control cable clips using a suitable tool.
5. Remove hood lock/fuel filler door release handle. Refer to DLK-167, "
HOOD LOCK RELEASE HANDLE :
Removal and Installation".
6. Remove dash side finisher (LH). Refer to INT-24, "
DASH SIDE FINISHER : Removal and Installation".
7. Remove grommet on the lower dash and pull the hood lock release cable into the passenger compart- ment.
CAUTION:
While pulling, be careful no t to damage (peel) the outsid e of the hood lock release cable.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Be careful not to bend cable too much, keep the radius 100 mm (3.94 in) or more.
• Check that hood lock release cable is properly engaged with hood lock.
JMKIA8027ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 856 of 3641

NISSAN NOTE 2016 Service Repair Manual HOOD LOCKDLK-167
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
• Check that cable is not offset from the positioning grommet, and apply the sealant to
