NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
SYMPTOM DIAGNOSIS
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000012432214
Use the chart below to find the cause of the symptom. T he numbers indicate the order of the inspection. If nec-
essary, repair or replace these parts.
Reference pageCL-5CL-9EM-86CL-18CL-20CL-19
SUSPECTED PARTS (Possible cause)
CLUTCH PEDAL (Inspection and adjustment)
CLUTCH LINE (Air in line)
ENGINE MOUNTING (Loose)
CSC (Concentric Slave Cylinder) (Worn, dirty or damaged)
CLUTCH DISC (Out of true)
CLUTCH DISC (Ru nout is excessive)
CLUTCH DISC (Lining broken)
CLUTCH DISC (Dirty or burned)
CLUTCH DISC (Oily)
CLUTCH DISC (Worn out)
CLUTCH DISC (Hardened)
CLUTCH DISC (Lack of spline grease)
DIAPHRAGM SPRING (Damaged)
DIAPHRAGM SPRING (Out of tip alignment)
PRESSURE PLATE (Distortion)
FLYWHEEL (Distortion)
Symptom Clutch grabs/chatters
122 2 2 2
Clutch pedal spongy 1 2
Clutch noisy 1
Clutch slips 1 2 23 4 5
Clutch does not disengage 12 333333 3445
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION EM
A
EM
N
O P
CONTENTS
ENGINE MECHANICAL
HR16DE
PRECAUTION ....... ........................................
3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution for Procedure without Cowl Top Cover ......3
Draining Engine Coolant ...........................................3
Disconnecting Fuel Piping .........................................3
Removal and Disassembly ........................................3
Inspection, Repair and Replacement ........................4
Assembly and Installation .........................................4
Parts Requiring Angle Tightening ....................... ......4
Precaution for Liquid Gasket .....................................4
PREPARATION ............................................6
PREPARATION .............................................. .....6
Special Service Tools .......................................... ......6
Commercial Service Tools ........................................7
BASIC INSPECTION ...................................10
CAMSHAFT VALVE CLEARANCE ............... ....10
Inspection and Adjustment .................................. ....10
COMPRESSION PRESSURE ............................13
Inspection ............................................................ ....13
SYMPTOM DIAGNOSIS ..............................14
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ........................ ....
14
NVH troubleshooting Chart ................................. ....14
PERIODIC MAINTENANCE .........................16
DRIVE BELT ................................................... ....16
Exploded View .................................................... ....16
Removal and Installation .........................................16
Inspection ............................................................ ....17
Adjustment ...............................................................17
AIR CLEANER FILTER .....................................19
Exploded View .........................................................19
Removal and Installation .........................................19
SPARK PLUG ...................................................21
Exploded View .........................................................21
Removal and Installation .........................................21
REMOVAL AND INSTALLATION ...............24
DRIVE BELT IDLER PULLEY ..........................24
Exploded View ..................................................... ....24
Removal and Installation .........................................24
AIR CLEANER AND AIR DUCT .......................26
Exploded View .........................................................26
Removal and Installation .........................................26
INTAKE MANIFOLD .........................................28
Exploded View .........................................................28
Removal and Installation .........................................28
EXHAUST MANIFOLD ......................................31
Exploded View .........................................................31
Removal and Installation .........................................31
OIL PAN AND OIL STRAINER .........................34
Exploded View .........................................................34
Removal and Installation (Lower Oil Pan) ...............34
Removal and Installation (Upper Oil Pan) ........... ....37
FUEL INJECTOR AND FUEL TUBE ................40
Exploded View .........................................................40
Removal and Installation .........................................40
IGNITION COIL .................................................47
Exploded View .........................................................47
Removal and Installation .........................................47
ROCKER COVER .............................................48
Revision: August 2015 2016 Versa Note

cardiagn.com

PRECAUTIONSEM-3
< PRECAUTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
PRECAUTION
PRECAUTIONS
Precaution for Supplemental
Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012431679
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for Procedure without Cowl Top CoverINFOID:0000000012431680
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Draining Engine CoolantINFOID:0000000012431681
Drain engine coolant and engine oil when the engine is cooled.
Disconnecting Fuel PipingINFOID:0000000012431682
• Before starting work, check no fire or spark producing items are in the work area.
• Release fuel pressure before disconnecting and disassembly.
• After disconnecting pipes, plug openings to stop fuel leakage.
Removal and DisassemblyINFOID:0000000012431683
• When instructed to use SST, use specified tools. Alwa ys be careful to work safely, avoid forceful or unin-
structed operations.
• Use care to avoid damage to mating or sliding surfaces.
PIIB3706J
Revision: August 2015 2016 Versa Note

cardiagn.com

COMPRESSION PRESSUREEM-13
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
COMPRESSION PRESSURE
InspectionINFOID:0000000012431691
1. Warm up engine to full operating temperature and then turn it off.
2. Release fuel pressure. Refer to
EC-137, "
Work Procedure".
3. Remove ignition coil and spark plug from each cylinder. Refer to EM-48, "
Exploded View".
4. Connect engine tachometer (not required in use of CONSULT).

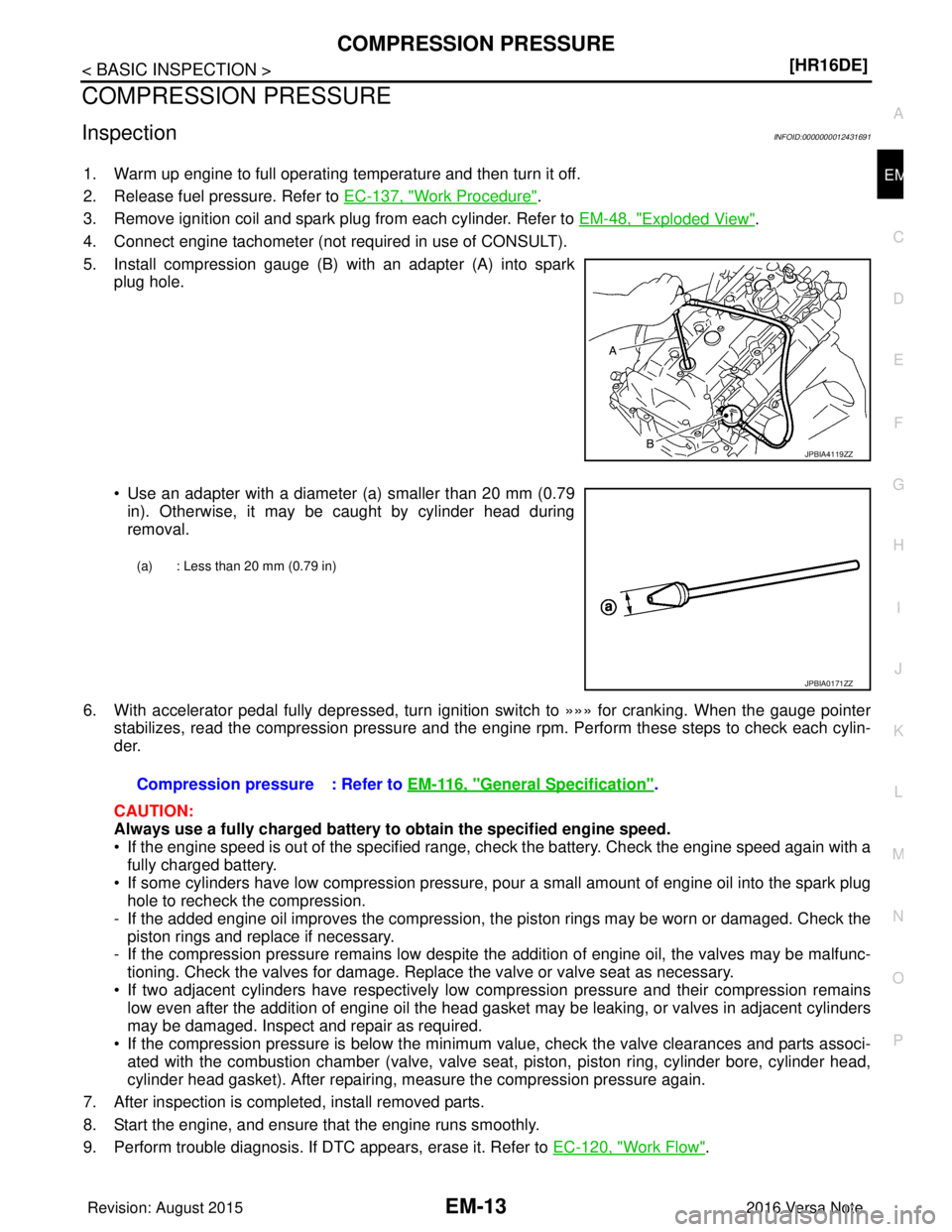

5. Install compression gauge (B) with an adapter (A) into spark plug hole.
