2016 NISSAN NOTE alarm

BCS-2
COMB SW : CONSULT Function (BCM - COMB
SW) .........................................................................
25
BCM ........................................................................ ...25
BCM : CONSULT Function (BCM - BCM) ..............25
IMMU ...................................................................... ...26
IMMU : CONSULT Function (BCM - IMMU) ...........26
BATTERY SAVER ................................................. ...26
BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER) .................................................
26
THEFT ALM ........................................................... ...27
THEFT ALM : CONSULT Function (BCM -
THEFT) ...................................................................
27
RETAINED PWR .................................................... ...28
RETAINED PWR : CONSULT Function (BCM -
RETAINED PWR) ...................................................
28
SIGNAL BUFFER ................................................... ...28
SIGNAL BUFFER : CONSULT Function (BCM -
SIGNAL BUFFER) ..................................................
28
AIR PRESSURE MONITOR ................................... ...28
AIR PRESSURE MONITOR : CONSULT Function
(BCM - AIR PRESSURE MONITOR) .....................
28
PANIC ALARM ....................................................... ...29
PANIC ALARM : CONSULT Function (BCM -
PANIC ALARM) ......................................................
29
ECU DIAGNOSIS INFORMATION ..............30
BCM ................................................................ ...30
Reference Value .................................................. ...30
Fail-safe ..................................................................48
DTC Inspection Priority Chart ..............................49
DTC Index ........................................................... ...50
WIRING DIAGRAM .....................................52
BCM ................................................................ ...52
Wiring Diagram .................................................... ...52
BASIC INSPECTION ...................................58
ADDITIONAL SERVICE WHEN REPLACING
BCM ................................................................ ...
58
Description ........................................................... ...58
Work Procedure ......................................................58
CONFIGURATION (BCM) .................................59
Description ........................................................... ...59
Work Procedure ......................................................59
Configuration List ....................................................60
SHIPPING MODE CANCEL OPERATION ........61
Work Procedure ................................................... ...61
TRANSIT MODE CANCEL OPERATION ..........62
Work Procedure ................................................... ...62
DTC/CIRCUIT DIAGNOSIS ........................63
U1000 CAN COMM CIRCUIT ......................... ...63
Description ........................................................... ...63
DTC Logic ...............................................................63
Diagnosis Procedure ...............................................63
U1010 CONTROL UNIT (CAN) .........................64
DTC Logic ............................................................ ...64
Diagnosis Procedure ...............................................64
U0415 VEHICLE SPEED ...................................65
DTC Logic ...............................................................65
Diagnosis Procedure ...............................................65
B2562 LOW VOLTAGE .....................................66
DTC Logic ............................................................ ...66
Diagnosis Procedure ...............................................66
POWER SUPPLY AND GROUND CIRCUIT .....67
Diagnosis Procedure ............................................ ...67
COMBINATION SWITCH INPUT CIRCUIT .......68
Diagnosis Procedure ...............................................68
COMBINATION SWITCH OUTPUT CIRCUIT ...70
Diagnosis Procedure ...............................................70
SYMPTOM DIAGNOSIS ............................72
COMBINATION SWITCH SYSTEM SYMP-
TOMS .............................................................. ...
72
Symptom Table .................................................... ...72
NORMAL OPERATING CONDITION ................73
Description ........................................................... ...73
REMOVAL AND INSTALLATION ..............74
BCM (BODY CONTROL MODULE) ............... ...74
Removal and Installation .........................................74
COMBINATION SWITCH ............................... ...75
Removal and Installation .........................................75
WITHOUT INTELLIGENT KEY SYSTEM
PRECAUTION ........ ....................................
76
PRECAUTIONS .............................................. ...76
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
76
SYSTEM DESCRIPTION ...........................77
COMPONENT PARTS .................................... ...77
BODY CONTROL SYSTEM ......................................77
BODY CONTROL SYSTEM : Component Parts
Location ............................................................... ...
77
POWER CONSUMPTION CONTROL SYSTEM .... ...77
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
BCS-3
C
DE
F
G H
I
J
K L
B
A
O P
N
POWER CONSUMPTION CONTROL SYSTEM :
Component Parts Location ..................................
....
77
SYSTEM .............................................................78
BODY CONTROL SYSTEM ......................................78
BODY CONTROL SYSTEM : System Description ....78
BODY CONTROL SYSTEM : Fail-safe ............... ....79
COMBINATION SWITCH READING SYSTEM ..... ....79
COMBINATION SWITCH READING SYSTEM :
System Description .................................................
79
SIGNAL BUFFER .................................................. ....84
SIGNAL BUFFER : System Description ..................85
POWER CONSUMPTION CONTROL SYSTEM ... ....85
POWER CONSUMPTION CONTROL SYSTEM :
System Description .................................................
85

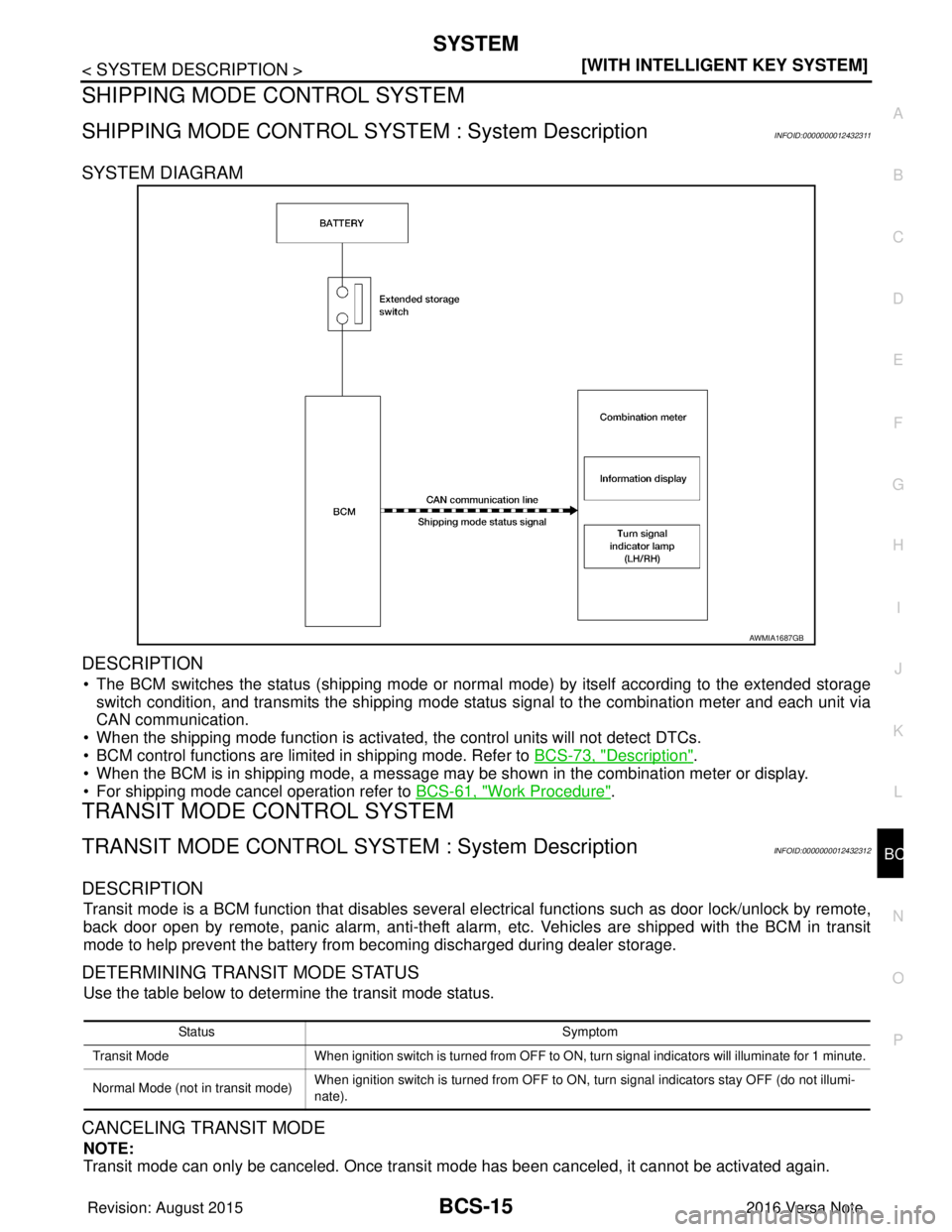

SHIPPING MODE CONTROL SYSTEM ....................87
SHIPPING MODE CONTROL SYSTEM : System
Description .......................................................... ....
87
TRANSIT MODE CONTROL SYSTEM .....................87
TRANSIT MODE CONTROL SYSTEM : System
Description .......................................................... ....
88
DIAGNOSIS SYSTEM (BCM) ............................89
COMMON ITEM ..................................................... ....89
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................
89
DOOR LOCK ......................................................... ....90
DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) .........................................................
90
REAR DEFOGGER ............................................... ....90
REAR DEFOGGER : CONSULT Function (BCM -
REAR DEFOGGER) ........................................... ....
91
BUZZER ................................................................. ....91
BUZZER : CONSULT Function (BCM - BUZZER) ....91
INT LAMP .............................................................. ....91
INT LAMP : CONSULT Function (BCM - INT
LAMP) .....................................................................
91
MULTI REMOTE ENT ............................................ ....92
MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) ...............................
92
HEADLAMP ........................................................... ....93
HEADLAMP : CONSULT Function (BCM - HEAD
LAMP) .....................................................................
93
WIPER ................................................................... ....94
WIPER : CONSULT Function (BCM - WIPER) .......94
FLASHER .............................................................. ....95
FLASHER : CONSULT Function (BCM - FLASH-
ER) ..........................................................................
95
AIR CONDITIONER ............................................... ....95
AIR CONDITIONER : CONSULT Function (BCM -
AIR CONDITIONER) ........................................... ....
95
COMB SW .............................................................. ....96
COMB SW : CONSULT Function (BCM - COMB
SW) ..........................................................................
96
BCM ....................................................................... ....96
BCM : CONSULT Function (BCM - BCM) ...............96
IMMU ...................................................................... ....96
IMMU : CONSULT Function (BCM - IMMU) ............97
BATTERY SAVER ................................................. ....97
BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER) ..................................................
97
THEFT ALM ........................................................... ....97
THEFT ALM : CONSULT Function (BCM -
THEFT) ....................................................................
98
RETAINED PWR .................................................... ....98
RETAINED PWR : CONSULT Function (BCM -
RETAINED PWR) ....................................................
98
SIGNAL BUFFER .................................................. ....98
SIGNAL BUFFER : CONSULT Function (BCM -
SIGNAL BUFFER) ...................................................
98
AIR PRESSURE MONITOR ................................... ....99
AIR PRESSURE MONITOR : CONSULT Function
(BCM - AIR PRESSURE MONITOR) ......................
99
PANIC ALARM ...................................................... ....99
PANIC ALARM : CONSULT Function (BCM -
PANIC ALARM) .....................................................
100
ECU DIAGNOSIS INFORMATION ............101
BCM .................................................................101
Reference Value .................................................. ..101
Fail-safe .................................................................115
DTC Inspection Priority Chart .............................115
DTC Index .............................................................115
WIRING DIAGRAM ....................................117
BCM .................................................................117
Wiring Diagram .................................................... ..117
BASIC INSPECTION .................................121
ADDITIONAL SERVICE WHEN REPLACING
BCM .................................................................
121
Description ........................................................... ..121
Work Procedure .....................................................121
CONFIGURATION (BCM) ...............................123
Description .............................................................123
Work Procedure .....................................................123
Configuration List ...................................................124
SHIPPING MODE CANCEL OPERATION .....125
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS-14
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
SYSTEM
• BCM switches the status (control mode) by itself wit
h the power saving control function. It performs the sleep
request to each unit (IPDM E/R and combination mete r) that operates with the ignition switch OFF.
Normal mode (wake-up)- CAN communication is normally performed with other units
- Each control with BCM is operating properly
CAN communication sleep mode (CAN sleep)- CAN transmission is stopped
- Control with BCM only is operating
Low power consumption mode (BCM sleep)- Low power consumption control is active
- CAN transmission is stopped
LOW POWER CONSUMPTION CONTROL WITH BCM
BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of each switch changes from 10 ms interval to 60 ms interval.
Sleep mode activation
• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communica-
tion.
• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful- filled.
• Each unit stops the transmission of CAN communication with the sleep wakeup signal. BCM is in CAN com- munication sleep mode.
• BCM is in the low power consumption mode and perform s the low power consumption control when all of the
BCM sleep conditions are fulfilled with CAN sleep condition.
Sleep condition
Wake-up operation
• BCM transmits the sleep wake up signal (wake up) to each unit when any of the CAN wake-up conditions are fulfilled. It changes from the low power consumption mode or the CAN communication sleep mode to the
normal mode.
• Each unit starts the transmission of CAN communication with the sleep wake up signal. In addition, the com- bination meter transmits the wake up signal to BCM via CAN communication to report the CAN communica-
tion start.
CAN sleep condition BCM sleep condition
• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system alarm: No operation
• Warning lamp: Not operation
• Intelligent Key system buzzer: No operation
• Brake switch: OFF
• Turn signal indicator lamp: No operation
•Exterior lamp: OFF
• Door lock status: No change
• CONSULT communication status: No communication
• Meter display signal: Non-transmission
• Door switch status: No change
• Rear window defogger: OFF • Interior room lamp battery saver: Time out
• RAP system: OFF
• Push-button ignition switch (push switch) illumination: OFF
• NATS: No operation
• Remote keyless entry receiver communication status: No com-
munication
• Tire pressure monitoring system:Stop
BCM wake-up condition CAN wake-up condition
• Front door lock assembly LH (key cylinder switch): Lock or unlock
• Door lock switch: OFF →ON
• Door unlock switch: OFF→ON
• Remote keyless entry receiver: Receiving valid keyfob • Receiving the sleep-ready signal (Not-ready) from any units
• Push-button ignition switch (push switch): OFF
→ON
• Hazard switch: OFF →ON
• PASSING switch: OFF →ON, ON →OFF
• TAIL LAMP switch: OFF →ON
• Front door switch LH: OFF →ON, ON→OFF
• Front door switch RH: OFF → ON, ON → OFF
• Front outside handle LH request switch: OFF →ON
• Front outside handle RH request switch: OFF→ON
• Stop lamp switch 2 signal: ON
• Remote keyless entry receiver: Receiving valid keyfob
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
SYSTEMBCS-15
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SHIPPING MODE CONTROL SYSTEM
SHIPPING MODE CONTROL SYSTEM : System DescriptionINFOID:0000000012432311
SYSTEM DIAGRAM
DESCRIPTION
• The BCM switches the status (shipping mode or norma
l mode) by itself according to the extended storage
switch condition, and transmits the shipping mode status signal to the combination meter and each unit via
CAN communication.
• When the shipping mode function is activated, the control units will not detect DTCs.
• BCM control functions are limited in shipping mode. Refer to BCS-73, "
Description".
• When the BCM is in shipping mode, a message may be shown in the combination meter or display.
• For shipping mode cancel operation refer to BCS-61, "
Work Procedure".
TRANSIT MODE CONTROL SYSTEM
TRANSIT MODE CONTROL SYSTEM : System DescriptionINFOID:0000000012432312
DESCRIPTION
Transit mode is a BCM function that disables several el ectrical functions such as door lock/unlock by remote,
back door open by remote, panic alarm, anti-theft alarm, etc. Vehicles are shipped with the BCM in transit
mode to help prevent the battery from becoming discharged during dealer storage.
DETERMINING TRANSIT MODE STATUS
Use the table below to determine the transit mode status.
CANCELING TRANSIT MODE
NOTE:
Transit mode can only be canceled. Once transit mode has been canceled, it cannot be activated again.
AWMIA1687GB
Sta tus Sy mp tom
Transit Mode When ignition switch is turned from OFF to ON, turn signal indicators will illuminate for 1 minute.
Normal Mode (not in transit mode) When ignition switch is turned from OFF to ON,
turn signal indicators stay OFF (do not illumi-
nate).
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
DIAGNOSIS SYSTEM (BCM)BCS-17
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000012432313
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode
Description
ECU Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
ECU Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN DIAG SUPPORT MNTR
Door lock
DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ×××
Air conditioner AIR CONDITIONER ×
Intelligent Key system INTELLIGENT KEY ××××
Combination switch COMB SW ×
BCM BCM× × ×××
Immobilizer IMMU ××××
Interior room lamp battery saver BATTERY SAVER ×××
Vehicle security system THEFT ALM ××
RAP system RETAINED PWR ×
Signal buffer system SIGNAL BUFFER ×
TPMS AIR PRESSURE MONITOR ××××
Panic alarm system PANIC ALARM ×
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS-22
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
* : Initial setting
FLASHER
FLASHER : CONSULT Function (BCM - FLASHER)INFOID:0000000012432320
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
* : Initial setting
AIR CONDITIONER
AIR CONDITIONER : CONSULT Func
tion (BCM - AIR CONDITIONER)INFOID:0000000012432321
DATA MONITOR
INTELLIGENT KEY
INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)INFOID:0000000012432322
SELF DIAGNOSTIC RESULT
Refer to BCS-50, "DTCIndex".
DATA MONITOR
Monitor Item [Unit]
Description
REQ SW -DR [On/Off] Indicates condition of door request switch LH.
REQ SW -AS [On/Off] Indicates condition of door request switch RH.
PUSH SW [On/Off] Indicates condition of push-button ignition switch.
TURN SIGNAL R [On/Off] Indicates condition of turn signal function of combination switch.
TURN SIGNAL L [On/Off]
HAZARD SW [On/Off] Indicates condition of hazard switch.
RKE-LOCK [On/Off] Indicates condition of lock signal from Intelligent Key.
RKE-UNLOCK [On/Off] Indicates condition of unlock signal from Intelligent Key.
RKE-PANIC [On/Off] Indicates condition of panic alarm signal from Intelligent Key.
Te s t I t e m D e s c r i p t i o n
FLASHER This test is able to check turn signal lamp operation [Off/LH/RH].
Support ItemSetting Description
HAZARD ANSWER BACK Lock/Unlock*
Hazard warning lamp activation when doors are locked or unlocked with
Intelligent Key.
Unlock Only Hazard warning lamp activation when doors are unlocked with Intelligent
Key.
Lock Only Hazard warning lamp activation when doors are locked with Intelligent
Key.
Off No hazard warning lamp activation when doors are locked or unlocked
with Intelligent Key.
Monitor Item [Unit]
Description
FAN ON SIG [On/Off] Indicates condition of fan switch.
AIR COND SW [On/Off] Indicates condition of A/C switch.
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS-24
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
WORK SUPPORT
PUSH SWITCH INDICATOR
This test is able to check push-button ignition switch indicator operation [On/Off].
INT LAMP This test is able to check interior room lamp operation [On/Off].
INDICATOR This test is able to check combination meter warning lamp operation [KEY ON/KEY IND/Off].
FLASHER This test is able to check hazard lamp operation [LH/RH/Off].
OUTSIDE BUZZER This test is able to check Intelligent Key warning buzzer operation [On/Off].
HORN This test is able to check horn operation [On].
P RANGE This test is able to check CVT shift selector illumination operation [On/Off].
Test Item
Description
Support ItemSetting Description
LOCK/UNLOCK BY I-KEY On*
Door lock/unlock function from Intelligent Key ON.
Off Door lock/unlock function from Intelligent Key OFF.
ANTI KEY LOCK IN FUNCTI On*
Anti lock out setting ON.
Off Anti lock out setting OFF.
ANS BACK I-KEY UNLOCK Off
No buzzer reminder when doors are unlocked with request switch.
On* Buzzer reminder when doors are unlocked with request switch.
ANS BACK I-KEY LOCK Horn Chirp
Horn chirp reminder when doors are locked with request switch.
Buzzer* Buzzer reminder when doors are locked with request switch.
Off No reminder when doors are locked with request switch.
HORN WITH KEYLESS LOCK Off
Horn chirp reminder when doors are locked with Intelligent Key.
On* No horn chirp reminder when doors are locked with Intelligent Key.
HAZARD ANSWER BACK Lock/Unlock*
Hazard warning lamp activation when doors are locked/unlocked
with Intelligent Key or request switch.
Unlock Only Hazard warning lamp activation when doors are unlocked with Intel-
ligent Key or request switch.
Lock Only Hazard warning lamp activation when doors are locked with Intelli-
gent Key or request switch.
Off No hazard warning lamp activation when doors are locked/unlocked
with Intelligent Key or request switch.
INSIDE ANT DIAGNOSIS —This function allows inside key antenna self-diagnosis.
CONFIRM KEY FOB ID —Intelligent Key ID code can be checked.
SHORT CRANKING OUTPUT Start70 msec
Starter motor operation duration time setting.
100 msec
200 msec
End —
PANIC ALARM SET MODE 3 1.5 sec
Intelligent Key panic alarm button setting.
MODE 2 OFF
MODE 1* 0.5 sec
LO- BATT OF KEY FOB WARN On*
Intelligent Key low battery warning ON.
Off Intelligent Key low battery warning OFF.
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
DIAGNOSIS SYSTEM (BCM)BCS-29
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
NWORK SUPPORT
PANIC ALARM
PANIC ALARM : CONSULT Function (BCM - PANIC ALARM)INFOID:0000000012432331
ACTIVE TEST
Test Item
Description
HORN This test is able to check horn operation [On].
FLASHER This test is able to check turn signal lamp operation [Off/LH/RH].
ID REGIST WARNING This test is able to check ID registration warning chime operation [On/Off].
WARNING LAMP This test is able to check tire pressure warning lamp operation [On/Off].
Support Item Description
ID READ The registered ID number is displayed.
ID REGIST Refer to WT-22, "
Description".
Test Item Description
VEHICLE SECURITY HORN This te st is able to check panic alarm operation [On].
HEAD LAMP (HI) This test is able to check head lamp HI operation [On].
Revision: August 2015 2016 Versa Note

cardiagn.com
