NISSAN NOTE 2016 Service Repair Manual EC-122
< BASIC INSPECTION >[HR16DE]
DIAGNOSIS AND REPAIR WORKFLOW
NO >> Check according to
GI-42, "Intermittent Incident".
6.PERFORM BASIC INSPECTION
Perform EC-133, "
Work Procedure".
Do you have C

EC-122
< BASIC INSPECTION >[HR16DE]
DIAGNOSIS AND REPAIR WORKFLOW
NO >> Check according to
GI-42, "Intermittent Incident".
6.PERFORM BASIC INSPECTION
Perform EC-133, "
Work Procedure".
Do you have CONSULT?
YES >> GO TO 7.
NO >> GO TO 9.
7.PERFORM “SPEC” IN DATA MONITOR MODE
With CONSULT
Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL” and “A/F ALPHA-B1” are within the SP value in “SPEC”
of “DATA MONITOR” mode with CONSULT. Refer to EC-151, "
Component Function Check".
Is the measurement value within the SP value?
YES >> GO TO 9.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART BY TROUBL E DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-152, "
Diagnosis Procedure".
Is malfunctioning part detected?
YES >> GO TO 11.
NO >> GO TO 9.
9.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to EC-464, "
Symptom Table" based on the confirmed symptom in
step 4, and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 10.
10.DETECT MALFUNCTIONING PA RT BY DIAGNOSIS PROCEDURE
Inspect according to Diagnos is Procedure of the system.
NOTE:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnosis Procedure. For details, refer to GI-44, "
Circuit Inspec-
tion".
Is malfunctioning part detected?
YES >> GO TO 11.
NO >> Monitor input data from related sensors or check the voltage of related ECM terminals using CON- SULT. Refer to EC-71, "
Reference Value".
11 .REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace- ment.
3. Check DTC. If DTC is displayed, erase it.
With CONSULT: “How to Erase DTC and 1st Trip DTC” in EC-60, "
CONSULT Function".
Without CONSULT: “How to Erase Self-diagnostic Results” in EC-57, "
On Board Diagnosis Function".
>> GO TO 12.
12.FINAL CHECK
When DTC was detected in step 2, perform DTC CO NFIRMATION PROCEDURE or Component Function
Check again, and then make sure that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 10.
YES-2 >> Symptom remains: GO TO 6.
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1250 of 3641

NISSAN NOTE 2016 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOWEC-123
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NO-1 >> No request for I/M examination from the custom
er: Before returning the vehicle to the custome

Page 1251 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-124
< BASIC INSPECTION >[HR16DE]
DIAGNOSIS AND REPAIR WORKFLOW

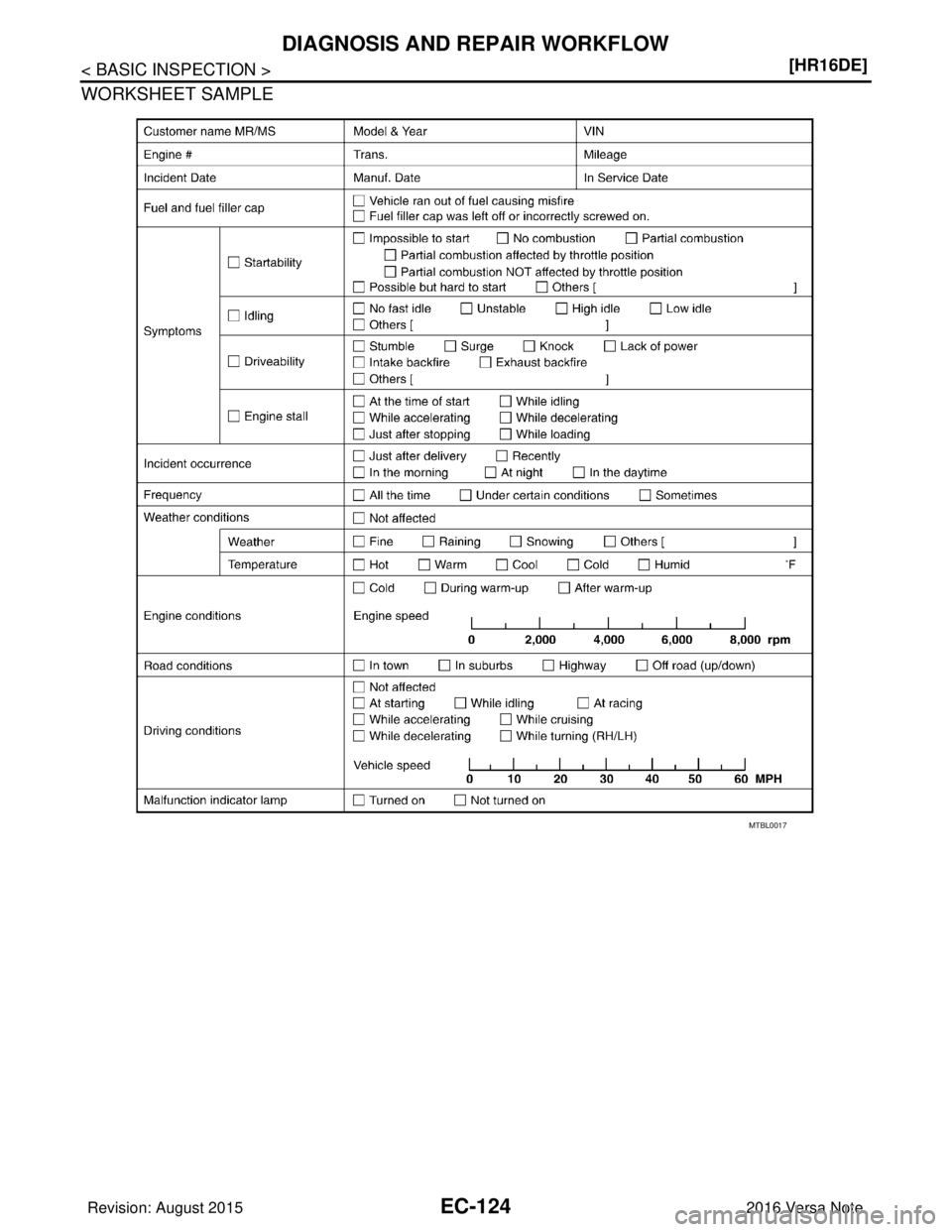

WORKSHEET SAMPLE
MTBL0017
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 1252 of 3641

NISSAN NOTE 2016 Service Repair Manual ADDITIONAL SERVICE WHEN REPLACING ECMEC-125
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ADDITIONAL SERVICE WHEN REPLACING ECM
DescriptionINFOID:0000000012431350
When replacing ECM, t

ADDITIONAL SERVICE WHEN REPLACING ECMEC-125
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ADDITIONAL SERVICE WHEN REPLACING ECM
DescriptionINFOID:0000000012431350
When replacing ECM, the following procedure mu
st be performed. (For details, refer to EC-125, "Work Proce-
dure".)
PROGRAMMING OPERATION
NOTE:
After replacing with a blank ECM, programming is required to write ECM information. Be sure to follow the pro-
cedure to perform the programming.
Work ProcedureINFOID:0000000012431351
1.CHECK ECM PART NUMBER
Check ECM part number to see whether it is blank ECM or not.
NOTE:
• Part number of blank ECM is 23703 - ×××××.
• Check the part number when ordering ECM or with the one included in the label on the container box.
Is the ECM a blank ECM?
YES >> GO TO 2.
NO >> GO TO 4.
2.SAVE ECM PART NUMBER
Read out the part number from the old ECM and save the number, following the programming instructions.
Refer to “CONSULT Operation Manual”.
NOTE:
• The ECM part number is saved in CONSULT.
• Even when ECM part number is not saved in CONSULT, go to 3.
>> GO TO 3.
3.PERFORM ECM PROGRAMMING
After replacing ECM, perform the ECM program ming. Refer to “CONSULT Operation Manual”.
NOTE:
• Refer to EC-477, "
Removal and Installation" for replacement of ECM.
• During programming, maintain the following conditions:
- Ignition switch: ON
- Electric load: OFF
- Brake pedal: Not depressed
- Battery voltage: 12 – 13.5 V (Be sure to check the va lue of battery voltage by selecting “BATTERY VOLT” in
“Data monitor” of CONSULT.)
>> GO TO 4.
4.REPLACE ECM
Replace ECM. Refer to EC-477, "
Removal and Installation".
>> GO TO 5.
5.PERFORM VIN REGISTRATION
Refer to EC-127, "
Description".
>> GO TO 6.
6.PERFORM INITIALIZATION OF NATS SYSTEM AND REGISTRATION OF ALL NATS IGNITION KEY IDS
Refer to SEC-49, "
ECM : Description"(with I-Key), SEC-142, "ECM RE-COMMUNICATING FUNCTION :
Description"(without I-Key).
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1253 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-126
< BASIC INSPECTION >[HR16DE]
ADDITIONAL SERVICE WHEN REPLACING ECM
>> GO TO 7.
7.PERFORM ACCELERATOR PEDAL RE
LEASED POSITION LEARNING
Refer to EC-128, "
Description".
>> GO TO 8.
8.PERFORM TH

Page 1254 of 3641

NISSAN NOTE 2016 Service Repair Manual VIN REGISTRATIONEC-127
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
VIN REGISTRATION
DescriptionINFOID:0000000012431352
VIN Registration is an operation to registering VIN in
ECM. It

Page 1255 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-128
< BASIC INSPECTION >[HR16DE]
ACCELERATOR PEDAL RELEASED POSITION LEARNING
ACCELERATOR PEDAL REL
EASED POSITION LEARNING
DescriptionINFOID:0000000012431354
Accelerator Pedal Released Position Le

Page 1256 of 3641

NISSAN NOTE 2016 Service Repair Manual THROTTLE VALVE CLOSED POSITION LEARNINGEC-129
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
THROTTLE VALVE CLOSED
POSITION LEARNING
DescriptionINFOID:0000000012431356
Throttle Valve C
