WT-50
< REMOVAL AND INSTALLATION >
TRANSMITTER

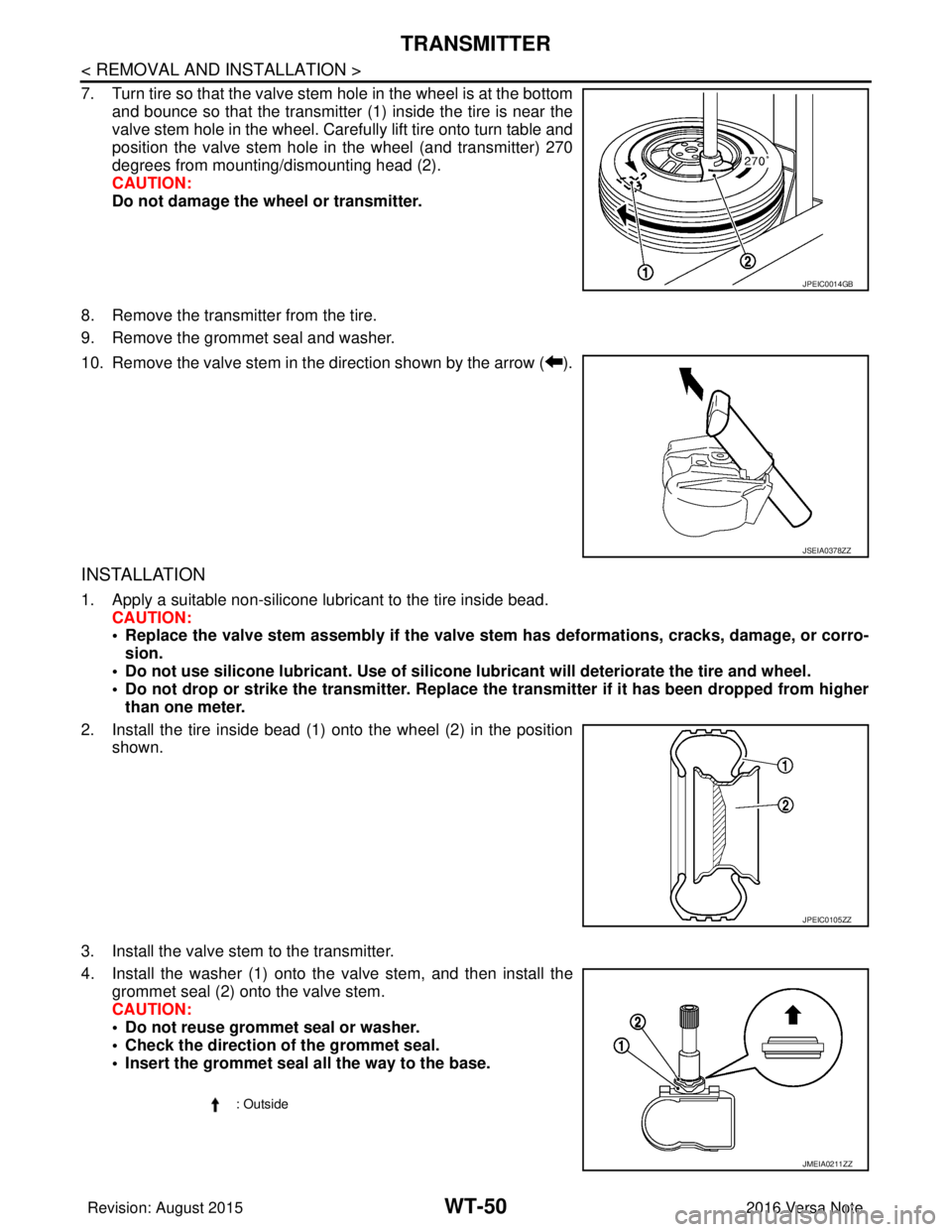

7. Turn tire so that the valve stem hole in the wheel is at the bottom
and bounce so that the transmitter (1) inside the tire is near the
valve stem hole in the wheel. Carefully lift tire onto turn table and
position the valve stem hole in the wheel (and transmitter) 270
degrees from mounting/dismounting head (2).
CAUTION:
Do not damage the wheel or transmitter.
8. Remove the transmitter from the tire.
9. Remove the grommet seal and washer.
10. Remove the valve stem in the direction shown by the arrow ( ).
INSTALLATION
1. Apply a suitable non-silicone lubricant to the tire inside bead. CAUTION:
• Replace the valve stem assembly if the valve stem has deformations, cracks, damage, or corro-
sion.
• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and wheel.
• Do not drop or strike the transmitter. Replace the transmitter if it has been dropped from higher
than one meter.
2. Install the tire inside bead (1) onto the wheel (2) in the position shown.
3. Install the valve stem to the transmitter.
4. Install the washer (1) onto the valve stem, and then install the grommet seal (2) onto the valve stem.
CAUTION:
• Do not reuse grommet seal or washer.
• Check the direction of the grommet seal.
• Insert the grommet seal all the way to the base.
JPEIC0014GB
JSEIA0378ZZ
JPEIC0105ZZ
: Outside
JMEIA0211ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2794 of 3641

TRANSMITTERWT-51
< REMOVAL AND INSTALLATION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
CAUTION:
Direct the cut part (A) of the washer to the center of the
valve stem as shown.

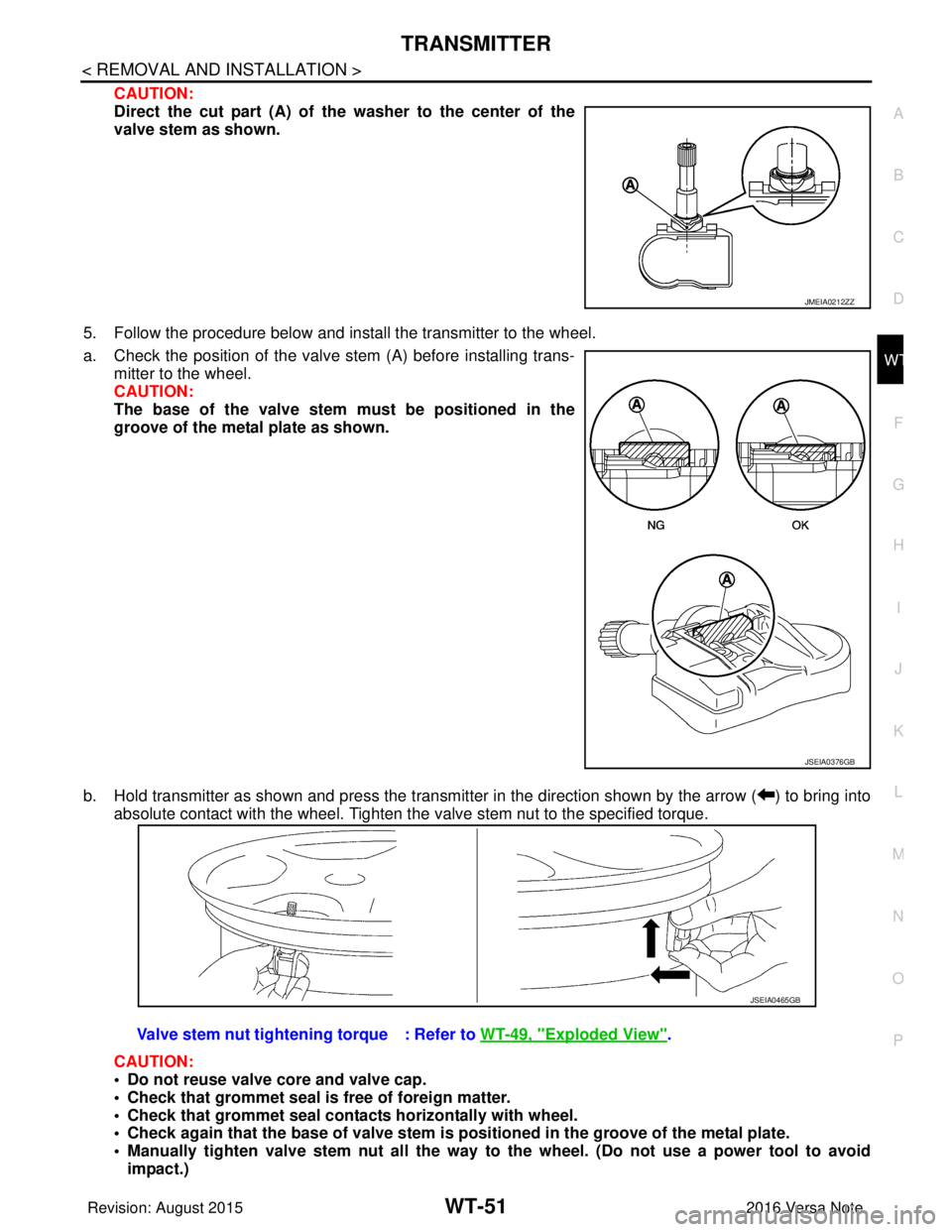

5. Follow the procedure below and install the transmitter to the wheel.
a. Check the position of the valve stem (A) before installing trans-
mitter to the wheel.
CAUTION:
The base of the valve stem mu st be positioned in the
groove of the metal plate as shown.
b. Hold transmitter as shown and press the transmitter in the direction shown by the arrow ( ) to bring into absolute contact with the wheel. Tighten the valve stem nut to the specified torque.
CAUTION:
• Do not reuse valve core and valve cap.
• Check that grommet seal is free of foreign matter.
• Check that grommet seal contacts horizontally with wheel.
• Check again that the base of valve stem is po sitioned in the groove of the metal plate.
• Manually tighten valve stem nut all the way to the wheel. (Do not use a power tool to avoid
impact.)
JMEIA0212ZZ
JSEIA0376GB
Valve stem nut tightening torque : Refer to WT-49, "Exploded View".
JSEIA0465GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2795 of 3641

WT-52
< REMOVAL AND INSTALLATION >
TRANSMITTER
• Do not tighten valve stem nut to more than the specified torque. It may cause grommet seal dam-age.
• Do not tighten valve stem nut to less than th e specified torque. It may cause an air leak.
6. Place wheel on turntable of tire machine. Ensure that transmitter (1) is 270 degrees from mounting/dismounting head (2).
CAUTION:
Do not touch transmitter with mounting head.
7. Apply a suitable non-silicone lubricant to the tire outside bead. CAUTION:
• Do not use silicone lubricant. Use of silicone lubricant will
deteriorate the tire and wheel.
• Do not allow lubricant to make contact with transmitter.
• When installing, check that the tire does not turn together with the wheel.
8. Install the tire outside bead onto the wheel as normal. NOTE:
If the tire is being reused, align the matching mark applied on the tire with the position of the valve stem
assembly for the purpose of wheel and tire balance adjus tment after installation. Make sure that the tire
does not rotate relative to wheel.
9. Install the valve core and inflate tire. Refer to WT-54, "
Tire Air Pressure".
CAUTION:
Do not reuse valve core.
10. Install the valve cap. CAUTION:
Do not reuse valve cap.
11. Balance the wheel and tire. Install wheel and tire in the appropriate position on vehicle. Refer to WT-45,
"Adjustment".
12. Perform the ID registration procedure. Refer to WT-22, "
Description".
NOTE:
If replacing the transmitter, then the ID registration procedure must be performed.
DisposalINFOID:0000000012432471
CAUTION:
• When discarding transmitter, remove battery (1) from transmitter.
• Dispose of battery according to the law and local regulations.
1. Remove battery from transmitter. NOTE:
The battery is sealed to the transmitter with urethane.
a. Remove urethane from transmitter.
b. Cut battery terminal (A), then remove battery from tire pressure senor.
JPEIC0014GB
JSEIA0729ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2796 of 3641
TIRE PRESSURE RECEIVERWT-53
< REMOVAL AND INSTALLATION >
C
DF
G H
I
J
K L
M A
B
WT
N
O P
TIRE PRESSURE RECEIVER
Removal and InstallationINFOID:0000000012432472
The tire pressure receiver is integral to the remote keyless entry receiver. Refer to SEC-116, "Removal and
Installation".
Revision: August 2015 2016 Versa Note
