Page 1265 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-138
< BASIC INSPECTION >[HR16DE]
FUEL PRESSURE CHECK
4. Connect fuel hose for fuel pressure check (1) to fuel tube
(engine side) with clamp (2) as shown in the figure.
CAUTION:
• Wipe off oil or

Page 1266 of 3641

NISSAN NOTE 2016 Service Repair Manual HOW TO SET SRT CODEEC-139
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO SET SRT CODE
DescriptionINFOID:0000000012431364
OUTLINE
In order to set all SRTs, the self-diagnoses as i

Page 1267 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-140
< BASIC INSPECTION >[HR16DE]
HOW TO SET SRT CODE

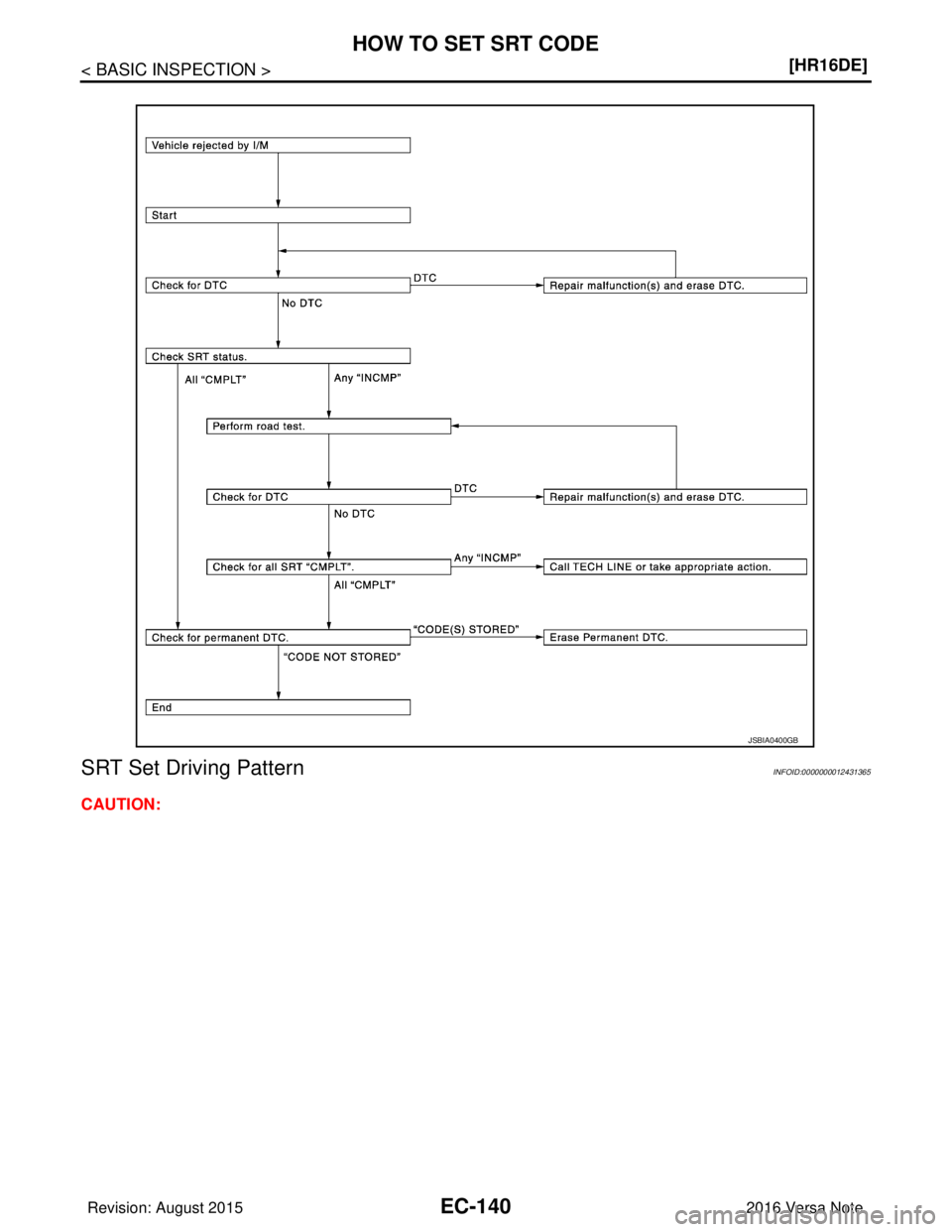

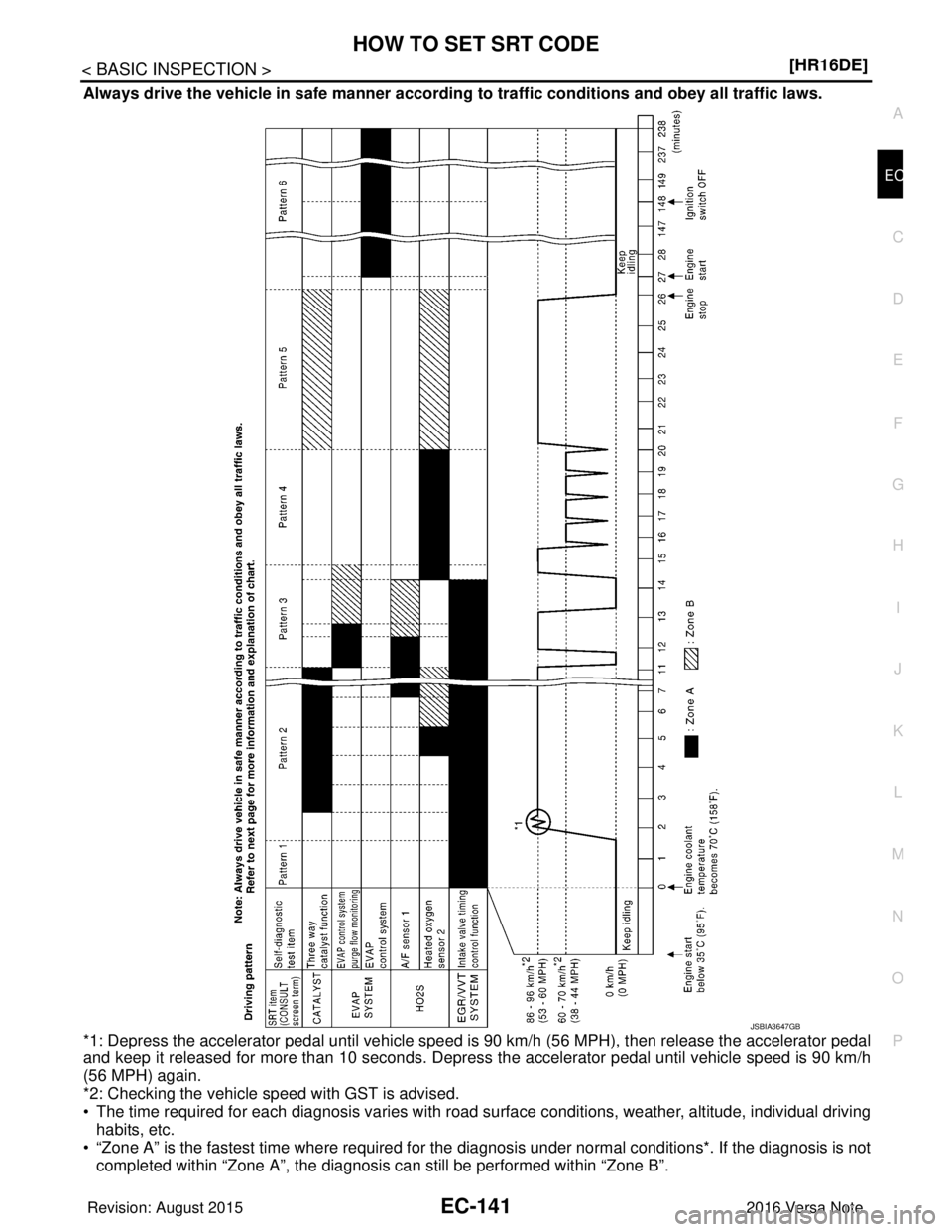

SRT Set Driving Pattern
INFOID:0000000012431365
CAUTION:
JSBIA0400GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1268 of 3641

NISSAN NOTE 2016 Service Repair Manual HOW TO SET SRT CODEEC-141
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Always drive the vehicle in safe ma
nner according to traffic conditions and obey all traffic laws.
*1: Depress

Page 1269 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-142
< BASIC INSPECTION >[HR16DE]
HOW TO SET SRT CODE
*: Normal conditions
- Sea level
- Flat road
- Ambient air temperature: 20 – 30 °C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly as

EC-142
< BASIC INSPECTION >[HR16DE]
HOW TO SET SRT CODE
*: Normal conditions
- Sea level
- Flat road
- Ambient air temperature: 20 – 30 °C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,
diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30°C (68 – 86 °F)]
Work ProcedureINFOID:0000000012431366
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-87, "DTCIndex".
NO >> GO TO 2.
2.CHECK SRT STATUS
WITH CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.
WITHOUT CONSULT
Perform “SRT status” mode with EC-57, "
On Board Diagnosis Function".
WITH GST
Select Service $01 with GST.
Is SRT code(s) set?
YES >> GO TO 12.
NO-1 >> With CONSULT: GO TO 3.
NO-2 >> Without CONSULT: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT.
2. For SRT(s) that is not set, perform the corre sponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in the “SRT ITEM” table. Refer to EC-55, "
DIAGNOSIS DESCRIPTION : Sys-
tem Readiness Test (SRT) Code".
3. Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-87, "DTCIndex".
NO >> GO TO 11.
4.PERFORM ROAD TEST
• Check the “Performance Priority” in the “SRT ITEM” table. Refer to EC-55, "
DIAGNOSIS DESCRIPTION :
System Readiness Test (SRT) Code".
• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to EC-140, "
SRT Set Driv-
ing Pattern".
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
1. Check the vehicle condition;
- Engine coolant temperature is −10 to 35 °C (14 to 95 °F).
- Fuel tank temperature is more than 0 °C (32° F).
2. Start the engine.
3. Keep engine idling until the engine coolant temperature is greater than 70 °C (158° F)
NOTE:
ECM terminal voltage is follows;
• Engine coolant temperature
- −10 to 35 °C (14 to 95 °F): 3.0 - 4.3 V
-70 °(158° F): Less than 1.4 V
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1270 of 3641

NISSAN NOTE 2016 Service Repair Manual HOW TO SET SRT CODEEC-143
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
• Fuel tank temperature: Less than 4.1 V
Refer to
EC-71, "
Reference Value".
>> GO TO 6.
6.PATTERN 2
1. Drive

Page 1271 of 3641

NISSAN NOTE 2016 Service Repair Manual EC-144
< BASIC INSPECTION >[HR16DE]
HOW TO SET SRT CODE
WITH CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode of “ENGINE” using CONSULT.
WITHOUT CONSULT
Perform “SRT status�

Page 1272 of 3641

NISSAN NOTE 2016 Service Repair Manual HOW TO ERASE PERMANENT DTCEC-145
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

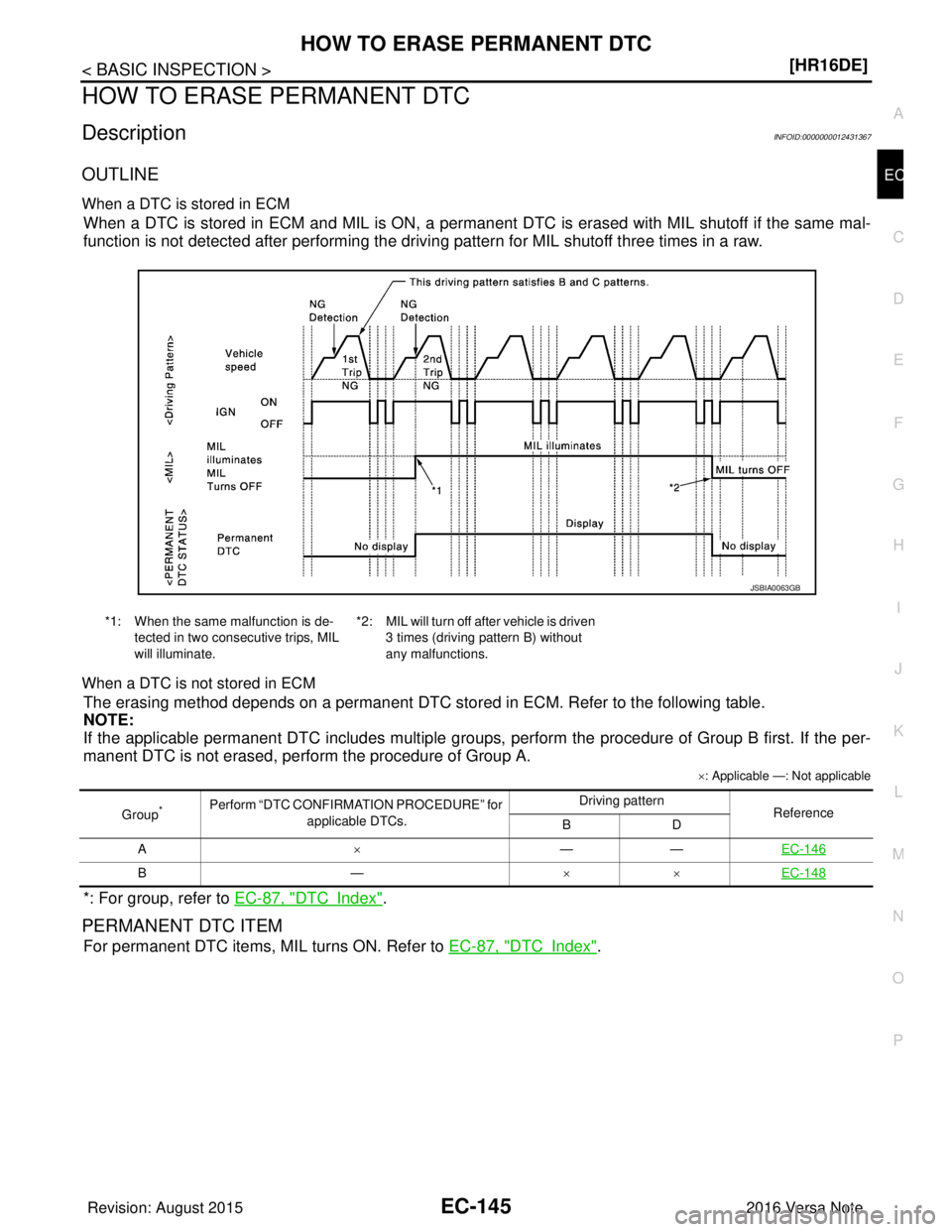

HOW TO ERASE PERMANENT DTC
DescriptionINFOID:0000000012431367
OUTLINE
When a DTC is stored in ECM
When a
