2016 NISSAN NOTE glove box

BRM-6
< PRECAUTION >
HANDLING PRECAUTIONS FOR PLASTICS
3. Front combination lampLens
PC Polycarbonate
Housing PP Polypropylene
4. Door outside handle Grip
PC + PET Polycarbonate + Polyester
Escutcheon PC + PET Polycarbonate + Polyester
5. Rear combination lamp Lens
PMMA Poly Methyl Methacrylate
Housing PC + ABS Polycarbonate + Acrylonitrile Butadiene Styrene
6. Rear bumper fascia PP + EPMPolypropylene + Ethylene Propylene (Diene) co-
polymer
7. Back door finisher ABS Acronitrile Butadiene Acrylate
8. Rear spoiler ABS Acronitrile Butadiene Acrylate
Item
Component Abbreviation Material
ItemComponent Abbreviation Material
1. Center pillar upper finisher PP Polypropylene
2. Luggage side upper finisher PP Polypropylene
3. Rear kicking plate PP Polypropylene
4. Front kicking plate PP Polypropylene
5. Center console lower PP Polypropylene
6. Glove box assembly PP Polypropylene
7. Steering column covers PP Polypropylene
8. Front pillar finisher PP Polypropylene
AWKIA3211ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-14
< SYSTEM DESCRIPTION >[WITH INTELLIGENT KEY SYSTEM]
COMPONENT PARTS
A. View with instrument panel assembly
removed B. View with glove box door removed C. View with front grille removed
D. View of LH door (RH similar) E. View of LH door switch (RH similar) F. View with rear bumper cover re- moved
G. View from rear of vehicle H. View with rear seat cushion removed I. View with center console removed
No. Component Function
1. Combination meter Combination meter transmits the vehicle speed sig-
nal to BCM via CAN communication.
BCM also receives the vehicle speed signal from
ABS actuator and electric uni
t (control unit) via CAN
communication. BCM compares both signals to de-
tect the vehicle speed.
Security indicator lamp is located on combination
meter.
Security indicator lamp blinks when ignition switch
is in any position other than ON to warn that NIS-
SAN VEHICLE IMMOBILIZER SYSTEM-NATS
[NVIS (NATS)] is on board.
Refer to MWI-59, "
METER SYSTEM : Combination
Meter".
2. Push-button ignition switch Push-button ignition switch has push switch inside
which detects that push-button ignition switch is
pressed, and then transmits ON/OFF signal to
BCM. BCM changes the ignition switch position with
the operation of push-button ignition switch. BCM
maintains the ignition switch position status while
push-button ignition switch is not operated.
3. BCM BCM controls INTELLIGENT KEY SYSTEM (EN-
GINE START FUNCTION), NISSAN VEHICLE IM-
MOBILIZER SYSTEM-NATS [NVIS (NATS)] and
VEHICLE SECURITY SYSTEM.
BCM performs the ID verification between BCM and
Intelligent Key when the Intelligent Key is carried
into the detection area of inside key antenna, and
push-button ignition switch is pressed. If the ID ver-
ification result is OK, ignition switch operation is
available.
Then, when the ignition switch is turned ON, BCM
performs ID verification between BCM and ECM. If
the ID verification result is OK, ECM can start en-
gine.
Refer to BCS-6, "
BODY CONTROL SYSTEM :
Component Parts Location" for detailed installation
location.
4. Main power window and door lock/unlock switch Door lock and unlock switch is integrated into the
main power window and door lock/unlock switch.
Door lock and unlock switch transmits door lock/un-
lock operation signal to BCM.
Refer to PWC-7, "
Main Power Window And Door
Lock/Unlock Switch".
5. Front door lock assembly LH Door key cylinder switch is integrated into front door
lock assembly (driver side).
Door key cylinder switch detects door LOCK/UN-
LOCK operation using mechanical key, and then
transmits the operation signal to BCM.
Refer to DLK-17, "
INTELLIGENT KEY SYSTEM :
Front Door Lock Asse
mbly (Driver Side)".
6. Rear door lock actuator LH Rear door lock actuator locks/unlocks the rear door
latch assembly.
Revision: August 2015
2016 Versa Note

cardiagn.com

COMPONENT PARTSDLK-17
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
INTELLIGENT KEY SYSTEM : Outsi de Key Antenna (Passenger Side)INFOID:0000000012429971
• Outside key antenna RH detects that Intelligent Key is within the
outside detection area, and then transmits detection status to
BCM. Request signal is transmitted simultaneously to Intelligent
Key.
• Outside key antenna RH is installed in front outside handle RH.
INTELLIGENT KEY SYSTEM : Front Do or Lock Assembly (Driver Side)INFOID:0000000012429972
• Door lock actuator and unlock sensor are Integrated in front door
lock assembly LH.
• Door lock actuator receives lock/unlock signal from BCM, and then
locks/unlocks driver door.
• Only front door lock assembly LH integrates unlock sensor. Unlock sensor transmits lock/unlock status of LH door to BCM.
INTELLIGENT KEY SYSTEM : Remote Keyless Entry ReceiverINFOID:0000000012429973
• Remote keyless entry receiver receives button operation signal
and key ID signal of Intelligent Key, and then transmits them to
BCM.
• Remote keyless entry receiver is installed in the rear of glove box
lid.
INTELLIGENT KEY SYSTEM : Intelligent Key Warning BuzzerINFOID:0000000012429974
• Intelligent Key warning buzzer warns the user, who is outside vehi-cle, of operation confirmation according to Intelligent Key operation
and door request switch operation, or of an inappropriate opera-
tion.
• Intelligent Key warning buzzer is installed in the rear of front bumper and behind LH headlight.
JMKIA8648ZZ
JMKIA8649ZZ
JMKIA8647ZZ
JMKIA8650ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SYSTEM (INTELLIGENT KEY SYSTEM)DLK-27
< SYSTEM DESCRIPTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

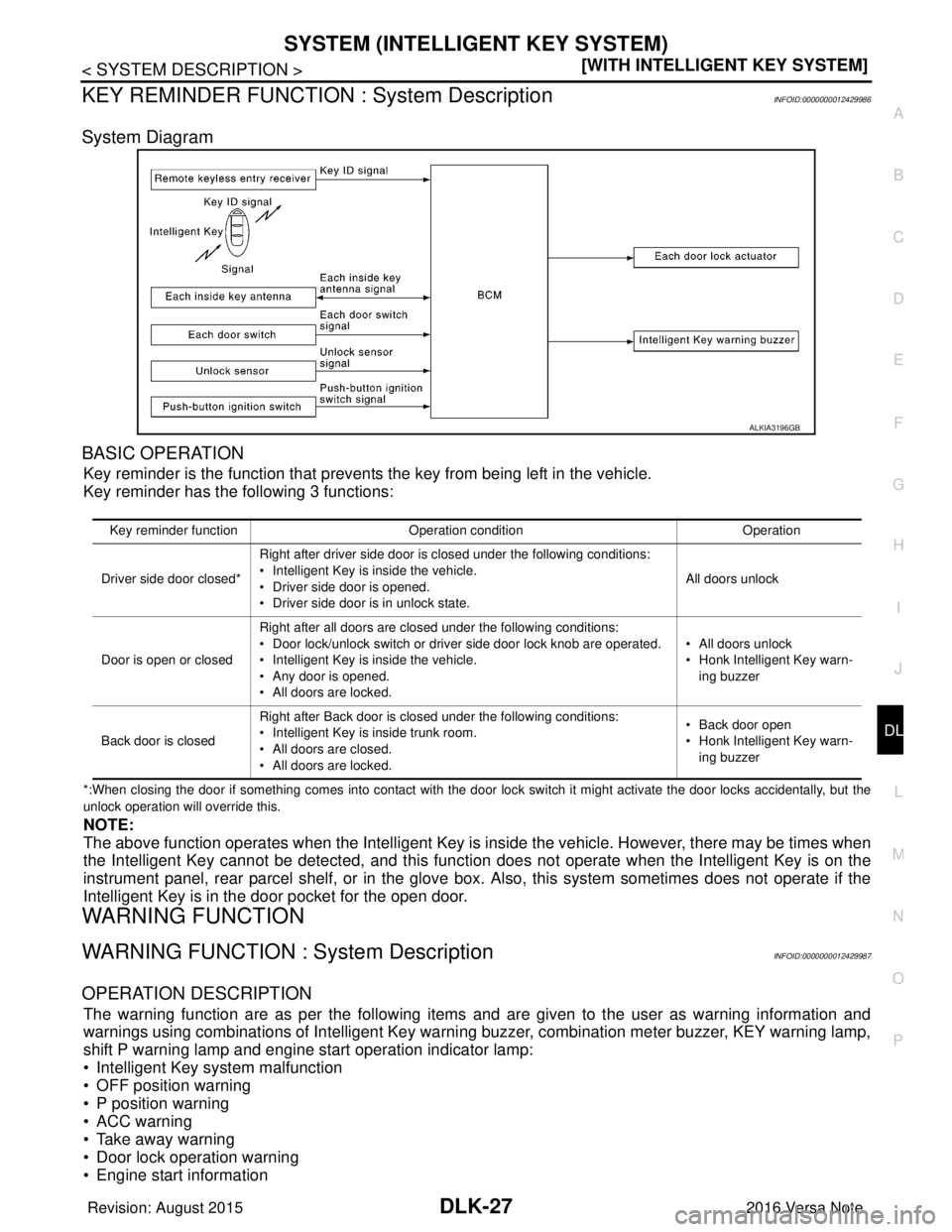

KEY REMINDER FUNCTION : System DescriptionINFOID:0000000012429986
System Diagram
BASIC OPERATION
Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions:
*:When closing the door if something comes into contact with the door lock switch it might activate the door locks accidentally , but the
unlock operation will override this.
NOTE:
The above function operates when the Intelligent Key is in side the vehicle. However, there may be times when
the Intelligent Key cannot be detected, and this func tion does not operate when the Intelligent Key is on the
instrument panel, rear parcel shelf, or in the glove box. Also, this system sometimes does not operate if the
Intelligent Key is in the door pocket for the open door.
WARNING FUNCTION
WARNING FUNCTION : System DescriptionINFOID:0000000012429987
OPERATION DESCRIPTION
The warning function are as per the following items and are given to the user as warning information and
warnings using combinations of Intelligent Key warni ng buzzer, combination meter buzzer, KEY warning lamp,
shift P warning lamp and engine start operation indicator lamp:
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• ACC warning
• Take away warning
• Door lock operation warning
• Engine start information
ALKIA3196GB
Key reminder function Operation condition Operation
Driver side door closed* Right after driver side door is closed under the following conditions:
• Intelligent Key is inside the vehicle.
• Driver side door is opened.
• Driver side door is in unlock state. All doors unlock
Door is open or closed Right after all doors are closed under the following conditions:
• Door lock/unlock switch or driver side door lock knob are operated.
• Intelligent Key is inside the vehicle.
• Any door is opened.
• All doors are locked. • All doors unlock
• Honk Intelligent Key warn-
ing buzzer
Back door is closed Right after Back door is closed under the following conditions:
• Intelligent Key is inside trunk room.
• All doors are closed.
• All doors are locked. • Back door open
• Honk Intelligent Key warn-
ing buzzer
Revision: August 2015 2016 Versa Note

cardiagn.com

REMOTE KEYLESS ENTRY RECEIVERDLK-187
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
REMOTE KEYLESS ENTRY RECEIVER
Removal and InstallationINFOID:0000000012430148
REMOVAL
1. Remove glove box assembly. Refer to IP-25, "Removal and Installation".
2. Remove remote keyless entry receiver bolt (A).
3. Disconnect the harness connector and remove remote keyless entry receiver (1)
INSTALLATION
Installation is in the reverse order of removal.
JMKIA7947ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

COMPONENT PARTSDLK-193
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
SYSTEM DESCRIPTION
COMPONENT PARTS
REMOTE KEYLESS ENTRY SYSTEM

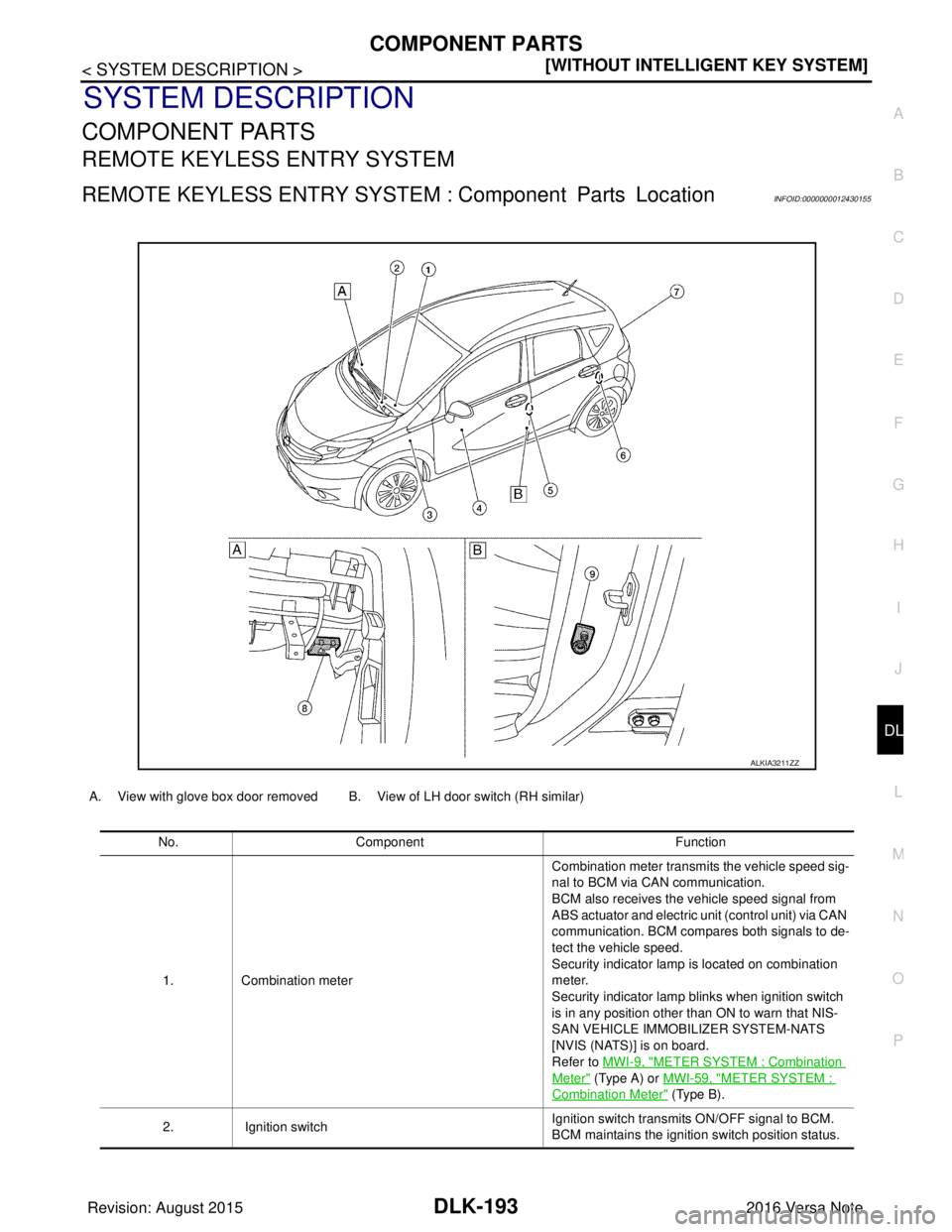

REMOTE KEYLESS EN TRY SYSTEM : Component Parts LocationINFOID:0000000012430155
A. View with glove box door removed B. View of LH door switch (RH similar)
No. Component Function
1. Combination meter Combination meter transmits the vehicle speed sig-
nal to BCM via CAN communication.
BCM also receives the vehicle speed signal from
ABS actuator and electric unit (control unit) via CAN
communication. BCM compares both signals to de-
tect the vehicle speed.
Security indicator lamp is located on combination
meter.
Security indicator lamp blinks when ignition switch
is in any position other than ON to warn that NIS-
SAN VEHICLE IMMOBILIZER SYSTEM-NATS
[NVIS (NATS)] is on board.
Refer to
MWI-9, "
METER SYSTEM : Combination
Meter" (Type A) or MWI-59, "METER SYSTEM :
Combination Meter" (Type B).
2. Ignition switch Ignition switch transmits ON/OFF signal to BCM.
BCM maintains the ignition switch position status.
ALKIA3211ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com

COMPONENT PARTSDLK-195
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

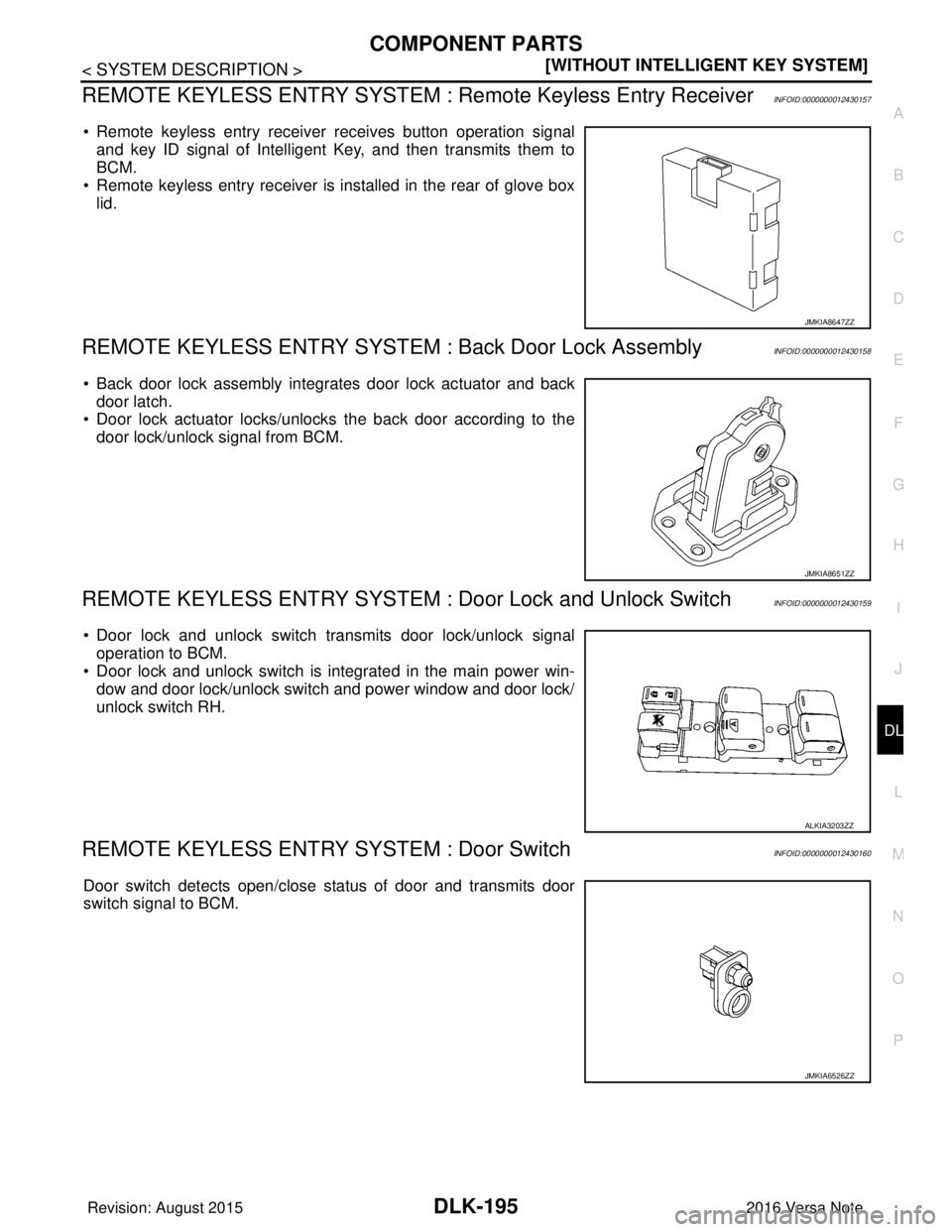

REMOTE KEYLESS ENTRY SYSTEM : Remote Keyless Entry ReceiverINFOID:0000000012430157
• Remote keyless entry receiver receives button operation signal
and key ID signal of Intelligent Key, and then transmits them to
BCM.
• Remote keyless entry receiver is installed in the rear of glove box lid.
REMOTE KEYLESS ENTRY SYSTEM : Back Door Lock AssemblyINFOID:0000000012430158
• Back door lock assembly integrates door lock ac tuator and back
door latch.
• Door lock actuator locks/unlocks the back door according to the
door lock/unlock signal from BCM.
REMOTE KEYLESS ENTRY SYSTEM : Door Lock and Unlock SwitchINFOID:0000000012430159
• Door lock and unlock switch transmits door lock/unlock signal
operation to BCM.
• Door lock and unlock switch is integrated in the main power win- dow and door lock/unlock switch and power window and door lock/
unlock switch RH.
REMOTE KEYLESS ENTRY SYSTEM : Door SwitchINFOID:0000000012430160
Door switch detects open/close status of door and transmits door
switch signal to BCM.
JMKIA8647ZZ
JMKIA8651ZZ
ALKIA3203ZZ
JMKIA6526ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REMOTE KEYLESS ENTRY RECEIVERDLK-309
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P

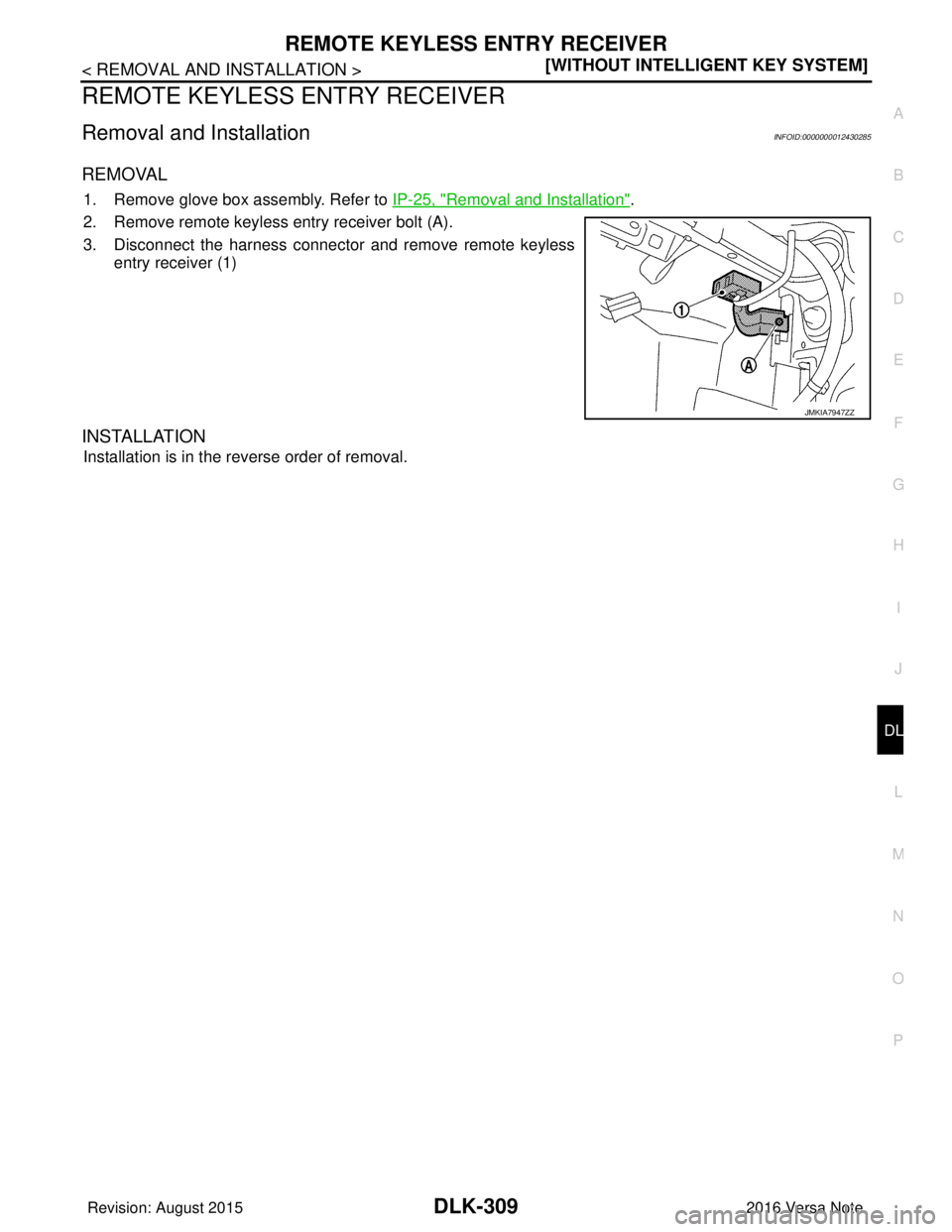

REMOTE KEYLESS ENTRY RECEIVER
Removal and InstallationINFOID:0000000012430285
REMOVAL
1. Remove glove box assembly. Refer to IP-25, "Removal and Installation".
2. Remove remote keyless entry receiver bolt (A).
3. Disconnect the harness connector and remove remote keyless entry receiver (1)
INSTALLATION
Installation is in the reverse order of removal.
JMKIA7947ZZ
Revision: August 2015 2016 Versa Note
