NISSAN NOTE 2016 Service Repair Manual BCS-116
< ECU DIAGNOSIS INFORMATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BCM
CONSULT display
Fail-safeTire pressure monitor
warning lamp ON Reference
U1000: CAN COMM ——BCS-127
U1010: CONTROL UNIT (C

Page 378 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS
BCM
BCS-117
< WIRING DIAGRAM > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N

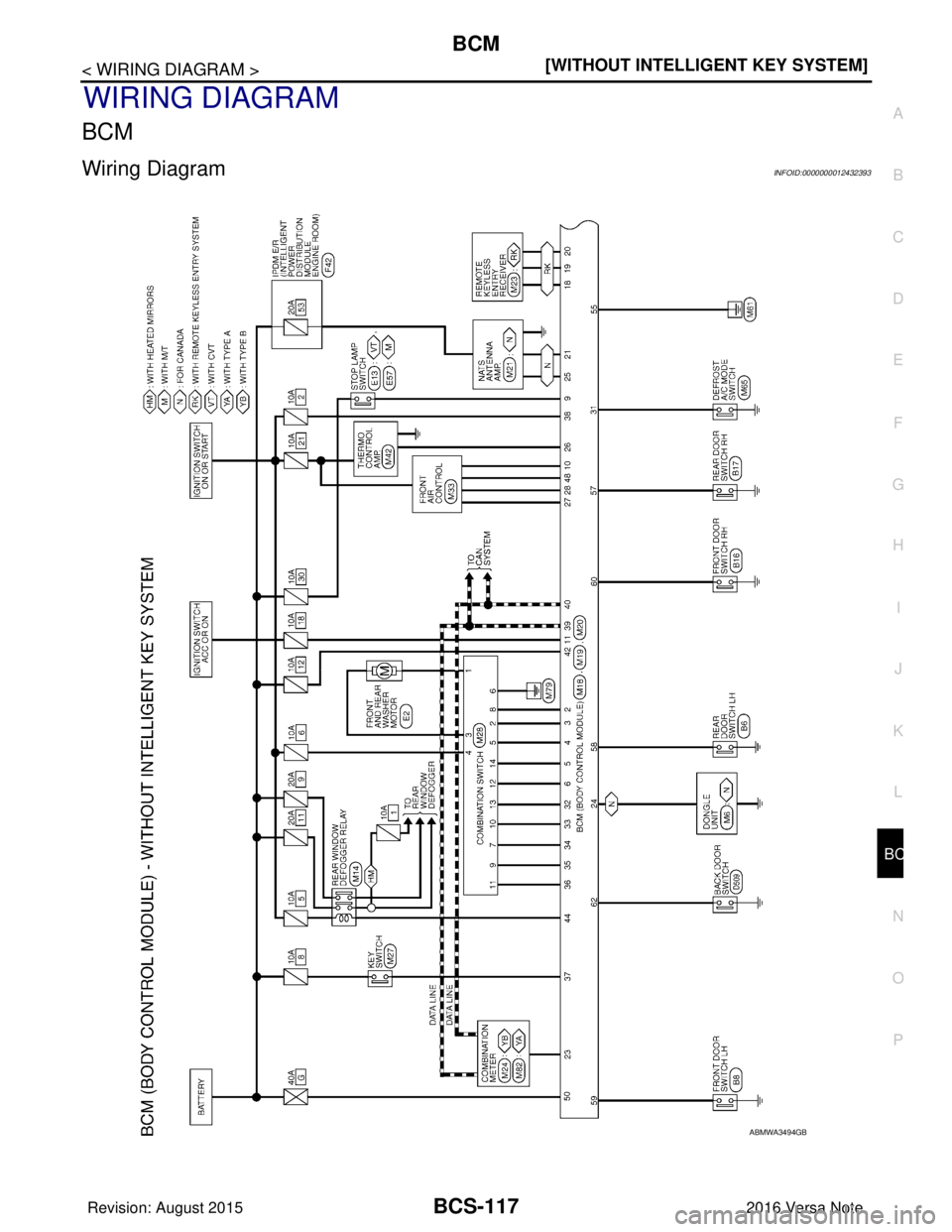

WIRING DIAGRAM
BCM
Wiring DiagramINFOID:0000000012432393
ABMWA3494GB
Revision: August 2015
2016 Versa

Page 379 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS-118
< WIRING DIAGRAM >[WITHOUT INTELLIGENT KEY SYSTEM]
BCM

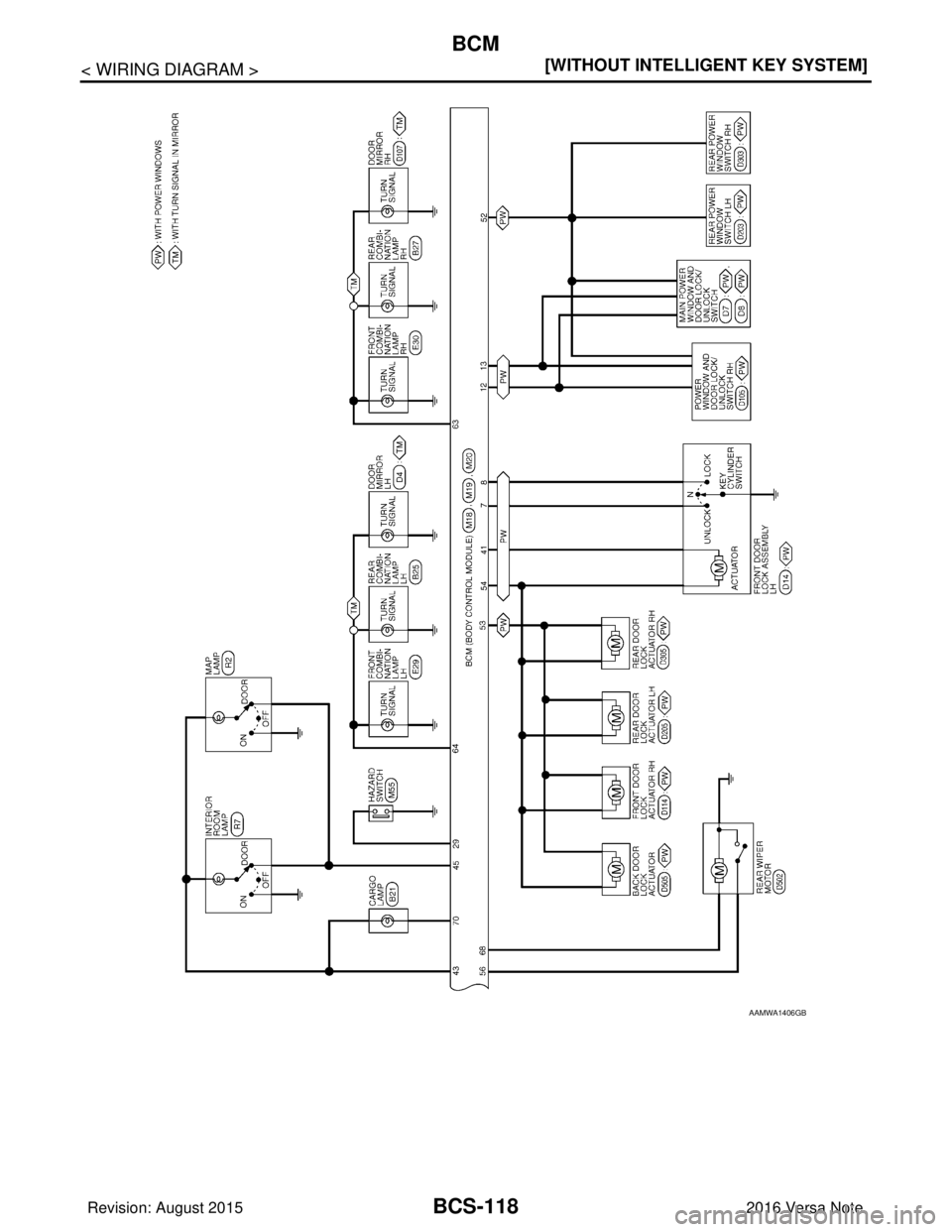

AAMWA1406GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 380 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS
BCM
BCS-119
< WIRING DIAGRAM > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N

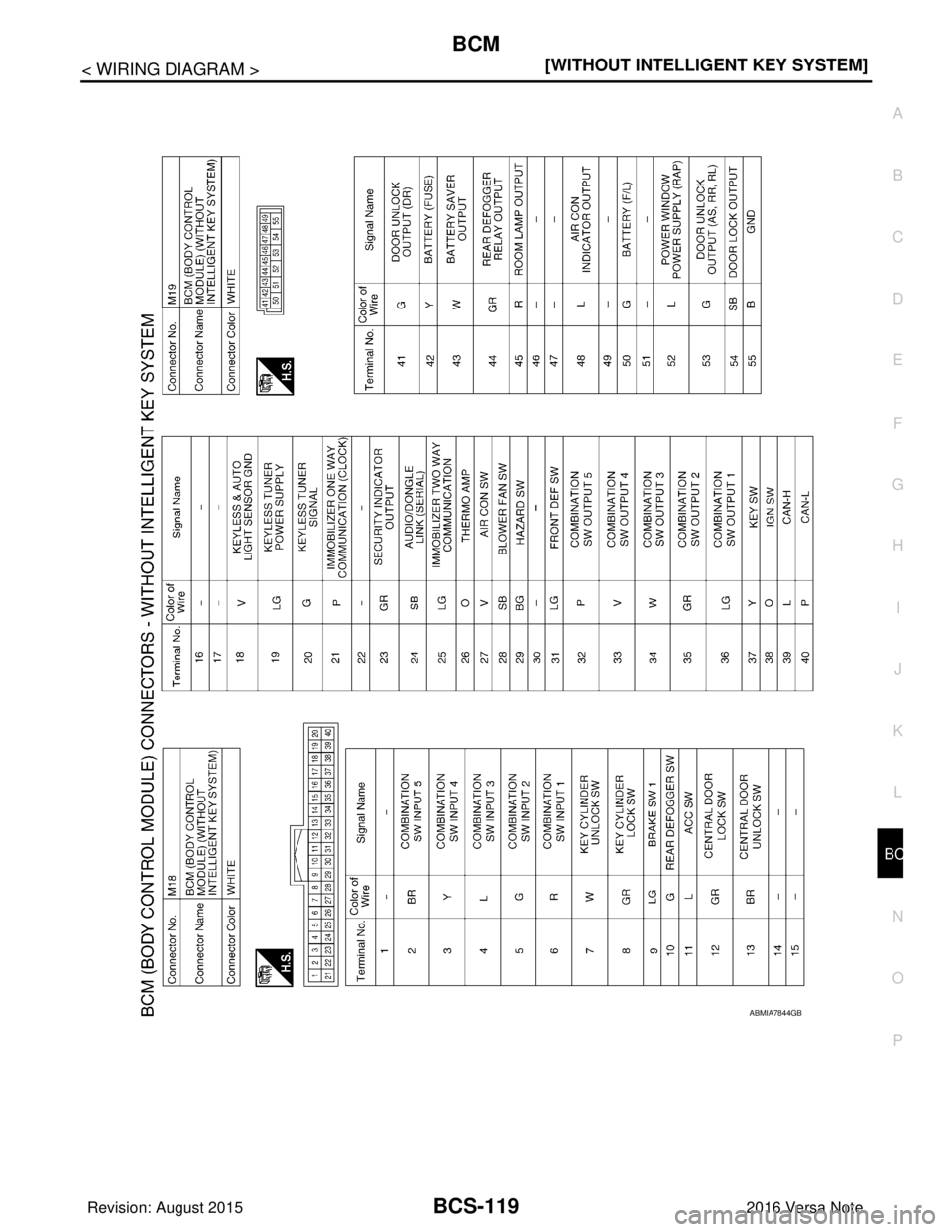

ABMIA7844GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 381 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS-120
< WIRING DIAGRAM >[WITHOUT INTELLIGENT KEY SYSTEM]
BCM

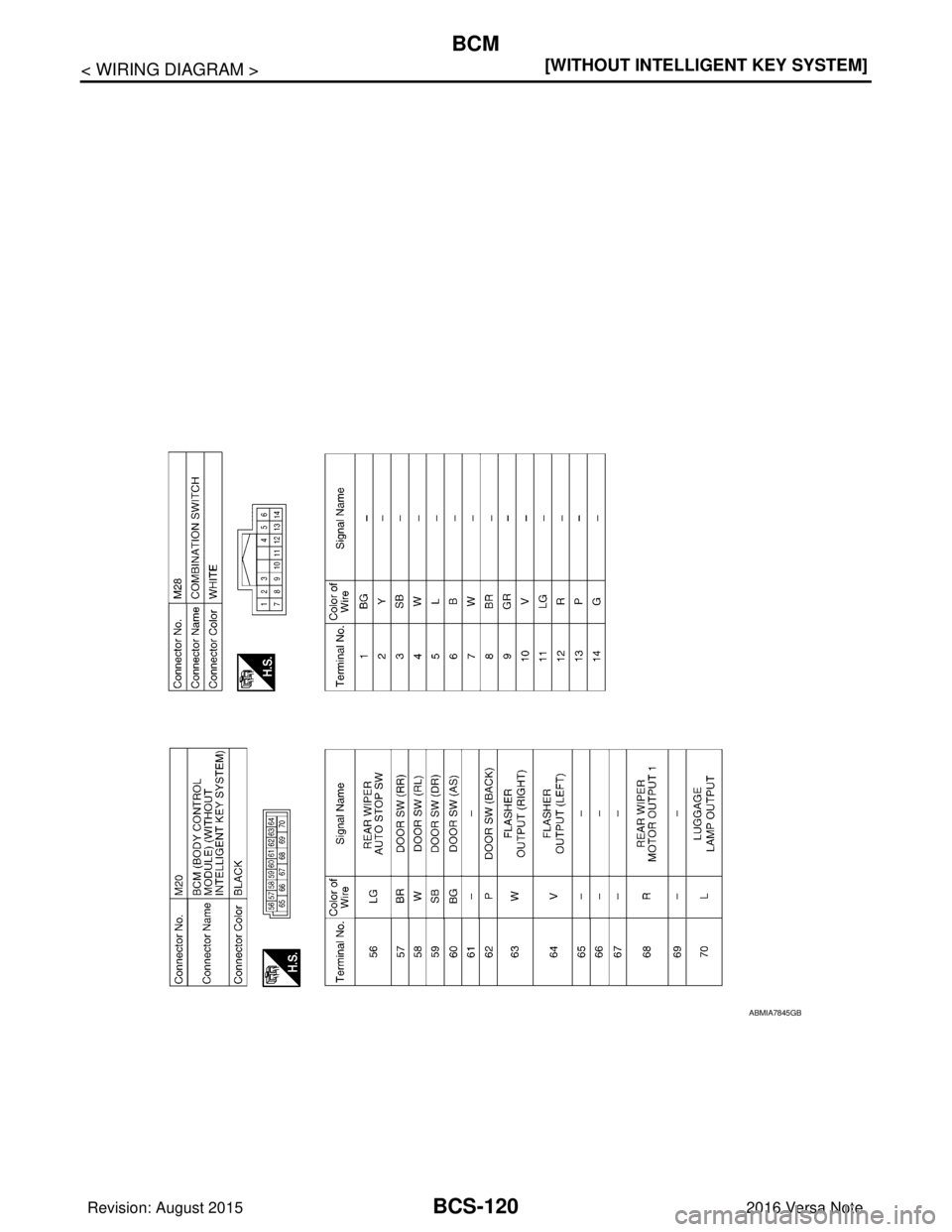

ABMIA7845GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 382 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS
ADDITIONAL SERVICE WHEN REPLACING BCMBCS-121
< BASIC INSPECTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
BASIC INSPECTION
ADDITIONAL SERVICE WHEN REPLACING BCM
DescriptionI

BCS
ADDITIONAL SERVICE WHEN REPLACING BCMBCS-121
< BASIC INSPECTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
BASIC INSPECTION
ADDITIONAL SERVICE WHEN REPLACING BCM
DescriptionINFOID:0000000012432394
BEFORE REPLACEMENT
When replacing BCM, save or print current vehicle s
pecification with CONSULT configuration before replace-
ment.
NOTE:
If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after
replacing BCM.
AFTER REPLACEMENT
CAUTION:
When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so,
BCM control function do es not operate normally.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• Configuration is different for each vehicle model. Confirm conf iguration of each vehicle model.
• If you set incorrect “WRITE CONF IGURATION”, incidents might occur.
NOTE:
When replacing BCM, perform the system initialization (NATS) (if equipped).
Work ProcedureINFOID:0000000012432395
1.SAVING VEHICLE SPECIFICATION
CONSULT Configuration
Perform “READ CONFIGURATION” to save or prin t current vehicle specification. Refer to BCS-123, "
Descrip-
tion".
NOTE:
If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after
replacing BCM.
>> GO TO 2.
2.REPLACE BCM
Replace BCM. Refer to BCS-137, "
Removal and Installation".
>> GO TO 3.
3.WRITING VEHICLE SPECIFICATION
CONSULT Configuration
Perform “WRITE CONFIGURATION - Config file” or “W RITE CONFIGURATION - Manual selection” to write
vehicle specification. Refer to BCS-123, "
Work Procedure".
>> GO TO 4 (with remote keyless entry system).
>> GO TO 6 (without remote keyless entry system).
4.REGISTER IGNITION KEYS
For initialization and registration of ignition keys, refer to CONSULT Immobilizer mode and follow the on-
screen instructions.
>> GO TO 5.
5.REGISTER KEYFOB ID
For registration of keyfob ID, refer to DLK-257, "
ID Code Entry Procedure".
>> Work End.
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 383 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS-122
< BASIC INSPECTION >[WITHOUT INTELLIGENT KEY SYSTEM]
ADDITIONAL SERVICE WHEN REPLACING BCM
6.REGISTER MECHANICAL KEYS
For initialization and registration of mechanical keys, refer to CONSULT

Page 384 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS
CONFIGURATION (BCM)BCS-123
< BASIC INSPECTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
CONFIGURATION (BCM)
DescriptionINFOID:0000000012432396
Vehicle specification needs to

BCS
CONFIGURATION (BCM)BCS-123
< BASIC INSPECTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
CONFIGURATION (BCM)
DescriptionINFOID:0000000012432396
Vehicle specification needs to be written with CONSUL
T because it is not written after replacing BCM.
Configuration has three functions as follows.
NOTE:
Manual setting item: Items which need selection by vehicle specifications
Automatic setting item: Items which are written in automatically (Setting can not be changed)
For some models and specifications, the automatic setting item may not be displayed.
CAUTION:
When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so,
BCM control function do es not operate normally.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• Configuration is different for each vehicle model. Confirm conf iguration of each vehicle model.
• Never perform “WRITE CONFIGURATION” except for new BCM.
• If you set incorrect “WRITE CONF IGURATION”, incidents might occur.
Work ProcedureINFOID:0000000012432397
1.WRITING MODE SELECTION
CONSULT Configuration
Select “CONFIGURATION” of “BCM”.
When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.
2.PERFORM “WRITE CONFIGURATION - CONFIG FILE”
CONSULT Configuration
Perform “WRITE CONFIGURATION - Config file”.
>> WORK END
3.PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”
CONSULT Configuration
1. Select "WRITE CONFIGURATION - Manual selection".
2. Identify the correct model and configuration list. Refer to BCS-124, "
Configuration List".
3. Confirm and/or change setting value for each item.
CAUTION:
Thoroughly read and understand the vehicle speci fication. ECU control may not operate normally
if the setting is not correct.
NOTE:
If items are not displayed, touch “SETTING”. Refer to BCS-124, "
Configuration List" for written items and
setting value.
4. Select "SETTING". CAUTION:
Make sure to select “SETTING” even if the indicated configuration of brand new BCM is same as
the desirable configuration. If not, configurat ion which is set automatically by selecting vehicle
model can not be memorized.
5. When "COMMAND FINISHED", select "END".
Function Description
READ CONFIGURATION • Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.
WRITE CONFIGURATION - Manual selection Writes the vehicle configuration with manual selection.
WRITE CONFIGURATION - Config file Writes the vehicle configuration with saved data.
Revision: August 2015 2016 Versa Note

cardiagn.com
