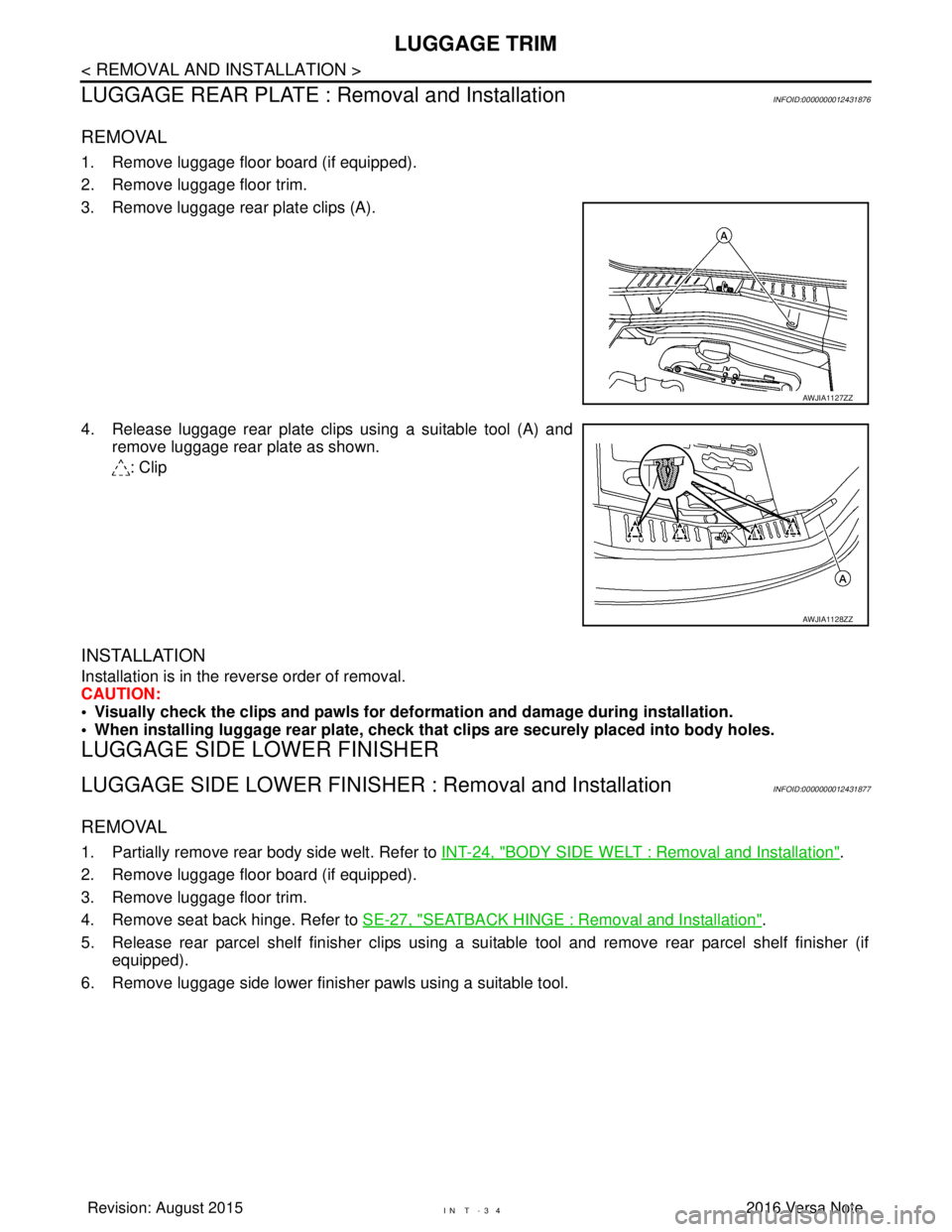

Page 2185 of 3641

NISSAN NOTE 2016 Service Repair Manual IN T - 3 4
< REMOVAL AND INSTALLATION >
LUGGAGE TRIM
LUGGAGE REAR PLATE : Removal and Installation
INFOID:0000000012431876
REMOVAL
1. Remove luggage floor board (if equipped).
2. Remove luggage floor

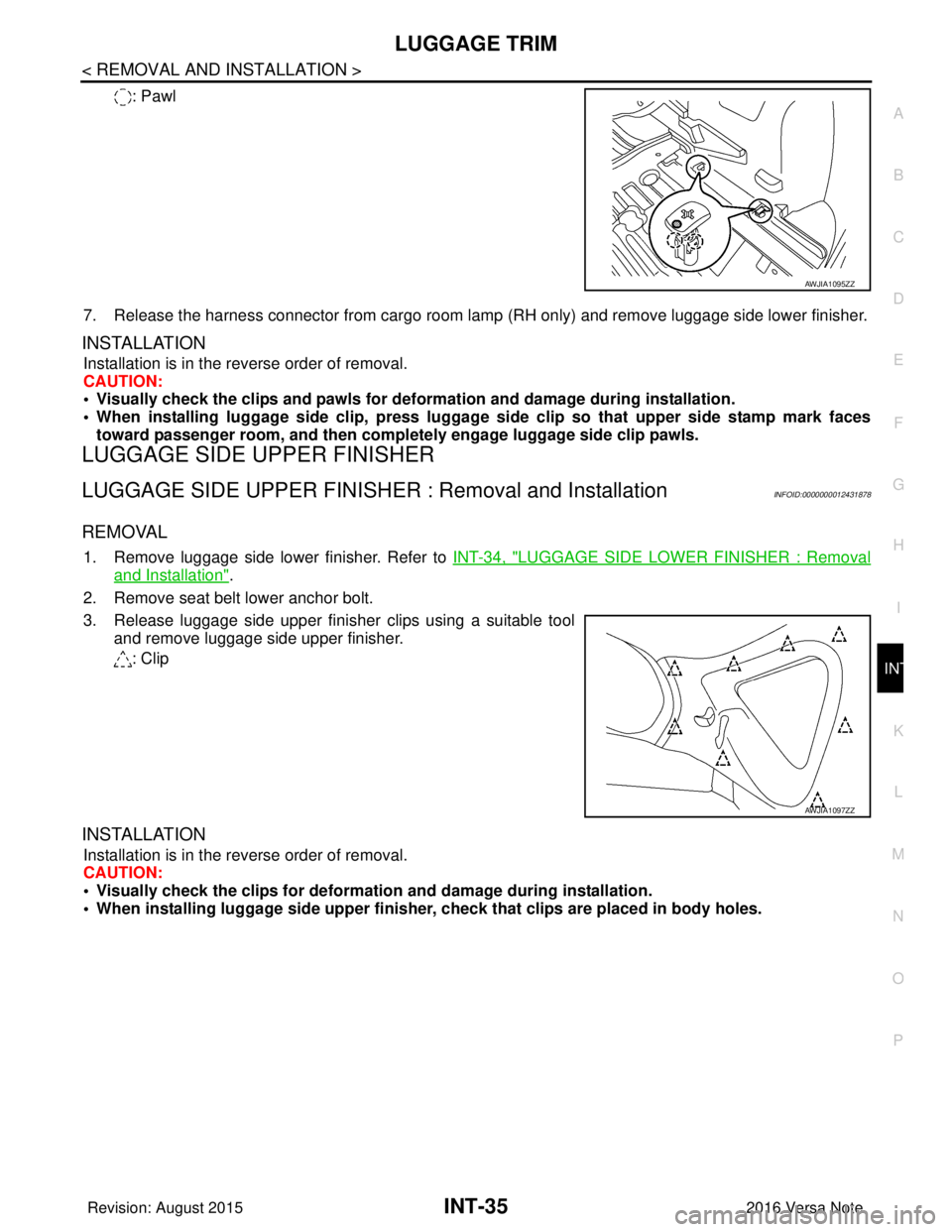

Page 2186 of 3641

NISSAN NOTE 2016 Service Repair Manual LUGGAGE TRIMINT-35
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
INT
N
O P
: Pawl
7. Release the harness connector from cargo room lamp (RH only) and remove luggage side lower finisher.
INSTALLA

Page 2187 of 3641

NISSAN NOTE 2016 Service Repair Manual INT-36
< REMOVAL AND INSTALLATION >
BACK DOOR TRIM
BACK DOOR TRIM

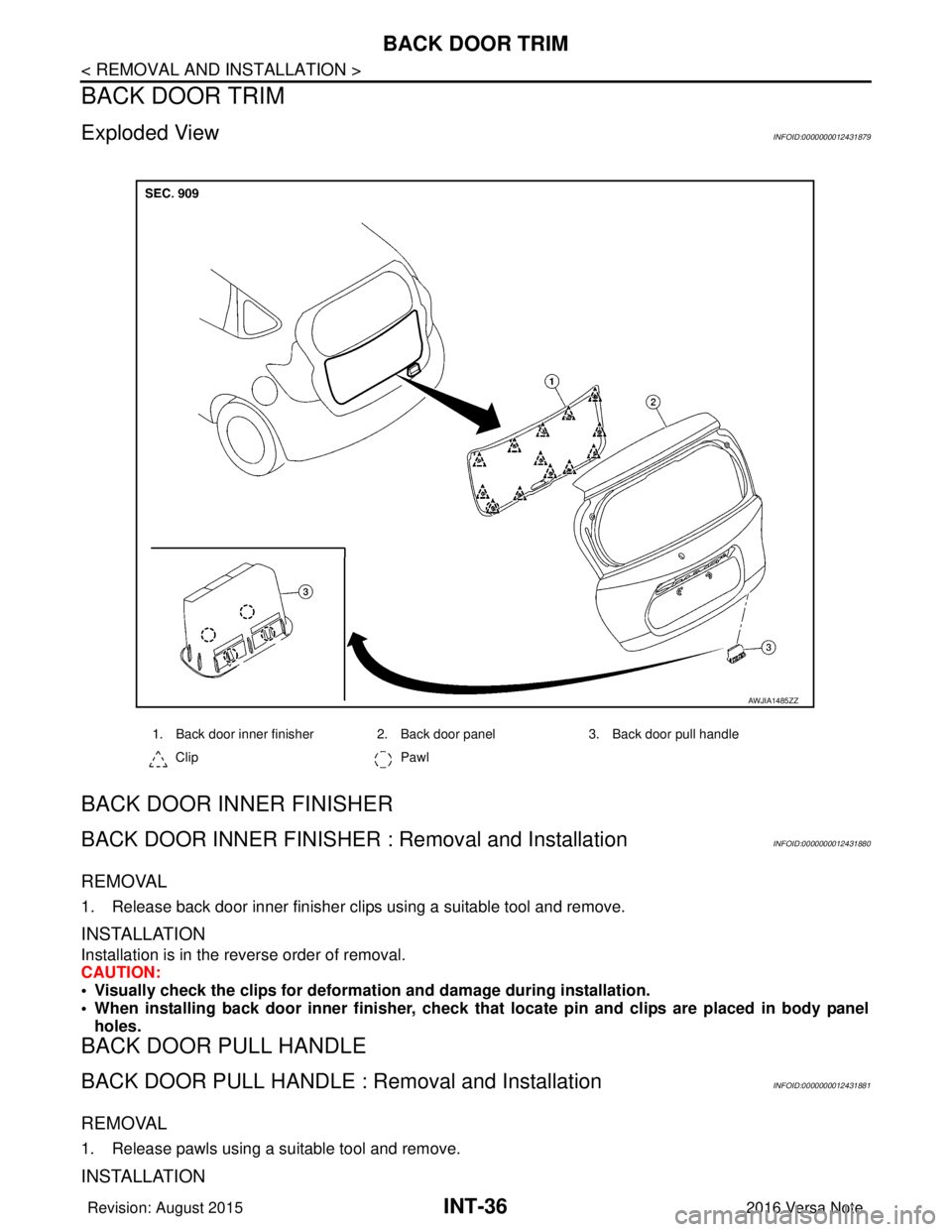

Exploded ViewINFOID:0000000012431879
BACK DOOR INNER FINISHER
BACK DOOR INNER FINISHER : Removal and InstallationINFOID:00000000124318

Page 2188 of 3641

NISSAN NOTE 2016 Service Repair Manual BACK DOOR TRIMINT-37
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
INT
N
O P
Installation is in the reverse order of removal.
CAUTION:
• Visually check the pawls for deformation and damage du

Page 2189 of 3641

NISSAN NOTE 2016 Service Repair Manual LAN
LAN-1
ELECTRICAL & POWER CONTROL
C
DE
F
G H
I
J
K L
B
SECTION LAN
A
O P
N
CONTENTS
LAN SYSTEM
CAN FUNDAMENTAL
HOW TO USE THIS MANU AL ......................
5
HOW TO USE THIS SECTION .............

LAN
LAN-1
ELECTRICAL & POWER CONTROL
C
DE
F
G H
I
J
K L
B
SECTION LAN
A
O P
N
CONTENTS
LAN SYSTEM
CAN FUNDAMENTAL
HOW TO USE THIS MANU AL ......................
5
HOW TO USE THIS SECTION ....................... .....5
Information .......................................................... ......5
PRECAUTION ...............................................6
PRECAUTIONS .............................................. .....6
Precautions for Trouble Diagnosis ...................... ......6
Precautions for Harness Repair ................................6
SYSTEM DESCRIPTION . .............................7
SYSTEM ......................................................... .....7
CAN COMMUNICATION SYSTEM .............................7
CAN COMMUNICATION SYSTEM : System De-
scription ............................................................... ......
7
DIAG ON CAN ....................................................... ......7
DIAG ON CAN : System Description ........................7
TROUBLE DIAGNOSIS ......................................9
Component Description ....................................... ......9
Condition of Error Detection ......................................9
Symptom When Error Occurs in CAN Communi-
cation System ...................................................... ....
10
CAN Diagnosis with CONSULT ..............................12
Self-Diagnosis .........................................................13
CAN Diagnostic Support Monitor ............................13
How to Use CAN Communication Signal Chart ......15
BASIC INSPECTION ...................................16
DIAGNOSIS AND REPAIR WORKFLOW ..... ....16
Trouble Diagnosis Flow Chart ............................. ....16
CAN
HOW TO USE THIS MANU AL .....................
21
HOW TO USE THIS SECTION ....................... ....21
Information ........................................................... ....21
Abbreviation List ......................................................21
PRECAUTION ..............................................22
PRECAUTIONS .................................................22
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ....
22
Precautions for Trouble Diagnosis ..........................22
Precautions for Harness Repair ..............................22
SYSTEM DESCRIPTION .............................24
COMPONENT PARTS ......................................24
Component Parts Location .................................. ....24
SYSTEM ............................................................25
CAN COMMUNICATION SYSTEM ........................ ....25
CAN COMMUNICATION SYSTEM : System De-
scription ............................................................... ....
25
CAN COMMUNICATION SYSTEM : CAN Com-
munication Control Circuit .......................................
28
CAN COMMUNICATION SYSTEM : CAN System
Specification Chart ..................................................
29
CAN COMMUNICATION SYSTEM : CAN Com-
munication Signal Chart ..........................................
30
WIRING DIAGRAM ......................................33
CAN SYSTEM .. .................................................33
Wiring Diagram .................................................... ....33
BASIC INSPECTION ...................................39
DIAGNOSIS AND REPAIR WORKFLOW ........39
Interview Sheet .................................................... ....39
DTC/CIRCUIT DIAGNOSIS .........................40
MALFUNCTION AREA CHART ........................40
Main Line ............................................................. ....40
