NISSAN NOTE 2016 Service Repair Manual EM-64
< REMOVAL AND INSTALLATION >[HR16DE]
CAMSHAFT
10. Remove the intake valve timing control solenoid valve (1) and
the plug (2) securing the oil filter for intake valve timing control
solenoid valv

EM-64
< REMOVAL AND INSTALLATION >[HR16DE]
CAMSHAFT
10. Remove the intake valve timing control solenoid valve (1) and
the plug (2) securing the oil filter for intake valve timing control
solenoid valve.
11. Remove the exhaust valve timing control solenoid valve.
12. Remove the plug on the exhaust valve timing control solenoid valve.
13. Remove the oil filter for exhaust valve timing control solenoid valve.
14. For component inspection after removal, refer to EM-68,
"Inspection".
INSTALLATION
CAUTION:
Do not reuse O-rings or washers.
1. Install oil filter (1) for intake and exhaust valve timing control
solenoid valves.
CAUTION:
Do not reuse washers.
NOTE:
The intake side is shown as an example.
• The oil filter (1) and washer (2) are assembled to the plug (3),and then install them in to the cylinder head. Refer to EM-60,
"Exploded View".
2. Install intake and exhaust valve timing control solenoid valves. • Insert it straight into the cylinder head.
• Tighten bolts.CAUTION:
Do not reuse O-rings.
3. Install valve lifters. • If they are reused, install them in the original positions.
4. Put a matching mark for positioning the cams haft (INT) and the camshaft sprocket (INT):
NOTE:
This helps prevent the knock pin from engaging with the incorrect pin hole after installing the camshaft
(INT) and the camshaft sprocket (INT).
a. Put the matching marks (A) on a line extending from the knock pin position of camshaft (INT) (1) front surface.
• Put the marks on the visible position with the camshaft
sprocket installed as shown.
b. Put the matching marks on a line extending from the knock pin hole (B) position of camshaft sprocket (INT) (2) as shown.
• Put the marks on the visible position with it installed to thecamshaft.
5. Put a matching mark for positioning the camshaft (EXH) and the camshaft sprocket (EXH): NOTE:
This helps prevent the knock pin from engaging with the incorrect pin hole after installing the camshaft
(INT) and the camshaft sprocket (EXH).
PBIC3692E
AWBIA1146GB
PBIC3696E
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1066 of 3641

NISSAN NOTE 2016 Service Repair Manual CAMSHAFTEM-65
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
a. Put the matching marks (A) on a line extending from the knock
pin position of camshaft (EXH) (1) front surface.
�

Page 1067 of 3641

NISSAN NOTE 2016 Service Repair Manual EM-66
< REMOVAL AND INSTALLATION >[HR16DE]
CAMSHAFT
8. Tighten bolts of camshaft brackets in the following steps, in
numerical order as shown.
a. Tighten No. 9 to 11 in numerical order.
b. Tighten No.

Page 1068 of 3641

NISSAN NOTE 2016 Service Repair Manual CAMSHAFTEM-67
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
12. Pull out the stopper pin (A), and then apply the tension to the
timing chain by rotating the crankshaft pulley c

Page 1069 of 3641

NISSAN NOTE 2016 Service Repair Manual EM-68
< REMOVAL AND INSTALLATION >[HR16DE]
CAMSHAFT
• Before starting engine, check oil/fluid levels, including engine coolant and engine oil. If less than required
quantity, fill to the specified l

EM-68
< REMOVAL AND INSTALLATION >[HR16DE]
CAMSHAFT
• Before starting engine, check oil/fluid levels, including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-11, "
Fluids and Lubricants".
• Use procedure below to check for fuel leaks.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leaks
at connection points.
• Start engine. With engine speed increased, che ck again for fuel leaks at connection points.
• Run engine to check for unusual noise and vibration. NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide
may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop
after hydraulic pressure rises.
• Warm up engine thoroughly to make sure there is no leak s of fuel, exhaust gas, or any oils/fluids including
engine oil and engine coolant.
• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec- ified level, if necessary.
• Summary of the inspection items:
*Power steering fluid, brake fluid, etc.
InspectionINFOID:0000000012431722
INSPECTION AFTER REMOVAL
Oil Filter
• Check that there is no foreign material on the oil filter (1) and check it for clogging.
• Check the oil filter for damage.
• If there is some damage, replace the oil filter, the plug, and the washer as a set.
CAUTION:
Do not reuse the washer.
Camshaft Runout
1. Put V-block on a precise flat table, and support No. 2 and 5 jour- nals of camshaft.
CAUTION:
Do not support No. 1 journal (on the side of camshaft
sprocket) because it has a differe nt diameter from the other
four locations.
2. Set a suitable tool vertically to No. 3 journal.
3. Turn camshaft to one direction, and measure the camshaft runout using suitable tool. (Total indicator reading)
Item Before starting engine Engine runningAfter engine stopped
Engine coolant LevelLeaks Level
Engine oil LevelLeaks Level
Transmission/
transaxle fluid CVT Models
LeaksLevel/Leaks Leaks
M/T Models Level/Leaks LeaksLevel/Leaks
Other oils and fluids* LevelLeaks Level
Fuel LeaksLeaksLeaks
Exhaust gas —Leaks —
PBIC3693E
PBIC2499E
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1070 of 3641

NISSAN NOTE 2016 Service Repair Manual CAMSHAFTEM-69
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP

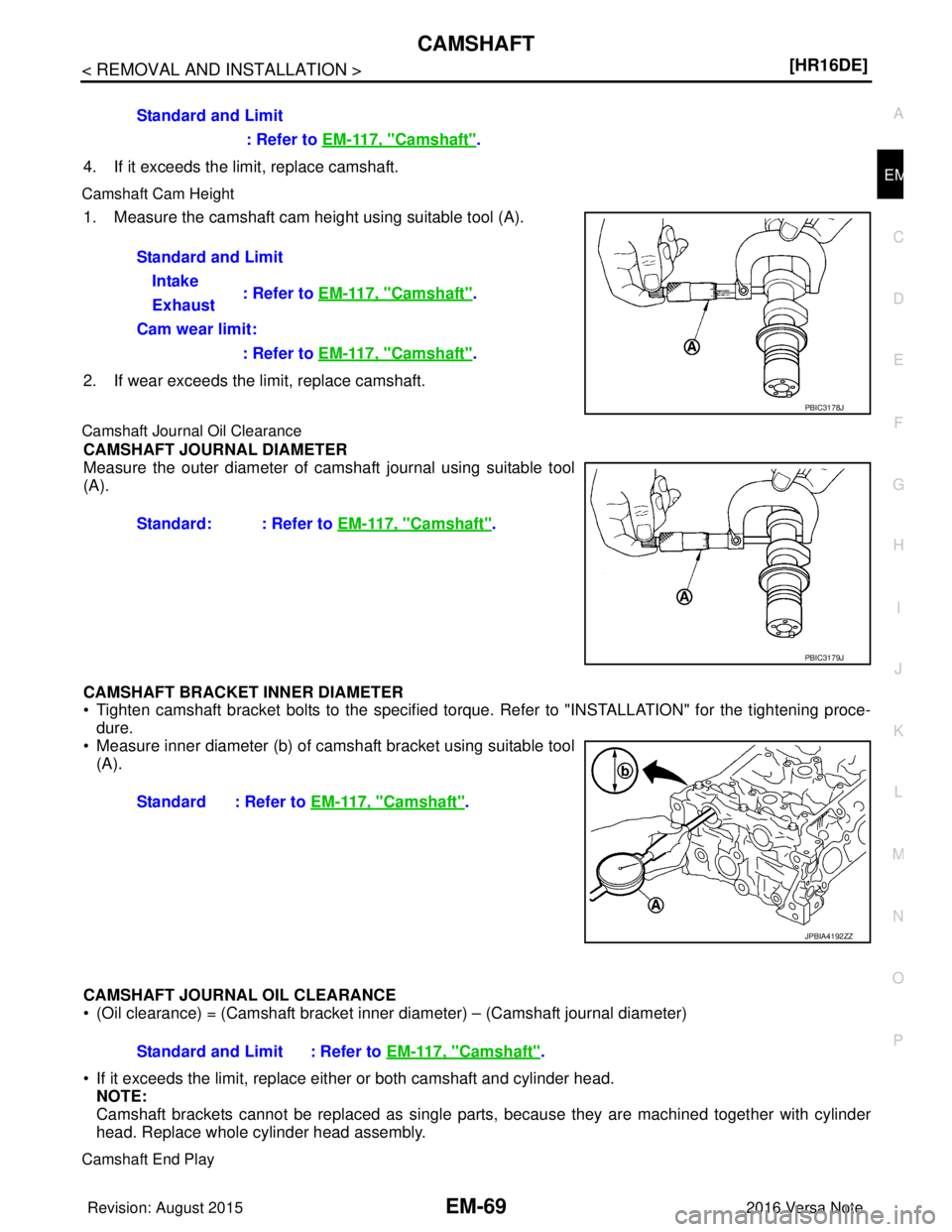

O4. If it exceeds the limit, replace camshaft.
Camshaft Cam Height
1. Measure the camshaft cam height using suitable t

Page 1071 of 3641

NISSAN NOTE 2016 Service Repair Manual EM-70
< REMOVAL AND INSTALLATION >[HR16DE]
CAMSHAFT
1. Install camshaft in cylinder head. Refer to
EM-60, "Removal and Installation" for tightening procedure.
2. Install a suitable tool (A) in thrust

Page 1072 of 3641

NISSAN NOTE 2016 Service Repair Manual CAMSHAFTEM-71
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Measure the outer diameter of valve lifter using suitable tool (A).
VALVE LIFTER HOLE DIAMETER
Measure the diame

CAMSHAFTEM-71
< REMOVAL AND INSTALLATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Measure the outer diameter of valve lifter using suitable tool (A).
VALVE LIFTER HOLE DIAMETER
Measure the diameter of valve lifter hole of cylinder head using suit-
able tool (A).
VALVE LIFTER CLEARANCE
• (Valve lifter clearance) = (Valve lifter hole diameter) – (Valve lifter outer diameter)
• If out of the standard, referring to the each standard of
valve lifter outer diameter and valve lifter hole diame-
ter, replace either or both valve lifter and cylinder head.
INSPECTION AFTER INSTALLATION
Inspection of Camshaft Sprocket Oil Groove
CAUTION:
• Perform this inspection only when DTC P0011 or P 0014 is detected in self-diagnostic results of CON-
SULT and it is directed according to insp ection procedure of EC section. Refer to EC-168, "
Diagnosis
Procedure" (P0011) or EC-172, "Diagnosis Procedure" (P0014).
• Check when engine is cold so as to pr event burns from the splashing engine oil.
NOTE:
This section provides the inspection method of oil passage of cam sprocket on the intake side. For oil passage
on the exhaust side, the inspection proc edure must be changed as instructed below:
1. Check engine oil level. Refer to LU-7, "
Inspection".
2. Perform the following procedure so as to prevent the engine from being unintentionally started while checking.
a. Release the fuel pressure. Refer to EC-137, "
Work Procedure".
b. Remove intake manifold. Refer to EM-28, "
Removal and Installation".
Standard : Refer to
EM-117, "
Camshaft".
PBIC3185J
Standard : Refer to EM-117, "Camshaft".
PBIC3184J
Standard : Refer to EM-117, "Camshaft".
· Step 3 : Remove exhaust valve timing control solenoid valve. Refer to EM-60, "Exploded View".
· Step 4 : Crank engine, and then check that engine oil comes out from exhaust valve timing control solenoid
valve hole (A). End crank after checking.
·Step 5 Perform the following inspection if engine oil does not come out from exhaust valve timing control
solenoid valve oil hole of the cylinder head.
• Remove oil filter, and then clean it. Refer to
EM-60, "
Exploded View".
• Clean oil groove between oil strainer and exhaust valve timing control solenoid valve. Refer to
EM-60, "
Exploded View".
·Step 6 : Remove components between exhaust valve timing control solenoid valve and camshaft sprocket
(EXH), and then check each oil groove for clogging.
Revision: August 2015
2016 Versa Note

cardiagn.com
