DEF-14
< WIRING DIAGRAM >
REAR WINDOW DEFOGGER SYSTEM

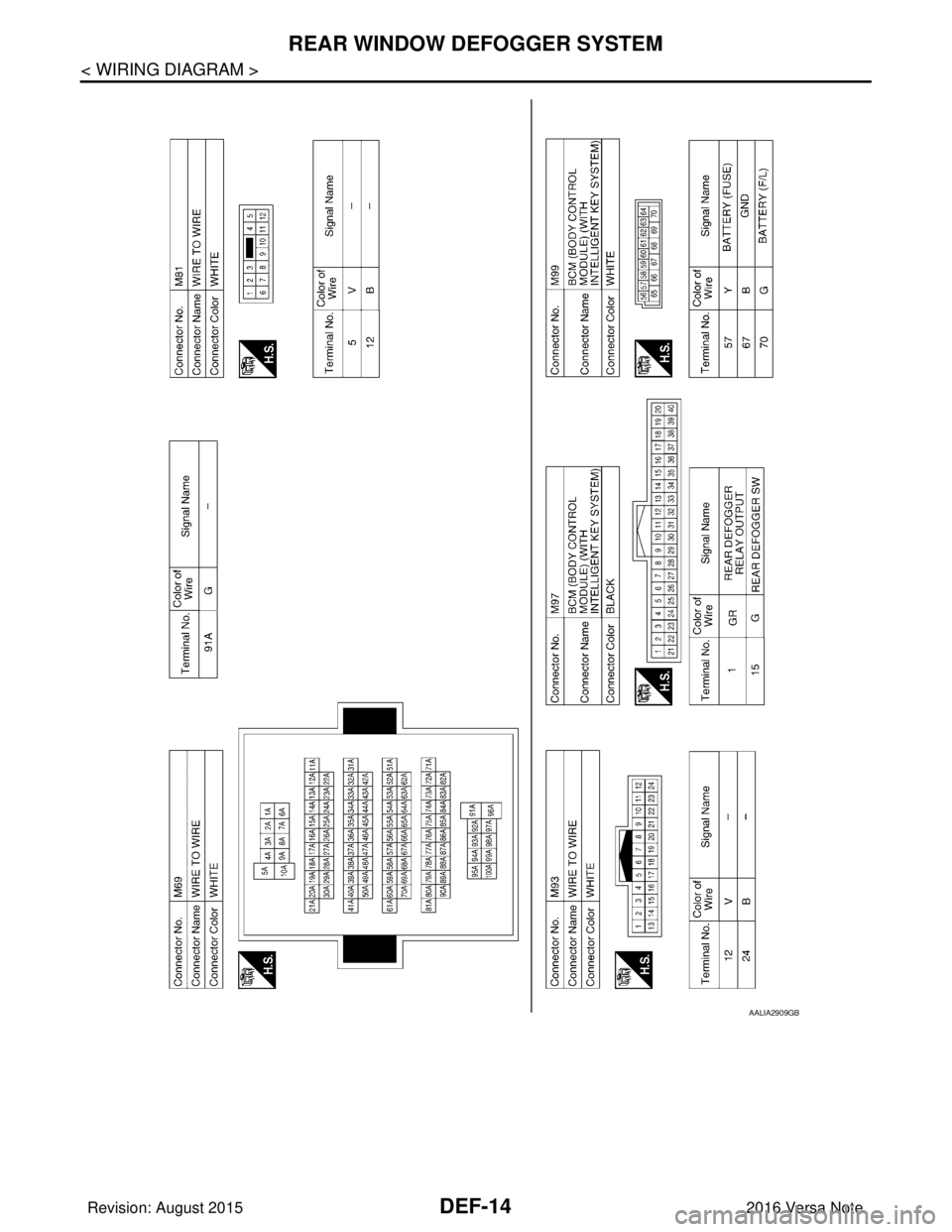

AALIA2909GB
Revision: August 20152016 Versa Note
cardiagn.com
Page 666 of 3641
REAR WINDOW DEFOGGER SYSTEMDEF-15
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
DEF
N
O P
AALIA1430GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 667 of 3641
DEF-16
< WIRING DIAGRAM >
REAR WINDOW DEFOGGER SYSTEM
AALIA1431GB
Revision: August 20152016 Versa Note
cardiagn.com
Page 668 of 3641
DIAGNOSIS AND REPAIR WORK FLOWDEF-17
< BASIC INSPECTION >
C
DE
F
G H
I
J
K
M A
B
DEF
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012431762
OVERALL SEQUENCE
DETAILED FLOW

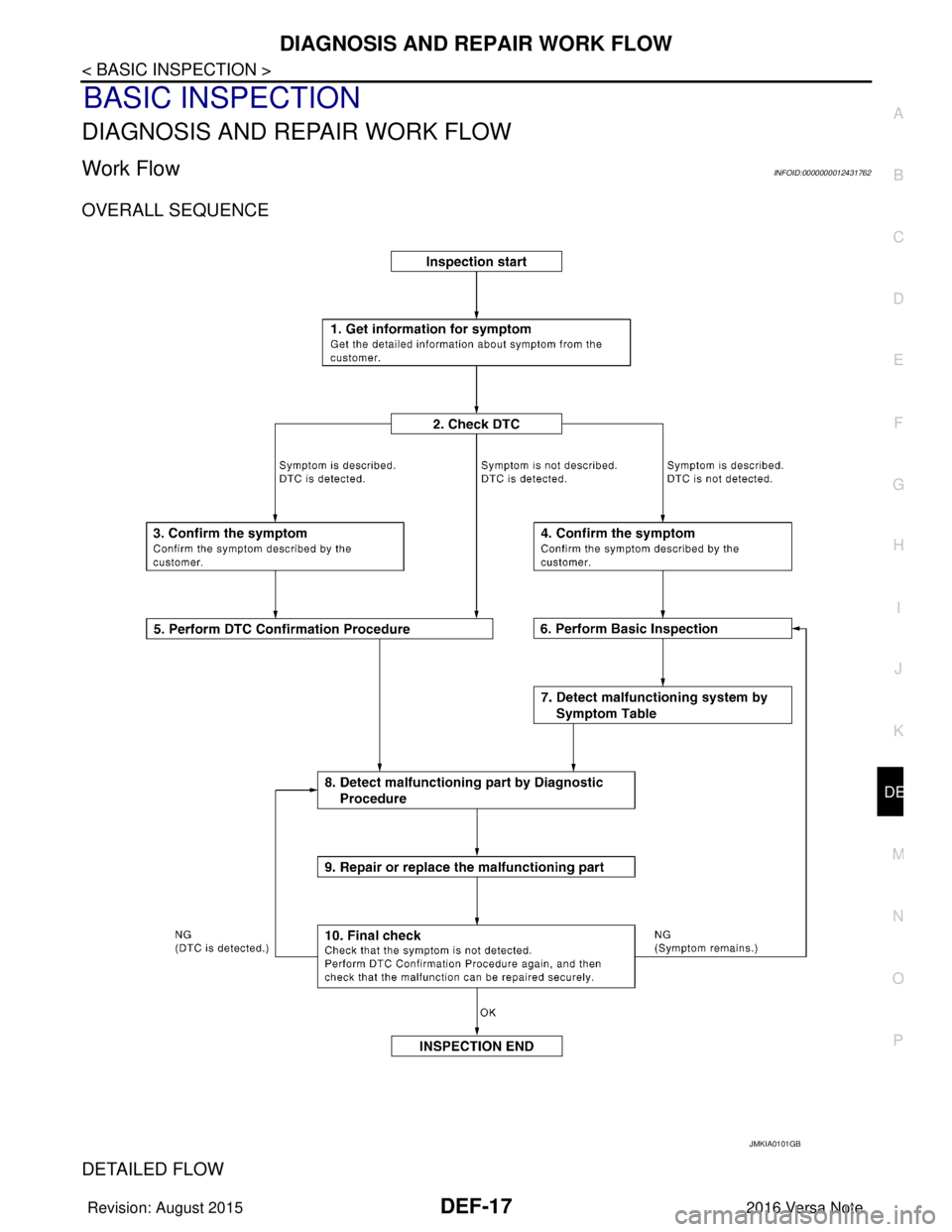

JMKIA0101GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 669 of 3641

DEF-18
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORK FLOW
1. GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).
>> GO TO 2.
2. CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is displayed.
- Record DTC and freeze frame data (P rint them out with CONSULT.)
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.
3. CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT to the vehicle in “Data Monitor” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4. CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT to the vehicle in “Data Monitor” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5. PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the display ed DTC, and then check that DTC is detected again.
At this time, always connect CONSULT to the vehicle, and check diagnostic results in real time.
If two or more DTCs are detected, refer to BCS-49, "
DTCInspectionPriorityChart" (with Intelligent Key sys-
tem) or BCS-115, "
DTCInspectionPriorityChart" (without Intelligent Key system) and determine trouble
diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This simplified check procedure is an effective alternat ive though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirma-
tion Procedure.
Is DTC detected?
YES >> GO TO 8.
NO >> Refer to GI-42, "
Intermittent Incident".
6. PERFORM BASIC INSPECTION
Perform DEF-17, "
Work Flow".
>> GO TO 7.
7. DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to DEF-6, "
System Description" based on the confirmed symptom in
step 4, and determine the trouble diagnosis order based on possible causes and symptom.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 670 of 3641

DIAGNOSIS AND REPAIR WORK FLOWDEF-19
< BASIC INSPECTION >
C
DE
F
G H
I
J
K
M A
B
DEF
N
O P
>> GO TO 8.
8. DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.
Is malfunctioning part detected?
YES >> GO TO 9.
NO >> Check voltage of related BCM terminals using CONSULT.
9. REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it.
>> GO TO 10.
10. FINAL CHECK
When DTC was detected in step 2, perform DTC Confirmation Procedure or Component Function Check
again, and then check that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that
the symptom is not detected.
Does the symptom reappear?
YES (DTC is detected)>>GO TO 8.
YES (Symptom remains)>>GO TO 6.
NO >> Inspection End.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 671 of 3641

DEF-20
< DTC/CIRCUIT DIAGNOSIS >
REAR WINDOW DEFOGGER SWITCH
DTC/CIRCUIT DIAGNOSIS
REAR WINDOW DEFOGGER SWITCH
DescriptionINFOID:0000000012431763
• The rear window defogger is operated by pressing the rear window defogger switch ON.
• The indicator lamp in the rear window defogger switch illuminates while the rear window defogger is ON.
Component Function CheckINFOID:0000000012431764
1. CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION
1. Turn ignition switch ON.
2. Check that the indicator lamp of rear window def ogger illuminates with rear window defogger switch ON.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Refer to DEF-20, "
Diagnosis Procedure".
2.CHECK REAR DEFOGGER ON STATUS
1. Using CONSULT, select “BCM (REAR DEFOGGER)”, then “Data Monitor”.
2. Select “REAR DEF SW” and monitor while pressing the rear DEF switch ON and OFF.
Is the inspection result normal?
YES >> Inspection End.
NO >> Refer to DEF-20, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431765
Regarding Wiring Diagram information, refer to DEF-12, "Wiring Diagram".
1.CHECK BCM OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check voltage between front air control harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK REAR WINDOW DEFOGGER SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connec tor and front air control harness connector.
Monitored ItemConditionStatus
REAR DEF SW Rear DEF switch ON (LED ON)
On
Rear DEF switch OFF (LED OFF) Off
(+)
(–)Voltage (V)
(Approx.)
Front air control
Connector Terminal
M33 10GroundBattery voltage
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 672 of 3641

REAR WINDOW DEFOGGER SWITCHDEF-21
< DTC/CIRCUIT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
DEF
N
O P
3. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-74, "Removal and Installation" (with Intelligent Key system) or BCS-
137, "Removal and Installation" (without Intelligent Key system).
NO >> Repair or replace harness.
3.CHECK GROUND CIRCUIT
Check continuity between front air control harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace harness.
4.CHECK REAR WINDOW DEFOGGER SWITCH
Refer to DEF-21, "
Component Inspection".
Is the inspection result normal?
YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".
NO >> Replace front air control. Refer to HAC-52, "
Removal and Installation".
Component InspectionINFOID:0000000012431766
1.CHECK REAR WINDOW DEFOGGER SWITCH
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check continuity between front air control terminals.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace front air control. Refer to HAC-52, "
Removal and Installation".
BCM Front air control
Continuity
Connector TerminalConnector Terminal
M18 (without Intelligent Key system) 10
M33 10Yes
M97 (with Intelligent Key system) 15
BCM
GroundContinuity
Connector Terminal
M18 (without Intelligent Key system) 10
No
M97 (with Intelligent Key system) 15
Front air control
GroundContinuity
Connector Terminal
M33 8 Yes
Front air control
ConditionContinuity
Te r m i n a l
10 8Rear window defogger switch Pressed
Yes
Released No
