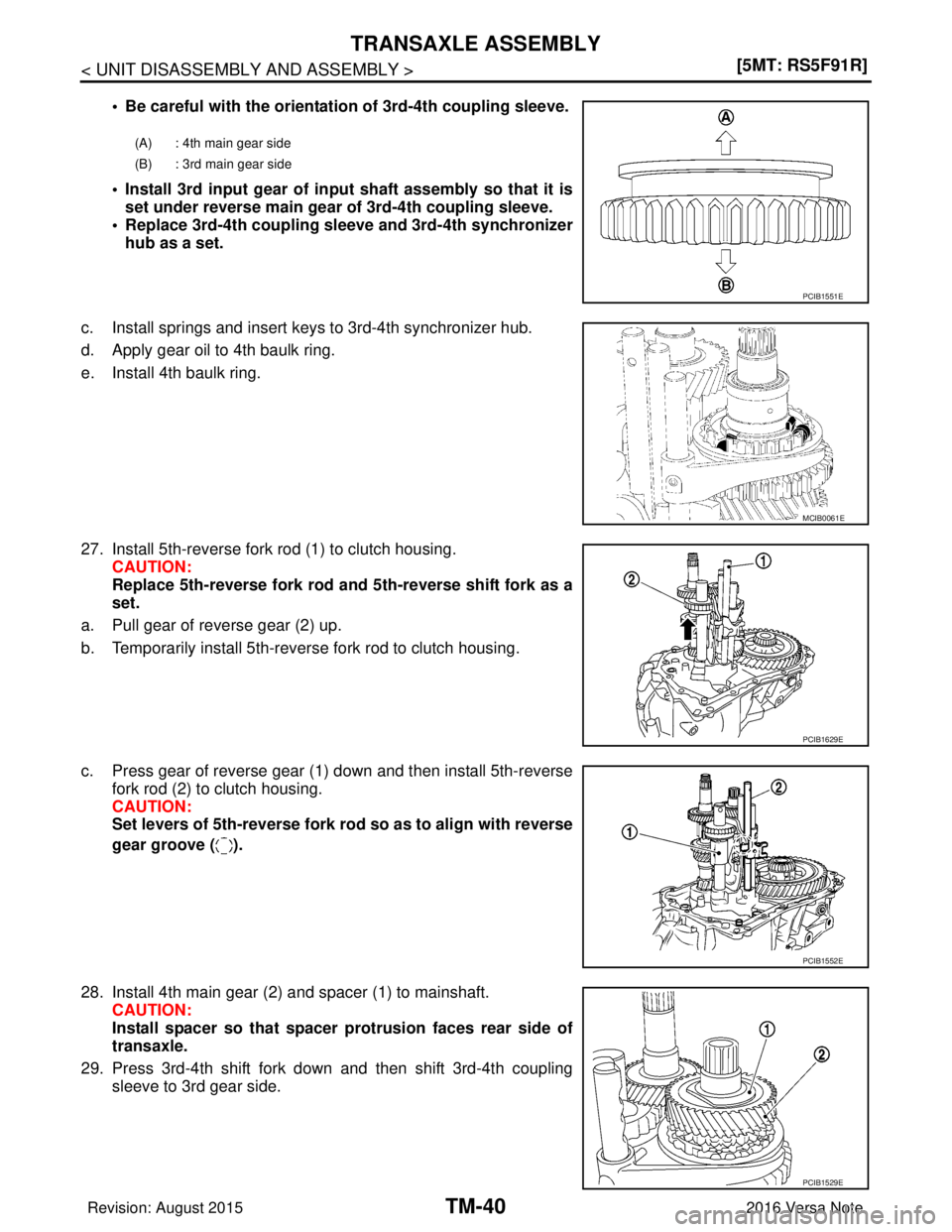

Page 3281 of 3641

NISSAN NOTE 2016 Service Repair Manual TM-40 < UNIT DISASSEMBLY AND ASSEMBLY >[5MT: RS5F91R] TRANSAXLE ASSEMBLY • Be careful with the orientat ion of 3rd-4th coupling sleeve. • Install 3rd input gear of in put shaft assembly so that it

Page 3282 of 3641

NISSAN NOTE 2016 Service Repair Manual TRANSAXLE ASSEMBLYTM-41 < UNIT DISASSEMBLY AND ASSEMBLY > [5MT: RS5F91R] C EF G H I J K L M A B TM N O P 30. Move the shifter lever A (1) to the 3rd gear position. NOTE: • If it is not moved to the

Page 3283 of 3641

NISSAN NOTE 2016 Service Repair Manual TM-42 < UNIT DISASSEMBLY AND ASSEMBLY >[5MT: RS5F91R] TRANSAXLE ASSEMBLY 37. Install adapter plate (1), bushing (2), and 5th input gear (3) to input shaft. CAUTION: Be careful with the orientation of

Page 3284 of 3641

NISSAN NOTE 2016 Service Repair Manual TRANSAXLE ASSEMBLYTM-43 < UNIT DISASSEMBLY AND ASSEMBLY > [5MT: RS5F91R] C EF G H I J K L M A B TM N O P e. Set 5th-reverse shift fork (1) to 5th-reverse coupling sleeve, and then install them to 5th-

Page 3285 of 3641

NISSAN NOTE 2016 Service Repair Manual TM-44 < UNIT DISASSEMBLY AND ASSEMBLY >[5MT: RS5F91R] TRANSAXLE ASSEMBLY 41. Install rear housing to transaxle case, and tighten bolts ( ) to the specified torque. CAUTION: • Do not reuse O-ring.

Page 3286 of 3641

NISSAN NOTE 2016 Service Repair Manual INPUT SHAFT AND GEARTM-45 < UNIT DISASSEMBLY AND ASSEMBLY > [5MT: RS5F91R] C EF G H I J K L M A B TM N O P INPUT SHAFT AND GEAR Exploded ViewINFOID:0000000012430968 DisassemblyINFOID:0000000012430969

Page 3287 of 3641

NISSAN NOTE 2016 Service Repair Manual TM-46 < UNIT DISASSEMBLY AND ASSEMBLY >[5MT: RS5F91R] INPUT SHAFT AND GEAR Check the following items and replace if necessary. • Damage, peeling, uneven wear, and distortion of shaft. • Excessive

Page 3288 of 3641

NISSAN NOTE 2016 Service Repair Manual MAINSHAFT AND GEARTM-47 < UNIT DISASSEMBLY AND ASSEMBLY > [5MT: RS5F91R] C EF G H I J K L M A B TM N O P MAINSHAFT AND GEAR Exploded ViewINFOID:0000000012430972 DisassemblyINFOID:0000000012430973 CAUT
