Page 1609 of 3641

NISSAN NOTE 2016 Service Repair Manual CO-4
< SYSTEM DESCRIPTION >[HR16DE]
DESCRIPTION
SYSTEM DESCRIPTION
DESCRIPTION
Engine Cooling SystemINFOID:0000000012432130
M/T models
CVT models
JSBIA1096GB
JSBIA1297GB
Revision: August 2015 2016 Ver

Page 1610 of 3641

NISSAN NOTE 2016 Service Repair Manual DESCRIPTIONCO-5
< SYSTEM DESCRIPTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O

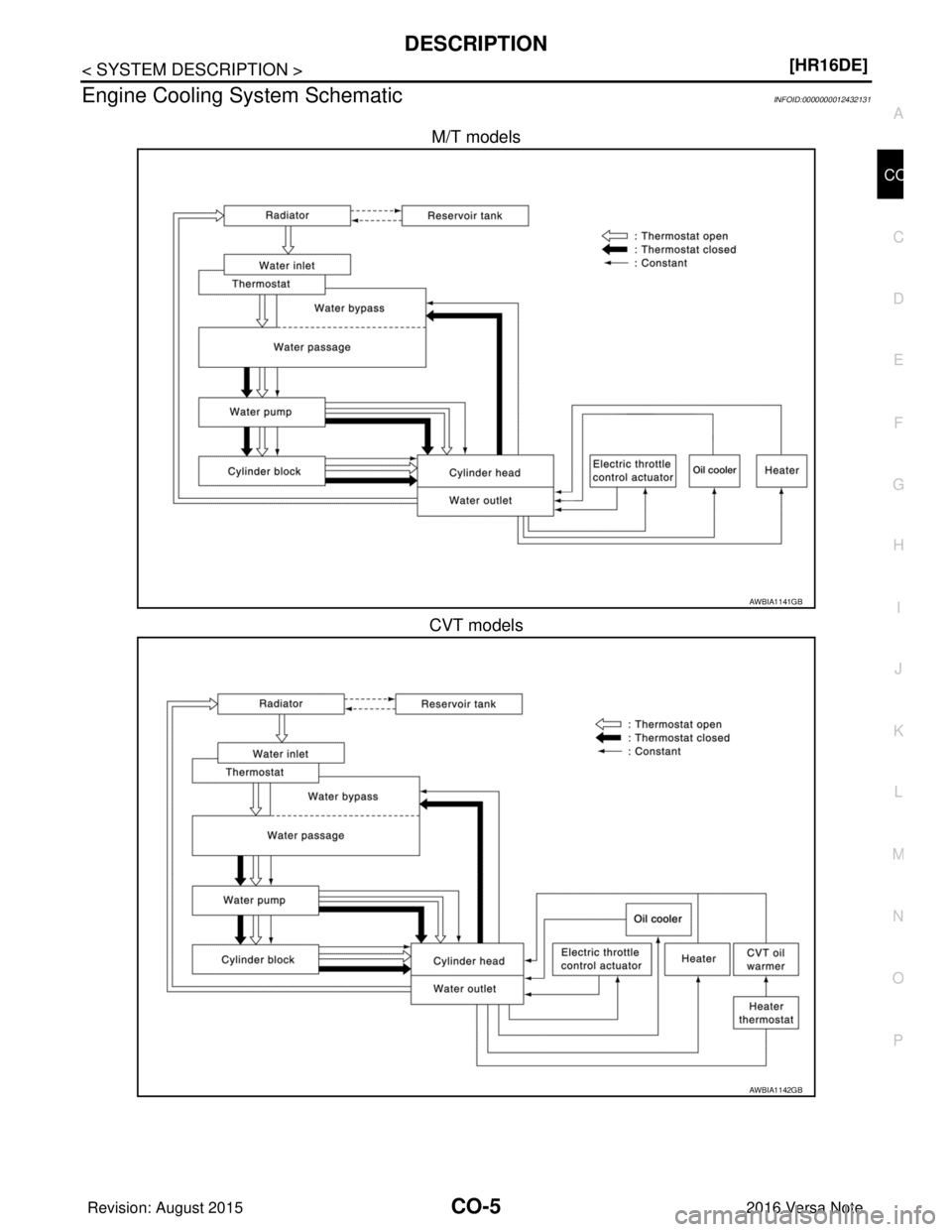

Engine Cooling System SchematicINFOID:0000000012432131
M/T models
CVT models
AWBIA1141GB
AWBIA1142GB
Revision: August 20

Page 1611 of 3641

NISSAN NOTE 2016 Service Repair Manual CO-6
< SYMPTOM DIAGNOSIS >[HR16DE]
OVERHEATING CAUSE ANALYSIS
SYMPTOM DIAGNOSIS
OVERHEATING CAUSE ANALYSIS
Troubleshooting ChartINFOID:0000000012432132
Symptom
Check items
Cooling sys-
tem parts
malf

Page 1612 of 3641

NISSAN NOTE 2016 Service Repair Manual OVERHEATING CAUSE ANALYSISCO-7
< SYMPTOM DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
Except cool-
ing system
parts mal-
function —
Overload on engine Abusive driving
High engine rpm under

Page 1613 of 3641

NISSAN NOTE 2016 Service Repair Manual CO-8
< PERIODIC MAINTENANCE >[HR16DE]
ENGINE COOLANT
PERIODIC MAINTENANCE
ENGINE COOLANT
InspectionINFOID:0000000012432133
CHECKING COOLING SYSTEM HOSES
Check hoses for the following:
• Improper att

Page 1614 of 3641

NISSAN NOTE 2016 Service Repair Manual ENGINE COOLANTCO-9
< PERIODIC MAINTENANCE > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
2. Connect a suitable hose to the radiator drain plug.
• Use a suitable hose with the dimensions as shown.
3. Ope

Page 1615 of 3641

NISSAN NOTE 2016 Service Repair Manual CO-10
< PERIODIC MAINTENANCE >[HR16DE]
ENGINE COOLANT
4. Install the Tool by installing the radiator cap adapter onto the
radiator neck opening. Then attach the gauge body assembly
with the refill tub

CO-10
< PERIODIC MAINTENANCE >[HR16DE]
ENGINE COOLANT
4. Install the Tool by installing the radiator cap adapter onto the
radiator neck opening. Then attach the gauge body assembly
with the refill tube and the venturi assembly to the radiator cap
adapter.
5. Insert the refill hose into the engine coolant mixture container that is placed at floor level. Make sure the ball valve is in the
closed position.
•Use recommended engine coolant or equivalent.
Refer to MA-11, "
Fluids and Lubricants".
CAUTION:
Do not use any cooling system additives such as radiator
sealer. Additives may clog th e cooling system and cause
damage to the engine, transmission and/or cooling system.
6. Install an air hose to the venturi assembly, the air pressure must be within specification.
CAUTION:
The compressed air supply must be equipped with an air dryer.
7. The vacuum gauge will begin to rise and there will be an audible hissing noise. During this process open the ball valve on the refill hose slightly. Engine coolant wi ll be visible rising in the refill hose. Once the refill
hose is full of engine coolant, close the ball valve. This will purge any air trapped in the refill hose.
8. Continue to draw the vacuum until the gauge reaches 28 inches of vacuum. The gauge may not reach 28 inches in high altitude
locations, use the vacuum specifications based on the altitude
above sea level.
9. When the vacuum gauge has reached the specifi ed amount, disconnect the air hose and wait 20 seconds
to see if the system loses any vacuum. If the vacuum level drops, perform any necessary repairs to the
system and repeat steps 6 - 8 to bring the vacuum to the specified amount. Recheck for any leaks.
10. Place the engine coolant container (with the refill hose inserted) at the same level as the top of the radia- tor. Then open the ball valve on the refill hose so the engine coolant will be drawn up to fill the cooling sys-
tem. The cooling system is full when the vacuum gauge reads zero.
CAUTION:
Do not allow the engine coolant co ntainer to get too low when filling, to avoid air from being drawn
into the cooling system.
11. Remove the Tool from the radiator neck opening.
12. Fill the cooling system reservoir tank to the specified level and install the radiator cap. Run the engine to warm up the cooling system and t op up the system as necessary.
13. Install the front under cover. Refer to EXT-39, "
FRONT UNDER COVER : Removal and Installation".
Tool number : KV991J0070 (J-45695)
Engine coolant capacity
(with reservoir tank)
: Refer to MA-11, "
Fluids and
Lubricants".
Compressed air
supply pressure : 549 - 824 kPa (5.6 - 8.4 kg/cm
2,
80 - 119 psi)LLIA0058E
Altitude above sea level Vacuum gauge reading
0 - 100 m (328 ft) : 28 inches of vacuum
300 m (984 ft) : 27 inches of vacuum
500 m (1,641 ft) : 26 inches of vacuum
1,000 m (3,281 ft) : 24 - 25 inches of vacuum
LLIA0057E
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1616 of 3641

NISSAN NOTE 2016 Service Repair Manual ENGINE COOLANTCO-11
< PERIODIC MAINTENANCE > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
Flushing Cooling SystemINFOID:0000000012432136
1. Install radiator drain plug and reservoir tank, if removed.
CAUT
