Page 433 of 3641

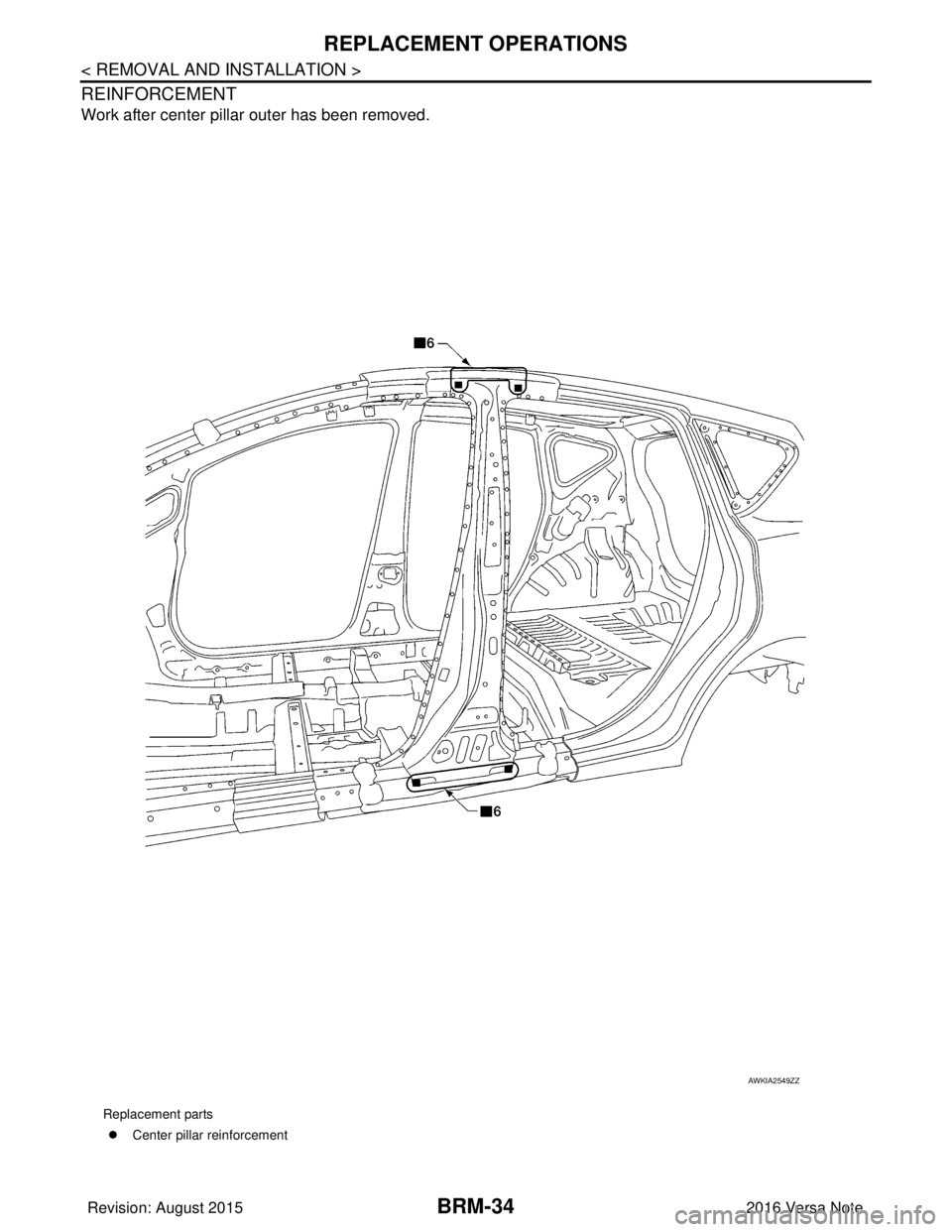

NISSAN NOTE 2016 Service Repair Manual BRM-34 < REMOVAL AND INSTALLATION > REPLACEMENT OPERATIONS REINFORCEMENT Work after center pillar outer has been removed. Replacement parts�z Center pillar reinforcement AWKIA2549ZZ Revision: August 2

Page 434 of 3641

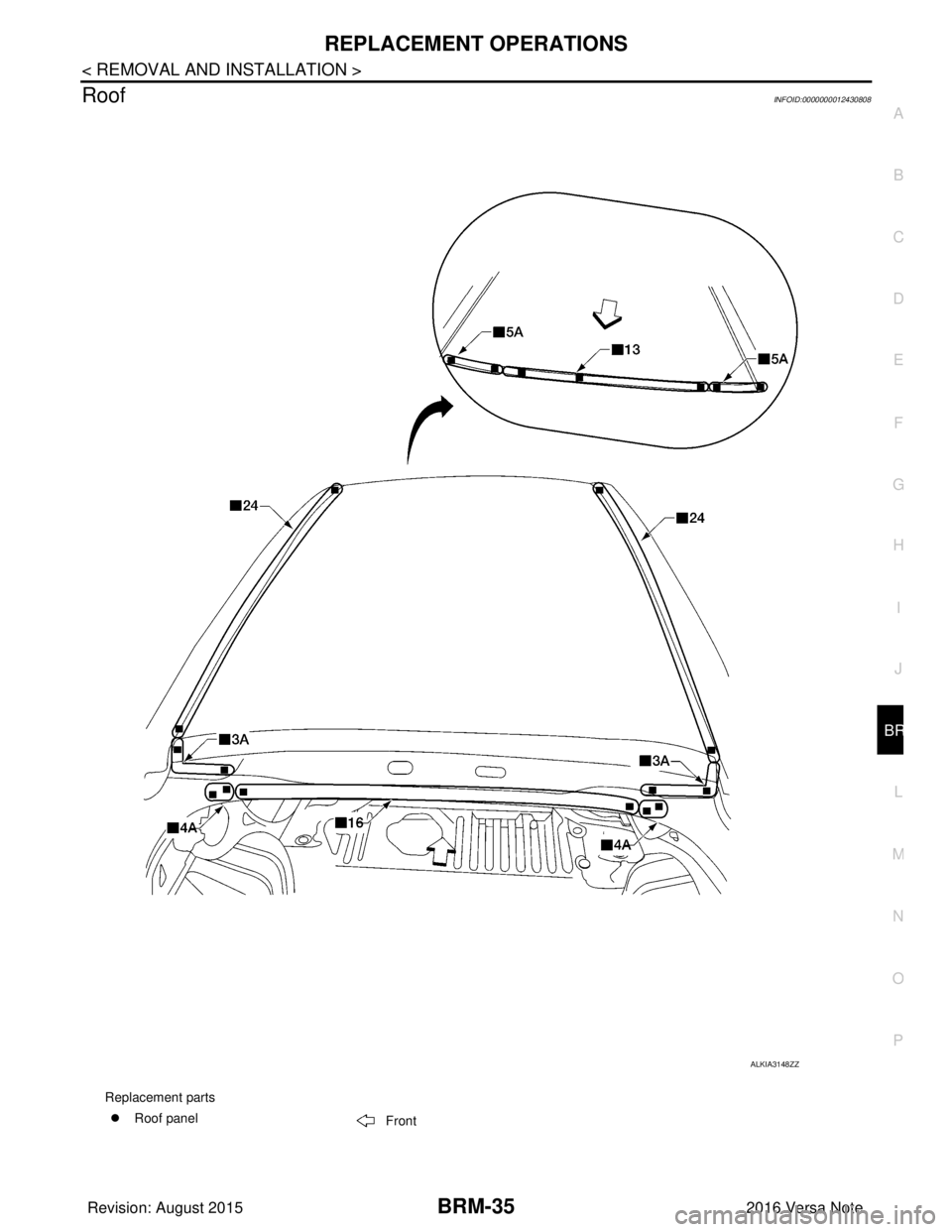

NISSAN NOTE 2016 Service Repair Manual REPLACEMENT OPERATIONSBRM-35 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B BRM N O P RoofINFOID:0000000012430808 Replacement parts �z Roof panel Front ALKIA3148ZZ Revision: August 2015 2016 Vers

Page 435 of 3641

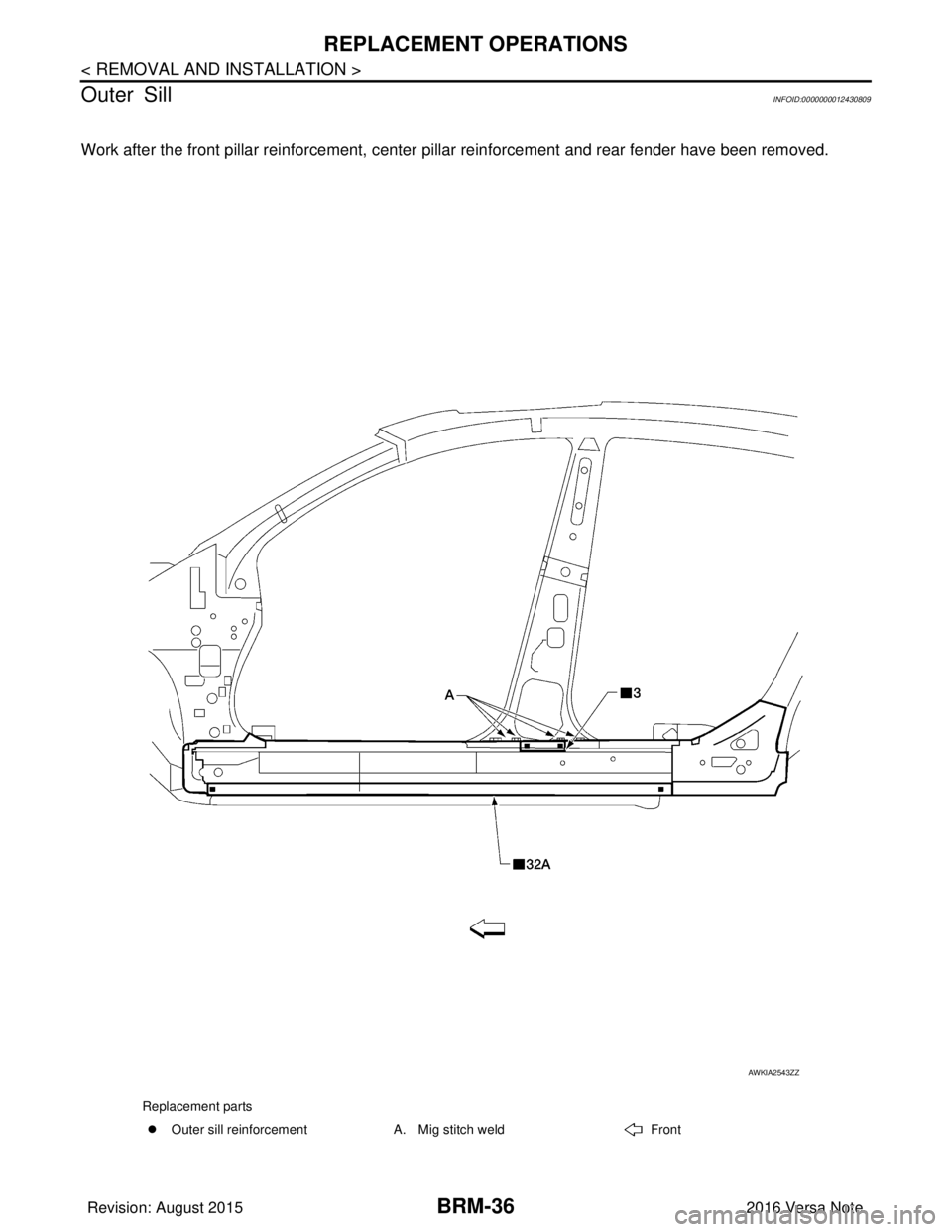

NISSAN NOTE 2016 Service Repair Manual BRM-36 < REMOVAL AND INSTALLATION > REPLACEMENT OPERATIONS Outer Sill INFOID:0000000012430809 Work after the front pillar reinforcement, center pillar reinforcement and rear fender have been removed.

Page 436 of 3641

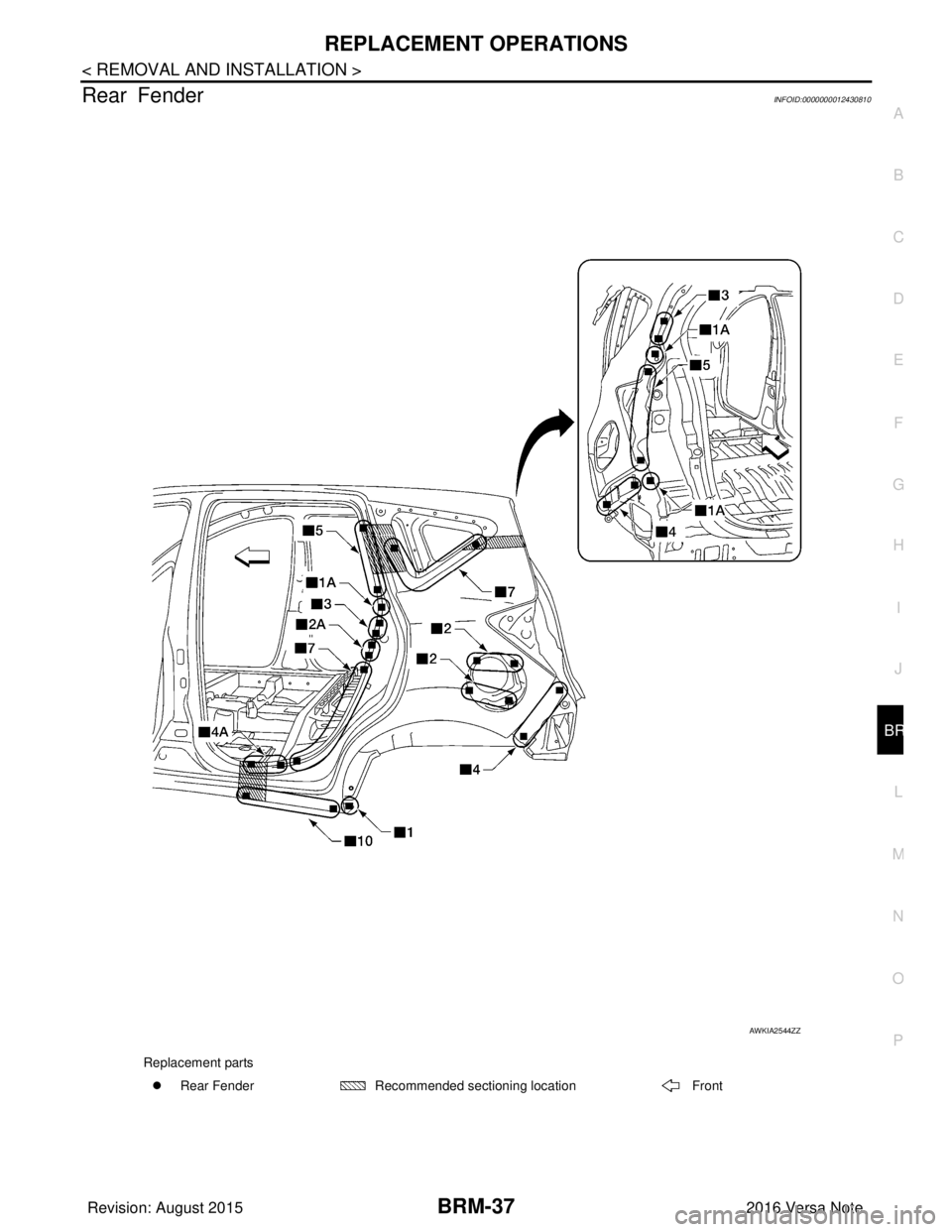

NISSAN NOTE 2016 Service Repair Manual REPLACEMENT OPERATIONSBRM-37 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B BRM N O P Rear FenderINFOID:0000000012430810 AWKIA2544ZZ Replacement parts �z Rear Fender Recommended sectioning locati

Page 437 of 3641

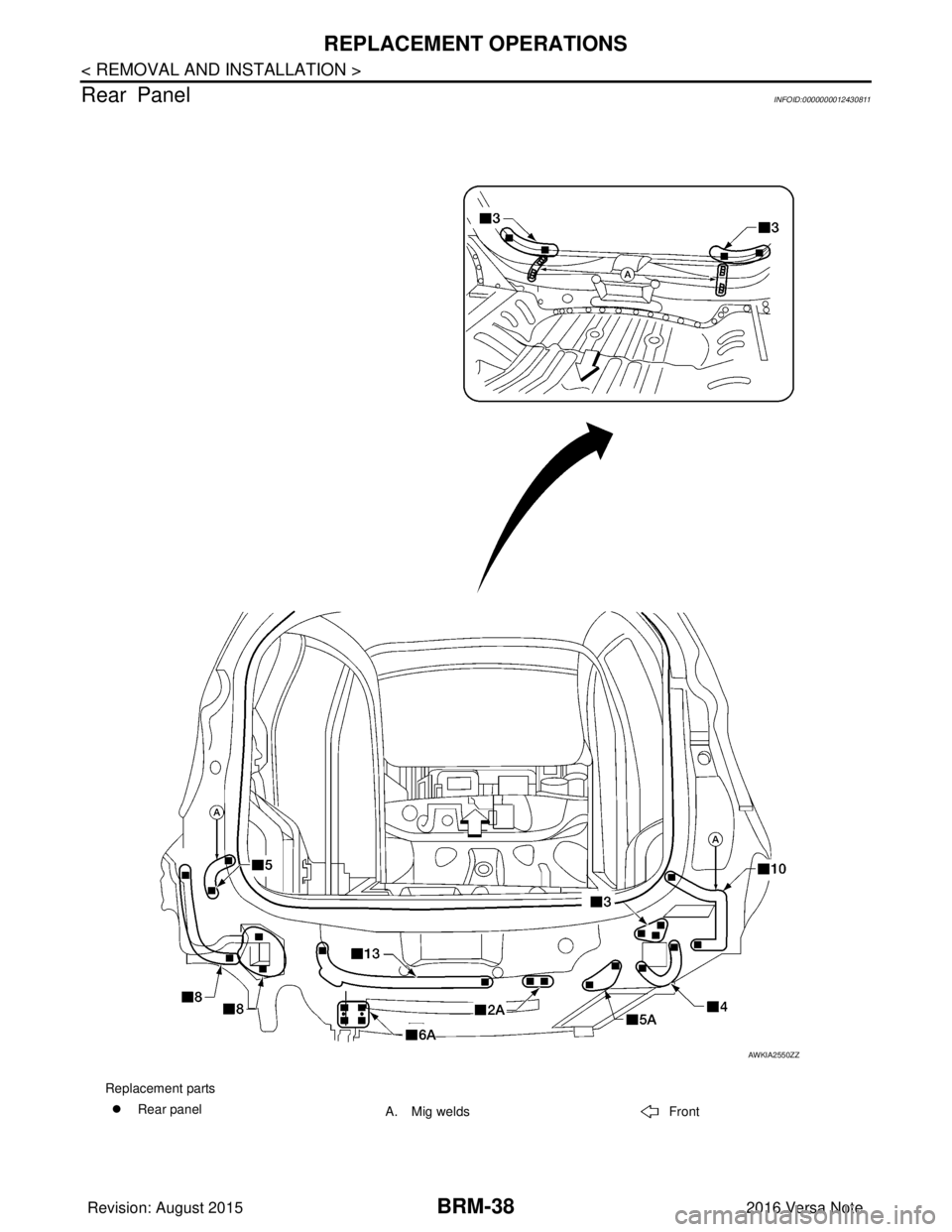

NISSAN NOTE 2016 Service Repair Manual BRM-38 < REMOVAL AND INSTALLATION > REPLACEMENT OPERATIONS Rear Panel INFOID:0000000012430811 Replacement parts �z Rear panel A. Mig welds Front AWKIA2550ZZ Revision: August 2015 2016 Versa Note car

Page 438 of 3641

NISSAN NOTE 2016 Service Repair Manual REPLACEMENT OPERATIONSBRM-39 < REMOVAL AND INSTALLATION > C DE F G H I J L M A B BRM N O P Rear Floor RearINFOID:0000000012430812 Work after rear panel assembly has been removed. Replacement parts �z

Page 439 of 3641

NISSAN NOTE 2016 Service Repair Manual BRM-40 < REMOVAL AND INSTALLATION > REPLACEMENT OPERATIONS Rear Side Member Extension INFOID:0000000012430813 Work after rear panel assembly and rear floor rear have been removed. Replacement parts �z

Page 440 of 3641

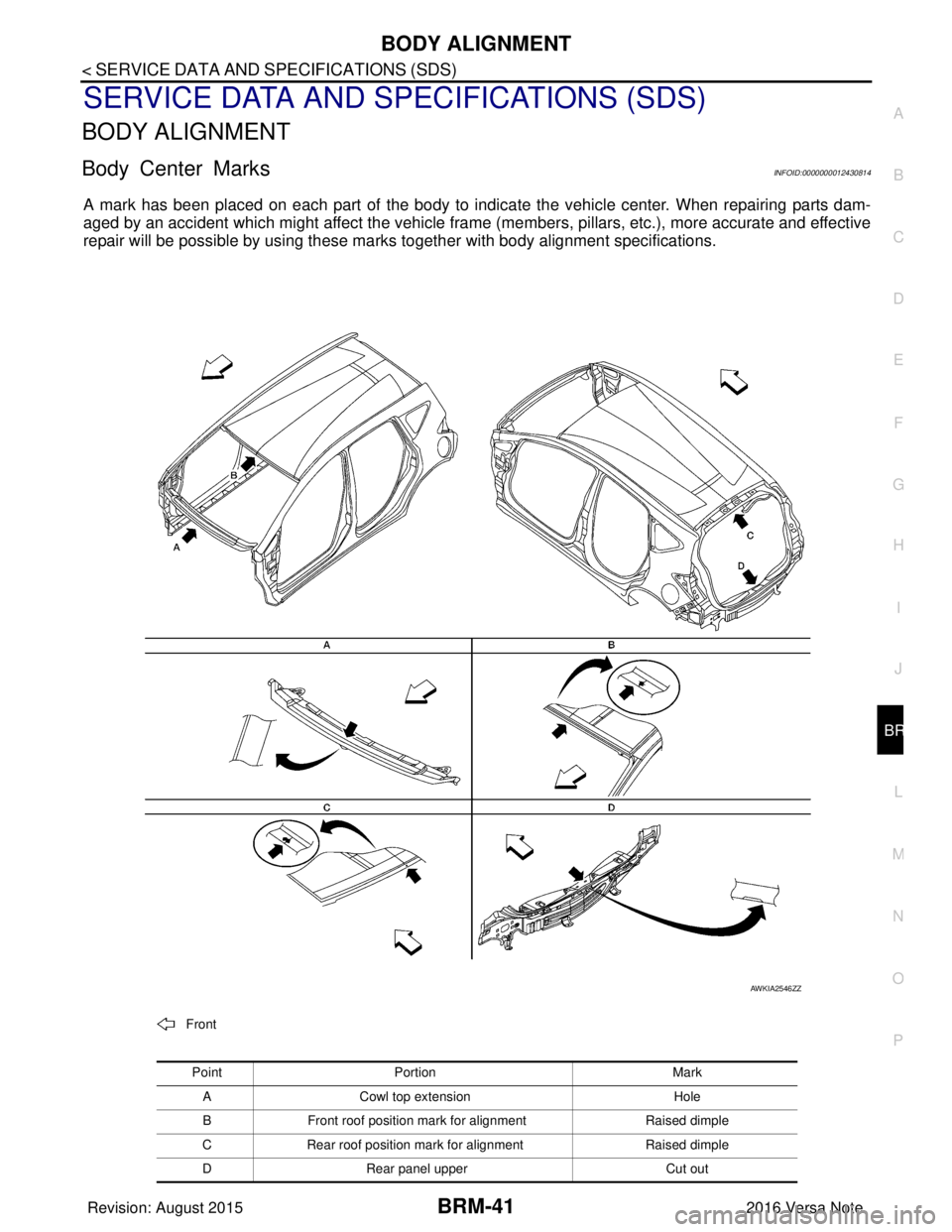

NISSAN NOTE 2016 Service Repair Manual BODY ALIGNMENTBRM-41 < SERVICE DATA AND SPECIFICATIONS (SDS) C DE F G H I J L M A B BRM N O P SERVICE DATA AND SPECIFICATIONS (SDS) BODY ALIGNMENT Body Center MarksINFOID:0000000012430814 A mark has
