2016 NISSAN NOTE armrest

SE-18
< REMOVAL AND INSTALLATION >
FRONT SEAT
REMOVAL AND INSTALLATION
FRONT SEAT
DRIVER SIDE
DRIVER SIDE : Exploded ViewINFOID:0000000012432035

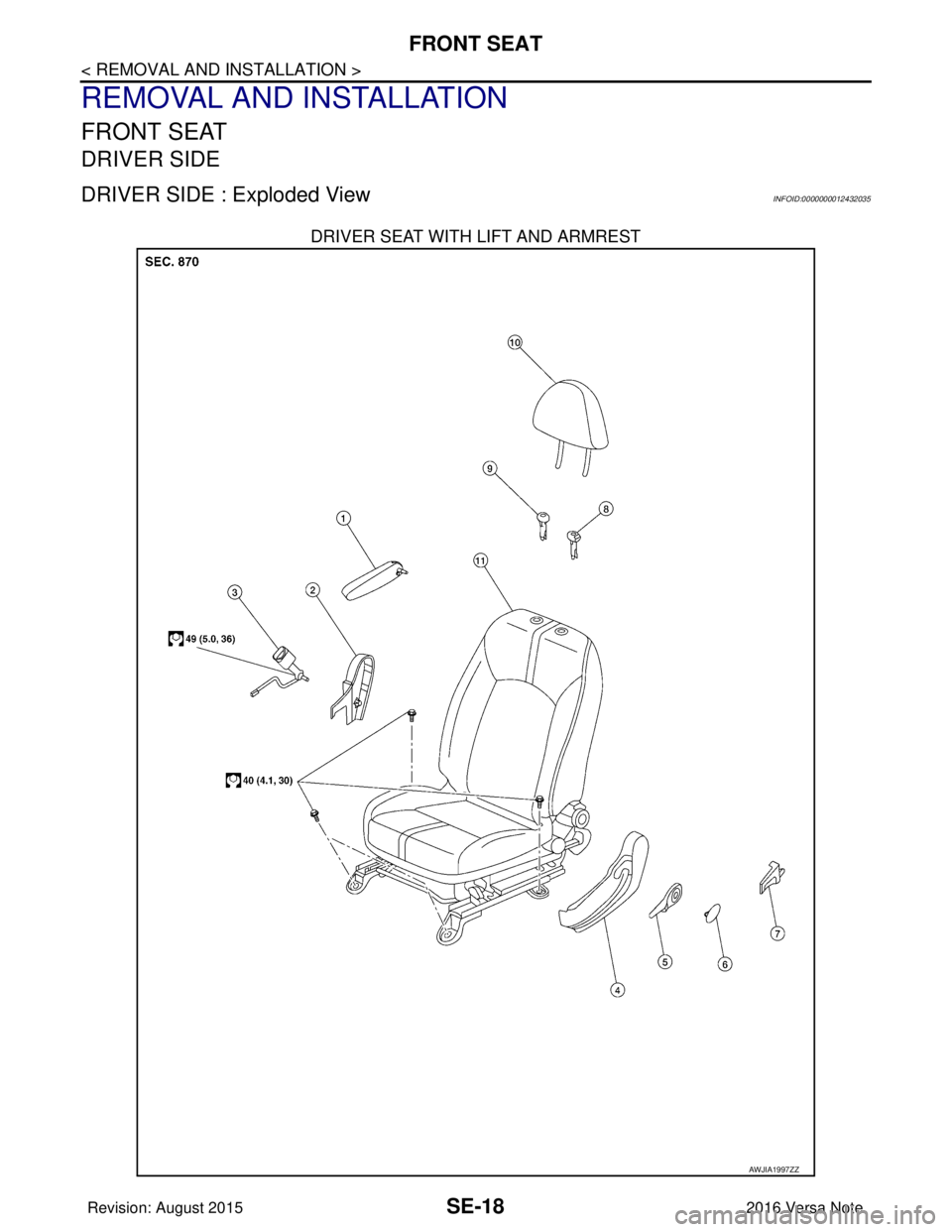

DRIVER SEAT WITH LIFT AND ARMREST
AWJIA1997ZZ
Revision: August 20152016 Versa Note

cardiagn.com

FRONT SEATSE-19
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
DRIVER SEAT WITHOUT LIFT AND ARMREST
1. Armrest 2. Seat cushion outer finisher (RH) 3. Seat belt buckle
4. Seat cushion outer finisher (LH) 5. Lift lever 6. Lift lever cap
7. Recline lever 8. Headrest holder (locked) 9. Headrest holder (free)
10. Headrest 11. Seat assembly
AWJIA1998ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR SEATSE-23
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
REAR SEAT
Exploded ViewINFOID:0000000012432041

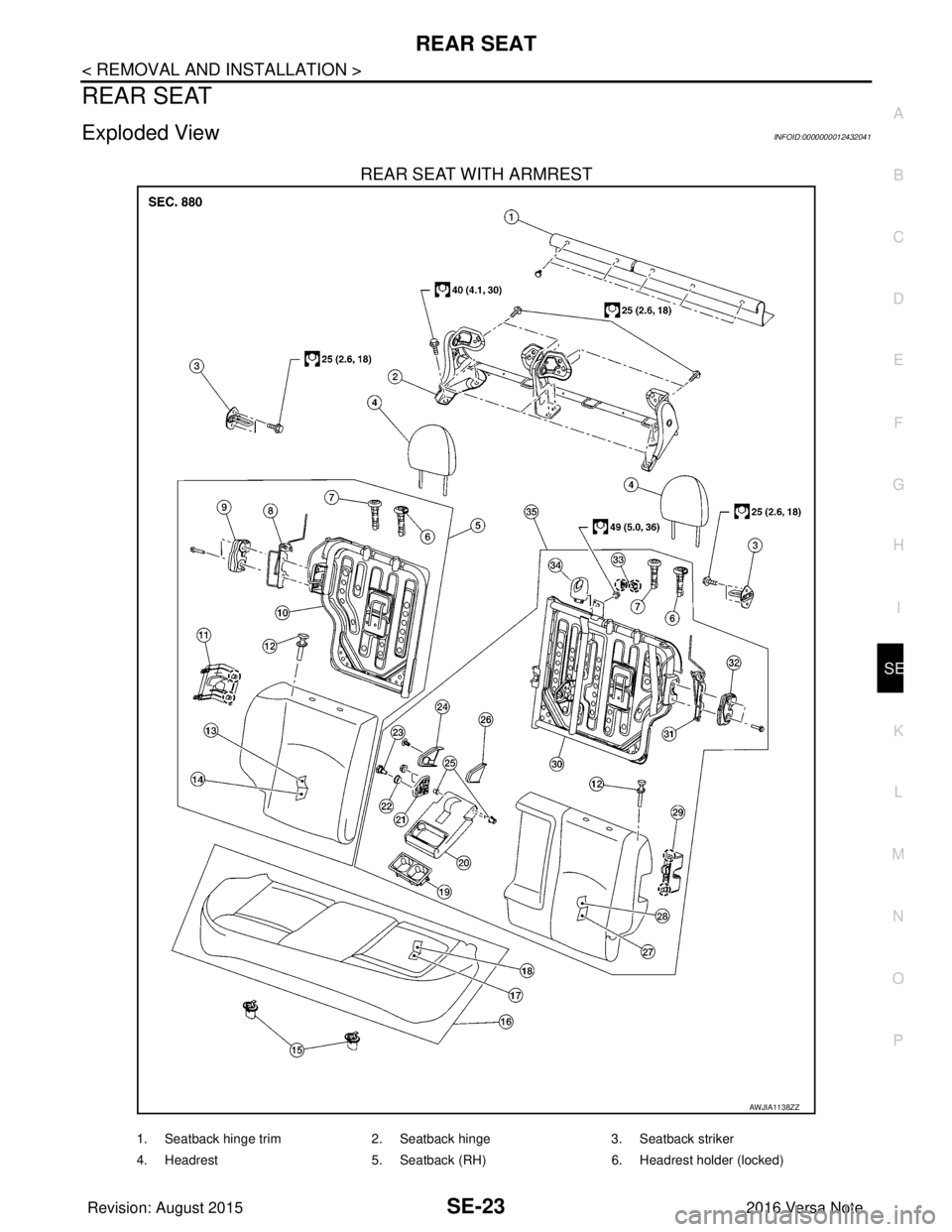

REAR SEAT WITH ARMREST
AWJIA1138ZZ
1. Seatback hinge trim 2. Seatback hinge 3. Seatback striker
4. Headrest 5. Seatback (RH) 6. Headrest holder (locked)
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-24
< REMOVAL AND INSTALLATION >
REAR SEAT
7. Headrest holder (free)8. Seatback latch bracket (RH) 9. Seatback latch (RH)
10. Seatback frame (RH) 11. Seatback latch finisher (RH) 12. Seatback latch release knob
13. Seatback trim (RH) 14. Seatback pad (RH) 15. Seat cushion hook
16. Seat cushion 17. Seat cushion pad 18. Seat cushion trim
19. Cup holder 20. Armrest 21. Armrest hinge bracket
22. Armrest pivot bolt bushing 23. Armrest pivot bolt 24. Armrest hinge bracket finisher
(RH)
25. Bushing 26. Armrest hinge bracket finisher (LH) 27. Seatback pad (LH)
28. Seatback trim (LH) 29. Seatback latch finisher (LH) 30. Seatback frame (LH)
31. Seatback latch bracket (LH) 32. Seatback latch (LH) 33. Seatbelt guide finisher
34. Seat belt guide 35. Seatback (LH)
Pawl
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR SEATSE-25
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

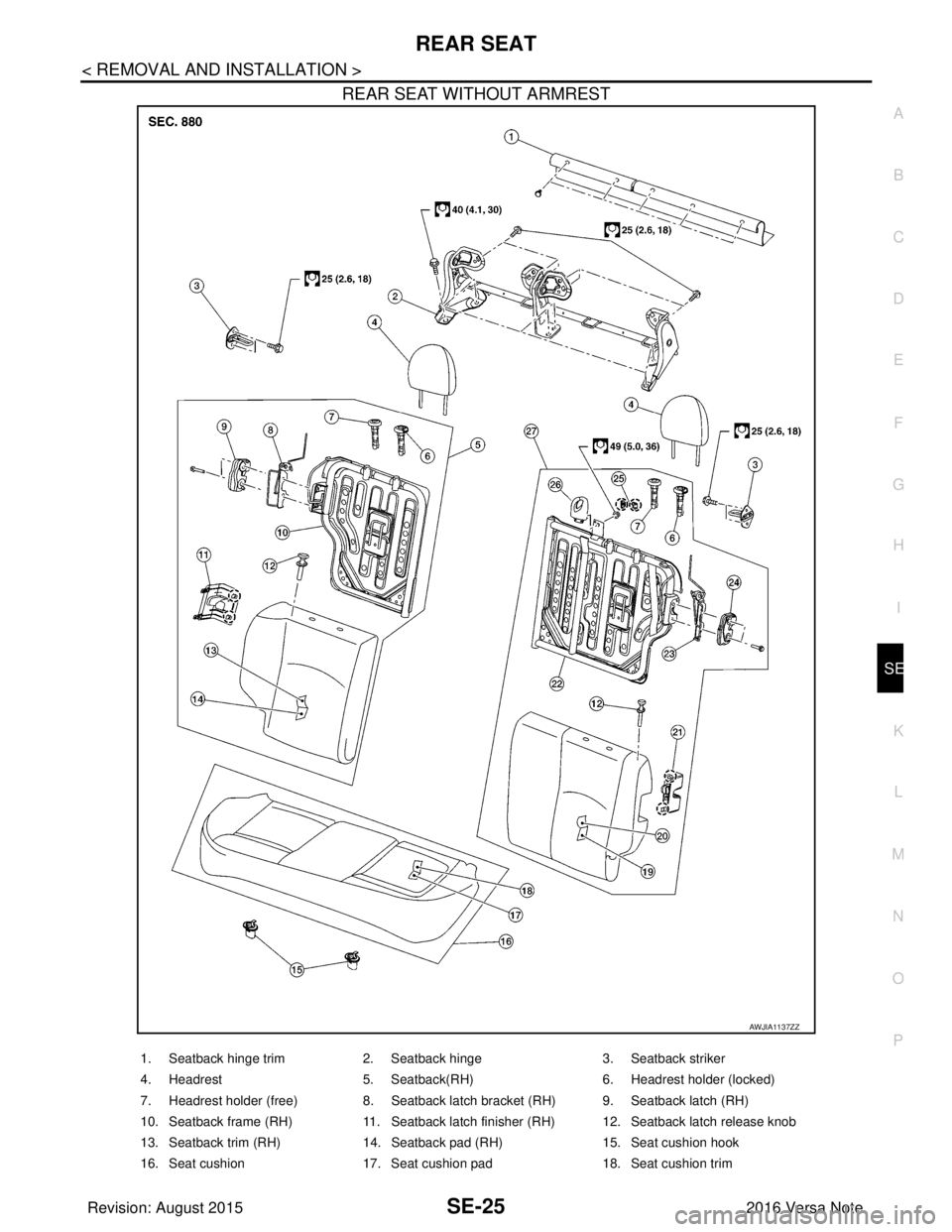

REAR SEAT WITHOUT ARMREST
AWJIA1137ZZ
1. Seatback hinge trim 2. Seatback hinge 3. Seatback striker
4. Headrest 5. Seatback(RH) 6. Headrest holder (locked)
7. Headrest holder (free) 8. Seatback latch bracket (RH) 9. Seatback latch (RH)
10. Seatback frame (RH) 11. Seatback latch finisher (RH) 12. Seatback latch release knob
13. Seatback trim (RH) 14. Seatback pad (RH) 15. Seat cushion hook
16. Seat cushion 17. Seat cushion pad 18. Seat cushion trim
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-30
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT
UNIT DISASSEMBLY AND ASSEMBLY
FRONT SEAT
DRIVER SIDE
DRIVER SIDE : Exploded ViewINFOID:0000000012432048

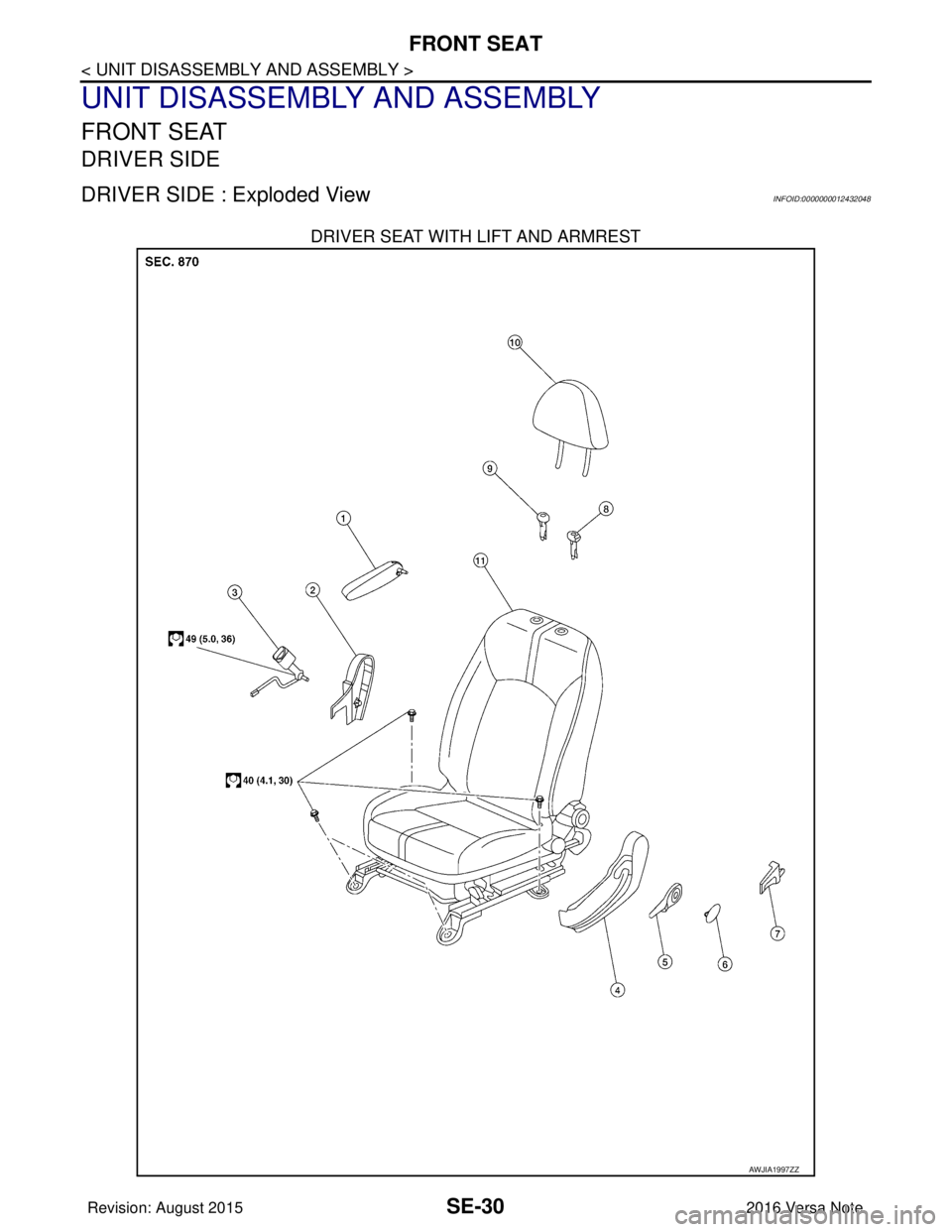

DRIVER SEAT WITH LIFT AND ARMREST
AWJIA1997ZZ
Revision: August 20152016 Versa Note

cardiagn.com

FRONT SEATSE-31
< UNIT DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
DRIVER SEAT WITHOUT LIFT AND ARMREST
1. Armrest 2. Seat cushion outer finisher (RH) 3. Seat belt buckle
4. Seat cushion outer finisher (LH) 5. Lift lever 6. Lift lever cap
7. Recline lever 8. Headrest holder (locked) 9. Headrest holder (free)
10. Headrest 11. Seat assembly
AWJIA1998ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SE-32
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT SEAT
DRIVER SIDE : Seatback
INFOID:0000000012834455
DISASSEMBLY
1. Remove the driver side front seat. Refer to SE-20, "DRIVER SIDE : Removal and Installation".
2. Remove the headrest.

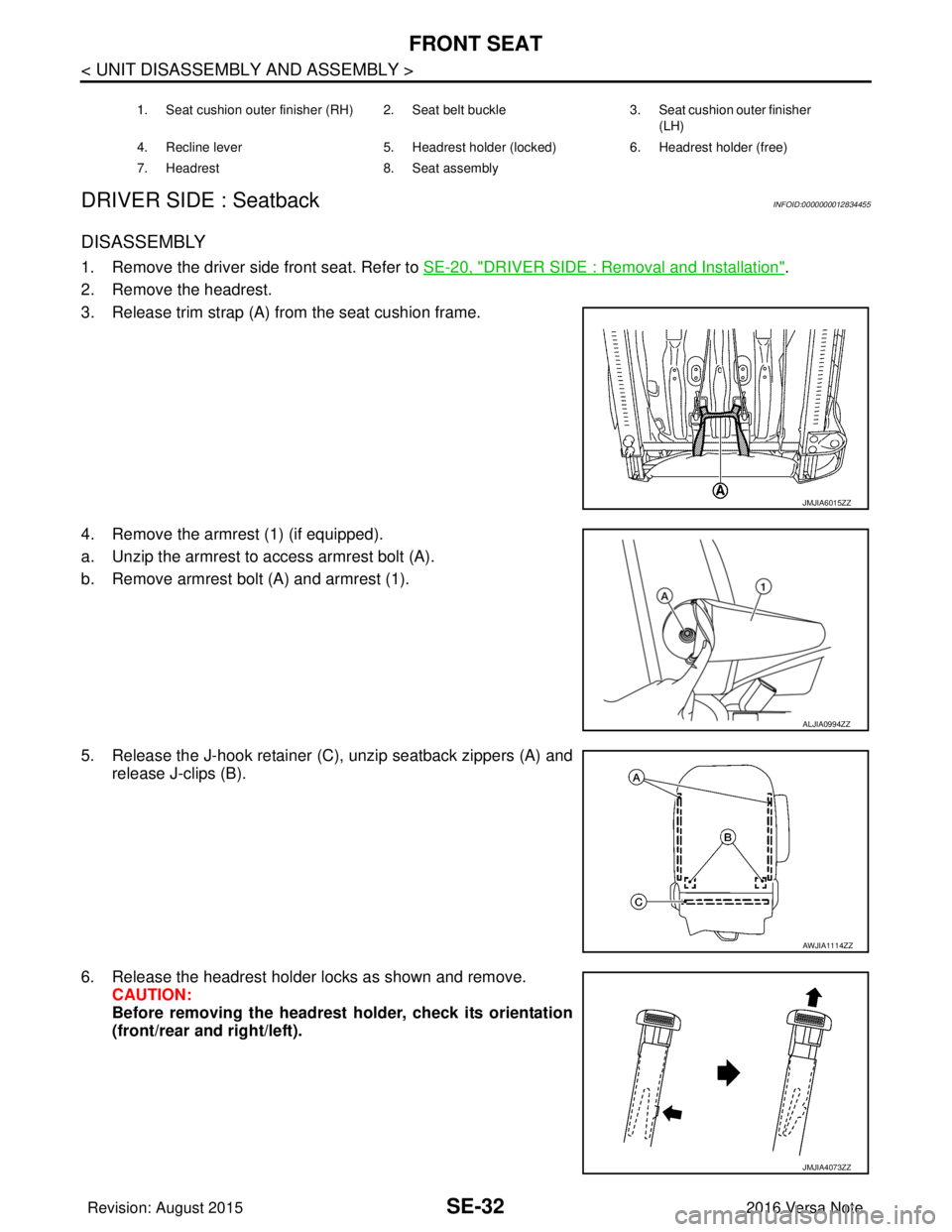

3. Release trim strap (A) from the seat cushion frame.
4. Remove the armrest (1) (if equipped).
a. Unzip the armrest to access armrest bolt (A).
b. Remove armrest bolt (A) and armrest (1).
5. Release the J-hook retainer (C), unzip seatback zippers (A) and release J-clips (B).
6. Release the headrest holder locks as shown and remove. CAUTION:
Before removing the headrest holder, check its orientation
(front/rear and right/left).
1. Seat cushion outer finisher (RH) 2. Seat belt buckle 3. Seat cushion outer finisher
(LH)
4. Recline lever 5. Headrest holder (locked) 6. Headrest holder (free)
7. Headrest 8. Seat assembly
JMJIA6015ZZ
ALJIA0994ZZ
AWJIA1114ZZ
JMJIA4073ZZ
