EC-442
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
COOLING FAN
CVT models
M/T models
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
2.CHECK COOLING FAN RELAY CIRCUIT
1. Disconnect cooling fan relay harness connector.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between IPDM E/R harnes s connector and cooling fan relay harness connector.
4. Check the continuity between cooling fan relay harness connector and ground.
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK COOLING FAN RELAY
Refer to EC-443, "
Component Inspection (Cooling Fan Relay)".
YES or NO
YES >> GO TO 4.
NO >> Replace cooling fan relay.
4.CHECK COOLING FAN MOTOR
Refer to EC-443, "
Component Inspection (Cooling Fan Motor)".
YES or NO
YES >> GO TO 5.
NO >> Replace cooling fan motor. Refer to CO-16, "
Exploded View".
5.CHECK INTERMITTENT INCIDENT
Perform GI-42, "
Intermittent Incident".
YES or NO
YES >> Replace IPDM E/R. Refer to PCS-30, "Removal and Installation".
NO >> Repair or replace harness or connector.
Cooling fan motor Ground Continuity
Connector Terminal
E5 2Ground Existed
Cooling fan motor Ground Continuity
Connector Terminal
E31 3Ground Existed
IPDM E/R Cooling fan relay
Continuity
Connector Terminal Connector Terminal
E46 65
E62 1
Existed
59 2
Cooling fan relay Ground Continuity
Connector Terminal
E62 3Ground Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1570 of 3641
![NISSAN NOTE 2016 Service Repair Manual COOLING FANEC-443
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Component Inspection (Cooling Fan Motor)INFOID:0000000012431643
1.CHECK COOLING FAN MOTOR
1. Turn ignition switch O NISSAN NOTE 2016 Service Repair Manual COOLING FANEC-443
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Component Inspection (Cooling Fan Motor)INFOID:0000000012431643
1.CHECK COOLING FAN MOTOR
1. Turn ignition switch O](/manual-img/5/57363/w960_57363-1569.png)

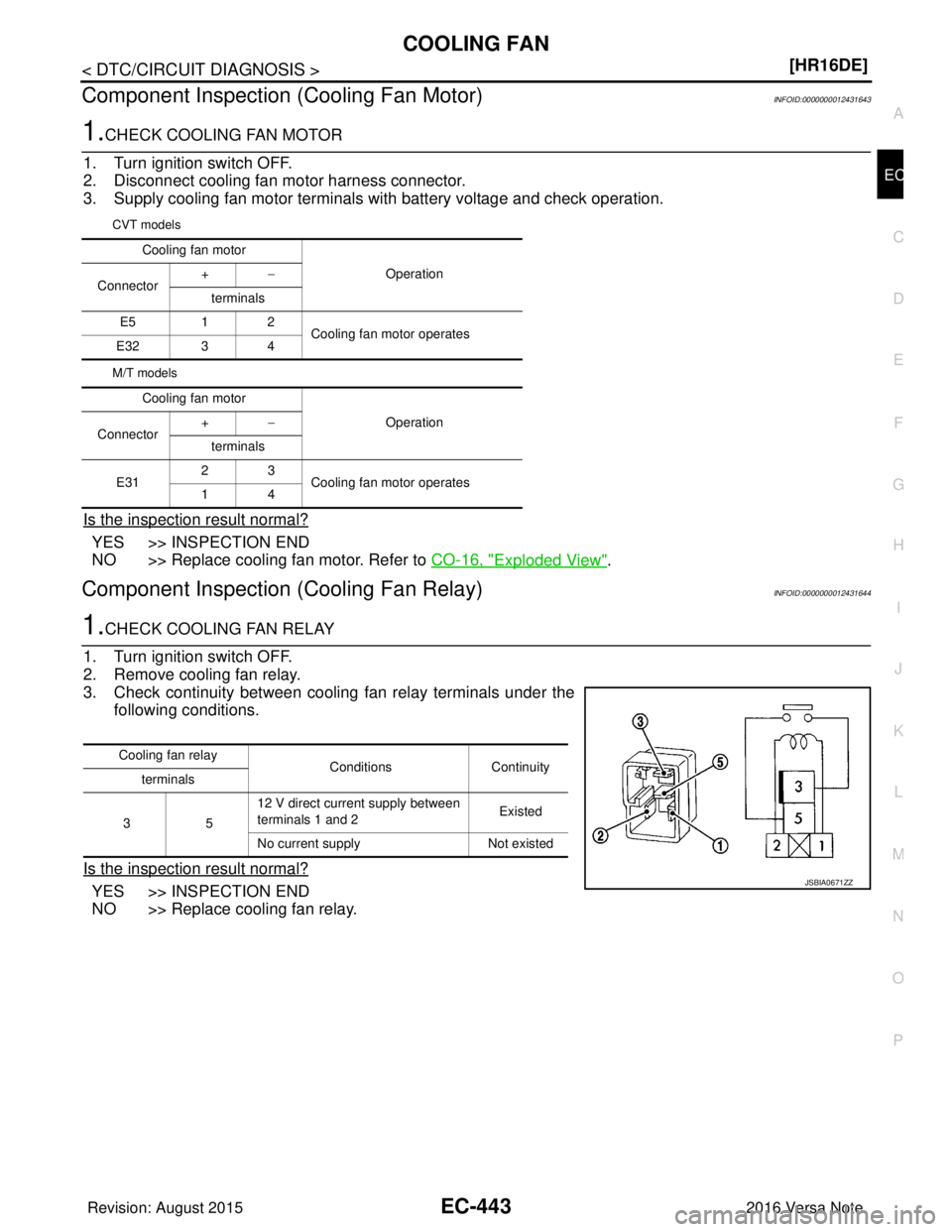

COOLING FANEC-443
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Component Inspection (Cooling Fan Motor)INFOID:0000000012431643
1.CHECK COOLING FAN MOTOR
1. Turn ignition switch OFF.
2. Disconnect cooling fan motor harness connector.
3. Supply cooling fan motor terminals with battery voltage and check operation.
CVT models
M/T models
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace cooling fan motor. Refer to CO-16, "
Exploded View".
Component Inspection (Cooling Fan Relay)INFOID:0000000012431644
1.CHECK COOLING FAN RELAY
1. Turn ignition switch OFF.
2. Remove cooling fan relay.
3. Check continuity between cooling fan relay terminals under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace cooling fan relay.
Cooling fan motor Operation
Connector +
−
terminals
E5 1 2 Cooling fan motor operates
E32 3 4
Cooling fan motor Operation
Connector +
−
terminals
E31 23
Cooling fan motor operates
14
Cooling fan relay ConditionsContinuity
terminals
35 12 V direct current supply between
terminals 1 and 2
Existed
No current supply Not existed
JSBIA0671ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1571 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-444
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
DescriptionINFOID:0000000012431645
The electrical load signal (Headlamp switch signal, rear window defogger switc NISSAN NOTE 2016 Service Repair Manual EC-444
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
DescriptionINFOID:0000000012431645
The electrical load signal (Headlamp switch signal, rear window defogger switc](/manual-img/5/57363/w960_57363-1570.png)
EC-444
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
DescriptionINFOID:0000000012431645
The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred to
ECM through the CAN communication line.
Component Function CheckINFOID:0000000012431646
1.CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT.
3. Select “LOAD SIGNAL” and check indication under the following conditions.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Go to EC-444, "
Diagnosis Procedure".
2.CHECK LIGHTING SWITCH FUNCTION
Check “LOAD SIGNAL” indication under the following conditions.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Go to EC-444, "
Diagnosis Procedure".
3.CHECK HEATER FAN CONTROL SWITCH FUNCTION
Select “HEATER FAN SW” and check indication under the following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-444, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431647
1.INSPECTION START
Confirm the malfunctioning circuit (rear window defogger, headlamp or heater fan). Refer to EC-444, "
Compo-
nent Function Check".
Which circuit is related to the incident?
Rear window defogger>>GO TO 2
Headlamp>>GO TO 3.
Heater fan>>GO TO 4.
2.CHECK REAR WINDOW DEFOGGER SYSTEM
Perform trouble diagnosis of rear window defogger system. Refer to DEF-17, "
Work Flow".
Monitor itemConditionIndication
LOAD SIGNAL Rear window defogger switch ON ON
OFF OFF
Monitor item
ConditionIndication
LOAD SIGNAL Lighting switch ON at 2nd position ON
OFF
OFF
Monitor item ConditionIndication
HEATER FAN SW Heater fan control switch ON ON
OFF OFF
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 1572 of 3641
ELECTRICAL LOAD SIGNALEC-445
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
>> INSPECTION END
3.CHECK HEADLAMP SYSTEM
Perform trouble diagnosis of headlamp system. Refer to EXL-71, "
Work Flow".
>> INSPECTION END
4.CHECK AIR CONDITIONING SYSTEM
Perform trouble diagnosis of air conditioning system. Refer to HA-13, "
Workflow".
>> INSPECTION END
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1573 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-446
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
FUEL INJECTOR
FUEL INJECTOR
Component Function CheckINFOID:0000000012431648
1.INSPECTION START
Turn ignition switch to START.
Is any cylinder ignited?
YES >> G NISSAN NOTE 2016 Service Repair Manual EC-446
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
FUEL INJECTOR
FUEL INJECTOR
Component Function CheckINFOID:0000000012431648
1.INSPECTION START
Turn ignition switch to START.
Is any cylinder ignited?
YES >> G](/manual-img/5/57363/w960_57363-1572.png)
EC-446
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
FUEL INJECTOR
FUEL INJECTOR
Component Function CheckINFOID:0000000012431648
1.INSPECTION START
Turn ignition switch to START.
Is any cylinder ignited?
YES >> GO TO 2.
NO >> Go to EC-446, "
Diagnosis Procedure".
2.CHECK FUEL INJECTOR FUNCTION
With CONSULT
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT.
3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT
1. Let engine idle.
2. Listen to each fuel injector operating sound.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-446, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431649
1.CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect fuel injector harness connector.
3. Turn ignition switch ON.
4. Check the voltage between fuel injector harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
• IPDM E/R connector F42 Clicking noise should be heard.
PBIB3332E
Fuel injector
Ground Voltage
Cylinder Connector Front / Rear Terminal
1 F17 Front
1
Ground Battery voltage
F53 Rear
2 F18 Front
1
F54 Rear
3 F19 Front
1
F29 Rear
4 F20 Front
1
F30 Rear
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1574 of 3641
![NISSAN NOTE 2016 Service Repair Manual FUEL INJECTOREC-447
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
• 10 A fuse (No. 55)
• Harness for open or short between fuel injector and fuse
>> Repair open circuit or sho NISSAN NOTE 2016 Service Repair Manual FUEL INJECTOREC-447
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
• 10 A fuse (No. 55)
• Harness for open or short between fuel injector and fuse
>> Repair open circuit or sho](/manual-img/5/57363/w960_57363-1573.png)
FUEL INJECTOREC-447
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
• 10 A fuse (No. 55)
• Harness for open or short between fuel injector and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK FUEL INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between fuel injector harness connector and ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK FUEL INJECTOR
Refer to EC-447, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace malfunctioning fuel injector. Refer to EM-40, "
Removal and Installation"
5.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PCS-30, "Removal and Installation".
NO >> Repair or replace harness or connectors.
Component InspectionINFOID:0000000012431650
1.CHECK FUEL INJECTOR
1. Turn ignition switch OFF.
2. Disconnect fuel injector harness connector.
3. Check resistance between fuel injector terminals as follows.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning fuel injector. Refer to EM-40, "
Removal and Installation".
Fuel injectorECM
Continuity
Cylinder Connector Front / Rear Terminal Connector Terminal
1 F17 Front
2
F10 31
Existed
F53 Rear
12
2 F18 Front
230
F54 Rear 20
3 F19 Front
229
F29 Rear 16
4 F20 Front
225
F30 Rear 24
TerminalsResistance
1 and 2 11.1 - 14.5 Ω [at 10 - 60°C (50 - 140 °F)]
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1575 of 3641
![NISSAN NOTE 2016 Service Repair Manual EC-448
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
FUEL PUMP
FUEL PUMP
Component Function CheckINFOID:0000000012431651
1.CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two NISSAN NOTE 2016 Service Repair Manual EC-448
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
FUEL PUMP
FUEL PUMP
Component Function CheckINFOID:0000000012431651
1.CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two](/manual-img/5/57363/w960_57363-1574.png)
EC-448
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
FUEL PUMP
FUEL PUMP
Component Function CheckINFOID:0000000012431651
1.CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two fingers.
Is the inspection result normal?
YES >> INSPECTION END
NO >> EC-448, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431652
1.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Turn ignition switch ON.
4. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between IPDM E/ R harness connector and ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect “fuel level sensor uni t and fuel pump” harness connector.
4. Turn ignition switch ON.
5. Check the voltage between “fuel level sensor unit and fuel pump” harness connector and ground. Fuel pressure pulsation should
be felt on the fuel feed
hose for 1 second after igniti on switch is turned ON.
ALBIA1074ZZ
ECM
Voltag e
+ −
Connector Terminal Connector Terminal F10 23 E16 108 Battery voltage
IPDM E/R ECM
Continuity
Connector Terminal Connector Terminal
F43 43 F10 23 Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 1576 of 3641
![NISSAN NOTE 2016 Service Repair Manual FUEL PUMPEC-449
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 4.
4.CHECK FUSE
1. Turn ignition switch OFF.
2. Disconne NISSAN NOTE 2016 Service Repair Manual FUEL PUMPEC-449
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 4.
4.CHECK FUSE
1. Turn ignition switch OFF.
2. Disconne](/manual-img/5/57363/w960_57363-1575.png)
FUEL PUMPEC-449
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 4.
4.CHECK FUSE
1. Turn ignition switch OFF.
2. Disconnect 15 A fuse (No. 48) from IPDM E/R.
3. Check 15 A fuse.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace 15 A fuse.
5.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-IV
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between IP DM E/R harness connector and “fuel level sensor unit and fuel pump”
harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
6.CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check the continuity between “fuel level sens or unit and fuel pump” harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair open circuit or short to power in harness or connectors.
7.CHECK FUEL PUMP
Refer to EC-450, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace “fuel level sensor unit and fuel pump”.Refer to FL-6, "
Exploded View".
8.CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to GI-42, "
Intermittent Incident".
Fuel level sensor unit
and fuel pump Ground Voltage
Connector Terminal
B44 1 Ground Battery voltage should for exist 1 second
after ignition switch is turn ON.
IPDM E/R
Fuel level sensor unit
and fuel pump Continuity
Connector Terminal Connector Terminal
E44 9 B44 1 Existed
Fuel level sensor unit and fuel pump
Ground Continuity
Connector Terminal
B44 3 Ground Existed
Revision: August 2015 2016 Versa Note
cardiagn.com
