NISSAN NOTE 2016 Service Repair Manual BCS-52
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
BCM

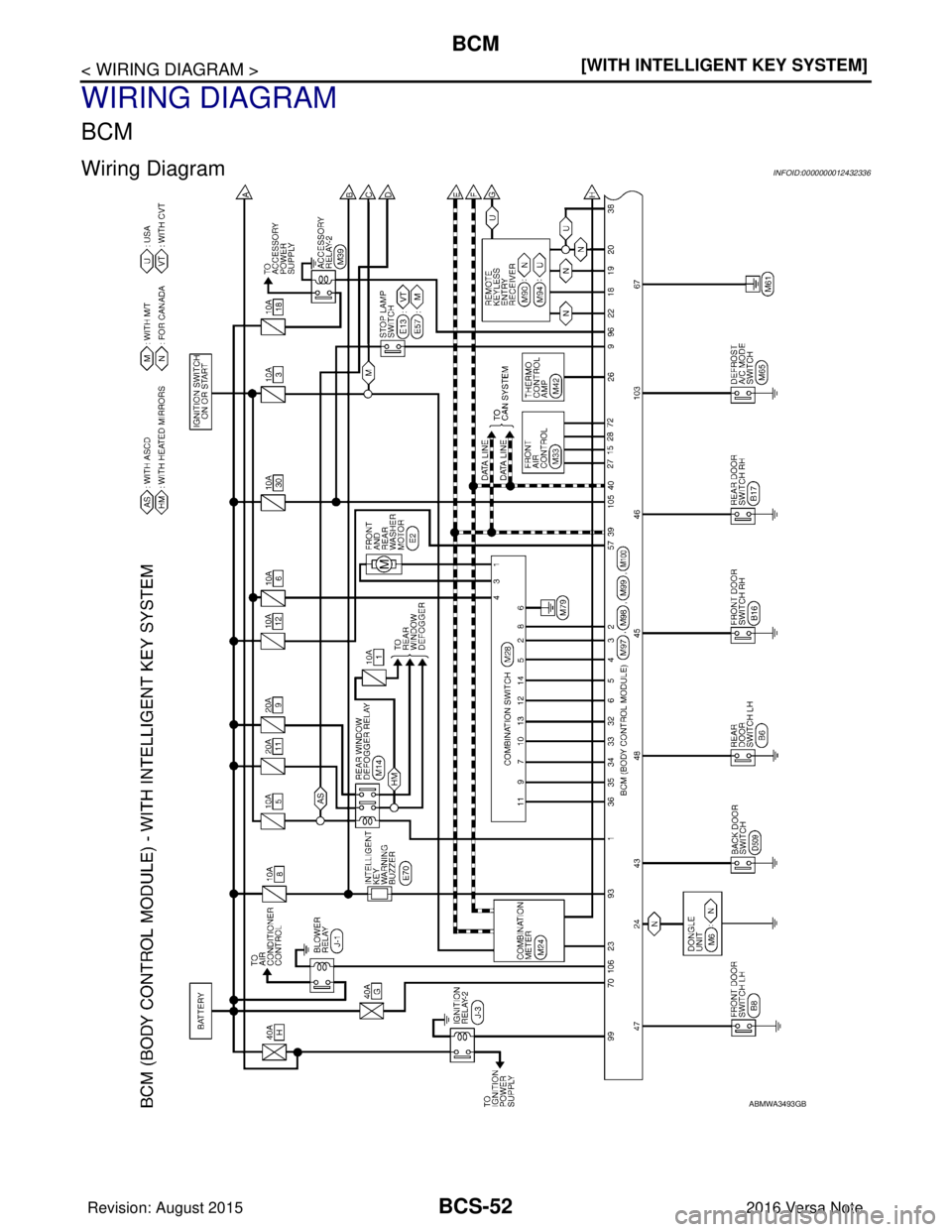

WIRING DIAGRAM
BCM
Wiring DiagramINFOID:0000000012432336
ABMWA3493GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 314 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS

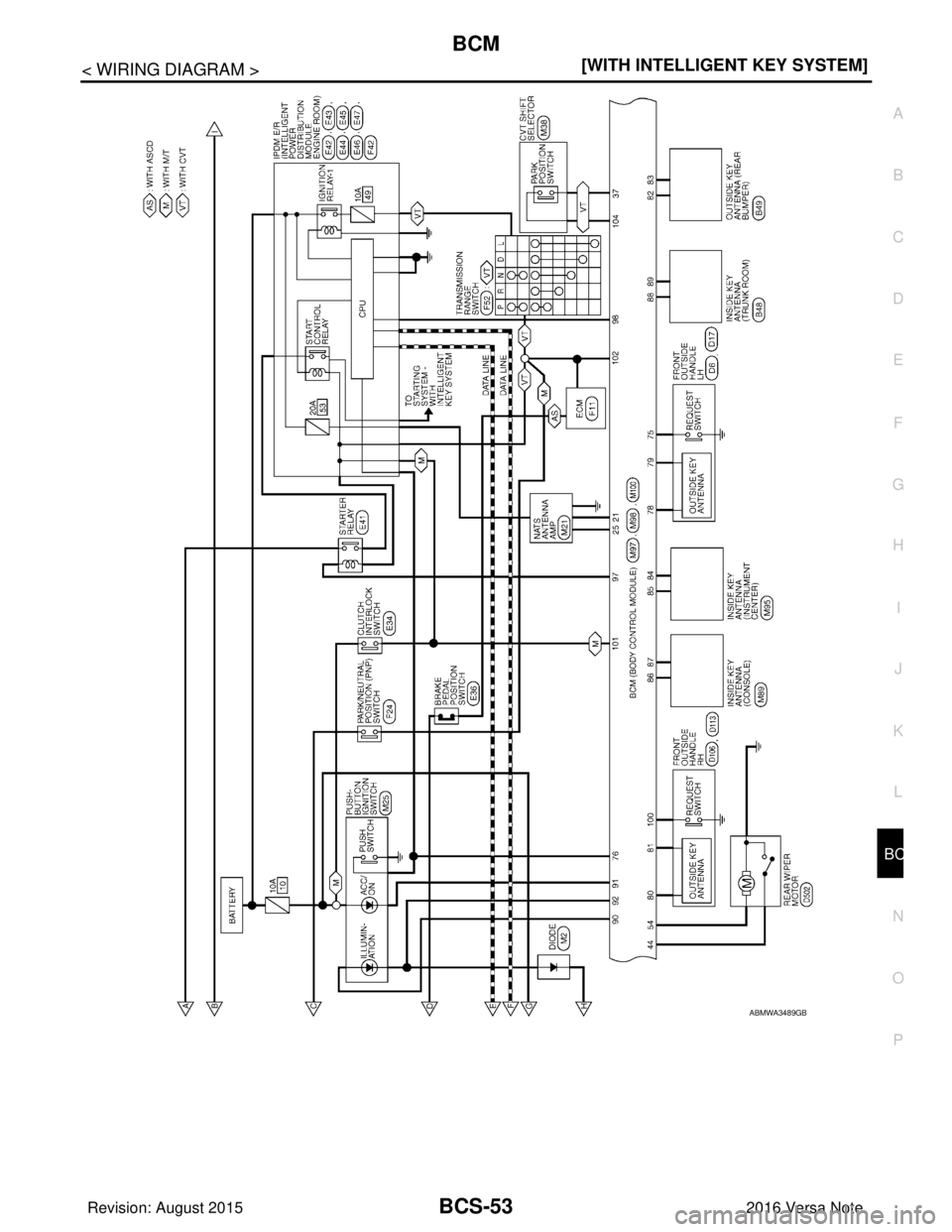

BCM
BCS-53
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
ABMWA3489GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 315 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS-54
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]

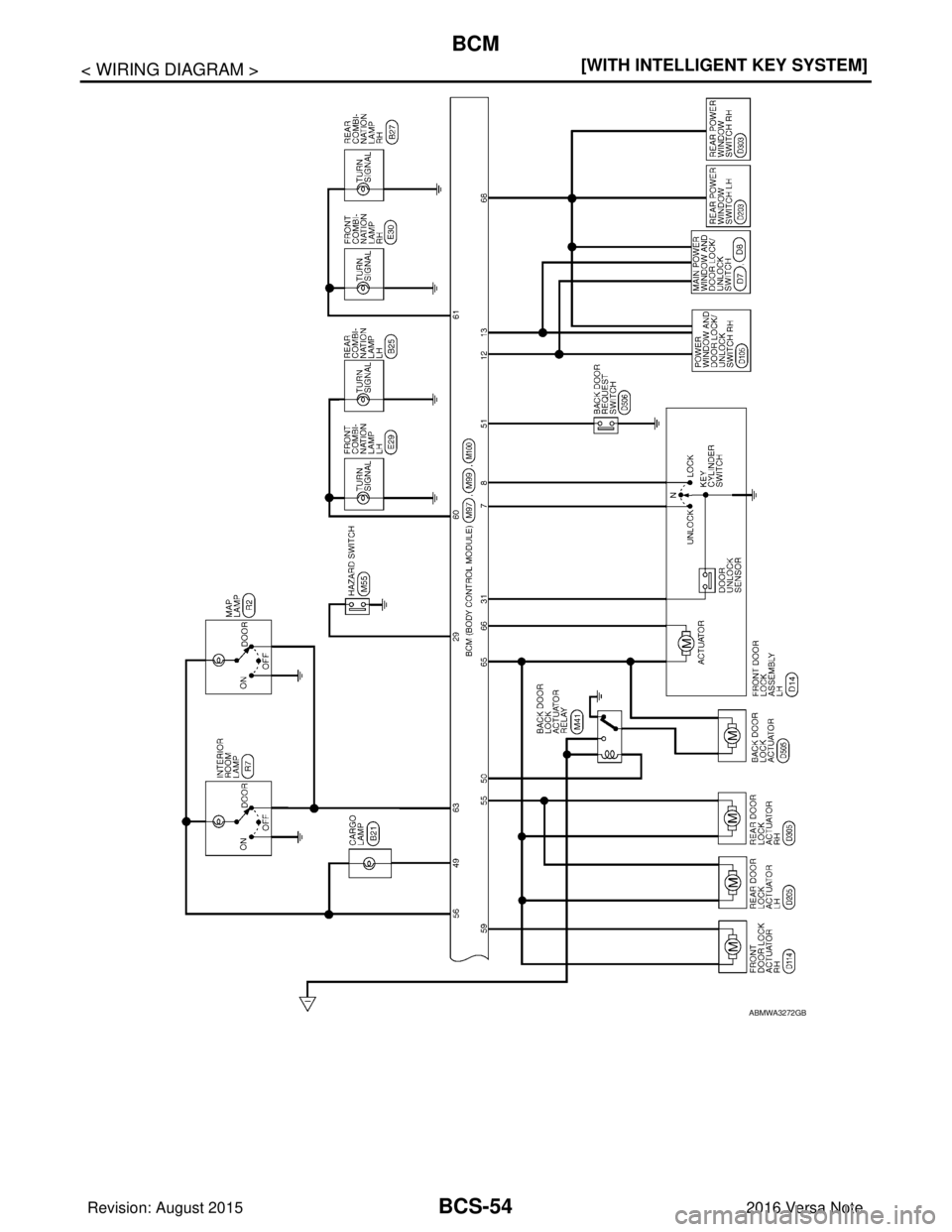

BCM
ABMWA3272GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 316 of 3641

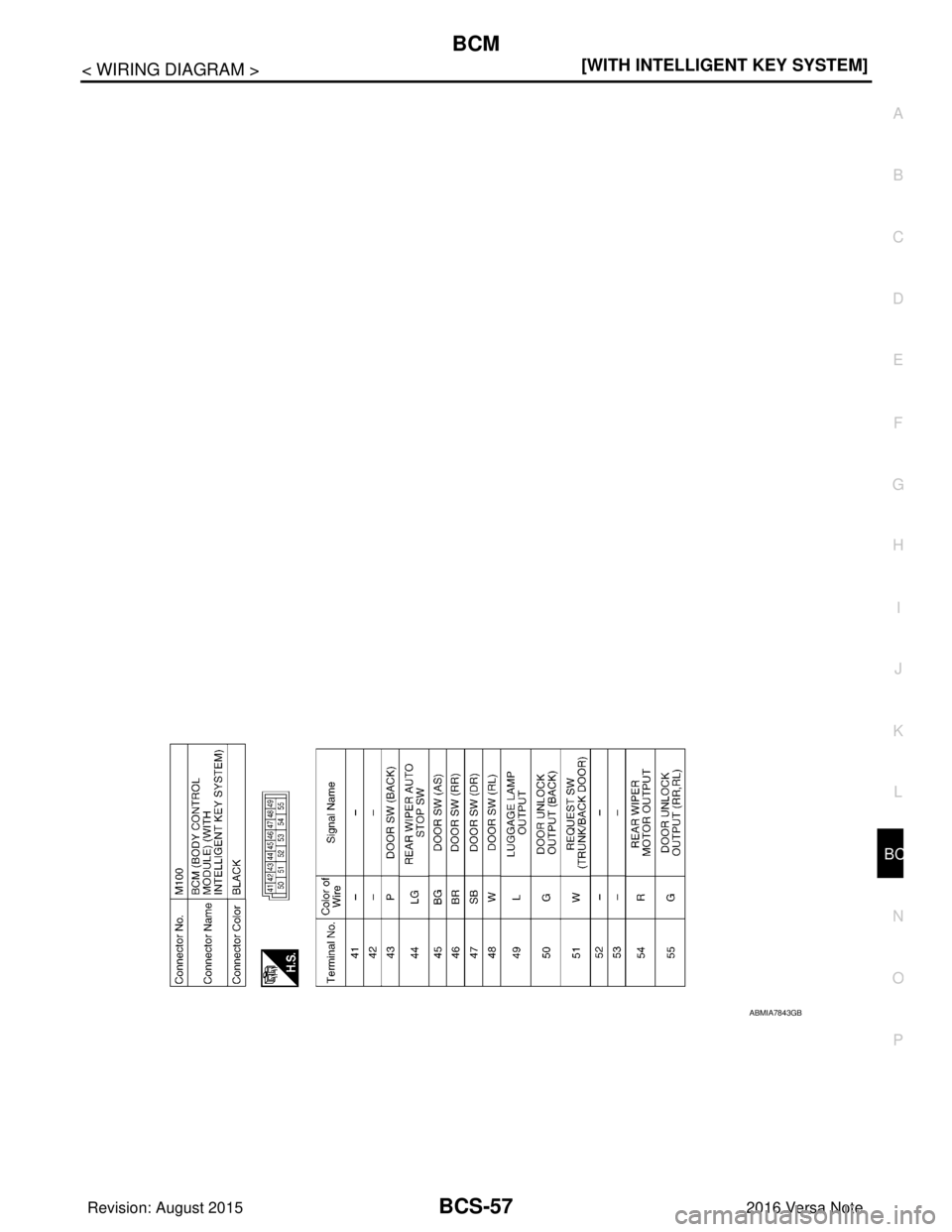

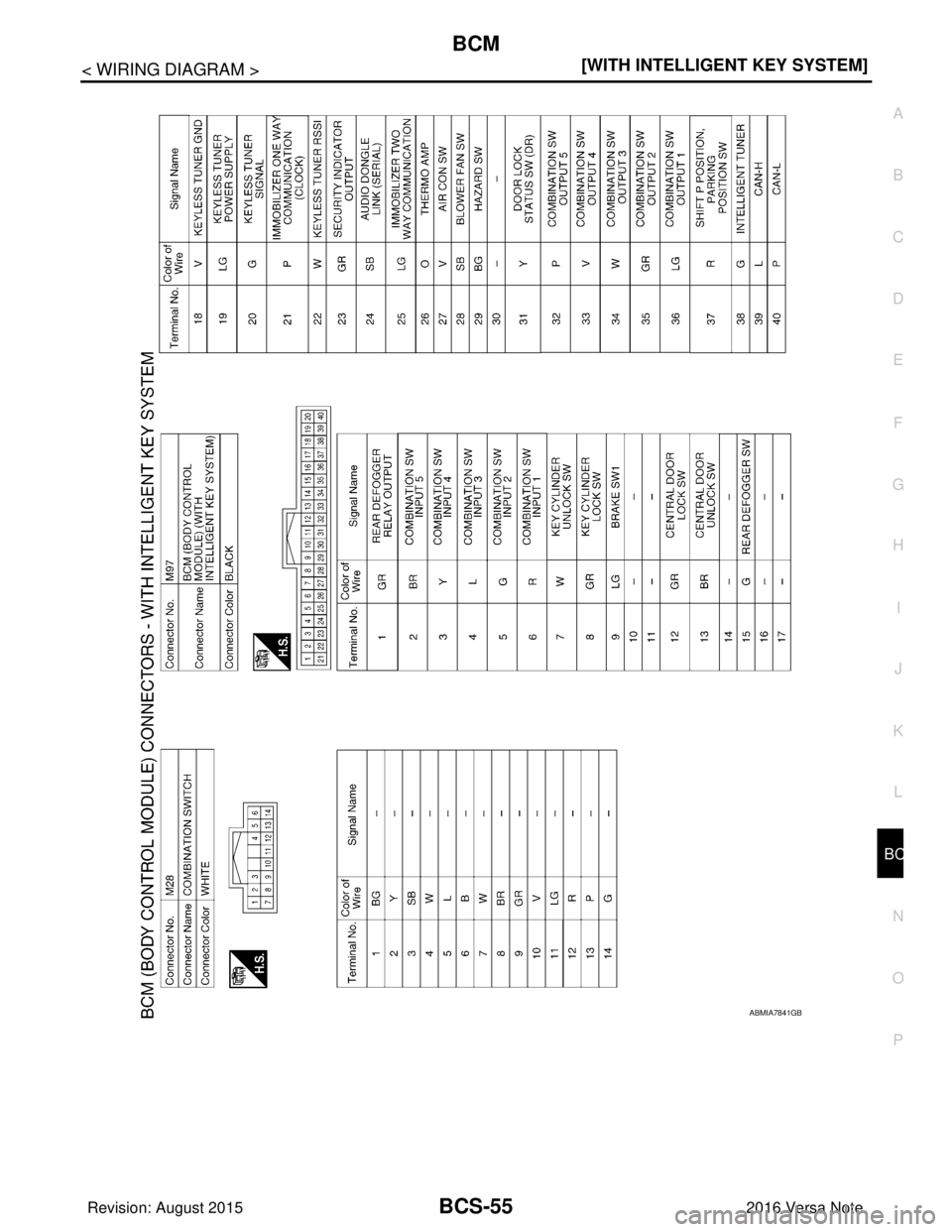

NISSAN NOTE 2016 Service Repair Manual BCS
BCM
BCS-55
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
ABMIA7841GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 317 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS-56
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]

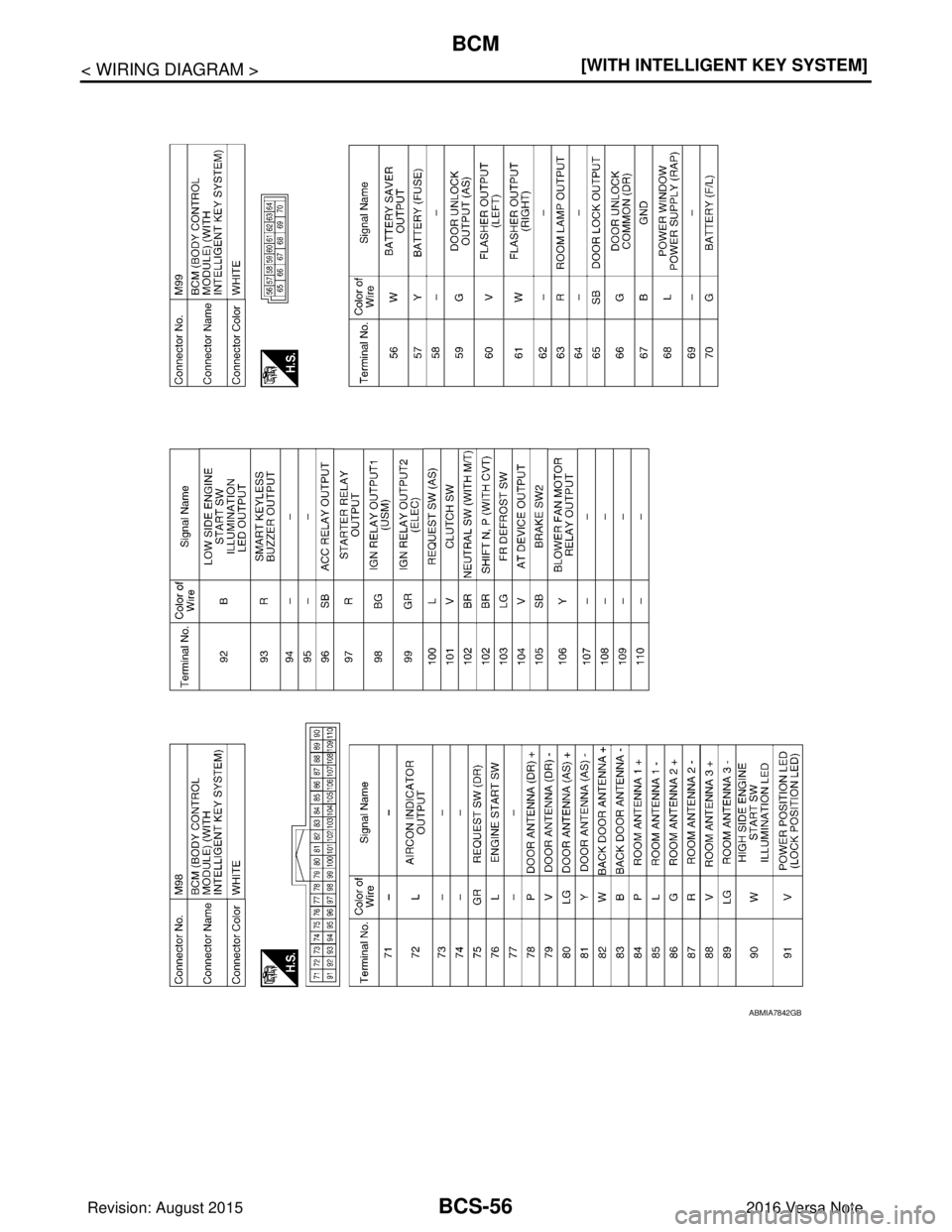

BCM
ABMIA7842GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 318 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS
BCM
BCS-57
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
ABMIA7843GB
Revision: August 2015
2016 Versa Note

cardiagn.com

Page 319 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS-58
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
ADDITIONAL SERVICE WHEN REPLACING BCM
BASIC INSPECTION
ADDITIONAL SERVICE WHEN REPLACING BCM
DescriptionINFOID:0000000012432337
BEFORE REPLACEM

Page 320 of 3641

NISSAN NOTE 2016 Service Repair Manual BCS
CONFIGURATION (BCM)BCS-59
< BASIC INSPECTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
CONFIGURATION (BCM)
DescriptionINFOID:0000000012432339
Vehicle specification needs to be

BCS
CONFIGURATION (BCM)BCS-59
< BASIC INSPECTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
CONFIGURATION (BCM)
DescriptionINFOID:0000000012432339
Vehicle specification needs to be written with CONSUL
T because it is not written after replacing BCM.
Configuration has three functions as follows.
NOTE:
Manual setting item: Items which need selection by vehicle specifications
Automatic setting item: Items which are written in automatically (Setting can not be changed)
For some models and specifications, the automatic setting item may not be displayed.
CAUTION:
When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so,
BCM control function do es not operate normally.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• Configuration is different for each vehicle model. Confirm conf iguration of each vehicle model.
• Never perform “WRITE CONFIGURATION” except for new BCM.
• If you set incorrect “WRITE CONF IGURATION”, incidents might occur.
Work ProcedureINFOID:0000000012432340
1.WRITING MODE SELECTION
CONSULT Configuration
Select “CONFIGURATION” of “BCM”.
When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.
2.PERFORM “WRITE CONFIGURATION - CONFIG FILE”
CONSULT Configuration
Perform “WRITE CONFIGURATION - Config file”.
>> WORK END
3.PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”
CONSULT Configuration
1. Select "WRITE CONFIGURATION - Manual selection".
2. Identify the correct model and configuration list. Refer to BCS-60, "
Configuration List".
3. Confirm and/or change setting value for each item.
CAUTION:
Thoroughly read and understand the vehicle speci fication. ECU control may not operate normally
if the setting is not correct.
NOTE:
If items are not displayed, touch “SETTING”. Refer to BCS-60, "
Configuration List" for written items and
setting value.
4. Select "SETTING". CAUTION:
Make sure to select “SETTING” even if the indicated configuration of brand new BCM is same as
the desirable configuration. If not, configurat ion which is set automatically by selecting vehicle
model can not be memorized.
5. When "COMMAND FINISHED", select "END".
Function Description
READ CONFIGURATION • Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.
WRITE CONFIGURATION - Manual selection Writes the vehicle configuration with manual selection.
WRITE CONFIGURATION - Config file Writes the vehicle configuration with saved data.
Revision: August 2015 2016 Versa Note

cardiagn.com
