NISSAN NOTE 2016 Service Repair Manual EXT-10
< SYSTEM DESCRIPTION >
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
ACTIVE GRILLE SHUTTER SYSTEM
ACTIVE GRILLE SHUTTER SYSTEM : Component Parts LocationINFOID:0000000012432157
For the eng

Page 1778 of 3641

NISSAN NOTE 2016 Service Repair Manual SYSTEMEXT-11
< SYSTEM DESCRIPTION >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
SYSTEM
ACTIVE GRILLE SHUTTER SYSTEM
ACTIVE GRILLE SHUTTER SYSTEM : System DiagramINFOID:0000000012432159
ACTIVE GRILLE SHUTTER SYS

Page 1779 of 3641

NISSAN NOTE 2016 Service Repair Manual EXT-12
< SYSTEM DESCRIPTION >
SYSTEM
While driving at high speed, ECM operates the shutter to open position when the vehicle reaches the specified
speed in order to prevent the shutte r from shutting

Page 1780 of 3641

NISSAN NOTE 2016 Service Repair Manual ACTIVE GRILLE SHUTTEREXT-13
< WIRING DIAGRAM >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
WIRING DIAGRAM
ACTIVE GRILLE SHUTTER

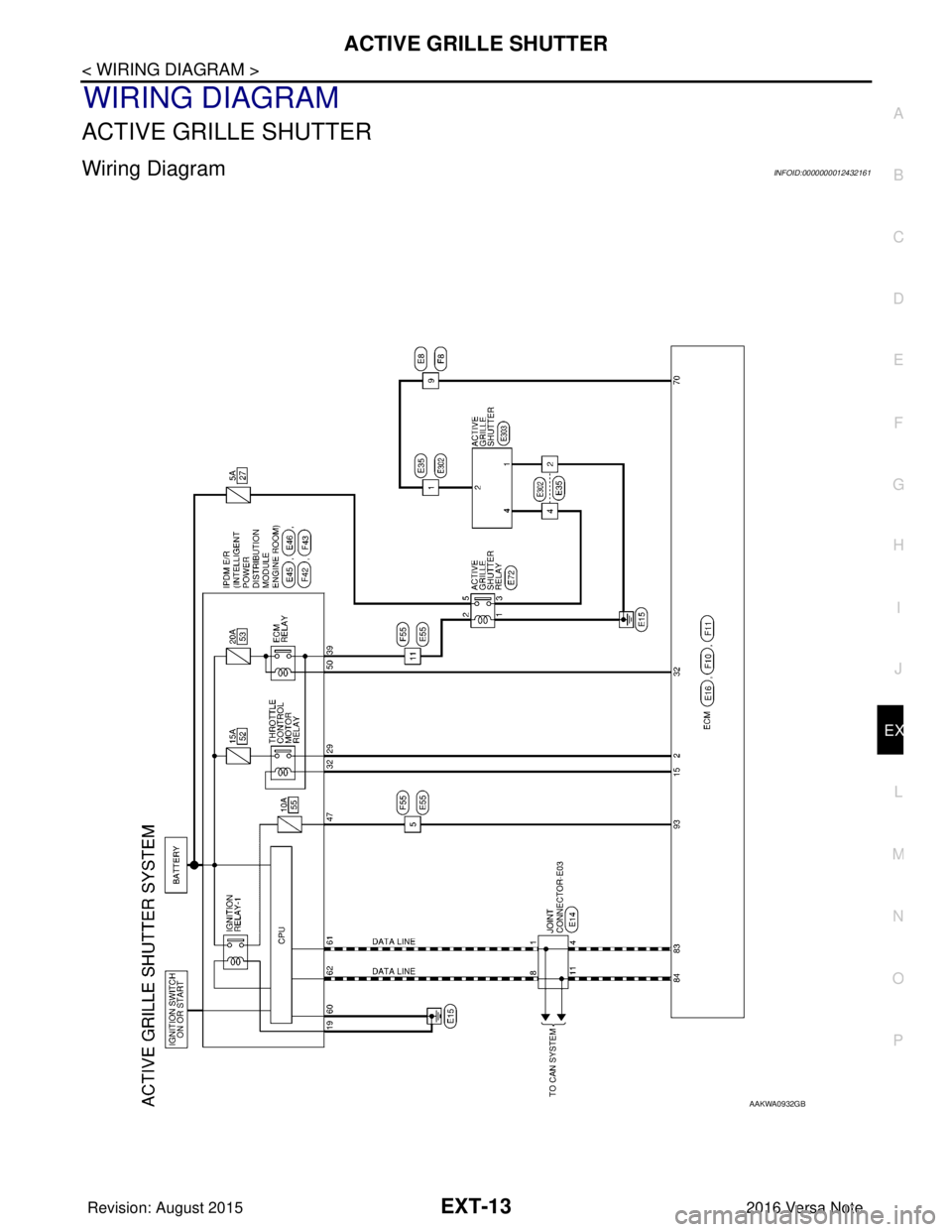

Wiring DiagramINFOID:0000000012432161
AAKWA0932GB
Revision: August 2015 2016 Versa

Page 1781 of 3641

NISSAN NOTE 2016 Service Repair Manual EXT-14
< WIRING DIAGRAM >
ACTIVE GRILLE SHUTTER

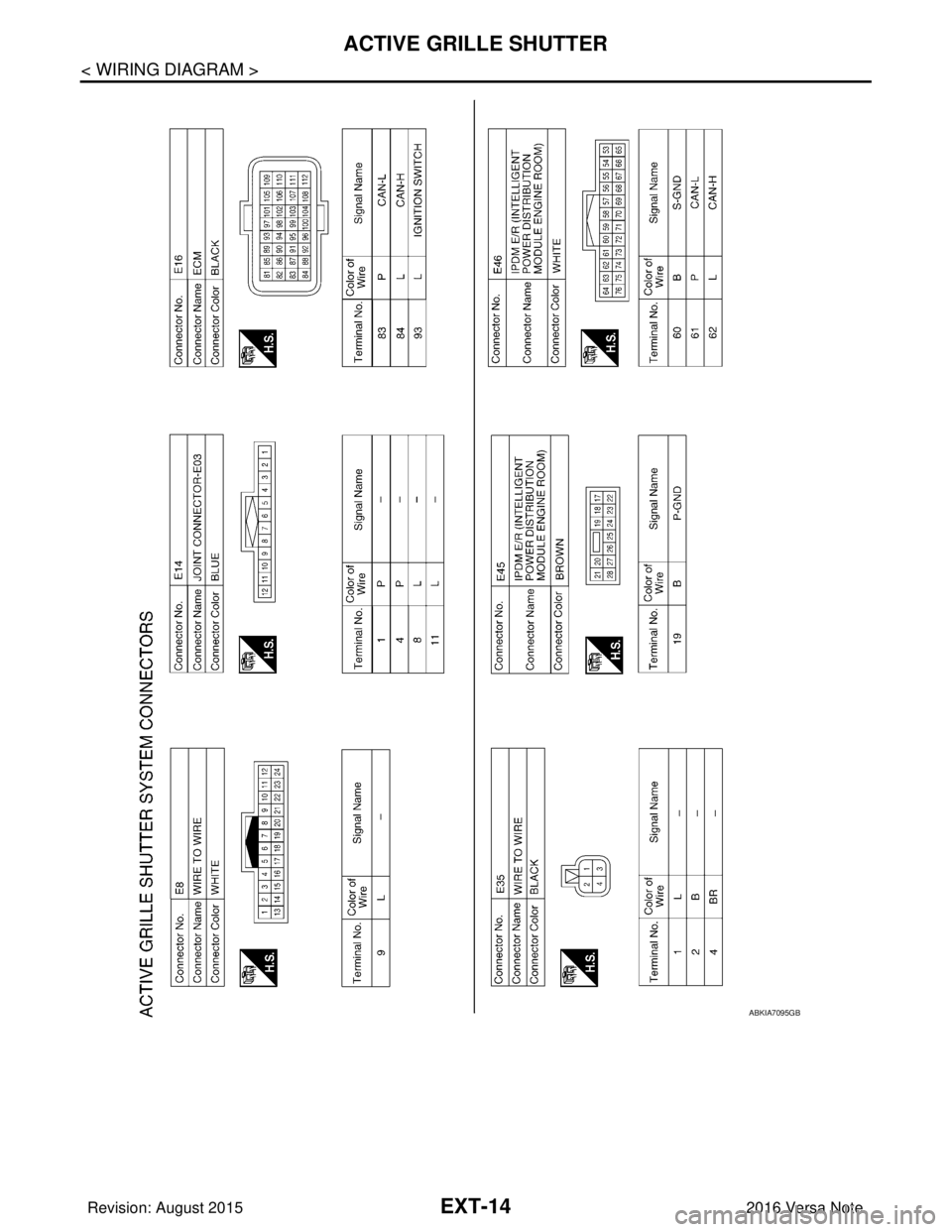

ABKIA7095GB
Revision: August 20152016 Versa Note

cardiagn.com

Page 1782 of 3641

NISSAN NOTE 2016 Service Repair Manual ACTIVE GRILLE SHUTTEREXT-15
< WIRING DIAGRAM >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P

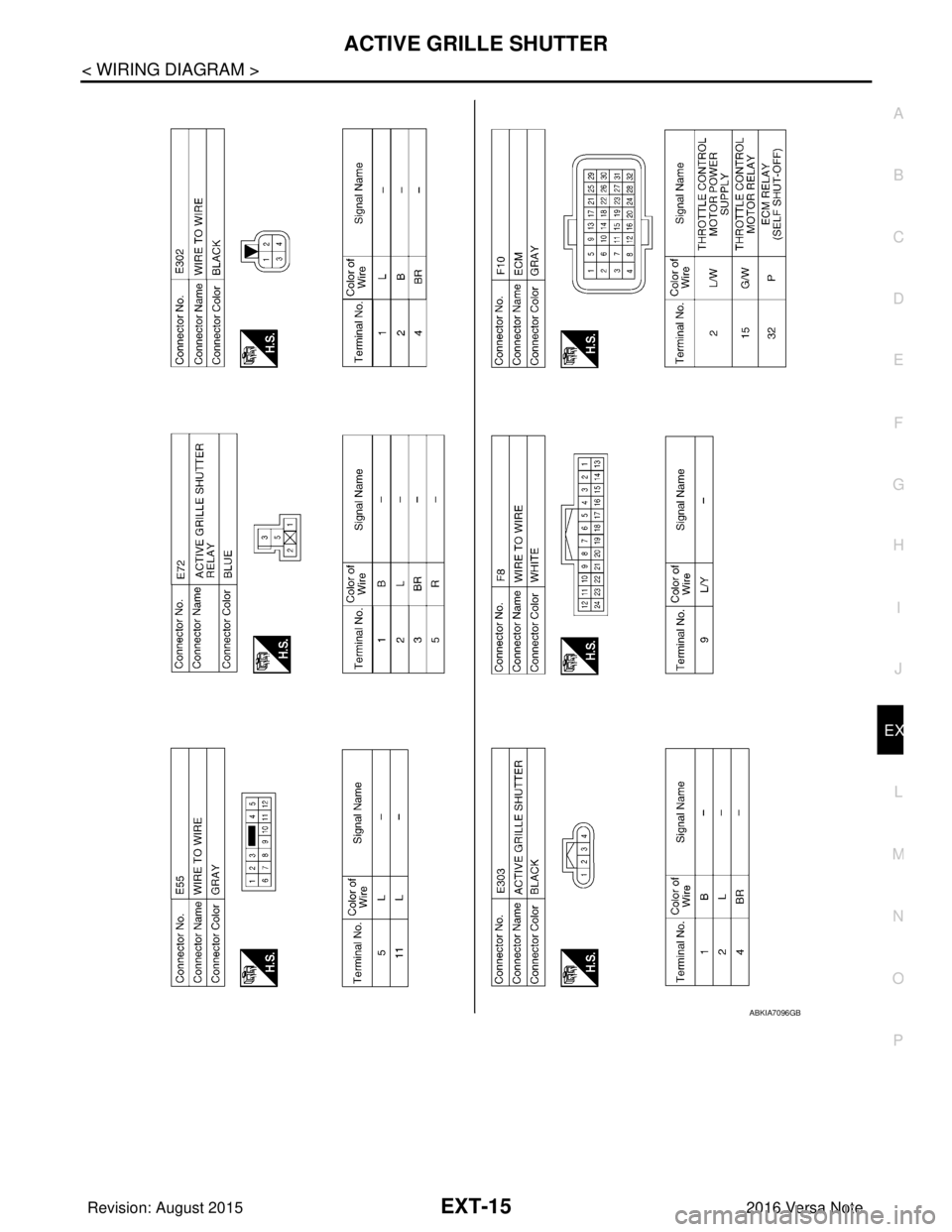

ABKIA7096GB
Revision: August 2015 2016 Versa Note

cardiagn.com

Page 1783 of 3641

NISSAN NOTE 2016 Service Repair Manual EXT-16
< WIRING DIAGRAM >

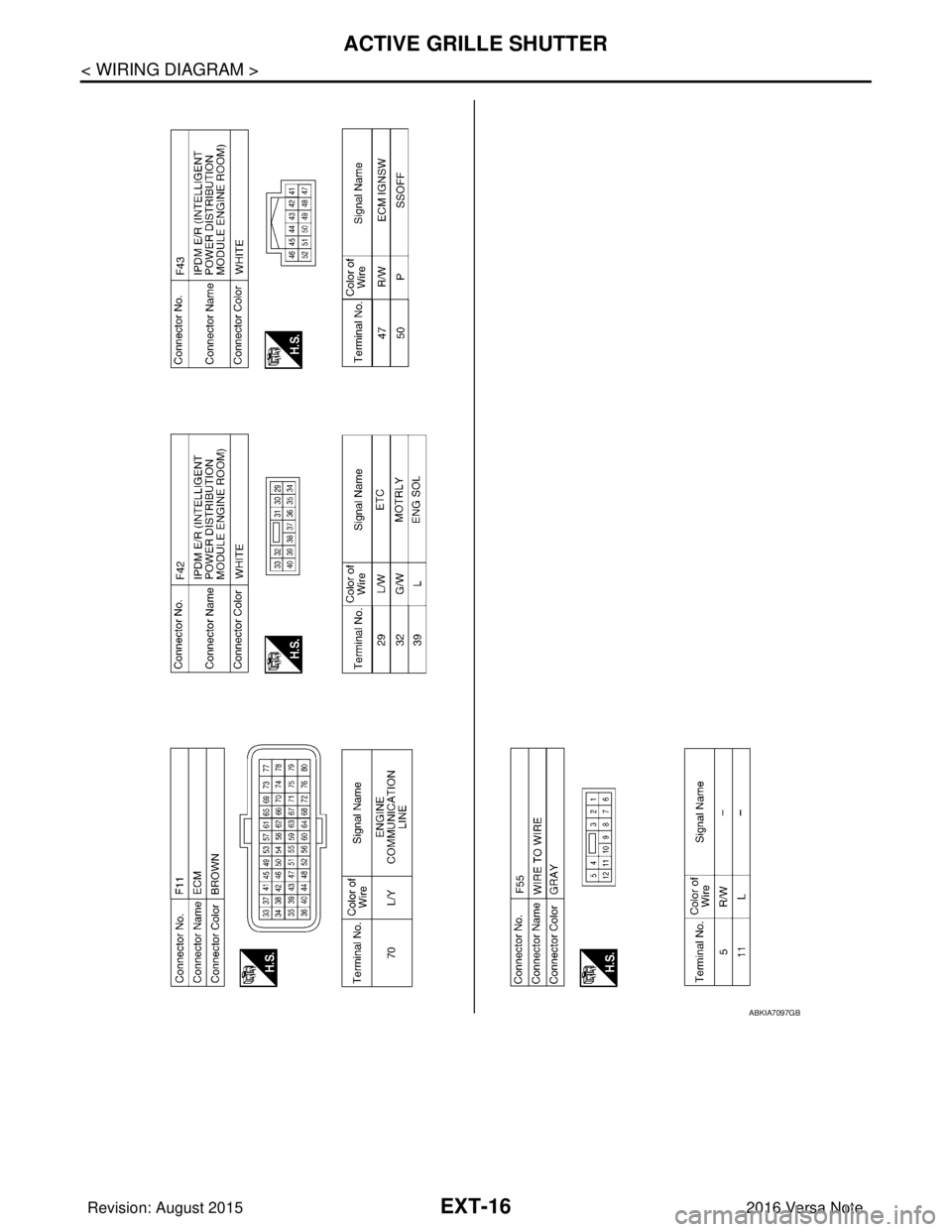

ACTIVE GRILLE SHUTTER
ABKIA7097GB
Revision: August 20152016 Versa Note

cardiagn.com

Page 1784 of 3641

NISSAN NOTE 2016 Service Repair Manual SQUEAK AND RATTLE TROUBLE DIAGNOSESEXT-17
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
SYMPTOM DIAGNOSIS
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Work FlowINFOID:0000000012432162
CUSTOMER INTERVI

SQUEAK AND RATTLE TROUBLE DIAGNOSESEXT-17
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
J
L
M A
B
EXT
N
O P
SYMPTOM DIAGNOSIS
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Work FlowINFOID:0000000012432162
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interv iew to document the facts and conditions when the noise occurs and any
customer's comments; refer to EXT-21, "
Diagnostic Worksheet". This information is necessary to duplicate the
conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed descr iption or the location of the noise. Attempt to obtain
all the facts and conditions that exist when the noise occurs (or does not occur).
• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is
concerned about. This can be accomplished by test driving the vehicle with the customer.
• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.
• Squeak —(Like tennis shoes on a clean floor) Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.
• Creak—(Like walking on an old wooden floor) Creak characteristics include firm contact/slow mo vement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.
• Rattle—(Like shaking a baby rattle) Rattle characteristics include the fast repeated contac t/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.
• Knock —(Like a knock on a door) Knock characteristics include hollow sounding/someti mes repeating/often brought on by driver action.
• Tick—(Like a clock second hand) Tick characteristics include gentle contacting of li ght materials/loose components/can be caused by driver
action or road conditions.
• Thump—(Heavy, muffled knock noise)
Thump characteristics include softer k nock/dead sound often brought on by activity.
• Buzz—(Like a bumble bee) Buzz characteristics include high frequency rattle/firm contact.
• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge as acceptable may be very irritating to the customer.
• Weather conditions, especially humidity and temperature, may have a great effect on noise level.
DUPLICATE THE NOISE AND TEST DRIVE
SBT842
Revision: August 2015 2016 Versa Note

cardiagn.com
