Page 3041 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-24 < ECU DIAGNOSIS INFORMATION > DIAGNOSIS SENSOR UNIT Flashes (Primary) Flash Length (seconds) Flashes (Secondary) Malfunctioning Component or Circuit Reference 23 1 Crash zone sensor SRC-63, " D

Page 3042 of 3641

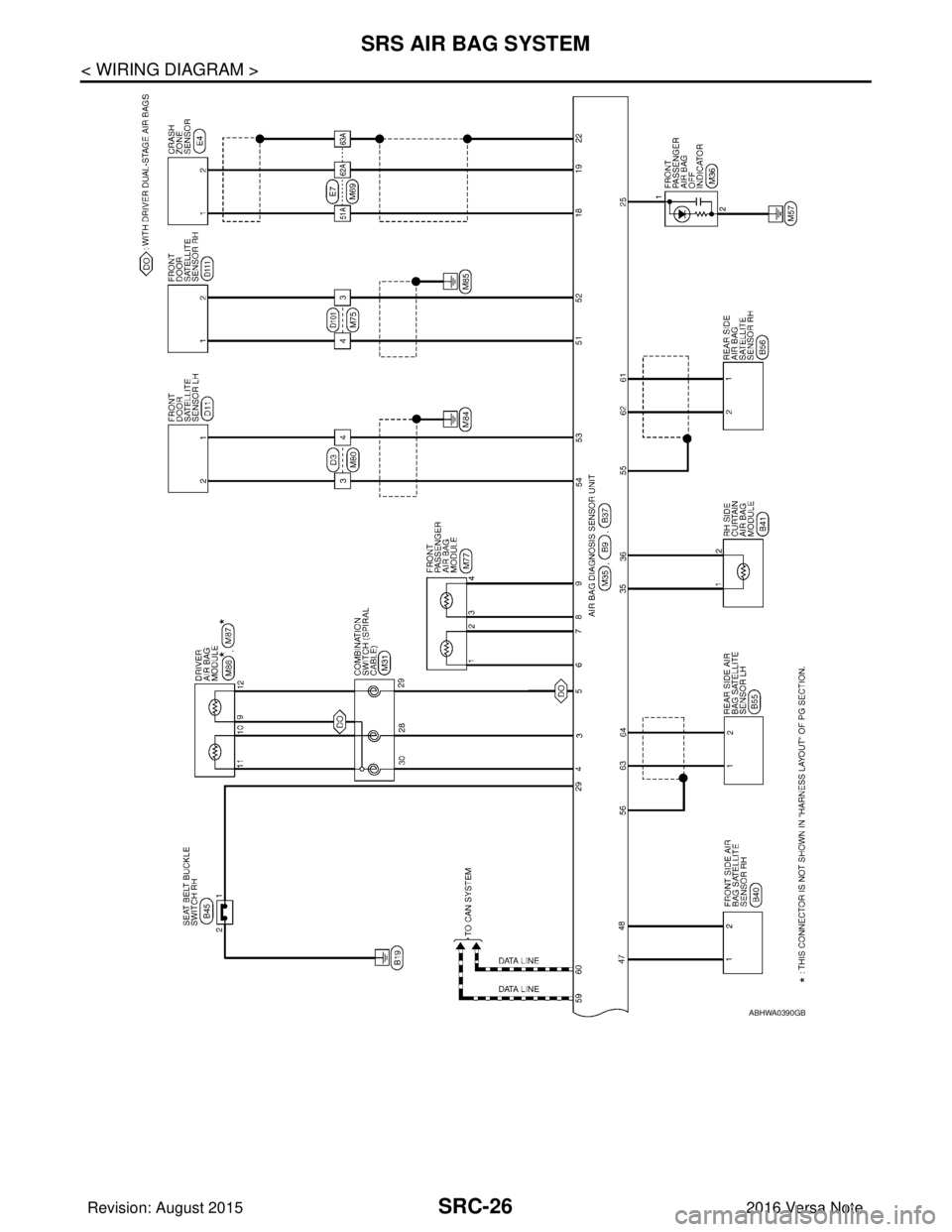

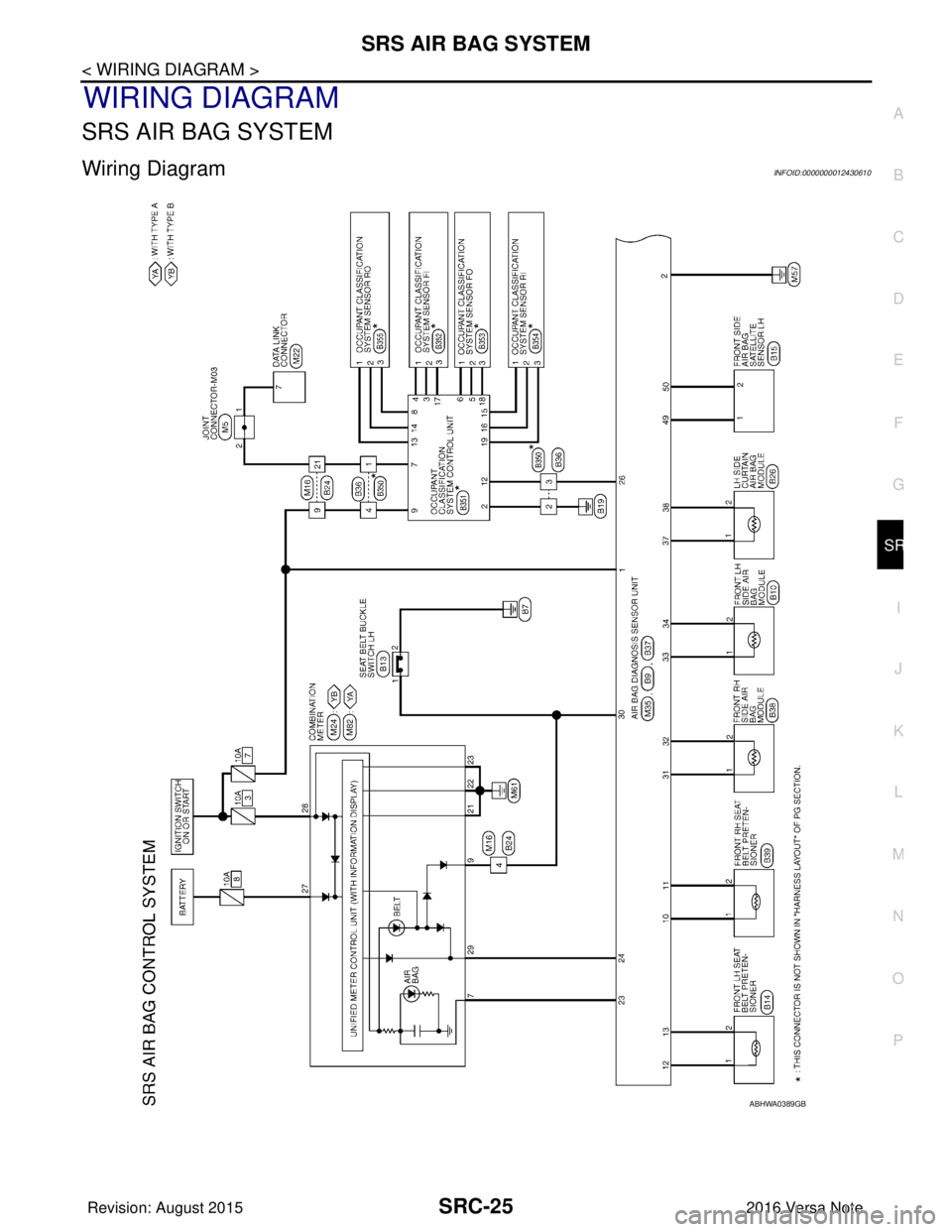

NISSAN NOTE 2016 Service Repair Manual SRS AIR BAG SYSTEMSRC-25 < WIRING DIAGRAM > C DE F G I J K L M A B SRC N O P WIRING DIAGRAM SRS AIR BAG SYSTEM Wiring DiagramINFOID:0000000012430610 ABHWA0389GB Revision: August 2015 2016 Versa Note

Page 3043 of 3641

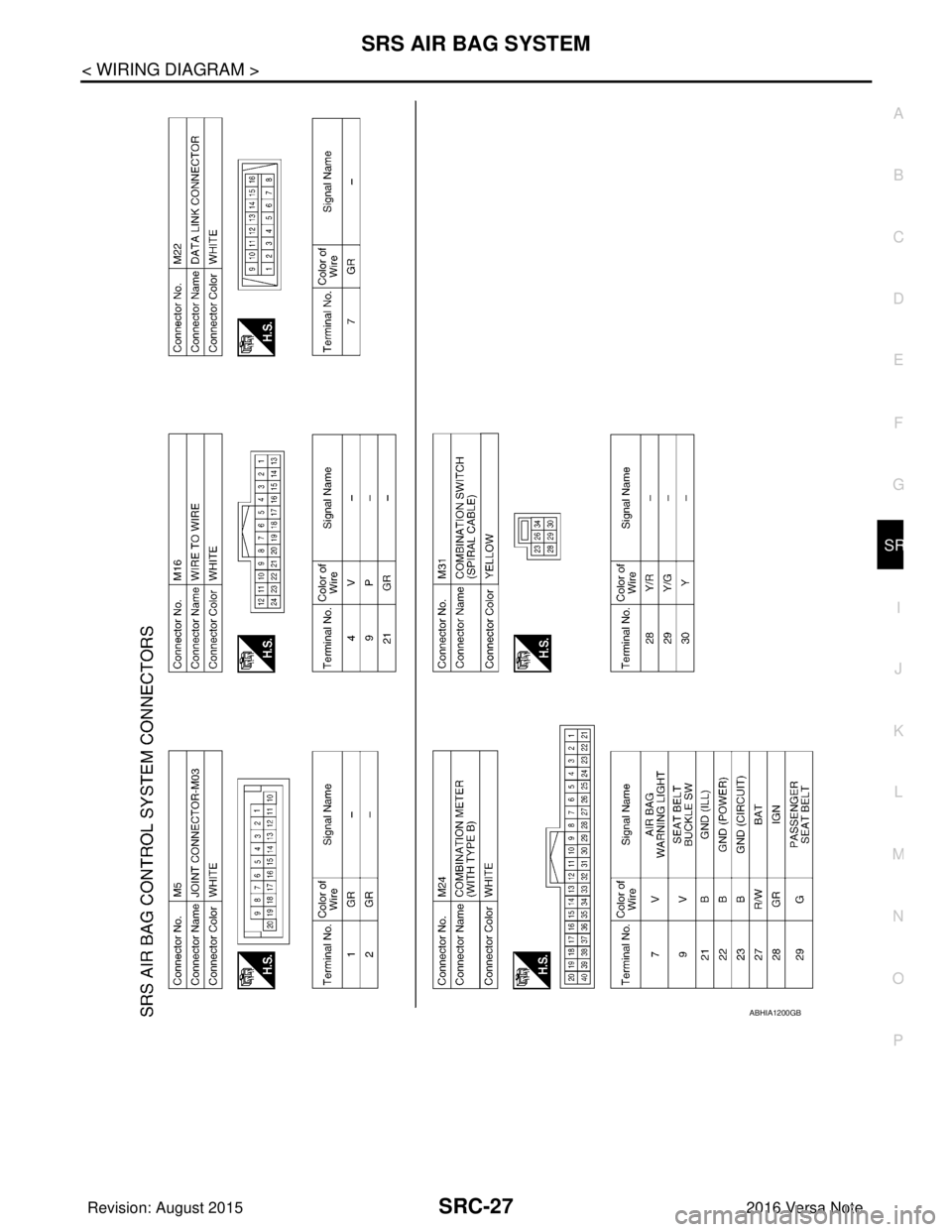

NISSAN NOTE 2016 Service Repair Manual SRC-26 < WIRING DIAGRAM > SRS AIR BAG SYSTEM ABHWA0390GB Revision: August 20152016 Versa Note cardiagn.com

Page 3044 of 3641

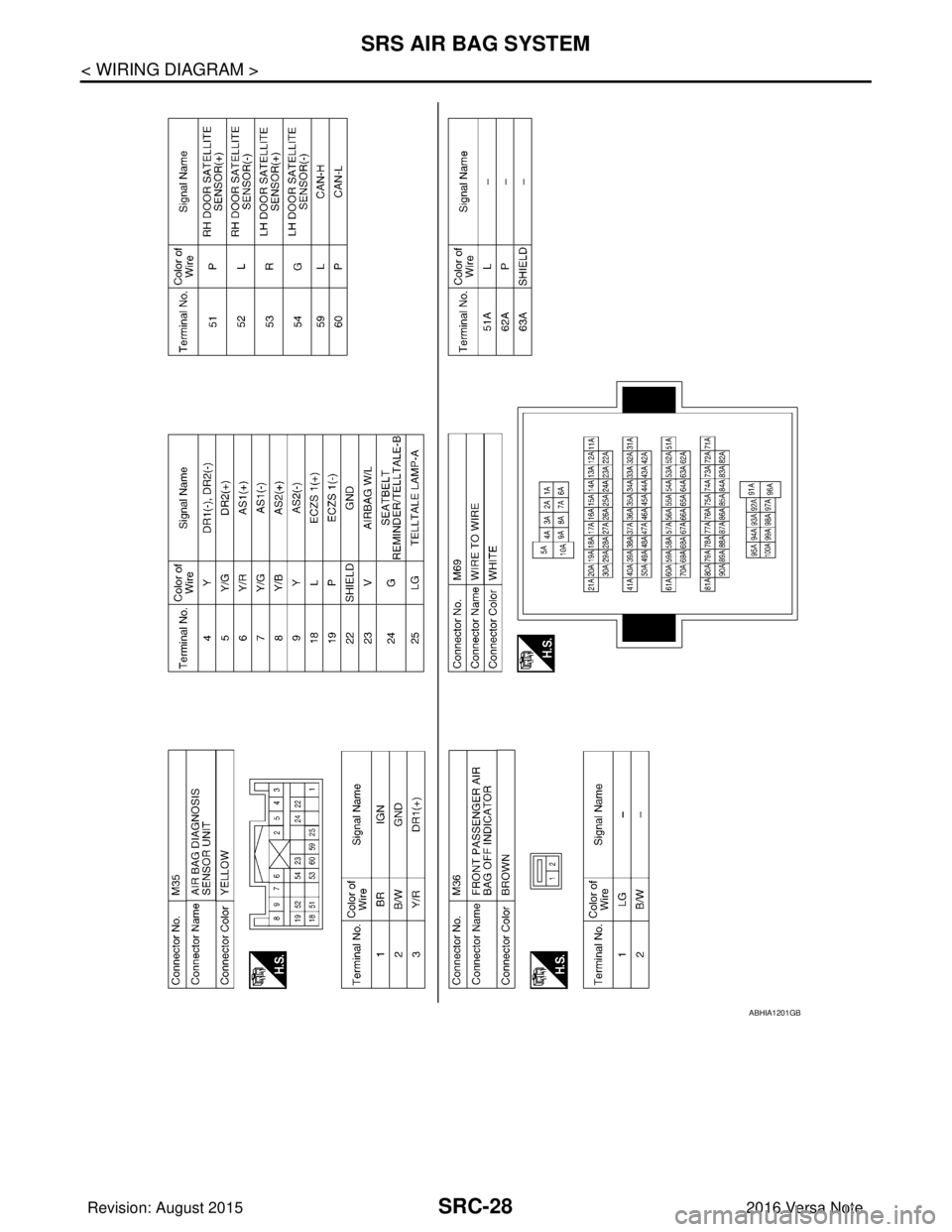

NISSAN NOTE 2016 Service Repair Manual SRS AIR BAG SYSTEMSRC-27 < WIRING DIAGRAM > C DE F G I J K L M A B SRC N O P ABHIA1200GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 3045 of 3641

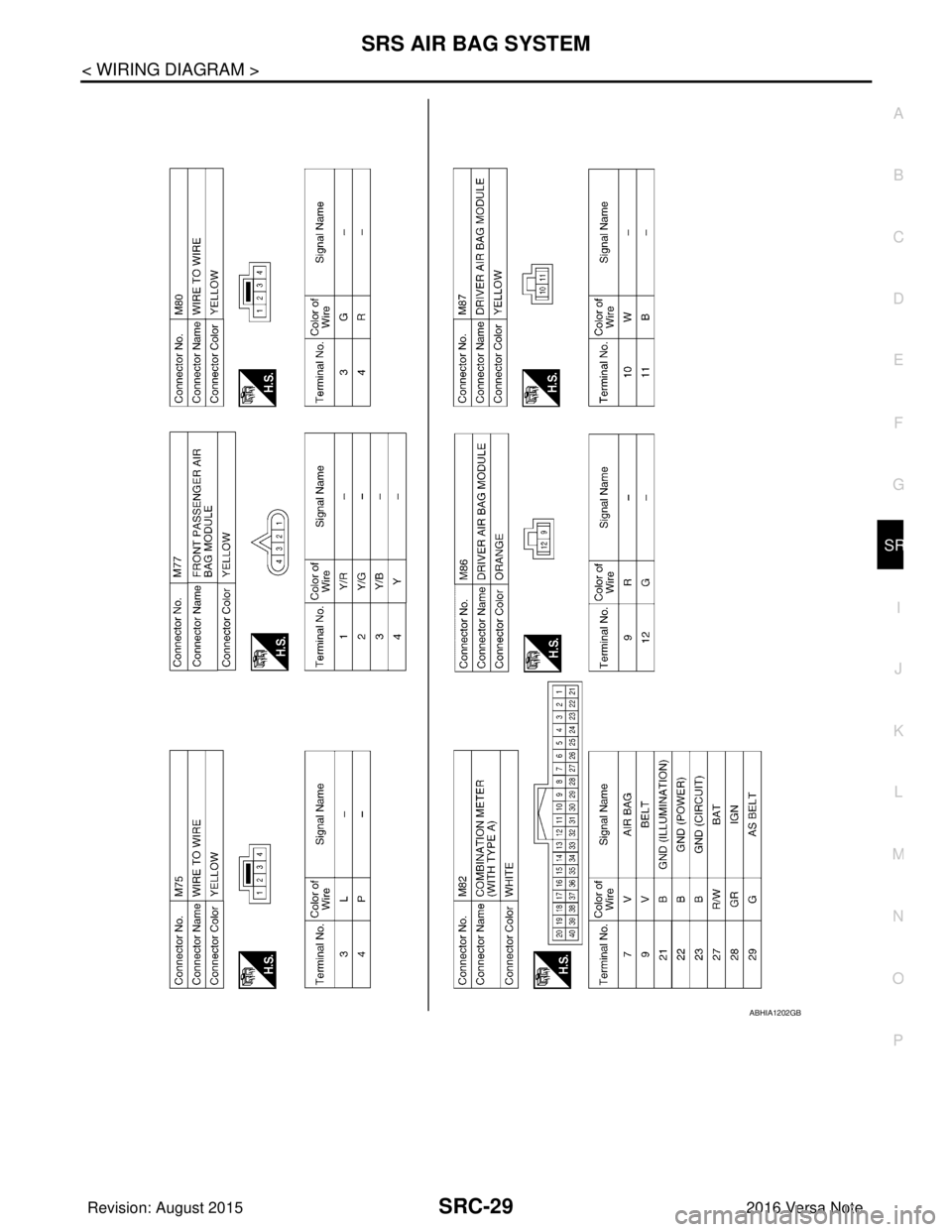

NISSAN NOTE 2016 Service Repair Manual SRC-28 < WIRING DIAGRAM > SRS AIR BAG SYSTEM ABHIA1201GB Revision: August 20152016 Versa Note cardiagn.com

Page 3046 of 3641

NISSAN NOTE 2016 Service Repair Manual SRS AIR BAG SYSTEMSRC-29 < WIRING DIAGRAM > C DE F G I J K L M A B SRC N O P ABHIA1202GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 3047 of 3641

NISSAN NOTE 2016 Service Repair Manual SRC-30 < WIRING DIAGRAM > SRS AIR BAG SYSTEM ABHIA1203GB Revision: August 20152016 Versa Note cardiagn.com

Page 3048 of 3641

NISSAN NOTE 2016 Service Repair Manual SRS AIR BAG SYSTEMSRC-31 < WIRING DIAGRAM > C DE F G I J K L M A B SRC N O P ABHIA1204GB Revision: August 2015 2016 Versa Note cardiagn.com
